5407-2. Steps to take in an emergency
After stopping the hybrid system and waiting for 5 minutes or
more, start the hybrid system again and check for the multi-infor-
mation display.
If the message d oes not disappear:
Stop the hybrid system and contact your Toyota dealer.
If the message is not displayed:
The hybrid system temperature has dropped and the vehicle
may be driven normally.
However, if the message appears again frequently, contact your Toyota
dealer.
WARNING
■ To prevent an accident or injury when inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the ho od until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the “READY” indi-
cator is off. When the hybrid system is operating, the gasoline engine may
automatically start, or the cooling fan may suddenly operate even if the
gasoline engine stops. Do not touch or approach rotating parts such as the
fan, which may lead to fingers or clothing (especially a tie, a scarf or a muf-
fler) getting caught, resulting in serious injury.
● Do not loosen the radiator cap and the coolant reservoir cap while the
hybrid system and radiator are hot.
High temperature steam or coolant could spray out.
NOTICE
■When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power
control unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid sys-
tem too quickly can cause damage to the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sa nd or dust
etc.).
● Do not use any coolant additives.
6

5468-1. Specifications
*: Checking your vehicle’s model: P. 545
Engine
ModelA25A-FXS
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.44  4.07 in. (87.5  103.4 mm)
Displacement 151.8 cu. in. (2487 cm3)
Valve clearance Automatic adjustment
Fuel
Fuel type Unleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)13 gal. (49.3 L, 10.8 Imp. gal.)
Electric motor (Traction motor)
Type
Permanent magnet synchronous motor
Maximum output 88 kW
Maximum torque 149 ft•lbf (202 N•m, 20.6 kgf•m)
Hybrid battery (Traction battery)
AXVH70 model*AXVH71 models*
TypeLithium-ion battery Nickel-metal hydride bat-
tery
Voltage
3.7 V/cell 7.2 V/module
Capacity4.0 Ah 6.5 Ah (3HR)
Quantity70 cells 34 modules
Nominal voltage 259 V 244.8 V

5478-1. Specifications
8

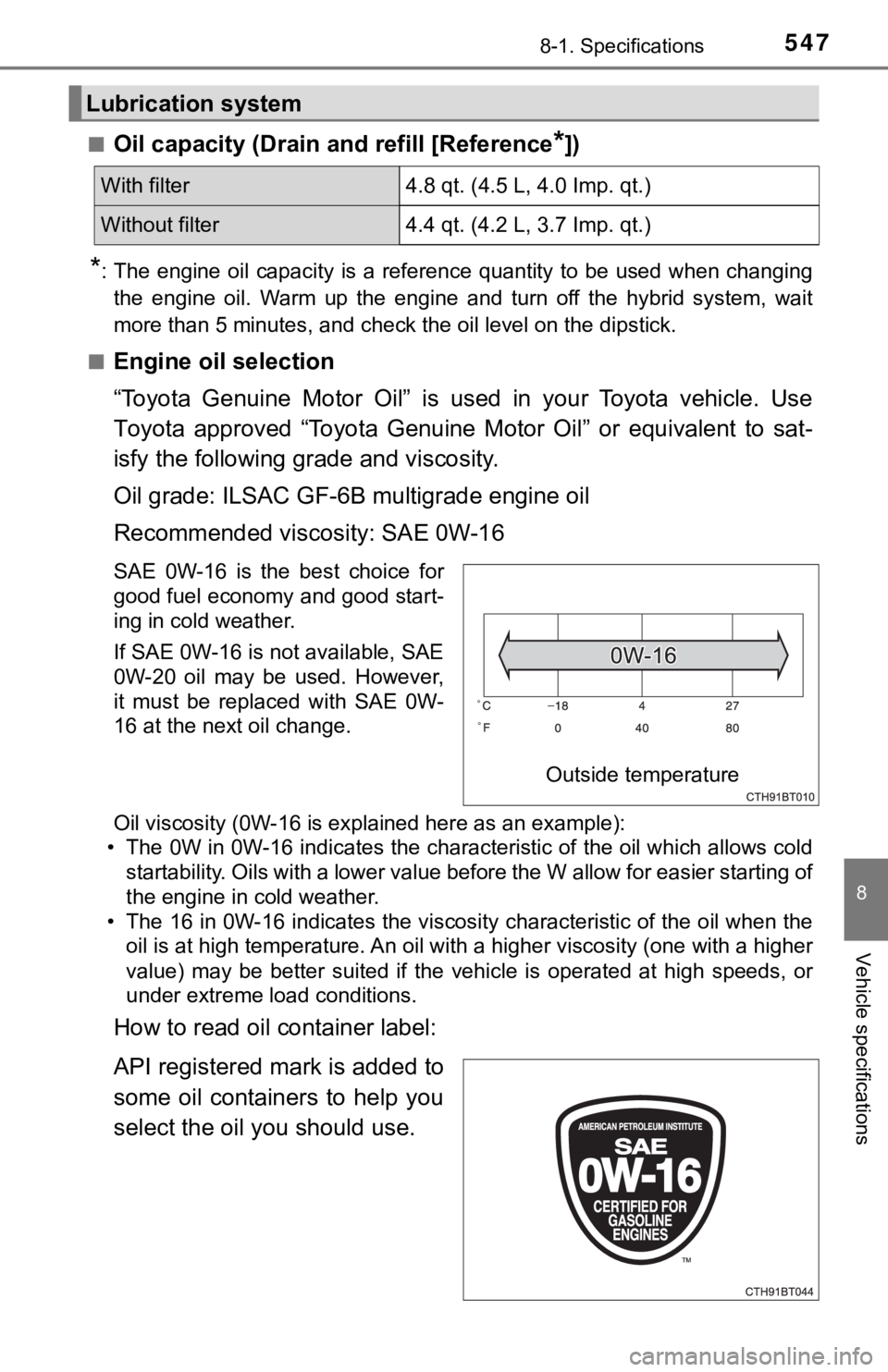

Vehicle specifications
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat -
isfy the following grade and viscosity.
Oil grade: ILSAC GF-6B multigrade engine oil
Recommended viscosity: SAE 0W-16
SAE 0W-16 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-16 is not available, SAE
0W-20 oil may be used. However,
it must be replaced with SAE 0W-
16 at the next oil change.
Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for ea sier starting of
the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
API registered mark is added to
some oil containers to help you
select the oil you should use.
Lubrication system
With filter 4.8 qt. (4.5 L, 4.0 Imp. qt.)
Without filter4.4 qt. (4.2 L, 3.7 Imp. qt.)
Outside temperature

602Alphabetical index
Engine coolantCapacity ................................ 548
Checking ............................... 436
Preparing and checking before winter....................... 360
Engine coolant temperature gauge...................................... 100
Engine oil Capacity ................................ 547
Checking ............................... 433
Preparing and checking before winter....................... 360
Engine switch .......................... 206
Enhanced VSC ......................... 303
EPS (Electric Power Steering)...... 304
Warning light ......................... 499
EV drive mode.......................... 213
Event data recorder (EDR) .......... 9
Exclusive jump starting terminal .................................. 530
Flat tire...................................... 513
Floor mats .................................. 24
Fluid Brake .................................... 549
Hybrid transmission .............. 549
Washer ................................. 439
Front interior light ................... 379
Front passenger occupant classification system .............. 47
Front passenger’s seat belt reminder light ................. 500
Front personal lights ............... 380
Front seats ............................... 171 Adjustment ............................ 171
Cleaning................................ 416
Correct driving posture ........... 26
Head restraints ..................... 175
Seat heaters ......................... 375
Seat ventilators ..................... 375 Front side marker lights
Light switch ........................... 230
Replacing light bulbs .... 478, 486
Wattage ................................ 552
Front turn signal lights Replacing light bulbs .... 477, 486
Turn signal lever ................... 222
Wattage ................................ 552
Fuel Capacity................................ 546
Fuel gauge............................ 100
Information............................ 553
Refueling .............................. 242
Type.............................. 546, 553
Warning light......................... 500
Fuel consumption ................... 145
Fuel filler door ......................... 242
Refueling .............................. 242
When the fuel filler door cannot be opened .............. 245
Fuses ........................................ 473
Garage door opener ................ 403
Gauges ..................................... 100
Glove box ................................. 382
Grocery bag hooks.................. 387
Hands-free system (for cellular phone)
*
Head restraints ........................ 175
Head-up display....................... 136
Headlights ................................ 230
Automatic headlight leveling ............................... 233
Automatic High Beam ........... 234
Light switch ........................... 230
Replacing light bulbs ............ 486
Windshield wiper linked
headlight illumination.......... 233
