TOYOTA CELICA 2000 User Guide

Celica_U
102000 CELICA (OM20735U)
CAUTION
Before driving, be sure that the side
doors are closed and locked, espe-
cially when small children are in the
vehicle. Along with the proper use of
seat belts, locking the side doors
helps prevent the driver and passen-
gers from being thrown out from the
vehicle during an accident. It also
helps prevent the side doors from be-
ing opened unintentionally.
—Wireless remote control
Locking operation
Unlocking operation
Your vehicle has a wireless remote
control system that can lock or unlock
both side doors and back door, or
activate the theft deterrent system from
a distance within approximately 1 m (3
ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock both side doors and
back door, push the switches of the
transmitter slowly and securely.
To lock: Push the “LOCK” switch. Both
side doors and back door are locked si-
multaneously. At this time, parking lights,
side marker lights and tail lights flash.
Check to see that both side doors and
back door are securely locked.
If either side doors or back door is not
securely closed, or if the key is in the
ignition switch, locking cannot be per-
formed by the “LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks both side doors and back door
simultaneously. At this time, parking lights,
side marker lights and tail lights flash
twice.
ProCarManuals.com

Celica_U
112000 CELICA (OM20735U)
When both side doors and back door are
unlocked simultaneously with a wireless
remote control transmitter, the interior light
comes on for about 15 seconds and then
fades out, even if the door is not opened.
(For further information, see “Interior light”
in Section 1−4.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, both side
doors and back door will be automatically
locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
Push the “PANIC” switch once again.
Unlock either side door or back door
with the key or wireless remote control
transmitter.
Turn the ignition key from the “LOCK”
to “ACC” or “ON” position. The “PANIC” mode does not work when
the ignition key is in the “ACC” or “ON”
position.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
ProCarManuals.com

Celica_U
122000 CELICA (OM20735U)
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “REPLACING
TRANSMITTER BATTERY”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent.
REPLACING TRANSMITTER BATTERY
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
 During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
 When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
Replace the transmitter battery by the fol-
lowing procedures:
1. Using a coin or equivalent, open the
transmitter case.
ProCarManuals.com

Celica_U
132000 CELICA (OM20735U)
2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.
3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
 Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
 Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” in Section 4.)
ProCarManuals.com

Celica_U
142000 CELICA (OM20735U)
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
−Reorient or relocate the receiving an-
tenna.
− Increase the separation between the
equipment and receiver.
− Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
− Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
Power windows
The windows can be operated with the
switch on the center console.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both side doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either side door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s side of
the center console.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
ProCarManuals.com

Celica_U
152000 CELICA (OM20735U)

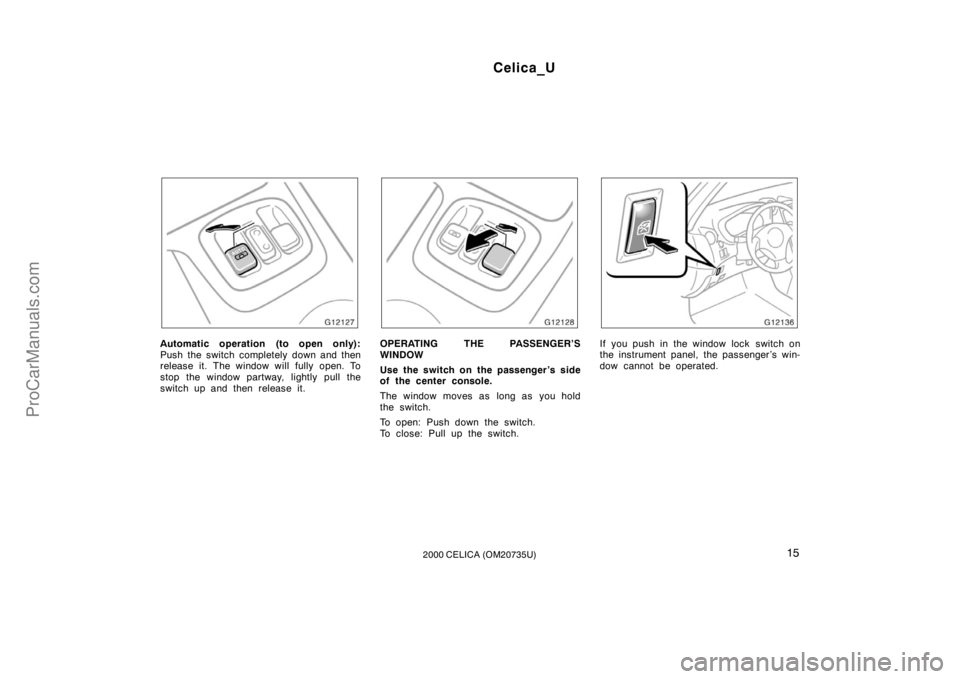

Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger ’s side
of the center console.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.If you push in the window lock switch on
the instrument panel, the passenger ’s win-
dow cannot be operated.
ProCarManuals.com

Celica_U
162000 CELICA (OM20735U)
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the head, hands
and other parts of the body of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.

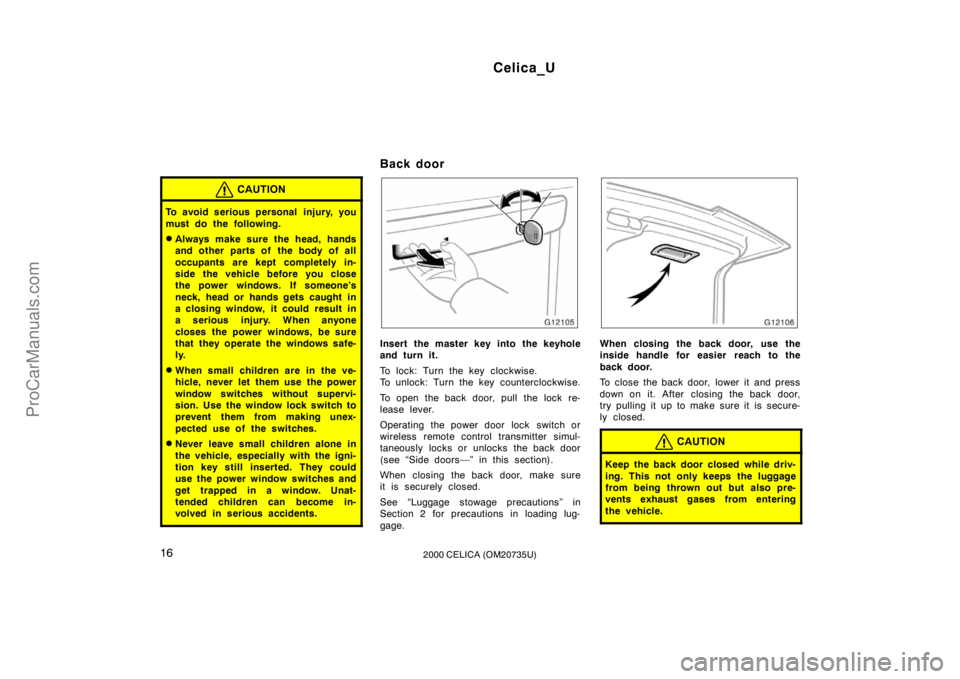

Back door
Insert the master key into the keyhole
and turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock re-
lease lever.
Operating the power door lock switch or
wireless remote control transmitter simul-
taneously locks or unlocks the back door
(see “Side doors—” in this section).
When closing the back door, make sure
it is securely closed.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.When closing the back door, use the
inside handle for easier reach to the
back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
ProCarManuals.com

Celica_U
172000 CELICA (OM20735U)

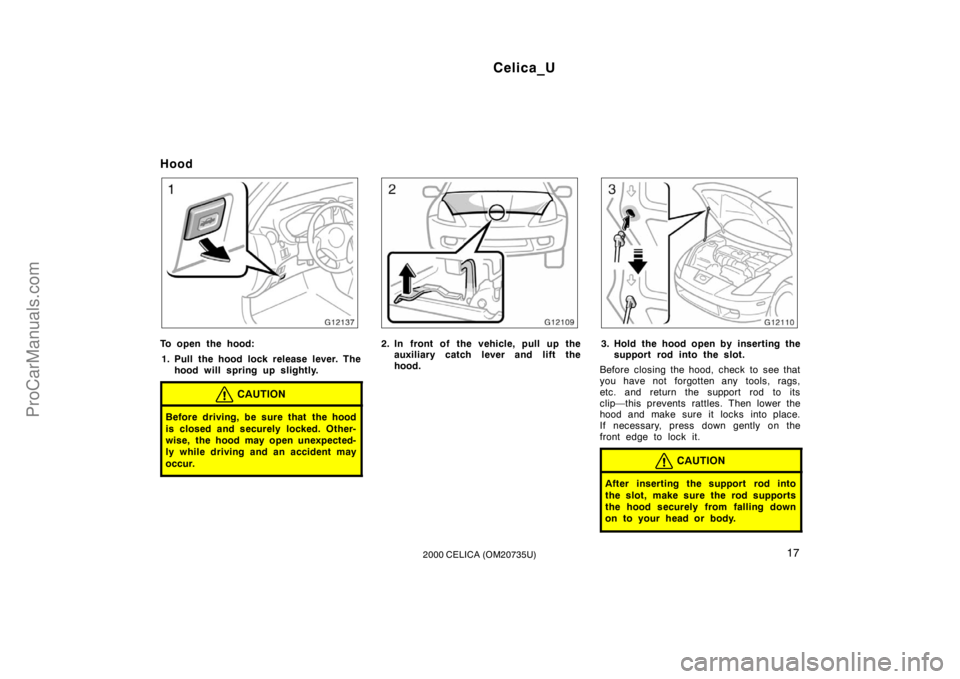

Hood
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.3. Hold the hood open by inserting the support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
ProCarManuals.com

Celica_U
182000 CELICA (OM20735U)
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.

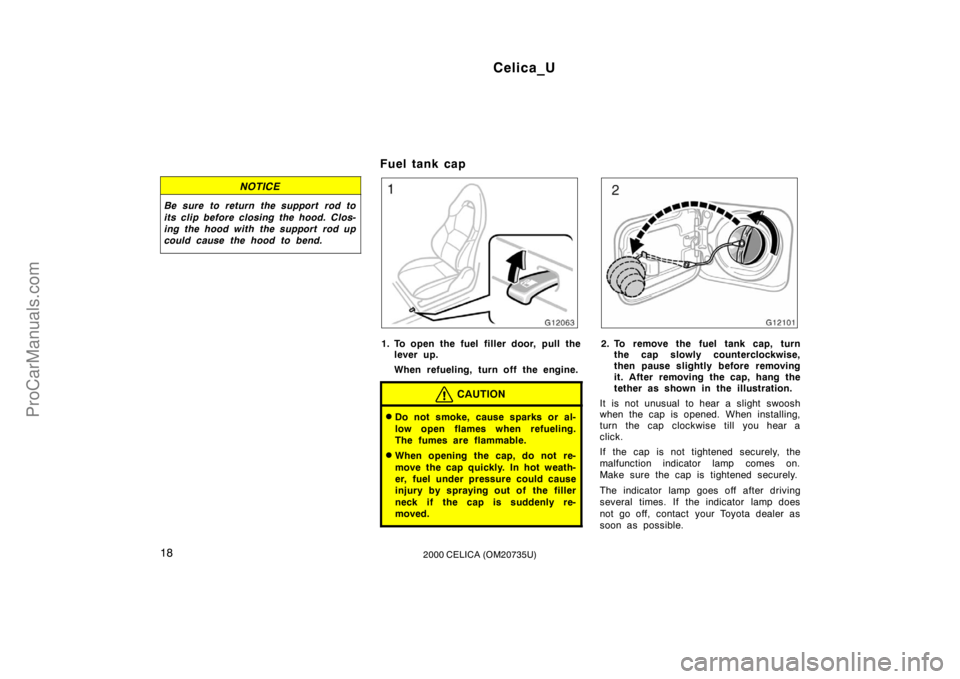

Fuel tank cap
1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang the
tether as shown in the illustration.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
ProCarManuals.com

Celica_U
192000 CELICA (OM20735U)

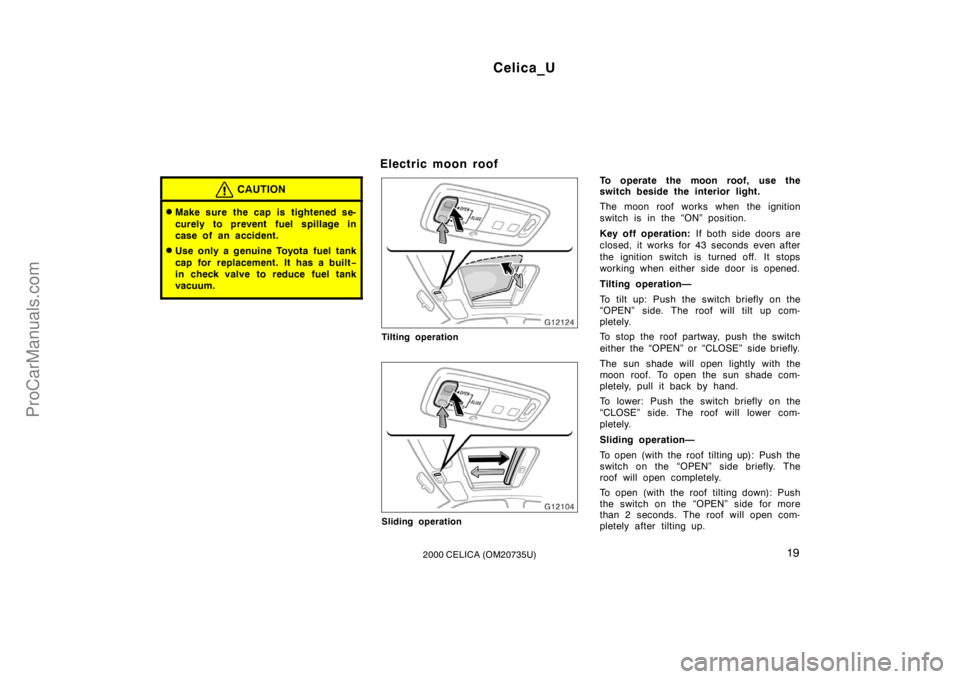

CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built −
in check valve to reduce fuel tank
vacuum.
Electric moon roof
Tilting operation
Sliding operation
To operate the moon roof, use the
switch beside the interior light.
The moon roof works when the ignition
switch is in the “ON” position.
Key off operation: If both side doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when either side door is opened.
Tilting operation—
To tilt up: Push the switch briefly on the
“OPEN” side. The roof will tilt up com-
pletely.
To stop the roof partway, push the switch
either the “OPEN” or “CLOSE” side briefly.
The sun shade will open lightly with the
moon roof. To open the sun shade com-
pletely, pull it back by hand.
To lower: Push the switch briefly on the
“CLOSE” side. The roof will lower com-
pletely.
Sliding operation—
To open (with the roof tilting up): Push the
switch on the “OPEN” side briefly. The
roof will open completely.
To open (with the roof tilting down): Push
the switch on the “OPEN” side for more
than 2 seconds. The roof will open com-
pletely after tilting up.
ProCarManuals.com
