CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A —1. Widen the slits of the seat cushion a little and confirm the position of
the lower anchorages near the tag
on the seat cushion.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B —
1. Widen the slits of the seat cushion a little and confirm the position of
the lower anchorages near the tag
on the seat cushion.
2. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this Section.)
For the installation details, refer to the
instruction manual equipped with each
product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages and
that the seat belt is not caught.
Push and pull the child restraint
system in different directions to
make sure it is secure. Follow all
the installation instructions pro-
vided by its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

’04MY CELICA U (L/O 0308)
64
2004 CELICA from Aug. ’03 Prod. (OM20823U)

’04MY CELICA U (L/O 0308)
65
2004 CELICA from Aug. ’03 Prod. (OM20823U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Outside rear view mirrors 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti −glare inside rear view mirror 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 4

’04MY CELICA U (L/O 0308)
66
2004 CELICA from Aug. ’03 Prod. (OM20823U)

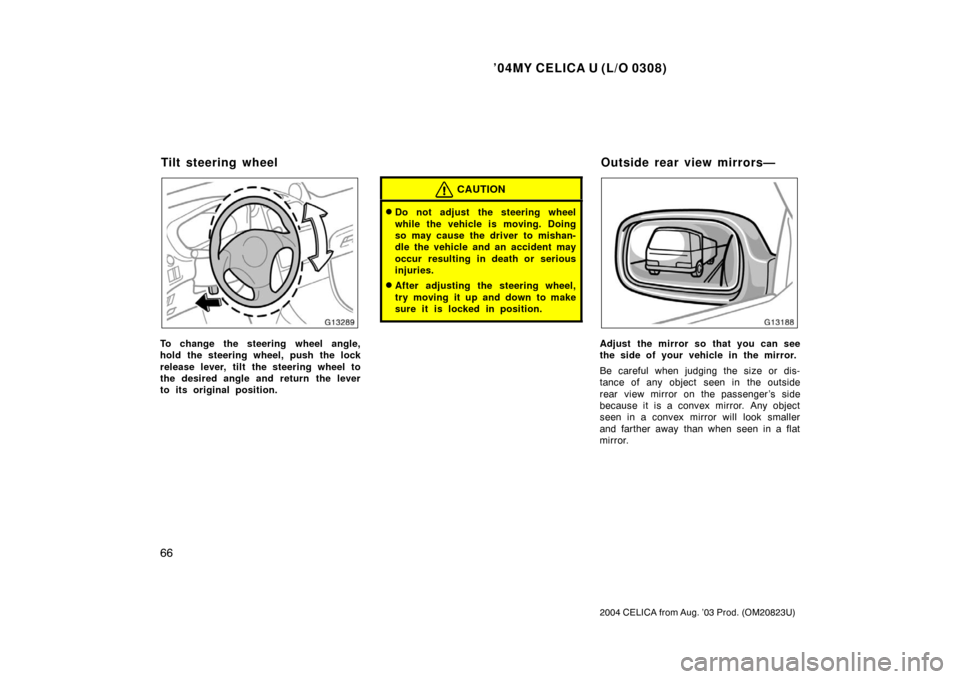

To change the steering wheel angle,
hold the steering wheel, push the lock
release lever, tilt the steering wheel to
the desired angle and return the lever
to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can see
the side of your vehicle in the mirror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
Tilt steering wheelOutside rear view mirrors—

’04MY CELICA U (L/O 0308)
67
2004 CELICA from Aug. ’03 Prod. (OM20823U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.

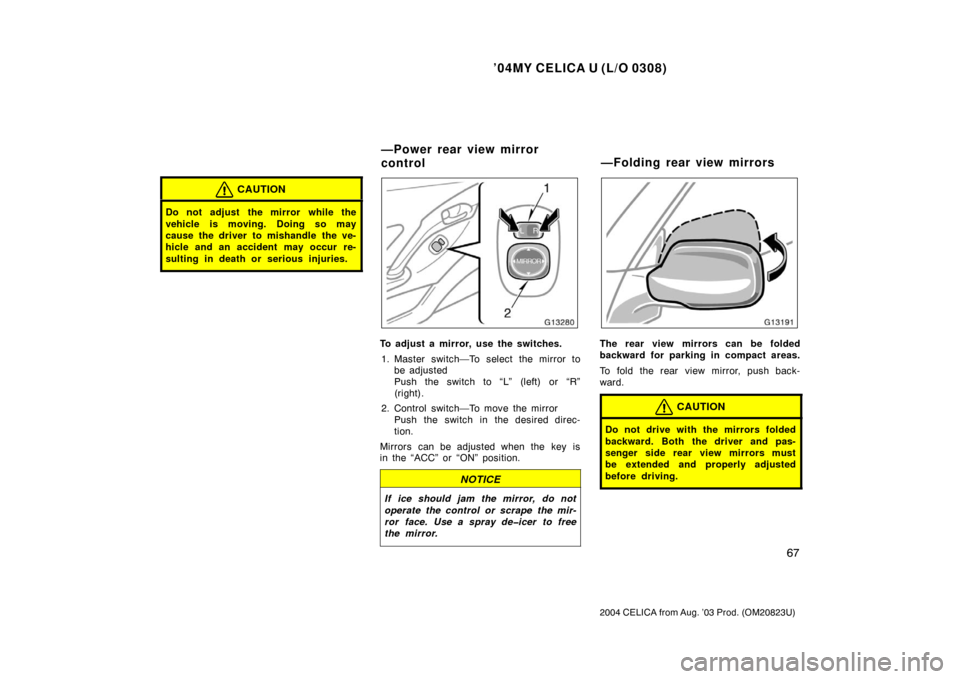

To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
—Power rear view mirror
control —Folding rear view mirrors

’04MY CELICA U (L/O 0308)
68
2004 CELICA from Aug. ’03 Prod. (OM20823U)
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
To use the vanity mirror, swing down
the sun visor and open the cover.
Antiglare inside rear view
mirrorVanity mirrors

’04MY CELICA U (L/O 0308)
69
2004 CELICA from Aug. ’03 Prod. (OM20823U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight beam level control 72
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior light 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Luggage compartment light 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1 5

’04MY CELICA U (L/O 0308)
70
2004 CELICA from Aug. ’03 Prod. (OM20823U)
Ty p e A
Ty p e B
HEADLIGHTS

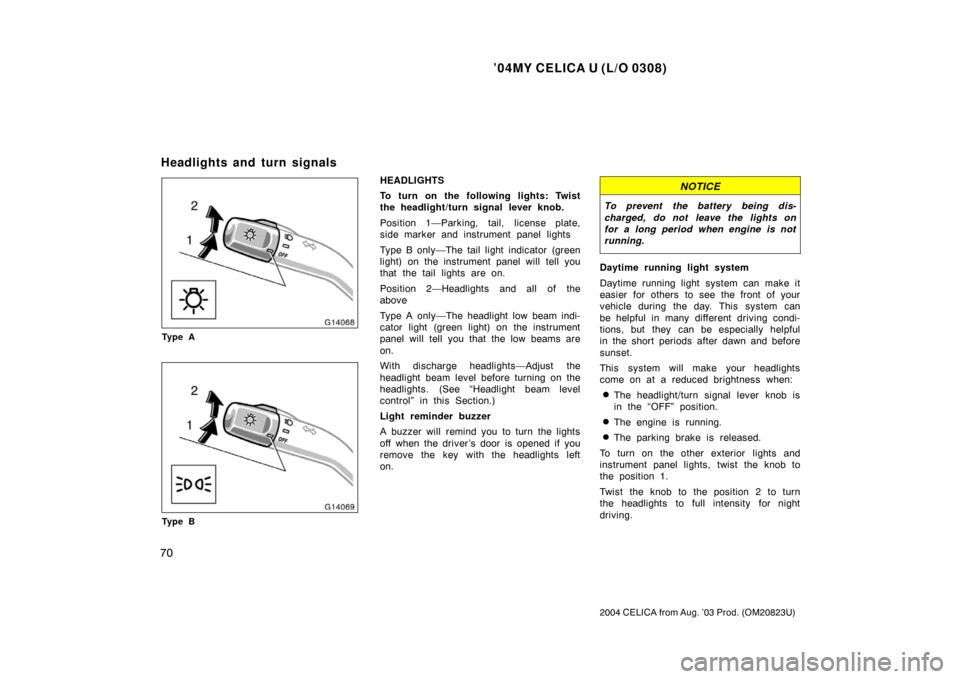

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Type B only—The tail light indicator (green
light) on the instrument panel will tell you
that the tail lights are on.
Position 2—Headlights and all of the
above
Type A only—The headlight low beam indi-
cator light (green light) on the instrument
panel will tell you that the low beams are
on.
With discharge headlights—Adjust the
headlight beam level before turning on the
headlights. (See “Headlight beam level
control” in this Section.)
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver ’s door is opened if you
remove the key with the headlights left
on.NOTICE
To prevent the battery being dis-
charged, do not leave the lights on
for a long period when engine is not
running.
Daytime running light system
Daytime running light system can make it
easier for others to see the front of your
vehicle during the day. This system can
be helpful in many different driving condi-
tions, but they can be especially helpful
in the short periods after dawn and before
sunset.
This system will make your headlights
come on at a reduced brightness when:
The headlight/turn signal lever knob is
in the “OFF” position.
The engine is running.
The parking brake is released.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for night
driving.
Headlights and turn signals

’04MY CELICA U (L/O 0308)
71
2004 CELICA from Aug. ’03 Prod. (OM20823U)
The headlights automatically switch to full
or reduced brightness depending on the
darkness of the surroundings when the
daytime running light system is activated.
Also, the other exterior lights and instru-
ment panel lights automatically turn on or
off.

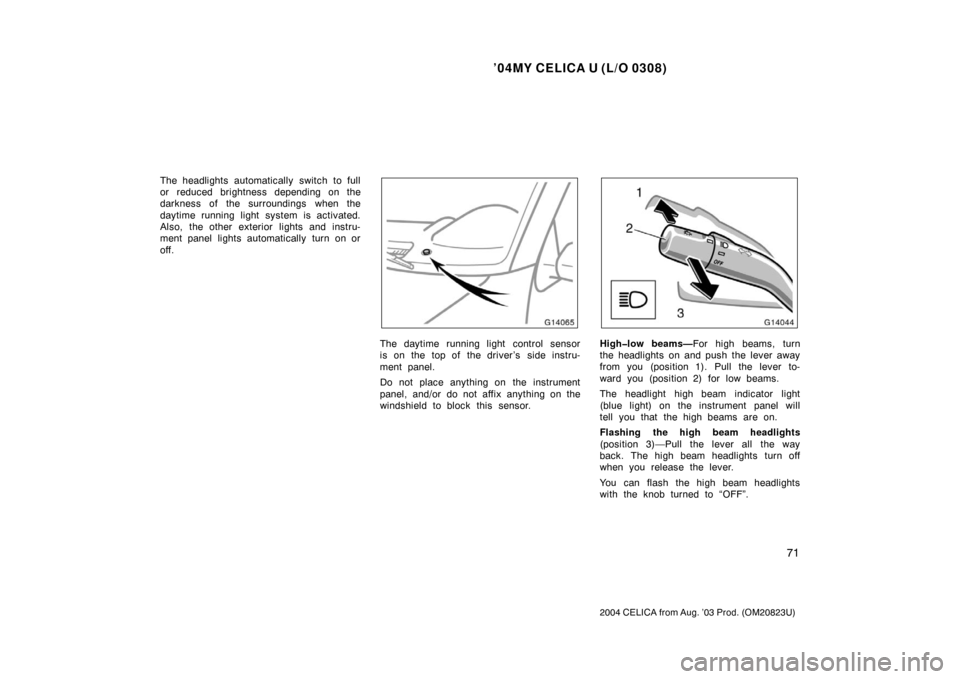

The daytime running light control sensor
is on the top of the driver’s side instru-
ment panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.Highlow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

’04MY CELICA U (L/O 0308)
72
2004 CELICA from Aug. ’03 Prod. (OM20823U)
TURN SIGNALS

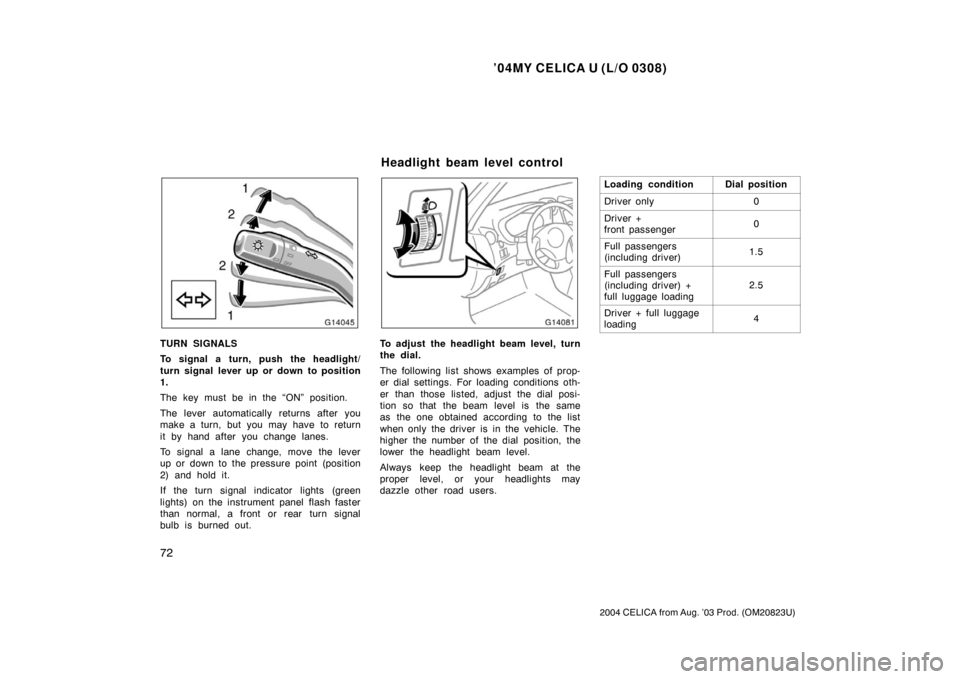

To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.To adjust the headlight beam level, turn
the dial.
The following list shows examples of prop-
er dial settings. For loading conditions oth-
er than those listed, adjust the dial posi-
tion so that the beam level is the same
as the one obtained according to the list
when only the driver is in the vehicle. The
higher the number of the dial position, the
lower the headlight beam level.
Always keep the headlight beam at the
proper level, or your headlights may
dazzle other road users.Loading condition
Dial position
Driver only0
Driver +
front passenger0
Full passengers
(including driver)1.5
Full passengers
(including driver) +
full luggage loading2.5
Driver + full luggage
loading4
Headlight beam level control
