3. While pressing the infant seat firmlyagainst the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the infant seat, press thebuckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

’05MY CELICA U (L/O 0409)
54
2005 CELICA from Sep. ’04 Prod. (OM20888U)
(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat must be used in for-
wardfacing or rearfacing position de-
pending on the age and size of the
child. When installing, follow the
manufacturer ’s instructions about the
applicable age and size of the child as
well as directions for installing the
child restraint system.CAUTION

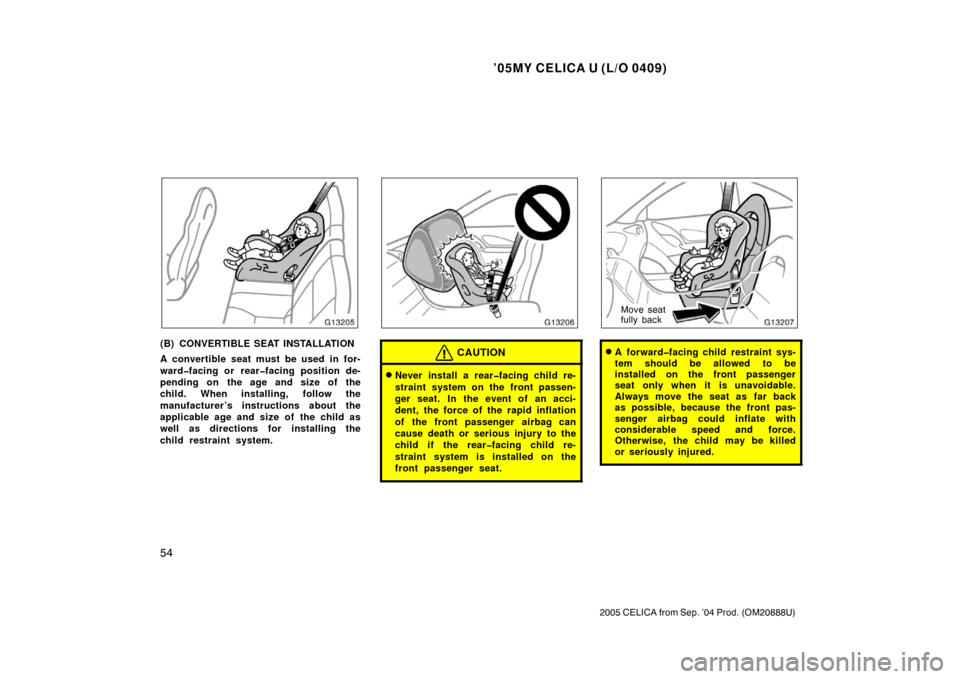

Never install a rearfacing child re-
straint system on the front passen-
ger seat. In the event of an acci-
dent, the force of the rapid inflation
of the front passenger airbag can
cause death or serious injury to the
child if the rearfacing child re-
straint system is installed on the
front passenger seat.
Move seat
fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.

’05MY CELICA U (L/O 0409)
55
2005 CELICA from Sep. ’04 Prod. (OM20888U)
On vehicles with side airbags, do
not allow the child to lean his/her
head or any part of his/her body
against the door or the area of the
seat from which the side airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflate,
and the impact could cause death
or serious injury to the child.

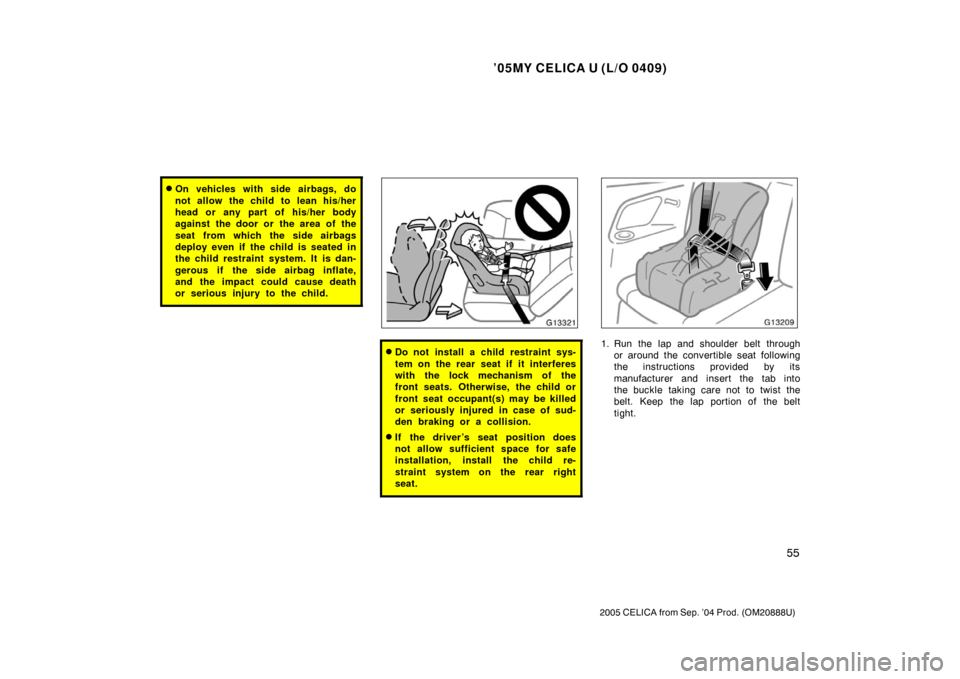

Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system on the rear right
seat.
1. Run the lap and shoulder belt throughor around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.

’05MY CELICA U (L/O 0409)
56
2005 CELICA from Sep. ’04 Prod. (OM20888U)
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted slightly, it cannot be ex-
tended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt retract.3. While pressing the convertible seat firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.

’05MY CELICA U (L/O 0409)
57
2005 CELICA from Sep. ’04 Prod. (OM20888U)
CAUTION

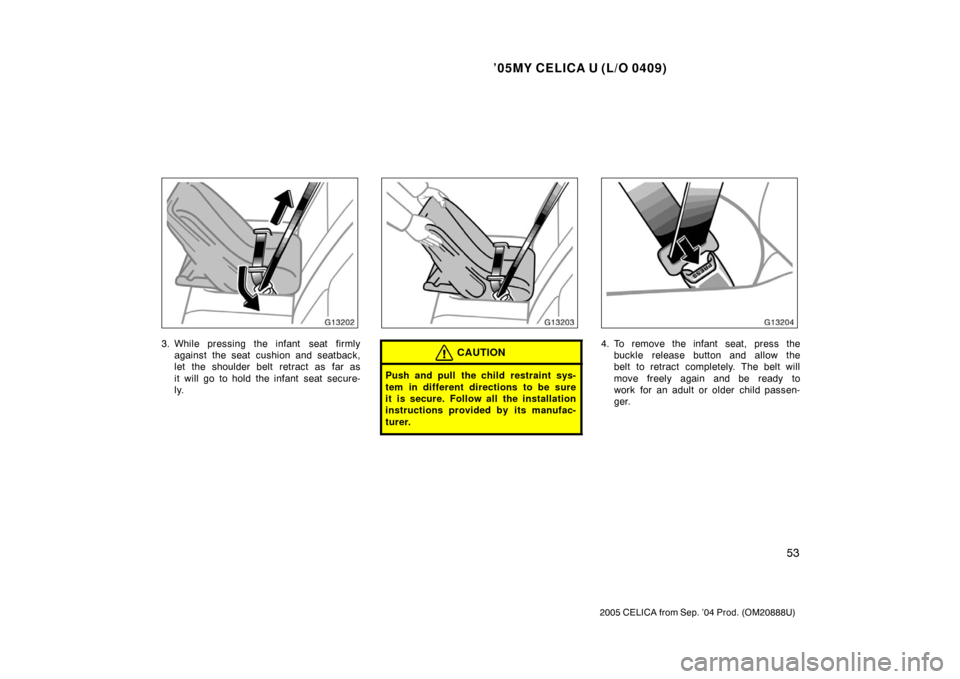

Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe buckle release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.

’05MY CELICA U (L/O 0409)
58
2005 CELICA from Sep. ’04 Prod. (OM20888U)

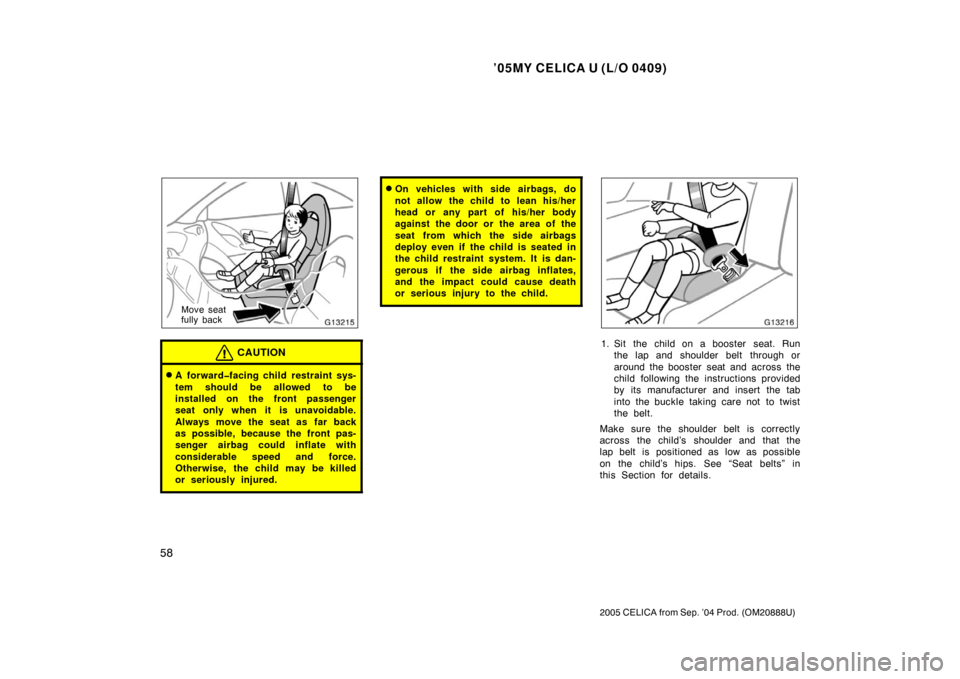

Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the front pas-
senger airbag could inflate with
considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
On vehicles with side airbags, do
not allow the child to lean his/her
head or any part of his/her body
against the door or the area of the
seat from which the side airbags
deploy even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.
1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and across the
child following the instructions provided
by its manufacturer and insert the tab
into the buckle taking care not to twist
the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” in
this Section for details.

’05MY CELICA U (L/O 0409)
59
2005 CELICA from Sep. ’04 Prod. (OM20888U)

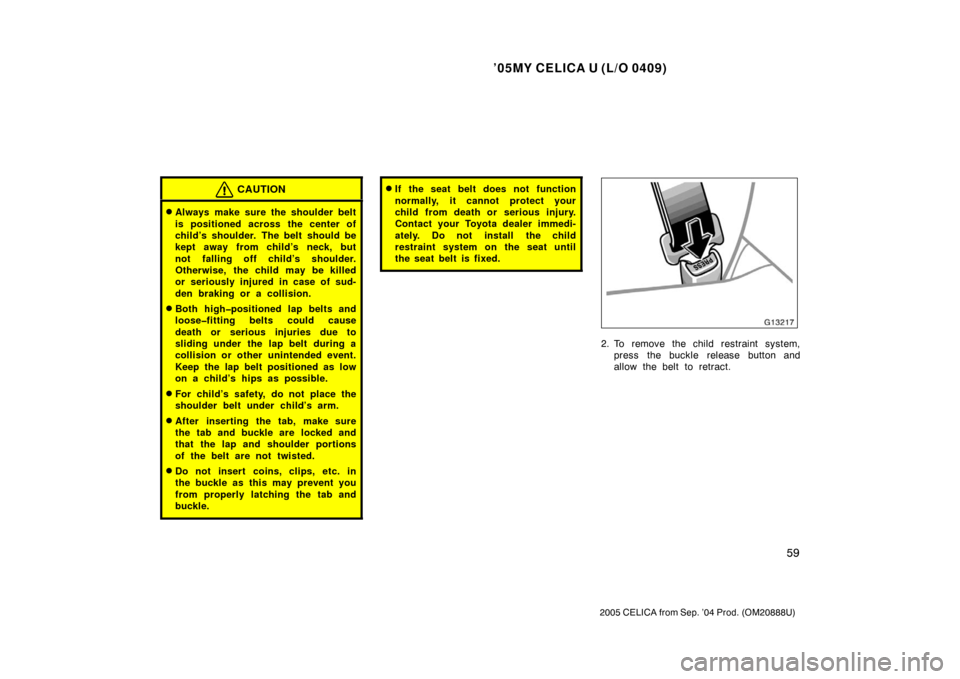

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.
2. To remove the child restraint system, press the buckle release button and
allow the belt to retract.

’05MY CELICA U (L/O 0409)
60
2005 CELICA from Sep. ’04 Prod. (OM20888U)

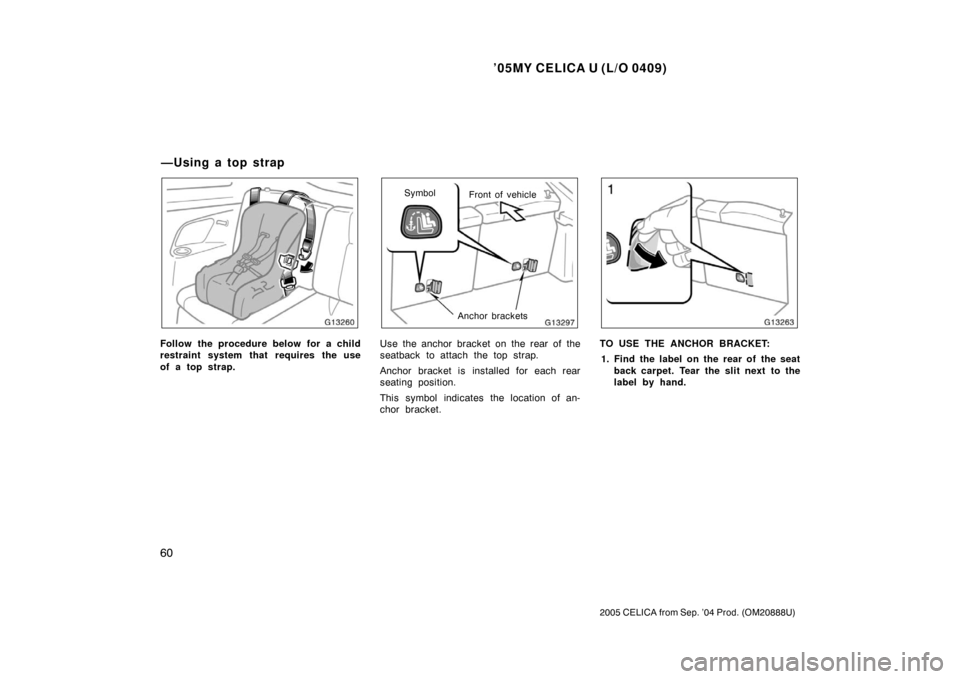

Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Front of vehicle
Symbol
Anchor brackets
Use the anchor bracket on the rear of the
seatback to attach the top strap.
Anchor bracket is installed for each rear
seating position.
This symbol indicates the location of an-
chor bracket.TO USE THE ANCHOR BRACKET:1. Find the label on the rear of the seat back carpet. Tear the slit next to the
label by hand.
— U sin g a to p st rap

’05MY CELICA U (L/O 0409)
61
2005 CELICA from Sep. ’04 Prod. (OM20888U)
2. Fix the child restraint system withthe seat belt.
Latch the hook onto the exposed an-
chor bracket and tighten the top
strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
Section.

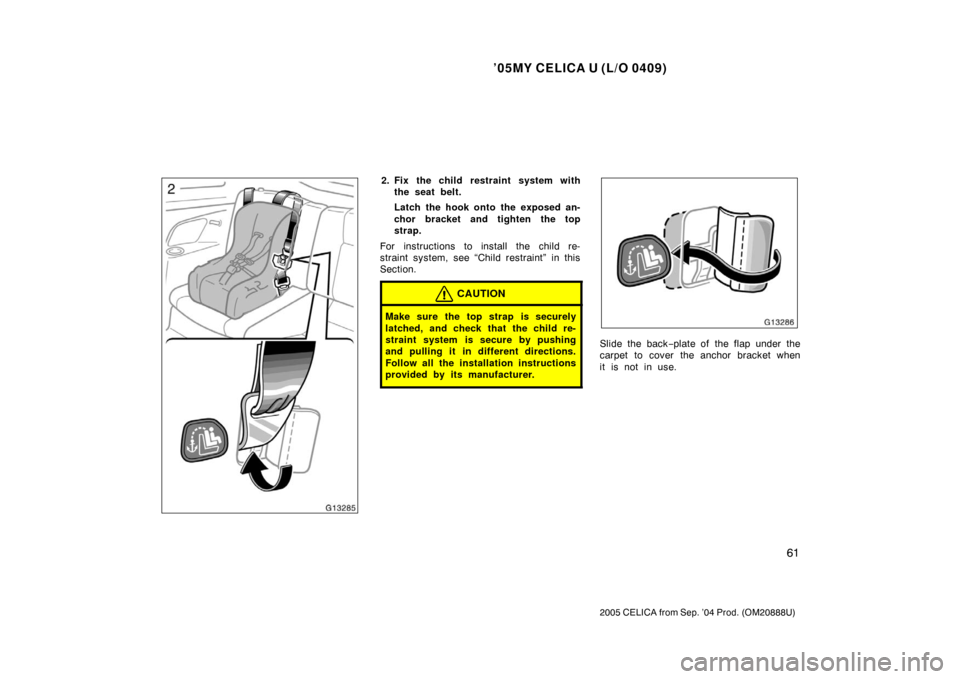

CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
Slide the back −plate of the flap under the
carpet to cover the anchor bracket when
it is not in use.

’05MY CELICA U (L/O 0409)
62
2005 CELICA from Sep. ’04 Prod. (OM20888U)

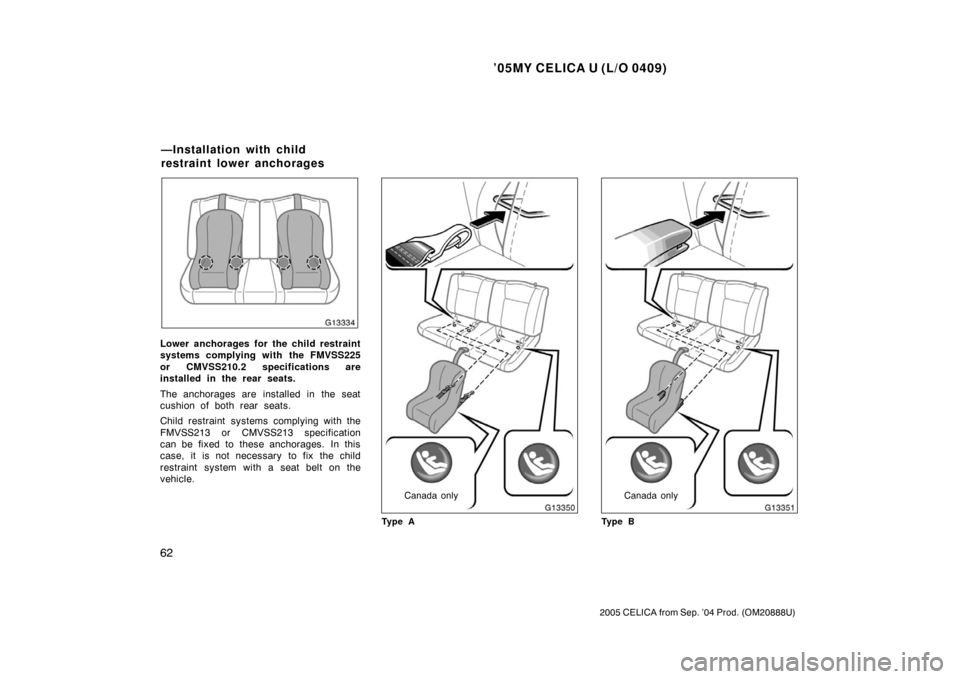

Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seats.
The anchorages are installed in the seat
cushion of both rear seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
Canada only
Ty p e ACanada only
Ty p e B
—Installation with child
restraint lower anchorages
