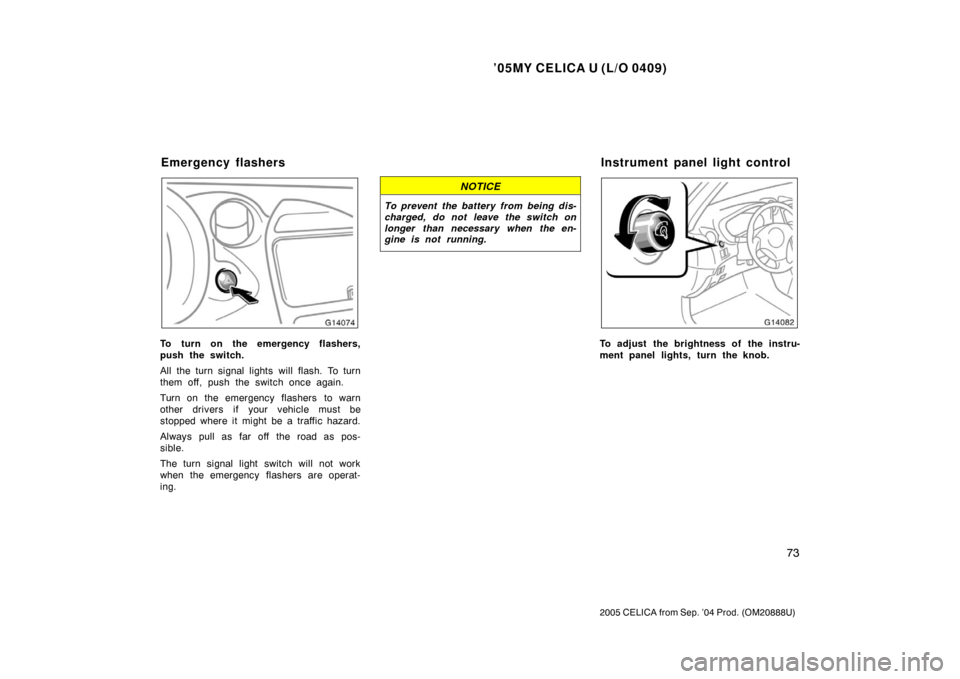

To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Emergency flashersInstrument panel light control

’05MY CELICA U (L/O 0409)
74
2005 CELICA from Sep. ’04 Prod. (OM20888U)
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Stays the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns on the light when any of
the side doors and back door is opened.
The light fades out when both side doors
and back door are closed.ILLUMINATED ENTRY SYSTEM
(vehicles with the power door lock sys-
tem)
When the switch is in the “DOOR” posi-
tion and any of the side doors and back
door is opened, the light will come on.
After both side doors and back door are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the light
fades out immediately.
Both side doors and back door are
closed when the ignition key is in the
“ACC” or “ON” position.
Both side doors and back door are
closed and both side doors are locked.
When both side doors and back door are
unlocked using either the key or the wire-
less remote control transmitter, the interior
light will come on and remain on for about
15 seconds before fading out.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the switch at the “DOOR”
position for 20 minutes or more.
Front fog lights Interior light
(without moon roof)

’05MY CELICA U (L/O 0409)
75
2005 CELICA from Sep. ’04 Prod. (OM20888U)
To turn on the interior light, push the
“ON” or “DOOR” side switch. To turn
off the light, push the switch lightly on
the opposite side.
The interior light switch has the following
positions:
“ON”—Stays the light on all the time.
“DOOR”—Turns on the light when any of
the side doors and back door is opened.
The light fades out when both side doors
and back door are closed.ILLUMINATED ENTRY SYSTEM
(vehicles with the power door lock sys-
tem)
When the switch is in the “DOOR” posi-
tion and any of the side doors and back
door is opened, the light will come on.
After both side doors and back door are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the light
fades out immediately.
Both side doors and back door are
closed when the ignition key is in the
“ACC” or “ON” position.
Both side doors and back door are
closed and both side doors are locked.
When both side doors and back door are
unlocked using either the key or the wire-
less remote control transmitter, the interior
light will come on and remain on for about
15 seconds before fading out.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the switch at the “DOOR”
position for 20 minutes or more.
To turn on the luggage compartment
light, open the back door and push the
switch. Closing the back door will turn
the light off.
Interior light
(with moon roof) Luggage compartment light

’05MY CELICA U (L/O 0409)
76
2005 CELICA from Sep. ’04 Prod. (OM20888U)
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. With interval adjuster: The “INT” band lets
you adjust the wiping time interval when
the wiper lever is in the intermittent posi-
tion (position 1). Twist the band upward to
increase the time between sweeps, and
downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 7
−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it. The rear window wip-
er operates while the washer squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 7 −3.
Windshield wipers and washer Rear window wiper and
washer

’05MY CELICA U (L/O 0409)
77
2005 CELICA from Sep. ’04 Prod. (OM20888U)
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop
−and−
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Rear window defogger

’05MY CELICA U (L/O 0409)
78
2005 CELICA from Sep. ’04 Prod. (OM20888U)

’05MY CELICA U (L/O 0409)
79
2005 CELICA from Sep. ’04 Prod. (OM20888U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Engine coolant temperature gauge 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 83
. . . . . . . . . . . . . . .
SECTION 1 6

’05MY CELICA U (L/O 0409)
80
2005 CELICA from Sep. ’04 Prod. (OM20888U)
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Indicator at “F”
Nearly empty—Indicator at “E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.If the fuel tank is full or the fuel quantity
has increased or decreased by more than
5 liters since the vehicle was turned off,
the position display is recalculated. If the
fuel quantity has increased or decreased
by less than 5 liters since the vehicle was
turned off, the previous position is dis-
played.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
If the fuel gauge display flashes or the
remaining quantity is not displayed after
the flashing, there may be a problem in
the system. In this case, contact your
Toyota dealer as soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves to the “H” position
and flashes, your engine is too hot. If
your vehicle overheats, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop
−and− go traffic.
Fuel gauge Engine coolant temperature
gauge

’05MY CELICA U (L/O 0409)
81
2005 CELICA from Sep. ’04 Prod. (OM20888U)
Towing a trailer.
If the engine coolant temperature gauge
needle is not displayed, there may be a
problem in the system. In this case, con-
tact your Toyota dealer as soon as pos-
sible.
NOTICE
 Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” in Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.

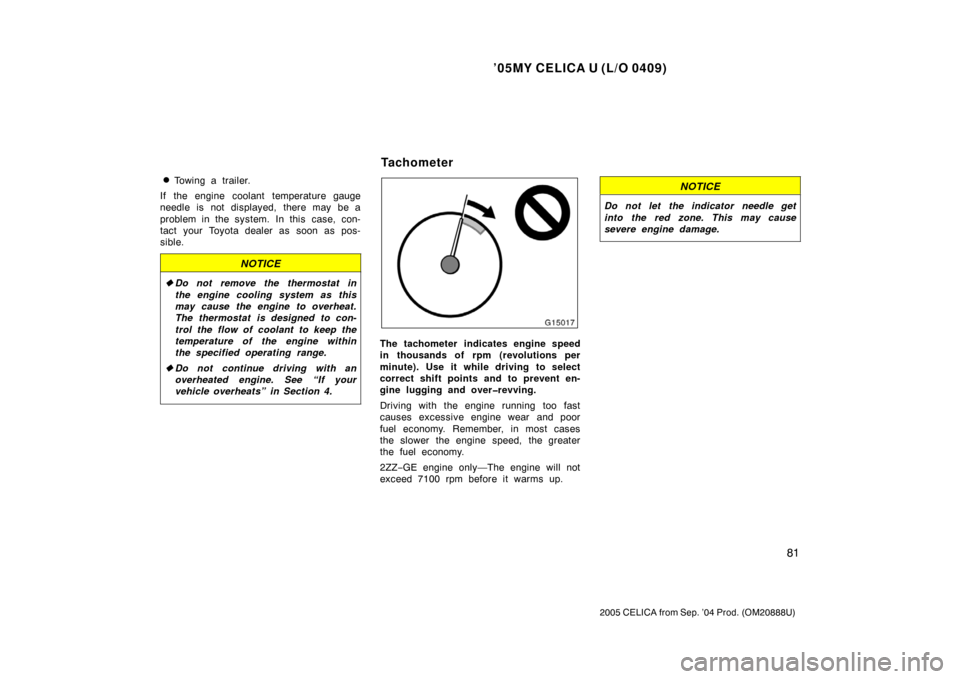

2ZZ −GE engine only—The engine will not
exceed 7100 rpm before it warms up.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
Tachometer

’05MY CELICA U (L/O 0409)
82
2005 CELICA from Sep. ’04 Prod. (OM20888U)
This meter displays the odometer and
two trip meters.1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset knob—Resets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
Odometer and two trip meters
