TOYOTA COROLLA 2000 Owners Manual
Manufacturer: TOYOTA, Model Year: 2000, Model line: COROLLA, Model: TOYOTA COROLLA 2000Pages: 246, PDF Size: 2.65 MB
Page 1 of 246
2000 Corolla(U)
i
Foreword
Welcome to the growing group of value- conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle we
build.
This Owner 's Manual explains the features of your new Toyota. Please read it and
follow the instructions carefully so that you can enjoy many years of safe motoring.
When it comes to service, remember that your Toyota dealer knows your vehicle
best and is interested in your complete satisfaction. He will provide quality mainte-
nance and any other assistance you may require.
Please leave this Owner 's Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of
printing. However, because of Toyota's policy of continual product improve-
ment, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
W1999 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of Toyota Motor Corporation.
ProCarManuals.com
Page 2 of 246
2000 Corolla(U)
ii
New vehicle warranty
Your new vehicle is covered by the following Toyota
limited warranties:
New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the Owner's
Warranty Information Bookletº or Owner 's Manual
Supplementº.
Your responsibility for maintenance
It is the owner 's responsibility to make sure that the
specified maintenance is performed. Section 6 gives de-
tails of these maintenance requirements. Also included
in Section 6 is general maintenance. For scheduled
maintenance information, please refer to the separate
Scheduled Maintenance Guideº or Owner 's Manual Sup-
plementº.
Accessories, spare parts and
modification of your Toyota
A wide variety of non- genuine spare parts and accesso-
ries for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on,
your Toyota vehicle.
This vehicle should not be modified with non- genuine
Toyota products. Modification with non- genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.
ProCarManuals.com
Page 3 of 246
2000 Corolla(U)
iii
Spark ignition system of
your Toyota
The spark ignition system in your Toyota meets all re-
quirements of the Canadian Interference- Causing Equip-
ment Standard.
Installation of a mobile
two- way radio system
As the installation of a mobile two- way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti- lock brake
system, SRS airbag system and seat belt pretensioner
system, be sure to check with your Toyota dealer for
precautionary measures or special instructions regarding
installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, it may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by a qualified
service shop or by your Toyota dealer before you dis-
pose of your vehicle.
ProCarManuals.com
Page 4 of 246
2000 Corolla(U)
iv
ProCarManuals.com
Page 5 of 246
2000 Corolla(U)
143
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Break- in period144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation in foreign countries146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three- way catalytic converter146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions147 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Facts about engine oil consumptio148 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Iridium- tipped spark plugs149 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system149 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators152 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota's identification153 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels154 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension and chassis155 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Types of tires155 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 2
ProCarManuals.com
Page 6 of 246
2000 Corolla(U)
144
Break- in period
Drive gently and avoid high speeds.
Your vehicle does not need an elaborate
break- in. But following a few simple tips
for the first 1600 km (1000 miles) can add
to the future economy and long life of
your vehicle:
Do not drive over 88 km/h (55 mph).
Run the engine at moderate speed be-
tween 2000 and 4000 rpm.
Avoid full- throttle starts.
Try to avoid hard stops during the first
300 km (200 miles).
Do not drive slowly with the manual
transmission in a high gear.
Do not drive for a long time at any
single speed, either fast or slow.
Do not tow a trailer during the first 800
km (500 miles).
Fuel
FUEL TYPE
Your new vehicle must use only un-
leaded gasoline.
To help prevent gas station mix- ups, your
Toyota has a new smaller fuel tank open-
ing. The special nozzle on pumps with
unleaded fuel will fit it, but the larger
standard nozzle on pumps with leaded gas
will not.
At a minimum, the gasoline you use
should meet specifications of ASTM
D4814 in the U.S.A. and CGSB 3.5- M93
in Canada.
NOTICE
Do not use leaded gasoline. Use of
leaded gasoline will cause the three-
way catalytic converter to lose its ef-
fectiveness and the emission control
system to function improperly. Also,
this can increase maintenance costs.
OCTANE NUMBER
Select Octane Rating 87 (Research Oc-
tane Number 91) or higher.
Use of unleaded fuel with an octane num-
ber or rating lower than stated above will
cause persistent heavy knocking. If se-
vere, this will lead to engine damage.If your engine knocks...
If you detect heavy knocking even when
using the recommended fuel, or if you
hear steady knocking while holding a
steady speed on level roads, consult your
Toyota dealer.
However, now and then, you may notice
light knocking for a short time while accel-
erating or driving up hills. This is no need
of concern.
GASOLINES CONTAINING DETERGENT
ADDITIVES
Toyota recommends use of gasolines
that contain detergent additives to
avoid build- up of engine deposits.
For further details, ask your Toyota dealer
or a local gasoline retailer.
IMPROVED GASOLINES
The American Automobile Manufacturers
Association (AAMA) has developed a
specification of improved gasolines. The
AAMA specification offers optimal fuel
information for better vehicle perfor-
mance and better protection of your en-
gine.
Toyota recommends the use of gasolines
that meet the AAMA specification, if avail-
able, for improved driveability and emis-
sion control system.
ProCarManuals.com
Page 7 of 246
2000 Corolla(U)
145
GASOLINES CONTAINING MTBE
Gasolines that contain MTBE (Methyl
Tertiary- Butyl Ether) are available in the
market. If you use a gasoline mixed
with MTBE, make certain that it does
not contain more than 15% of MTBE.
GASOLINES CONTAINING MMT
Some gasolines contain an octane- en-
hancing additive called MMT (methylcy-
clopentadienyl manganese tricarbonyl).
Toyota does not recommend the use of
gasolines that contain MMT. If fuels con-
taining MMT are used, your emission con-
trol system may be adversely affected.
The Malfunction Indicator Lamp on the in-
strument cluster may come on. If this hap-
pens, contact your Toyota dealer for ser-
vice.
GASOLINES CONTAINING ALCOHOL
If you use gasohol in your Toyota, be
sure that it is unleaded, has an octane
rating no lower than 87 and does not
contain more than 10% ethanol.
Gasohol is a mixture of gasoline and etha-
nol.Toyota do not recommend the use of gas-
olines containing methanol. If you use
gasoline containing methanol, use only
gasoline meeting the requirements above
and also containing less than 5% metha-
nol with cosolvents and corrosion inhibi-
tors for methanol.
GASOLINES QUALITY
In a very few cases, you may experience
driveability problems caused by the partic-
ular gasoline that you are using. If you
continue to have unacceptable driveability,
try changing gasoline brands. If that does
not rectify your problem, then consult your
Toyota dealer.
NOTICE
Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
If driveability problems occur (poor
hot starting, vaporizing, engine
knock, etc.), discontinue the use.
Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
50 L (13.2 gal., 11.0 lmp. gal.)
ProCarManuals.com
Page 8 of 246
2000 Corolla(U)
146
Fuel pump shut off system
The fuel pump shut off system stops sup-
plying fuel to the engine to minimize the
risk of fuel leakage when the engine stalls
or an airbag inflates upon collision. To
restart the engine after the fuel pump shut
off system activates, turn the ignition
switch to ACCº or LOCKº once and start
it.
CAUTION
Inspect the ground under the vehicle
before restarting the engine. If you
find that liquid has leaked onto the
ground, it is the fuel system has
been damaged and it is in need of
repair. In this case, do not restart the
engine.
Operation in foreign countries
If you plan to drive your Toyota in
another country...
First, comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
Three- way catalytic converter
The three- way catalytic converter is an
emission control device installed in the
exhaust system.
The purpose is to reduce pollutants in the
exhaust gas.
CAUTION
Keep people and combustible mate-
rials away from the exhaust pipe
while the engine is running. The
exhaust gas is very hot.
Do not drive, idle or park your ve-
hicle over anything that might burn
easily such as grass, leaves, paper
or rags.
ProCarManuals.com
Page 9 of 246
2000 Corolla(U)
147
NOTICE
A large amount of unburned gases
flowing into the three- way catalytic
converter may cause it to overheat
and create a fire hazard. To prevent
this and other damage, observe the
following precautions:
Use only unleaded gasoline.
Do not drive with an extremely low
fuel level; running out of fuel could
cause the engine to misfire, creat-
ing an excessive load on the three-
way catalytic converter.
Do not allow the engine to run at
idle speed for more than 20 min-
utes.
Avoid racing the engine.
Do not push- start or pull- start your
vehicle.
Do not turn off the ignition while
the vehicle is moving.
Keep your engine in good running
order. Malfunctions in the engine
electrical system, electronic ignition
system/distributor ignition system
or fuel system could cause an ex-
tremely high three- way catalytic
converter temperature.
If the engine becomes difficult to
start or stalls frequently, take your
vehicle in for a check- up as soon
as possible. Remember, your Toyota
dealer knows your vehicle and its
three- way catalytic converter sys-
tem best.
To ensure that the three- way cata-
lytic converter and the entire emis-
sion control system operate proper-
ly, your vehicle must receive the
periodic inspections required by the
Toyota Maintenance Schedule. For
scheduled maintenance information,
refer to the separate Scheduled
Maintenance Guideº or Owner's
Manual Supplementº.
Engine exhaust cautions
CAUTION
Avoid inhaling the engine exhaust.
It contains carbon monoxide, which
is a colorless and odorless gas. It
can cause unconsciousness or even
death.
Make sure the exhaust system has
no holes or loose connections. The
system should be checked from
time to time. If you hit something,
or notice a change in the sound of
the exhaust, have the system
checked immediately.
Do not run the engine in a garage
or enclosed area except for the
time needed to drive the vehicle in
or out. The exhaust gases cannot
escape, making this a particularly
dangerous situation.
Do not remain for a long time in a
parked vehicle with the engine run-
ning. If it is unavoidable, however,
do so only in an unconfined area
and adjust the heating or cooling
system to force outside air into the
vehicle.
ProCarManuals.com
Page 10 of 246
2000 Corolla(U)
148

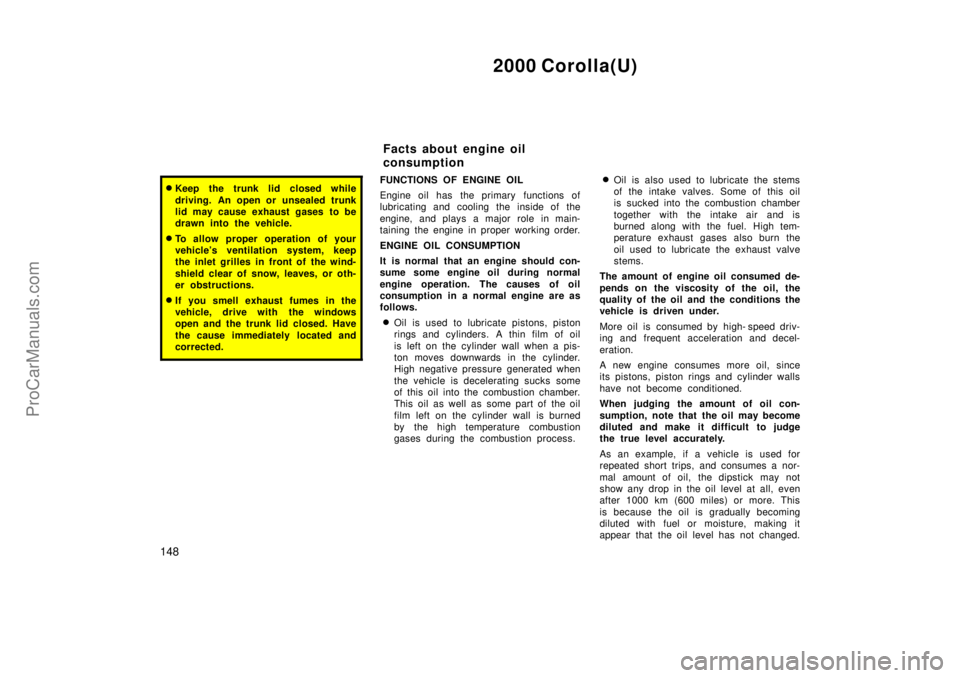

Keep the trunk lid closed while
driving. An open or unsealed trunk
lid may cause exhaust gases to be
drawn into the vehicle.
To allow proper operation of your
vehicle's ventilation system, keep
the inlet grilles in front of the wind-
shield clear of snow, leaves, or oth-
er obstructions.
If you smell exhaust fumes in the
vehicle, drive with the windows
open and the trunk lid closed. Have
the cause immediately located and
corrected.
FUNCTIONS OF ENGINE OIL
Engine oil has the primary functions of
lubricating and cooling the inside of the
engine, and plays a major role in main-
taining the engine in proper working order.
ENGINE OIL CONSUMPTION
It is normal that an engine should con-
sume some engine oil during normal
engine operation. The causes of oil
consumption in a normal engine are as
follows.
Oil is used to lubricate pistons, piston
rings and cylinders. A thin film of oil
is left on the cylinder wall when a pis-
ton moves downwards in the cylinder.
High negative pressure generated when
the vehicle is decelerating sucks some
of this oil into the combustion chamber.
This oil as well as some part of the oil
film left on the cylinder wall is burned
by the high temperature combustion
gases during the combustion process.
Oil is also used to lubricate the stems
of the intake valves. Some of this oil
is sucked into the combustion chamber
together with the intake air and is
burned along with the fuel. High tem-
perature exhaust gases also burn the
oil used to lubricate the exhaust valve
stems.
The amount of engine oil consumed de-
pends on the viscosity of the oil, the
quality of the oil and the conditions the
vehicle is driven under.
More oil is consumed by high- speed driv-
ing and frequent acceleration and decel-
eration.
A new engine consumes more oil, since
its pistons, piston rings and cylinder walls
have not become conditioned.
When judging the amount of oil con-
sumption, note that the oil may become
diluted and make it difficult to judge
the true level accurately.
As an example, if a vehicle is used for
repeated short trips, and consumes a nor-
mal amount of oil, the dipstick may not
show any drop in the oil level at all, even
after 1000 km (600 miles) or more. This
is because the oil is gradually becoming
diluted with fuel or moisture, making it
appear that the oil level has not changed.
Facts about engine oil
consumption
ProCarManuals.com
