OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Controls130 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air flow selector settings133 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating tips133 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side vents136 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 8
ProCarManuals.com

'01 Corolla U (L/O 0005)
1302001MY_COROLLA_U (OM12720U)

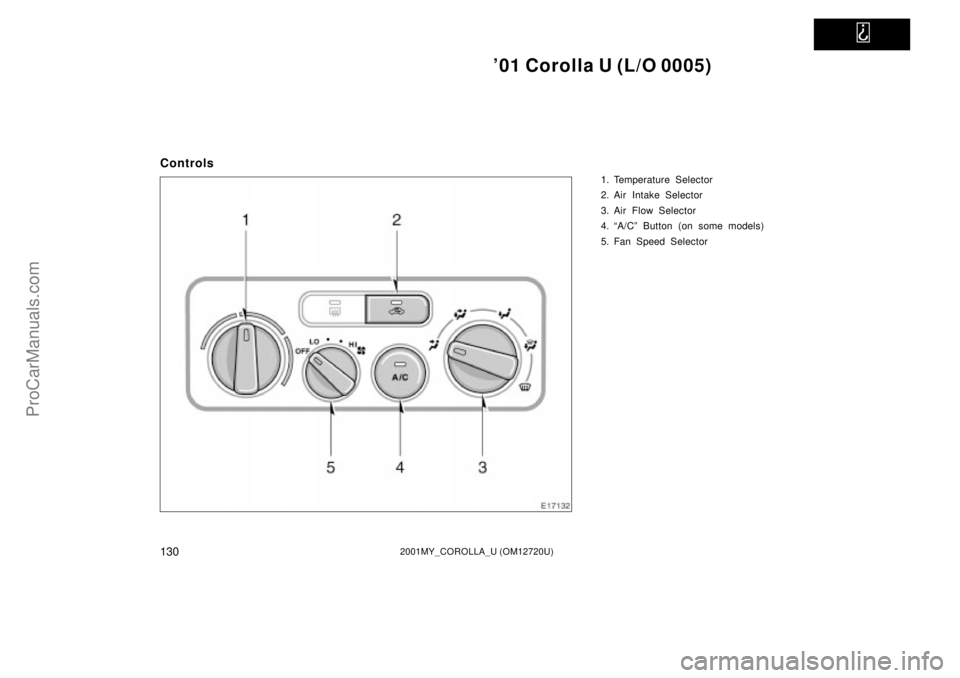

Controls
1. Temperature Selector
2. Air Intake Selector
3. Air Flow Selector
4. ªA/Cº Button (on some models)
5. Fan Speed Selector
ProCarManuals.com

'01 Corolla U (L/O 0005)
1312001MY_COROLLA_U (OM12720U)
Fan speed selector
Turn the knob to adjust the fan speedÐto
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperatureÐ
to the right to warm, to the left to cool.

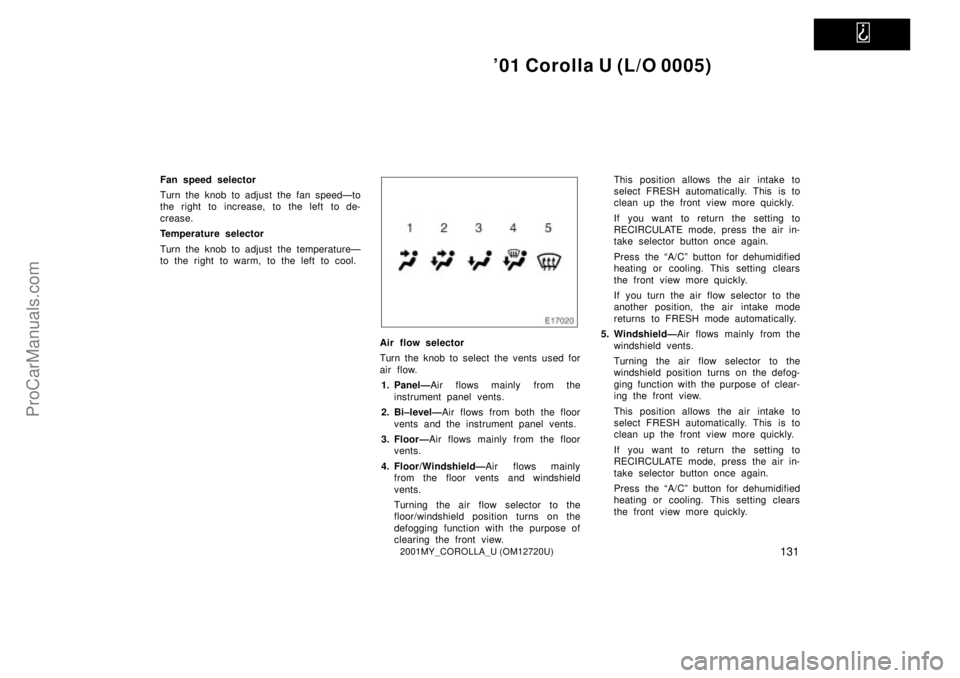

Air flow selector
Turn the knob to select the vents used for
air flow.
1. PanelÐAir flows mainly from the
instrument panel vents.
2. Bi±levelÐAir flows from both the floor
vents and the instrument panel vents.
3. FloorÐAir flows mainly from the floor
vents.
4. Floor/WindshieldÐAir flows mainly
from the floor vents and windshield
vents.
Turning the air flow selector to the
floor/windshield position turns on the
defogging function with the purpose of
clearing the front view.This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
Press the ªA/Cº button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
If you turn the air flow selector to the
another position, the air intake mode
returns to FRESH mode automatically.
5. WindshieldÐAir flows mainly from the
windshield vents.
Turning the air flow selector to the
windshield position turns on the defog-
ging function with the purpose of clear-
ing the front view.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
Press the ªA/Cº button for dehumidified
heating or cooling. This setting clears
the front view more quickly.
ProCarManuals.com

'01 Corolla U (L/O 0005)
1322001MY_COROLLA_U (OM12720U)
If you turn the air flow selector to the
another position, the air intake mode
returns to FRESH mode automatically.
For details about air flow selector settings,
see the illustration after ªA/Cº button.
Air intake selector
The air intake selector button is used to
switch the air intake FRESH mode that
draws outside air into the system and
RECIRCULATED mode that recirculates
the air inside vehicle.
To turn the air source to RECIRCULATED
mode, press the button. The indicator will
come on. To turn the air source to FRESH
mode, press the button again. The indica-
tor will go off.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.ªA/Cº button
To turn on the air conditioning, press the
ªA/Cº button. The ªA/Cº button indicator
will come on. To turn the air conditioning
off, press the button again.
If the ªA/Cº button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.
ProCarManuals.com

'01 Corolla U (L/O 0005)
1332001MY_COROLLA_U (OM12720U)

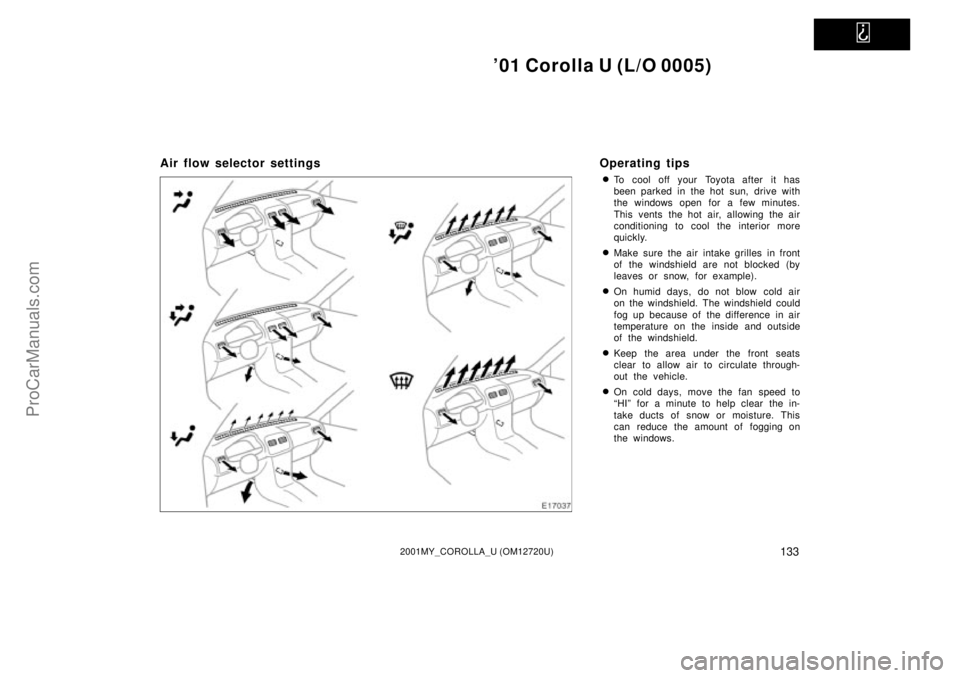

Air flow selector settings Operating tips

To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.

Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).

On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.

Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.

On cold days, move the fan speed to
ªHIº for a minute to help clear the in-
take ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
ProCarManuals.com

'01 Corolla U (L/O 0005)
1342001MY_COROLLA_U (OM12720U)

When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except ªOFFº.

If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
Fan speedÐAny setting except ªOFFº
TemperatureÐTowards red zone
Air intakeÐFRESH (outside air)
Air flowÐFLOOR
Air conditioningÐOFF

For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.

Press the ªA/Cº button on for dehumidi-
fied heating.

Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.Air conditioning
For best results, set controls to:
Fan speedÐAny setting except ªOFFº
TemperatureÐTowards blue zone
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐON

For quick cooling, select recirculated
air for a few minutes.
Ventilation
For best results, set controls to:
Fan speedÐAny setting except ªOFFº
TemperatureÐTowards blue zone
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐOFF
ProCarManuals.com

'01 Corolla U (L/O 0005)
1352001MY_COROLLA_U (OM12720U)
Defogging
The inside of the windshield
For best results, set controls to:
Fan speedÐAny setting except ªOFFº
TemperatureÐTowards red zone to heat;
blue zone to cool
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defogging function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, the air
intake selects FRESH automatically. This
is to clean up the front view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Press the ªA/Cº button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
If you turn the air flow selector to the
another position, the air intake mode re-
turns to FRESH mode automatically.

On humid days, do not blow cold air
on the windshieldÐthe difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
Defrosting
The outside of the windshield
For best results, set controls to:
Fan speedÐAny setting except ªOFFº
TemperatureÐTowards red zone
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Turning the air flow selector to the wind-
shield or floor/windshield position turns on
the defrosting function with the purpose of
clearing the front view.
When turning the air flow selector to wind-
shield or floor/windshield position, the air
intake selects FRESH automatically. This
is to clean up the front view more quickly.
If you want to return the setting to RE-
CIRCULATE mode, press the air intake
selector button once again.
Press the ªA/Cº button for dehumidified
heating. This setting clears the front view
more quickly.
If you turn the air flow selector to the
another position, the air intake mode re-
turns to FRESH mode automatically.

To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
ProCarManuals.com

'01 Corolla U (L/O 0005)
1362001MY_COROLLA_U (OM12720U)
Side vents

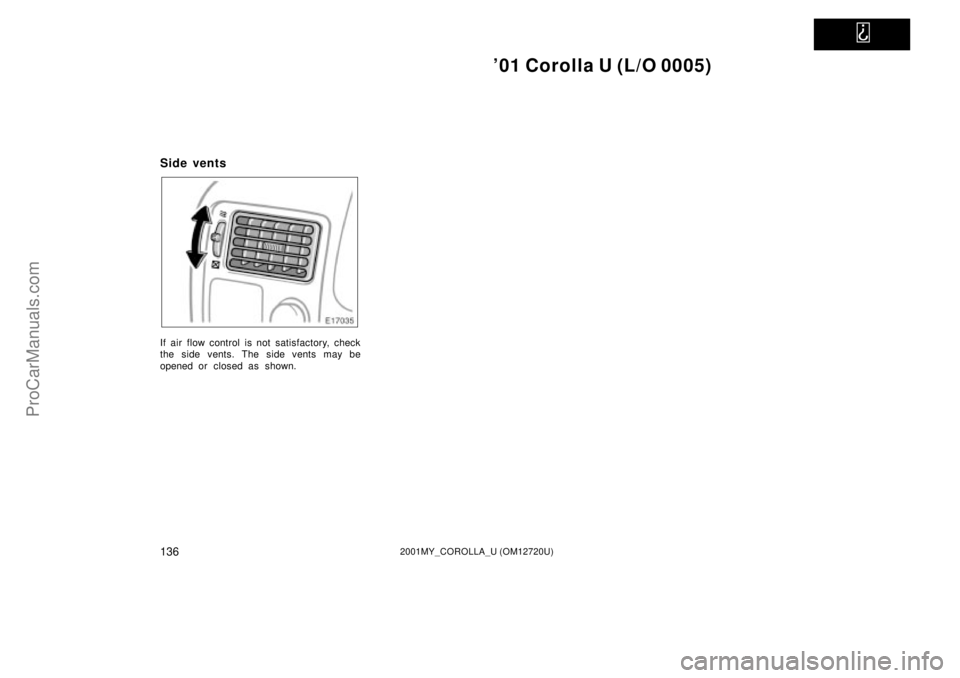

If air flow control is not satisfactory, check
the side vents. The side vents may be
opened or closed as shown.
