TOYOTA COROLLA 2003 E120 / 9.G Owners Manual

’03 Corolla U (L/O 0201)
2372003 MY COROLLA_U (OM12744U)
Engine compartment
Tires
Tire size
P185/65R15 86S Front
P195/65R15 89S210 (2.1, 30)
210 (2.1, 30) Rear
210 (2.1, 30)
210 (2.1, 30) Wheel size
15 6 JJ
15 6 JJ
Compact spare tire kPa (kgf/cm
2 or bar, psi) Wheel size
T125/70R16 96M 420 (4.2, 61) 16  4T
Wheel nut torque, N·m (kgf·m, ft·lbf): 102.9 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire pressure” through “Aluminum wheel precautions”, pages
214 through 219, in Section 72.
Tire size and pressure:
kPa (kgf/cm
2 or bar, psi)
Fuses

’03 Corolla U (L/O 0201)
2382003 MY COROLLA_U (OM12744U)
Instrument panel
Fuses (type A)1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Lefthand head-
light (high beam)
3. HEAD RH UPR 10 A: Righthand
headlight (high beam), high beam indi-
cator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. MAIN 30 A: Starting system, “AM2”
fuse 8. DOME 15 A:
Car audio system, clock,
personal lights, interior light, trunk light,
open door warning light, wireless re-
mote control system
9. HORN 10 A: Horn
10. HAZARD 10 A: Emergency flashers ,
turn signal lights
11. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
12. ALTS 5 A: Charging system
13. HEAD LH LWR 10 A: Lefthand head-
light (low beam)
14. HEAD RH LWR 10 A: Righthand
headlight (low beam)
15. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights , instru-
ment cluster lights
16. OBD 7.5 A: Onboard diagnosis sys-
tem
17. WIPER 25 A: Windshield wipers
18. AM2 15 A: Charging system, multiport
fuel injection system/sequential multi-
port fuel injection system, starting sys-
tem, SRS airbag system 19. STOP 15 A:
Stop lights, high mounted
stoplight, antilock brake system, shift
lock control system, engine control sys-
tem, cruise control system
20. DOOR 25 A: Power door lock system
21. AM1 25 A: “CIG” fuse
22. ECUIG 10 A: Electric cooling fan,
antilock brake system, shift lock con-
trol system, cruise control system
23. RR WIPER 15 A: No circuit
24. A/C 10 A: Air conditioning system
25. INV 15 A: No circuit
26. P/POINT 15 A: Power outlet (in the
rear console box)
27. ECUB 10 A: Daytime running light
system
28. CIG 15 A: Power outlet (on the instru-
ment panel) or cigarette lighter, car au-
dio system, clock, power rear view mir-
ror control, shift lock control system
29. GAUGE 10 A: Gauges and meters, air
conditioning system, daytime running
light system, charging system, auto
antiglare inside rear view mirror, pow-
er windows, cruise control system, rear
window defogger, backup lights, front
passenger ’s seat belt reminder light

’03 Corolla U (L/O 0201)
2392003 MY COROLLA_U (OM12744U)
30. WASHER 15 A: Windshield washer
31. MHTR/DEF IUP 10 A: Engine control
system

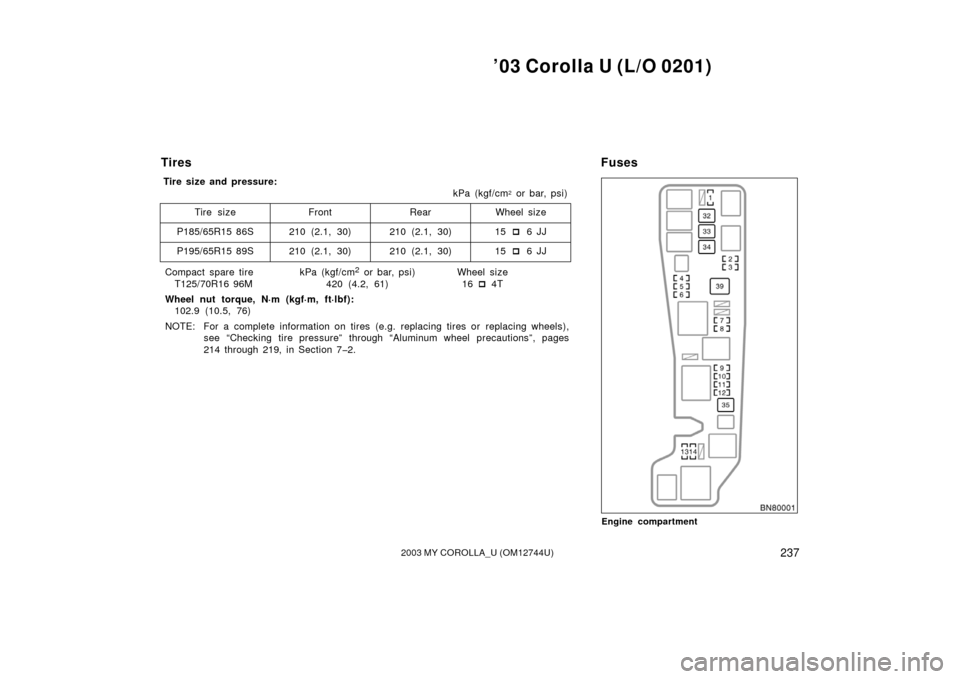

Fuses (type B)
32. ABS NO.1 30 A: Antilock brake sys-
tem
33. RDI FAN 30 A: Electric cooling fan
34. ABS NO.2 40 A: Antilock brake sys-
tem
35. HEAD MAIN 40 A: “HEAD LH UPR”,
“HEAD RH UPR”, “HEAD LH LWR” and
“HEAD RH LWR” fuses
36. HTR 40 A: Air conditioning system
37. DEF 40 A: Rear window defogger,
“MHTR/DEF IUP” fuse
38. POWER 30 A: Power windows, electric
moon roof
Fuses (type C)
39. ALT 100 A: Charging system, “ABS
NO.1”, “ABS NO.2”, “RDI FAN”, “FOG”,
“HTR”, “AM1”, “POWER”, “DOOR”,
“ECUB”, “TAIL”, “STOP”, “P/POINT”,
“INV” and “OBD” fuses

’03 Corolla U (L/O 0201)
2402003 MY COROLLA_U (OM12744U)

’03 Corolla U (L/O 0201)
2412003 MY COROLLA_U (OM12744U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS AND UNIFORM TIRE QUALITY
GRADING
Reporting safety defects for U.S. owners242
. . . . . . . . . . . . . . . . . . . . . .
Uniform tire quality grading 242
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 9

’03 Corolla U (L/O 0201)
2422003 MY COROLLA_U (OM12744U)
If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Tollfree: 18003314331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc.To contact NHTSA, you may ei-
ther call the Auto Safety Hotline
tollfree at 18004249393 (or
3660123 in Washington,D.C.
area) or write to: NHTSA, U.S.
Department of Transportation,
Washington,D.C. 20590. You can
also obtain other information about
motor vehicle safety from the Hot-
line.This information has been prepared in ac-
cordance with regulations issued by the
National Highway Traffic Safety Adminis-
tration of the U.S. Department of Trans-
portation. It provides the purchasers and/
or prospective purchasers of Toyota
vehicles with information on uniform tire
quality grading.
Your Toyota dealer will help answer any
questions you may have as you read this
information.
DOT quality grades—All passenger car
tires must conform to Federal Safety
Requirements in addition to these
grades. Quality grades can be found
where applicable on the tire side wall
between tread shoulder and maximum
section width. For example: Treadwear
200 Traction AA Temperature A
Reporting safety defects for
U.S. owners
Uniform tire quality grading

’03 Corolla U (L/O 0201)
2432003 MY COROLLA_U (OM12744U)
Treadwear—The treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (11/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.
Traction AA, A, B, C— The traction
grades, from highest to lowest, are AA, A,
B, and C, and they represent the tire’s
ability to stop on wet pavement as mea-
sured under controlled conditions on spe-
cified government test surfaces of asphalt
and concrete. A tire marked C may have
poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction. Temperature A, B, C—
The temperature
grades are A (the highest), B, and C,
representing the tire’s resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No.109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure.

’03 Corolla U (L/O 0201)
2442003 MY COROLLA_U (OM12744U)

’03 Corolla U (L/O 0201)
2003 MY COROLLA_U (OM12744U)
Publication No. OM12744U
Part No. 01999-12744
Printed in Japan 01020100
(U)
Quick index
If a service reminder indicator or warning buzzer comes on 85 . . . . . . . . .
 If your vehicle will not start 170 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
 If your engine stalls while driving 173 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your vehicle overheats 173 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
 If you have a flat tire 174 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
 If your vehicle needs to be towed 182 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Tips for driving during breakin period 144 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 How to start the engine 158 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
 General maintenance 197 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91)
or higher
See page 144 for detailed information.
Fuel tank capacity:
50 L (13.2 gal., 11.0 lmp. gal.)
Engine oil:
API grade SL “EnergyConserving” or ILSAC multigrade engine oil is
recommended.
See page 210 for detailed information.
Automatic transmission fluid: Automatic transmission fluid Type TIV
See page 236 for detailed information.
Tire information: See pages 214 through 219.
Tire pressure: See page 237.
