Page 11 of 304
’05 Corolla_U (L/O 0409)
1
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
Instrument cluster overview 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 8
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1
Page 12 of 304
’05 Corolla_U (L/O 0409)
2
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Electric moon roof switches
6. Personal lights
7. Power door lock switches
8. Power window switches
9. Glove box
10. Portable ashtray
11. Rear console box
12. Cup holders
13. Power outlet
14. Parking brake lever
15. Automatic transmission selector lever or manual transmission gear shift lever
16. Hood lock release lever
17. Window lock switch
Instrument panel overview
Page 13 of 304
’05 Corolla_U (L/O 0409)
3
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

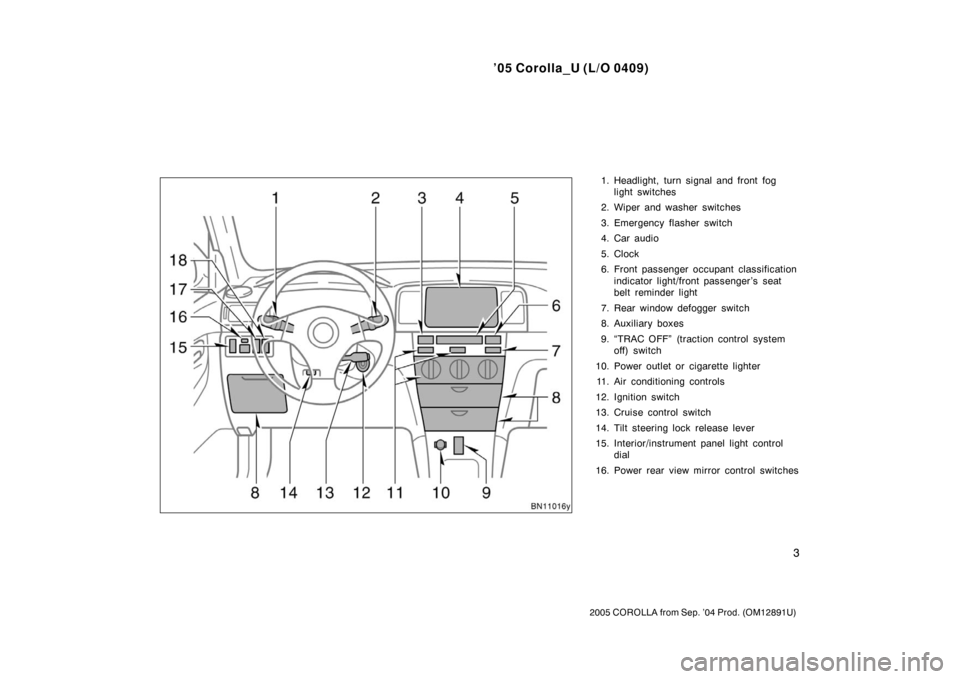

1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Car audio
5. Clock
6. Front passenger occupant classification indicator light/front passenger ’s seat
belt reminder light
7. Rear window defogger switch
8. Auxiliary boxes
9. “TRAC OFF” (traction control system off) switch
10. Power outlet or cigarette lighter 11. Air conditioning controls
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Interior/instrument panel light control dial
16. Power rear view mirror control switches
Page 14 of 304
’05 Corolla_U (L/O 0409)
4
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
17. Tire pressure warning system resetswitch
18. Engine immobilizer system/Toyota vehicle intrusion protection system
indicator light
Page 15 of 304
’05 Corolla_U (L/O 0409)
5
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

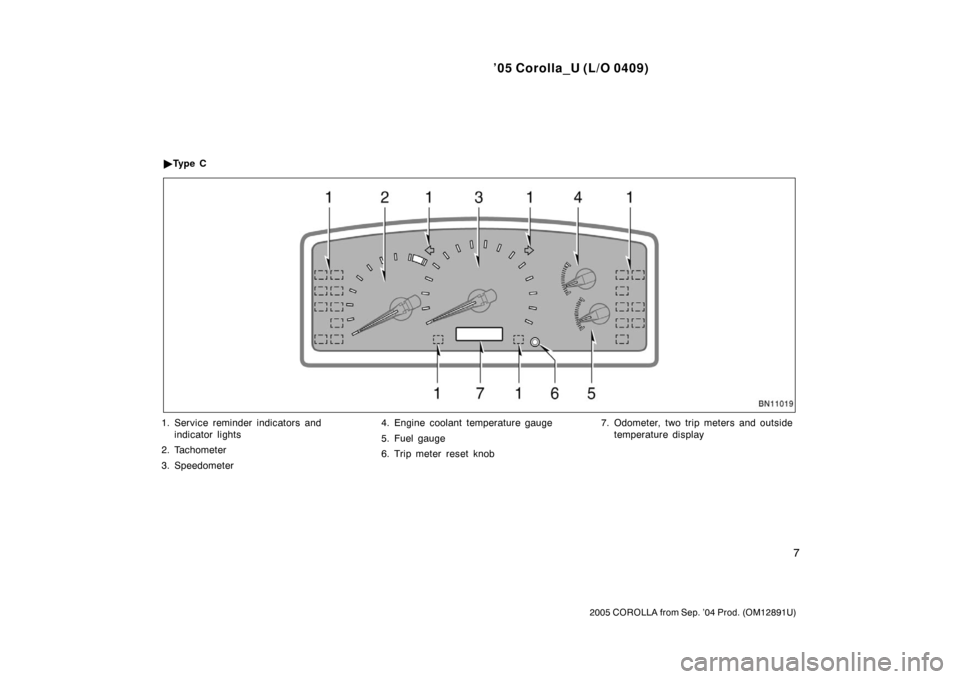

1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display
Instrument cluster overview
Ty p e A
Page 16 of 304
’05 Corolla_U (L/O 0409)
6
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

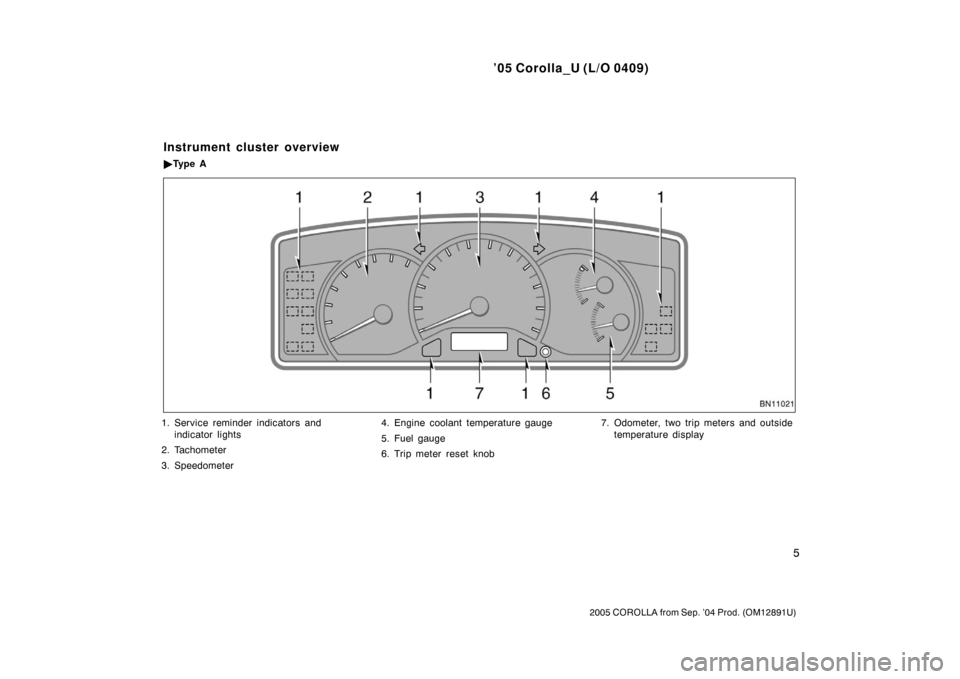

1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display
Ty p e B
Page 17 of 304
’05 Corolla_U (L/O 0409)
7
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

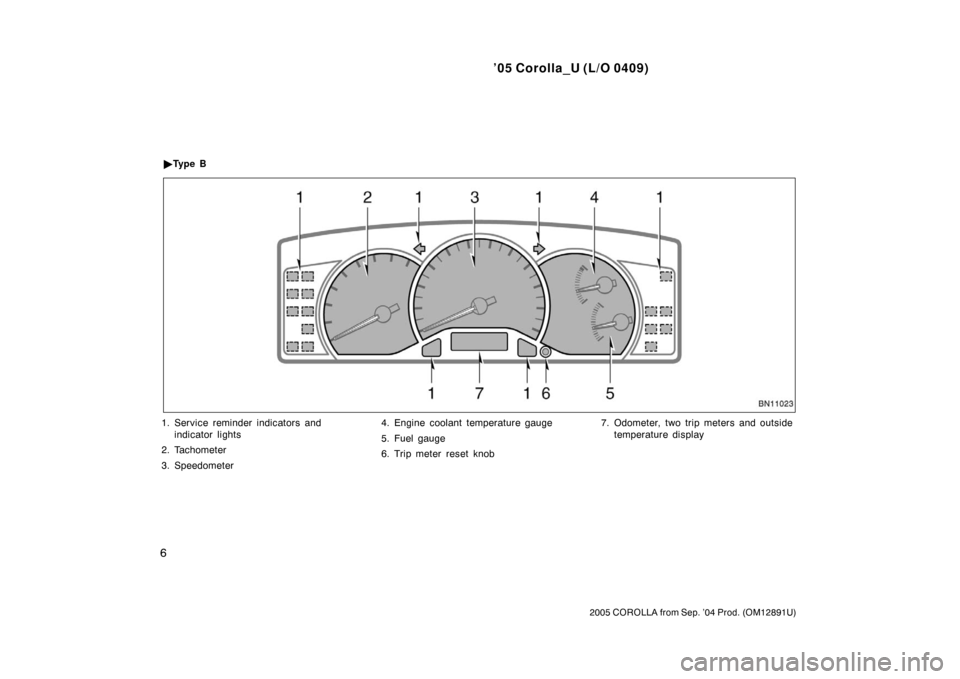

1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display
Ty p e C
Page 18 of 304
’05 Corolla_U (L/O 0409)
8
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
orBrake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Low fuel level warning light∗1
or
Low engine oil pressure warning light
∗ 1
Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Front passenger ’s seat belt reminder light∗1
Malfunction indicator lamp∗1or Vehicle stability control system/traction control
system warning light
∗
1
Low tire pressure warning light∗1
Engine oil replacement reminder light∗1
Front passenger occupant classification
indicator light
Indicator symbols on the instrument panel
Page 19 of 304
’05 Corolla_U (L/O 0409)
9
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Overdrive−off indicator light
Cruise control indicator light
∗ 2
∗ 1
: For details, see “Service reminder indicators and warning
buzzers” on page 106 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 130 in
Section 1 −7.
Turn signal indicator lights Headlight high beam indicator light
Headlight low beam indicator light
Tail light indicator light
Slip indicator light/traction control system off
indicator light
Page 20 of 304
’05 Corolla_U (L/O 0409)
10
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
