2005 COROLLA from Sep. ’04 Prod. (OM12891U)
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with power door lock system—
Doors cannot be locked when either front
door is open and the key is in the igni-
tion.
Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch simultaneously locks
or unlocks all the doors.
If you do either of the following, no door
can be unlocked with the power door lock
switch.
Lock all the doors with the key or wire-
less remote control transmitter when all
the doors are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the doors with the key or
wireless remote control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch.

’05 Corolla_U (L/O 0409)
22
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child−protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Vehicles with automatic transmission
and power door lock system—You can
select the following modes of the
automatic locking and unlocking
functions. The initial mode is mode 1.
Mode 1—Automatic locking linked
with the shift position
All doors are automatically locked when
the shift lever is moved out of the “P”
position with the ignition switch in the
“ON” position and all the doors are
closed.
Mode 2—Functions cancelled
Automatic door locking and unlocking
functions do not activate in this mode.
Mode 3—Automatic locking and un-
locking linked with the shift position
Locking function—All doors are auto-
matically locked when the shift lever is
moved out of the “P” position with the
ignition switch in the “ON” position and
all doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the shift lever
is moved to the “P” position with the
ignition switch in the “ON” position.
—Automatic door locking and
unlocking functions

’05 Corolla_U (L/O 0409)
23
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Mode 4—Automatic locking and un-
locking linked with the shift position
and ignition switch
Locking function—All doors are auto-
matically locked when the shift lever is
moved out of the “P” position with the
ignition switch in the “ON” position and
all doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the ignition
switch is turned from the “ON” position
to the “ACC” or “LOCK” position.
CHANGING THE MODE
The mode toggles through from mode
1 to mode 4. To change the mode, do
the following:
1. Set the interior light control dial to the door position. (See “Interior/instrument
panel light control” on page 95 in Sec-
tion 1 −5.)
2. Shift the shift lever into the “P” posi- tion and close all doors.
3. Turn the ignition switch to the “ON” position.
4. Within 5 seconds after the ignition switch is turned to the “ON” position,
push and hold the power door lock
switch on the front side for about 5
seconds. 5. The interior light will flash to indicate
that the mode has been changed.
The flashing of the interior light indicates
the mode which has been selected.
Flashing once, the function has
changed to mode 1.
Flashing twice, the function has
changed to mode 2.
Flashing three times, the function has
changed to mode 3.
Flashing four times, the function has
changed to mode 4.
If the battery is disconnected or run down,
the mode is changed into initial mode
(mode 1).
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.

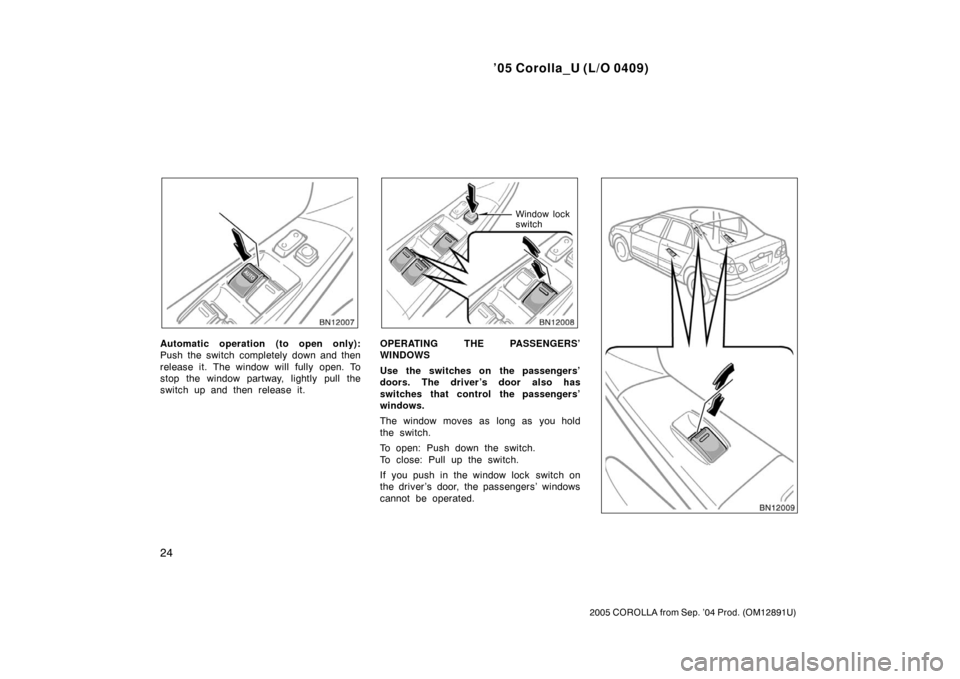

OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
Power windows

’05 Corolla_U (L/O 0409)
24
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switches on the passengers’
doors. The driver ’s door also has
switches that control the passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.

’05 Corolla_U (L/O 0409)
25
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “—Stowage precautions” on page 197
in Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
Trunk lid—

’05 Corolla_U (L/O 0409)
26
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.

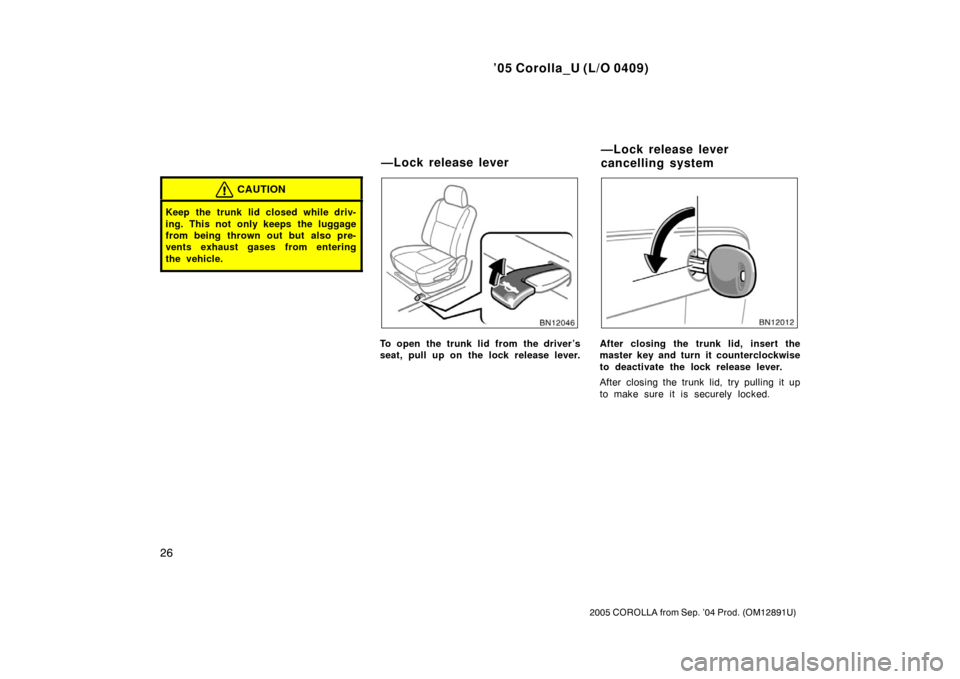

To open the trunk lid from the driver’s
seat, pull up on the lock release lever.After closing the trunk lid, insert the
master key and turn it counterclockwise
to deactivate the lock release lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.
—Lock release lever—Lock release lever
cancelling system

’05 Corolla_U (L/O 0409)
27
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
If a person is locked in the trunk,
he/she can pull down the phosphores-
cent handle on the inside of trunk lid
to open the trunk lid.
The phosphorescent (glow−in −the −dark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.
TVIP is a theft deterrent system. If
someone attempts to damage or break
into your vehicle, the system sounds
the alarm while flashing the lights.
—Internal trunk release handle Toyota vehicle intrusion
protection system (TVIP)

’05 Corolla_U (L/O 0409)
28
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
SETTING THE SYSTEM
You can set the system as follows.1. Remove the key from the ignition switch.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 14 for details.) 2. Have all passengers get out of the vehicle.
3. Close all the doors and trunk lid secu- rely. 4. Lock all the doors with the key or wire-
less remote control transmitter. At this
time, the TVIP indicator light comes
on.
The system will be set in 30 seconds.
When the system is set, the indicator
light will start to flashing again.
5. Make sure that the indicator light flashes. Then you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system because unlocking
from the inside activates the alarm.
Activating the alarm
If the system detects a threat to the
vehicle, it sounds the alarm for one
minute while flashing headlights and
turn signal lights.
At this time, the interior light also turns
on when the interior light dial is in the
DOOR position. (See “Interior/instrument
panel light control” on page 95 in Section
1 −5.) The system detects a threat under any of
the following conditions:
Either of the front doors is unlocked by
means other than the key or wireless
remote control transmitter.
If the key is not in the ignition switch,
all the doors will be automatically
locked again.
Any of the doors or trunk lid are forci-
bly opened.
The alarm will activate when the trunk
lid is opened with a key. Cancel the
system before o
pening the trunk lid.
The side windows are tapped or bro-
ken.
The battery terminal is disconnected
and then reconnected.
The ignition is hotwired.
After one minute, the alarm automatically
stops and the indicator light starts flashing
again.

’05 Corolla_U (L/O 0409)
29
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Reactivating the alarm
Once set, until you cancel the system, the
system automatically resets the alarm af-
ter the alarm has stopped.
The alarm will activate again under the
same circumstances described in “Activat-
ing the alarm”.
Stopping the alarm
You can stop the alarm in either of the
following ways:
Unlock any of the doors with the key
or wireless remote control transmitter.
Place the ignition switch in the “ON”
position.
CANCELLING THE SYSTEM
You can cancel the system as described
in “Stopping the alarm”.
If you cancel the system by unlocking any
of the doors but no door is opened within
30 seconds, all the doors lock automati-
cally and the system will be set again. TESTING THE SYSTEM
You can check the system operation as
follows.
1. Open all the windows.
2. Set the system as described in “SETTING THE SYSTEM”.
3. Unlock the driver’s door with the inside lock knob. The system should activate
and the alarm should sound.
4. Stop the alarm as described in “Stop- ping the alarm”.
5. Repeat steps 2 to 4 for the other doors. (For rear doors, unlock and then
open the doors as described in step 3.)
If the system does not work properly,

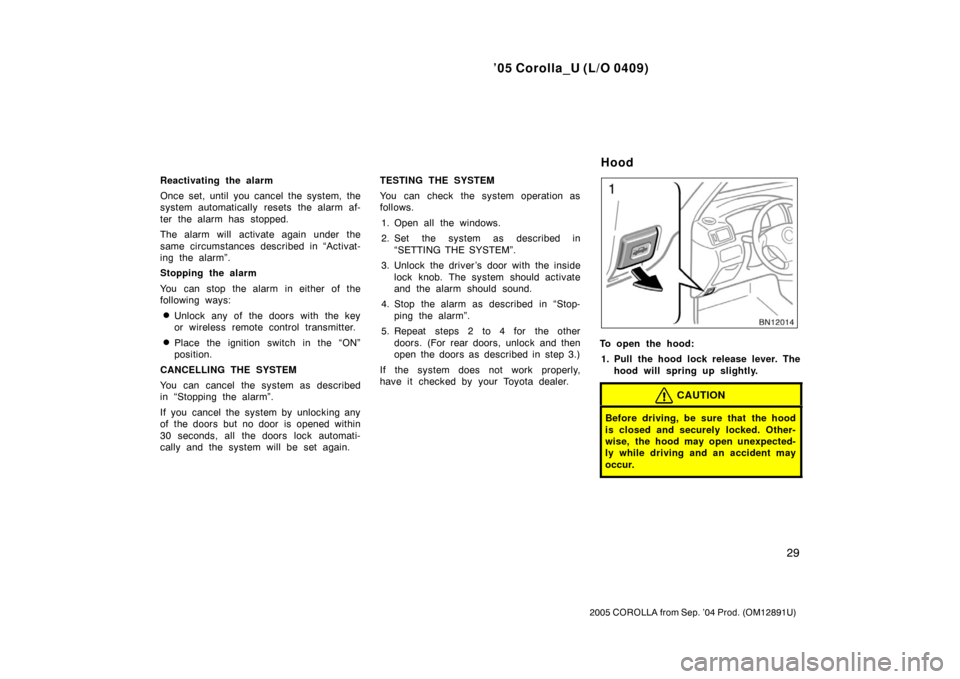

have it checked by your Toyota dealer.To open the hood: 1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
Hood

’05 Corolla_U (L/O 0409)
30
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

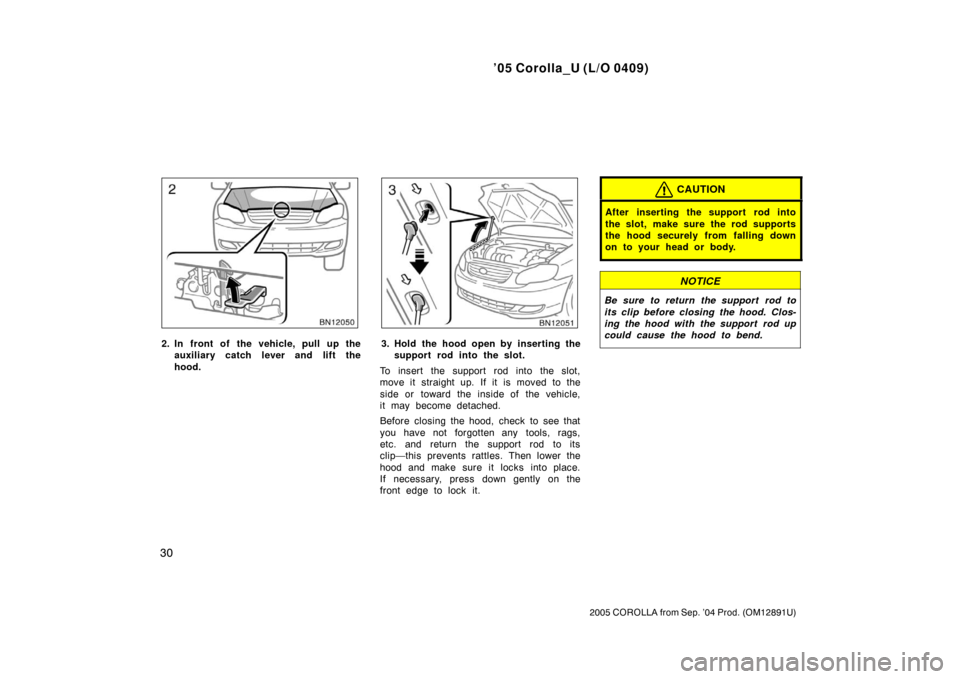

2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.3. Hold the hood open by inserting the support rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.
