TOYOTA COROLLA 2005 E120 / 9.G Owners Manual

’05 Corolla_U (L/O 0409)
271
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
Ty p e A
Green Dark Clear or
light yellow
Ty p e B Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear orlight
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
—Checking battery c ondition Battery recharging pr ecautions

’05 Corolla_U (L/O 0409)
272
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

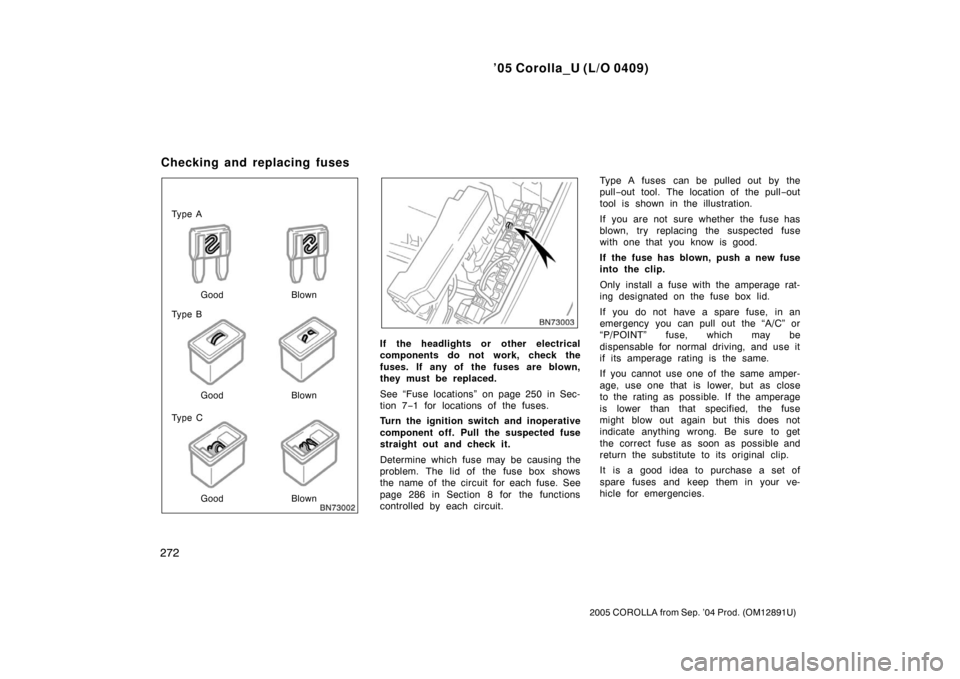

Ty p e AGood Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 250 in Sec-
tion 7−1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 286 in Section 8 for the functions
controlled by each circuit. Type A fuses can be pulled out by the
pull
−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “A/C” or
“P/POINT” fuse, which may be
dispensable for normal driving, and use it
if its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
Checking and replacing fuses

’05 Corolla_U (L/O 0409)
273
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.

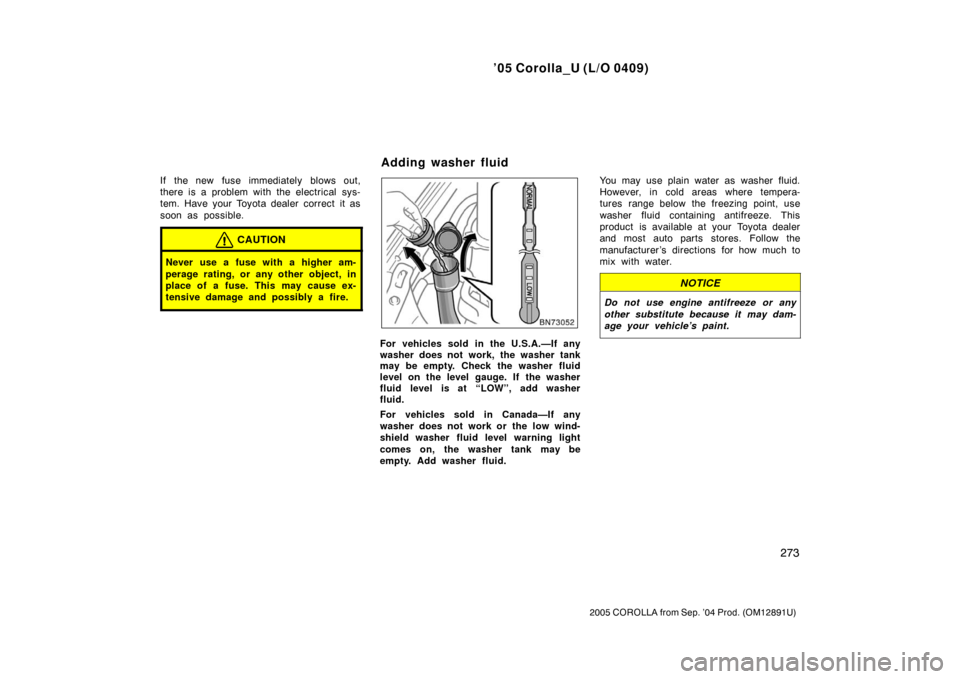

CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
For vehicles sold in the U.S.A.—If any
washer does not work, the washer tank
may be empty. Check the washer fluid
level on the level gauge. If the washer
fluid level is at “LOW”, add washer
fluid.
For vehicles sold in Canada—If any
washer does not work or the low wind-
shield washer fluid level warning light
comes on, the washer tank may be
empty. Add washer fluid.You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

’05 Corolla_U (L/O 0409)
274
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights
(high beam)900565A
Headlights
(low beam)900655B
Parking/front side
marker/front turn
signal lights
3157A27/8C
Front fog lights900655B
Rear side marker
and stop/tail lights315727/8D
Rear turn signal
lights3157A27/8C
Back −up lights92118D
High mounted
stoplight92118D
License plate lights—5D
Interior light—8E
Replacing light bulbs—

’05 Corolla_U (L/O 0409)
275
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Light bulbsBulbNo.WTy p e
Personal light
(on the switch
panel of the electric
moon roof)
—10F
Personal lights
(on the inside rear
view mirror without
compass)
1924.3D
Trunk light Ty p e A∗1
Ty p e B∗2168
—4.9
3.8D
D
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: Double end bulbs
F: Single end bulbs
∗ 1: Except for ZZE130L −AEPDKA and
− AEPNKA models
∗
2: For ZZE130L− AEPDKA and −AEPNKA
models
The model code appears on the Certifica-
tion Label with the heading “MODEL”. See
“Your Toyota’s identification” on page 184
in Section 2 for the Certification Label
location.

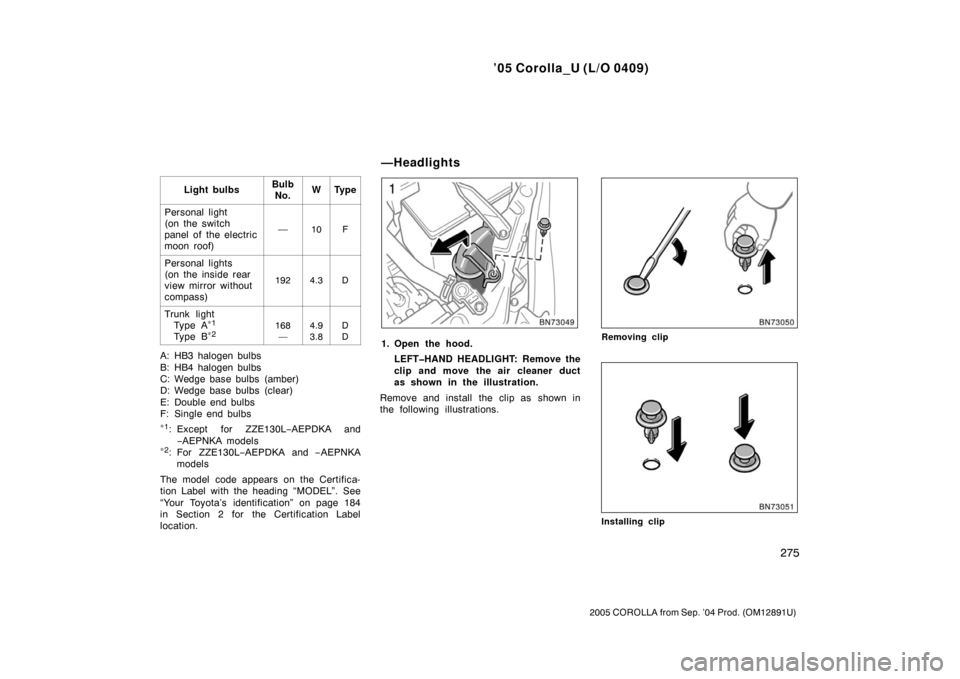

1. Open the hood. LEFTHAND HEADLIGHT: Remove the
clip and move the air cleaner duct
as shown in the illustration.
Remove and install the clip as shown in
the following illustrations.Removing clip
Installing clip
—Headlights

’05 Corolla_U (L/O 0409)
276
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

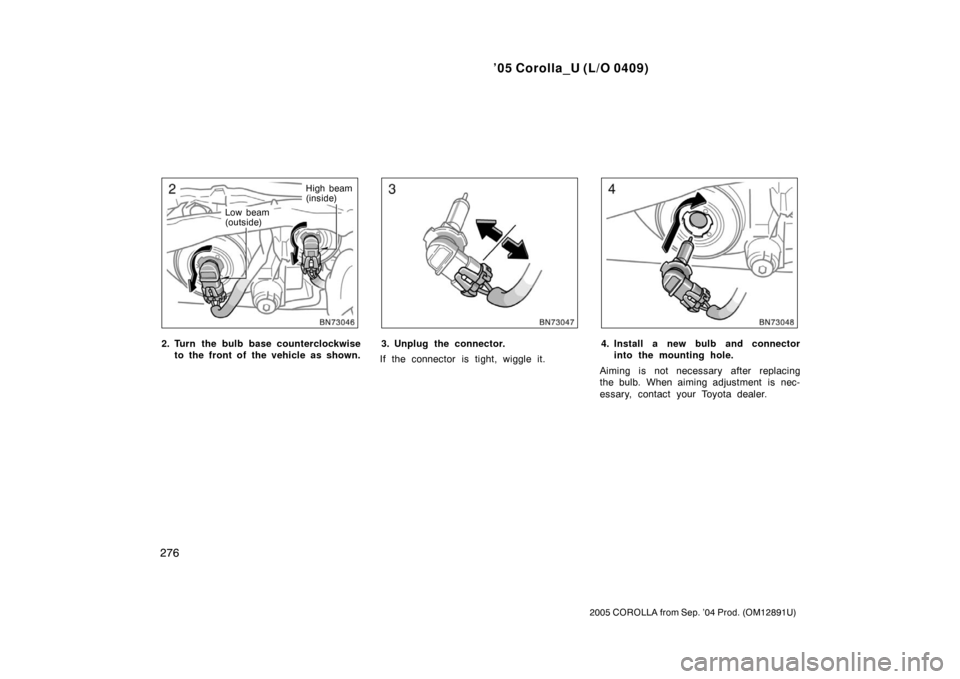

Low beam
(outside)High beam
(inside)
2. Turn the bulb base counterclockwise
to the front of the vehicle as shown.3. Unplug the connector.
If the connector is tight, wiggle it.4. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

’05 Corolla_U (L/O 0409)
277
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

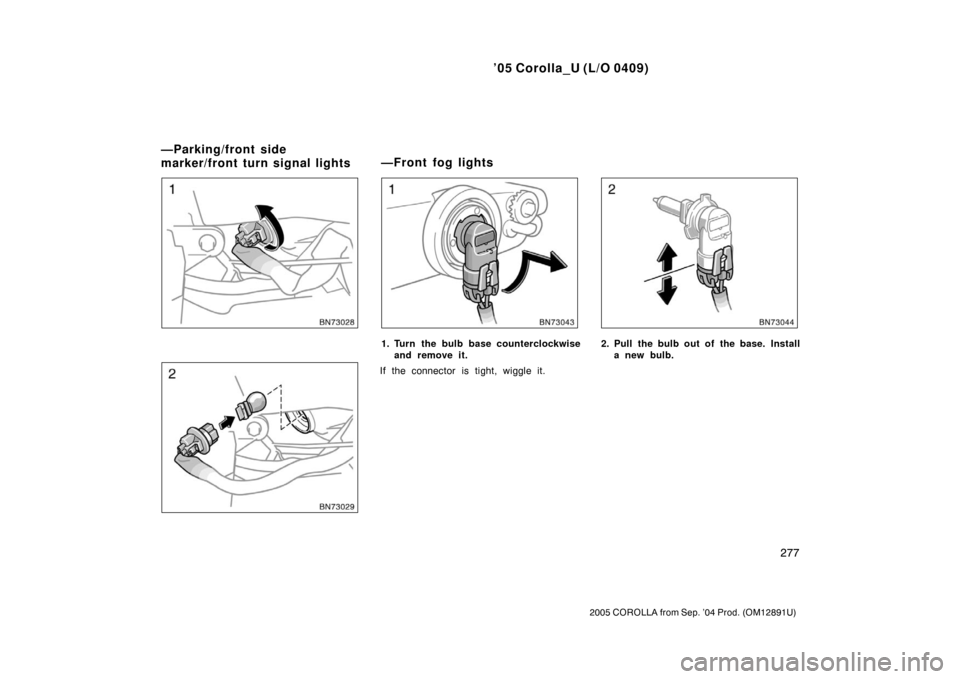

1. Turn the bulb base counterclockwiseand remove it.
If the connector is tight, wiggle it.2. Pull the bulb out of the base. Install a new bulb.
—Parking/front side
marker/front turn signal lights —Front fog lights

’05 Corolla_U (L/O 0409)
278
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

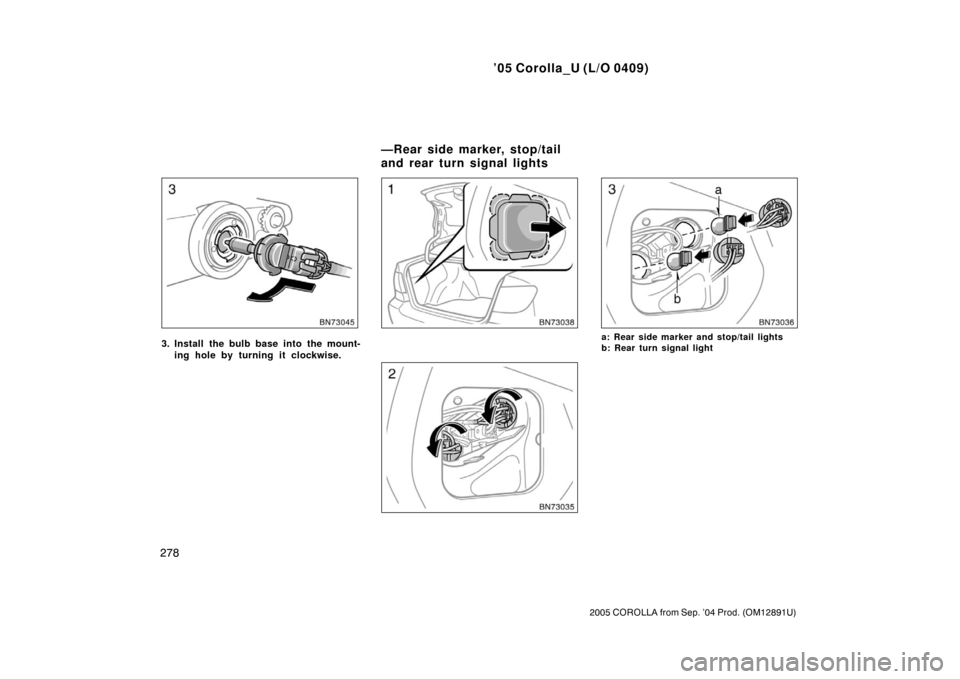

3. Install the bulb base into the mount-ing hole by turning it clockwise.a: Rear side marker and stop/tail lights
b: Rear turn signal light

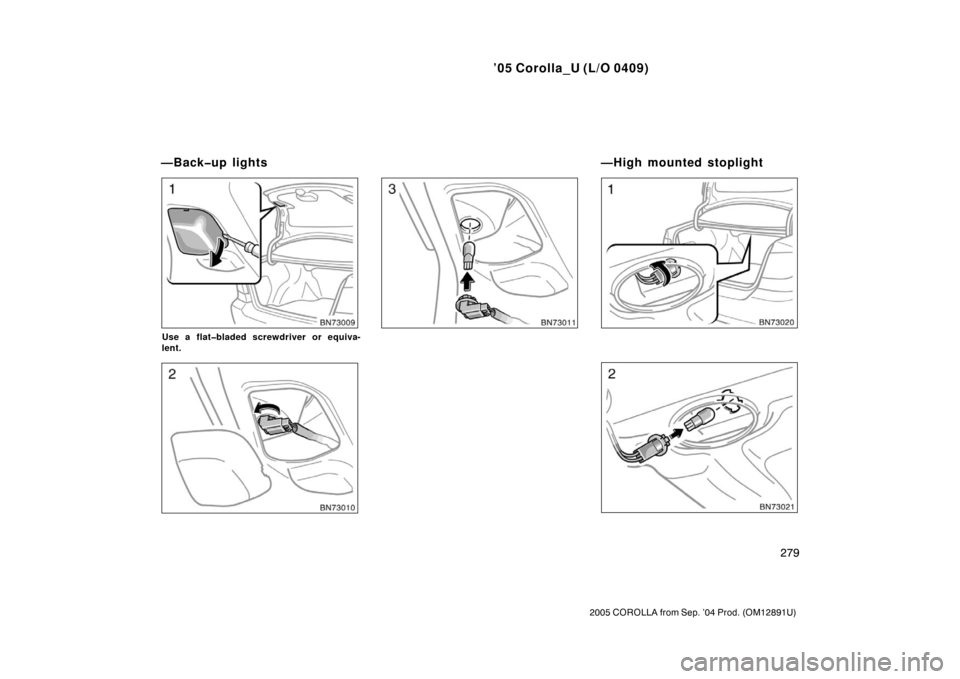

—Rear side marker, stop/tail
and rear turn signal lights

’05 Corolla_U (L/O 0409)
279
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Use a flatbladed screwdriver or equiva-
lent.
—Backup lights—High mounted stoplight

’05 Corolla_U (L/O 0409)
280
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
If either of the license plate lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the license plate
light bulbs by yourself. You may dam-
age the vehicle.
—License plate lights
