The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily in
FRESH mode.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. (For scheduled maintenance informa-
tion, please refer to the “Scheduled Main-
tenance Guide” or “Owner ’s Manual
Supplement”.)

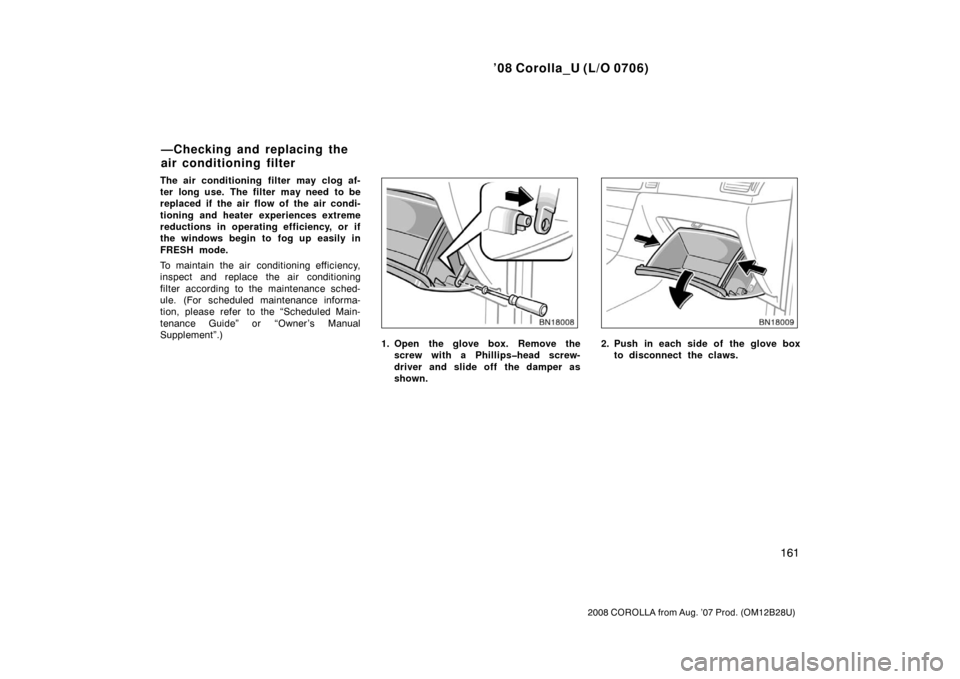

1. Open the glove box. Remove thescrew with a Phillipshead screw-
driver and slide off the damper as
shown.2. Push in each side of the glove boxto disconnect the claws.
—Checking and replacing the
air conditioning filter

’08 Corolla_U (L/O 0706)
162
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)

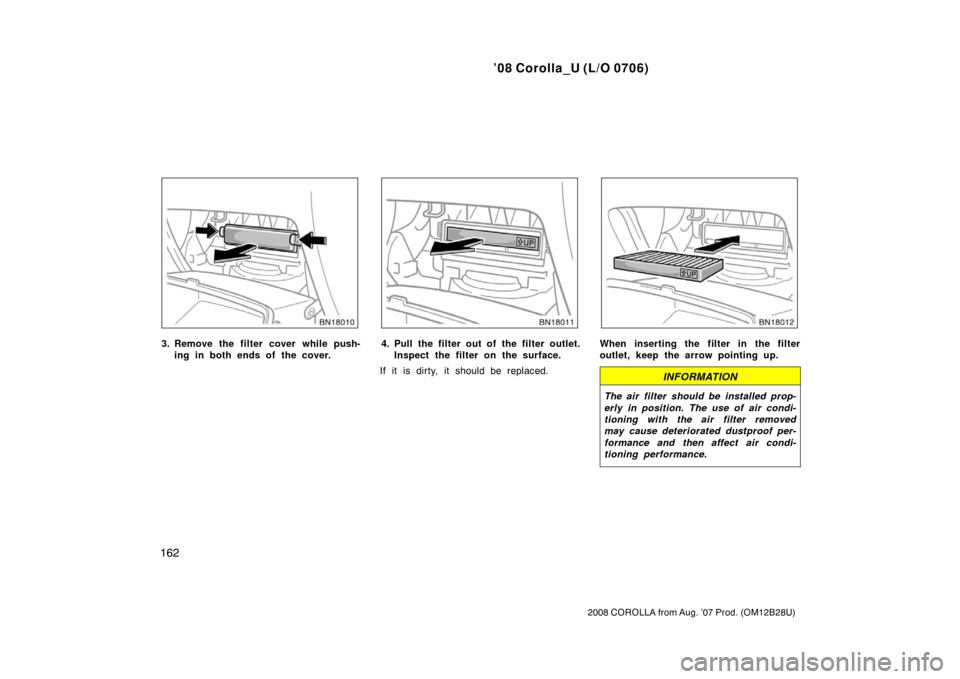

3. Remove the filter cover while push-ing in both ends of the cover.4. Pull the filter out of the filter outlet.Inspect the filter on the surface.
If it is dirty, it should be replaced.When inserting the filter in the filter
outlet, keep the arrow pointing up.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

’08 Corolla_U (L/O 0706)
163
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and portable ashtray 164
. . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Compass 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Glove box 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 171
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Cup holders 172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Floor mat 172
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

’08 Corolla_U (L/O 0706)
164
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)

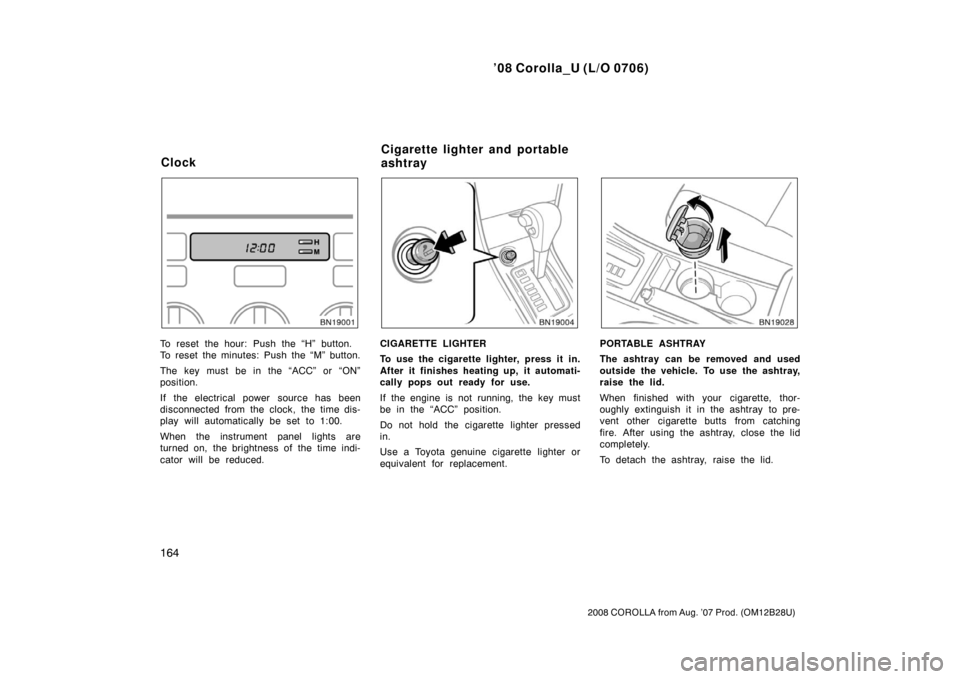

To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00.
When the instrument panel lights are
turned on, the brightness of the time indi-
cator will be reduced.CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.PORTABLE ASHTRAY
The ashtray can be removed and used
outside the vehicle. To use the ashtray,
raise the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To detach the ashtray, raise the lid.
ClockCigarette lighter and portable
ashtray

’08 Corolla_U (L/O 0706)
165
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
Instrument panel
Rear console box
The power outlets are designed for
power supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of 12
V/120W.
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
Power outlets

’08 Corolla_U (L/O 0706)
166
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.

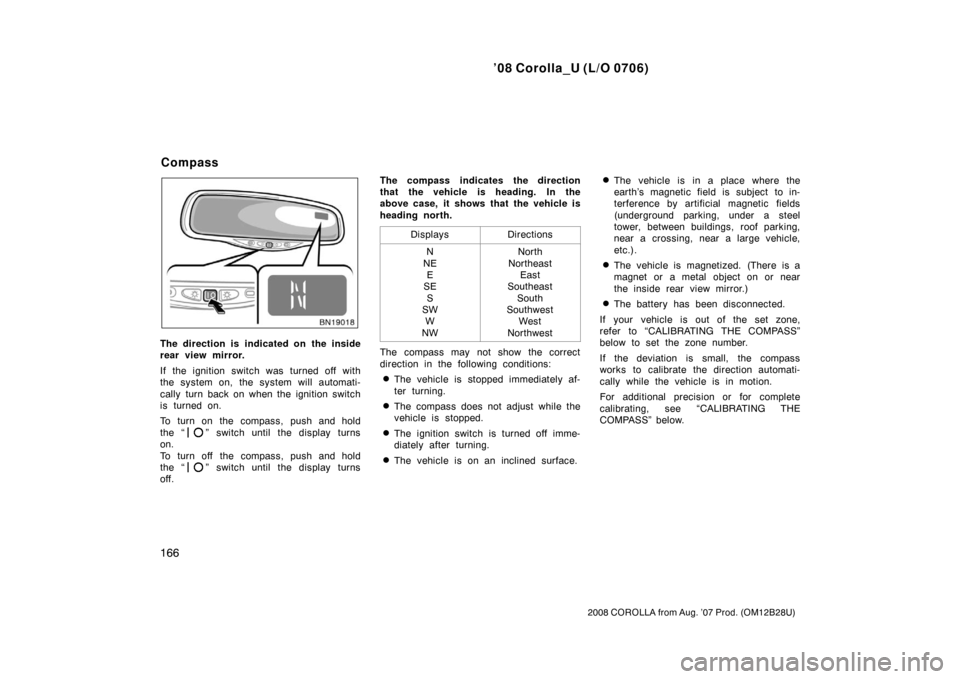

To turn on the compass, push and hold
the “
” switch until the display turns
on.
To turn off the compass, push and hold
the “
” switch until the display turns
off. The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.
Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
Compass

’08 Corolla_U (L/O 0706)
167
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)

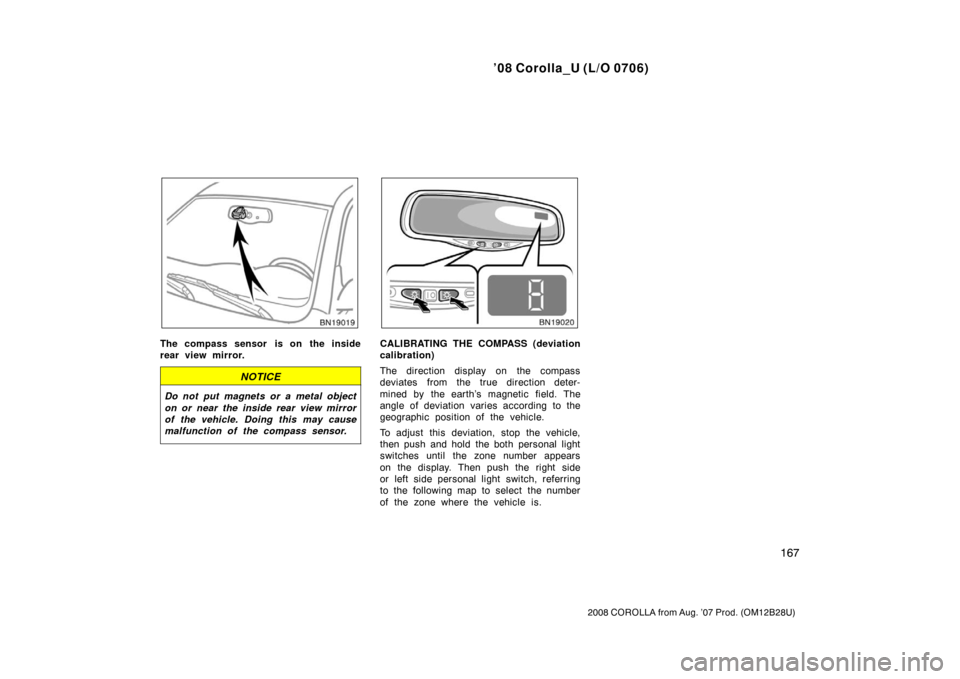

The compass sensor is on the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the both personal light
switches until the zone number appears
on the display. Then push the right side
or left side personal light switch, referring
to the following map to select the number
of the zone where the vehicle is.

’08 Corolla_U (L/O 0706)
168
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
Zone number
After calibration, leaving the system for
several seconds returns it to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Samoa: 5 Guam: 8 Saipan: 8

’08 Corolla_U (L/O 0706)
169
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the both personal light switches until
“C” appears on the display.
If “C” appears on the display because of
a drastic change in the magnetic field,

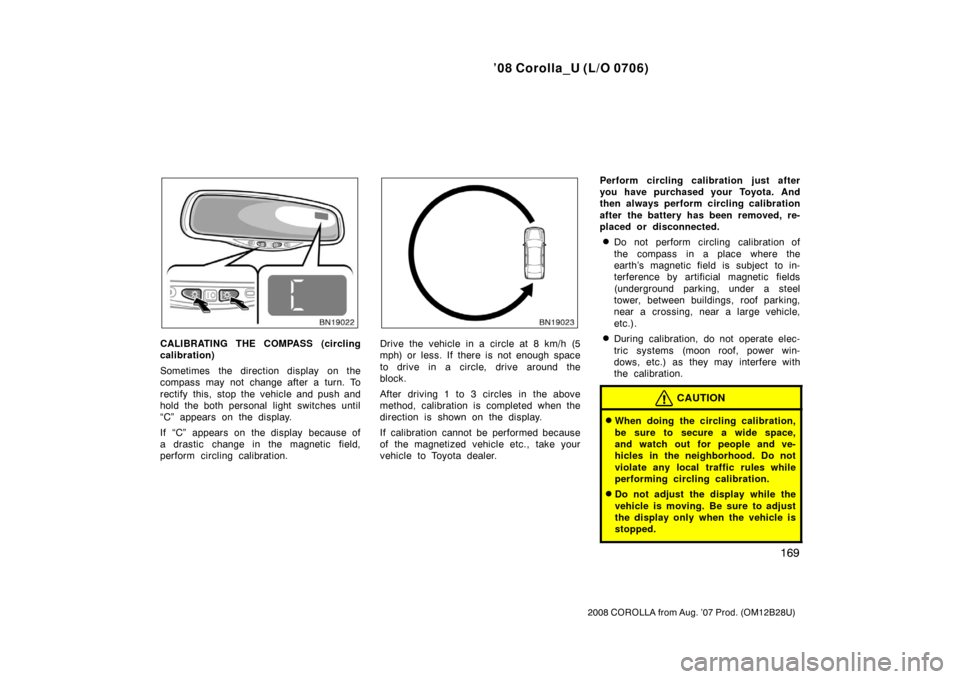

perform circling calibration.Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.

’08 Corolla_U (L/O 0706)
170
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)

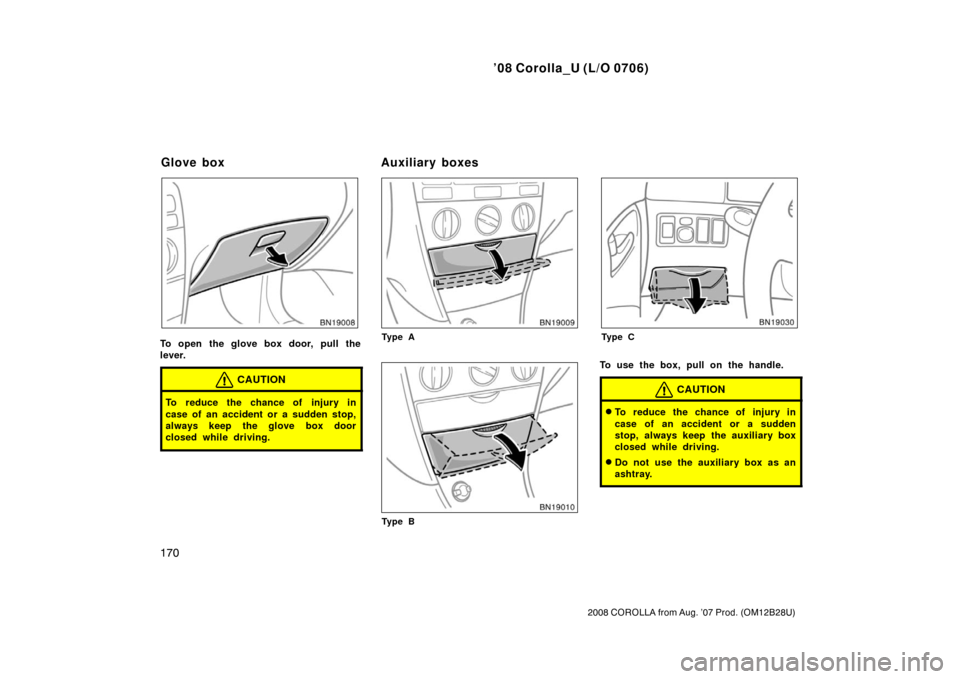

To open the glove box door, pull the
lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Ty p e A
Ty p e B
Ty p e C
To use the box, pull on the handle.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Do not use the auxiliary box as an
ashtray.
Glove boxAuxiliary boxes
