Vehicles with automatic transmission
and power door lock system—You can
select the following modes of the
automatic locking and unlocking
functions.
Mode 1—Automatic locking linked
with the shift position
All doors are automatically locked when
the selector lever is moved out of the
“P” position with the ignition switch in
the “ON” position and all the doors are
closed.
Mode 2—Functions cancelled
Automatic door locking and unlocking
functions do not activate in this mode.
Mode 3—Automatic locking and un-
locking linked with the shift position
Locking function—All doors are auto-
matically locked when the selector le-
ver is moved out of the “P” position
with the ignition switch in the “ON”
position and all doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the selector
lever is moved to the “P” position with
the ignition switch in the “ON” position.
Mode 4—Automatic locking and un-
locking linked with the shift position
and ignition switch
Locking function—All doors are auto-
matically locked when the selector le-
ver is moved out of the “P” position
with the ignition switch in the “ON”
position and all doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the ignition
switch is turned from the “ON” position
to the “ACC” or “LOCK” position.
CHANGING THE MODE
The mode toggles through from mode
1 to mode 4. To change the mode, do
the following:
1. Set the interior light switch to the “DOOR” position. (See “Interior light”
on page 93 in Section 1 −5.)
2. Shift the selector lever into the “P” position and close all doors.
3. Turn the ignition switch to the “ON” position.
4. Within 5 seconds after the ignition switch is turned to the “ON” position,
push and hold the power door lock
switch on the front side for about 5
seconds. 5. The interior light will flash to indicate
that the mode has been changed.
The flashing of the interior light indicates
the mode which has been selected.
Flashing once, the function has
changed to mode 1.
Flashing twice, the function has
changed to mode 2.
Flashing three times, the function has
changed to mode 3.
Flashing four times, the function has
changed to mode 4.
If the battery is disconnected or run down,
the mode may change. Set the desired
mode by following the above procedure.
—Automatic door locking and
unlocking functions
Page 32 of 310
’08 Corolla_U (L/O 0706)
22
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
Window lock
switch
Driver’s door
Passengers’ doors
The windows can be operated with the
switch on each door. The passengers’
windows can also be controlled by the
switches on the driver ’s door.
The power windows work when the ignition
switch is in the “ON” position.
Normal operation: The window moves as
long as you hold the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
Automatic operation (to open the driv-
er ’s window): Push the switch completely
down and then release it. The window will
fully open. To stop the window partway,
lightly pull the switch up and then release
it.CAUTION
To avoid death or serious personal
injury, you must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Power windows
Page 33 of 310
’08 Corolla_U (L/O 0706)
23
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

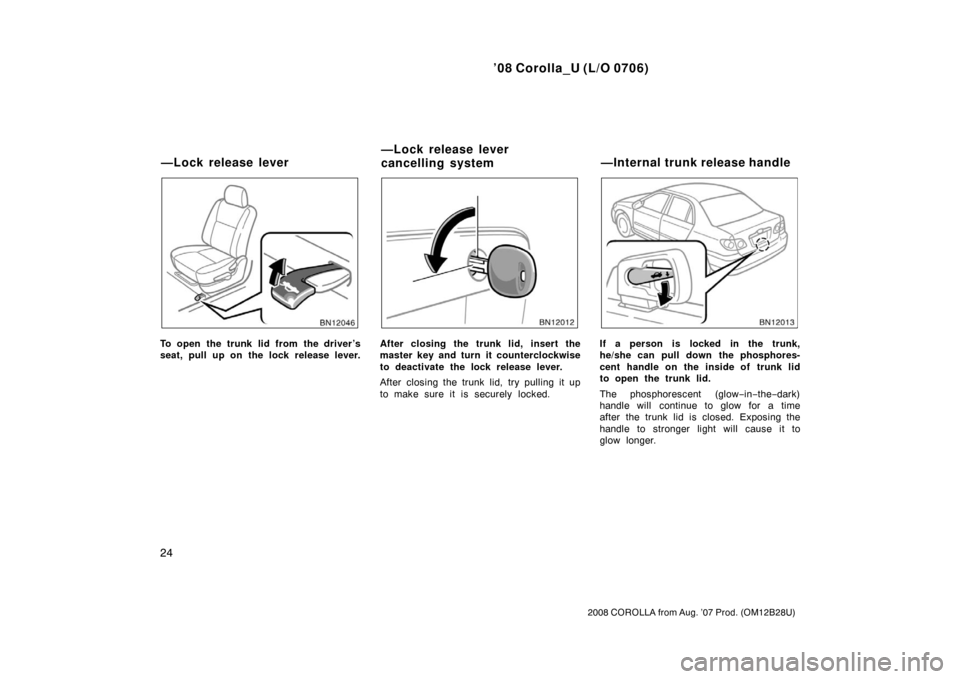

To open the trunk lid from the outside,
insert the master key and turn it clock-
wise.
See “—Stowage precautions” on page 201
in Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
Trunk lid—
Page 34 of 310
’08 Corolla_U (L/O 0706)
24
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
To open the trunk lid from the driver’s
seat, pull up on the lock release lever.After closing the trunk lid, insert the
master key and turn it counterclockwise
to deactivate the lock release lever.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.If a person is locked in the trunk,
he/she can pull down the phosphores-
cent handle on the inside of trunk lid
to open the trunk lid.
The phosphorescent (glow−in −the −dark)
handle will continue to glow for a time
after the trunk lid is closed. Exposing the
handle to stronger light will cause it to
glow longer.
—Lock release lever —Lock release lever
cancelling system
—Internal trunk release handle
Page 35 of 310
’08 Corolla_U (L/O 0706)
25
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.

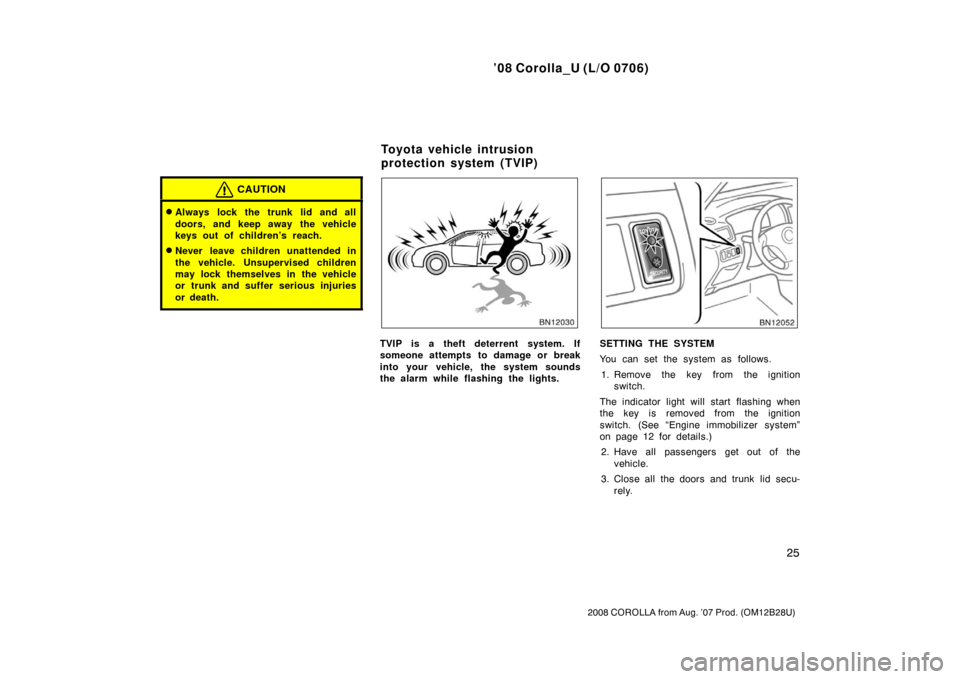

TVIP is a theft deterrent system. If
someone attempts to damage or break
into your vehicle, the system sounds
the alarm while flashing the lights.SETTING THE SYSTEM
You can set the system as follows.1. Remove the key from the ignition switch.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 12 for details.) 2. Have all passengers get out of the vehicle.
3. Close all the doors and trunk lid secu- rely.
Toyota vehicle intrusion
protection system (TVIP)
Page 36 of 310
’08 Corolla_U (L/O 0706)
26
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
4. Lock all the doors with the key or wire-less remote control transmitter. At this
time, the TVIP indicator light comes
on.
The system will be set in 30 seconds.
When the system is set, the indicator
light will start to flashing again.
5. Make sure that the indicator light flashes. Then you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system because unlocking
from the inside activates the alarm.
Activating the alarm
If the system detects a threat to the
vehicle, it sounds the alarm for one
minute while flashing headlights and
turn signal lights.
At this time, the interior light also turns
on when the interior light switch is in the
“DOOR” position. (See “Interior light” on
page 93 in Section 1 −5.) The system detects a threat under any of
the following conditions:
Either of the front doors is unlocked by
means other than the key or wireless
remote control transmitter.
If the key is not in the ignition switch,
all the doors will be automatically
locked again.
Any of the doors or trunk lid are forci-
bly opened.
The alarm will activate when the trunk
lid is opened with a key. Cancel the
system before o
pening the trunk lid.
The side windows are tapped or bro-
ken.
The battery terminal is disconnected
and then reconnected.
The ignition is hotwired.
After one minute, the alarm automatically
stops and the indicator light starts flashing
again. Reactivating the alarm
Once set, until you cancel the system, the
system automatically resets the alarm af-
ter the alarm has stopped.
The alarm will activate again under the
same circumstances described in “Activat-
ing the alarm”.
Stopping the alarm
You can stop the alarm in either of the
following ways:
Unlock any of the doors with the key
or wireless remote control transmitter.
Place the ignition switch in the “ON”
position.
CANCELLING THE SYSTEM
You can cancel the system as described
in “Stopping the alarm”.
If you cancel the system by unlocking any
of the doors but no door is opened within
30 seconds, all the doors lock automati-
cally and the system will be set again.
Page 37 of 310
’08 Corolla_U (L/O 0706)
27
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
TESTING THE SYSTEM
You can check the system operation as
follows.1. Open all the windows.
2. Set the system as described in “SETTING THE SYSTEM”.
3. Unlock the driver’s door with the inside lock knob. The system should activate
and the alarm should sound.
4. Stop the alarm as described in “Stop- ping the alarm”.
5. Repeat steps 2 to 4 for the other doors. (For rear doors, unlock and then
open the doors as described in step 3.)
If the system does not work properly,
have it checked by your Toyota dealer.

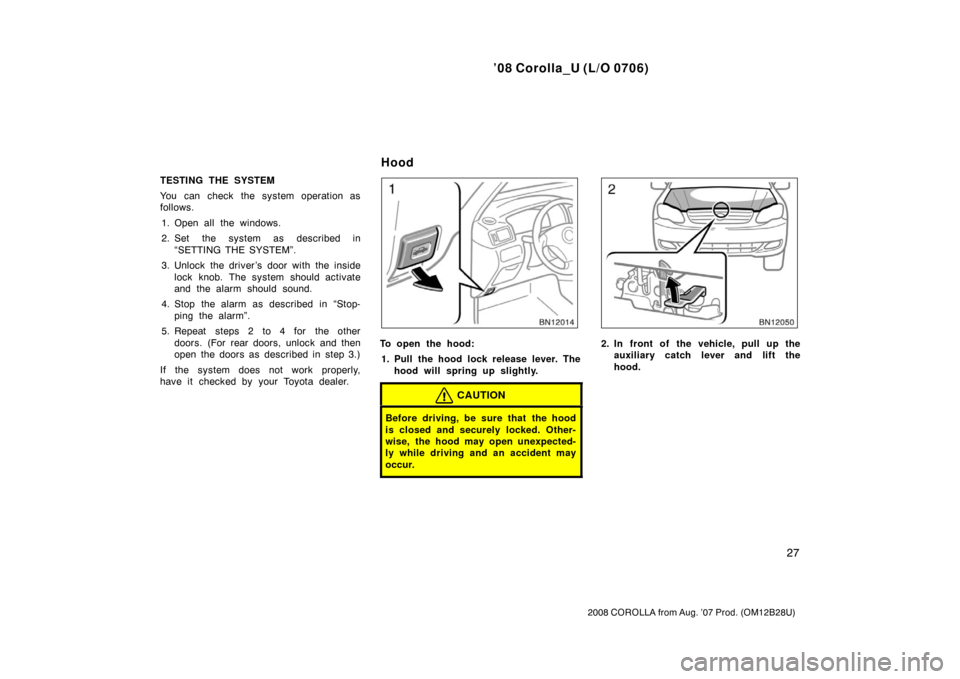

To open the hood: 1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Hood
Page 38 of 310
’08 Corolla_U (L/O 0706)
28
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
3. Hold the hood open by inserting thesupport rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap
Page 39 of 310
’08 Corolla_U (L/O 0706)
29
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)

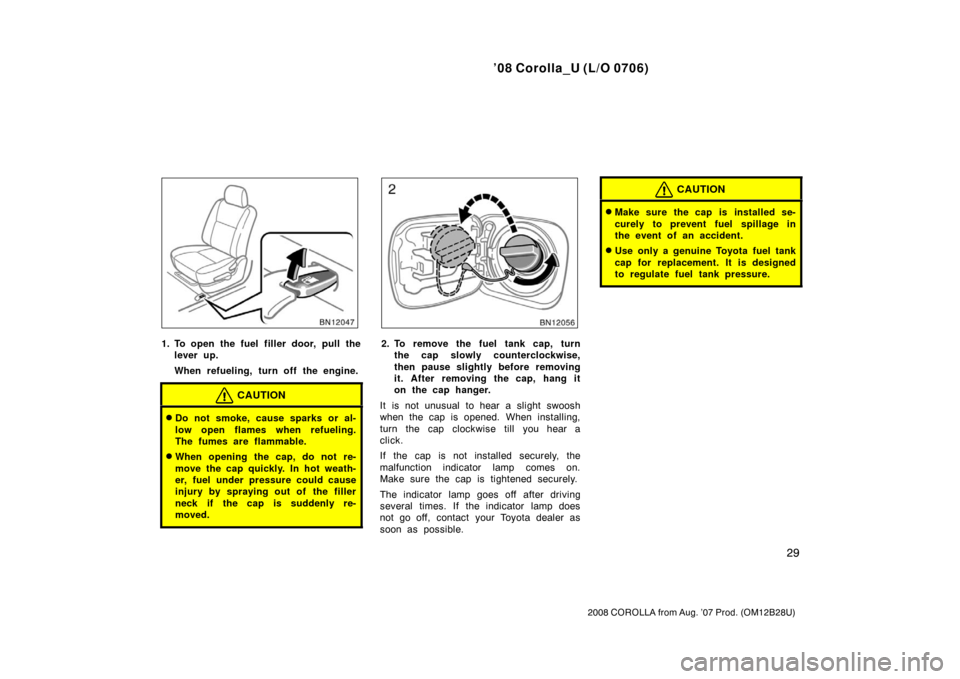

1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
Page 40 of 310
’08 Corolla_U (L/O 0706)
30
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
Sliding operation
Tilting operation
To operate the moon roof, use the
switches beside the personal light.
The moon roof works when the ignition
switch is in the “ON” position.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the rear
side.
The sun shade will be opened together
with the roof.
To close: Push the switch on the front
side.
As a precaution when closing, the roof
stops at the half closed position before
fully closing. Therefore, release the switch
and then push it again to close it com-
pletely.
Tilting operation—
To tilt up: Push the switch on the “UP”
side.
To lower: Push the switch on the opposite
side of the “UP” side.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released.CAUTION
To avoid death or serious injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be killed or seri-
ously injured if the vehicle stops
suddenly or if the vehicle is in-
volved in an accident.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in death or serious injury.
When anyone closes the moon roof,
first make sure it is safe to do so.
Be sure to remove the ignition key
when you leave your vehicle.
Electric moon roof
