TOYOTA COROLLA 2009 10.G Navigation Manual

OTHER FUNCTIONS
131

To edit “Dealer” or “Contact”
1. Touch “Dealer” or “Contact” on the
“Edit Dealer” screen.
2. Enter the name using the alphanu-
meric keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.
To edit “Location”
1. Touch “Location” on the “Edit Deal-
er” screen.
2. Touch the eight directional touch
screen button to move the cursor
to
the desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

OTHER FUNCTIONS
132

To edit “Phone #” (telephone num-
ber)
1. Touch “Phone #” on the “Edit Deal-
er” screen.
2. Enter the number using number
keys.
3. Touch “OK”.
The previous screen will be displayed. It is possible to enter memos for particular
dates on the calendar.
The system informs
you of the memo entry when the system is
turned on. (See page 25.)
Memos can also be used for route guid-
ance if the memo has been registered with
location information.
1. Push the “INFO” button.
2. Touch “Calendar”.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

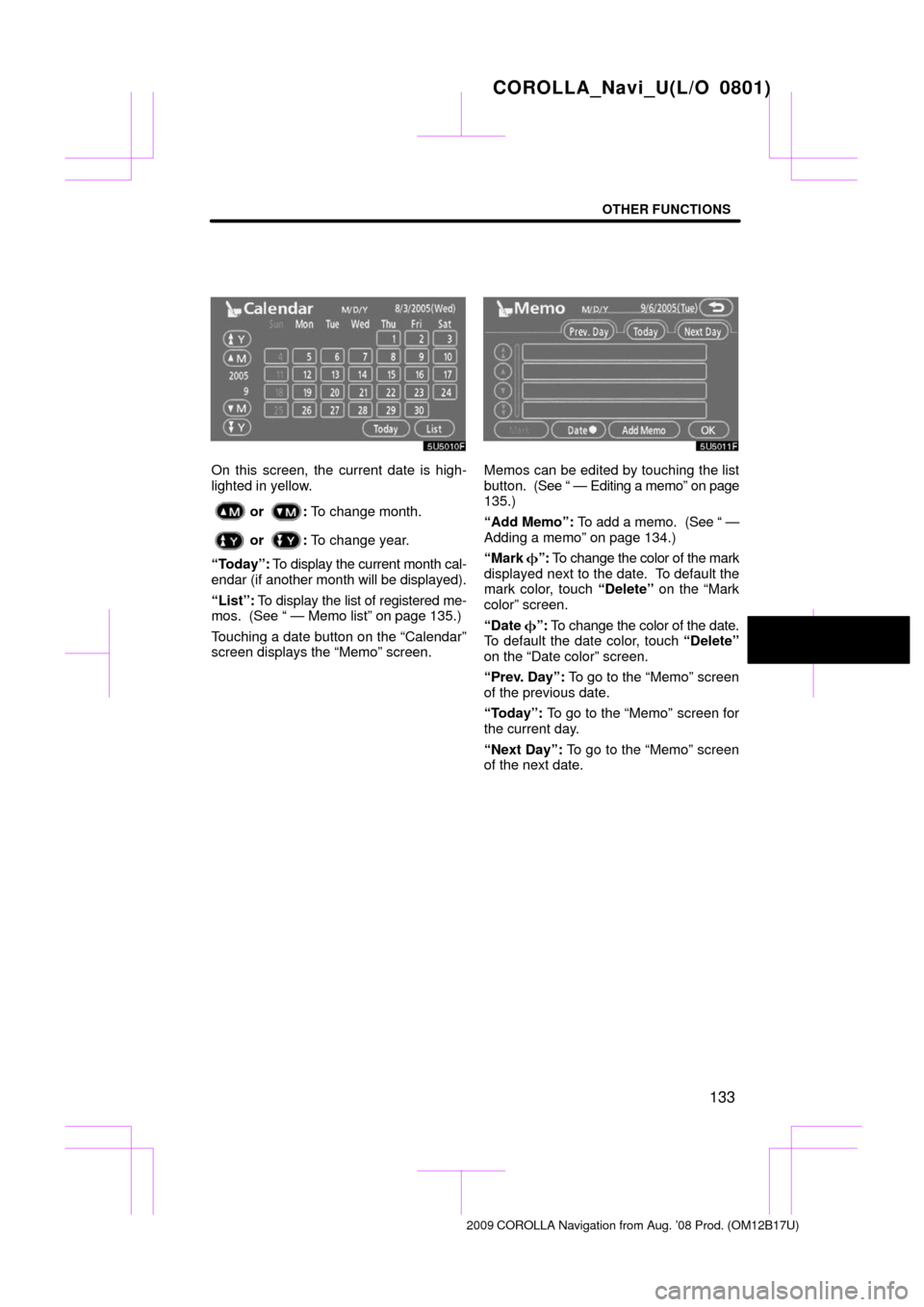

Calendar with memo —

OTHER FUNCTIONS
133
On this screen, the current date is high-
lighted in yellow.
or : To change month.
or : To change year.
“Today”: To display the current month cal-
endar (if another month will be displayed).
“List”: To display the list of registered me-
mos. (See “ — Memo list” on page 135.)
Touching a date button on the “Calendar”
screen displays the “Memo” screen.
Memos can be edited by touching the list
button. (See “ — Editing a memo” on page
135.)
“Add Memo”: To add a memo. (See “ —
Adding a memo” on page 134.)
“Mark ”: To change the color of the mark
displayed next to the date. To default the
mark color, touch “Delete” on the “Mark
color” screen.
“Date ”: To change the color of the date.
To default the date color, touch “Delete”
on the “Date color” screen.
“Prev. Day”: To go to the “Memo” screen
of the previous date.
“Today”: To go to the “Memo” screen for
the current day.
“Next Day”: To go to the “Memo” screen
of the next date.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

OTHER FUNCTIONS
134

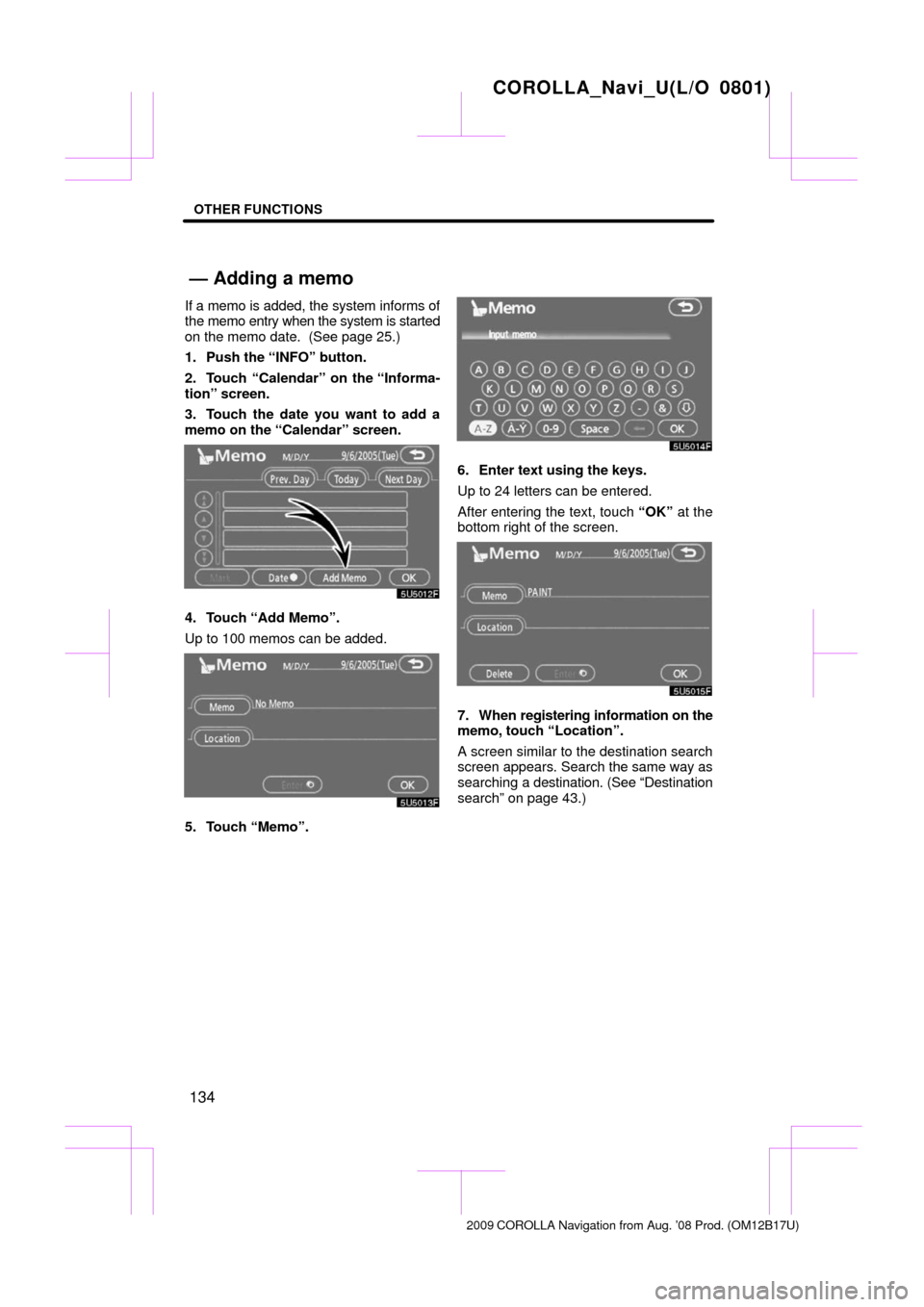

If a memo is added, the system informs of
the memo entry when the system is started
on the memo date. (See page 25.)
1. Push the “INFO” button.
2. Touch “Calendar” on the “Informa-
tion” screen.
3. Touch the date you want to add a
memo on the “Calendar” screen.
4. Touch “Add Memo”.
Up to 100 memos can be added.
5. Touch “Memo”.
6. Enter text using the keys.
Up to 24 letters can be entered.
After entering the text, touch “OK” at the
bottom right of the screen.
7. When registering information on the
memo, touch “Location”.
A screen similar to the destination search
screen appears. Search the same way as
searching a destination. (See “Destination
search” on page 43.)
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)
— Adding a memo

OTHER FUNCTIONS
135
The registered memo can be edited.
1. Push the “INFO” button.
2. Touch “Calendar” on the “Informa-
tion” screen.
3. Touch the day you want to edit a
memo on the “Calendar” screen.
4. Touch the memo to be edited.
5. Touch the item to be edited.
“Memo”: To edit a memo. (See “ — Add-
ing a memo” on page 134.)
“Location”: To change a registered loca-
tion. (See “ — Adding a memo” on page
134.)
“Enter
”: To set the registered location
as a destination. (See “Starting route guid-
ance” on page 65.)
“Delete”: To delete the memo. It is possible to display a memo list
by set-
ting a condition.
1. Push the “INFO” button.
2. Touch “Calendar” on the “Informa-
tion” screen.
3. Touch “List” on the “Calendar”
screen.
4. Touch the desired search condition
to list the memos.
“This Week”: To display the list of memos
for the current week.
“This Month”: To display the list of me-
mos for the current month.
“Future”: To display a list of future me-
mos.
“Past”: To display the list of past memos.
“All”: To display the list of all memos.
“Period”: To display the list of memos for
a specified period. (See page 136.)
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)
— Editing a memo— Memo list

OTHER FUNCTIONS
136

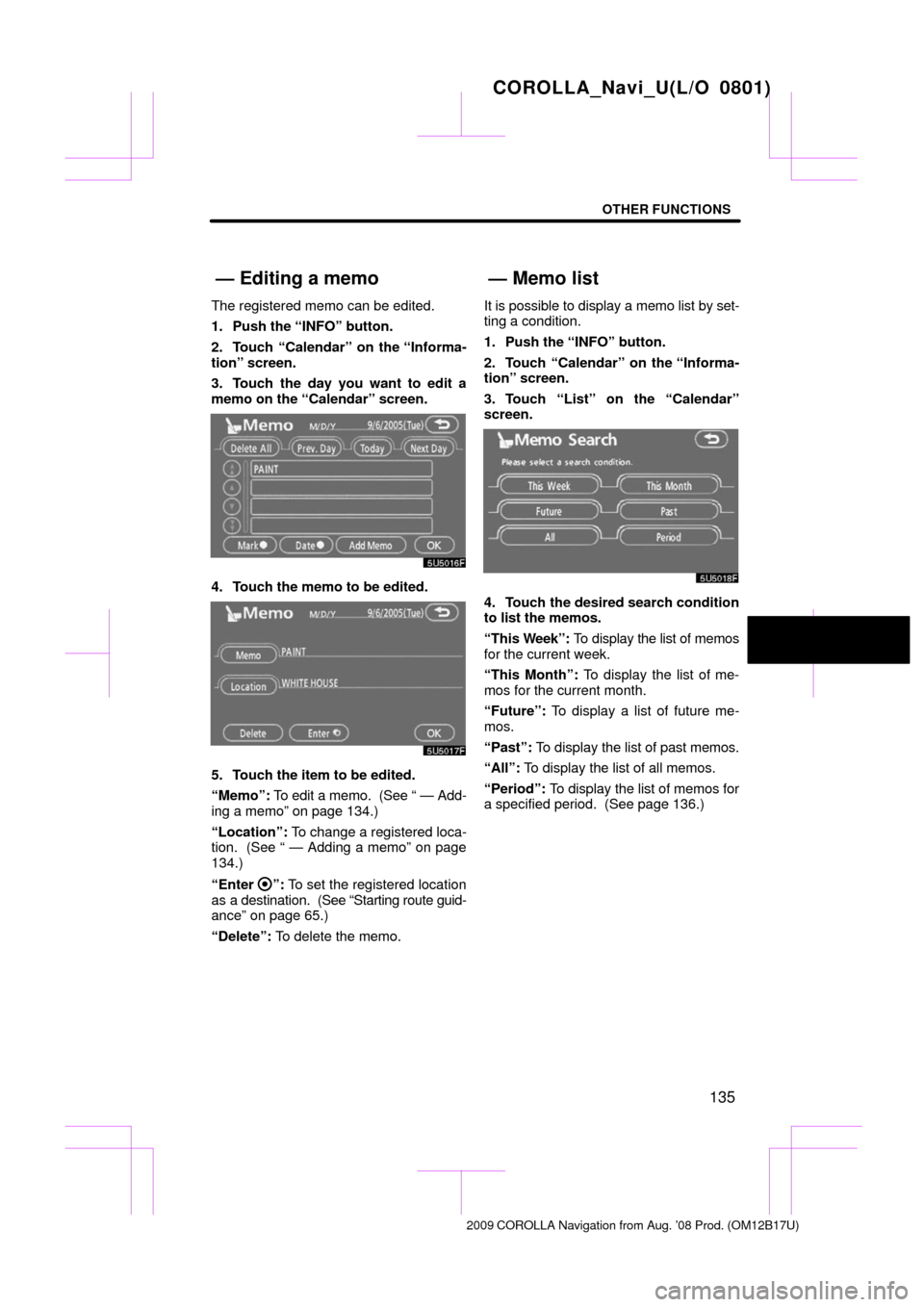

5. To delete and/or edit the memo,
touch the desired memo button.
“Delete All”: To delete all the displayed
memos.
A message will be displayed.
6. To delete, touch “Yes”. To cancel the
deletion, touch “No”.
To display memos for a specified pe-
riod of time
1. Touch “Period” on the “Memo
Search” screen.
2. Enter the period using the numeral
keys.
The period from January 1, 2007 through
December 31, 2026 can be set for search-
ing.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

OTHER FUNCTIONS
137

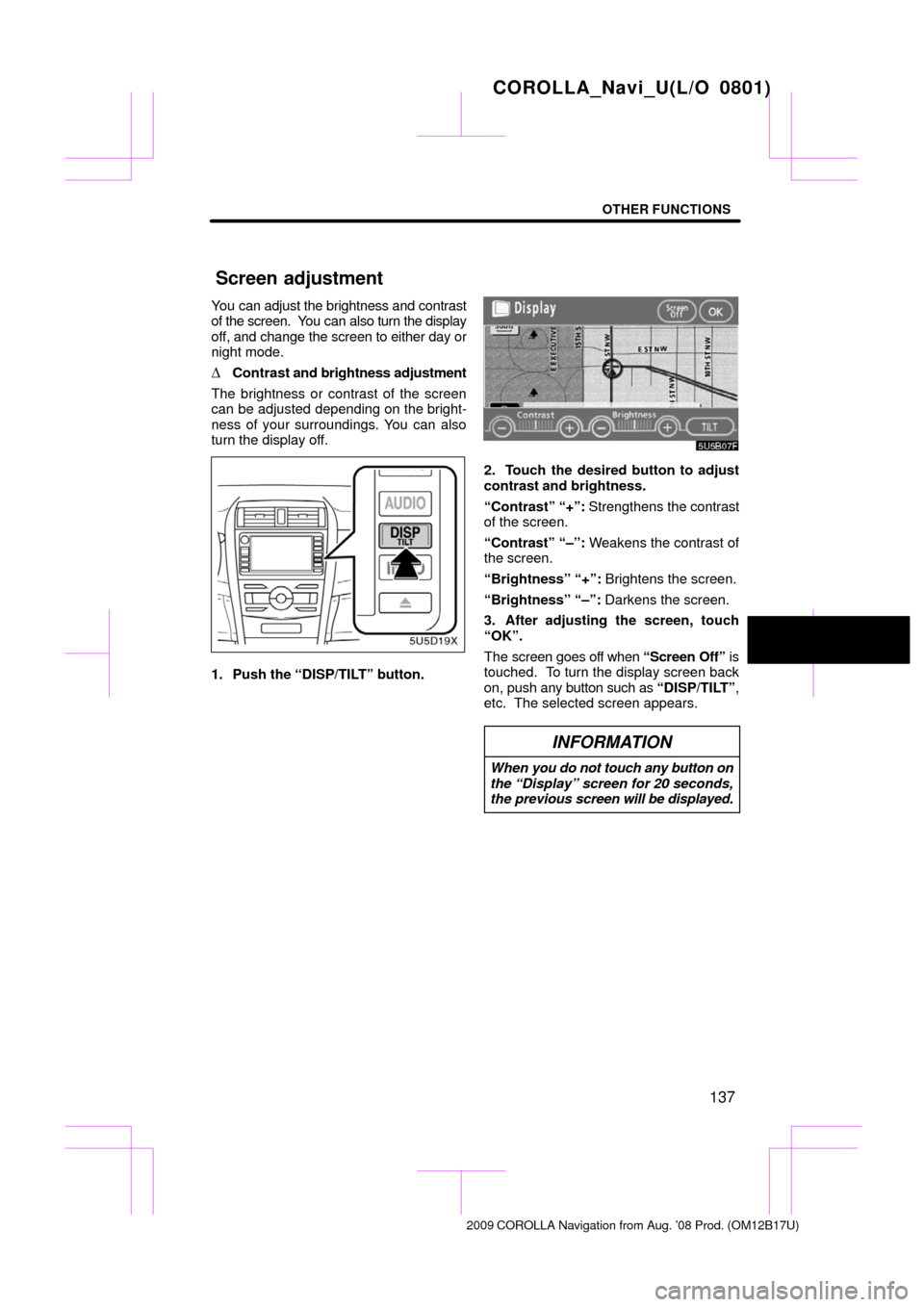

You can adjust the brightness and contrast
of the screen. You can also turn the display
off, and change the screen to either day or
night mode.
Contrast and brightness adjustment
The brightness or contrast of the screen
can be adjusted depending on the bright-
ness of your surroundings. You can also
turn the display off.
1. Push the “DISP/TILT” button.
2. Touch the desired button to adjust
contrast and brightness.
“Contrast” “+”: Strengthens the contrast
of the screen.
“Contrast” “–”: Weakens the contrast of
the screen.
“Brightness” “+”: Brightens the screen.
“Brightness” “–”: Darkens the screen.
3. After adjusting the screen, touch
“OK”.
The screen goes off when “Screen Off” is
touched. To turn the display screen back
on, push any button such as “DISP/TILT”,
etc. The selected screen appears.
INFORMATION
When you do not touch any button on
the “Display” screen for 20 seconds,
the previous screen will be displayed.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)
Screen adjustment

OTHER FUNCTIONS
138

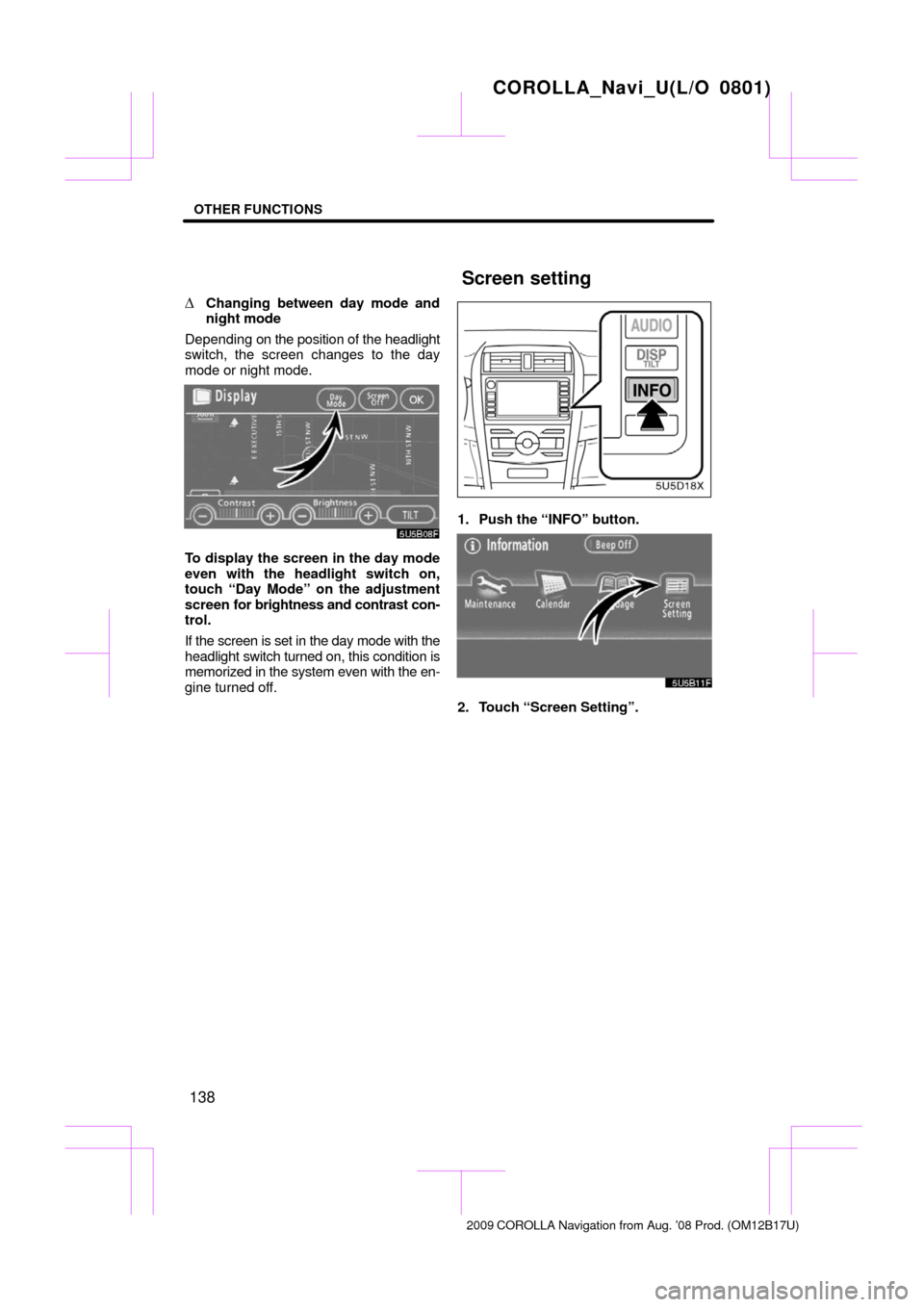

Changing between day mode and
night mode
Depending on the position of the headlight
switch, the screen changes to the day
mode or night mode.
To display the screen in the day mode
even with the headlight switch on,
touch “Day Mode” on the adjustment
screen for brightness and contrast con-
trol.
If the screen is set in the day mode with the
headlight switch turned on, this condition is
memorized in the system even with the en-
gine turned off.
1. Push the “INFO” button.
2. Touch “Screen Setting”.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)
Screen setting

OTHER FUNCTIONS
139

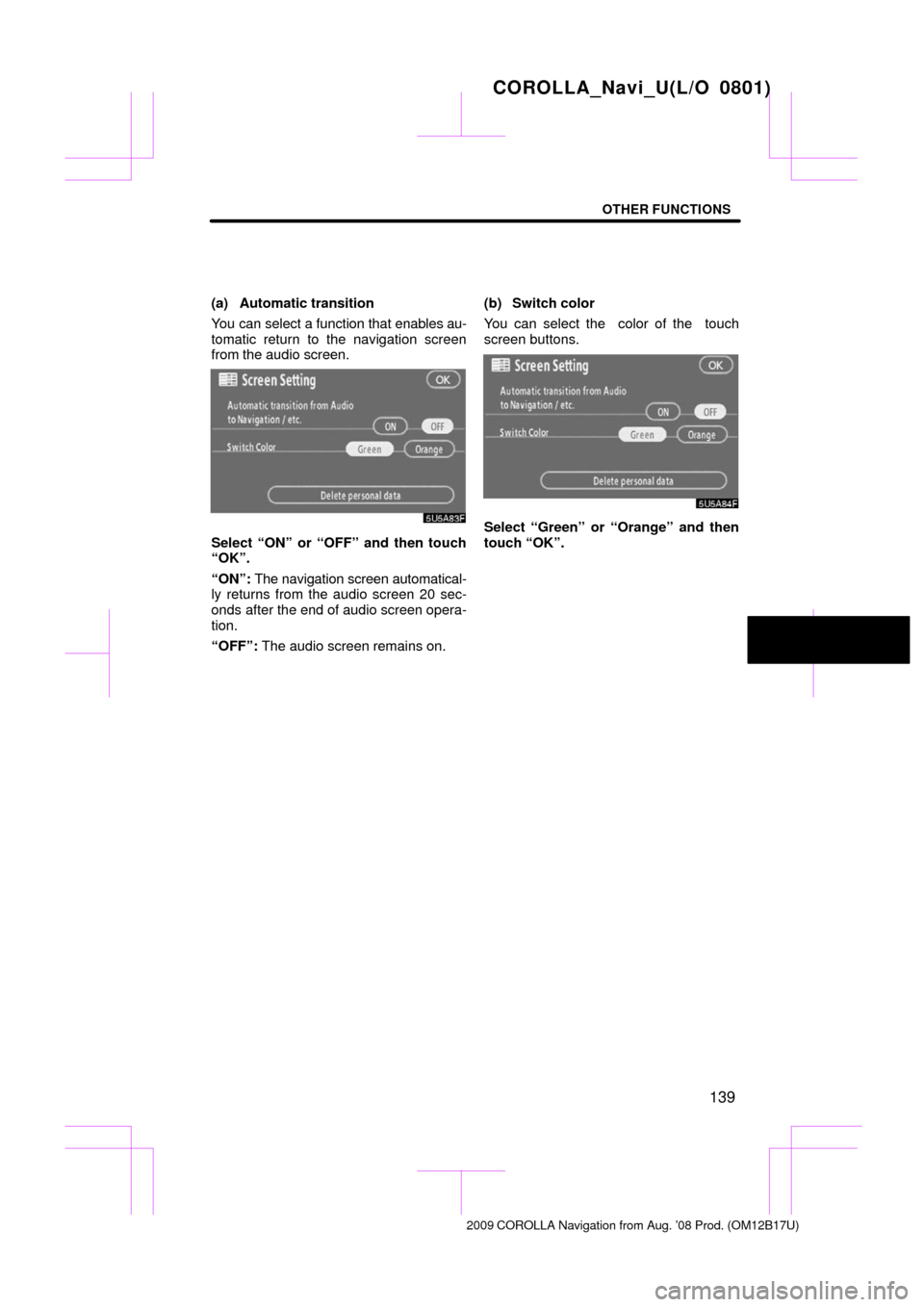

(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio screen.
Select “ON” or “OFF” and then touch
“OK”.
“ON”: The navigation screen automatical-
ly returns from the audio screen 20 sec-
onds after the end of audio screen opera-
tion.
“OFF”: The audio screen remains on. (b) Switch color
You can select the color of the touch
screen buttons.
Select “Green” or “Orange” and then
touch “OK”.
COROLLA_Navi_U(L/O 0801)
2009
COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

OTHER FUNCTIONS
140

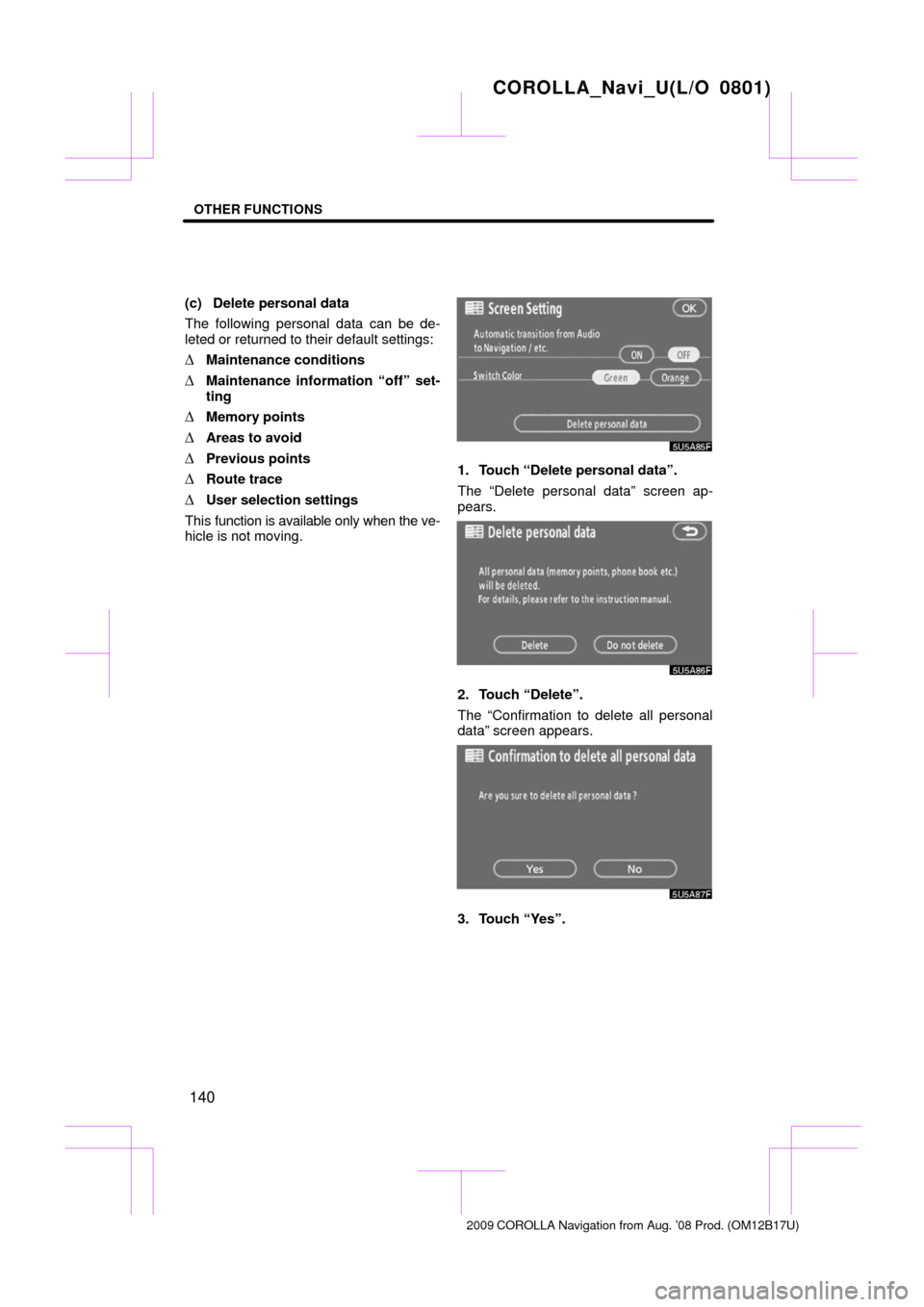

(c) Delete personal data
The following personal data can be de-
leted or returned to their default settings:
Maintenance conditions
Maintenance information “off” set-
ting
Memory points
Areas to avoid
Previous points
Route trace
User selection settings
This function is available only when the ve-
hicle is not moving.
1. Touch “Delete personal data”.
The “Delete personal data” screen ap-
pears.
2. Touch “Delete”.
The “Confirmation to delete all personal
data” screen appears.
3. Touch “Yes”.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)
