Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning: Touch the channel selec-
tor button (1 — 6) for the station you want.
The touch screen button is highlighted and
the station frequency appears on the
screen.
Seek tuning: Push “
” or “” sides of
the “TUNE·SEEK/TRACK” button and
hold it until you hear a beep. The radio will
begin seeking up or down for a station of
the nearest frequency and will stop on re-
ception. Each time you push the button,
the stations will be searched automatically
one after another.
To scan all the frequencies: Touch
“SCAN” on the screen briefly. “SCAN” ap-
pears on the screen. The radio will find the
next station and stay there for a few se-
conds, and then scan again. To select a
station, touch “SCAN” again.
To scan the preset stations: Touch
“SCAN” on the screen for longer than
approximately a second. “P·SCAN” ap-
pears on the screen. The radio will tune in
the next preset station, stay there for a few
seconds, and then move to the next preset
station. To select a station, touch “SCAN”
again. To listen to a satellite radio broadcast in
your
vehicle, an additional genuine T oyota
satellite receiver and antenna must be pur-
chased and installed, and the subscription
to the XM Satellite Radio is necessary.
How to subscribe to an XM  Satellite
Radio
An XM Satellite Radio is a tuner designed
exclusively to receive broadcasts provided
under a separate subscription.
How to subscribe:
You must enter into a separate service
agreement with the XM Satellite Radio in
order to receive satellite broadcast pro-
gramming in the vehicle. Additional activa-
tion and service subscription fees apply
that are not included in the purchase price
of the vehicle and optional digital satellite
tuner.
For detailed information about XM Satel-
lite Radio or to subscribe:
U.S.A.—
Visit on the web at www.xmradio.com
or
call 18009672346.
Canada—
Visit on the web at www .xmradio.ca
or call
18774389677.
The XM  Satellite Radio is solely responsi-
ble for the quality, availability and content
of the satellite radio services provided,
which are subject to the terms and condi-
tions of the XM  Satellite Radio customer
service agreement.
Customers should have their radio ID
ready; the radio ID can be found by select-
ing “channel 000” on the radio. For details,
see the “Displaying the radio ID” that fol-
lows.
All fees and programming are the respon-
sibility of the XM  Satellite Radio and are
subject to change.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)
— Radio operation
(XM  Satellite Radio
broadcast)

AUDIO SYSTEM
152
Satellite tuner technology notice:
Toyota’s satellite radio tuners are awarded
Type Approval Certificates from XM
Satellite Radio Inc. as proof of
compatibility with the services offered by
the XM Satellite Radio.
Displaying the radio ID
Each XM  tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM service or when reporting
a problem.
If you select the “CH 000” using the
“TUNE·SEEK/TRACK” button, the ID
code of 8 alphanumeric characters ap-
pears. If you select another channel, dis-
play of the ID code is canceled. The chan-
nel (000) alternates the display between
the radio ID and the specific radio ID code.

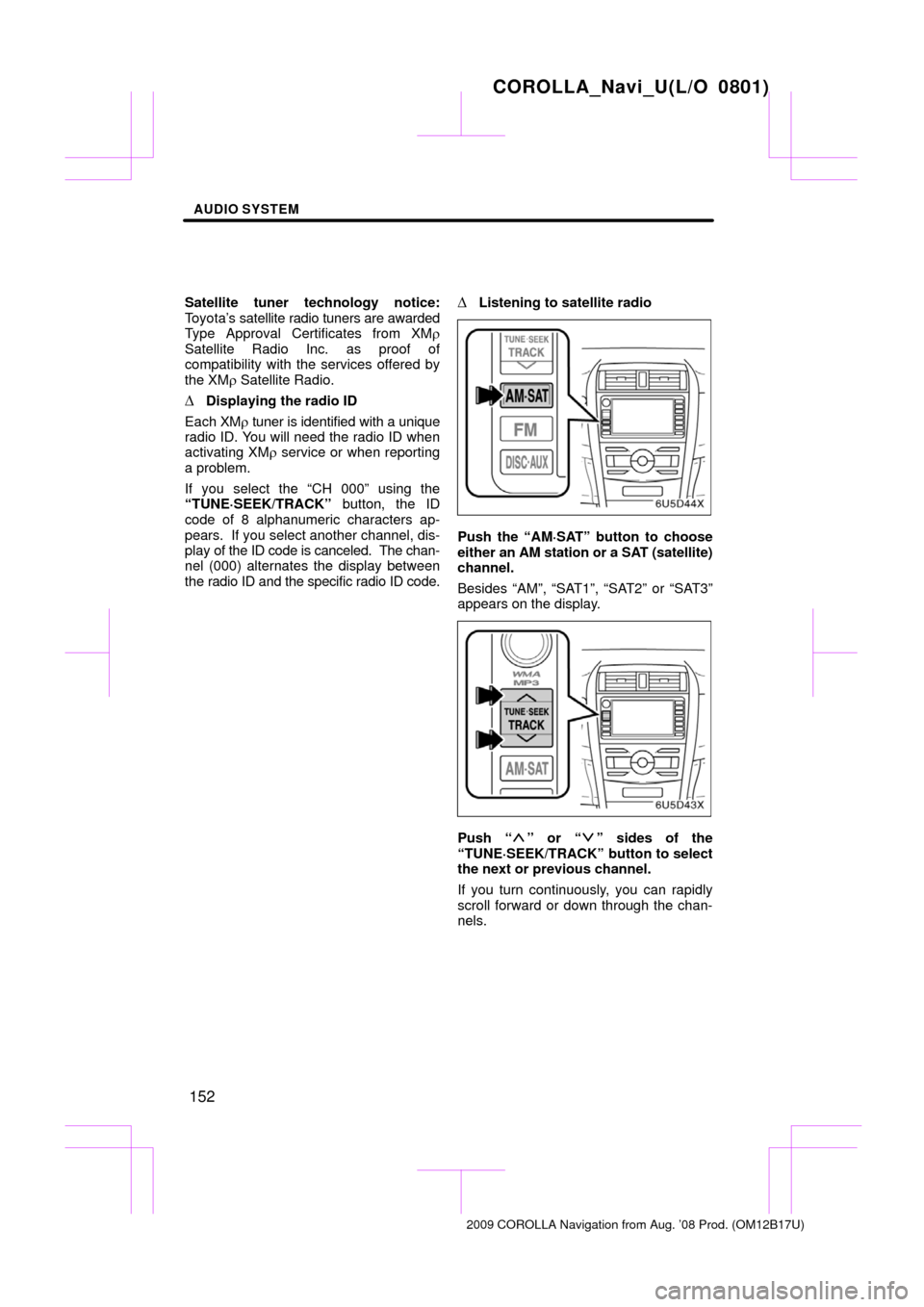

Listening to satellite radio
Push the “AM·SAT” button to choose
either an AM station or a SAT (satellite)
channel.
Besides “AM”, “SAT1”, “SAT2” or “SAT3”
appears on the display.
Push “” or “” sides of the
“TUNE·SEEK/TRACK” button to select
the next or previous channel.
If you turn continuously, you can rapidly
scroll forward or down through the chan-
nels.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

AUDIO SYSTEM
153

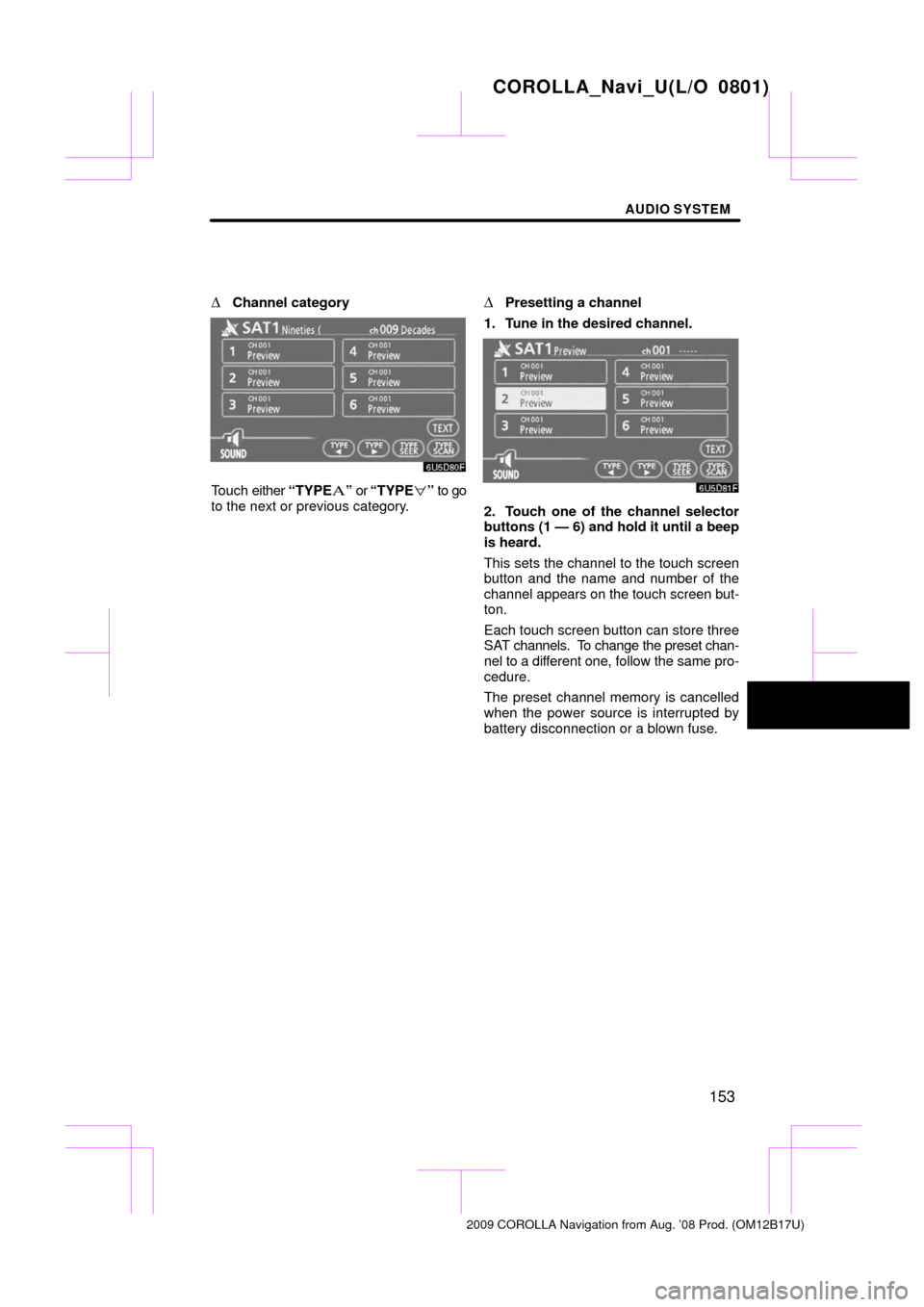

Channel category
Touch
either “TYPE ” or “TYPE ” to go
to the next or previous category.
Presetting a channel
1. Tune in the desired channel.
2. Touch one of the channel selector
buttons (1 — 6) and hold it until a beep
is heard.
This sets the channel to the touch screen
button and the name and number of the
channel appears on the touch screen but-
ton.
Each touch screen button can store three
SAT channels. To change the preset chan-
nel to a different one, follow the same pro-
cedure.
The preset channel memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

AUDIO SYSTEM
154

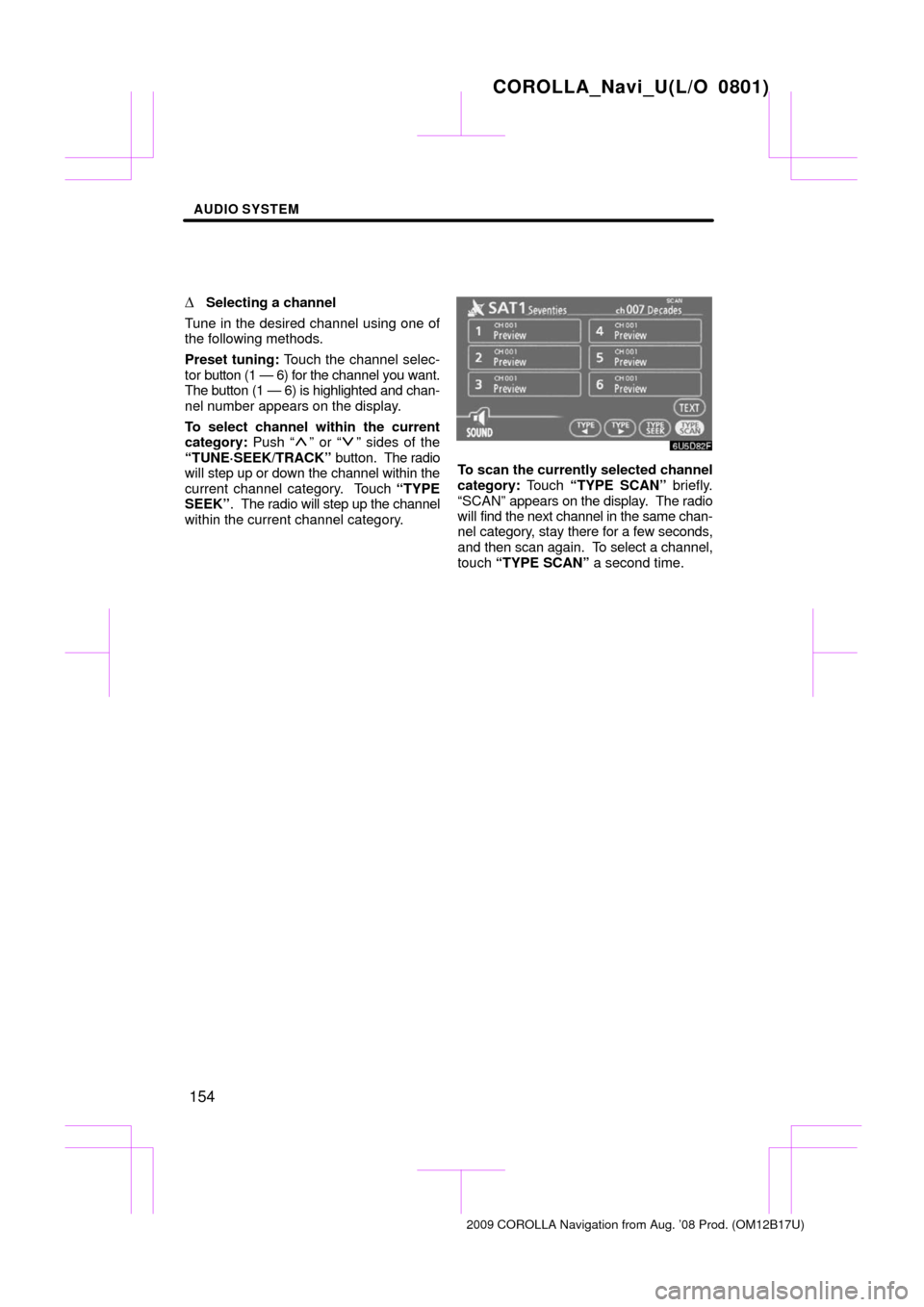

Selecting a channel
Tune in the desired channel using one of
the following methods.
Preset tuning: Touch the channel selec-
tor button (1 — 6) for the channel you want.
The button (1 — 6) is highlighted and chan-
nel number appears on the display.
To select channel within the current
category: Push “
” or “” sides of the
“TUNE·SEEK/TRACK” button. The radio
will step up or down the channel within the
current channel category. Touch “TYPE
SEEK” . The radio will step up the channel
within the current channel category.
To scan the currently selected channel
category: Touch “TYPE SCAN” briefly.
“SCAN” appears on the display. The radio
will find the next channel in the same chan-
nel category, stay there for a few seconds,
and then scan again. To select a channel,
touch “TYPE SCAN” a second time.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

AUDIO SYSTEM
155

Displaying the title and name
When you touch “TEXT”
, the song/pro-
gram title and the artist name/feature are
displayed.
Up to 16 alphanumeric characters can be
displayed. (Some information will not be
fully displayed.)
When you touch “TEXT” again, the dis-
play returns.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

AUDIO SYSTEM
156

If the satellite radio tuner malfunctions
When problems occur with the XM  tuner, a message will appear on the display. Refer-
ring to the table below to identify the problem, take the suggested corr\
ective action.
ANTENNA
The XM  antenna is not connected. Check whether the XM  anten-
na cable is attached securely.
A short circuit occurs in the antenna or the surrounding antenna
cable. See a Toyota certified dealer for assistance.
UPDATING
You have not subscribed to the XM  Satellite Radio. The radio is be-
ing updated with the latest encryption code. Contact the XM  Satel-
lite Radio for subscription information. When a contact is canceled,
you can choose the “CH000” and all freetoair channels.
The premium channel you selected is not authorized. Wait for about
2 seconds until the radio returns to the previous channel or “CH001”\
.
If it does not change automatically, select another channel. If you
want to listen to the premium channel, contact the XM  Satellite Ra-
dio.
NO SIGNALThe XM signal is too weak at the current location. Wait until your
vehicle reaches a location with a stronger signal.
LOADINGThe unit is acquiring audio or program information. Wait until the unit
has received the information.
OFF AIRThe channel you selected is not broadcasting any programming. Se-
lect another channel.
There is no song/program title or artist name/feature associated with
the channel at that time. No action needed.

The channel you selected is no longer available. Wait for about 2
seconds until the radio returns to the previous channel or “CH001”.
If it does not change automatically, select another channel.
Contact the XM Listener Care Center at 18009672346 (U.S.A.) or
18774389677 (Canada).
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

AUDIO SYSTEM
157
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to
Part 15 of the FCC Rules. These lim-
its are designed to provide reason-
able protection against harmful inter-
ference in a residential installation.
This equipment generates, uses and
can radiate radio frequency energy
and, if not installed and used in ac-
cordance with the instructions, may
cause harmful interference to radio
communications. However, there is
no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television re-
ception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of the
following measures:
— Reorient or relocate the receiving
antenna.
— Increase the separation between
the equipment and receiver.
— Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
— Consult the dealer or an experi-
enced radio/TV technician for help.
Information to user
Alternation or modifications carried
out without appropriate authoriza-
tion may invalidate the user’s right to
operate the equipment.
INFORMATION
This XM  tuner supports “Audio Ser-
vices” (Music and Talk) of only XM
Satellite Radio and “Text Informa-
tion”* linked to the respective “Audio
Services”.
*Text Information includes, Station
Name, (Artist) Name, (Song) Title and
Category Name.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

AUDIO SYSTEM
158
The CD player can play audio CDs, CD
text, WMA discs and MP3 discs.
Audio CD, CD text161
. . . . . . . . .
MP3/WMA disc 164
. . . . . . . . . . .
For appropriate discs for this changer, see
“Audio system operating hints” on page
170. (a) Inserting discs
Vehicles with smart key system —
The “ENGINE START STOP” switch must
be set at ACCESSORY or IGNITION ON
mode.
Vehicles without smart key system —
The engine switch must be set at “ACC” or
“ON” position.
1. Push the “” button.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)
— CD player operation

AUDIO SYSTEM
159
2. Insert a disc.
3. Push the “CLOSE” button to
close the display.
After insertion, the set disc is automatically
loaded.
If the label faces down, the disc cannot be
played. In this case, “CD Check” appears
on the screen.
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about and possibly in-
jure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the display
closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct the display while it is
moving. It could damage your audio
system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)

AUDIO SYSTEM
160

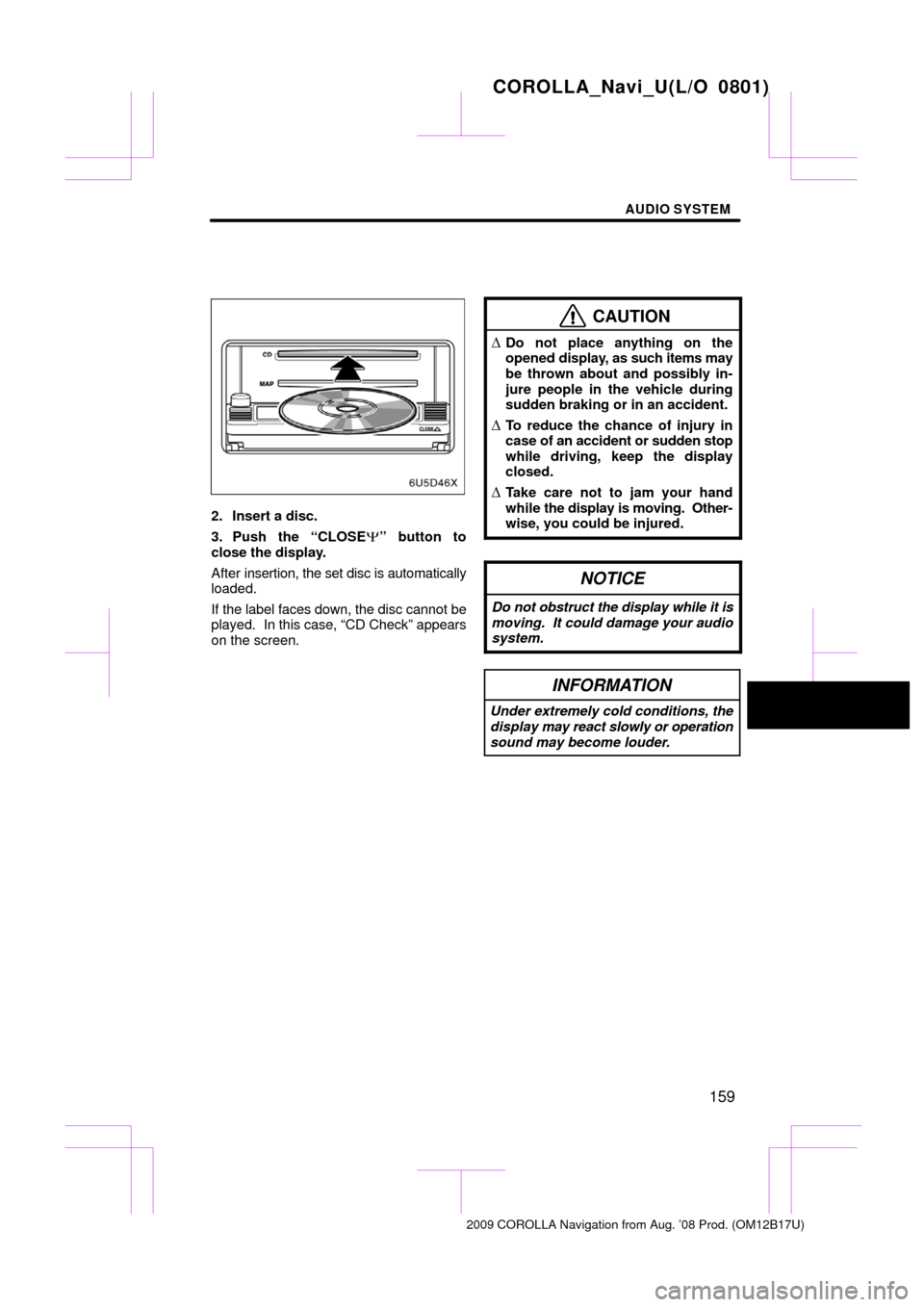

(b) Ejecting discs
Push the “” button.
The display will open and the disc will be
ejected. A disc can then be inserted. (c) Playing a discPush the “DISC·AUX” button if the disc
are already loaded in the CD player.
The “CD” screen will be displayed.
COROLLA_Navi_U(L/O 0801)
2009 COROLLA Navigation from Aug. ’08 Prod. (OM12B17U)
