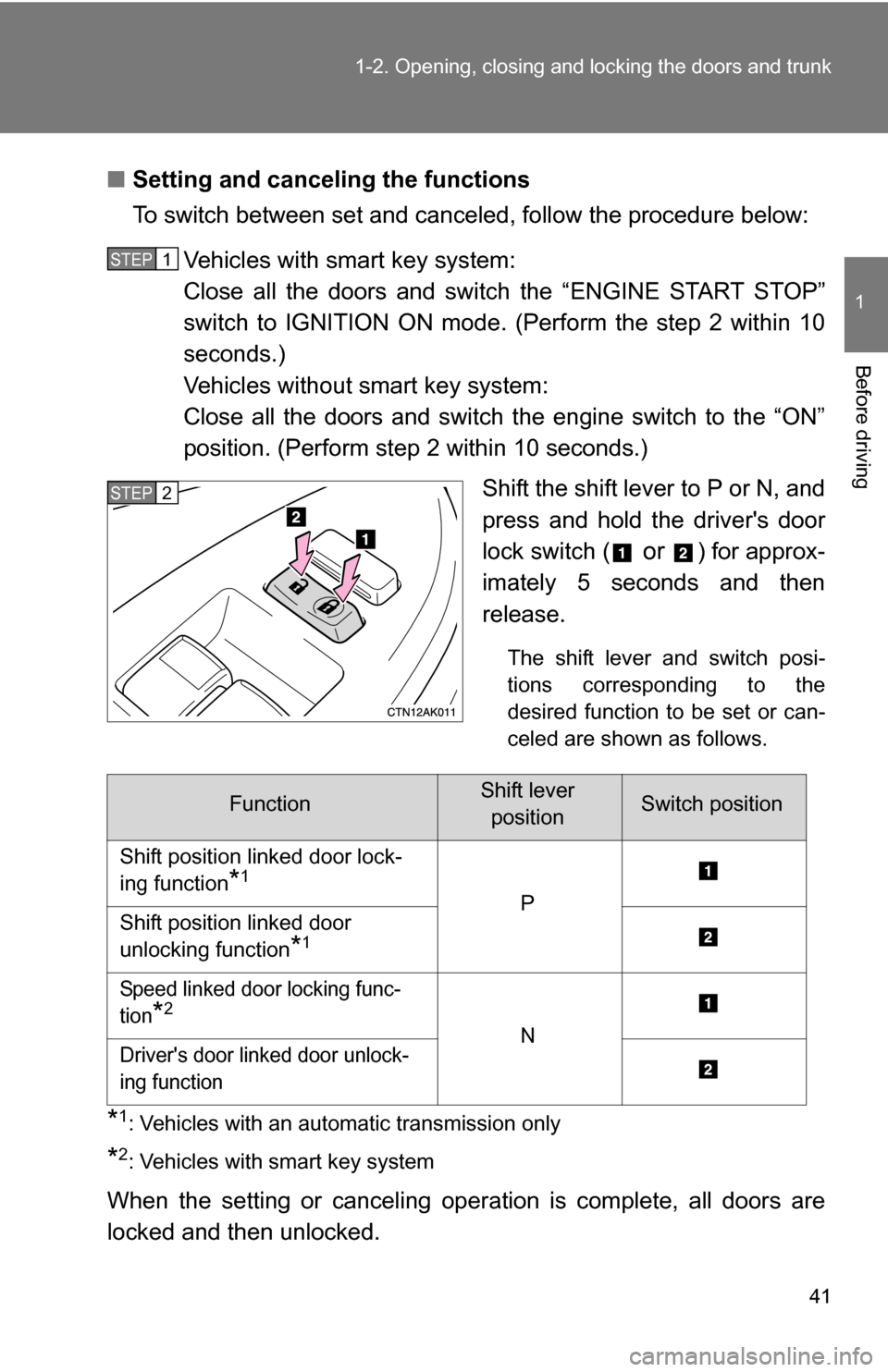

Page 41 of 468
41
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■
Setting and canceling the functions
To switch between set and canceled, follow the procedure below:
Vehicles with smart key system:
Close all the doors and switch the “ENGINE START STOP”
switch to IGNITION ON mode. (Perform the step 2 within 10
seconds.)
Vehicles without smart key system:
Close all the doors and switch the engine switch to the “ON”
position. (Perform step 2 within 10 seconds.) Shift the shift lever to P or N, and
press and hold the driver's door
lock switch (
or ) for approx-
imately 5 seconds and then
release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set or can-
celed are shown as follows.
*1: Vehicles with an automatic transmission only
*2: Vehicles with smart key system
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
STEP1
STEP2
FunctionShift lever positionSwitch position
Shift position linked door lock-
ing function
*1
P
Shift position linked door
unlocking function
*1
Speed linked door locking func-
tion
*2
N
Driver's door linked door unlock-
ing function

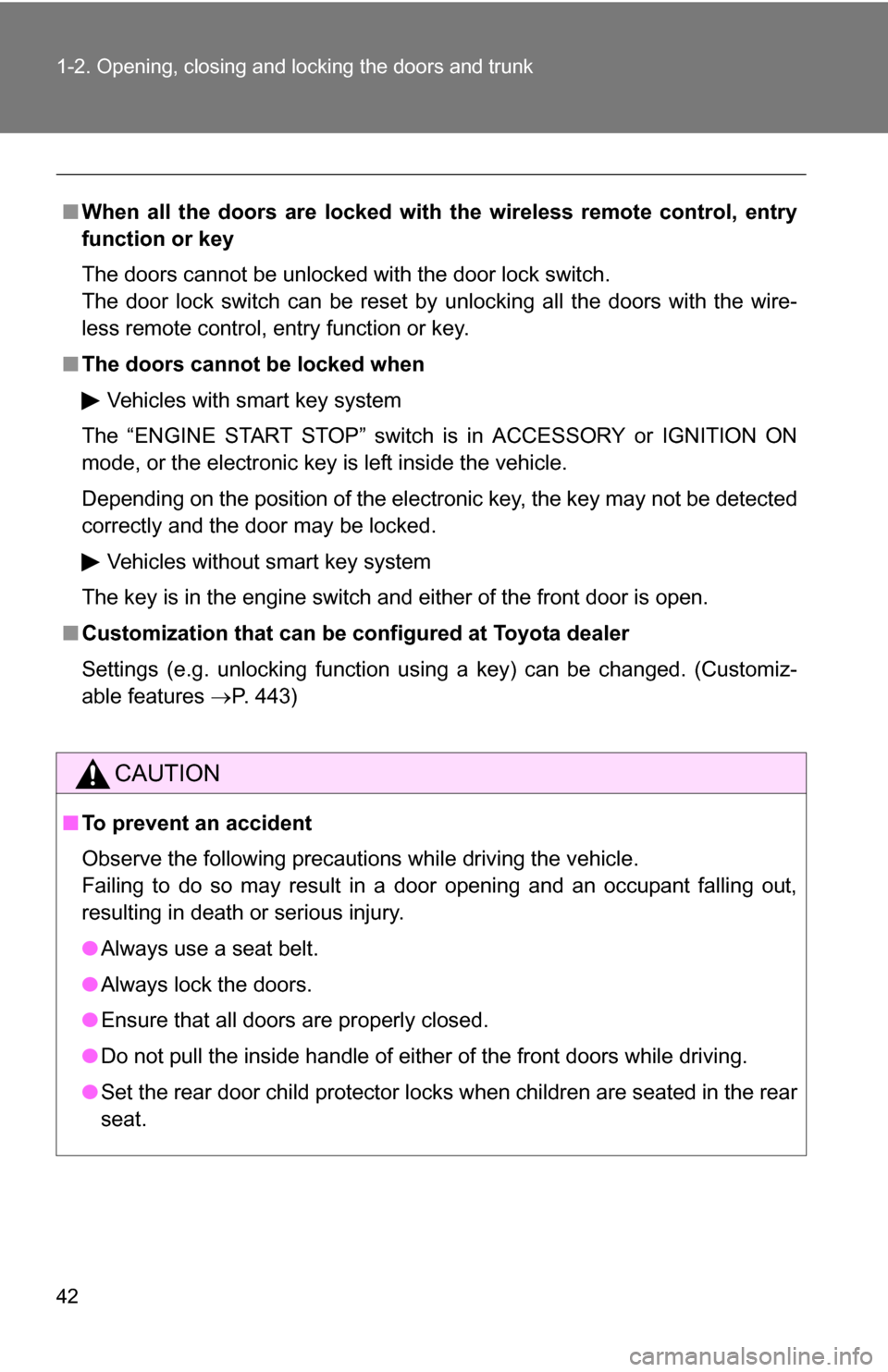

Page 42 of 468
42 1-2. Opening, closing and locking the doors and trunk
■When all the doors are locked with the wireless remote control, entry
function or key
The doors cannot be unlocked with the door lock switch.
The door lock switch can be reset by unlocking all the doors with the wire-
less remote control, entry function or key.
■ The doors cannot be locked when
Vehicles with smart key system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode, or the electronic key is left inside the vehicle.
Depending on the position of the electronic key, the key may not be detected
correctly and the door may be locked. Vehicles without smart key system
The key is in the engine switch and either of the front door is open.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed. (Customiz-
able features P. 443)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
● Always lock the doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of either of the front doors while driving.
● Set the rear door child protector locks when children are seated in the rear
seat.
Page 43 of 468
43
1
1-2. Opening, closing and locking the doors and trunk
Before driving
Trunk
The trunk can be opened using the entry function, wireless remote
control, key or trunk opener.
■ Entry function (vehicles with smart key system)
P. 2 2
■ Wireless remote control (if equipped)
P. 3 4
■ Key
Vehicles with smart key system
The trunk can be opened using the mechanical key. ( P. 403)
Vehicles without smart key system Turn the master key clockwise
to release the trunk lid.
■ Trunk opener
Release the trunk lid.

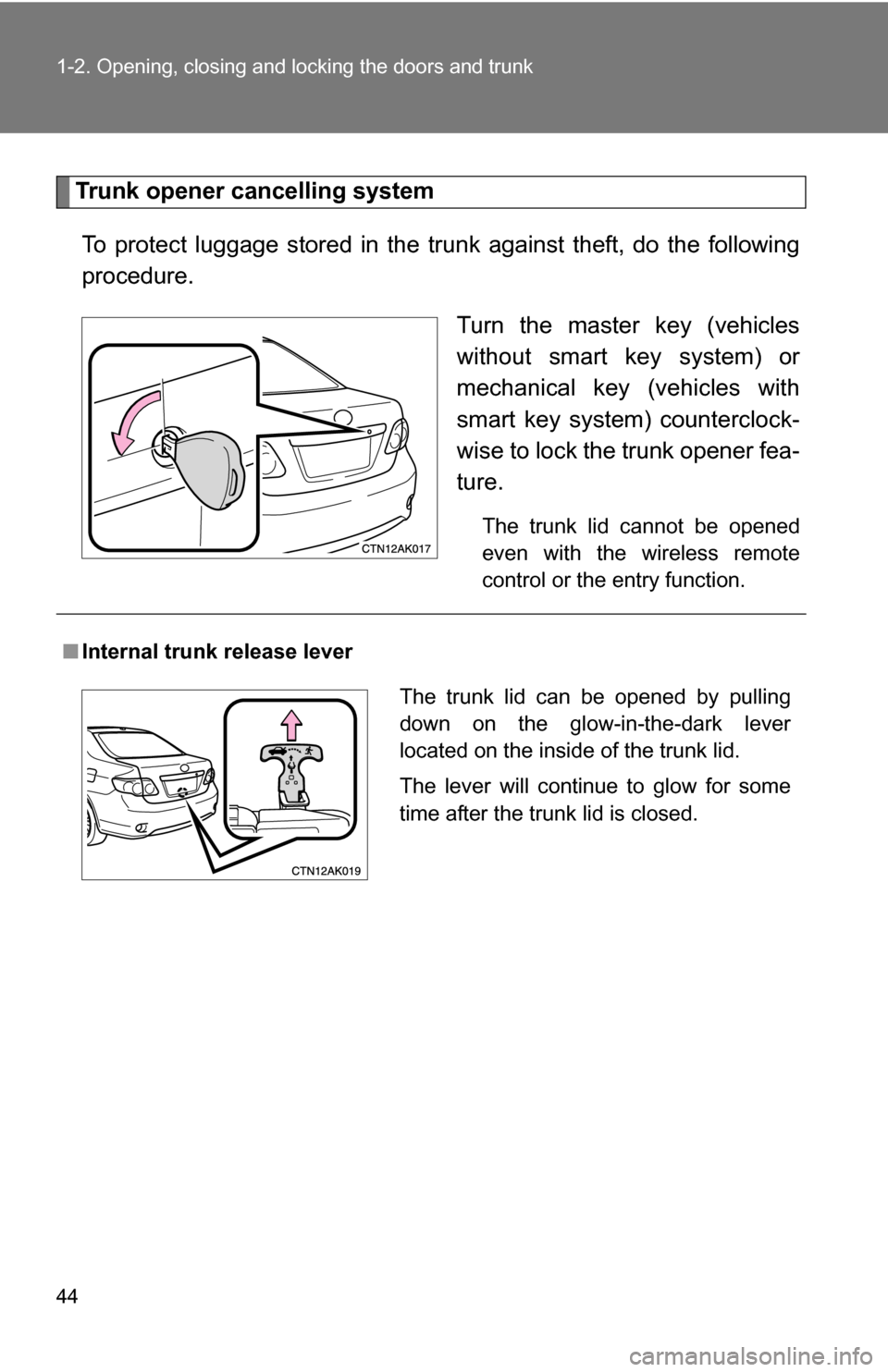

Page 44 of 468
44 1-2. Opening, closing and locking the doors and trunk
Trunk opener cancelling systemTo protect luggage stored in the trunk against theft, do the following
procedure. Turn the master key (vehicles
without smart key system) or
mechanical key (vehicles with
smart key system) counterclock-
wise to lock the trunk opener fea-
ture.
The trunk lid cannot be opened
even with the wireless remote
control or the entry function.
■Internal trunk release lever
The trunk lid can be opened by pulling
down on the glow-in-the-dark lever
located on the inside of the trunk lid.
The lever will continue to glow for some
time after the trunk lid is closed.

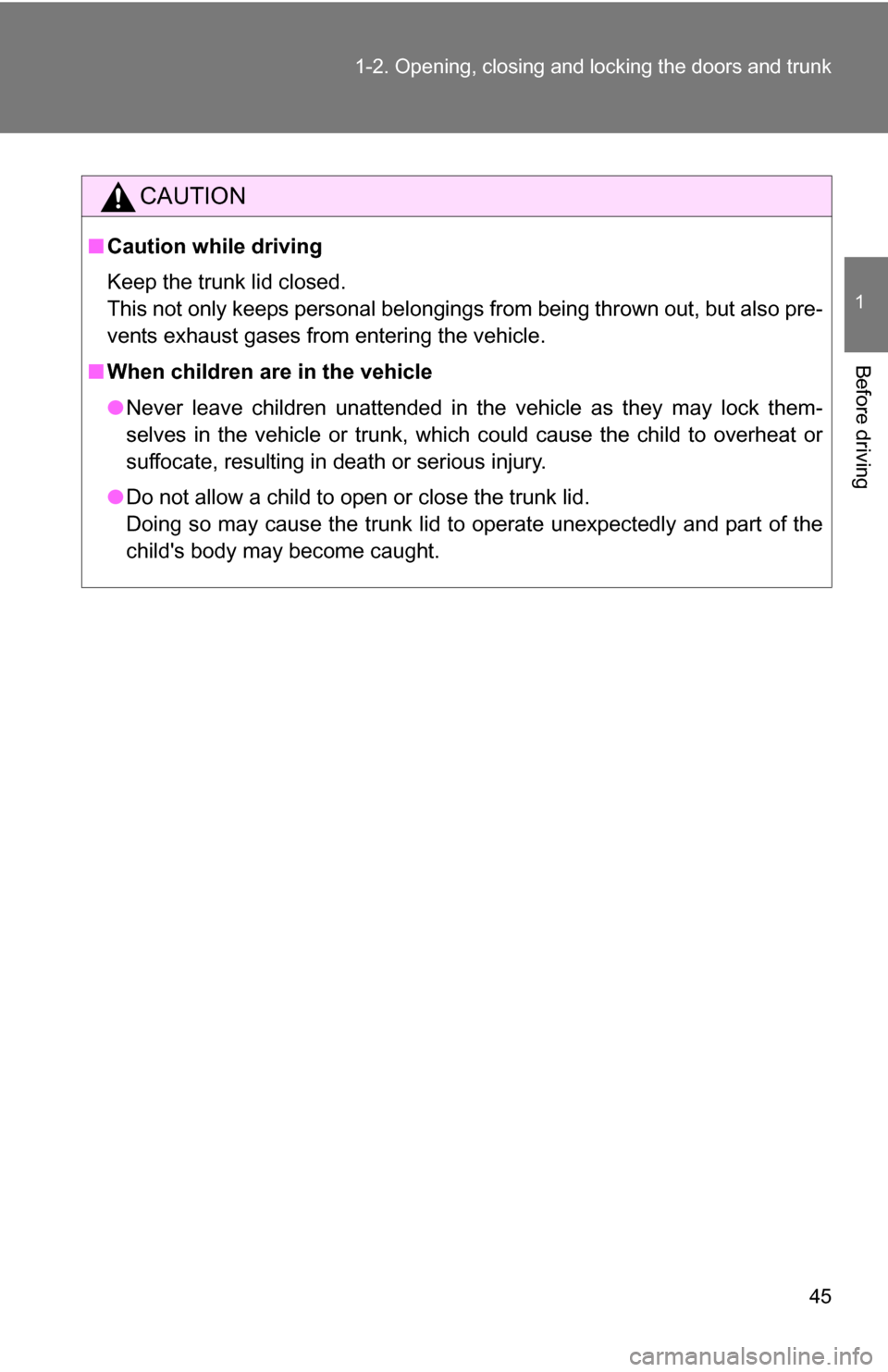

Page 45 of 468
45
1-2. Opening, closing and locking the doors and trunk
1
Before driving
CAUTION
■
Caution while driving
Keep the trunk lid closed.
This not only keeps personal belongings from being thrown out, but also pre-
vents exhaust gases from entering the vehicle.
■ When children are in the vehicle
●Never leave children unattended in the vehicle as they may lock them-
selves in the vehicle or trunk, which could cause the child to overheat or
suffocate, resulting in death or serious injury.
● Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to operate unexpectedly and part of the
child's body may become caught.

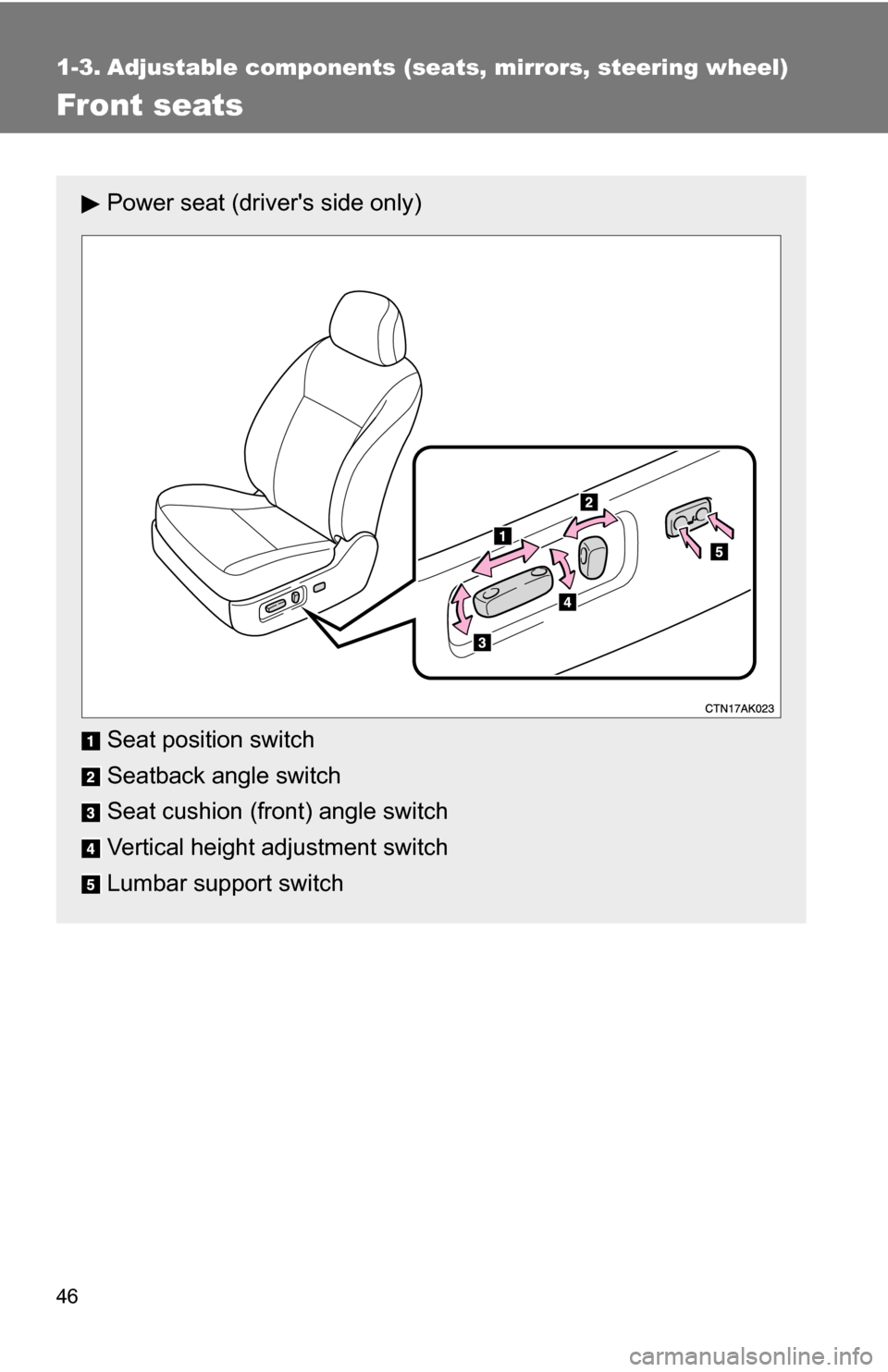

Page 46 of 468
46
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Power seat (driver's side only)
Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch

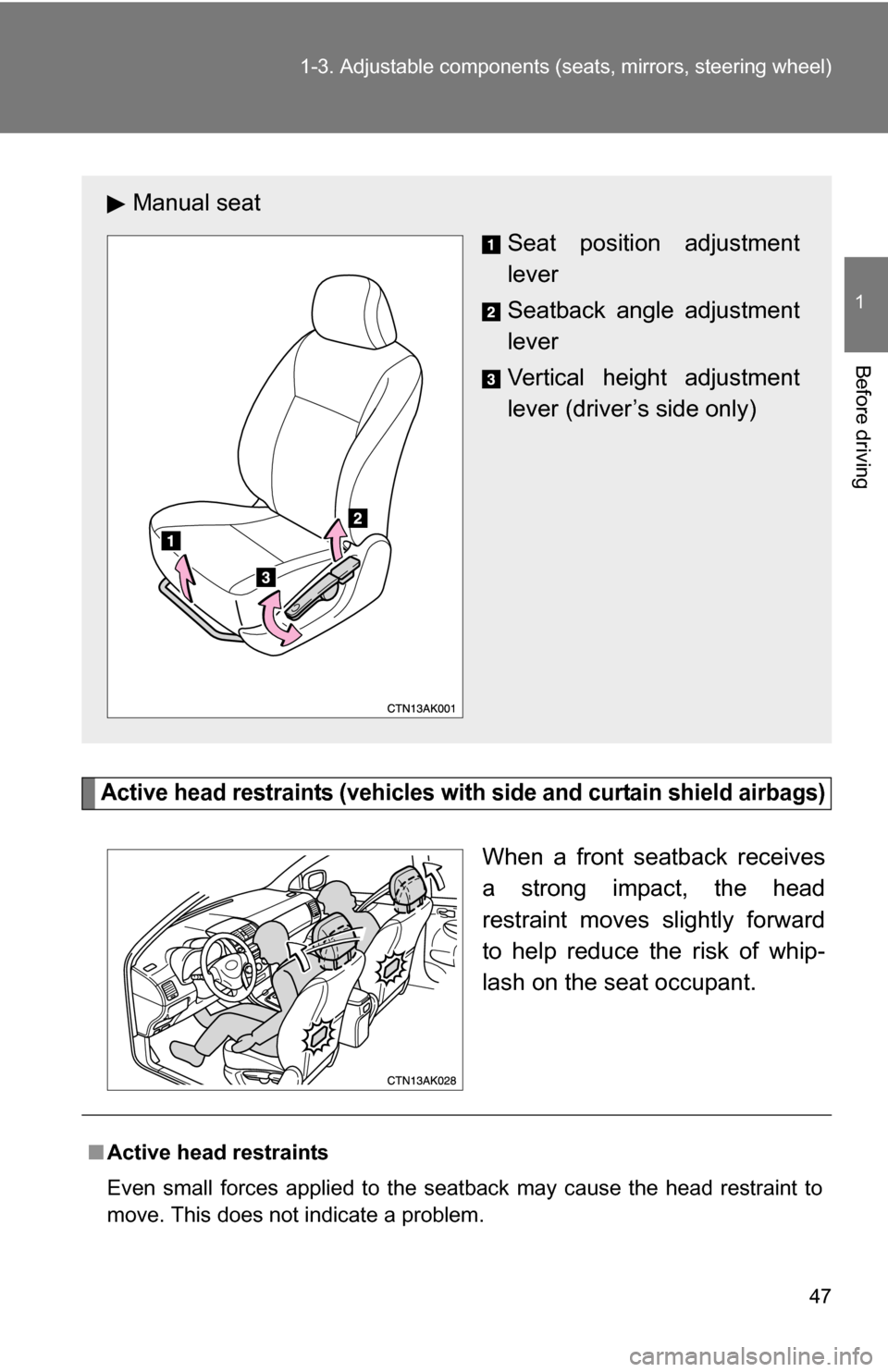

Page 47 of 468
47
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Active head restraints (vehicles with side and curtain shield airbags)
When a front seatback receives
a strong impact, the head
restraint moves slightly forward
to help reduce the risk of whip-
lash on the seat occupant.
Manual seat
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)
■Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. This does not indicate a problem.

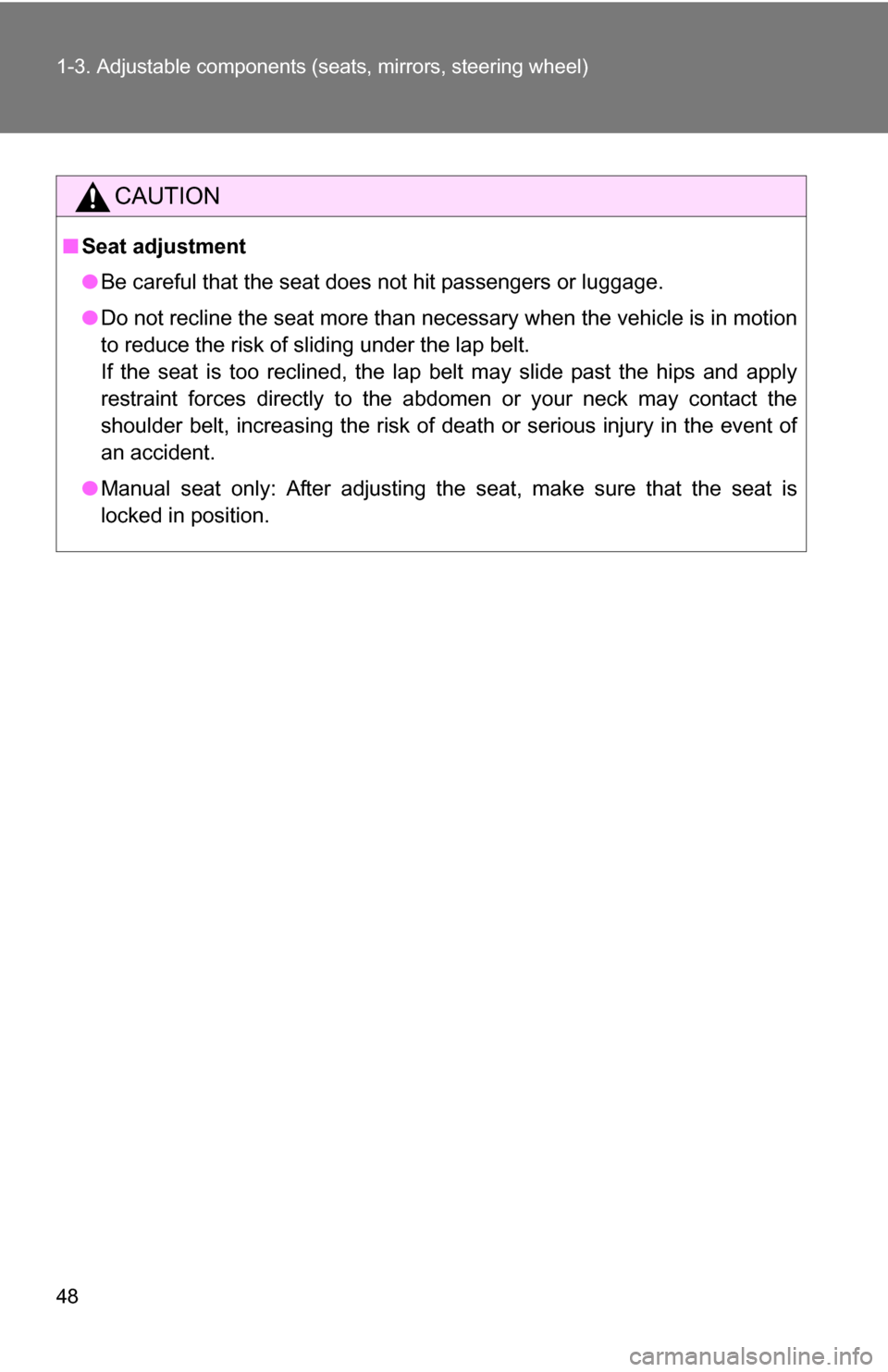

Page 48 of 468
48 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■Seat adjustment
●Be careful that the seat does not hit passengers or luggage.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
● Manual seat only: After adjusting the seat, make sure that the seat is
locked in position.

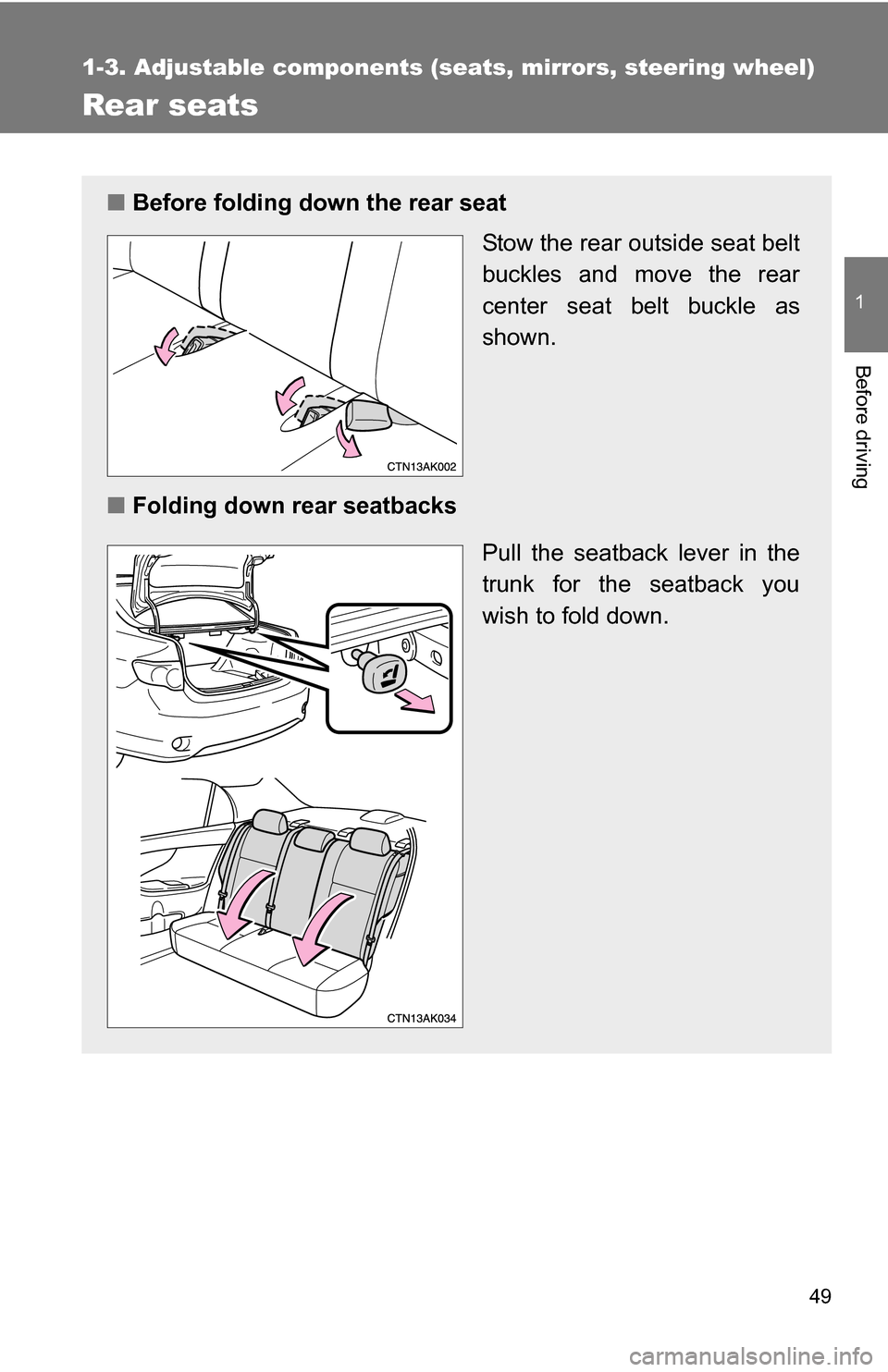

Page 49 of 468
49
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Rear seats
■Before folding down the rear seat
Stow the rear outside seat belt
buckles and move the rear
center seat belt buckle as
shown.
■ Folding down rear seatbacks
Pull the seatback lever in the
trunk for the seatback you
wish to fold down.

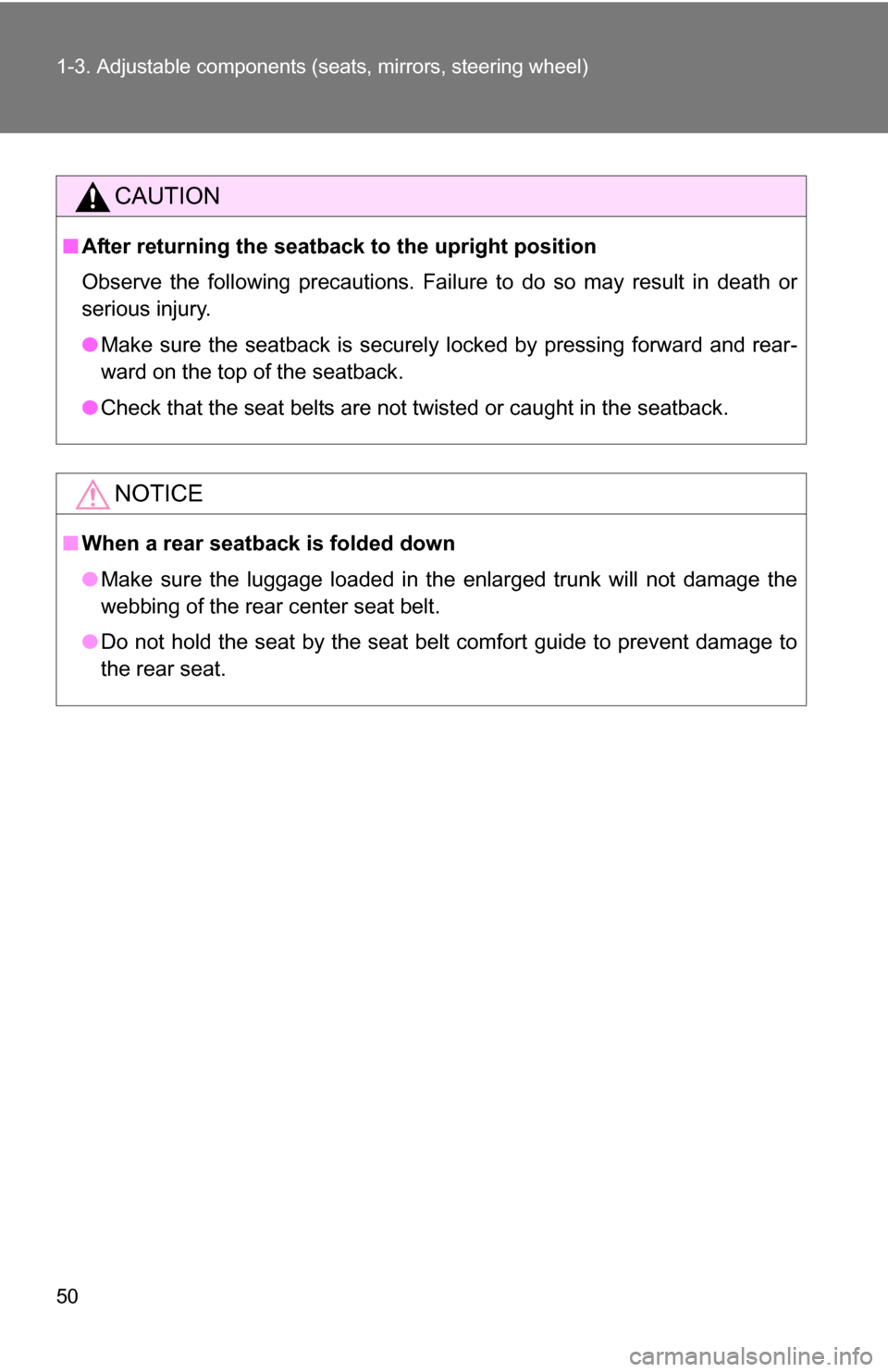

Page 50 of 468
50 1-3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■After returning the seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure the seatback is securely locked by pressing forward and rear-
ward on the top of the seatback.
● Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■When a rear seatback is folded down
●Make sure the luggage loaded in the enlarged trunk will not damage the
webbing of the rear center seat belt.
● Do not hold the seat by the seat belt comfort guide to prevent damage to
the rear seat.
