TOYOTA COROLLA 2010 10.G Navigation Manual

ADVANCED FUNCTIONS
121
1. Push the “MENU” button.
2. Touch “XM NavTraffic”.
On this screen, the following operations
can be performed.
1Show XM NavTraffic Information
Traffic information is displayed on the map.
(See page 122.)
2Auto Avoid Traffic
If any heavy congestion or moderate traffic
has been detected on the guidance route,
it may be possible for you to select another
route offered by the system. (See page
123.)
3Traffic Voice Guidance
Traffic information is provided using voice
guidance. (See page 124.)
4Show Free Flowing Traffic
Freely flowing traffic is shown by the arrow
on the map. (See page 124.)
INFORMATION
When “OFF” for “Show XM NavTraffic
Information” is selected, “Auto Avoid
Traffic”, “Traffic Voice Guidance” and
“Show Free Flowing Traffic” will not
operate.

ADVANCED FUNCTIONS
122

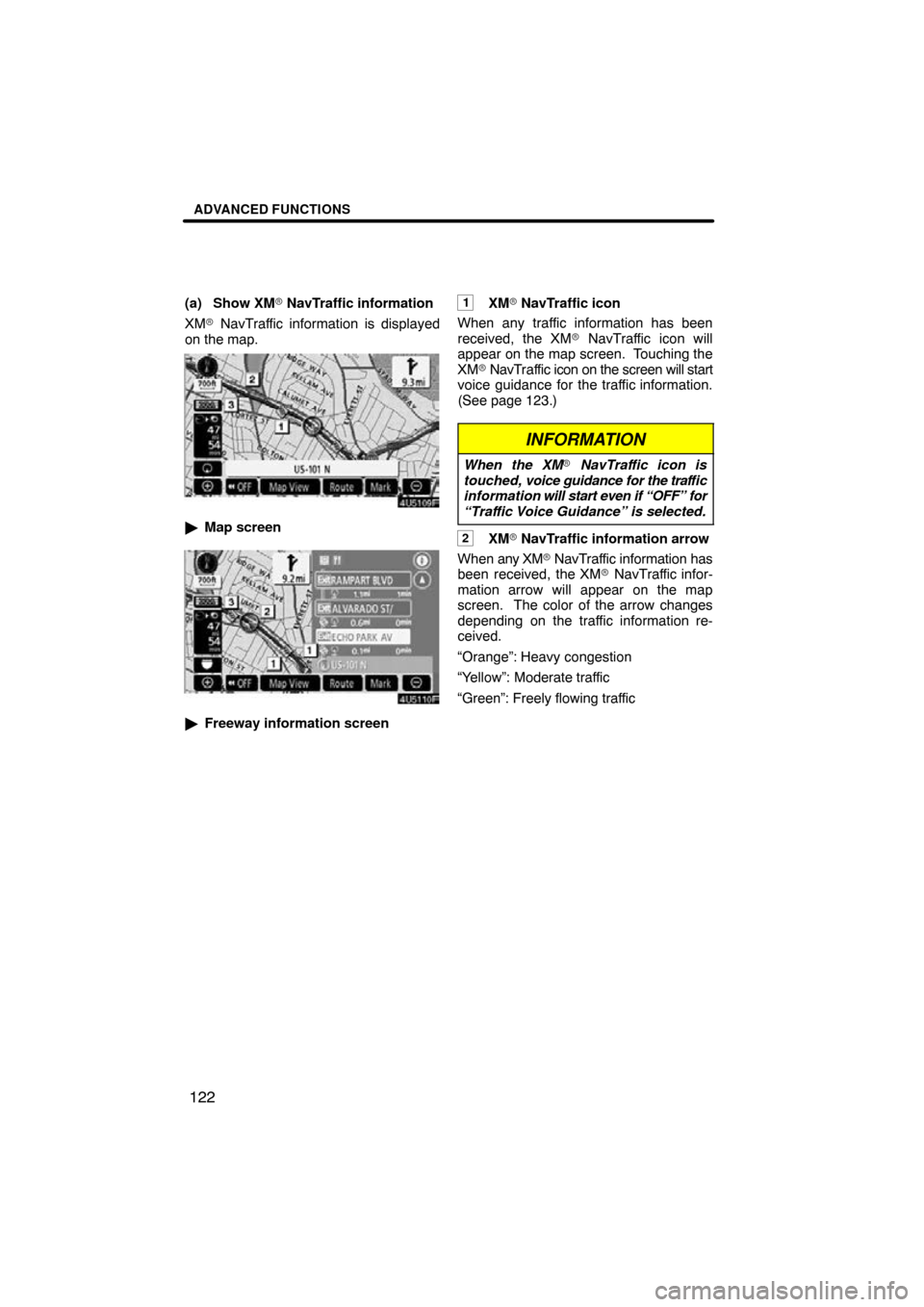

(a) Show XM NavTraffic information
XM  NavTraffic information is displayed
on the map.
 Map screen
Freeway information screen
1XM  NavTraffic icon
When any traffic information has been
received, the XM NavTraffic icon will
appear on the map screen. Touching the
XM  NavTraffic icon on the screen will start
voice guidance for the traffic information.
(See page 123.)
INFORMATION
When the XM NavTraffic icon is
touched, voice guidance for the traffic
information will start even if “OFF” for
“Traffic Voice Guidance” is selected.
2XM  NavTraffic information arrow
When any XM NavTraffic information has
been received, the XM  NavTraffic infor-
mation arrow will appear on the map
screen. The color of the arrow changes
depending on the traffic information re-
ceived.
“Orange”: Heavy congestion
“Yellow”: Moderate traffic
“Green”: Freely flowing traffic

ADVANCED FUNCTIONS
123
3XM NavTraffic indicator
When any XM NavTraffic information has
been received, the XM NavTraffic indica-
tor will appear on the screen. The color of
the indicator changes depending on the
traffic information received.
“White”: Traffic information has been re-
ceived.
“Yellow”: Traffic restriction information on
the guidance route has been received
(touch switch*).
“Orange”: Congestion information on the
guidance route has been received (touch
switch*).
*: Touching the XM NavTraffic indicator
will start voice guidance.

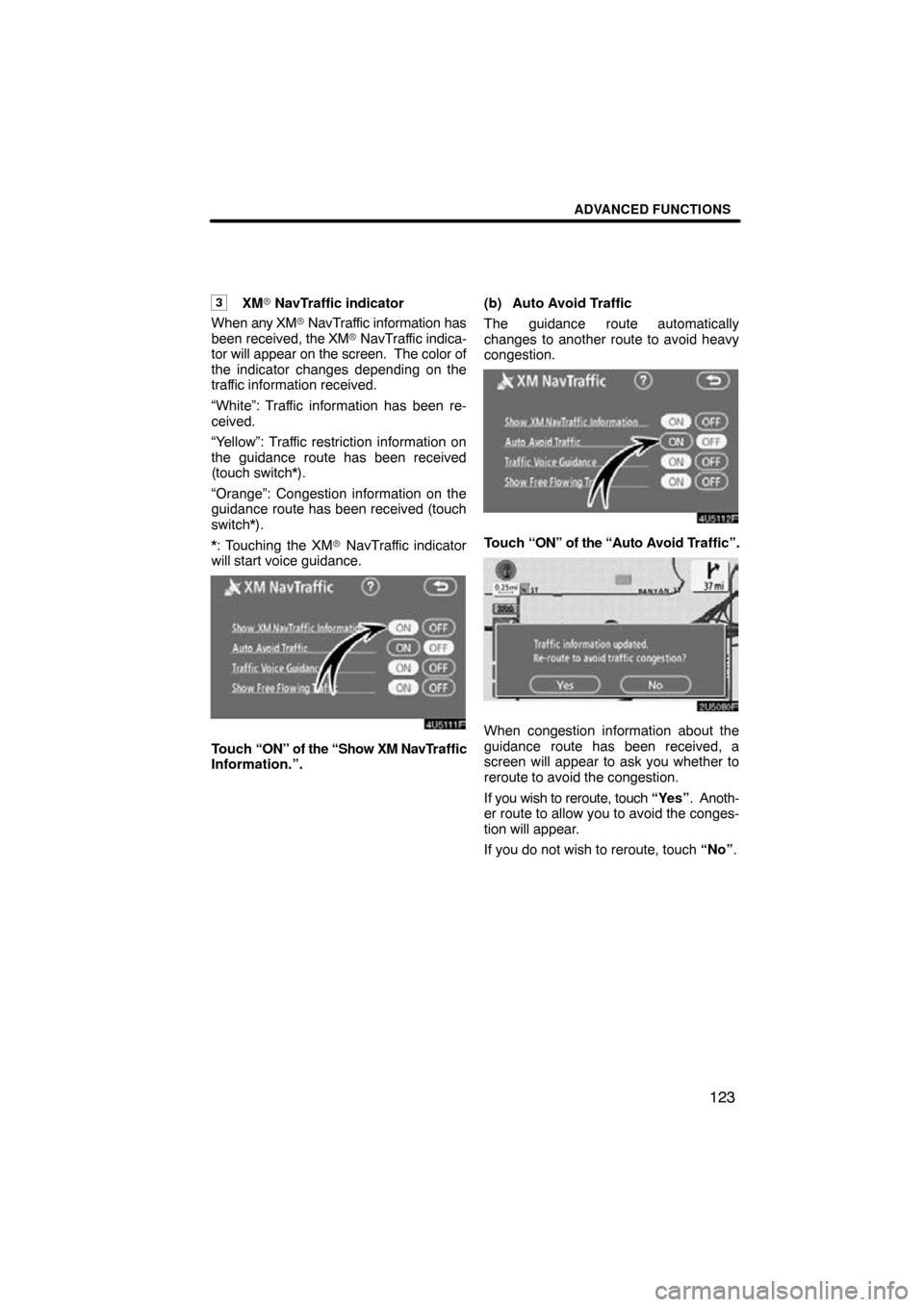

Touch “ON” of the “Show XM NavT raffic
Information.”. (b) Auto Avoid Traffic
The guidance route automatically
changes to another route to avoid heavy
congestion.
Touch
“ON” of the “Auto Avoid T raffic”.
When congestion information about the
guidance route has been received, a
screen will appear to ask you whether to
reroute to avoid the congestion.
If you wish to reroute, touch “Yes”. Anoth-
er route to allow you to avoid the conges-
tion will appear.
If you do not wish to reroute, touch “No”.

ADVANCED FUNCTIONS
124

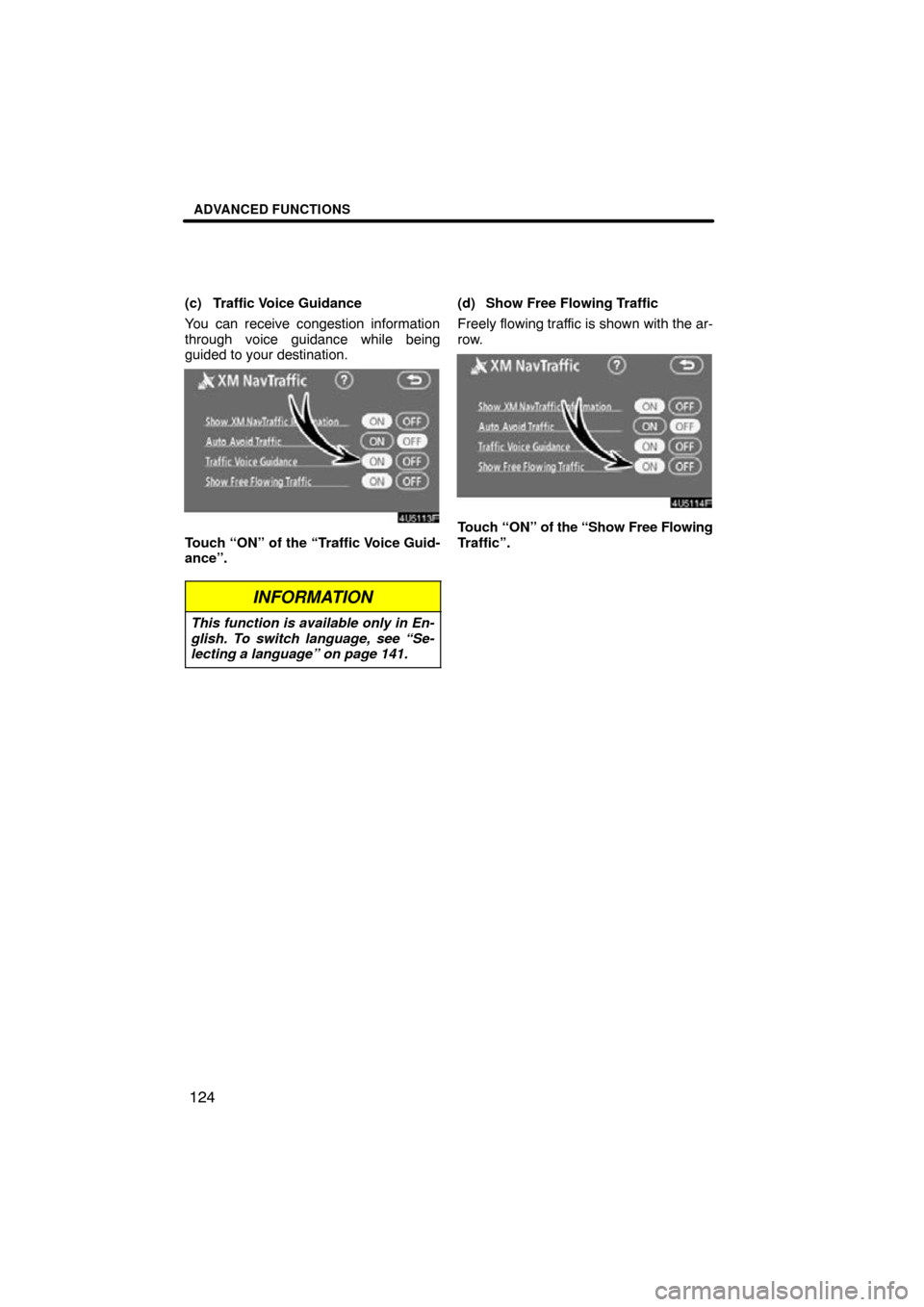

(c) Traffic Voice Guidance
You can receive congestion information
through voice guidance while being
guided to your destination.
Touch “ON” of the “Traffic Voice Guid-
ance”.
INFORMATION
This function is available only in En-
glish. To switch language, see “Se-
lecting a language” on page 141.
(d) Show Free Flowing Traffic
Freely flowing traffic is shown with the ar-
row.
Touch “ON” of the “Show Free Flowing
Traffic”.

ADVANCED FUNCTIONS
125

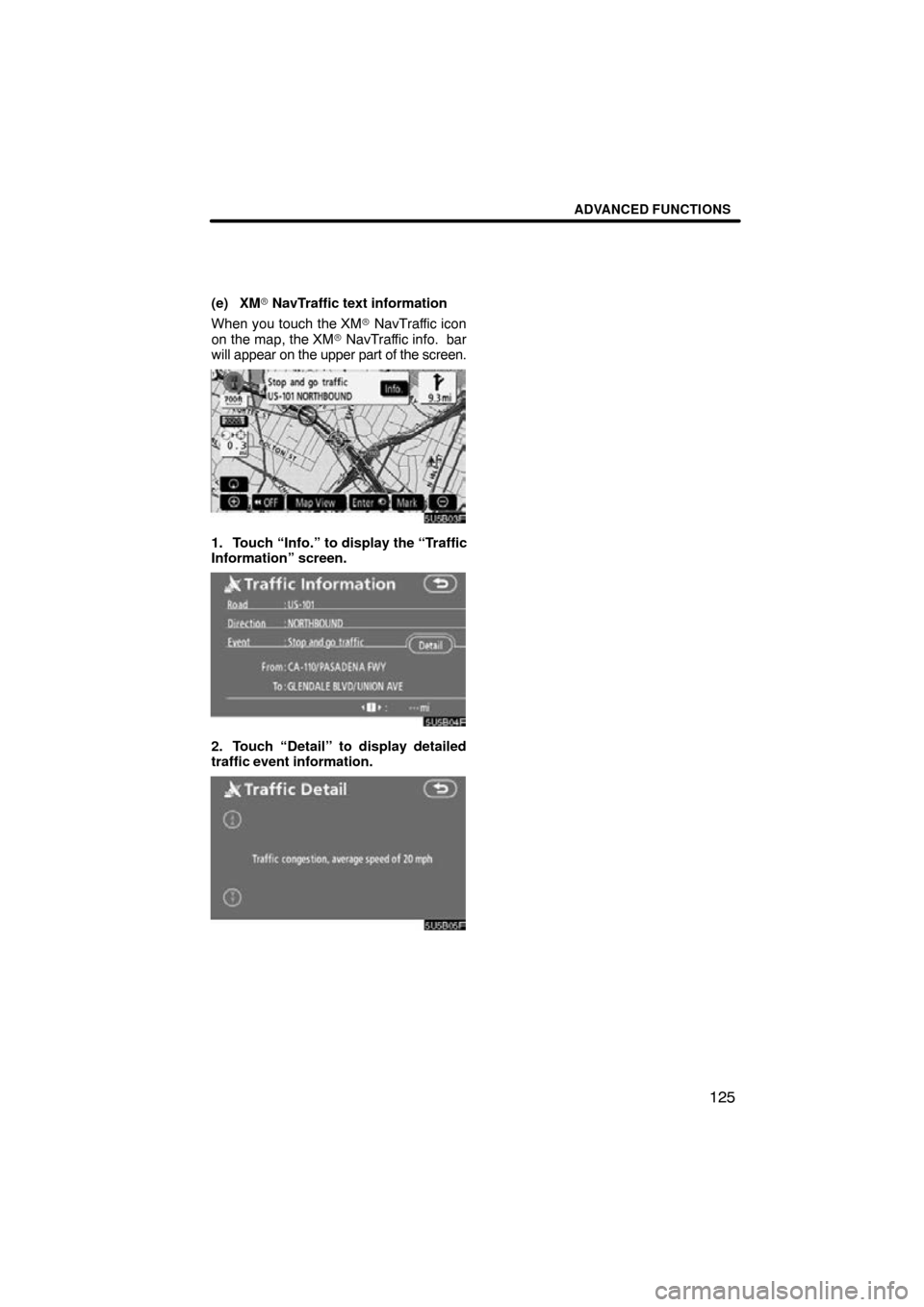

(e) XM NavTraffic text information
When you touch the XM NavTraffic icon
on the map, the XM NavTraffic info. bar
will appear on the upper part of the screen.
1. Touch “Info.” to display the “Traffic
Information” screen.
2. Touch “Detail” to display detailed
traffic event information.

ADVANCED FUNCTIONS
126

SECTION 5
OTHER FUNCTIONS
127
OTHER FUNCTIONS

Maintenance information 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance information setting 128
. . . . . . . . . . . . . . . . . . . . . . .
Dealer setting 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
 Calendar with memo 132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding a memo 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Editing a memo 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Memo list 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
 Screen adjustment 137
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Screen setting 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
 Beep setting 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
 Selecting a language 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other functions

OTHER FUNCTIONS
128

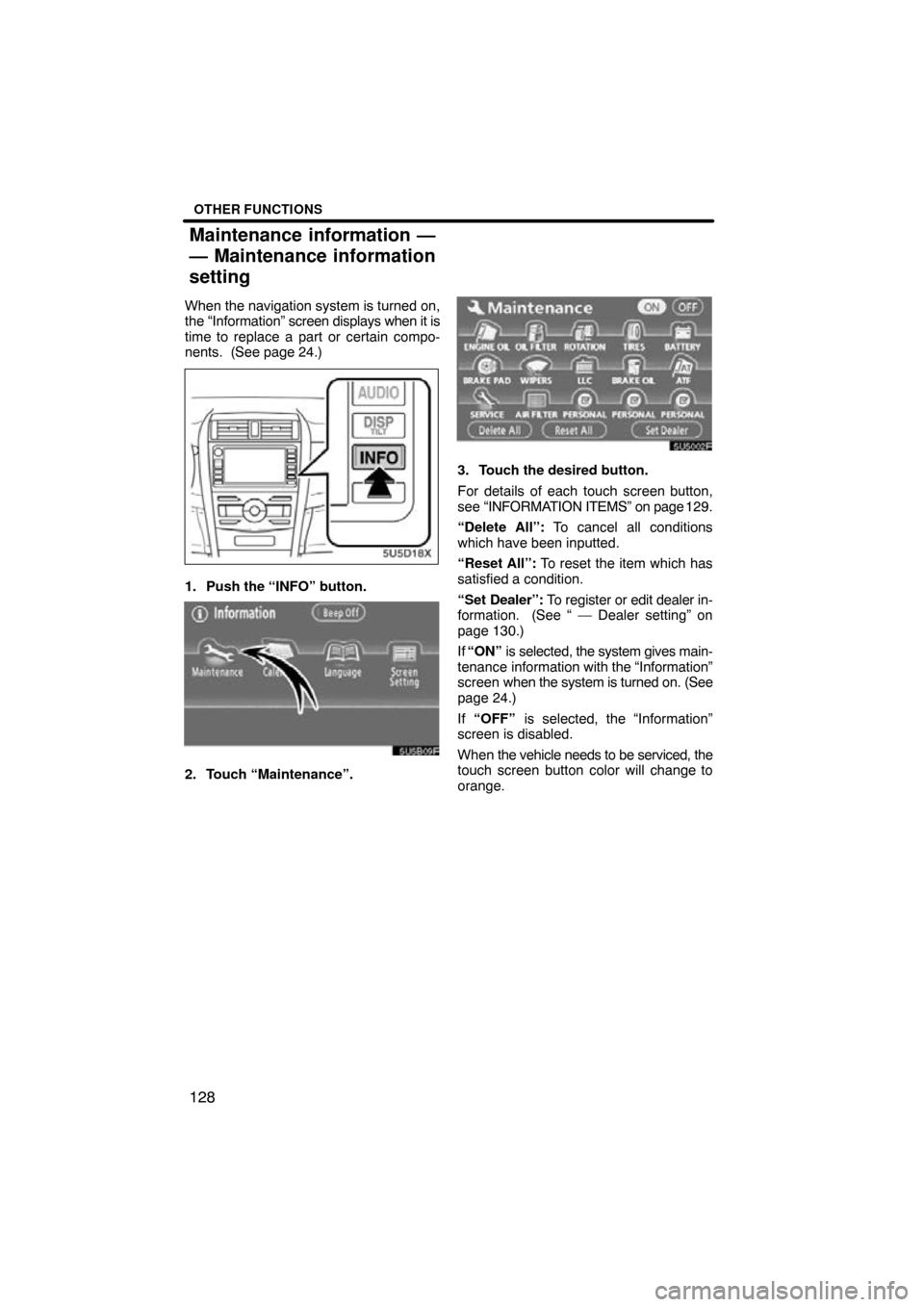

When the navigation system is turned on,
the “Information” screen displays when it is
time to replace a part or certain compo-
nents. (See page 24.)
1. Push the “INFO” button.
2. Touch “Maintenance”.
3. Touch the desired button.
For details of each touch screen button,
see “INFORMATION ITEMS” on page 129.
“Delete All”: To cancel all conditions
which have been inputted.
“Reset All”: To reset the item which has
satisfied a condition.
“Set Dealer”: To register or edit dealer in-
formation. (See “ — Dealer setting” on
page 130.)
If “ON” is selected, the system gives main-
tenance information with the “Information”
screen when the system is turned on. (See
page 24.)
If “OFF” is selected, the “Information”
screen is disabled.
When the vehicle needs to be serviced, the
touch screen button color will change to
orange.
Maintenance information —
— Maintenance information
setting

OTHER FUNCTIONS
129
INFORMATION ITEMS
“ENGINE OIL”: Replace engine oil
“OIL FILTER”: Replace engine oil filter
“ROTATION”: Rotate tires
“TIRES”: Replace tires
“BATTERY”: Replace battery
“BRAKE PAD”: Replace brake linings
“WIPERS”: Replace wiper blades
“LLC”: Replace engine coolant
“BRAKE OIL”: Replace brake fluid
“ATF”: Replace ATF (Automatic Trans-
mission Fluid)
“SERVICE”: Scheduled maintenance
“AIR FILTER”: Replace air filter
“PERSONAL”: New information items
can be created separately from provided
ones.
4. Input the conditions.
Notice of “Date”: The next maintenance
date can be input.
Notice of “Distance”: The driving dis-
tance until the next maintenance check
can be input.
“Delete”: To cancel the date and distance
conditions.
“Reset”: To reset the date and distance
conditions .
5. Touch “OK”.
The screen then returns to the “Mainte-
nance” screen.
INFORMATION
 For scheduled maintenance infor-
mation, please refer to the “Sched-
uled Maintenance Guide” or “Own-
er’s Manual Supplement”.
 Depending on driving or road con-
ditions, the actual date and dis-
tance may differ from the stored
date and distance in the system.

OTHER FUNCTIONS
130
It is possible to register a dealer in the sys-
tem. With dealer information registered,
route guidance to the dealer is available.
1. Push the “INFO” button.
2. Touch “Maintenance” on the “Infor-
mation” screen.
3. Touch “Set Dealer” on the “Mainte-
nance” screen.
4. If the dealer has not been registered,
enter the location of the dealer in the
same way as for a destination search.
(See “Destination search” on page 43.)
When “Set Dealer” registration is finished,
the “Edit Dealer” screen will be displayed.
5. Touch the button to be edited.
“Dealer”: To enter the name of a dealer.
(See page 131.)
“Contact”: To enter the name of a dealer
member. (See page 131.)
“Location”: To set a location. (See page
131.)
“Phone #”: To set a telephone number.
(See page 132.)
“Delete Dealer”: To delete the dealer in-
formation displayed on the screen.
“Enter
”: To set the displayed dealer as
a destination. (See “Starting route guid-
ance” on page 65.)
— Dealer setting
