Introduction
Thank you for your purchase of the Navigation System. Please read
this manual carefully to ensure proper use. Keep this manual in your
vehicle at all times.
The Navigation System is one of the most technologically advanced
vehicle accessories ever developed. The system receives satellite sig-
nals from the Global Positioning System (GPS) operated by the U.S.
Department of Defense. Using these signals and other vehicle sen-
sors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your
present starting location to your destination. The system is also designed
to direct you to a destination that is unfamiliar to you in an ef ficient manner.
The system uses DENSO maps. The calculated routes may not be the
shortest nor the least traffic congested. Your own personal local knowl-
edge or “short cut” may at times be faster than the calculated rou\
tes.
The navigation system’s database includes about 75 Point of Interest
categories to allow you to easily select destinations such as restaurant\
s
and banks. If a destination is not in the database, you can enter the stre\
et
address or a major intersection close to it and the system will guide yo\
u
there.
The system will provide both a visual map and audio instructions. The au-
dio instructions will announce the distance remaining and the direction to
turn in approaching an intersection. These voice instructions will help you
keep your eyes on the road and are timed to provide enough time to allow
you to maneuver, change lanes or slow down.

COROLLA_Navi_U(L/O 0902)
2
Please be aware that all current vehicle navigation systems have
certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite con-
dition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to
pages 178 through 179.

COROLLA_Navi_U(L/O 0902)
3
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.

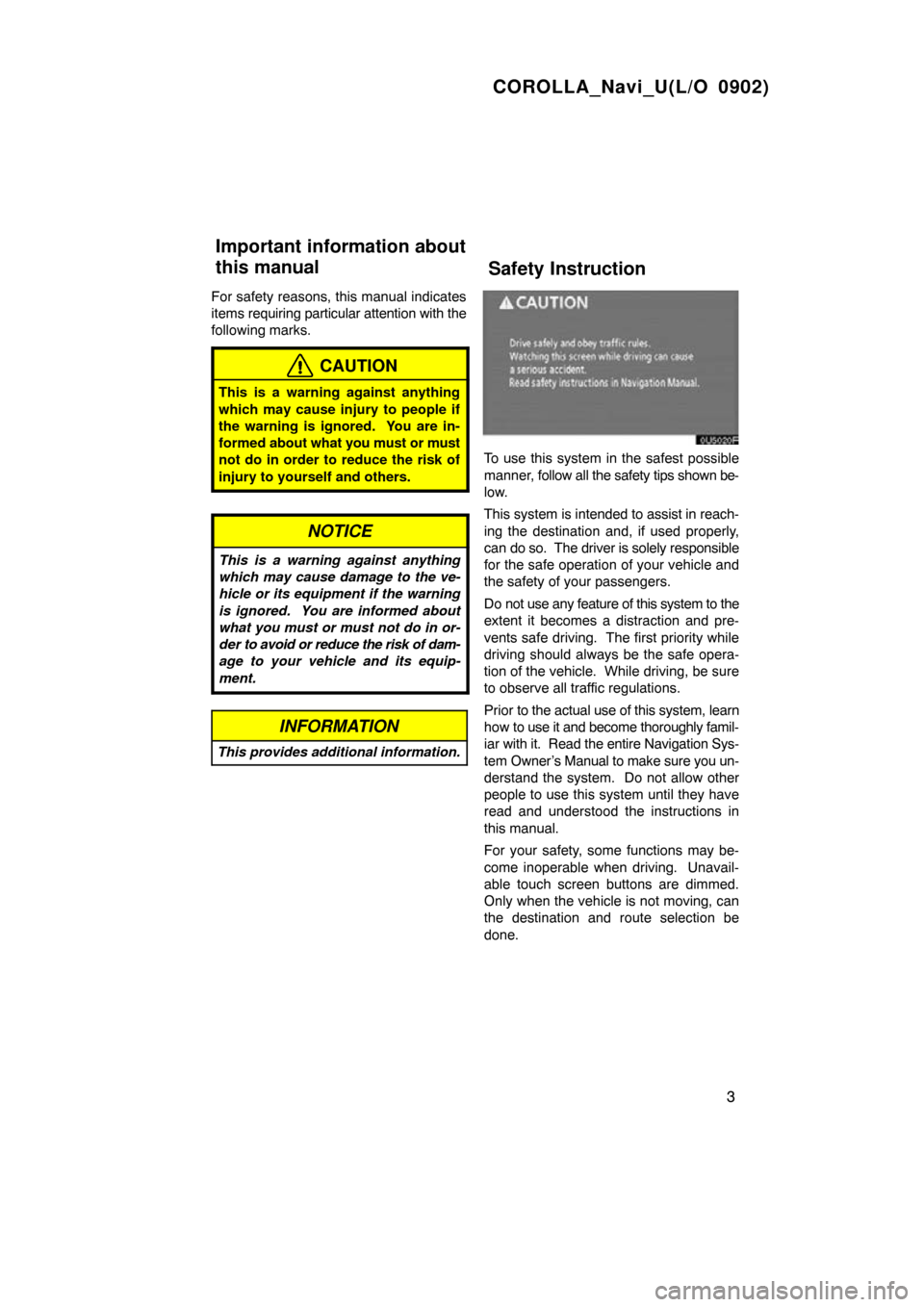

CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination and route selection be
done.
Important information about
this manualSafety Instruction

COROLLA_Navi_U(L/O 0902)
4
CAUTION
For safety, the driver should not
operate the navigation system
while he/she is driving.
Insufficient attention to the road
and traffic may cause an accident.
 While driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions.
If a traffic sign on the road has
been changed, route guidance
may provide wrong information
such as the direction of a one way
street.
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for reference. If the sys-
tem cannot determine the current vehicle
position correctly, there is a possibility of
incorrect, late, or non −voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street clo-
sures, etc.) frequently change. Therefore,
before following any instruction from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency ser-
vices. If unsure about the safety of an
area, do not drive into it. Under no cir-
cumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.

COROLLA_Navi_U(L/O 0902)
5
Table of Contents
Quick guide —
— Overview buttons and guidance screen 10. . . . . . . . . . .
— Registering home 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Registering preset memory points (Quick access) 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Operation flow: guiding the route 16 . . . . . . . . . . . . . . . . .
— Setting home as the destination 17 . . . . . . . . . . . . . . . . . .
Navigation system function index 18 . . . . . . . . . . . . . . . . . . .
1 Basic Functions 〈Basic information before operation〉
Display operation 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Initial screen 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Touch screen operation 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Inputting letters and numbers/List screen operation 26
. . . . . . . . . . . . .
Function help 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Map screen operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Current position display 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the screens 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Foot print map 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Orientation of the map 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick
Guide

COROLLA_Navi_U(L/O 0902)
6
2 Destination Search
Quick reference (“Destination” screen)42
. . . . . . . . . . . . . . . . . . . . . . . .
Destination search 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Selecting the region to search 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Home 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Quick access 46
. . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Address” 47
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI
∗”5 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Phone #” 58
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 59
. . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Memory” 59
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Previous” 60
. . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Map” 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Intersection” 61
. . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Freeway Ent./Exit” 62
. . . . . . . . . . . . . . . . . . .
Destination search by “Coordinates” 63
. . . . . . . . . . . . . . . . . . . . . . . .
Deleting set destinations 64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route guidance 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
3 Route Guidance
Route guidance screen 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Typical voice guidance prompts 73
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance and time to destination 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting destination 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding destinations 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Reordering destinations 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting destinations 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Setting route 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Search condition 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Detour setting 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Route preference 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Starting route from adjacent road 81
. . . . . . . . . . . . . . . . . . . . . . . . . .
Map view 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Display POI
∗ icons 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Route overview 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Route preview 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Route trace 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
∗: Point of Interest

COROLLA_Navi_U(L/O 0902)
7
4 Advanced Functions〈Descriptions of functions for more effective use〉
Quick reference (“Menu” screen) 90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Setup” screen) 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspending and resuming guidance 92
. . . . . . . . . . . . . . . . . . . . . . . . . .
Volume 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
User selection 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
My places 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Registering memory points 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing memory points 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting memory points 103
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Registering home 104
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Deleting home 105
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Registering area to avoid 105
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing area to avoid 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting area to avoid 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting previous points 110
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup 110
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
XM  NavTraffic 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
5 Other Functions
Maintenance information 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance information setting 128 . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer setting 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Calendar with memo 132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Adding a memo 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Editing a memo 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Memo list 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Screen adjustment 137
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Screen setting 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Beep setting 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Selecting a language 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.

COROLLA_Navi_U(L/O 0902)
8
6 Audio System
Quick reference144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Using your audio system 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Some basics 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Radio operation 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
CD player operation 158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio remote controls 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Audio system operating hints 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Appendix
Limitations of the navigation system 178
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 180
. . . . . . . . . . . . . . . . . . . . . .
Index 191
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .

COROLLA_Navi_U(L/O 0902)
9

10

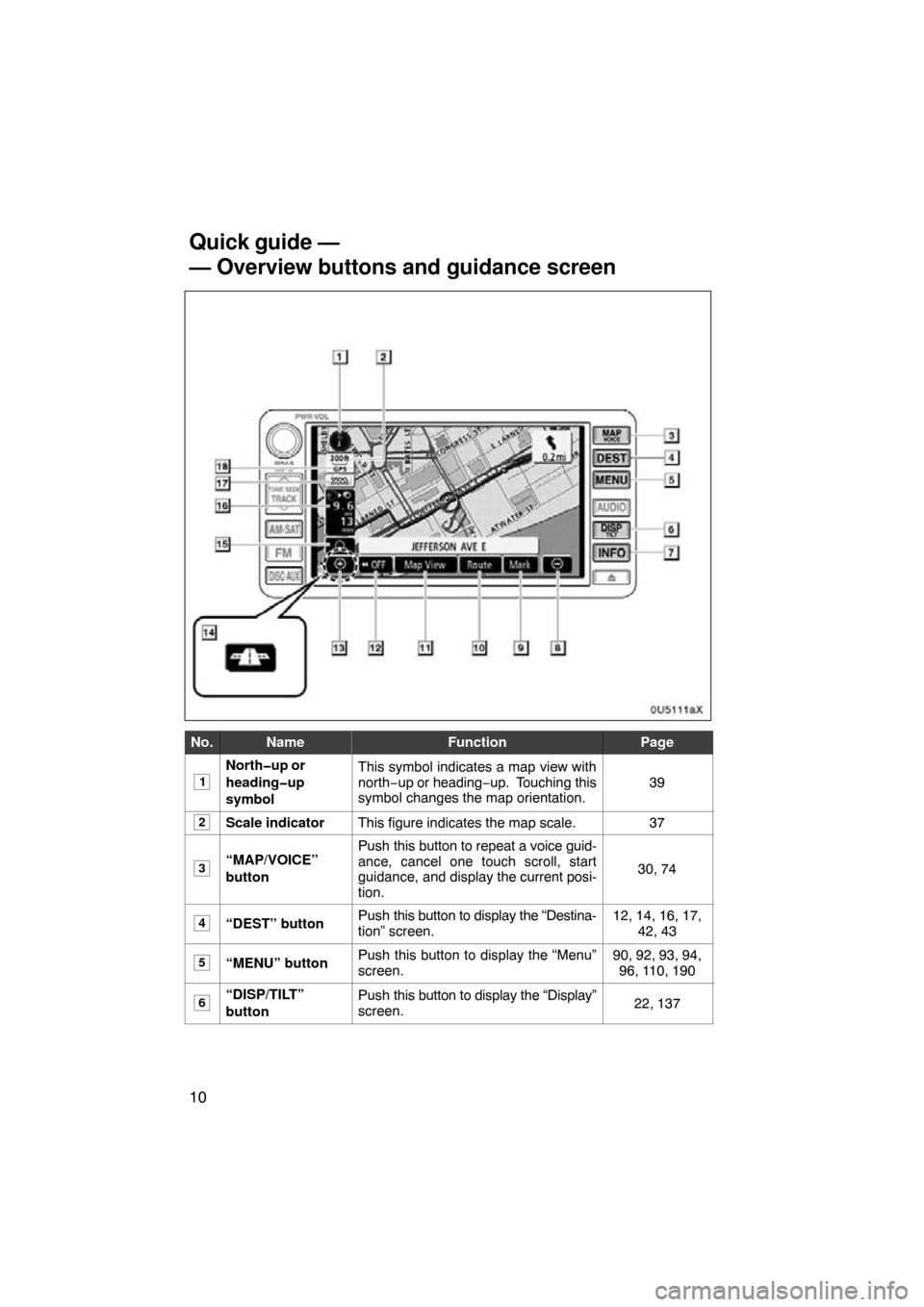

0U5111aX
No.NameFunctionPage
1
Northup or
headingup
symbolThis symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
39
2Scale indicatorThis figure indicates the map scale.37
3“MAP/VOICE”
buttonPush this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
30, 74
4“DEST” buttonPush this button to display the “Destina-
tion” screen.12, 14, 16, 17, 42, 43
5“MENU” buttonPush this button to display the “Menu”
screen.90, 92, 93, 94,96, 110, 190
6“DISP/TILT”
buttonPush this button to display the “Display”
screen.22, 137
Quick guide —
— Overview buttons and guidance screen
