TOYOTA COROLLA 2010 10.G Navigation Manual

11
No.NameFunctionPage
7“INFO” buttonPush this button to display the “Informa-
tion” screen.128, 132, 138,141
8Zoom out buttonTouch this button to reduce the map
scale.37
9“Mark”
Touch this button to register the current
position or the cursor position as a
memory point.
31
10“Route”Touch this button to change the route.76, 78
11“Map View”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
82, 84, 85, 86
12“ OFF”
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “ON”.
11 4
13Zoom in buttonTouch this button to magnify the map
scale.37
14Foot print map
buttonTouch this button to display the foot print
map and the building information.37
15
Screen
configuration
buttonTouch this button to change the screen
mode.34
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
75
17XM NavTraffic
markThis mark is displayed when XM  Nav-
Traffic information is received.120
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
178

12
0U5113X
1Push the “DEST” button.
2Touch .
If home has not been registered, you can
register it by touching
.
3There are 11 different methods to
search your home.
See “Destination search” on page 43.
4Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering home

13
5Touch “OK”.
Registration of home is complete.
You can also register home by pushing the
“MENU” button. (See “ — Registering
home” on page 104.)
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 98.)

14
0U5112X0U5112X
1Push the “DEST” button.
2Touch one of the quick access
buttons.
You can set a memory point to one of the
quick access buttons which has not been
set.
3There are 12 different methods to
search preset memory points.
See “Destination search” on page 43.
4Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering preset memory points
(Quick access)

15

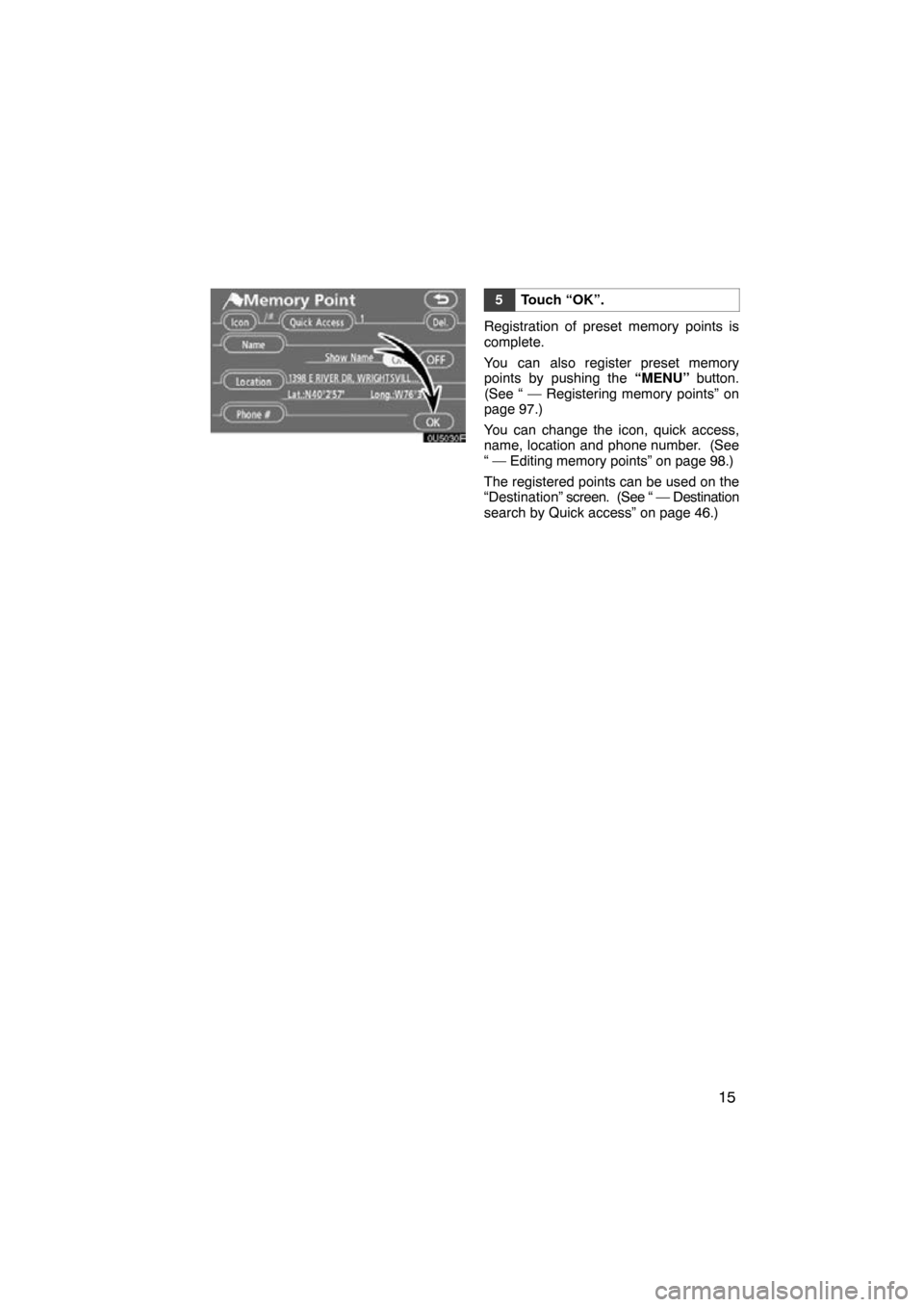

5Touch “OK”.
Registration of preset memory points is
complete.
You can also register preset memory
points by pushing the “MENU” button.
(See “ — Registering memory points” on
page 97.)
You can change the icon, quick access,
name, location and phone number. (See
“ — Editing memory points” on page 98.)
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Quick access” on page 46.)

16
0U5113X

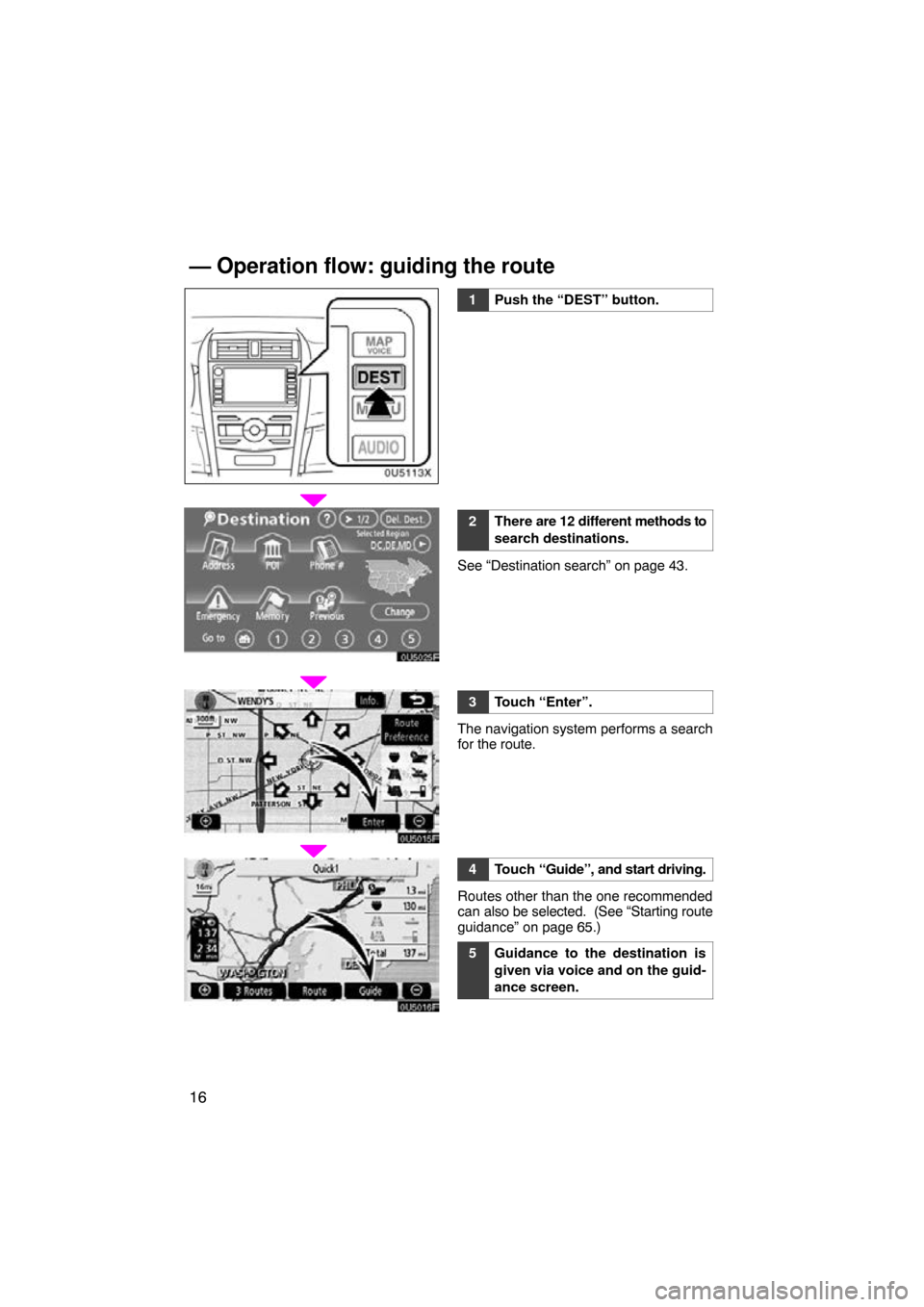

1Push the “DEST” button.
2There are 12 different methods to
search destinations.
See “Destination search” on page 43.
3Touch “Enter”.
The navigation system performs a search
for the route.
4Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 65.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Operation flow: guiding the route

17
0U5113X0U5113X

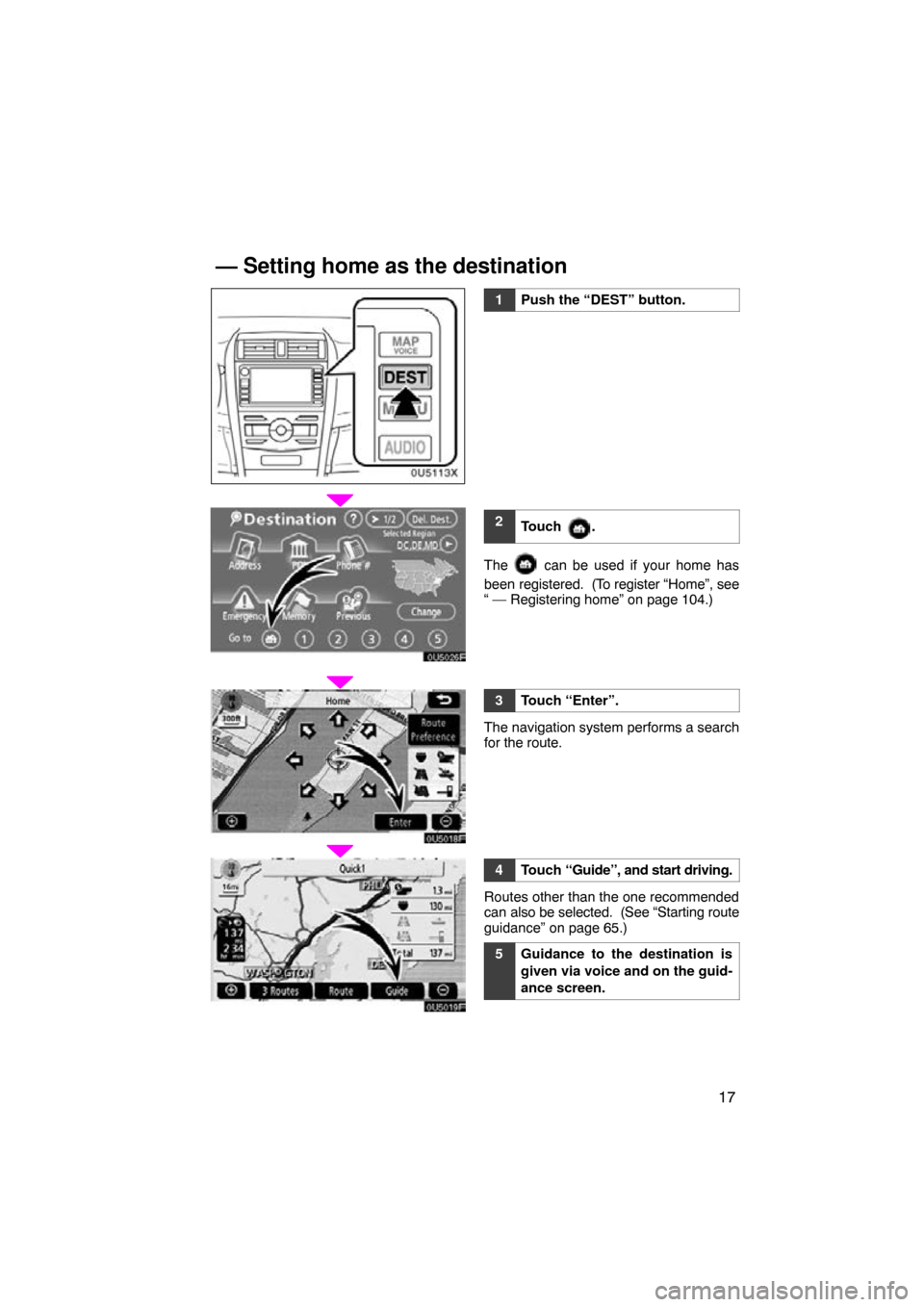

1Push the “DEST” button.
2Touch .
The can be used if your home has
been registered. (To register “Home”, see
“ — Registering home” on page 104.)
3Touch “Enter”.
The navigation system performs a search
for the route.
4Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 65.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
— Setting home as the destination

COROLLA_Navi_U(L/O 0902)
18
Map
Displaying mapsPage
Viewing the map screen10
Displaying the current vehicle position30
Viewing the current position vicinity map30
Changing the scale37
Changing the map orientation39
Displaying POIs∗82
Displaying the estimated travel/arrival time to the destination75
Selecting the dual map screen34
Viewing foot print map37
Deleting map screen touch screen buttons11 4
Searching destinationPage
Searching the destination (by home, POI∗, phone #, etc.)43
Changing the selected region44
Operating the map location of the selected destination65
Route guidance
Before starting route guidancePage
Setting the destination65
Viewing alternative routes65
Starting route guidance65
Before starting or during route guidancePage
Viewing the route65
Adding destinations76
Changing the route78
Displaying the estimated travel/arrival time to the destination75
∗: Point(s) of Interest
Navigation system function index

COROLLA_Navi_U(L/O 0902)
19
During route guidancePage
Suspending route guidance92
Adjusting route guidance volume93
Deleting the destination64, 77
Displaying the entire route map84
Useful functions
Memory pointsPage
Registering your own memory points96
Marking icons on the map96
InformationPage
Displaying vehicle maintenance timing128
Displaying the calendar132

COROLLA_Navi_U(L/O 0902)
