384 5-2. Steps to take in an emergency
Follow the correction procedures.After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
■ If the malfunction indicator lamp comes on while driving
First check the following:
● Is the fuel tank empty?
If it is, fill the fuel tank immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The malfunction indicator lamp will go off after taking several driving trips.
If the malfunction indicator lamp does not go off even after several trips, con-
tact your Toyota dealer as soon as possible.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light Indicates that a door or the
trunk is not fully closed. Check that all doors and the
trunk are closed.
Low fuel level warning
light Indicates that remaining
fuel is about 2.0 gal. (7.5
L, 1.7 lmp. gal.) or less Refuel the vehicle.
Driver’s seat belt
reminder light
(warning buzzer)
*
Warns the driver to fasten
his/her seat belt. Fasten the seat belt.
(on the center panel) Front passenger’s seat
belt reminder light
(warning buzzer)
*
Warns the front passen-
ger to fasten his or her
seat belt.
Fasten the seat belt.

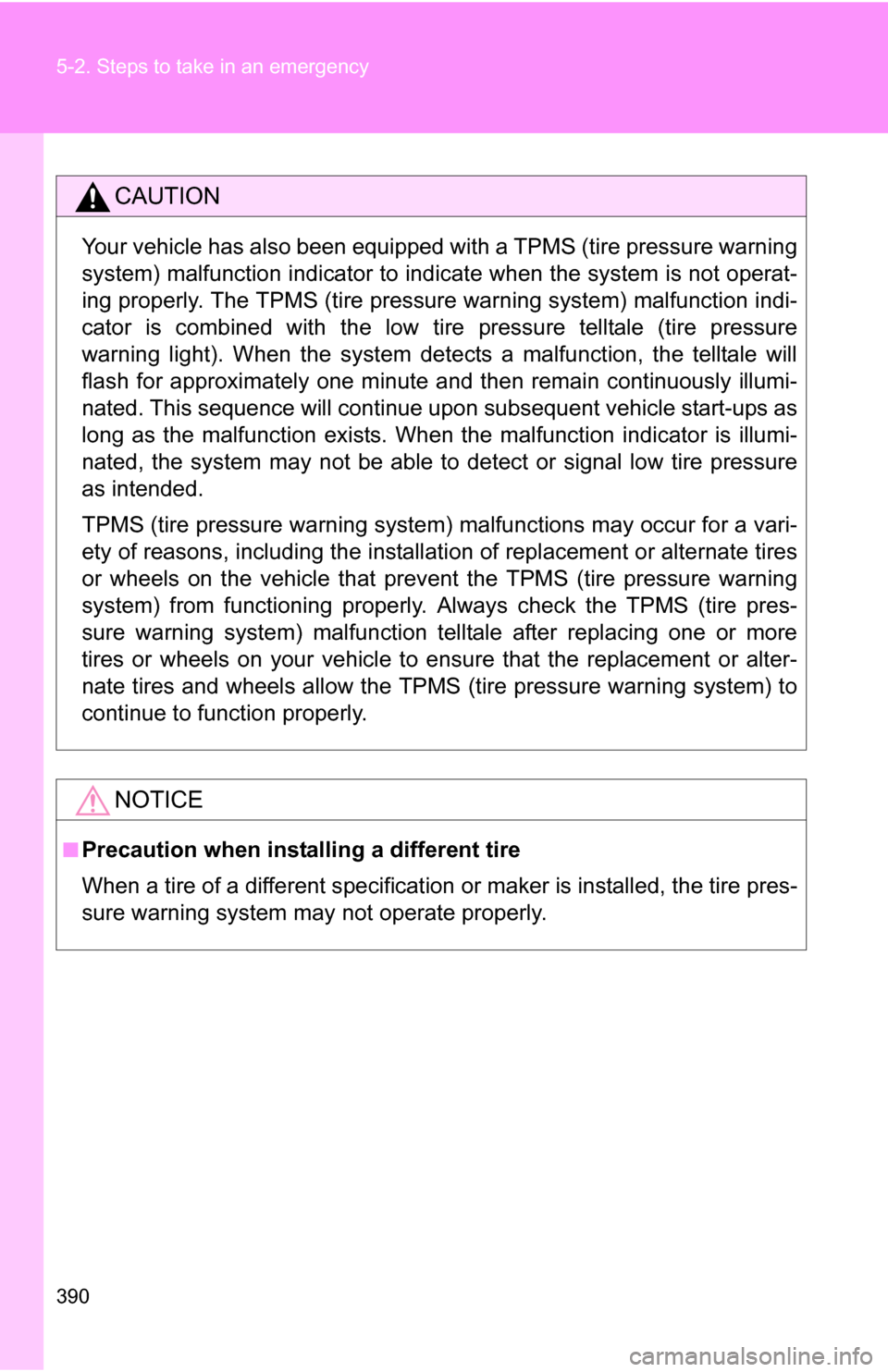

390 5-2. Steps to take in an emergency
CAUTION
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indicate when the system is not operat-
ing properly. The TPMS (tire pressure warning system) malfunction indi-
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the malfunction indi cator is illumi-
nated, the system may not be able to detect or signal low tire pressure
as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pres-
sure warning system may not operate properly.

435
6-1. Specifications
6
Vehicle specifications
■
Toyota recommends the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S. contains detergent additives to clean and/or
keep clean intake systems.
■ Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Toyota does not recommend blended gasoline
●Toyota allows the use of oxygenate blended gasoline where the oxygen-
ate content is up to 10% ethanol or 15% MTBE.
● If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.

471
Alphabetical index
Tires
Chains .................................. 171
Checking .............................. 330
If you have a flat tire ............. 393
Inflation pressure .................. 338
Inflation pressure sensor ...... 331
Information ........................... 437
Replacing ............................. 393
Rotating tires ........................ 330
Size ...................................... 431
Snow tires............................. 171
Spare tire .............................. 393
Tools......................................... 393
Total load capacity .................. 170
Towing Dinghy towing ............... 183, 184
Emergency towing ................ 374
Trailer towing ........................ 175
TRAC ........................................ 163
Traction control ....................... 163
Trip information....................... 151
Trip meter................................. 143
Trunk Opener ................................... 46
Trunk light Wattage ................................ 433
Turn signal lights Replacing light bulbs ............ 360
Switch ................................... 140
Wattage ................................ 433
Valet key..................................... 20
Vanity mirrors .......................... 277
Vehicle identification number................................... 422
Vehicle stability control .......... 163
VSC ........................................... 163 Warning buzzers
Brake system ........................382
Downshifting..........................138
Seat belt reminder .................384
Warning lights
Anti-lock brake system ..........383
Brake assist system ..............383
Brake system ........................382
Charging system .... ...............382
Engine oil maintenance ......... 384
Engine oil pressure ...............382
Electric power steering system ................................383
Low fuel level ........................384
Low tire pressure warning
light .....................................384
Malfunction indicator lamp ....383
Open door .............................384
Pretensioners ........................383
Seat belt reminder light .........384
Smart key system... ...............391
SRS airbags ..........................383
Tire pressure warning light ....384
Washer fluid ..........................384
V
W

475
What to do if...
■
Warning lights
P. 384
or
P. 3 8 2P. 384
P. 3 8 2P. 383
P. 3 8 2P. 384
P. 384
or
P. 3 8 3P. 384
P. 3 8 3P. 384
P. 391
or
P. 3 8 3
P. 3 8 4
Brake system warning
lightTire pressure warning
light
Low windshield washer fluid level
warning light
Charging system warn-
ing lightElectric power steering
warning light
Low engine oil pressure
warning lightOpen door warning light
Malfunction indicator
lampLow fuel level warning
light
Driver’s seat belt
reminder light
SRS warning lightFront passenger’s seat belt
reminder light
ABS warning lightSmart key system warn-
ing light
Engine oil replacement
reminder light
