radiator cap TOYOTA COROLLA 2010 10.G Owners Manual

314
4-3. Do-it-yourself maintenance
Engine compar tment
1.8 L 4-cylinder (2ZR-FE) engine
Engine coolant reservoir( P. 321)
Engine oil filler cap ( P. 317)
Brake fluid reservoir ( P. 322)
Fuse box ( P. 350)Battery ( P. 325)
Radiator ( P. 322)
Electric cooling fan
Condenser ( P. 322)
Engine oil level dipstick ( P. 316)
Washer fluid tank ( P. 328)

315
4-3. Do-it-yourself maintenance
4
Maintenance and care
2.4 L 4-cylinder (2AZ-FE) engine
Engine coolant reservoir
( P. 321)
Engine oil filler cap ( P. 317)
Engine oil level dipstick ( P. 316)
Brake fluid reservoir ( P. 322)Fuse box ( P. 350)
Battery ( P. 325)
Radiator ( P. 322)
Electric cooling fans
Condenser ( P. 322)
Washer fluid tank ( P. 328)

321
4-3. Do-it-yourself maintenance
4
Maintenance and care

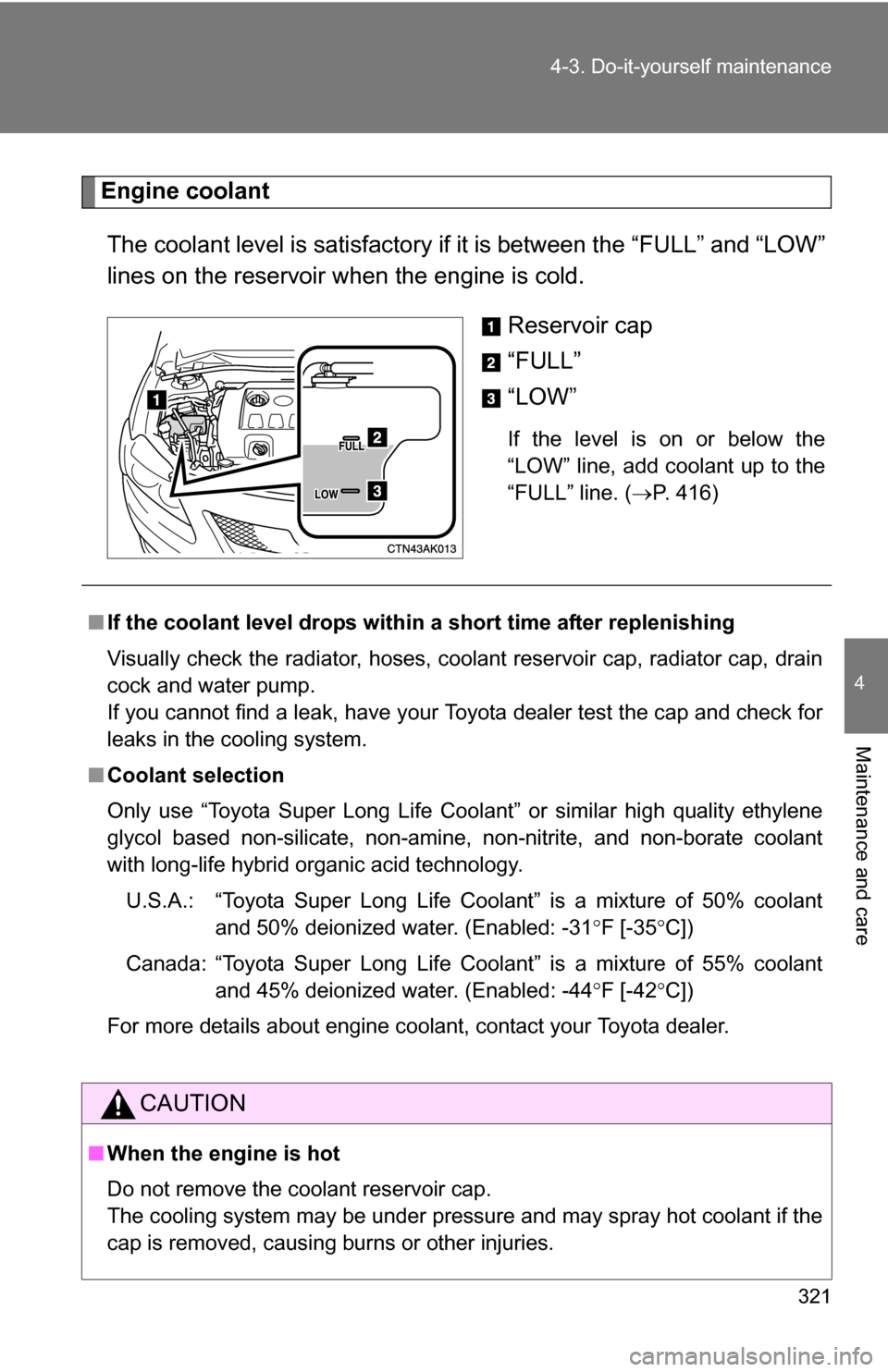

Engine coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap
“FULL”
“LOW”
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. (P. 416)
■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, coolant reservoir cap, radiator cap, drain
cock and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.
■ Coolant selection
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water. (Enabled: -31 F [-35 C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water. (Enabled: -44 F [-42 C])
For more details about engine coolant, contact your Toyota dealer.
CAUTION
■ When the engine is hot
Do not remove the coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing burns or other injuries.

5
When trouble arises
417
5-2. Steps to take in an emergency
■
Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
● Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of
your vehicle
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
● Keep hands and clothing away from the fan and other belts while the
engine is running.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is
unavailable.
(P. 428)
Have the vehicle chec ked at the nearest Toyota dealer as soon as
possible.
STEP 5

469
Alphabetical index
Radiator.................................... 322
Radio ........................................ 205
Rear side marker lights
Replacing light bulb .............. 360
Switch ................................... 155
Wattage ................................ 433
Rear seats Folding down .......................... 52
Rear turn signal lights Replacing light bulbs ............ 360
Switch ................................... 140
Wattage ................................ 433
Rear view mirror Compass .............................. 288
Rear window defogger............ 201
Replacing Fuses.................................... 350
Key battery ........................... 346
Light bulbs ............................ 360
Tires ..................................... 393
Reporting safety defects for U.S.A. owners........................ 456 Seat belts
Adjusting the seat belt .............56
Automatic Locking
Retractor ...............................59
Child restraint system
installation ...........................104
Cleaning and maintaining the seat belts ......................297
Emergency Locking Retractor ...............................59
How to wear your seat belt......56
How your child should wear
the seat belt ..........................60
Pregnant women, proper seat
belt use .................................59
Reminder light .......................384
Seat belt extenders .................60
Seat belt pretensioners ...........58
Seat heaters..............................283
Seating capacity.......................170
Seats Adjustment ..............................49
Adjustment precautions...........51
Child seats/child restraint system installation ..............104
Cleaning ................................296
Head restraint..........................54
Properly sitting in the seat .......81
Rear seat folding down ...........52
Seat heaters ..........................283
Service reminder indicators ..............................147
Shift lever Automatic transmission .........134
If the shift lever cannot be shifted from P................. 406
Manual transmission .............139
Shift lock system .....................406
Side airbags................................83
Side marker lights Replacing light bulbs .............360
Switch....................................155
Wattage .................................433RS
