seat adjustment TOYOTA COROLLA 2010 10.G Owners Manual

49
1
Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Power seat (driver's side only)
Seat position switch
Seatback angle switch
Seat cushion (front) angle switch
Vertical height adjustment switch
Lumbar support switch

50 1-3. Adjustable components (seats, mirrors, steering wheel)
Active head restraints
When the occupant’s back
presses against the seatback
during a rear-end collision, the
head restraint moves slightly for-
ward to help reduce the risk of
whiplash on the seat occupant.
Manual seatSeat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)

51
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Active head restraints
Even small forces applied to the seatback may cause the head restraint to
move. Pushing up a locked head restraint forcibly may appear the head
restraint inner structure. These do not indicate problems.
CAUTION
■Seat adjustment
●Be careful that the seat does not hit passengers or luggage.
● Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
● Manual seat only: After adjusting the seat, make sure that the seat is
locked in position.
Inner
structure During
rear-end
collision

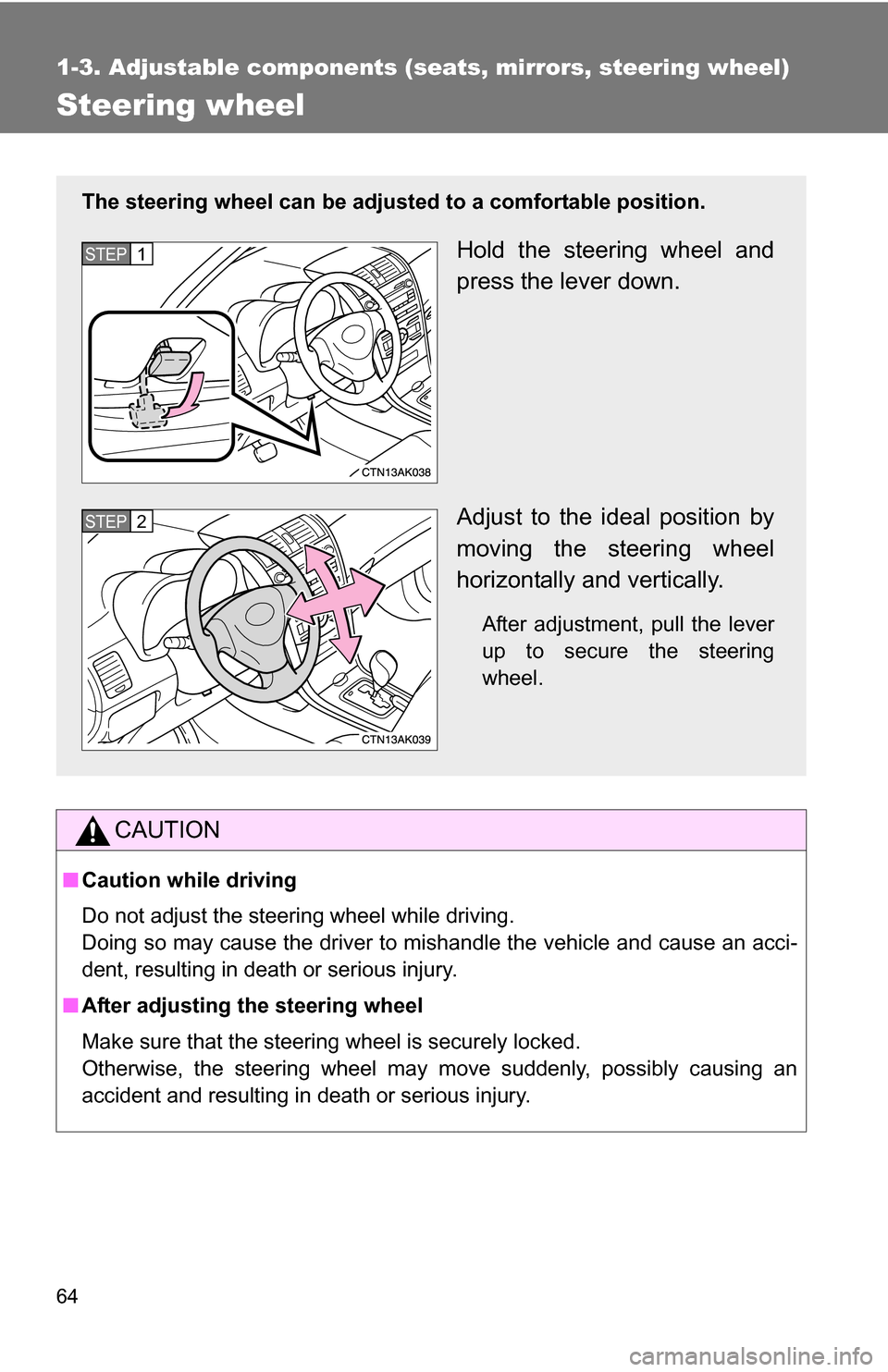

64
1-3. Adjustable components (seats, mirrors, steering wheel)
Steering wheel
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.
The steering wheel can be adjust ed to a comfortable position.
Hold the steering wheel and
press the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.
After adjustment, pull the lever
up to secure the steering
wheel.
STEP 1
STEP 2

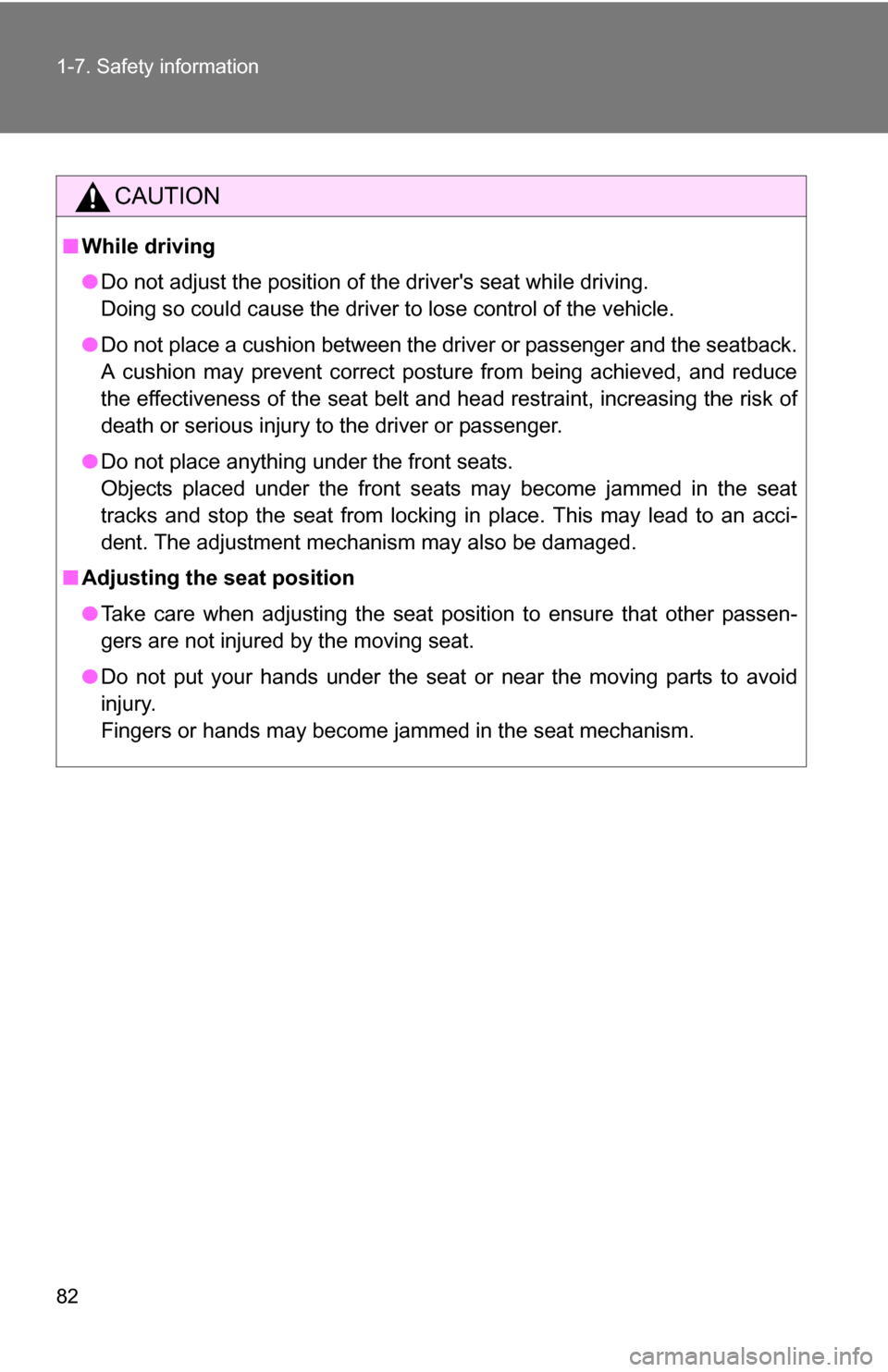

82 1-7. Safety information
CAUTION
■While driving
●Do not adjust the position of the driver's seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent. The adjustment mechanism may also be damaged.
■ Adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

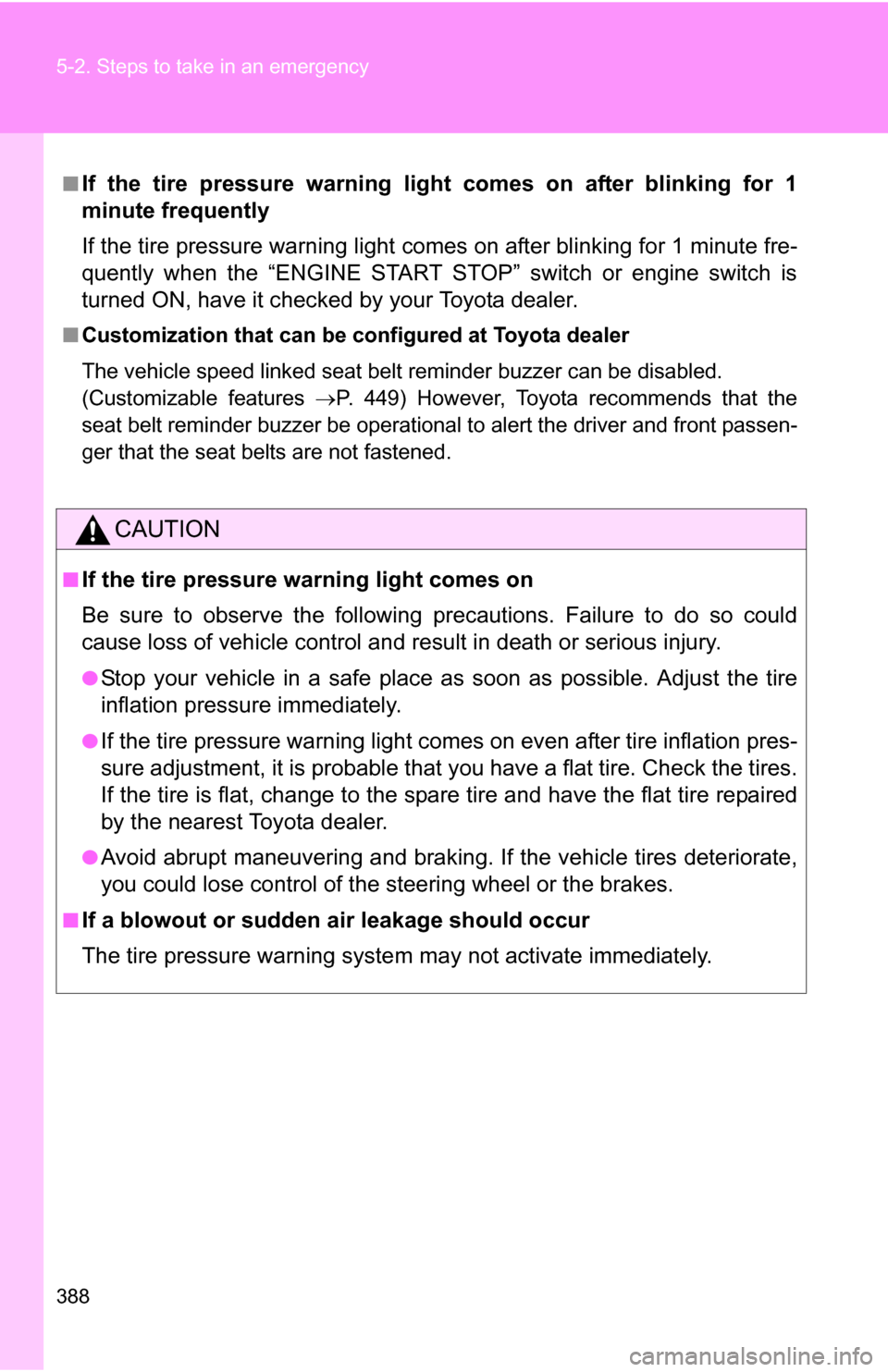

388 5-2. Steps to take in an emergency
■If the tire pressure warning light comes on after blinking for 1
minute frequently
If the tire pressure warning light comes on after blinking for 1 minute fre-
quently when the “ENGINE START STOP” switch or engine switch is
turned ON, have it checked by your Toyota dealer.
■Customization that can be co nfigured at Toyota dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 449) However, Toyota recommends that the
seat belt reminder buzzer be operational to alert the driver and front passen-
ger that the seat belts are not fastened.
CAUTION
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and re sult in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is pr obable that you have a flat tire. Check the tires.
If the tire is flat, change to the spare tire and have the flat tire repaired
by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning syste m may not activate immediately.

466 Alphabetical index
If you have a flat tire ............. 393
If you lose your keys ............. 407
If you think something is wrong .................................. 378
If your vehicle becomes
stuck ................................... 419
If your vehicle needs to be towed .................................. 373
If your vehicle overheats ....... 416
Engine Compartment ........................ 314
Engine switch ................ 126, 130
Hood...................................... 309
How to start the
engine ......................... 126, 130
Identification number ............. 422
If the engine will not start ...... 404
Ignition switch................ 126, 130
Overheating........................... 416
Engine coolant
Capacity ................................ 428
Checking ............................... 321
Preparing and checking before winter ....................... 171
Engine coolan t temperature
gauge ...................................... 143
Engine immobilizer system.......78
Engine oil Capacity ................................ 427
Checking ............................... 316
Preparing and checking before winter ....................... 171 Engine oil maintenance
data ......................................... 319
Engine switch light .................. 264
EPS............................................ 163
Event data recorder ................. 380
Floor mat .................................. 286
Fluid Brake..................................... 322
Washer.................................. 328
Fog lights Replacing light bulbs ............. 360
Switch ................................... 157
Wattage................................. 433
Front passenger occupant classification system .............. 95
Front passenger's seat belt reminder light ........................ 384
Front seats
Adjustment .............................. 49
Front side marker lights Replacing light bulbs ............. 360
Switch ................................... 155
Wattage................................. 433
Front turn signal lights
Replacing light bulbs ............. 360
Switch ................................... 140
Wattage................................. 433
F

469
Alphabetical index
Radiator.................................... 322
Radio ........................................ 205
Rear side marker lights
Replacing light bulb .............. 360
Switch ................................... 155
Wattage ................................ 433
Rear seats Folding down .......................... 52
Rear turn signal lights Replacing light bulbs ............ 360
Switch ................................... 140
Wattage ................................ 433
Rear view mirror Compass .............................. 288
Rear window defogger............ 201
Replacing Fuses.................................... 350
Key battery ........................... 346
Light bulbs ............................ 360
Tires ..................................... 393
Reporting safety defects for U.S.A. owners........................ 456 Seat belts
Adjusting the seat belt .............56
Automatic Locking
Retractor ...............................59
Child restraint system
installation ...........................104
Cleaning and maintaining the seat belts ......................297
Emergency Locking Retractor ...............................59
How to wear your seat belt......56
How your child should wear
the seat belt ..........................60
Pregnant women, proper seat
belt use .................................59
Reminder light .......................384
Seat belt extenders .................60
Seat belt pretensioners ...........58
Seat heaters..............................283
Seating capacity.......................170
Seats Adjustment ..............................49
Adjustment precautions...........51
Child seats/child restraint system installation ..............104
Cleaning ................................296
Head restraint..........................54
Properly sitting in the seat .......81
Rear seat folding down ...........52
Seat heaters ..........................283
Service reminder indicators ..............................147
Shift lever Automatic transmission .........134
If the shift lever cannot be shifted from P................. 406
Manual transmission .............139
Shift lock system .....................406
Side airbags................................83
Side marker lights Replacing light bulbs .............360
Switch....................................155
Wattage .................................433RS
