cruise control TOYOTA COROLLA 2010 10.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 14Audio 12-13Auto lock functions29Automatic Transmission 8Auxiliary storage 18Clock 16Cruise control 15Cup holders 18Door locks-Power 17Light control-Instrument panel 18Lights&turnsignals 11Moonroof 17Multi-information display 15Parking brake 8Power outlets 14Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 10Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel 17Windows-Power 10
Windshield wipers & washers 10
Child comfort guide 19Doors-Child safety locks 20Seatbelts 19Seatbelts-Shoulder belt adjustment 19Spare tire & tools 21Tire Pressure Monitoring (warning) System 20
Trunk-Internal release 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
INDEX

2
OVERVIEW
Instrument panel
Steering wheel audio controls1,2
Voice command button1
Te l e p h o n e c o n t r o l s1
Ignition switch (mechanical key)1
Cruise control1
VSC/TRAC OFF switch
Power rearview mirror control
Auxiliary storage
Headlight, turn signal and front fog light
1controls
Wiper and washer controls
Emergency flasher button
Audio system
2
Air Conditioning controls
Outside rearview mirror1/Rear window defogger button
Steering wheel controls

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Indicator symbols
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator1
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
Low engine oil pressure warning1
Vehicle Stability Control OFF indicator1
Engine oil replacement reminder1
Electric power steering warning1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

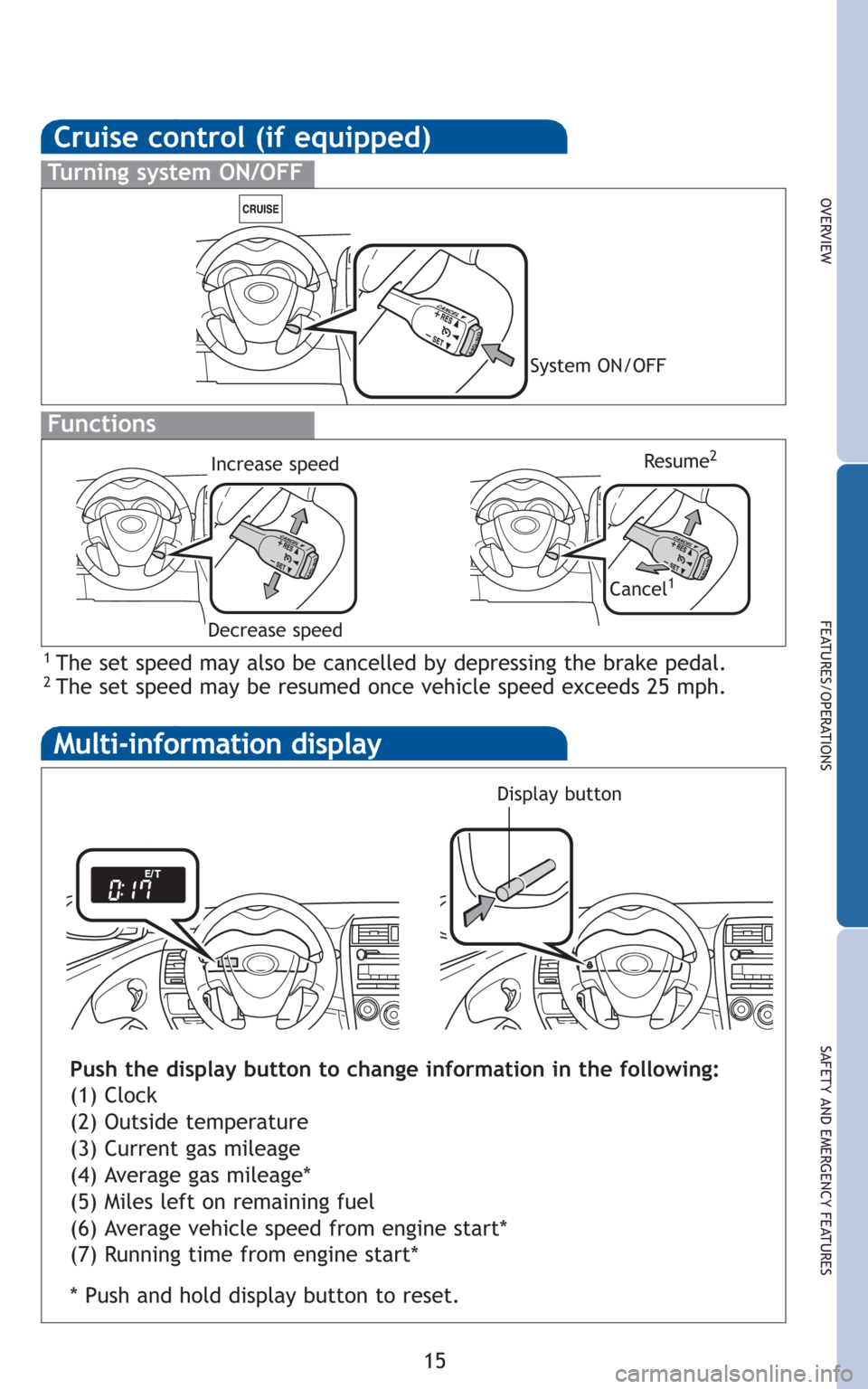

Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal.2The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speedCancel
1
Resume2
Multi-information display
Push the display button to change information in the following:
(1) Clock
(2) Outside temperature
(3) Current gas mileage
(4) Average gas mileage*
(5) Miles left on remaining fuel
(6) Average vehicle speed from engine start*
(7) Running time from engine start*
* Push and hold display button to reset.
Display button
