roof TOYOTA COROLLA 2010 10.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 14Audio 12-13Auto lock functions29Automatic Transmission 8Auxiliary storage 18Clock 16Cruise control 15Cup holders 18Door locks-Power 17Light control-Instrument panel 18Lights&turnsignals 11Moonroof 17Multi-information display 15Parking brake 8Power outlets 14Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 10Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel 17Windows-Power 10
Windshield wipers & washers 10
Child comfort guide 19Doors-Child safety locks 20Seatbelts 19Seatbelts-Shoulder belt adjustment 19Spare tire & tools 21Tire Pressure Monitoring (warning) System 20
Trunk-Internal release 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
INDEX

16
FEATURES/OPERATIONS

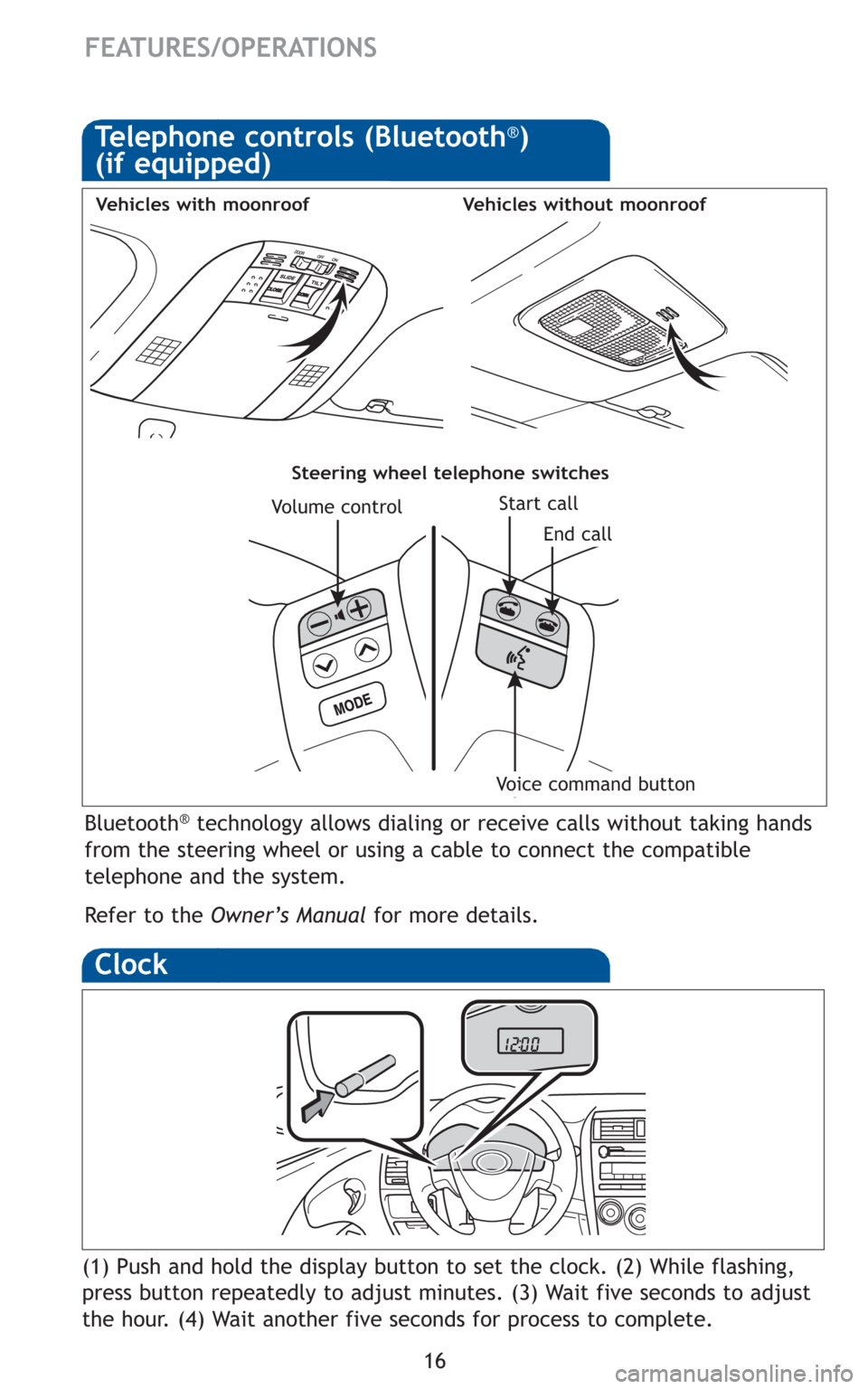

Bluetooth®technology allows dialing or receive calls without taking hands
from the steering wheel or using a cable to connect the compatible
telephoneandthesystem.
RefertotheOwner’s Manualfor more details.
Telephone controls (Bluetooth®)
(if equipped)
Vehicles without moonroofVehicles with moonroof
Steering wheel telephone switches
Start call
End call
Voice command button
Volume control
Clock
(1) Push and hold the display button to set the clock. (2) While flashing,
press button repeatedly to adjust minutes. (3) Wait five seconds to adjust
the hour. (4) Wait another five seconds for process to complete.

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Note: Do not attempt to adjust while the vehicle is in motion.

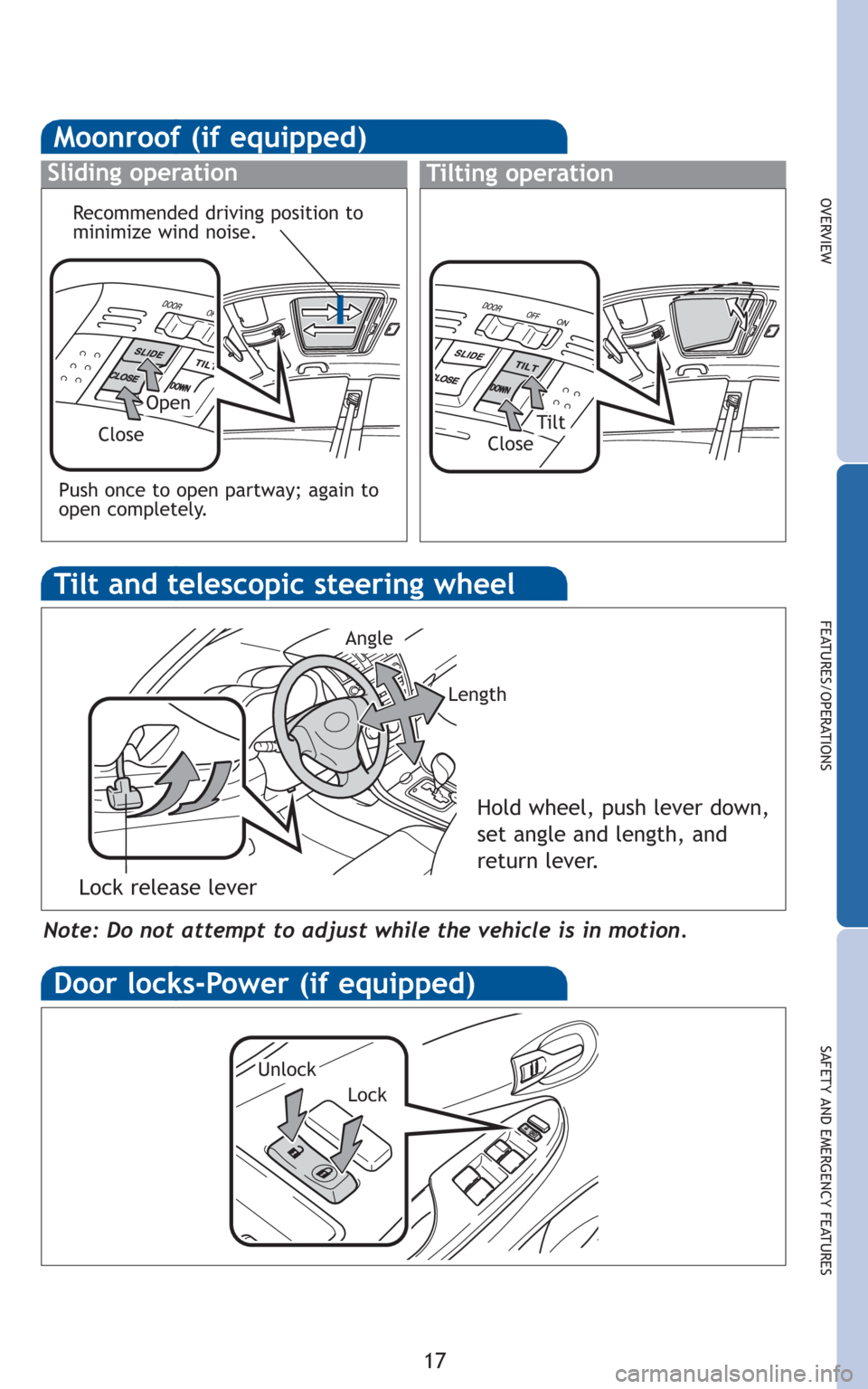

Tilt and telescopic steering wheel
Lock release lever
Angle
Length
Hold wheel, push lever down,
set angle and length, and
return lever.
Door locks-Power (if equipped)
Lock
Unlock
Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltClose
Close
Recommended driving position to
minimize wind noise.
Push once to open partway; again to
open completely.
