TOYOTA COROLLA 2012 10.G Owners Manual

301
3-4. Using the hands-free phone system (for cellular phone)
3
Interior features

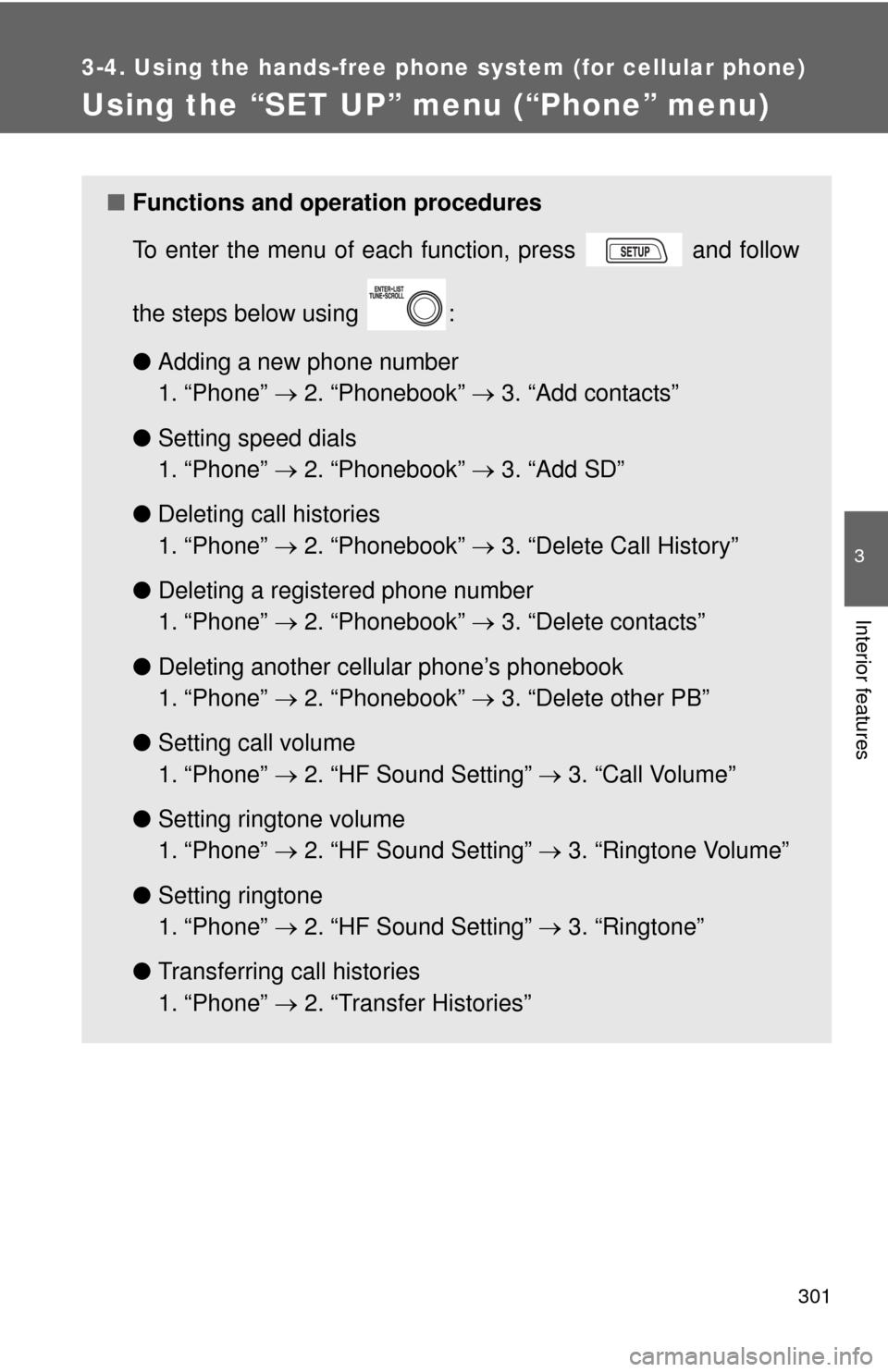

Using the “SET UP” menu (“Phone” menu)
■Functions and operation procedures
To enter the menu of each function, press and follow
the steps below using :
●Adding a new phone number
1. “Phone”  2. “Phonebook”  3. “Add contacts”
● Setting speed dials
1. “Phone”  2. “Phonebook”  3. “Add SD”
● Deleting call histories
1. “Phone”  2. “Phonebook”  3. “Delete Call History”
● Deleting a registered phone number
1. “Phone”  2. “Phonebook”  3. “Delete contacts”
● Deleting another cellular phone’s phonebook
1. “Phone”  2. “Phonebook”  3. “Delete other PB”
● Setting call volume
1. “Phone”  2. “HF Sound Setting”  3. “Call Volume”
● Setting ringtone volume
1. “Phone”  2. “HF Sound Setting”  3. “Ringtone Volume”
● Setting ringtone
1. “Phone”  2. “HF Sound Setting”  3. “Ringtone”
● Transferring call histories
1. “Phone”  2. “Transfer Histories”

302 3-4. Using the hands-free phone system (for cellular phone)
Adding a new phone number
Select “Add contacts” using .
● Transferring all contacts from the cellular phone
Select “Overwrite all contacts” using and press
(YES).
● Transferring one contact from the cellular phone
Select “Add one contact” using and press (YES).
Setting speed dials
Select “Add SD” using .
Select the desired data using .
Press and hold the desired preset button (from to
).
For details about setting speed dials from the call history: P. 2 9 2
For details about deleting speed dials: P. 2 9 2
STEP 1
STEP 2
STEP 3

303
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Deleting call histories
Select “Delete Call History” using .
● Deleting outgoing call history
Select “Outgoing Calls” using .
Select the desired phone number using and press (YES).
To delete all outgoing call history data, press (ALL) and
then press (YES).
● Deleting incoming call history
Select “Incoming calls” using .
Select the desired phone number using and press (YES).
To delete all incoming call history data, press (ALL) and
then press (YES).
STEP 1
STEP 2
STEP 1
STEP 2

304 3-4. Using the hands-free phone system (for cellular phone)
●Deleting missed call history
Select “Missed Calls” using .
Select the desired phone number using and press (YES).
To delete all missed call history data, press (ALL) and then
press (YES).
● Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All Calls” using .
Select the desired phone number using and press (YES).
To delete all of the call histories data, press (ALL) and then
press (YES).
STEP 1
STEP 2
STEP 1
STEP 2

305
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Deleting a registered phone number
Select “Delete contacts” using .
Select the desired phone number using and press (YES).
To delete all of the registered phone numbers, select “All delete”
using and press (YES).
Deleting another cellular phone’s phonebook
Select “Delete other PB” using .
Select the desired phonebook using and press (YES).
Setting call volume
Select “Call Volume” using .
Change the call volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
STEP 1
STEP 2
STEP 1
STEP 2
STEP 1
STEP 2

306 3-4. Using the hands-free phone system (for cellular phone)
Setting ringtone volume
Select “Ringtone Volume” using .
Change the ringtone volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
Setting ringtone
Select “Ringtone” using .
Using , select a ringtone (1 - 3). To set the selected
ringtone, press .
Transferring call histories
Select “Transfer Histories” using and press (YES).
■ Phone number
Up to 1000 names can be stored.
■ Call history
Up to 10 numbers can be stored in each of the outgoing, incoming and
missed call history memories.
■ Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
STEP 1
STEP 2
STEP 1
STEP 2

307
3
Interior features
3-5. Using the interior lights

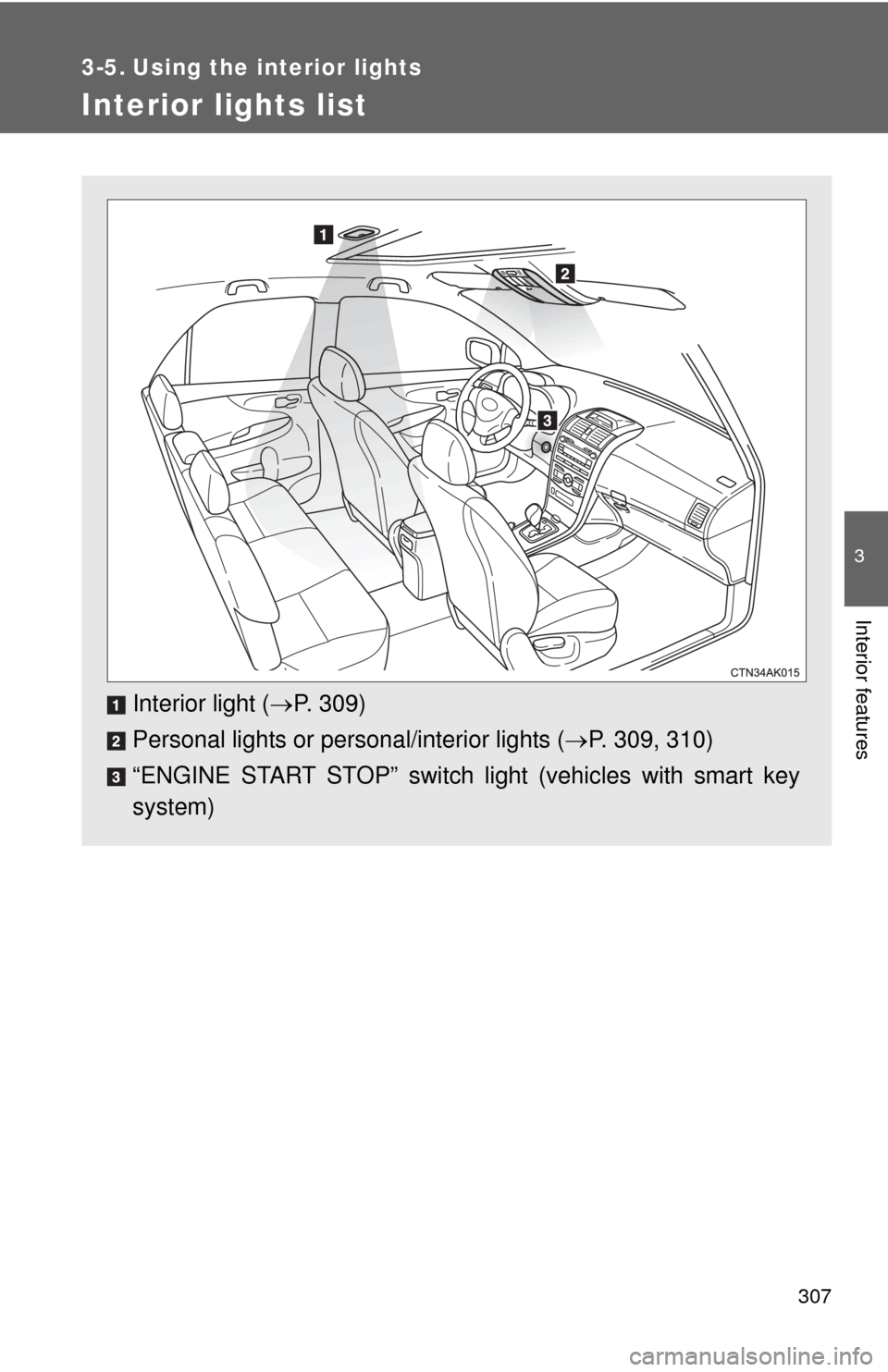

Interior lights list
Interior light (P. 309)
Personal lights or personal/interior lights ( P. 309, 310)
“ENGINE START STOP” switch light (vehicles with smart key
system)

308 3-5. Using the interior lights
■Illuminated entry system
Vehicles without moon roof
The interior light (with the switch in the “DOOR” position) and “ENGINE
START STOP” switch light (vehicles with smart key system) automatically
turn on/off according to “ENGINE START STOP” switch mode (vehicles with
smart key system) or engine switch position (vehicles without smart key sys-
tem), the presence of the electronic key (vehicles with smart key system),
whether the doors are locked/unlocked (vehicles with power door lock sys-
tem) and whether the doors are open/closed.
Vehicles with moon roof
The interior light, personal/interior lights (with the switch in the “DOOR” posi-
tion) and “ENGINE START STOP” switch light (vehicles with smart key sys-
tem) automatically turn on/off according to “ENGINE START STOP” switch
mode (vehicles with smart key system) or engine switch position (vehicles
without smart key system), the presence of the electronic key (vehicle\
s with
smart key system), whether the doors are locked/unlocked (vehicles with
power door lock system) and whether the doors are open/closed.
■ To prevent the battery from being discharged
If the interior light, personal/interior lights (vehicles with moon roof) and
“ENGINE START STOP” switch light (vehicles with smart key system)
remain on when the door is not fully closed and the switch is in the “DOOR”
position, the lights will go off automatically after 20 minutes.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 491)

309
3-5. Using the interior lights
3
Interior features
Interior light
“DOOR” position
Off
On
Personal lights (vehicles without moon roof)On/off
Interior light and personal lights

310 3-5. Using the interior lights
Personal/interior lights (vehicles with moon roof)■ Interior lights
“DOOR” position
Off
On
■ Personal lights
On/off
Personal/interior lights
