Page 431 of 529

TOYOTA COROLLA 2012 10.G Owners Manual 5
When trouble arises
431
5-2. Steps to take in an emergency
*: If the engine does not start when the electronic key is inside the vehi-
cle, the electronic key battery may be depleted or there may be

Page 432 of 529

TOYOTA COROLLA 2012 10.G Owners Manual 432
5-2. Steps to take in an emergency

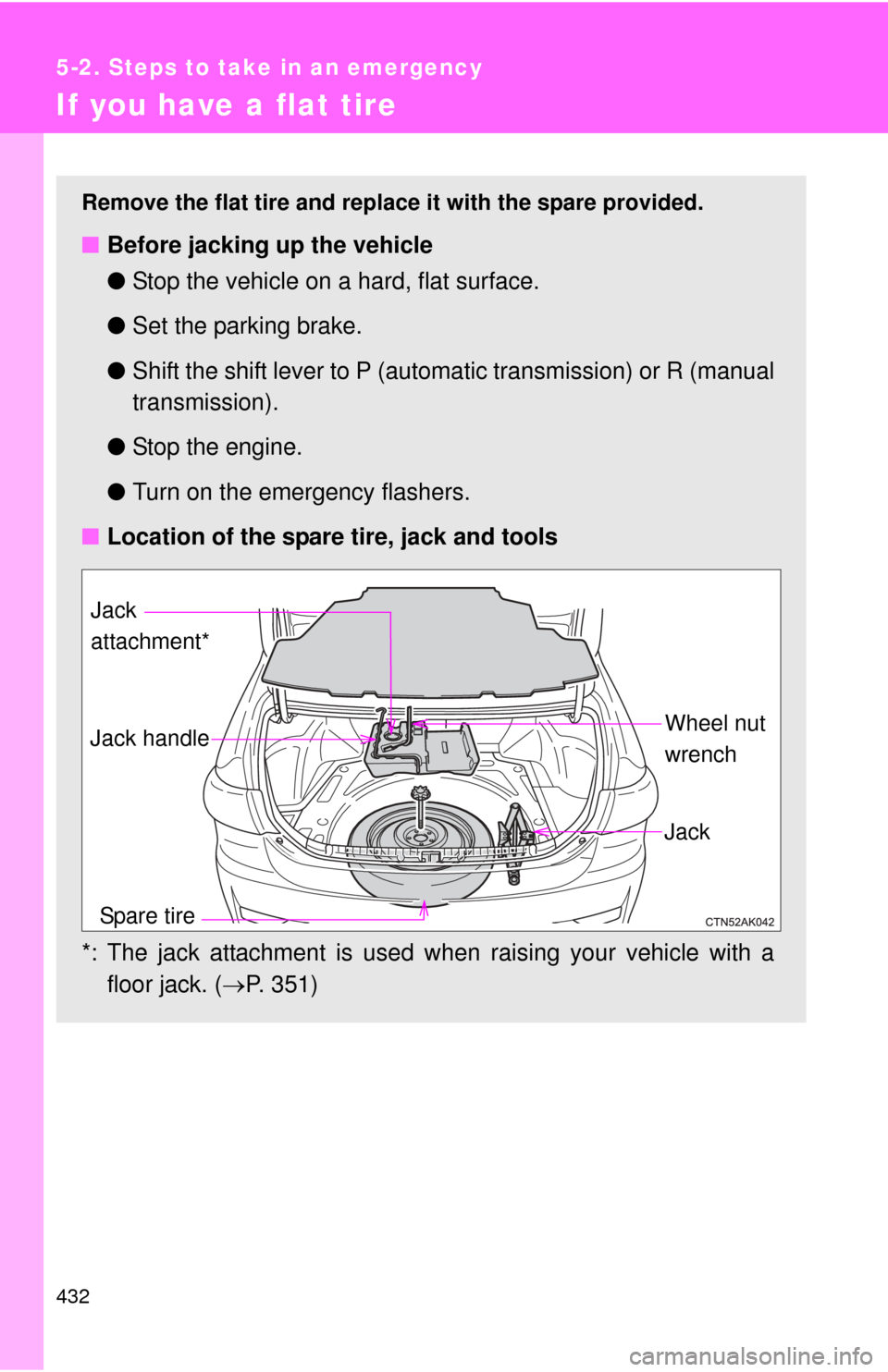

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface

Page 433 of 529

TOYOTA COROLLA 2012 10.G Owners Manual 5
When trouble arises
433
5-2. Steps to take in an emergency
Taking out the jack
Remove the luggage floor cover.
Tighten
Loosen
STEP 1
STEP 2

Page 434 of 529

TOYOTA COROLLA 2012 10.G Owners Manual 434 5-2. Steps to take in an emergency
Taking out the spare tireRemove the luggage floor cover.
Remove the tool tray.
Loosen the center fastener that
secures the spare tire.
STEP 1
STEP 2
STEP 3

Page 435 of 529

TOYOTA COROLLA 2012 10.G Owners Manual 5
When trouble arises
435
5-2. Steps to take in an emergency
Replacing a flat tire
Chock the tires.
Vehicles with a steel wheel,
remove the wheel ornament
using the wrench.
To protect the wheel orname

Page 436 of 529

TOYOTA COROLLA 2012 10.G Owners Manual 436 5-2. Steps to take in an emergency

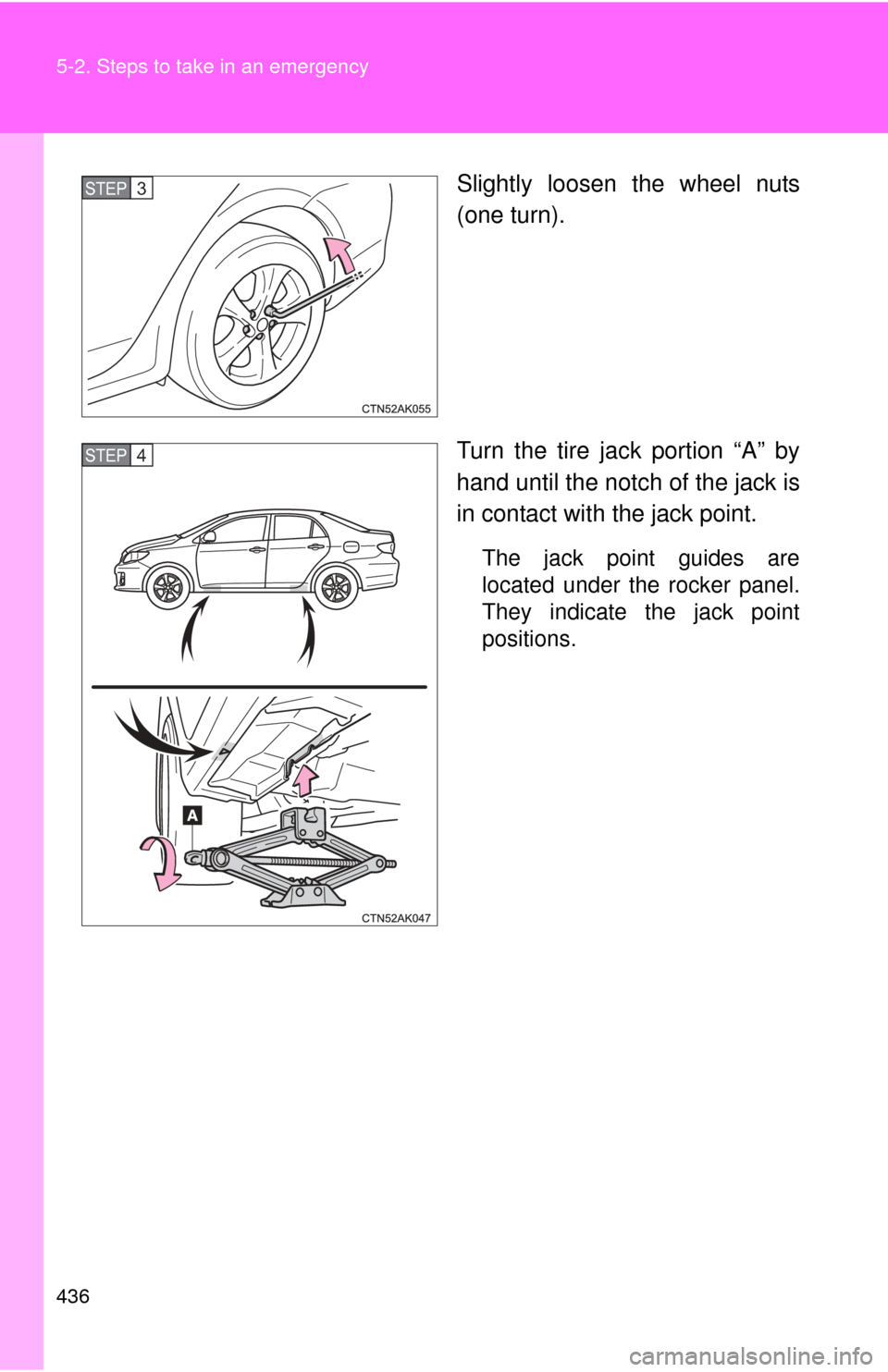

Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
The jack poi

Page 437 of 529

TOYOTA COROLLA 2012 10.G Owners Manual 5
When trouble arises
437
5-2. Steps to take in an emergency

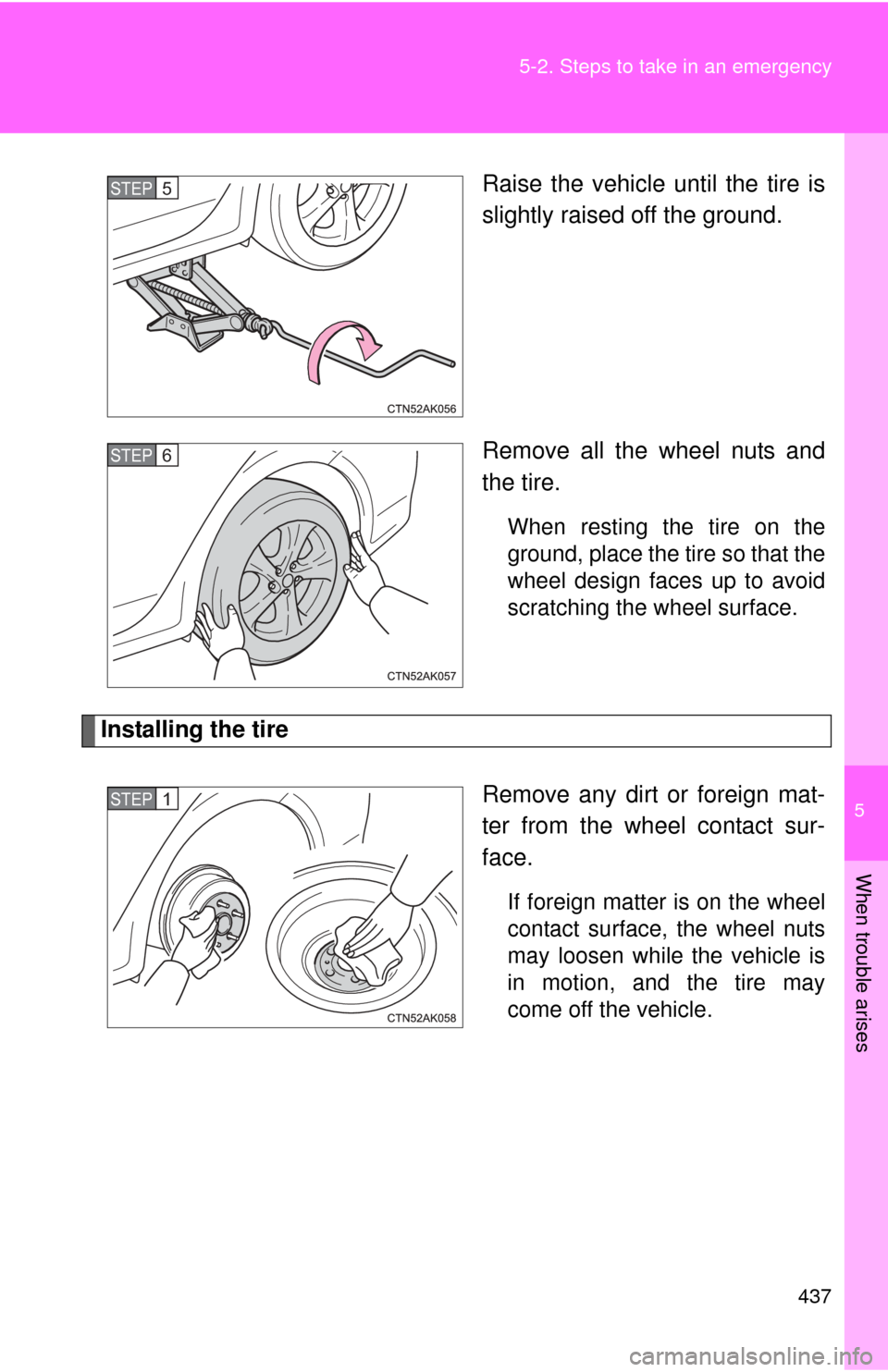

Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
gr

Page 438 of 529

TOYOTA COROLLA 2012 10.G Owners Manual 438 5-2. Steps to take in an emergency
Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Replacing a steel wheel with a compact spare tire
Tighten the nuts

Page 439 of 529

TOYOTA COROLLA 2012 10.G Owners Manual 5
When trouble arises
439
5-2. Steps to take in an emergency

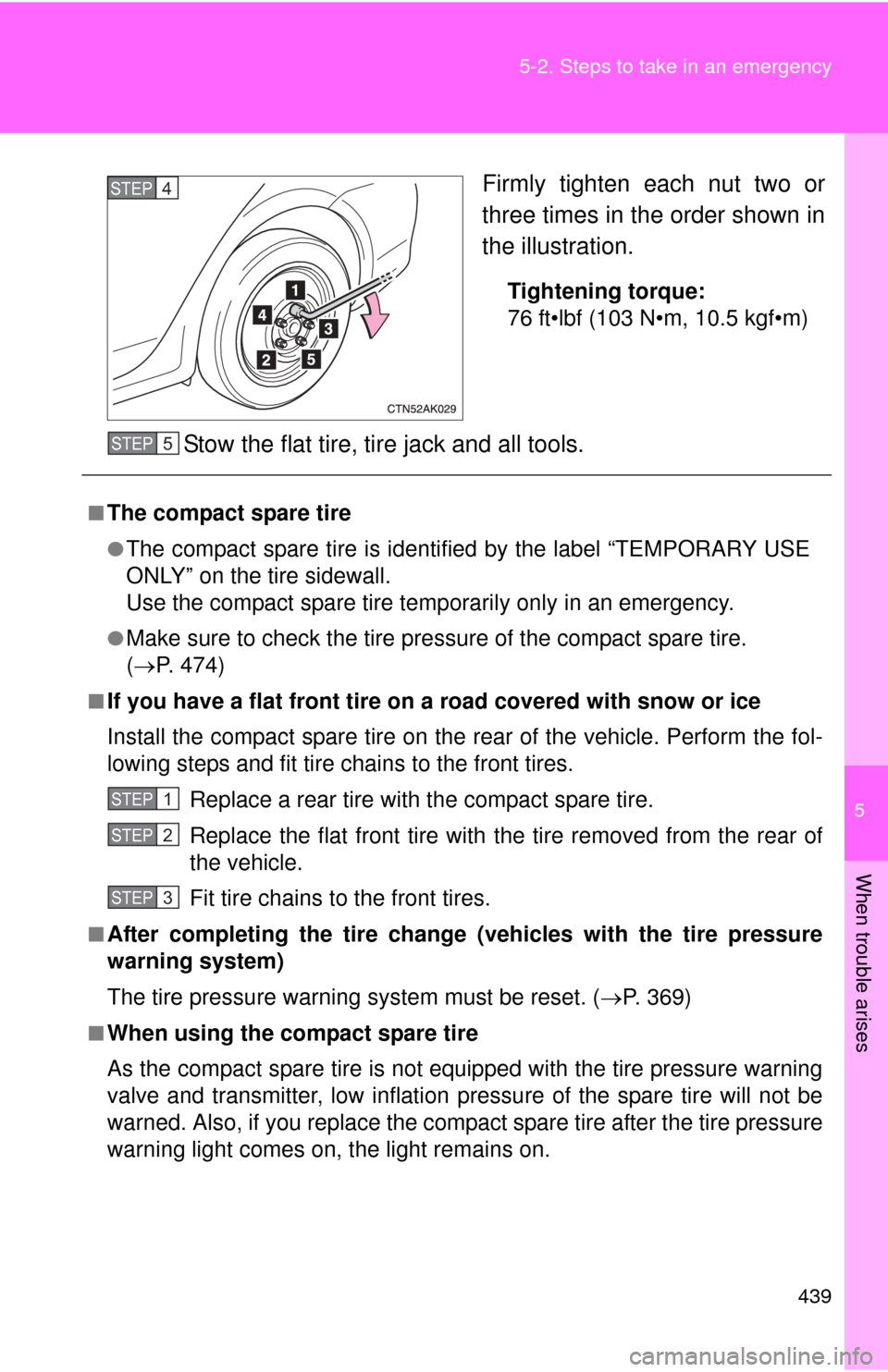

Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)

Page 440 of 529

TOYOTA COROLLA 2012 10.G Owners Manual 440 5-2. Steps to take in an emergency
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to
the vehicle suddenly falling off the jack.
●Do not us
