4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs

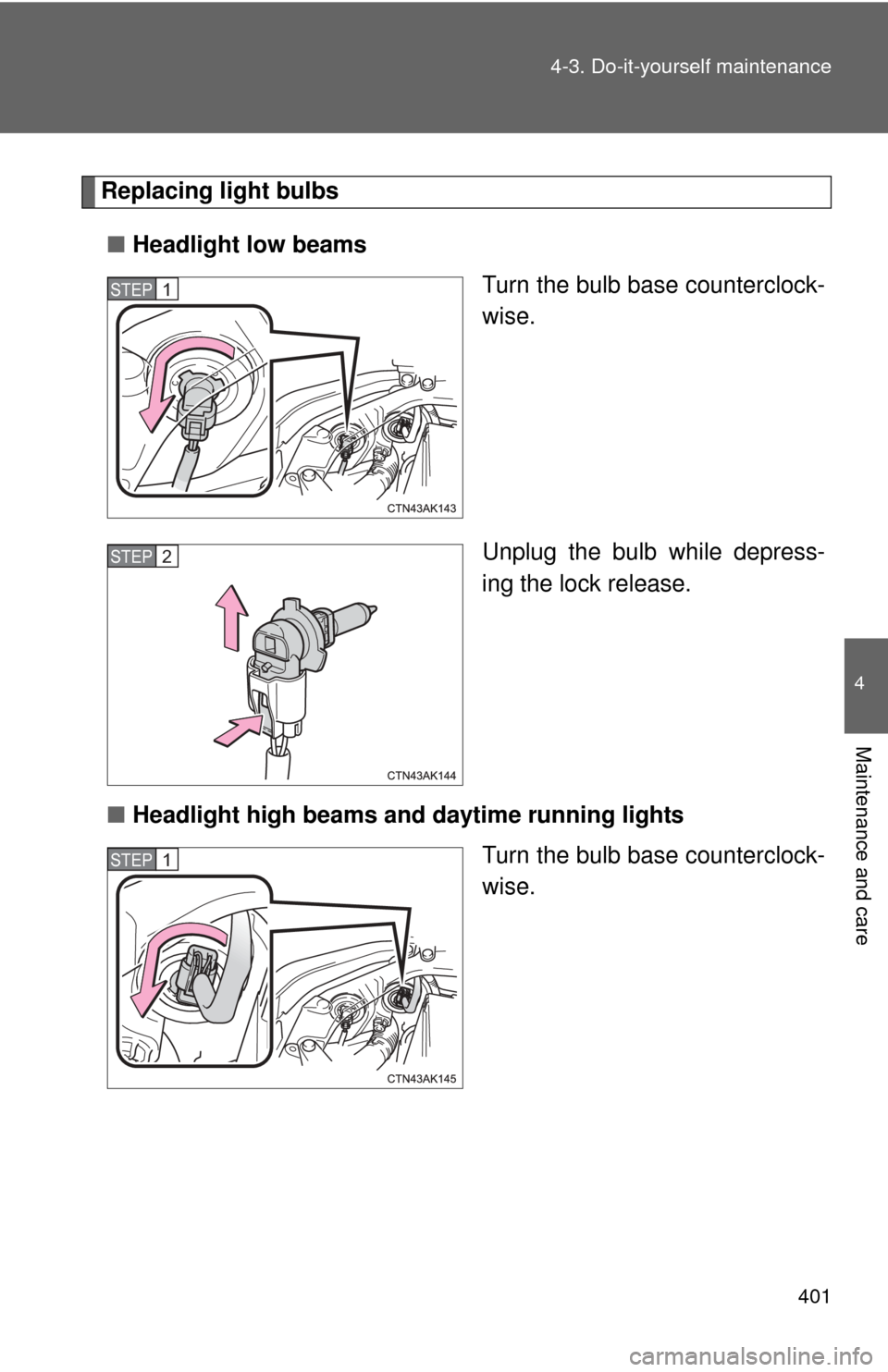

■ Headlight low beams

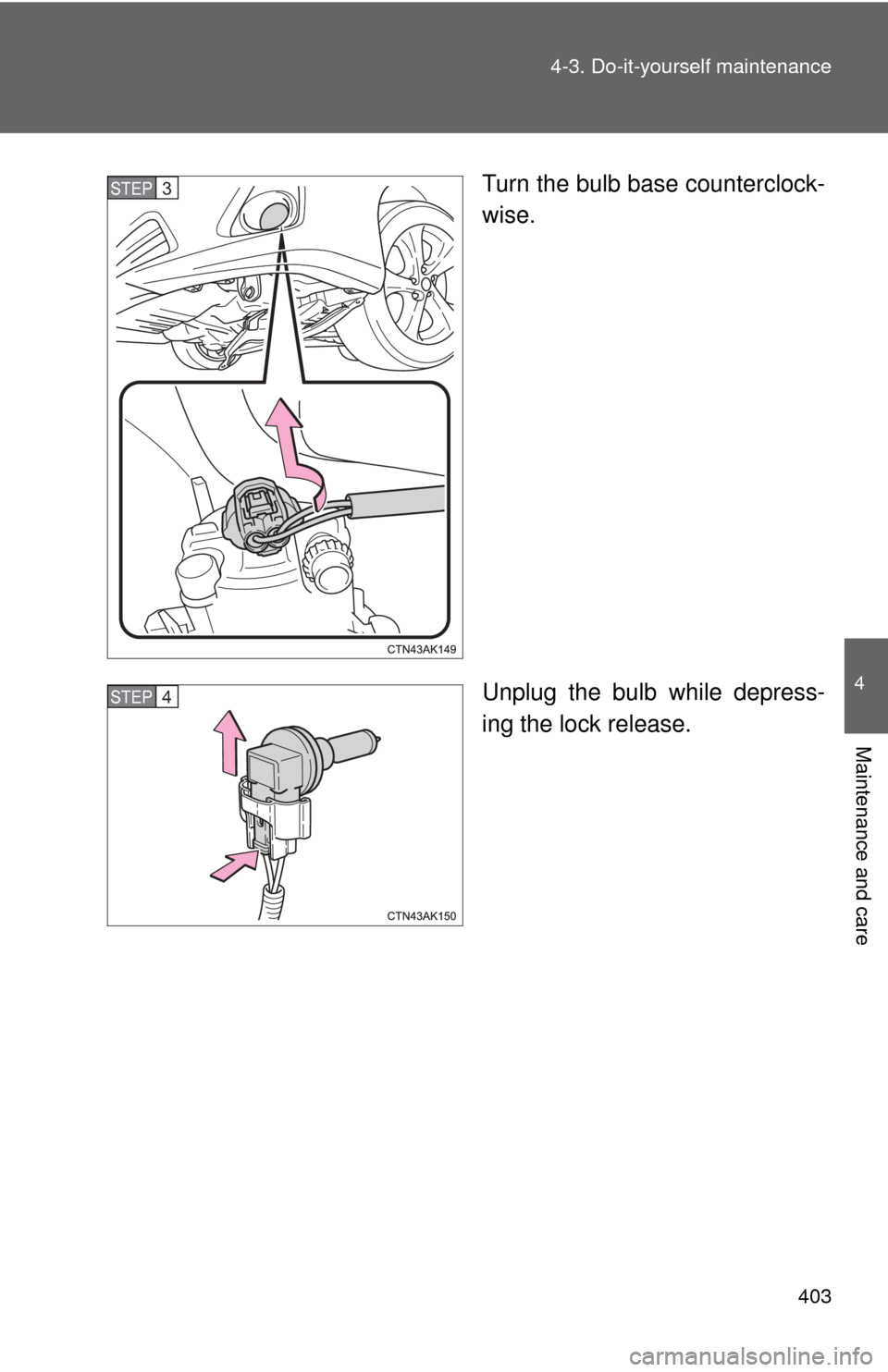

Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
■ Headlight high beams and daytime running lights
Turn the bulb base counterclock-
wise.
STEP 1
STEP 2
STEP 1

402 4-3. Do-it-yourself maintenance
Unplug the bulb while depress-
ing the lock release.

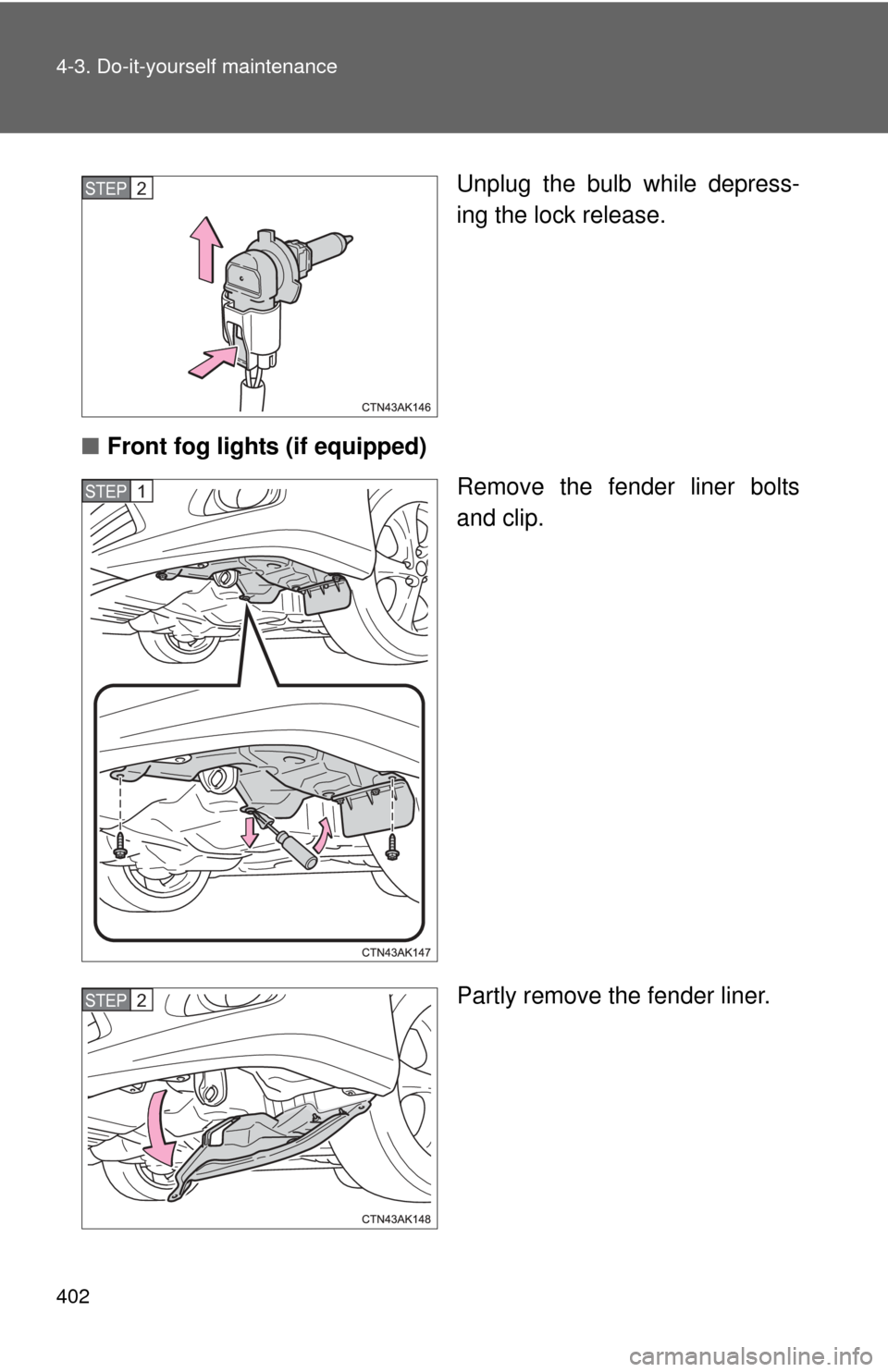

■ Front fog lights (if equipped)
Remove the fender liner bolts
and clip.
Partly remove the fender liner.STEP 2
STEP 1
STEP 2

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.STEP 3
STEP 4

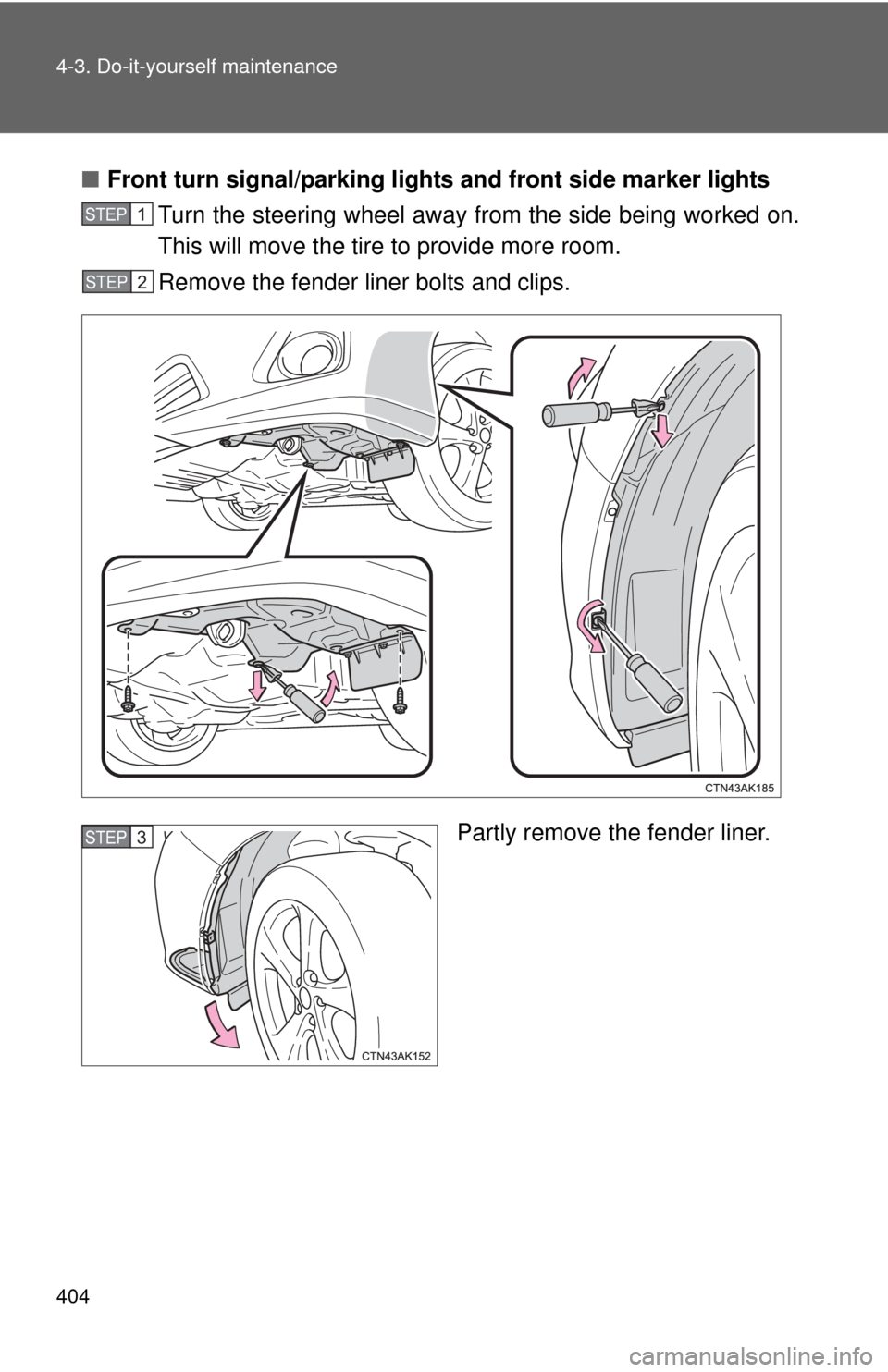

404 4-3. Do-it-yourself maintenance
■Front turn signal/parking lights and front side marker lights
Turn the steering wheel away from the side being worked on.
This will move the tire to provide more room.
Remove the fender liner bolts and clips.
Partly remove the fender liner.
STEP 1
STEP 2
STEP 3

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
Front side marker light
Front turn signal/parking light
Remove the light bulb. Front side marker light
Front turn signal/parking lightSTEP 4
STEP 5

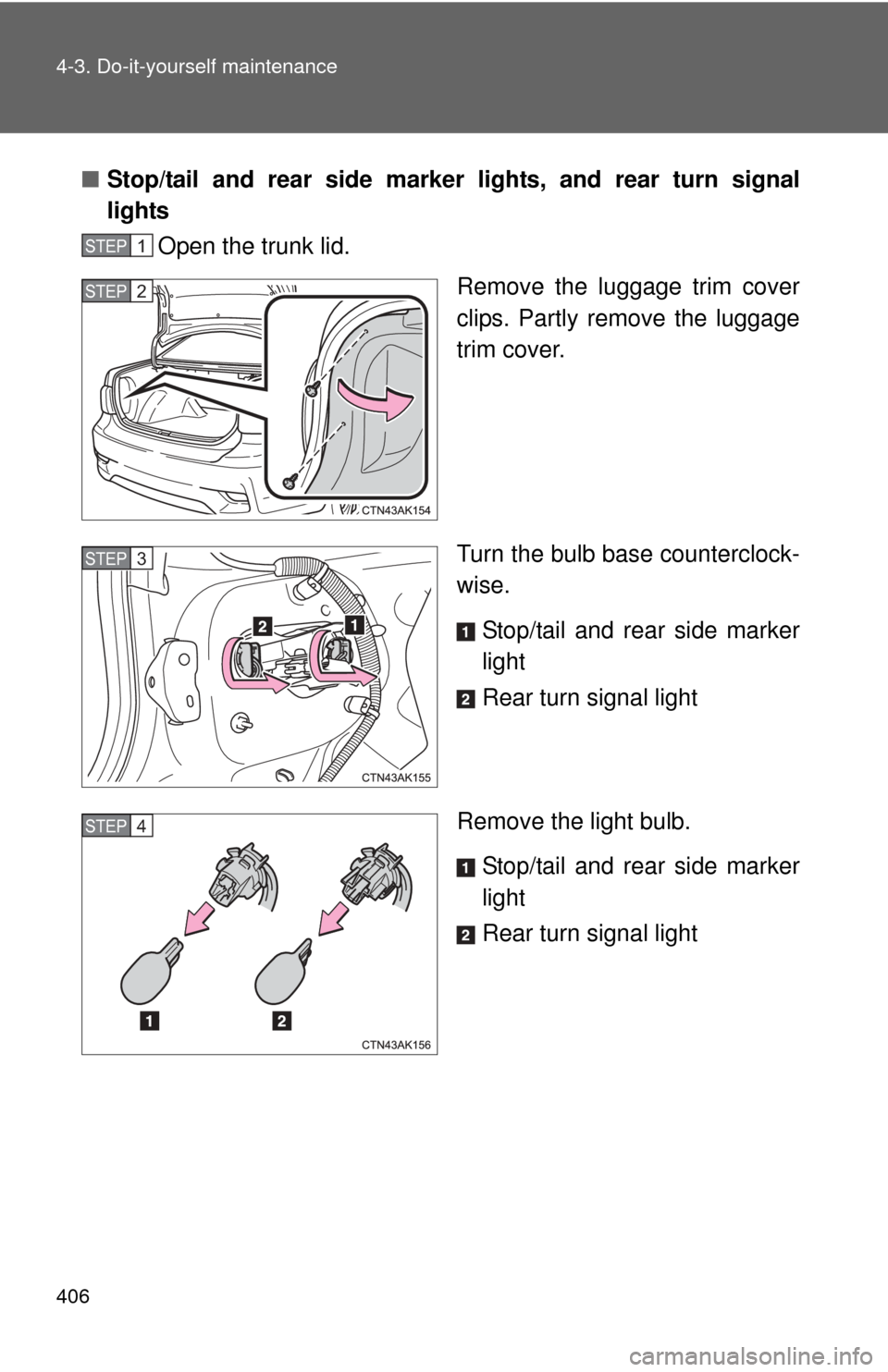

406 4-3. Do-it-yourself maintenance
■Stop/tail and rear side marker lights, and rear turn signal
lights
Open the trunk lid.
Remove the luggage trim cover
clips. Partly remove the luggage
trim cover.
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
light
Rear turn signal light
Remove the light bulb. Stop/tail and rear side marker
light
Rear turn signal light
STEP 1
STEP 2
STEP 3
STEP 4

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

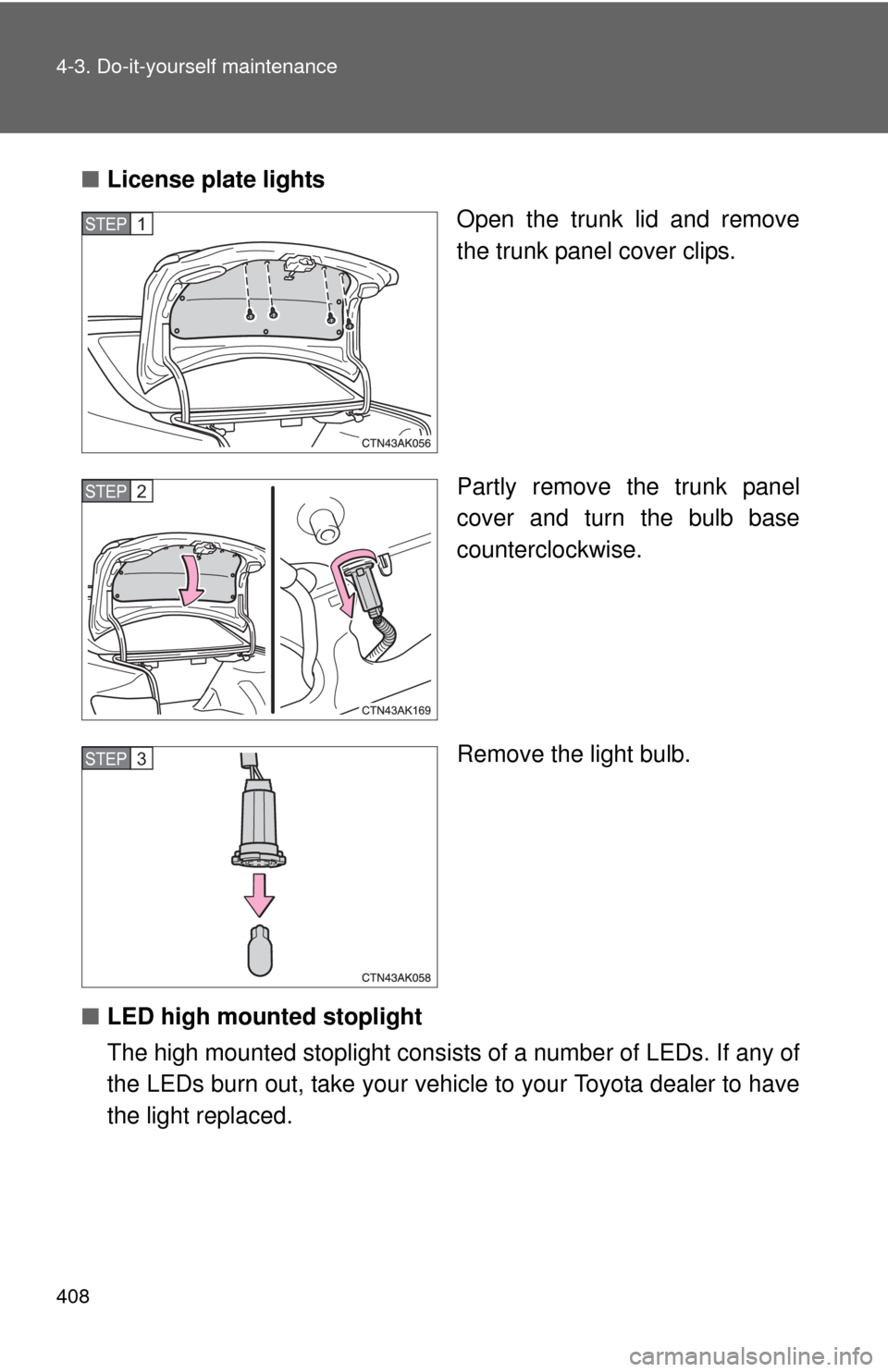

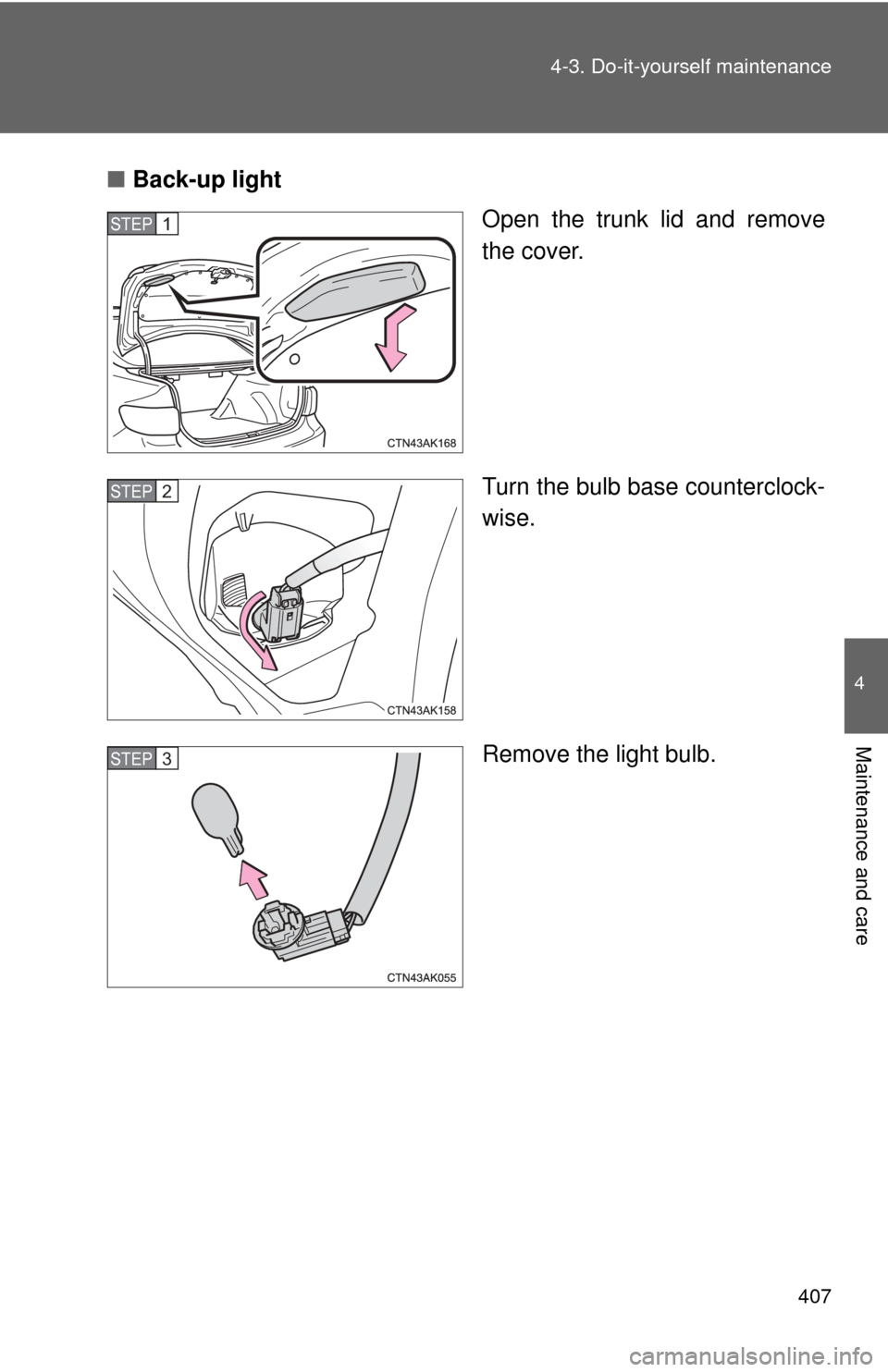

Back-up light
Open the trunk lid and remove
the cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP 1
STEP 2
STEP 3

408 4-3. Do-it-yourself maintenance
■License plate lights
Open the trunk lid and remove
the trunk panel cover clips.
Partly remove the trunk panel
cover and turn the bulb base
counterclockwise.
Remove the light bulb.
■ LED high mounted stoplight
The high mounted stopli ght consists of a number of LEDs. If any of
the LEDs burn out, take your vehicle to your Toyota dealer to have
the light replaced.
STEP 1
STEP 2
STEP 3

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
■
Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.

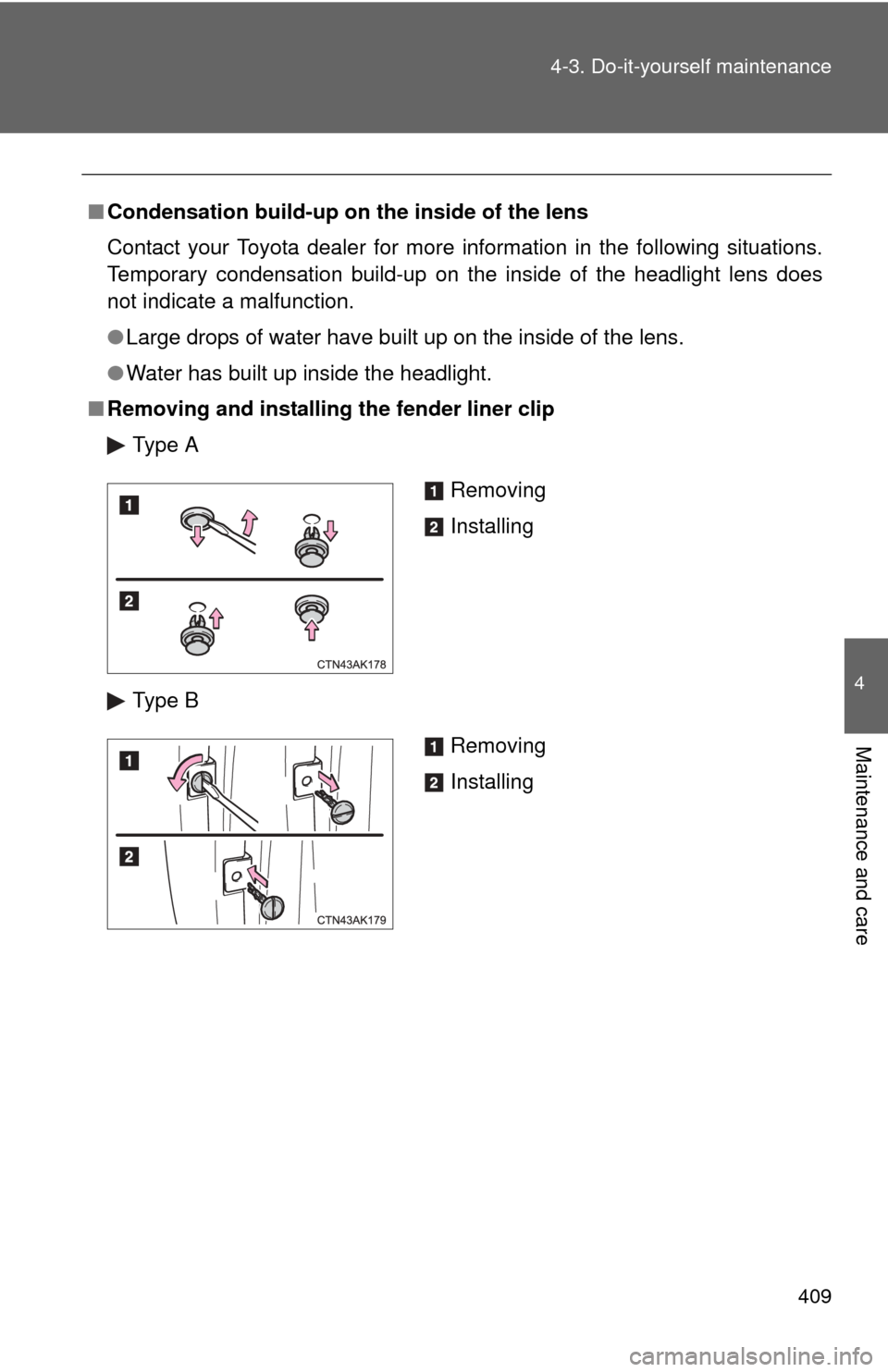

■ Removing and installing the fender liner clip
Type A
Type B
Removing
Installing
Removing
Installing

410 4-3. Do-it-yourself maintenance
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
