navigation system TOYOTA COROLLA 2016 11.G Navigation Manual

231
3. ROUTE GUIDANCE
COROLLA_14CY_Navi_U
NAVIGATION SYSTEM
8

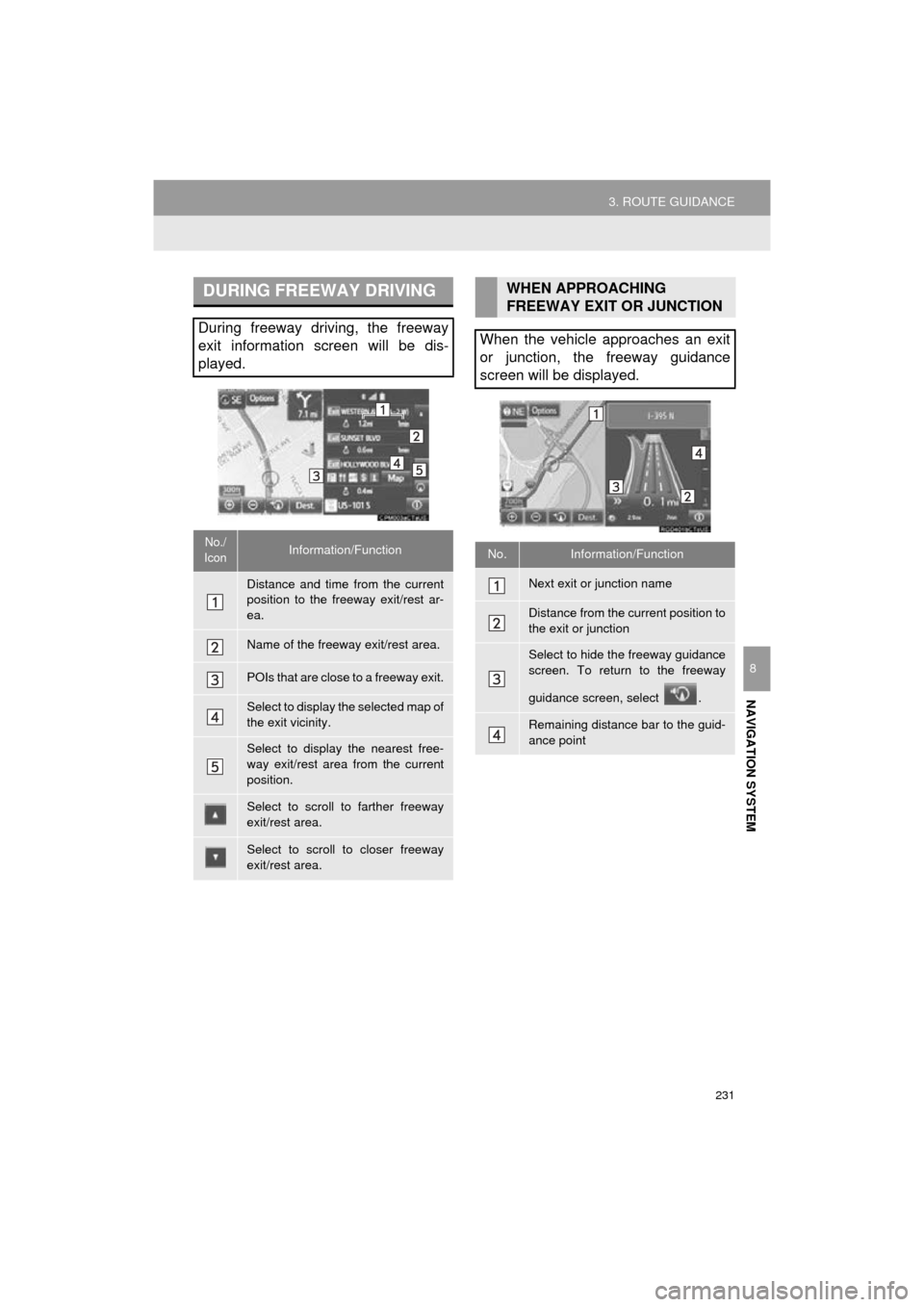

DURING FREEWAY DRIVING
During freeway driving, the freeway
exit information screen will be dis-
played.
No./
IconInformation/Function
Distance and time from the current
position to the freeway exit/rest ar-
ea.
Name of the freeway exit/rest area.
POIs that are close to a freeway exit.
Select to display the selected map of
the exit vicinity.
Select to display the nearest free-
way exit/rest area from the current
position.
Select to scroll to farther freeway
exit/rest area.
Select to scroll to closer freeway
exit/rest area.
WHEN APPROACHING
FREEWAY EXIT OR JUNCTION
When the vehicle approaches an exit
or junction, the freeway guidance
screen will be displayed.
No.Information/Function
Next exit or junction name
Distance from the current position to
the exit or junction
Select to hide the freeway guidance
screen. To return to the freeway
guidance screen, select .
Remaining distance bar to the guid-
ance point

233
3. ROUTE GUIDANCE
COROLLA_14CY_Navi_U
NAVIGATION SYSTEM
8
1Select “Turn List” on the “Map Mode”
screen. ( P.203)
2Check that the turn list screen is dis-
played.
1Select “Turn-by-Turn Arrow” on the
“Map Mode” screen. ( P.203)
2Check that the turn-by-turn arrow
screen is displayed.

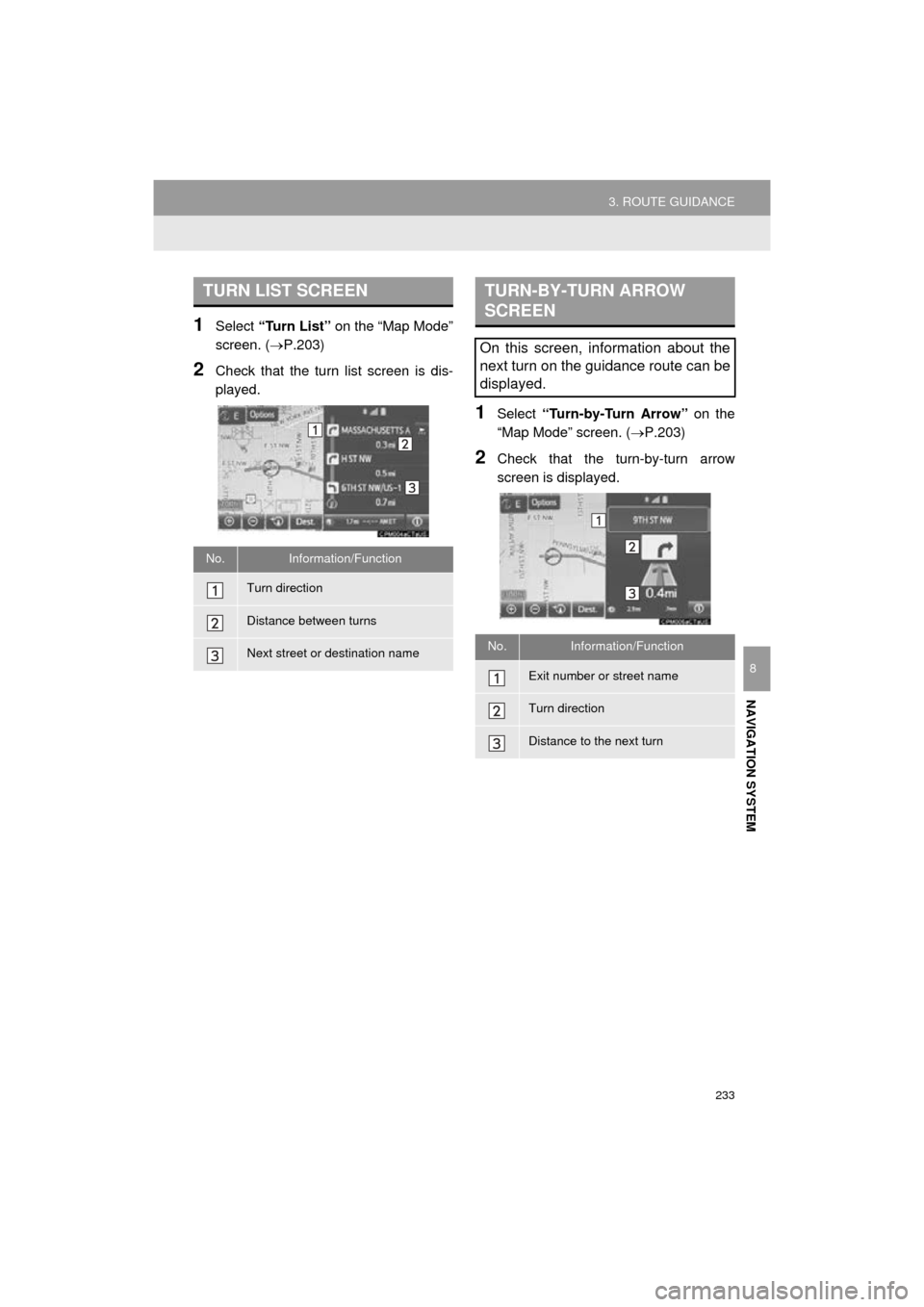

TURN LIST SCREEN
No.Information/Function
Turn direction
Distance between turns
Next street or destination name
TURN-BY-TURN ARROW
SCREEN
On this screen, information about the
next turn on the guidance route can be
displayed.
No.Information/Function
Exit number or street name
Turn direction
Distance to the next turn

235
COROLLA_14CY_Navi_U
3. ROUTE GUIDANCE
NAVIGATION SYSTEM
8

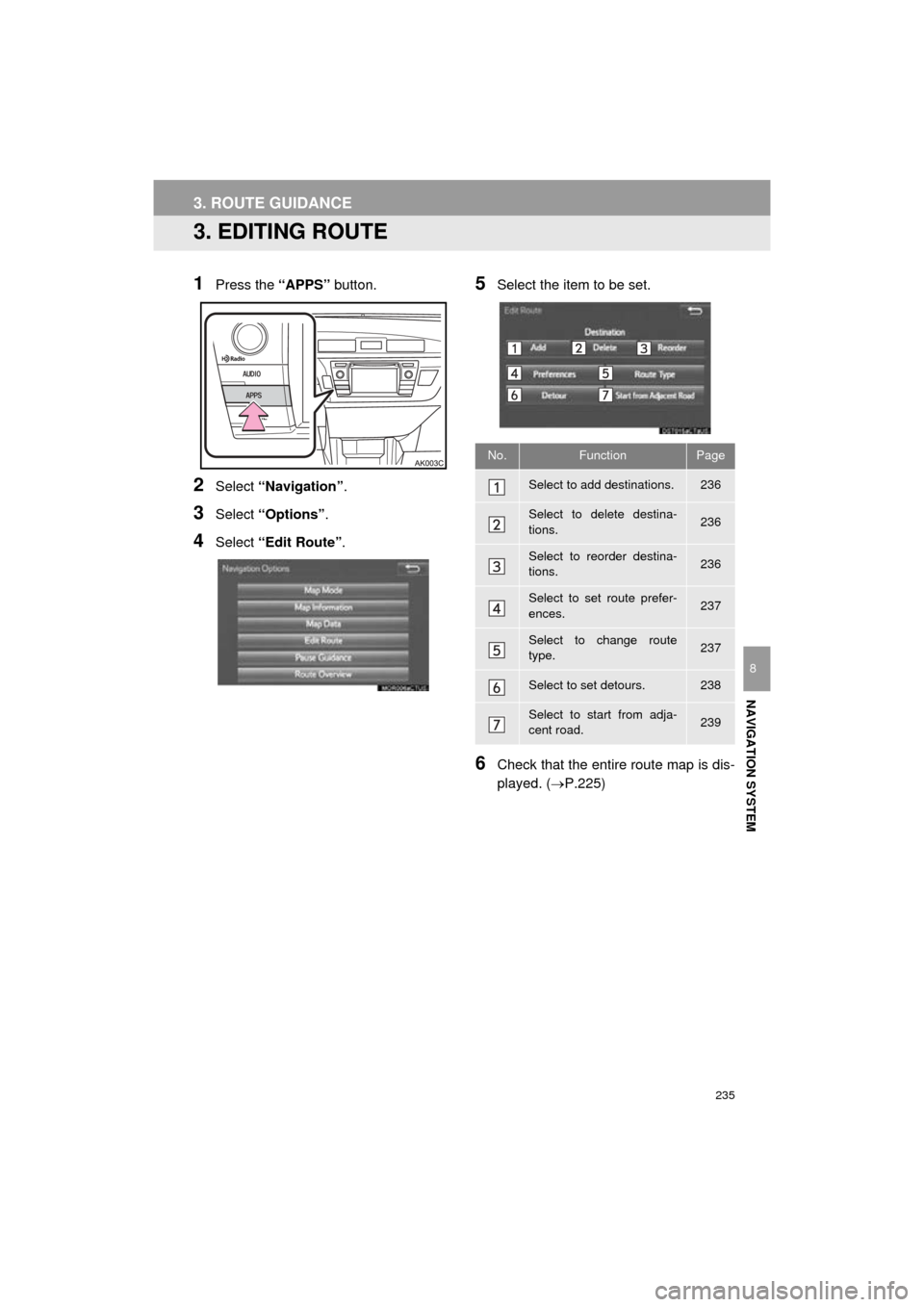

3. EDITING ROUTE
1Press the “APPS” button.
2Select “Navigation” .
3Select “Options” .
4Select “Edit Route” .
5Select the item to be set.
6Check that the entire route map is dis-
played. (P.225)
No.FunctionPage
Select to add destinations.236
Select to delete destina-
tions.236
Select to reorder destina-
tions.236
Select to set route prefer-
ences.237
Select to change route
type.237
Select to set detours.238
Select to start from adja-
cent road.239

237
3. ROUTE GUIDANCE
COROLLA_14CY_Navi_U
NAVIGATION SYSTEM
8
1Display the “Edit Route” screen.
(P.235)
2Select “Preferences” .
3Select the desired route preferences
and select “OK”.
When set to on, the indicator will illumi-
nate.
1Display the “Edit Route” screen.
(P.235)
2Select “Route Type” .
3Select the desired route type.
During driving, the route guidance starts
after selecting the desired route type.
4The entire route from the starting point
to the destination is displayed.
For details about this screen:  P.225

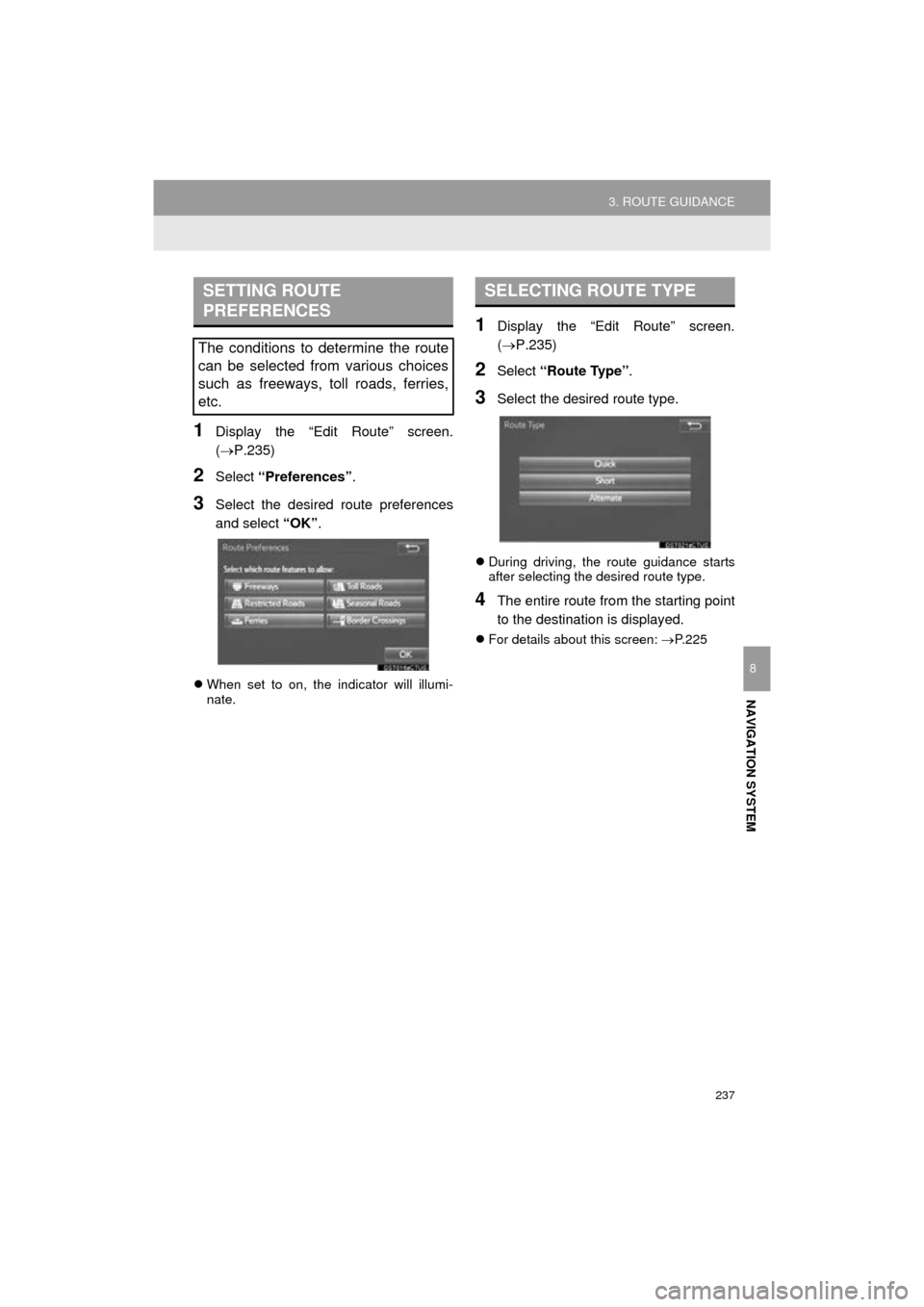

SETTING ROUTE
PREFERENCES
The conditions to determine the route
can be selected from various choices
such as freeways, toll roads, ferries,
etc.
SELECTING ROUTE TYPE

239
3. ROUTE GUIDANCE
COROLLA_14CY_Navi_U
NAVIGATION SYSTEM
8
1Display the “Edit Route” screen.
(P.235)
2Select “Start from Adjacent Road” .
INFORMATION
●This picture shows an example of how
the system would guide around a delay
caused by a traffic jam.
This position indicates the location of a
traffic jam caused by road repairs, an
accident, etc.
This route indicates the detour sug-
gested by the system.
● When the vehicle is on a freeway, the
detour distance selections are 5, 15 and
25 miles (or 5, 15 and 25 km if units are
in km).
● The system may not be able to calculate
a detour route depending on the
selected distance and surrounding road
conditions.
STARTING FROM ADJACENT
ROAD
When a freeway and a surface road
run in parallel, the system may show
the guidance route going on the free-
way while driving on the surface road,
or vice versa.
If this happens, you can instantly
choose the adjacent road for the route
guidance.
INFORMATION
● When there is no adjacent road, this
screen button will not be displayed.

240
COROLLA_14CY_Navi_U

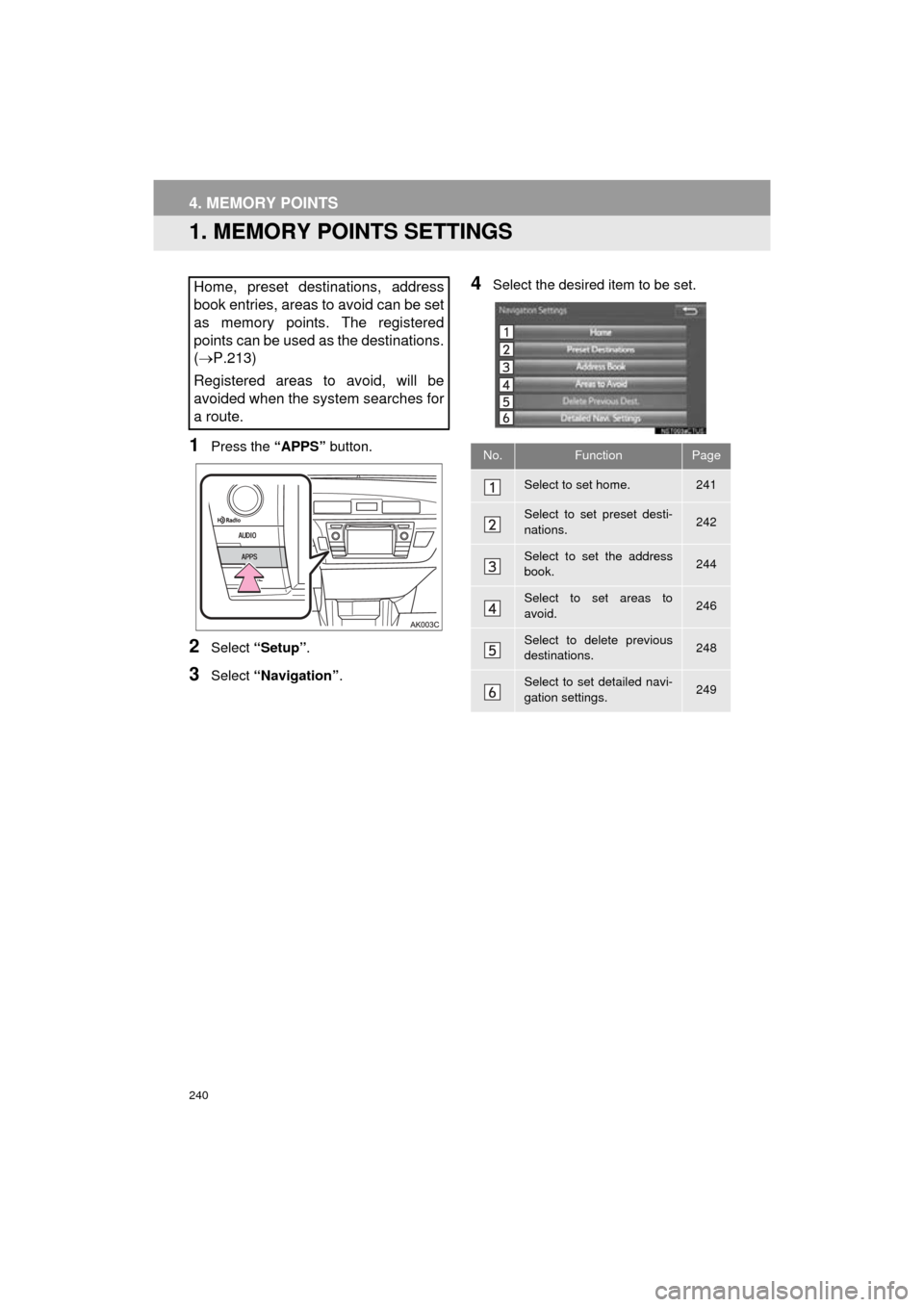

4. MEMORY POINTS
1. MEMORY POINTS SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “Navigation” .
4Select the desired item to be set.Home, preset destinations, address
book entries, areas to avoid can be set
as memory points. The registered
points can be used as the destinations.
(P.213)
Registered areas to avoid, will be
avoided when the system searches for
a route.
No.FunctionPage
Select to set home.241
Select to set preset desti-
nations.242
Select to set the address
book.244
Select to set areas to
avoid.246
Select to delete previous
destinations.248
Select to set detailed navi-
gation settings.249

241
4. MEMORY POINTS
COROLLA_14CY_Navi_U
NAVIGATION SYSTEM
8
1Display the “Navigation Settings”
screen. (P.240)
2Select “Home” .
3Select the desired item to be set.
1Select “Set Home” .
2Select the desired item to search for
the location. ( P.213)
3Select “OK” when the editing home
screen appears.
1Select “Edit”.
2Select the desired item to be edited.
3Select “OK”.
1Select “Delete” .
2Select “Yes” when the confirmation
screen appears.

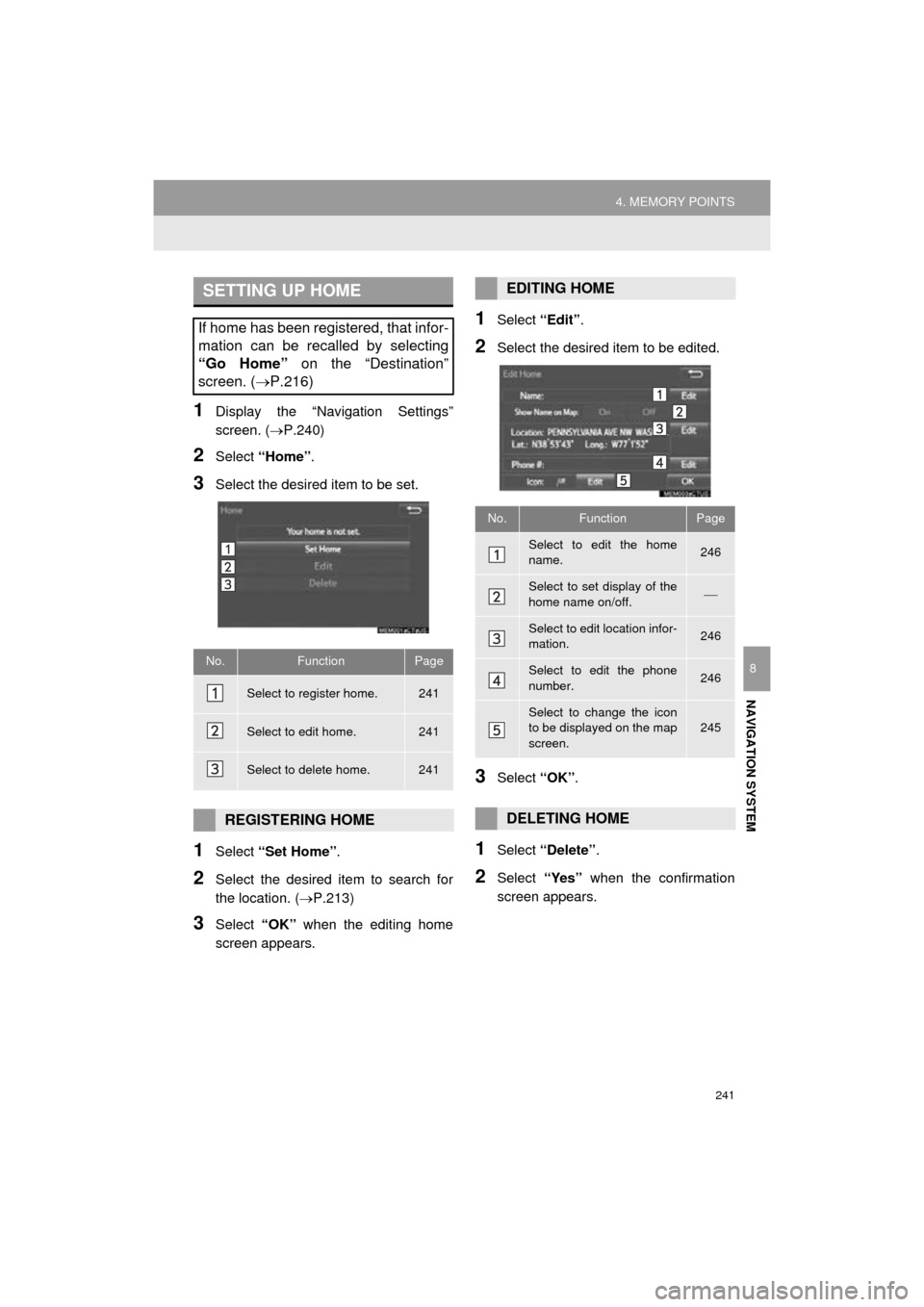

SETTING UP HOME
If home has been registered, that infor-
mation can be recalled by selecting
“Go Home” on the “Destination”
screen. ( P.216)
No.FunctionPage
Select to register home.241
Select to edit home.241
Select to delete home.241
REGISTERING HOME
EDITING HOME
No.FunctionPage
Select to edit the home
name.246
Select to set display of the
home name on/off.
Select to edit location infor-
mation.246
Select to edit the phone
number.246
Select to change the icon
to be displayed on the map
screen.245
DELETING HOME

243
4. MEMORY POINTS
COROLLA_14CY_Navi_U
NAVIGATION SYSTEM
8
1Select “Edit”.
2Select the desired preset destination.
3Select the item to be edited.
4Select “OK”.
1Select “Delete” .
2Select the preset destination to be de-
leted and select “Delete”.
3Select “Yes” when the confirmation
screen appears.

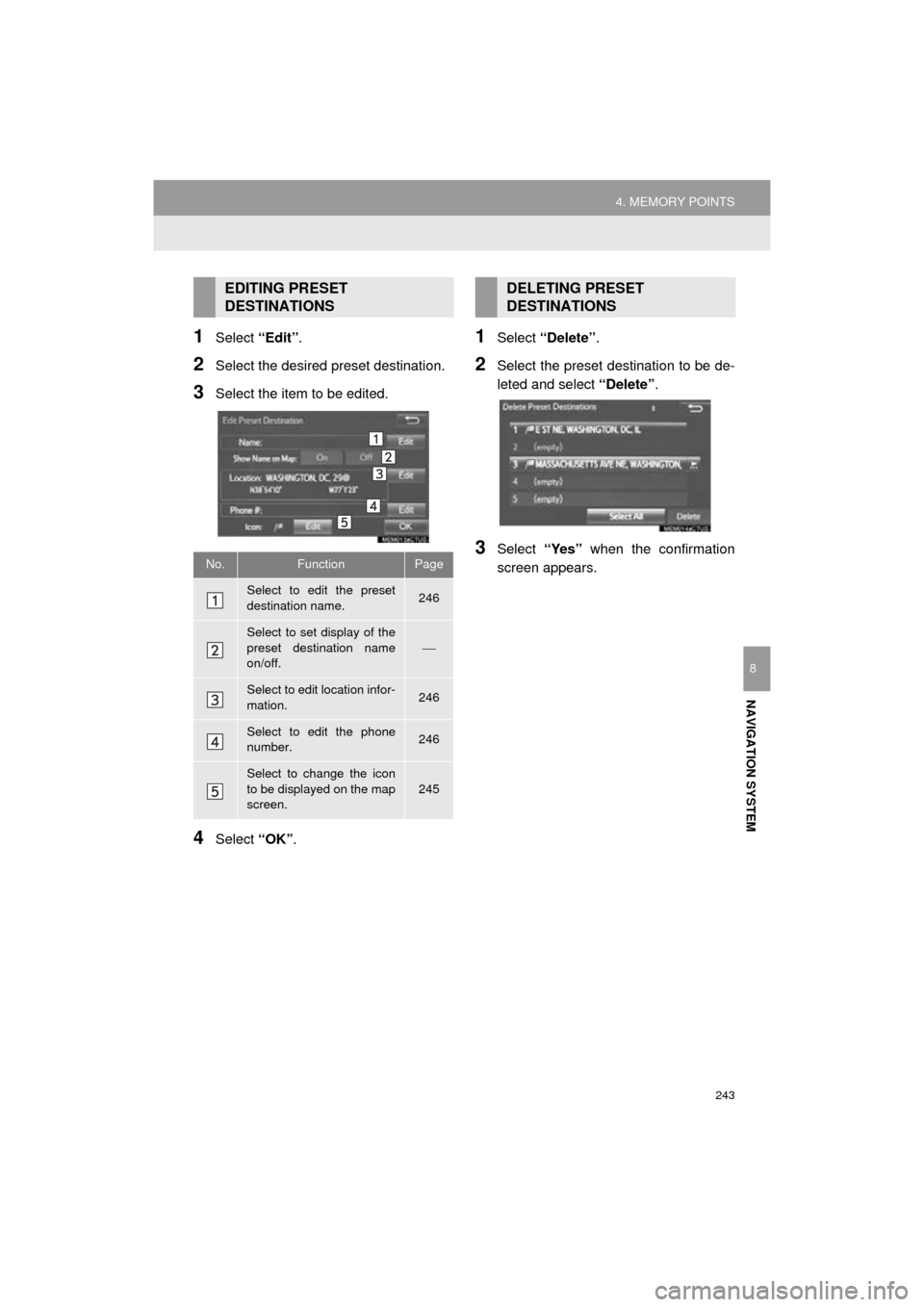

EDITING PRESET
DESTINATIONS
No.FunctionPage
Select to edit the preset
destination name.246
Select to set display of the
preset destination name
on/off.

Select to edit location infor-
mation.246
Select to edit the phone
number.246
Select to change the icon
to be displayed on the map
screen.
245
DELETING PRESET
DESTINATIONS

245
4. MEMORY POINTS
COROLLA_14CY_Navi_U
NAVIGATION SYSTEM
8

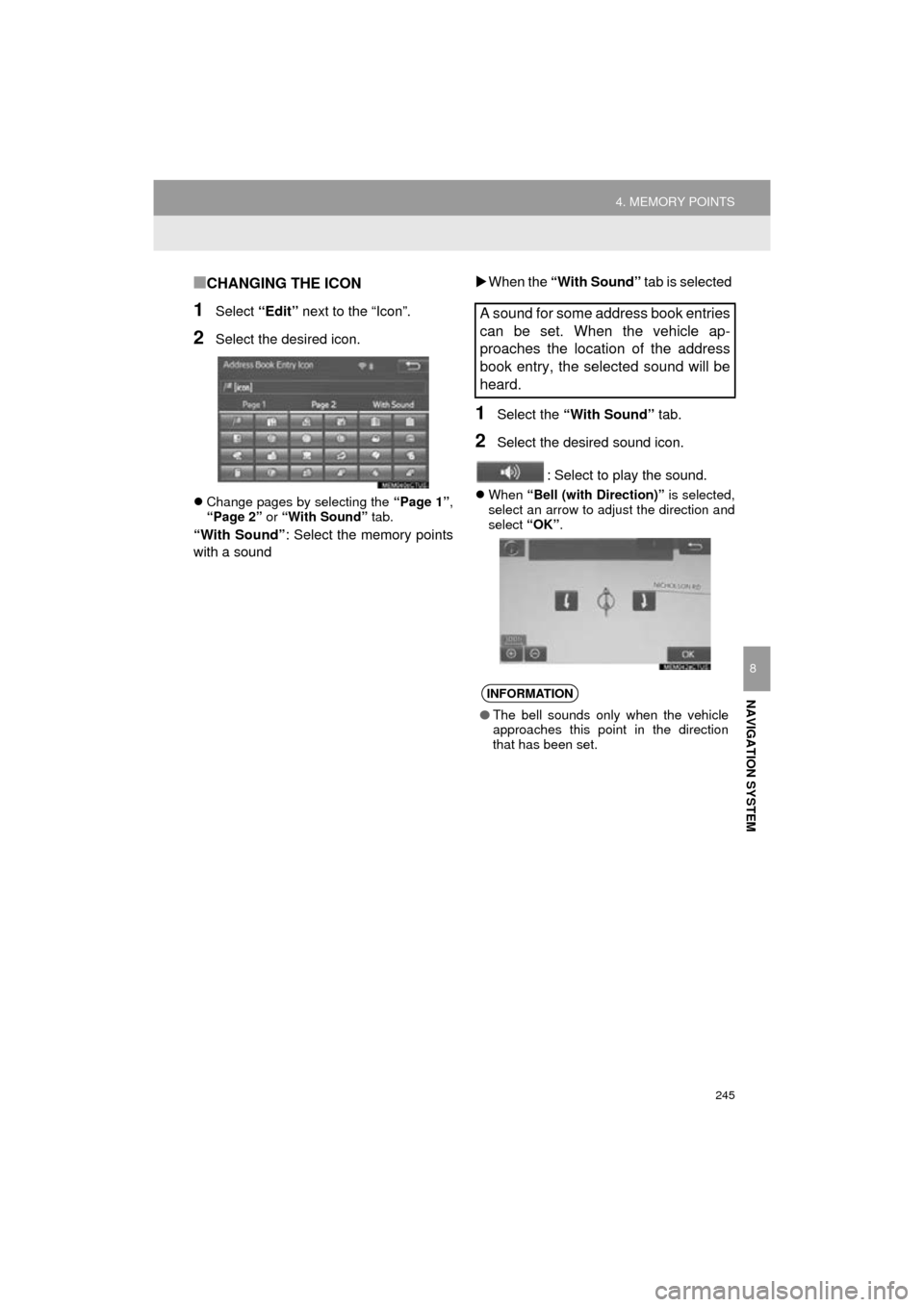

■CHANGING THE ICON
1Select “Edit” next to the “Icon”.
2Select the desired icon.
Change pages by selecting the “Page 1”,
“Page 2” or “With Sound” tab.
“With Sound”: Select the memory points
with a sound 
When the “With Sound” tab is selected
1Select the “With Sound” tab.
2Select the desired sound icon.
: Select to play the sound.
When “Bell (with Direction)” is selected,
select an arrow to adjust the direction and
select “OK”.
A sound for some address book entries
can be set. When the vehicle ap-
proaches the location of the address
book entry, the selected sound will be
heard.
INFORMATION
●The bell sounds only when the vehicle
approaches this point in the direction
that has been set.

247
4. MEMORY POINTS
COROLLA_14CY_Navi_U
NAVIGATION SYSTEM
8
1Select “New”.
2Select the desired item to search for
the location. ( P.213)
3Select either or to
change the size of the area to be avoid-
ed and select “OK”.
4Select “OK” when the editing area to
avoid screen appears.
1Select “Edit”.
2Select the area and select “OK”.
3Select the item to be edited.
4Select “OK”.
REGISTERING AREAS TO
AVOID
INFORMATION
●If a destination is entered in the area to
avoid or the route calculation cannot be
made without running through the area
to avoid, a route passing through the
area to be avoided may be shown.
● Up to 10 locations can be registered as
points/areas to avoid.
EDITING AREAS TO AVOID
The name, location and/or area size of
a registered area can be edited.
No.FunctionPage
Select to edit the name of
the area to avoid.248
Select to set display of the
area to avoid name on/off.
Select to edit area location.248
Select to edit area size.248
Select to set the area to
avoid function on/off.
