This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Corolla.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Corolla
operations. Every Corolla owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2016
Corolla

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry
1 6
Smart Key system1 7

Air Conditioning/Heating 16
Audio 18
Auto lock/unlock
2 11
Automatic Transmission 10
Auxiliary storage 20
Bluetooth
® Device Pairing Section 27-36
Clock 14
Continuously Variable Transmission 10
Cruise control 17
Cup holders-Adjust size 20
Drive monitor display/Multi-Information Display 15
Light control-Instrument panel 19
Lights & turn signals 13
Manual Transmission 10
Moonroof 15
Parking brake 11
Power outlet 14
Rear view monitor system 20
Seat adjustments-Front 12
Seat heaters 17
Seats-folding rear 12
Seats-Head restraints 12
Steering wheel switches and
telephone controls (Bluetooth
®) 19
Tilt and telescopic steering wheel 15
TRAC/VSC OFF switch 17
USB/AUX port 14
Windows-Power 11
Windshield wipers & washers 13

Doors-Child safety locks 21
Floor mat installation 25
Seat belts 21
Seat belts-Shoulder belt adjustment 21
Spare tire & tools 23
Star Safety System
TM 24-25
Tire Pressure Monitoring (warning) System 22
Trunk-Internal release 22
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.

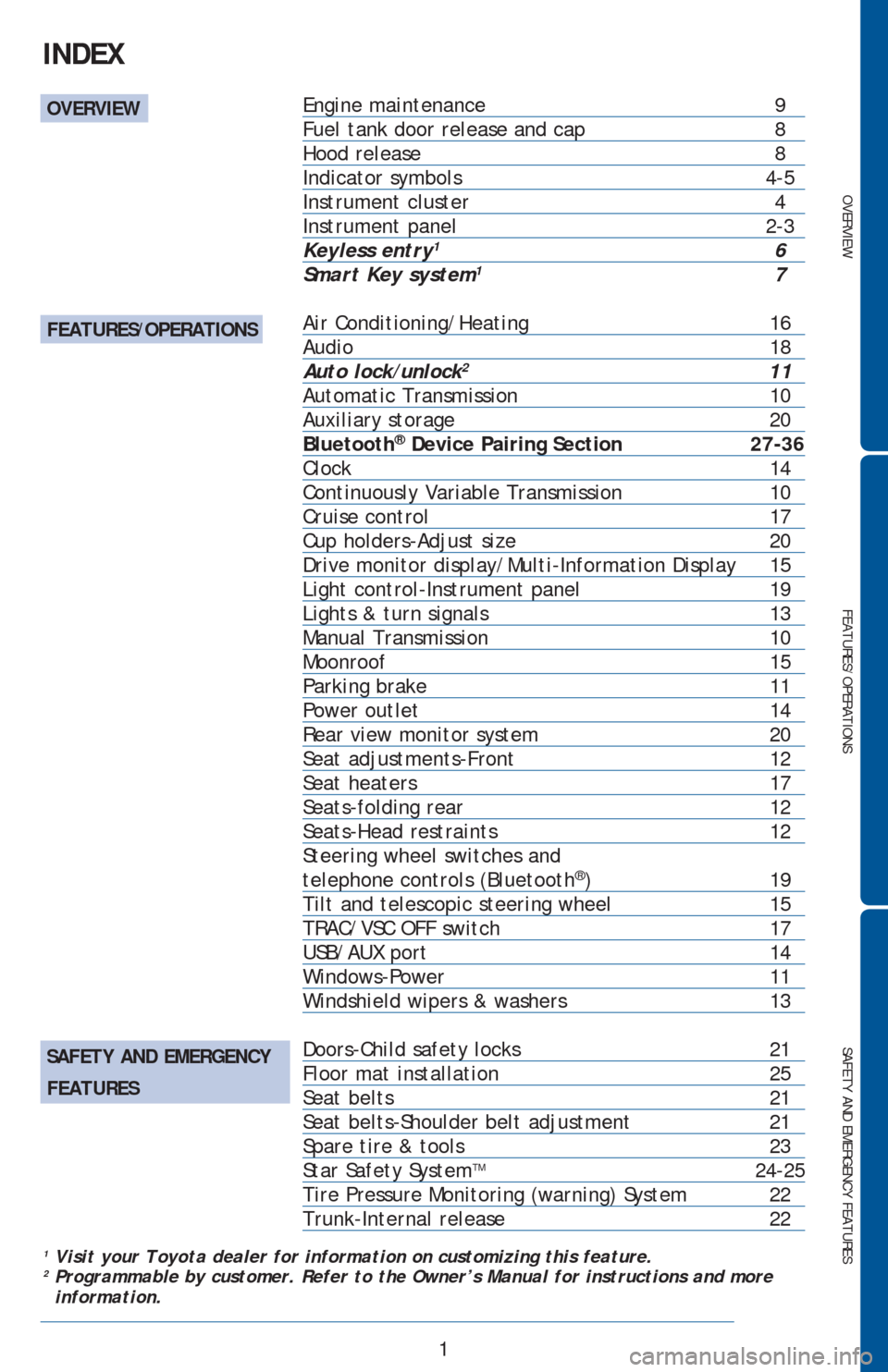

INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES

2
OVERVIEW

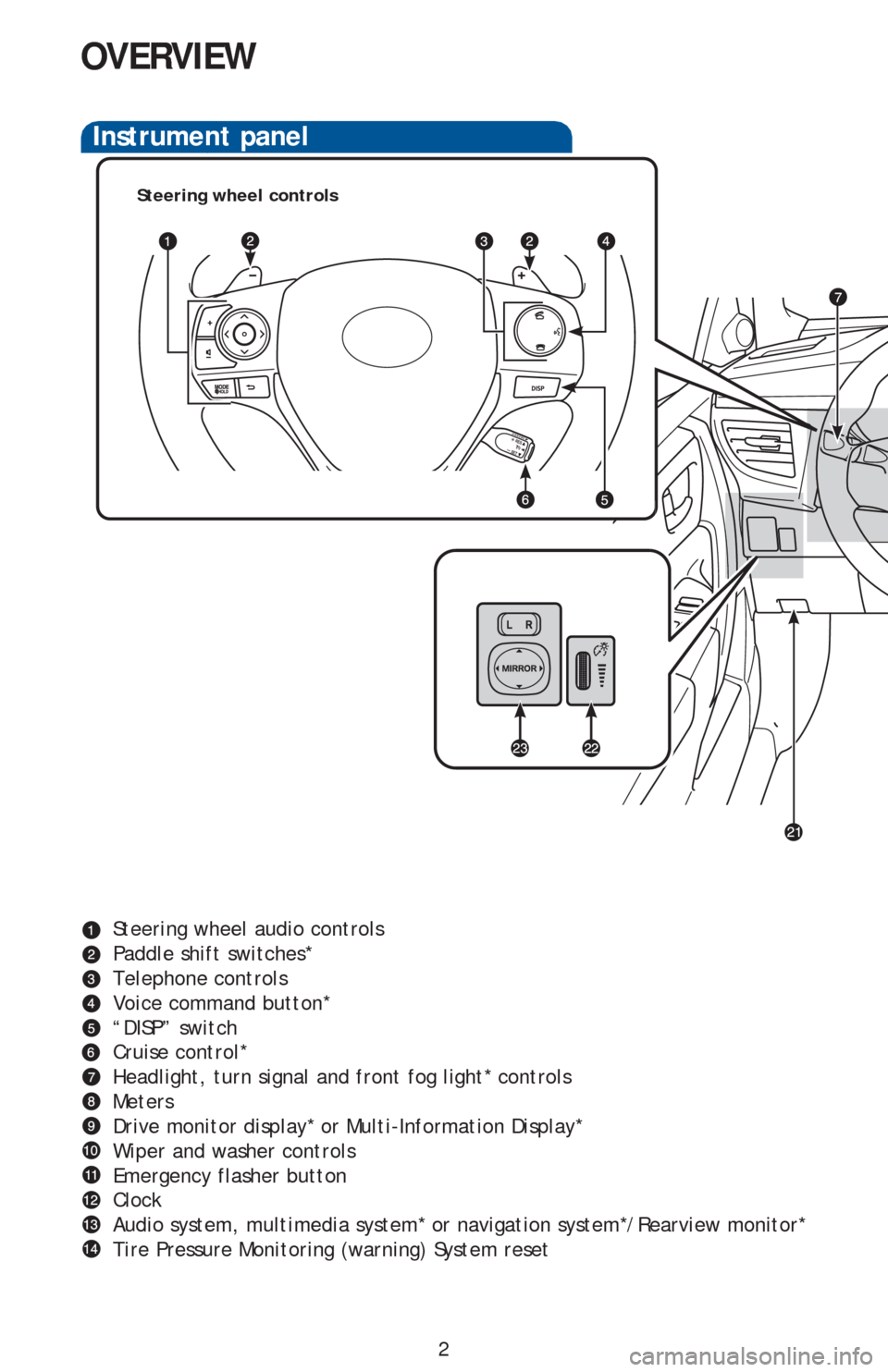

Instrument panel
Steering wheel controls
Steering wheel audio controls
Paddle shift switches*
Telephone controls
Voice command button*
“DISP” switch
Cruise control*
Headlight, turn signal and front fog light* controls
Meters
Drive monitor display* or Multi-Information Display*
Wiper and washer controls
Emergency flasher button
Clock
Audio system, multimedia system* or navigation system*/Rearview monitor*
Tire Pressure Monitoring (warning) System reset

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3

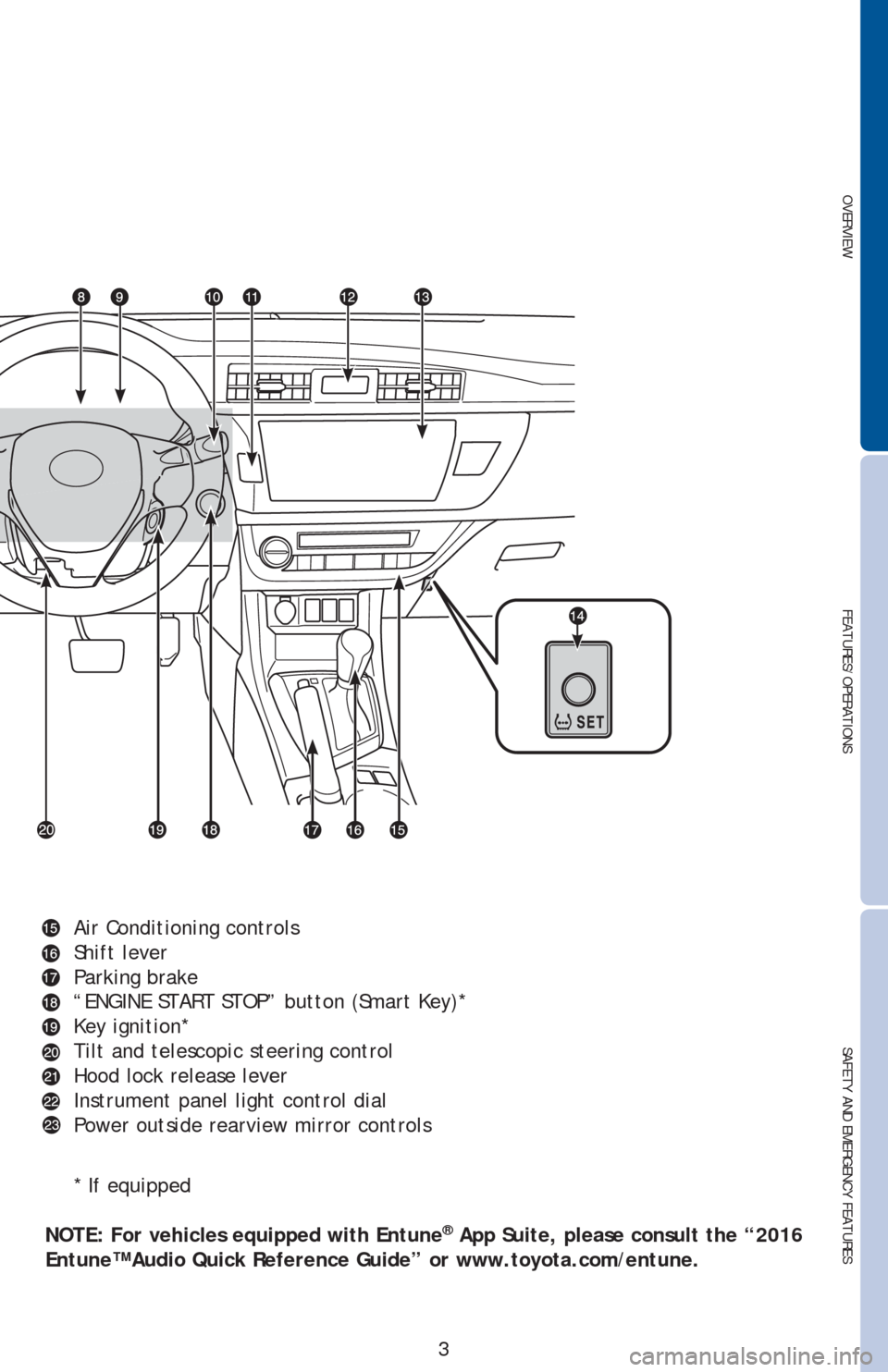

Air Conditioning controls
Shift lever
Parking brake
“ENGINE START STOP” button (Smart Key)*
Key ignition*
Tilt and telescopic steering control
Hood lock release lever
Instrument panel light control dial
Power outside rearview mirror controls
* If equipped
NOTE: For vehicles equipped with Entune
® App Suite, please consult the “2016
Entune™ Audio Quick Reference Guide” or www.toyota.com/entune.

4

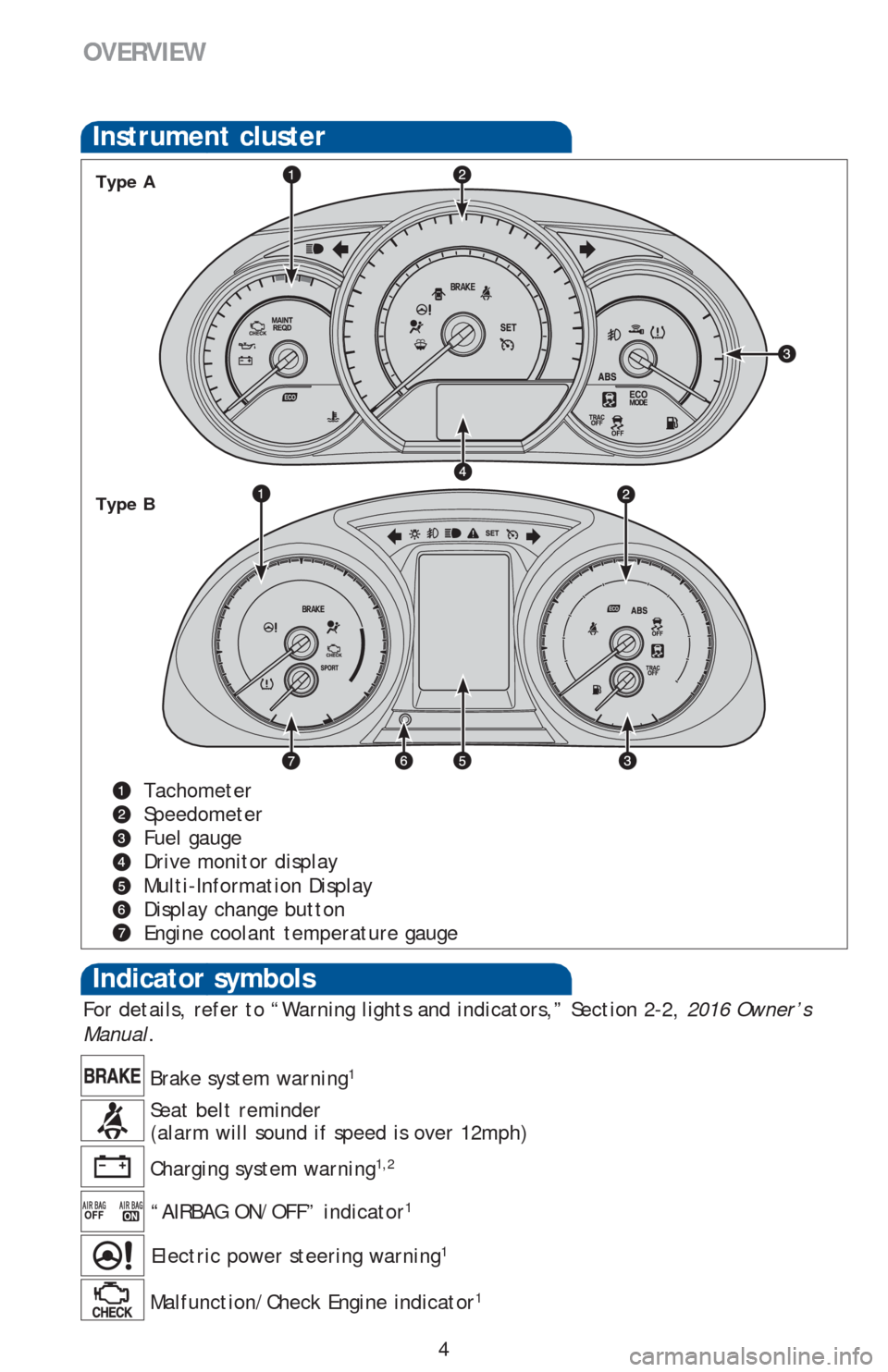

Indicator symbols
Charging system warning1,2
Brake system warning1
“AIRBAG ON/OFF” indicator1
Malfunction/Check Engine indicator1
For details, refer to “Warning lights and indicators,” Section 2-2, 2016 Owner’s
Manual.
Electric power steering warning
1
OVERVIEW
Instrument cluster
Tachometer
Speedometer
Fuel gauge
Drive monitor display
Multi-Information Display
Display change button
Engine coolant temperature gauge
Type A
Type B
Seat belt reminder
(alarm will sound if speed is over 12mph)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
Anti-lock Brake System warning1
Headlight high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2
Low Tire Pressure Warning1,2
Open door warning2
SRS airbag warning1
Low fuel level warning
Front fog light indicator2
Low engine oil pressure warning1,2
Vehicle Stability Control OFF indicator1
Maintenance/Service required indicator1
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If equipped.
Traction control OFF indicator1
Headlight indicator2
High engine coolant temperature warning1,2
Master warning1,2
Sport mode indicator2
Security indicator
Low windshield washer fluid warning light
2
“ECO MODE” indicator2
Smart key system indicator2
ECO driving indicator light1,2
Cruise control SET indicator2
Arrow direction indicates fuel tank door position

6
OVERVIEW

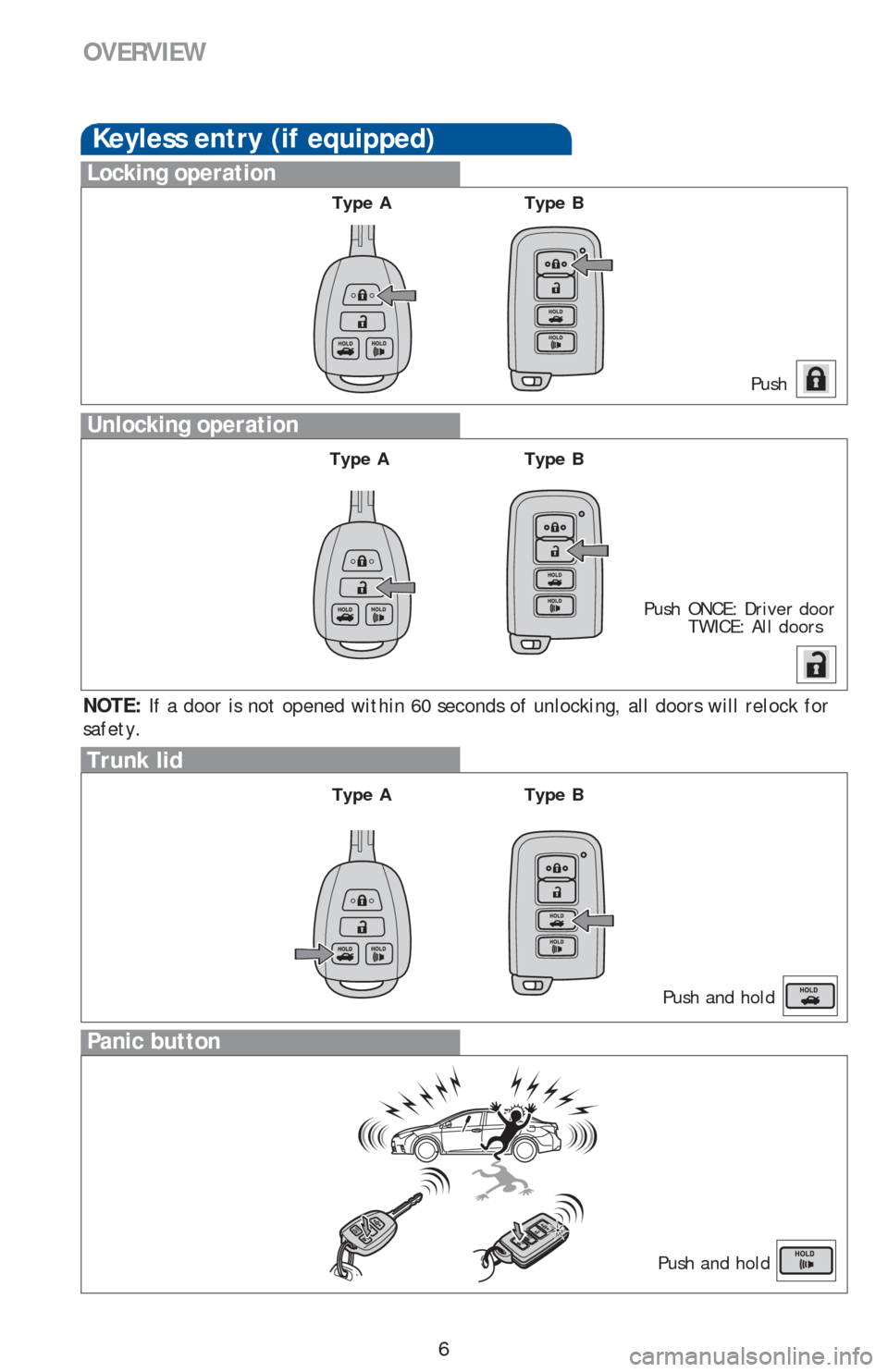

Keyless entry (if equipped)
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Type A
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Trunk lid
Push and hold
Type B
Type A
Type AType B
Type B

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7

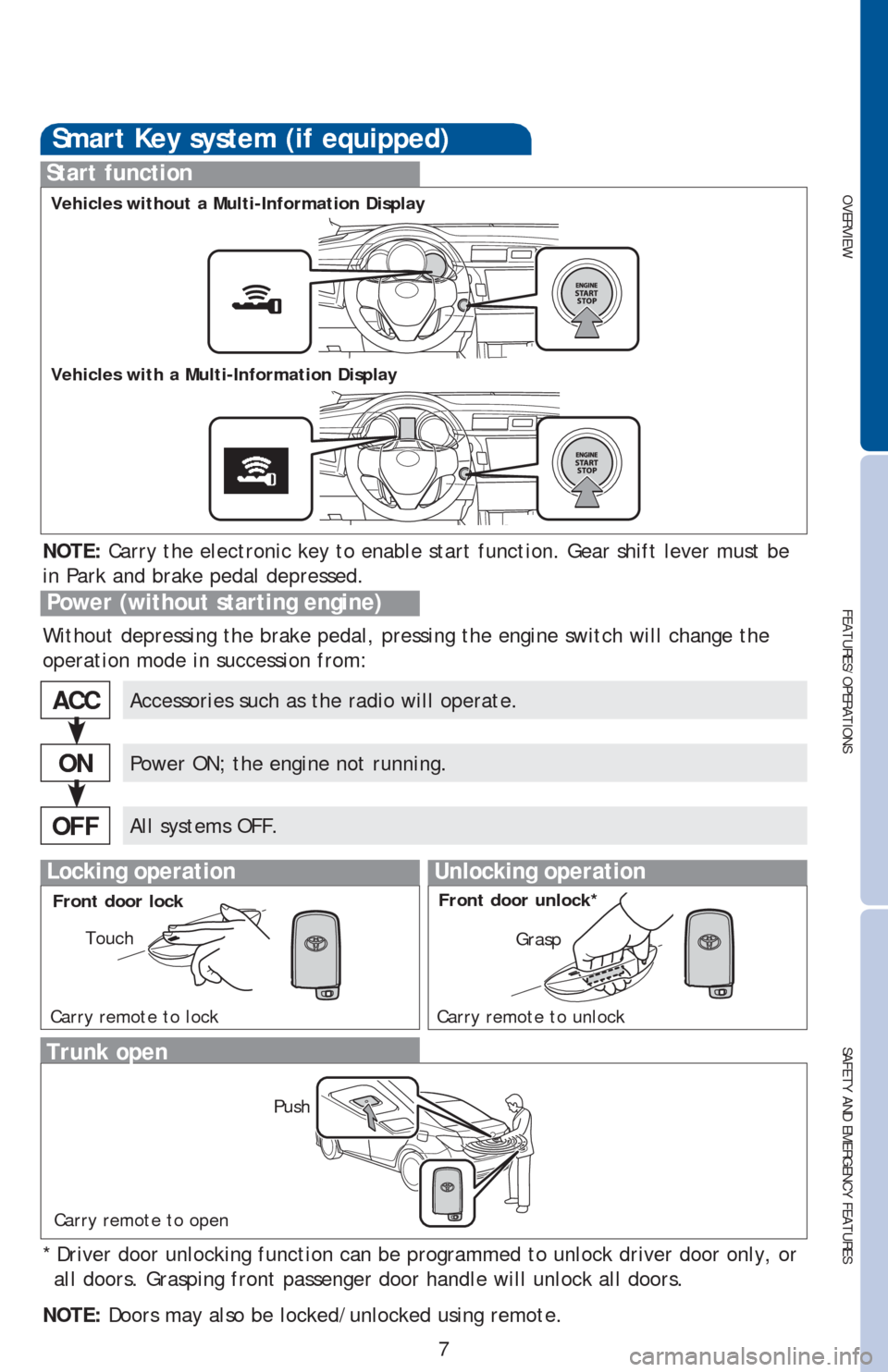

Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE: Carry the electronic key to enable start function. Gear shift lever must be
in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the engine switch will change the
operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Trunk open
Push
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Front door lock
Carry remote to open
Front door unlock*
Touch
Grasp
Vehicles without a Multi-Information Display
Vehicles with a Multi-Information Display

8
OVERVIEW
Hood release
Pull up latch
and raise hood
Pull

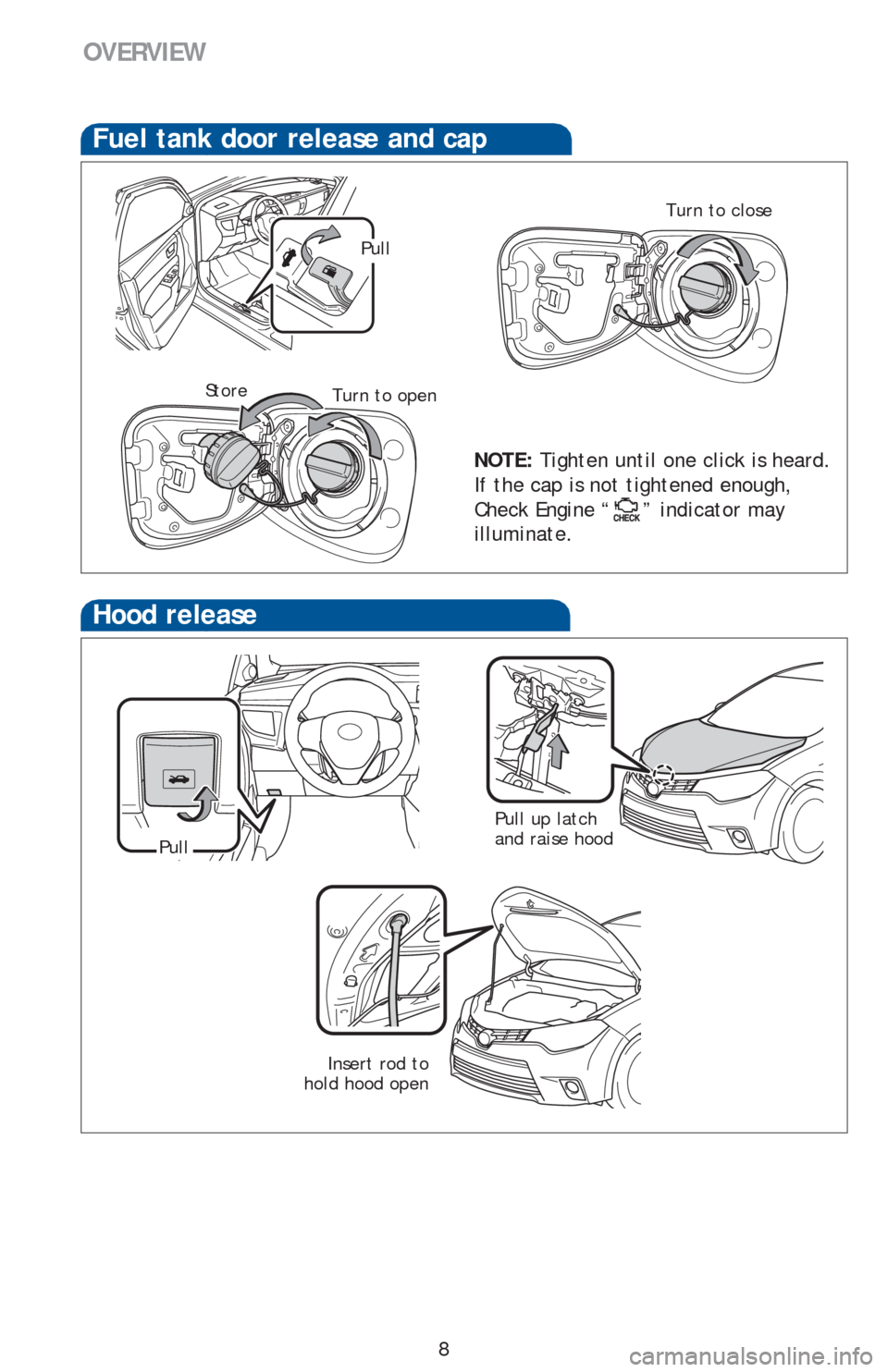

Fuel tank door release and cap
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check Engine “
” indicator may
illuminate.
Pull
Turn to close
StoreTurn to open
Insert rod to
hold hood open
