4-1. Before drivingDriving the vehicle ............. 146
Cargo and luggage............ 157
Vehicle load limits ............. 160
Trailer towing..................... 161
Dinghy towing (except vehicles with a
manual transmission) ...... 162
Dinghy towing (vehicles with a manual
transmission)................... 163
4-2. Driving procedures Engine (ignition) switch (vehicles without a
smart key system) ........... 165
Engine (ignition) switch (vehicles with a smart
key system) ..................... 168
Automatic transmission ..... 176
Continuously variable transmission
(vehicles without paddle
shift switches) ................. 178
Continuously variable transmission
(vehicles with paddle
shift switches) ................. 180
Manual transmission ......... 184

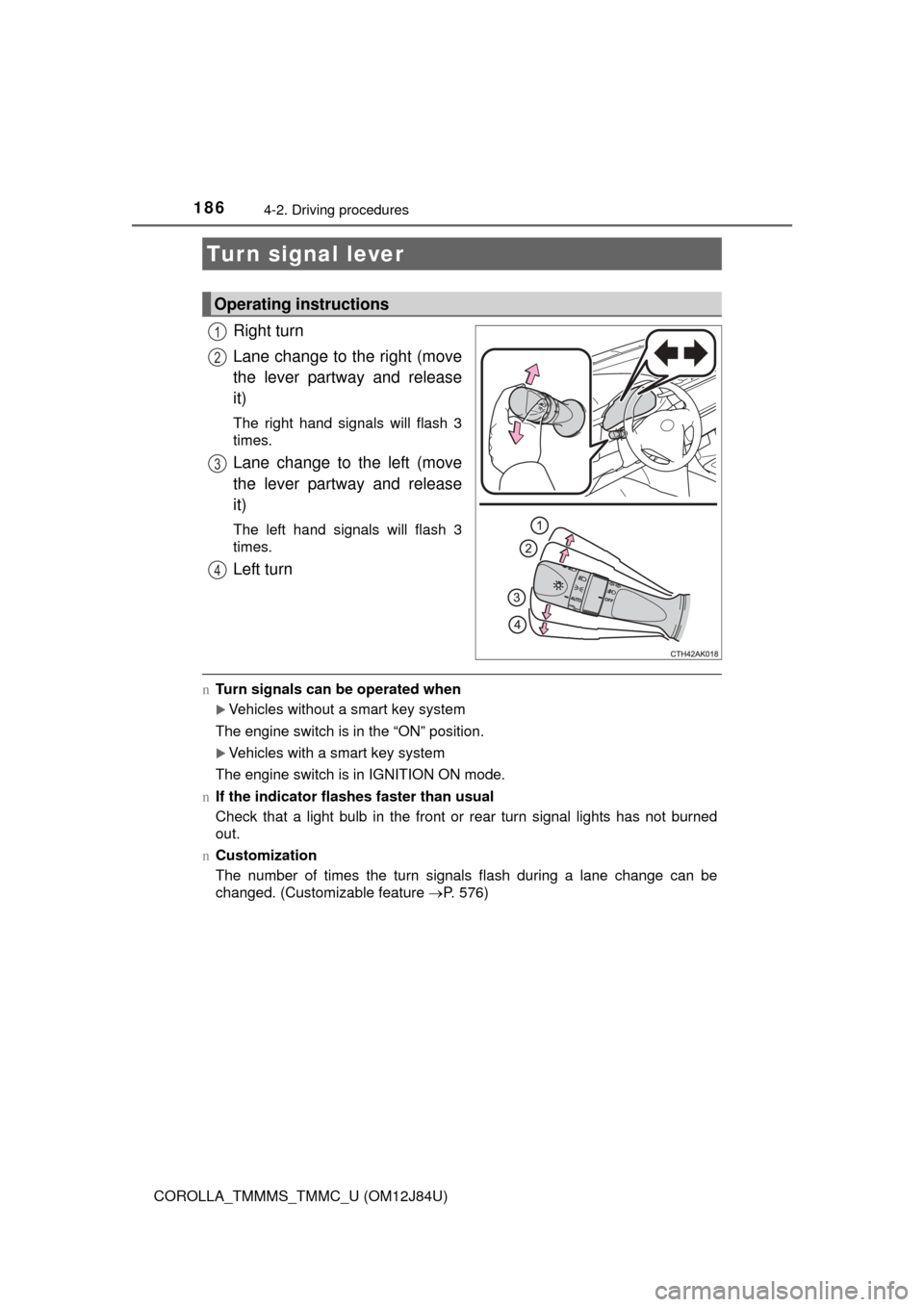

Turn signal lever................ 186
Parking brake .................... 187
4-3. Operating the lights and wipers
Headlight switch ................ 188
Fog light switch ................. 195
Windshield wipers and washer ............................ 196 4-4. Refueling
Opening the fuel tank cap................................... 198
4-5. Using the driving support systems
Cruise control .................... 201
Rear view monitor system ............................. 205
Driving assist systems ....... 215
4-6. Driving tips Winter driving tips .............. 221
5-1. Basic Operations Audio system types ........... 228
Steering wheel audio switches........................... 233
AUX port/USB port ............ 234
5-2. Using the audio system Optimal use of the audio system ............................. 235
5-3. Using the radio Radio operation ................. 237
5-4. Playing audio CDs and MP3/WMA discs
CD player operation........... 239
5-5. Using an external device Listening to an iPod ........... 248
Listening to a USB memory device ................ 255
Using the AUX port ............ 261
4Driving
5Audio system

15Pictorial index
COROLLA_TMMMS_TMMC_U (OM12J84U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 221
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 552
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 454
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 558
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221
Checking/rotation/tire pressure warning system
*1 . . . . . . . P. 454
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 520
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 552
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 543
Headlights/daytime running lights . . . . . . . . . . . . . . . . . . . . P. 188
Front turn signal/parking lights . . . . . . . . . . . . . . . . . . . . . . P. 188
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188
Turn signal lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
Stop/tail lights/rear side marker lights . . . . . . . . . . . . . . . . . P. 188
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . P. 176, 178, 180, 184
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 475, Watts: P. 559)
*1: If equipped
*2: Vehicles with a drive monitor display
*3: Vehicles with a multi-information display
8
9
10
11
12
13
14
15

17Pictorial index
COROLLA_TMMMS_TMMC_U (OM12J84U)Drive monitor display
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 77
Multi-information display
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 82
When the warning messages are displayed
*3. . . . . . . . . . . . . P. 510
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 222
Warning buzzer/message
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 510
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188
Headlights/front parking lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 188
Front fog lights
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 196
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 453
Warning lights
*1, 2/warning messages*1, 3 . . . . . . . . . . . P. 500, 512
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 488
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Tilt and telescopic steering control lever . . . . . . . . . . . . . . P. 131
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . P. 386, 392
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 386, 392
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387, 395
Audio system
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Entune Audio system
*1, 4. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Navigation system
*1, 4
*1: If equipped
*2: Vehicles with a drive monitor display
*3: Vehicles with a multi-information display
*4: For vehicles with a navigation system or Entune Audio Plus, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
4
5
6
7
8
9
10
11
12

752. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12J84U)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 186)*2
(Green)
Cruise control indicator
(P. 201)
*2
(U.S.A.)
Headlight indicator
(P. 188)
*2
“ECO MODE” indicator
(P. 179)
*2
(Canada)
Tail light indicator
(P. 188) *1, 3 Slip indicator ( P. 216)
Headlight high beam
indicator ( P. 188)
*1VSC OFF indicator
(P. 217)
*2Front fog light indicator
(P. 195)*2
(Green)
Smart key system indi-
cator (P. 168)
*2Sport mode indicator
(P. 181)*1, 5“AIR BAG ON/OFF” indi-
cator (P. 46)
*1, 2, 4Eco Driving Indicator
Light ( P. 92)*2Cruise control “SET”
indicator ( P. 201)
*1“TRAC OFF” indicator
(P. 216)*5Security indicator
(P. 66, 68)

1123-2. Opening, closing and locking the doors
COROLLA_TMMMS_TMMC_U (OM12J84U)
nOperation signal (with a wirel ess remote control function)
A buzzer sounds to indicate that the trunk has been opened.
n Trunk light
The trunk light turns on when the trunk is opened.
n Function to prevent the tr unk being locked with the electronic key inside
(vehicles with a smart key system)
l When all doors are being locked, closing the trunk lid with the electronic key
left inside the trunk will sound an alarm.
In this case, the trunk lid can be opened by pressing the trunk release but-
ton on the trunk lid.
l Even when the spare electronic key is put in the trunk with all the doors
locked, the key confinement prevention function can be activated so the
trunk can be opened. In order to prevent theft, take all electronic keys with
you when leaving the vehicle.
l Even when the electronic key is put in the trunk with all the doors are locked,
the key may not be detected depending on the places and the surrounding
radio wave conditions. In this case, the key confinement prevention function
cannot be activated, causing the doors to lock when the trunk is closed.
Make sure to check where the key is before closing the trunk.
l The key confinement prevention function cannot be activated if any one of
the doors is unlocked. In this case, open the trunk using the trunk opener.
n Internal trunk release lever
n Customization
The trunk unlocking operation can be changed.
(Customizable features: P. 576)
The trunk lid can be opened by pushing
the glow-in-the-dark lever located on the
inside of the trunk lid to the side.
The lever will continue to glow for some
time after the trunk lid is closed.

1203-2. Opening, closing and locking the doors
COROLLA_TMMMS_TMMC_U (OM12J84U)n
Note for the entry function
lEven when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to
the rear bumper center when the trunk is opened.
• The electronic key is on the instrument panel, rear package tray or floor, or in the door pockets or glove box when the engine is started or engine
switch modes are changed.
l Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
doors will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
l As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
l Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.
l The doors may unlock or lock if a large amount of water splashes on the
door handle, such as in the rain or in a car wash, when the electronic key is
within the effective range. (The doors will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)
l If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
l Touching the door lock or unlock sensor while wearing gloves may prevent
lock or unlock operation.
l When the lock operation is performed using the lock sensor, recognition sig-
nals will be shown up to two consecutive times. After this, no recognition
signals will be given.
l If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the
vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart key
system. ( P. 118)
l Vehicles with a drive monitor display: If the electronic key is inside the vehi-
cle and a door handle becomes wet during a car wash, a buzzer will sound
outside the vehicle. To turn off the alarm, lock all the doors.

145
4Driving
COROLLA_TMMMS_TMMC_U (OM12J84U)4-1. Before driving
Driving the vehicle ............. 146
Cargo and luggage ........... 157
Vehicle load limits ............. 160
Trailer towing..................... 161
Dinghy towing (except vehicles with a manual
transmission)................... 162
Dinghy towing (vehicles with a manual
transmission)................... 163
4-2. Driving procedures Engine (ignition) switch (vehicles without a
smart key system) ........... 165
Engine (ignition) switch (vehicles with a smart
key system) ..................... 168
Automatic transmission ..... 176
Continuously variable transmission
(vehicles without paddle
shift switches) ................. 178
Continuously variable transmission
(vehicles with paddle
shift switches) ................. 180
Manual transmission ......... 184
Turn signal lever................ 186
Parking brake .................... 187 4-3. Operating the lights and
wipers
Headlight switch ................ 188
Fog light switch ................. 195
Windshield wipers and washer ............................ 196
4-4. Refueling Opening the fuel tank cap .................................. 198
4-5. Using the driving support systems
Cruise control .................... 201
Rear view monitor system ............................ 205
Driving assist systems ...... 215
4-6. Driving tips Winter driving tips ............. 221

1864-2. Driving procedures
COROLLA_TMMMS_TMMC_U (OM12J84U)
Right turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Left turn
nTurn signals can be operated when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
n If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
n Customization
The number of times the turn signals flash during a lane change can be
changed. (Customizable feature P. 576)
Turn signal lever
Operating instructions
1
2
3
4

3085-14. Using the radio (Multimedia system)
COROLLA_TMMMS_TMMC_U (OM12J84U)
Search for desired stations by turning the “TUNE/SCROLL” knob or
pressing the “ ” or “ ” button on “SEEK/TRACK”.
Select “(add new)”.
To change the preset station to a different one, select and hold the preset
station.
Select “Yes”.
Select “OK” after setting the new preset station.
nRefreshing the station list Select “Refresh” on the “Station List” screen.
To cancel the refresh, select “Cancel Refresh”.
nReception sensitivity
lMaintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
l The radio antenna is mounted inside the rear window. To maintain clear
radio reception, do not attach metallic window tinting or other metallic
objects to the antenna wire mounted inside the rear window.
Setting station presets
1
2
3
4
1

3365-17. Connecting Bluetooth® (Multimedia system)
COROLLA_TMMMS_TMMC_U (OM12J84U)
nReconnecting a Bluetooth® phone
If the system cannot connect due to poor signal strength with the engine
switch in ACCESSORY or ON (IGNITION ON) mode, the system will auto-
matically attempt to reconnect.
If the system is attempting to connect to a Bluetooth
® phone and the
Bluetooth® phone is turned off and then back on, the system will attempt to
reconnect.
