TOYOTA COROLLA 2016 11.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

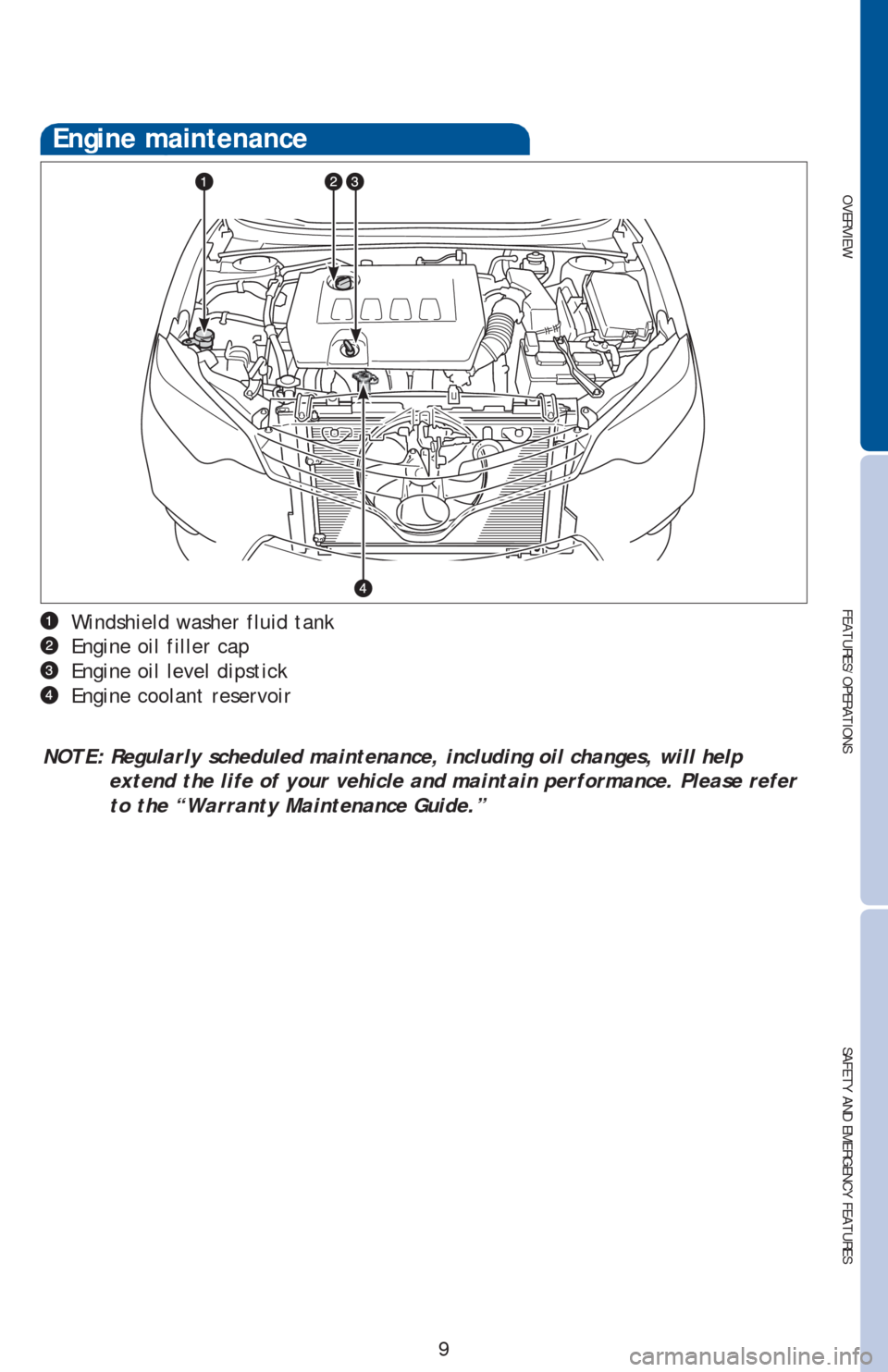

9 Windshield washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance

10

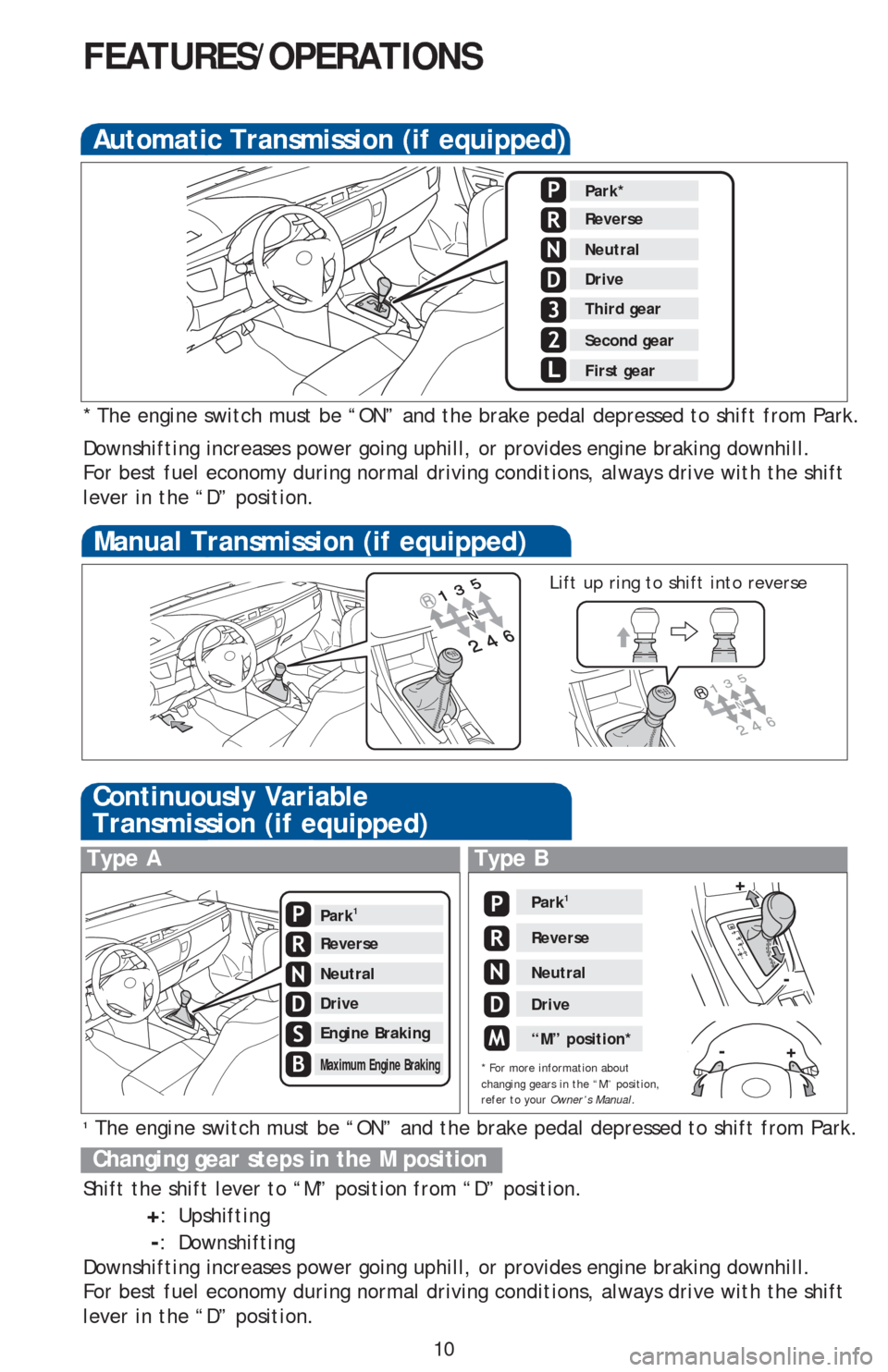

FEATURES/OPERATIONS
Automatic Transmission (if equipped)
Manual Transmission (if equipped)
* The engine switch must be “ON” and the brake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Type AType B
Lift up ring to shift into reverse
Park1
Reverse
Neutral
Drive
Engine Braking
Maximum Engine Braking
S
B
P
R
N
D
1 The engine switch must be “ON” and the brake pedal depressed to shift from Park.
Shift the shift lever to “M” position from “D” position.

+: Upshifting

-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Changing gear steps in the M position
Park1
Reverse
Neutral
Drive
“M” position*
P
R
N
D
M
+
+
-
-
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
3
2
L
P
R
N
D
Continuously Variable
Transmission (if equipped)
* For more information about
changing gears in the “M” position,
refer to your Owner’s Manual.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11

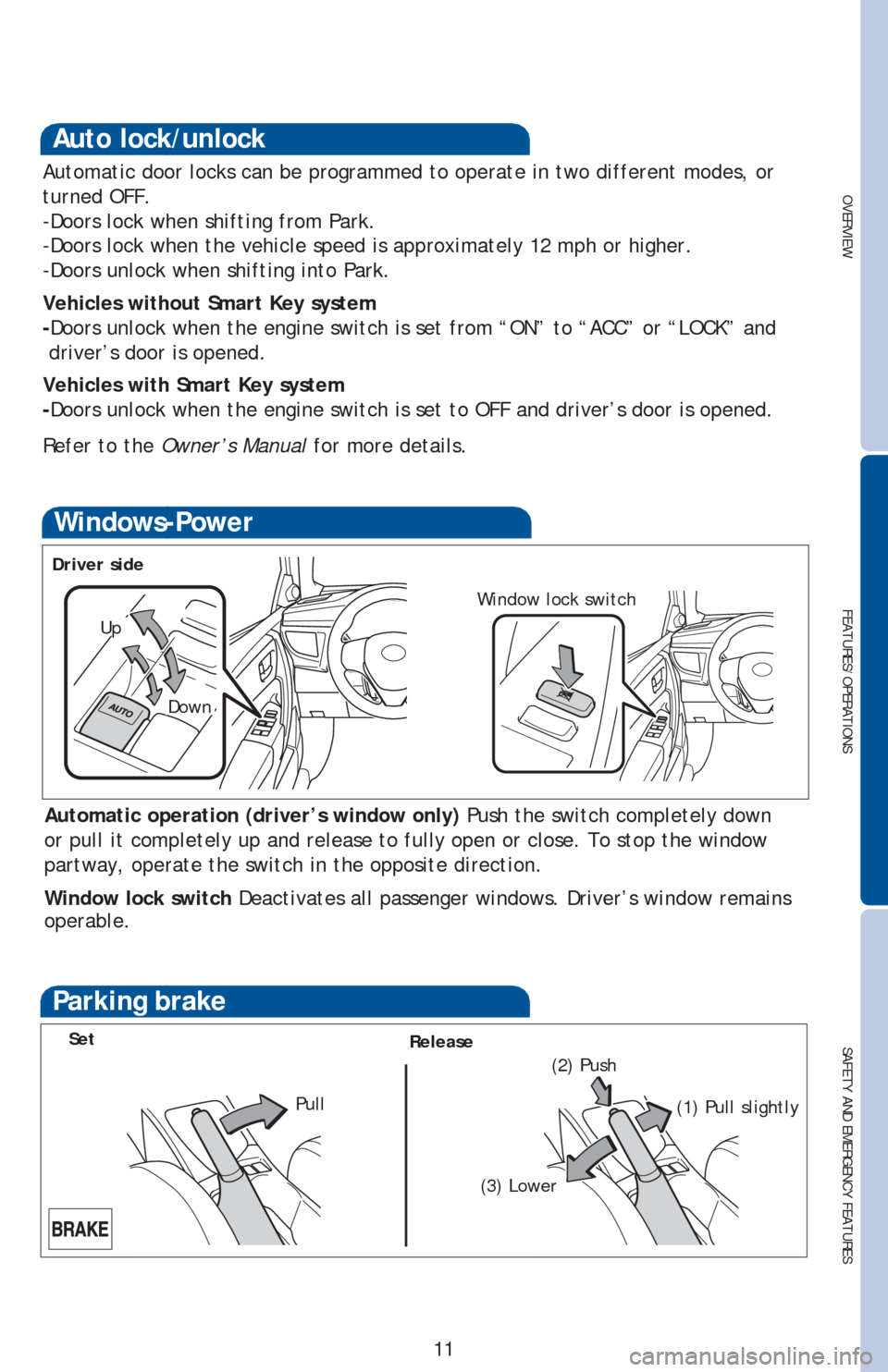

Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
Vehicles without Smart Key system
-Doors unlock when the engine switch is set from “ON” to “ACC” or “LOCK” and
driver’s door is opened.
Vehicles with Smart Key system
-Doors unlock when the engine switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Windows-Power
Up
Down
Driver side
Window lock switch
Automatic operation (driver’s window only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop the window
partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Parking brake
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull

12
FEATURES/OPERATIONS
Seats-Head restraints
FrontRear (Type B) Rear (Type A)
Lock release buttonLock release buttonLock release button
Seats-folding rear
Fold downPull
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle and height
Seatback angle

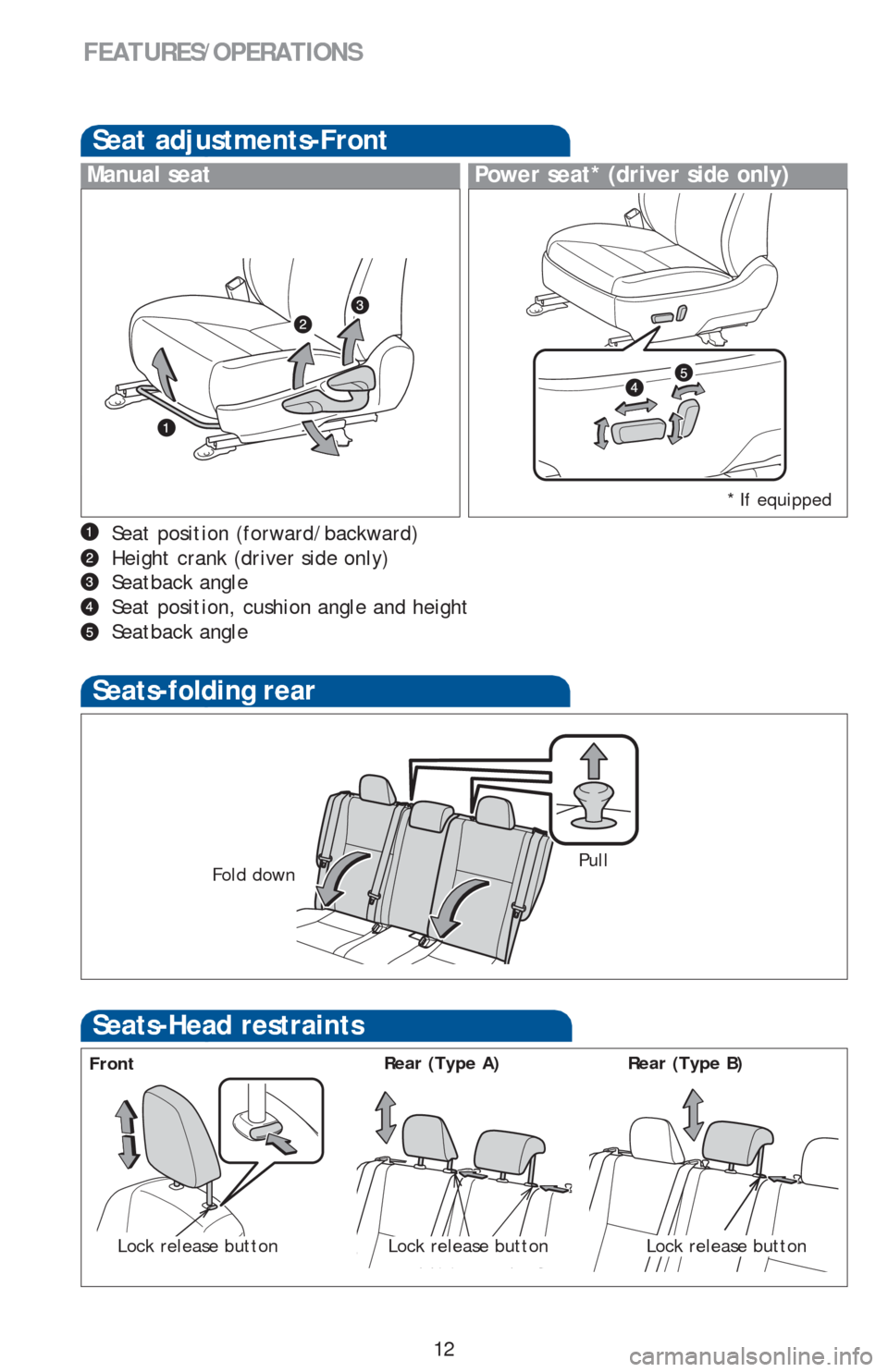

Seat adjustments-Front
Manual seatPower seat* (driver side only)
* If equipped

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Front fog lights (if equipped)
Front fog lights come on only when
the headlights are on low beam.
Turn
Turn signals
Right turn
Lane change*
Lane change*
Left turn

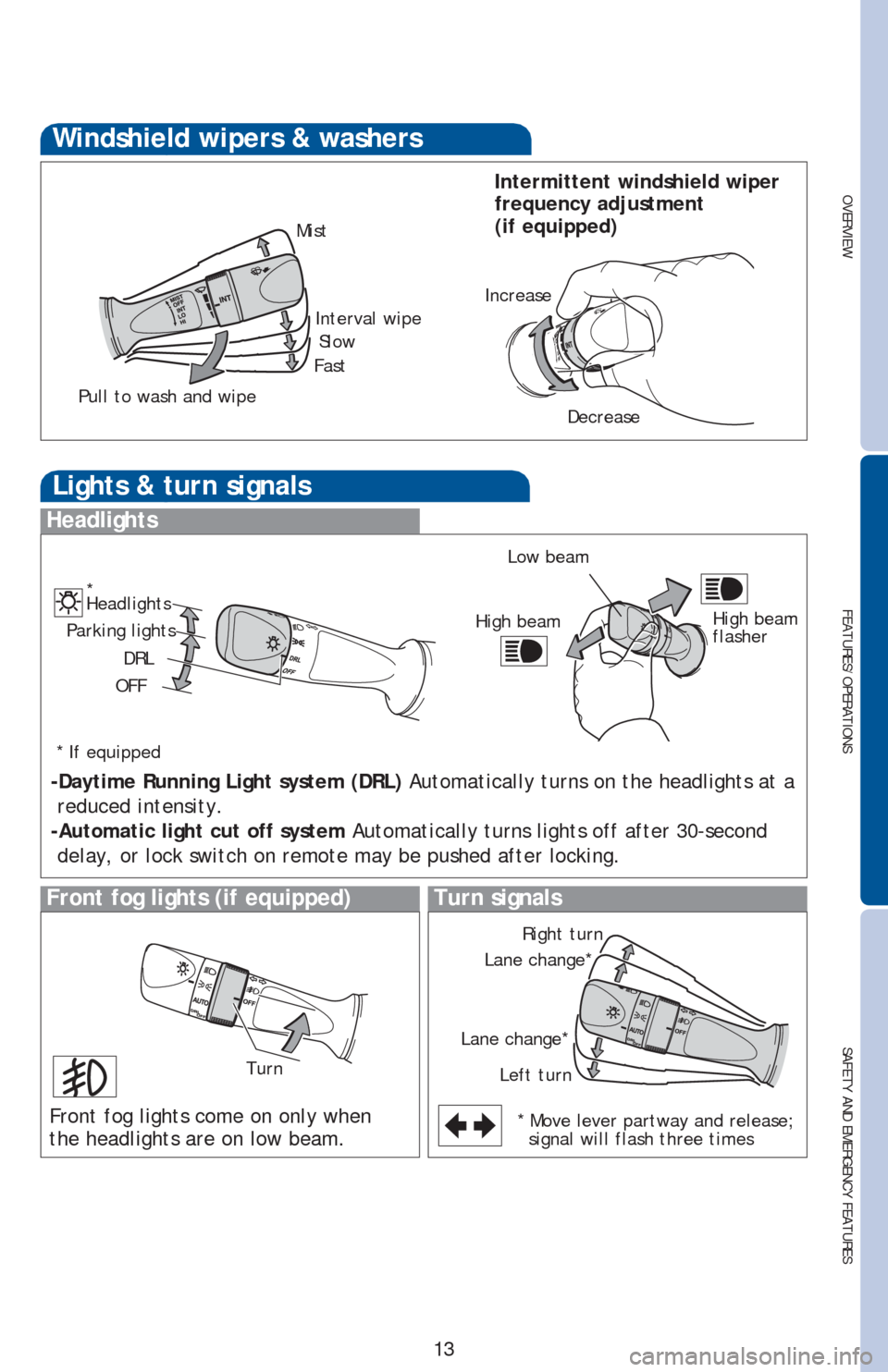

Windshield wipers & washers
Interval wipe Mist
Slow
Fast
Pull to wash and wipe
Intermittent windshield wiper
frequency adjustment
(if equipped)
Increase
Decrease
Lights & turn signals
Headlights
High beam
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed after locking.
High beam
flasher
* If equipped
* Move lever partway and release;
signal will flash three times *
Headlights
Parking lights
DRL
OFFLow beam

14
FEATURES/OPERATIONS

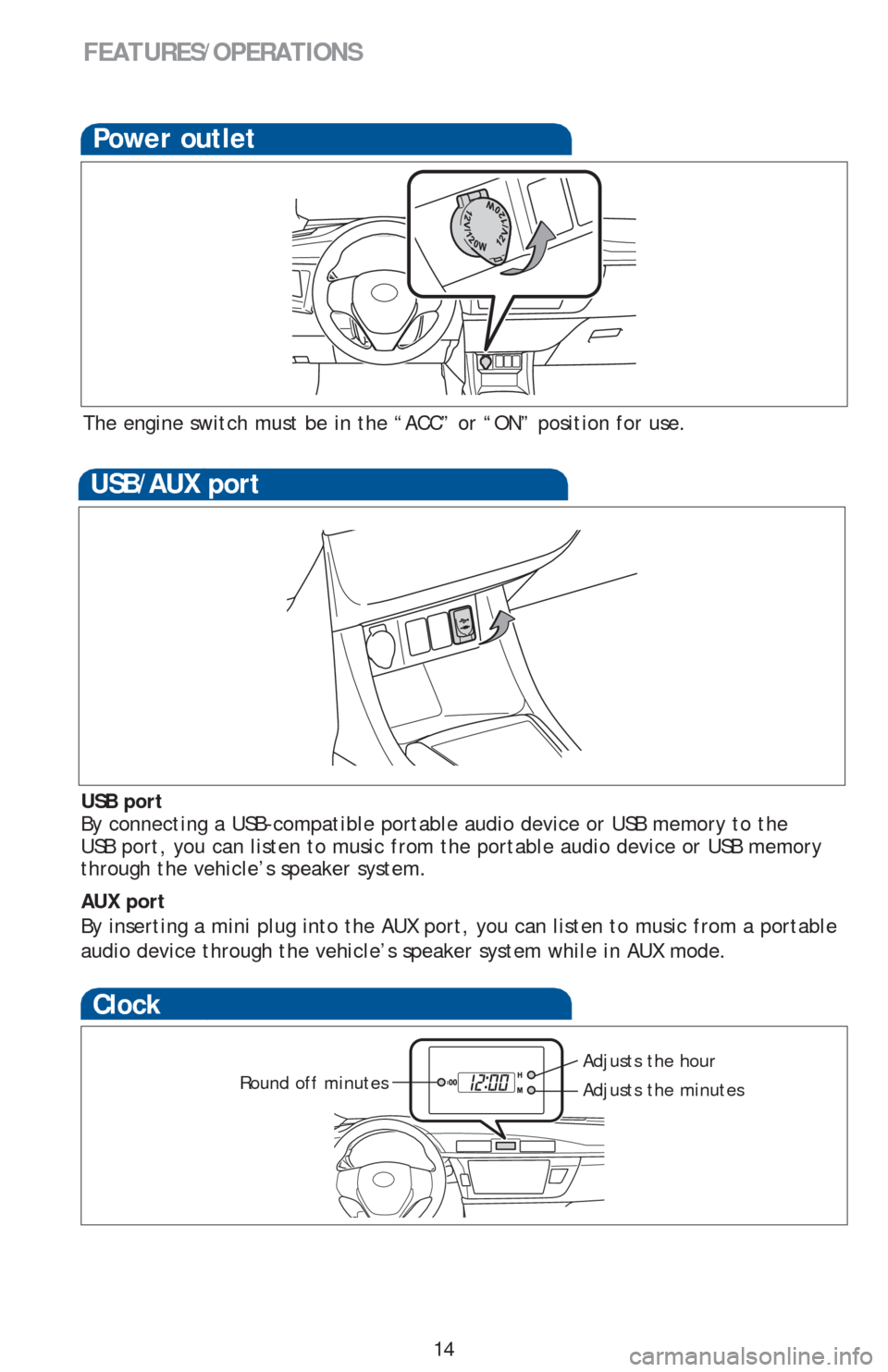

USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
USB/AUX port
Power outlet
The engine switch must be in the “ACC” or “ON” position for use.
Clock
Adjusts the hourRound off minutesAdjusts the minutes

OVERVIEWFEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15

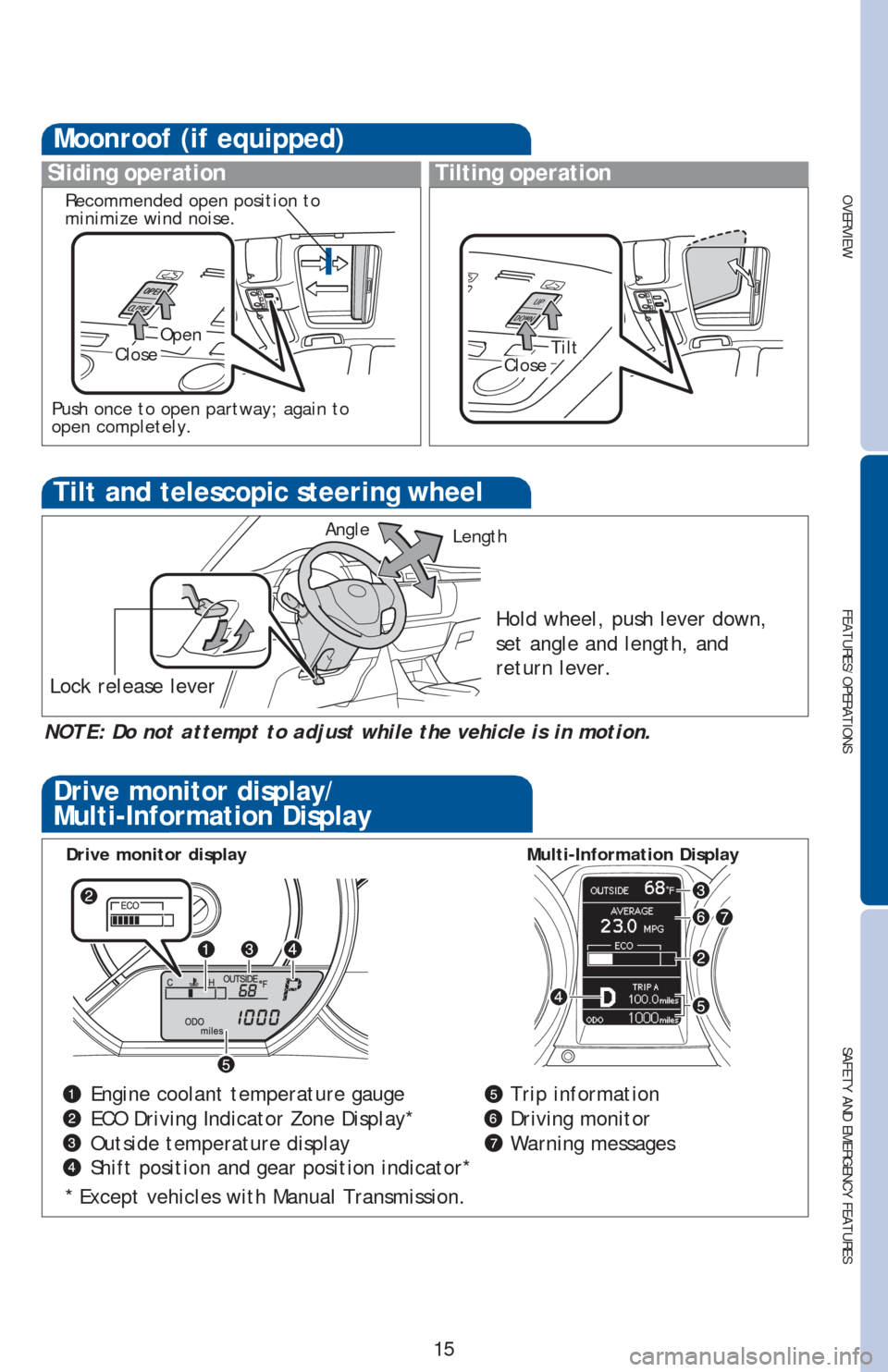

Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltCloseClose
Recommended open position to
minimize wind noise.
Push once to open partway; again to
open completely.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lock release lever
AngleLength
Hold wheel, push lever down,
set angle and length, and
return lever.
Drive monitor display/
Multi-Information Display
Drive monitor display
* Except vehicles with Manual Transmission.Engine coolant temperature gauge
ECO Driving Indicator Zone Display*
Outside temperature display
Shift position and gear position indicator*
Trip information
Driving monitor
Warning messages
Multi-Information Display

16
FEATURES/OPERATIONS

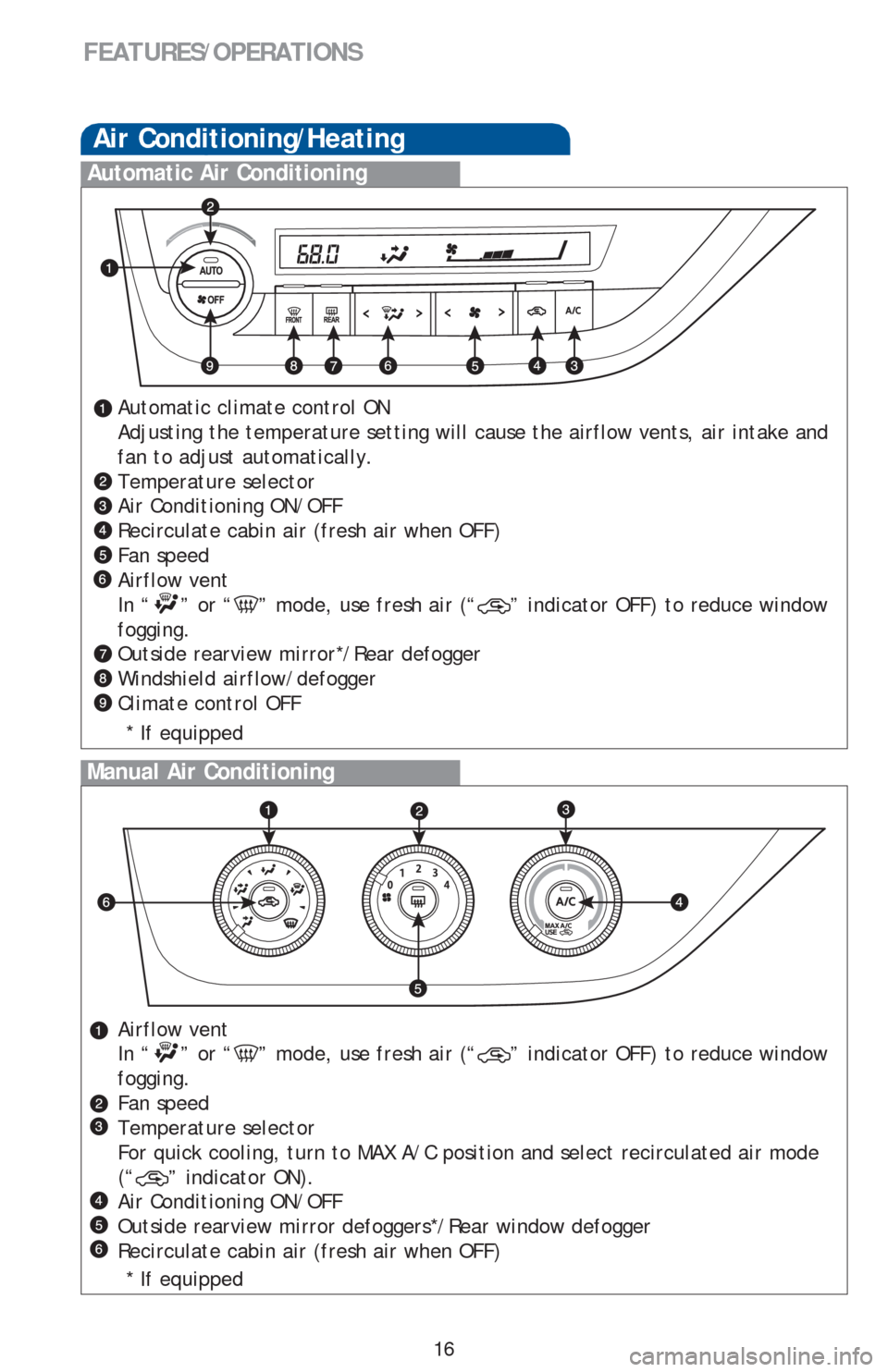

Automatic Air Conditioning
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Temperature selector
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Fan speed
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Outside rearview mirror*/Rear defogger
Windshield airflow/defogger
Climate control OFF
Air Conditioning/Heating
Manual Air Conditioning
Airflow vent
In “
” or “” mode, use fresh air (“” indicator OFF) to reduce window
fogging.
Fan speed
Temperature selector
For quick cooling, turn to MAX A/C position and select recirculated air mode
(“
” indicator ON).
Air Conditioning ON/OFF
Outside rearview mirror defoggers*/Rear window defogger
Recirculate cabin air (fresh air when OFF)
* If equipped
* If equipped

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17

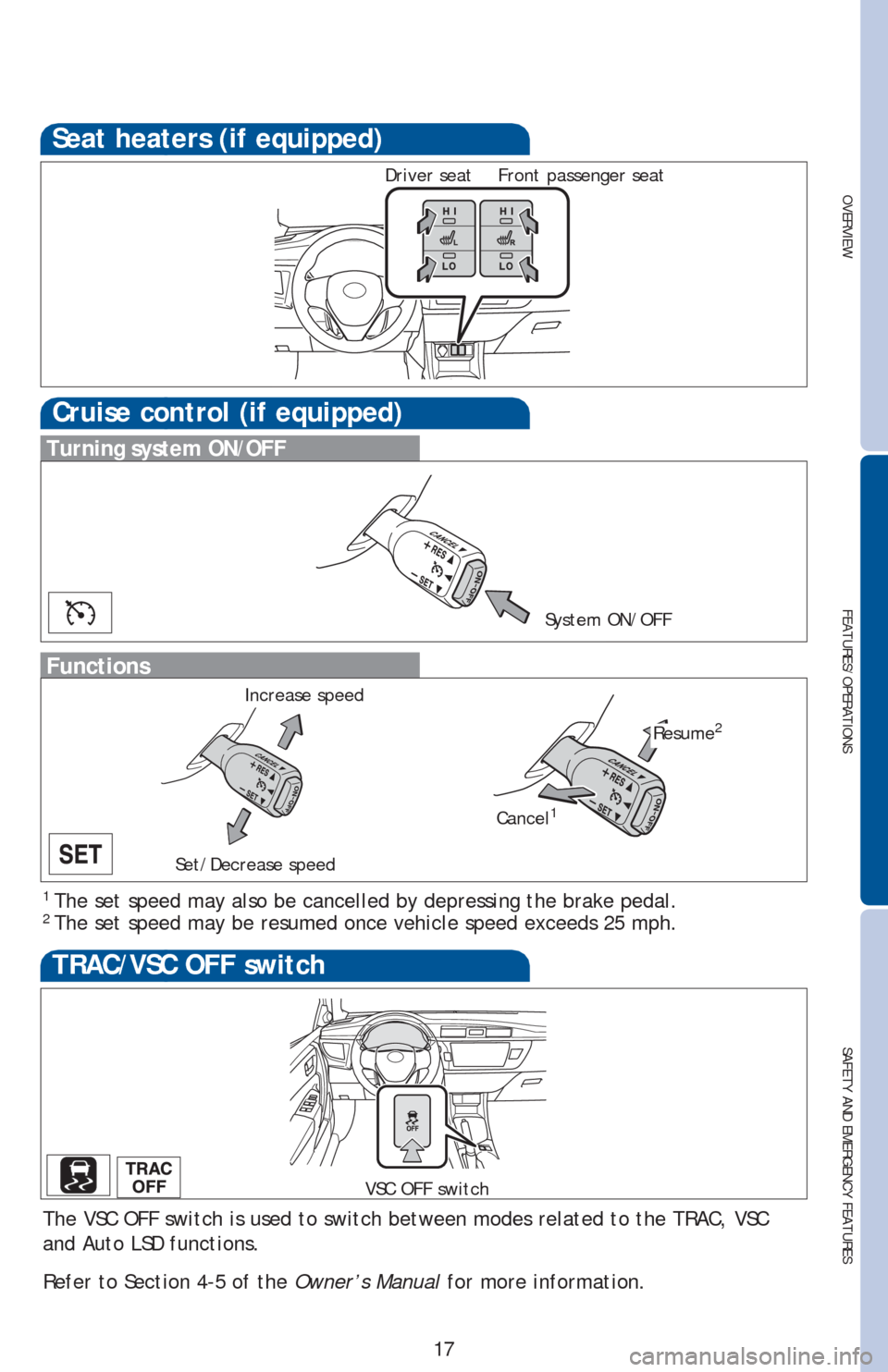

Cruise control (if equipped)
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Set/Decrease speedCancel
1
Resume2
Seat heaters (if equipped)
Driver seat Front passenger seat
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
The VSC OFF switch is used to switch between modes related to the TRAC, VSC
and Auto LSD functions.
Refer to Section 4-5 of the Owner’s Manual for more information.
VSC OFF switch
TRAC/VSC OFF switch

FEATURES/OPERATIONS

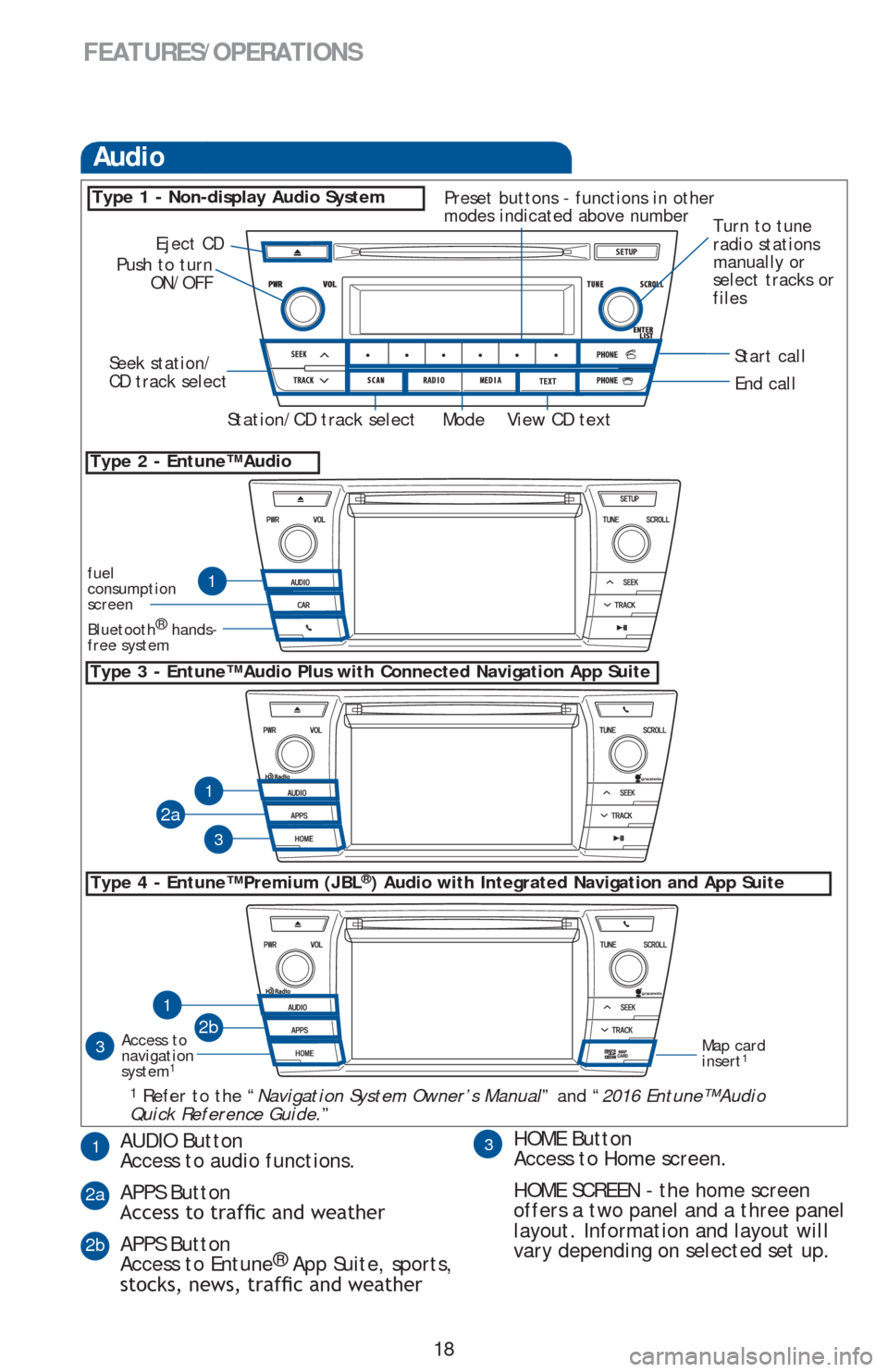

Audio
Type 1 - Non-display Audio System
Type 3 - Entune™ Audio Plus with Connected Navigation App Suite
Type 2 - Entune™ Audio
3HOME Button
Access to Home screen.
HOME SCREEN - the home screen
offers a two panel and a three panel
layout. Information and layout will
vary depending on selected set up. AUDIO Button
Access to audio functions.
APPS Button
$FFHVVWRWUDIÀFDQGZHDWKHU
APPS Button
Access to Entune®
App Suite, sports,
VWRFNVQHZVWUDIÀFDQGZHDWKHU1
2a
2b
Type 4 - Entune™ Premium (JBL®) Audio with Integrated Navigation and App Suite
1 Refer to the “Navigation System Owner’s Manual” and “2016 Entune™ Audio
Quick Reference Guide.”
18
Preset buttons - functions in other
modes indicated above number
Map card
insert1
1
Access to
navigation
system
132b
1
2a
1
3
Turn to tune
radio stations
manually or
select tracks or
files
End call Start call
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Station/CD track selectView CD text Mode
Bluetooth®
hands-
free system fuel
consumption
screen
