TOYOTA COROLLA 2017 11.G Owners Manual

2714-6. Driving tips
4
Driving
COROLLA_TMMMS_TMMC_U (OM02494U)
WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the size specified.
●Maintain the recommended level of air pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
●Use snow tires on all, not just some wheels.
■Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
●Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
●Do not use LDA (Lane Departure Alert with steering control) system.
NOTICE
■Repairing or replacing snow tires (vehicles with a tire pressure warn-
ing system)
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■Fitting tire chains (vehicles with a tire pressure warning system)
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

272
COROLLA_TMMMS_TMMC_U (OM02494U)5-1. Basic Operations
Audio system types ........... 274
Steering wheel audio switches .......................... 275
AUX port/USB port ............ 276
Entune Audio .................... 277
Basic audio operations...... 280
5-2. Setup Setup menu....................... 282
General settings ................ 283
Audio settings ................... 285
Display settings ................. 286
Voice settings.................... 287
5-3. Using Entune Audio Selecting the audio source ............................. 288
List screen operation......... 289
Optimal use of Entune Audio............................... 291
5-4. Using the radio Radio operation................. 292
5-5. Playing an audio CD and MP3/WMA/AAC discs
CD player operation .......... 294
5-6. Using an external device Listening to an iPod .......... 300
Listening to a USB memory device ............... 305
Using the AUX port ........... 309
5Audio system

273
5Audio system
COROLLA_TMMMS_TMMC_U (OM02494U)5-7. Connecting Bluetooth
®
Preparations to
use wireless
communication ................ 310
Registering a Bluetooth
®
audio player for the
first time .......................... 314
Registering a Bluetooth
®
phone for the
first time .......................... 315
Registering a Bluetooth
®
device.............................. 316
Connecting a Bluetooth
®
device.............................. 319
Displaying a Bluetooth
®
device details .................. 322
Detailed Bluetooth
®
system settings ............... 323
5-8. Bluetooth
® Audio
Listening to Bluetooth®
Audio ............................... 3245-9. Bluetooth
® phone
Using a Bluetooth®
Phone ............................. 326
Making a call ..................... 329
Receiving a call ................. 332
Speaking on the phone ..... 333
Bluetooth
® phone
message function ............ 337
Using the steering
wheel switches ................ 342
Bluetooth
® phone
settings ........................... 343
Contact/Call History
Settings ........................... 345
What to do if...
(Troubleshooting) ............ 355
5-10. Bluetooth
®
Bluetooth®......................... 359
5-11. Using the voice
command system
Voice command
system ............................ 363

274
COROLLA_TMMMS_TMMC_U (OM02494U)
5-1. Basic Operations
Entune Audio
→P. 2 7 7
Entune Audio Plus or Entune Premium Audio
Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
Audio system types

2755-1. Basic Operations
5
Audio system
COROLLA_TMMMS_TMMC_U (OM02494U)
Vo l u m e s w i t c h
• Increases/decreases volume
• Press and hold: Continuously increases/decreases volume
Cursor switch
• Selects (radio stations/radio presets/tracks/files/songs)
• Moves cursor
• Press and hold: Seeks up/down (radio stations)
• Fast up/down (tracks/files)
“MODE/HOLD” switch:
• Changes audio source
• Press and hold: Mutes or pauses the current operation.
To cancel the mute or pause, press and hold again.
Steering wheel audio switches
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
Operating the audio system using the steering wheel switches
Ty p e AType B
WARNING
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
1
2
3

2765-1. Basic Operations
COROLLA_TMMMS_TMMC_U (OM02494U)■
iPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if
it is not turned on.
■
USB memory
Open the cover and connect a USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■
Portable audio player
Open the cover and connect a portable audio player.
Turn on the power of the portable audio player if it is not turned on.
AUX port/USB port
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Select “iPod”,
“USB” or “AUX” on the audio source selection screen and the
device can be operated via audio system.
Connecting using the AUX port/USB port
WARNING
■While driving
Do not connect a device or operate the device controls.

2775-1. Basic Operations
5
Audio system
COROLLA_TMMMS_TMMC_U (OM02494U)

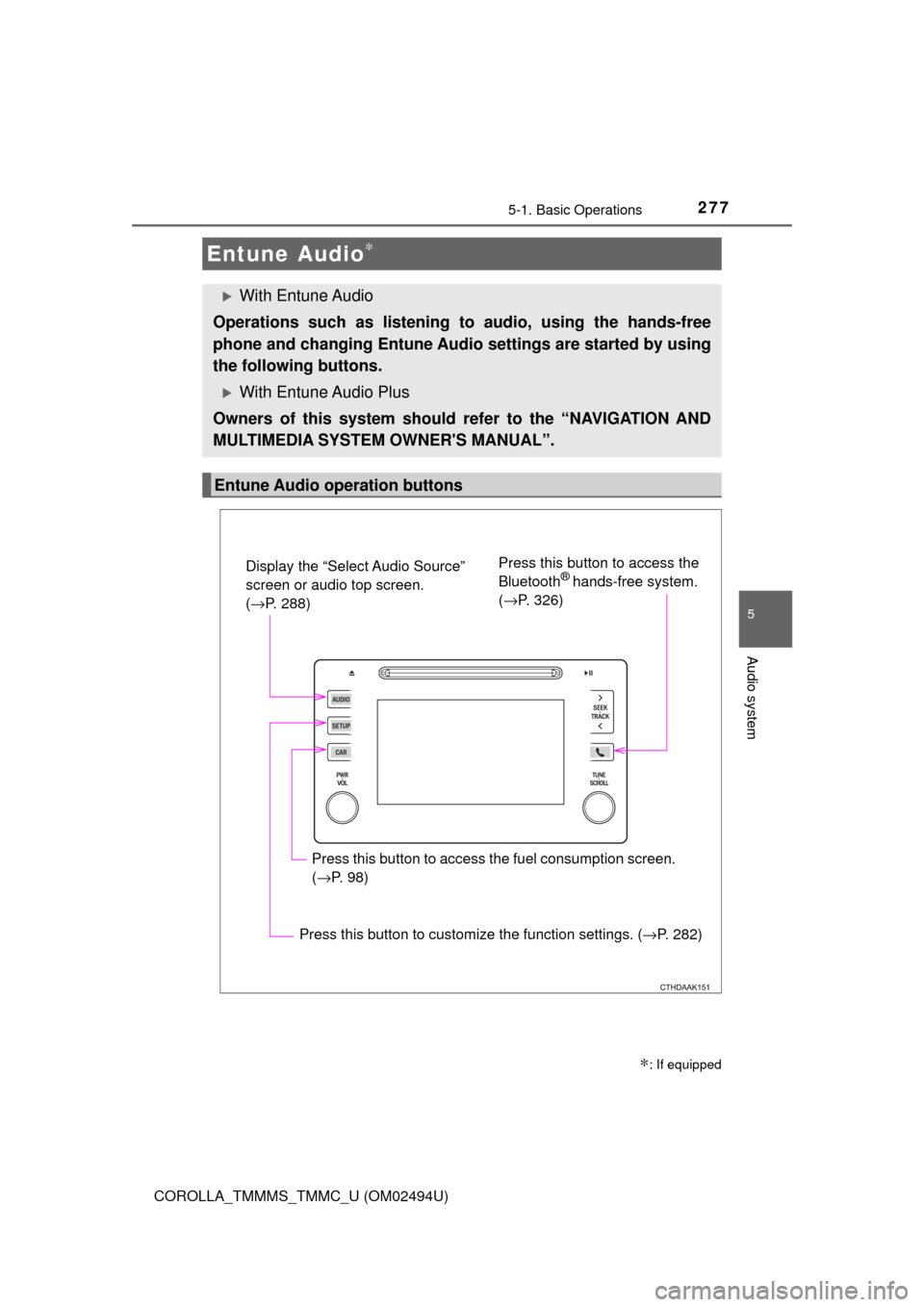

Entune Audio∗
∗: If equipped
With Entune Audio
Operations such as listening to audio, using the hands-free
phone and changing Entune Audio settings are started by using
the following buttons.
With Entune Audio Plus
Owners of this system should refer to the “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER'S MANUAL”.
Entune Audio operation buttons
Display the “Select Audio Source”
screen or audio top screen.
(→P. 288)Press this button to access the
Bluetooth® hands-free system.
(→P. 326)
Press this button to access the fuel consumption screen.
(→P. 98)
Press this button to customize the function settings. (→P. 282)

2785-1. Basic Operations
COROLLA_TMMMS_TMMC_U (OM02494U)
By touching the screen with your finger, you can control Entune Audio,
etc.
■Drag*
Touch the screen with your finger, and move the screen to the
desired position.
●Scrolling the lists
■Flick*
Touch the screen with your finger and quickly move the screen by
flicking your finger.
●Scrolling the main screen page
*: The above operations may not be performed on all screens.
■Capacitive touch switches
The control panel uses capacitive touch sensors.
●In the following cases, incorrect operation or non-response may occur.
• If the operating section is dirty or has liquid attached to it, incorrect opera-
tion or non-response may occur.
• If the operating section receives electromagnetic waves, incorrect opera-
tion or non-response may occur.
• If wearing gloves during operation, non-response may occur.
• If fingernails are used to operate the system, non-response may occur.
• If a touch pen is used to operate the system, non-response may occur.
• If the palm of your hand touches the operating section during operation,
incorrect operation may occur.
• If the palm of your hand touches the operating section, incorrect opera-
tion may occur.
• If operations are performed quickly, non-response may occur.
●Please do not reach your hand to the part of button when Entune Audio turn
on. Because the button may become unresponsive for a while. But it will be
back to normal for a given time even if Entune Audio turned on under the
condition.
■When using the touch screen
●If the screen is cold, the display may be dark, or the system may seem to be
operating slightly slower than normal.
●The screen may seem dark and hard to see when viewed through sun-
glasses. Change your angle of viewing, adjust the display on the “Display
Settings” screen (→P. 286) or remove your sunglasses.
●Flick operations may not be performed smoothly in high altitudes.
Operating the touch screen

2795-1. Basic Operations
5
Audio system
COROLLA_TMMMS_TMMC_U (OM02494U)
NOTICE
■To avoid damaging the touch screen
●To prevent damaging the screen, lightly touch the screen buttons with your
finger.
●Do not use objects other than your finger to touch the screen.
●Wipe off fingerprints using a glass cleaning cloth. Do not use chemical
cleaners to clean the screen, as they may damage the touch screen.

2805-1. Basic Operations
COROLLA_TMMMS_TMMC_U (OM02494U)

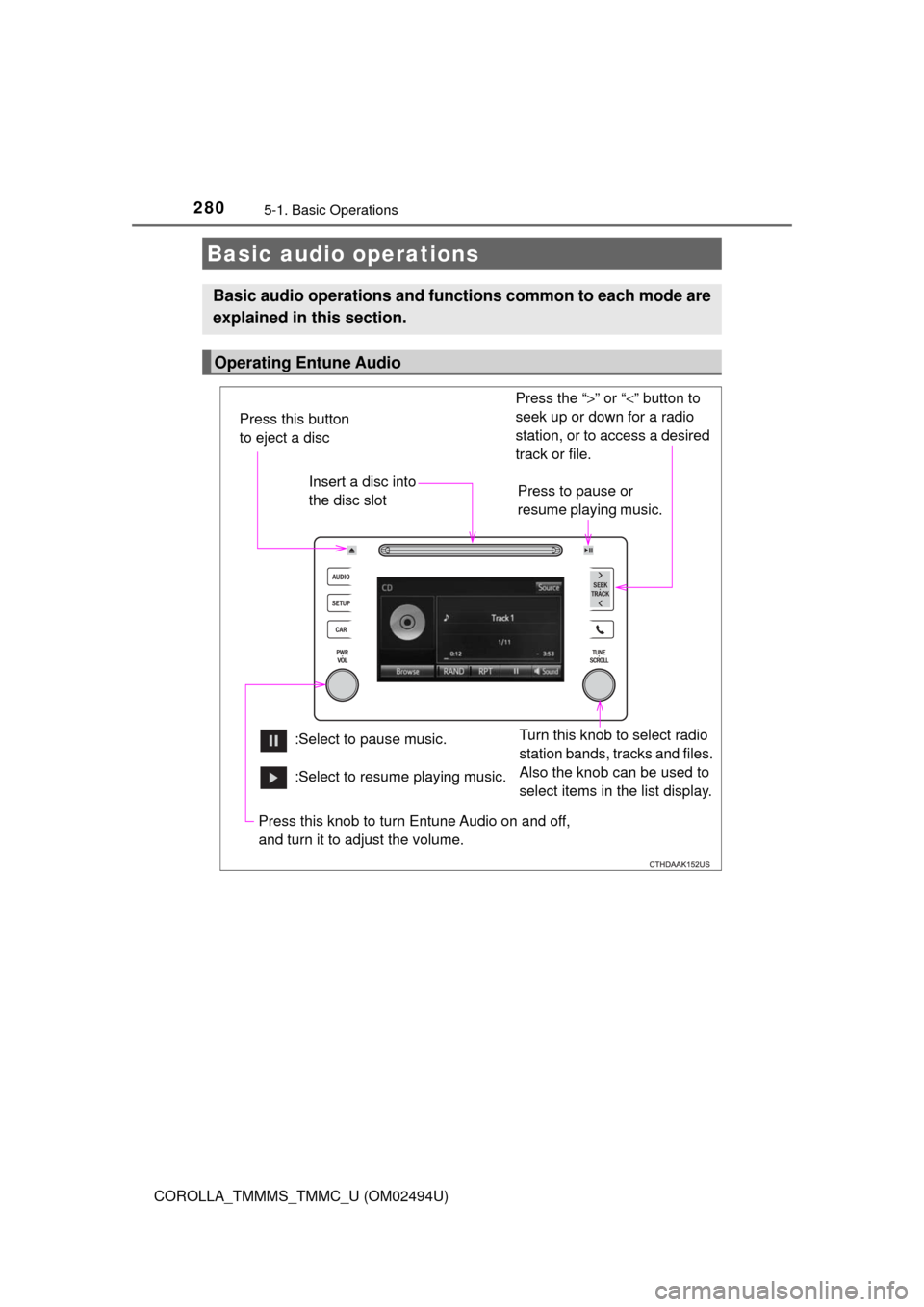

Basic audio operations
Basic audio operations and functions common to each mode are
explained in this section.
Operating Entune Audio
Press the “>” or “<” button to
seek up or down for a radio
station, or to access a desired
track or file.
Press this knob to turn Entune Audio on and off,
and turn it to adjust the volume. Press this button
to eject a disc
Press to pause or
resume playing music. Insert a disc into
the disc slot
:Select to pause music.Turn this knob to select radio
station bands, tracks and files.
Also the knob can be used to
select items in the list display.
:Select to resume playing music.
