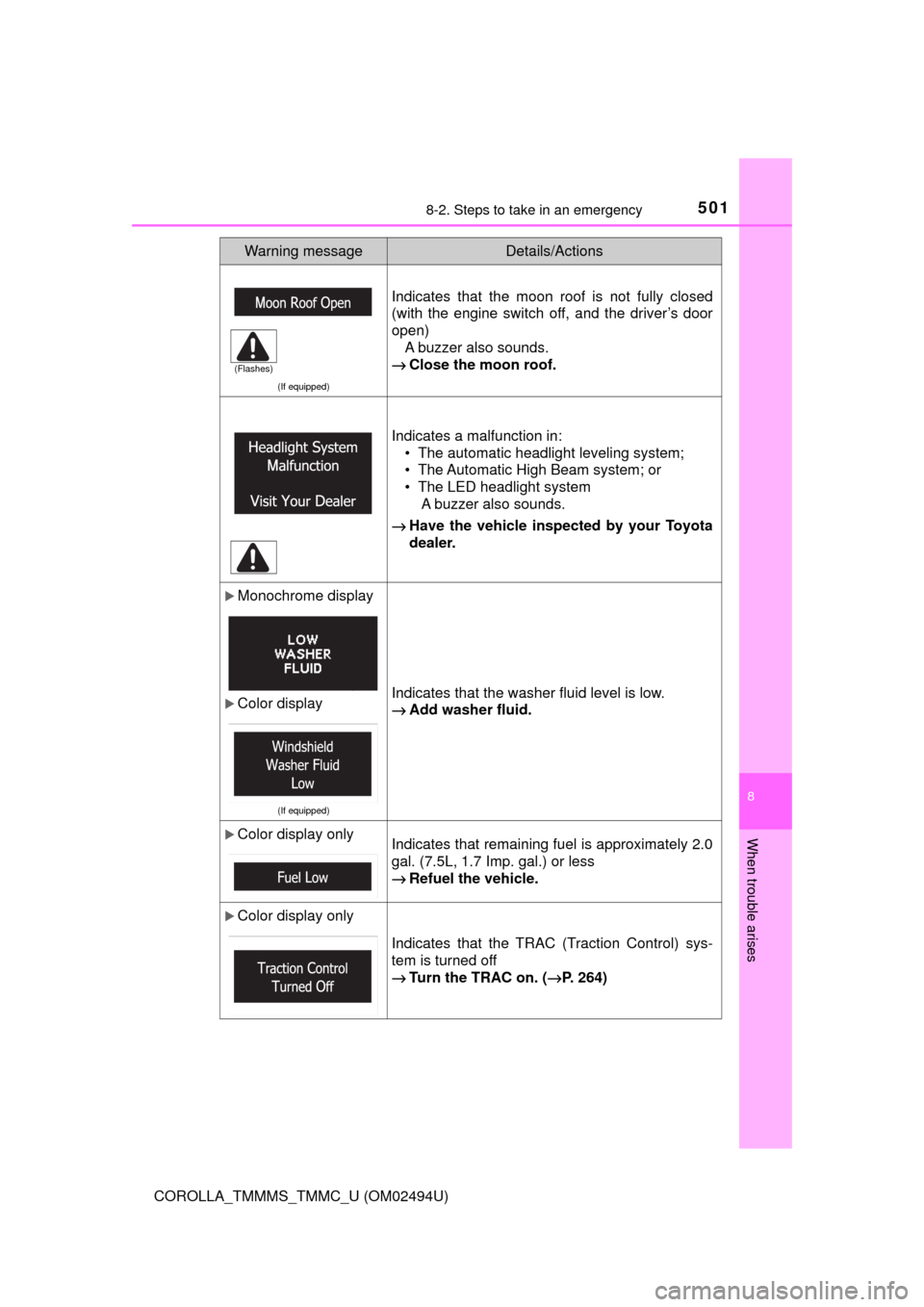

Indicates that the moon roof is not fully closed
(with the engine switch off, and the driver’s door
open)
A buzzer also sounds.
→Close the moon roof.
Indicates a malfunction in:
• The automatic headlight leveling system;
• The Automatic High Beam system; or
• The LED headlight system
A buzzer also sounds.
→Have the vehicle inspected by your Toyota
dealer.
Monochrome display
Color display
(If equipped)
Indicates that the washer fluid level is low.
→Add washer fluid.
Color display onlyIndicates that remaining fuel is approximately 2.0
gal. (7.5L, 1.7 Imp. gal.) or less
→Refuel the vehicle.
Color display only
Indicates that the TRAC (Traction Control) sys-
tem is turned off
→Turn the TRAC on. (→P. 264)
Warning messageDetails/Actions
(Flashes)

5028-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM02494U)
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle.
■Message displays
Message displays used in this section are intended as examples, and may
differ from the image that is actually displayed on the multi-information dis-
play.
■Warning buzzer
→P. 489

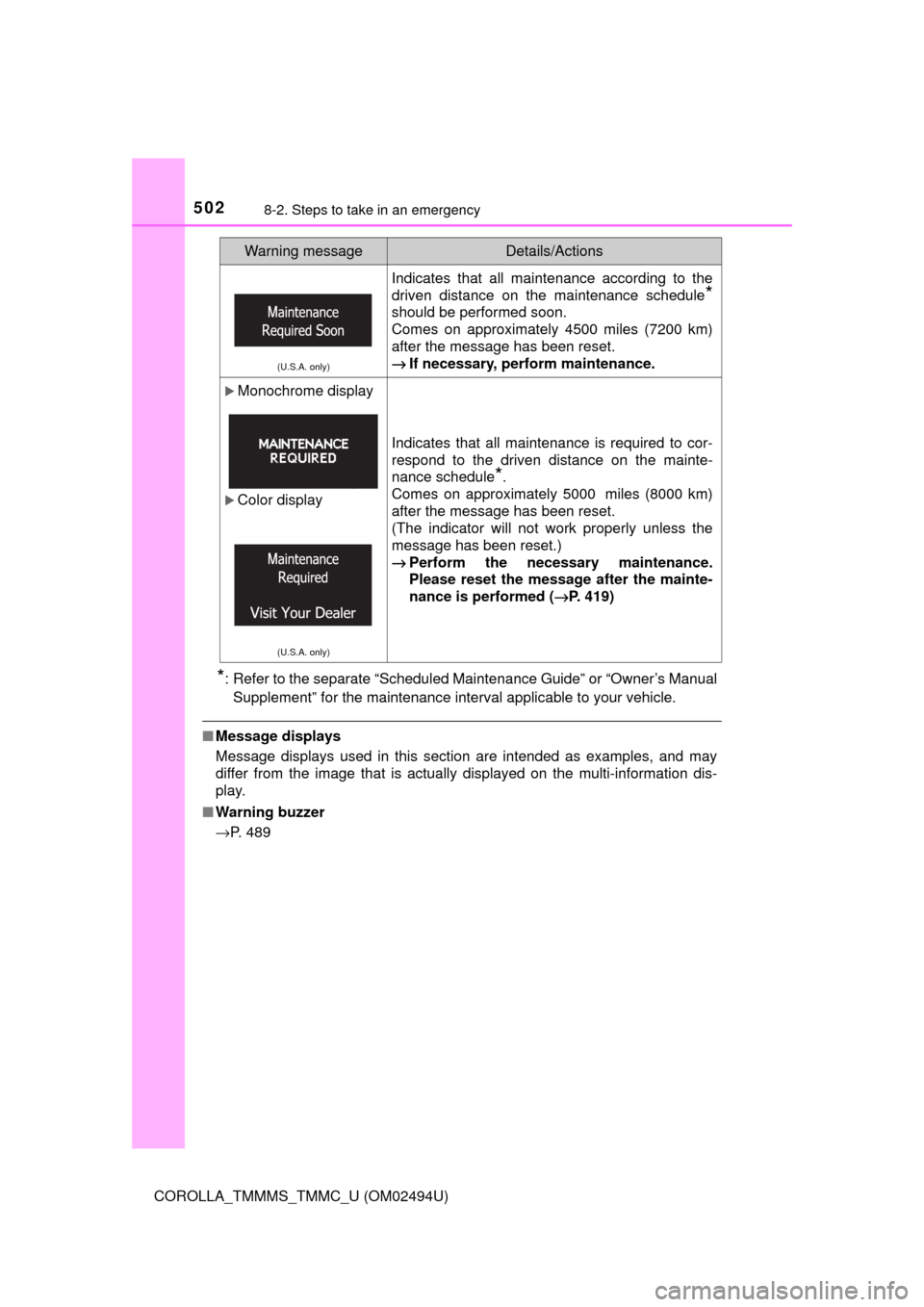

(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule
*
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the message has been reset.
→If necessary, perform maintenance.
Monochrome display
Color display
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule
*.
Comes on approximately 5000 miles (8000 km)
after the message has been reset.
(The indicator will not work properly unless the
message has been reset.)
→Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed (→P. 419)
Warning messageDetails/Actions

5038-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM02494U)

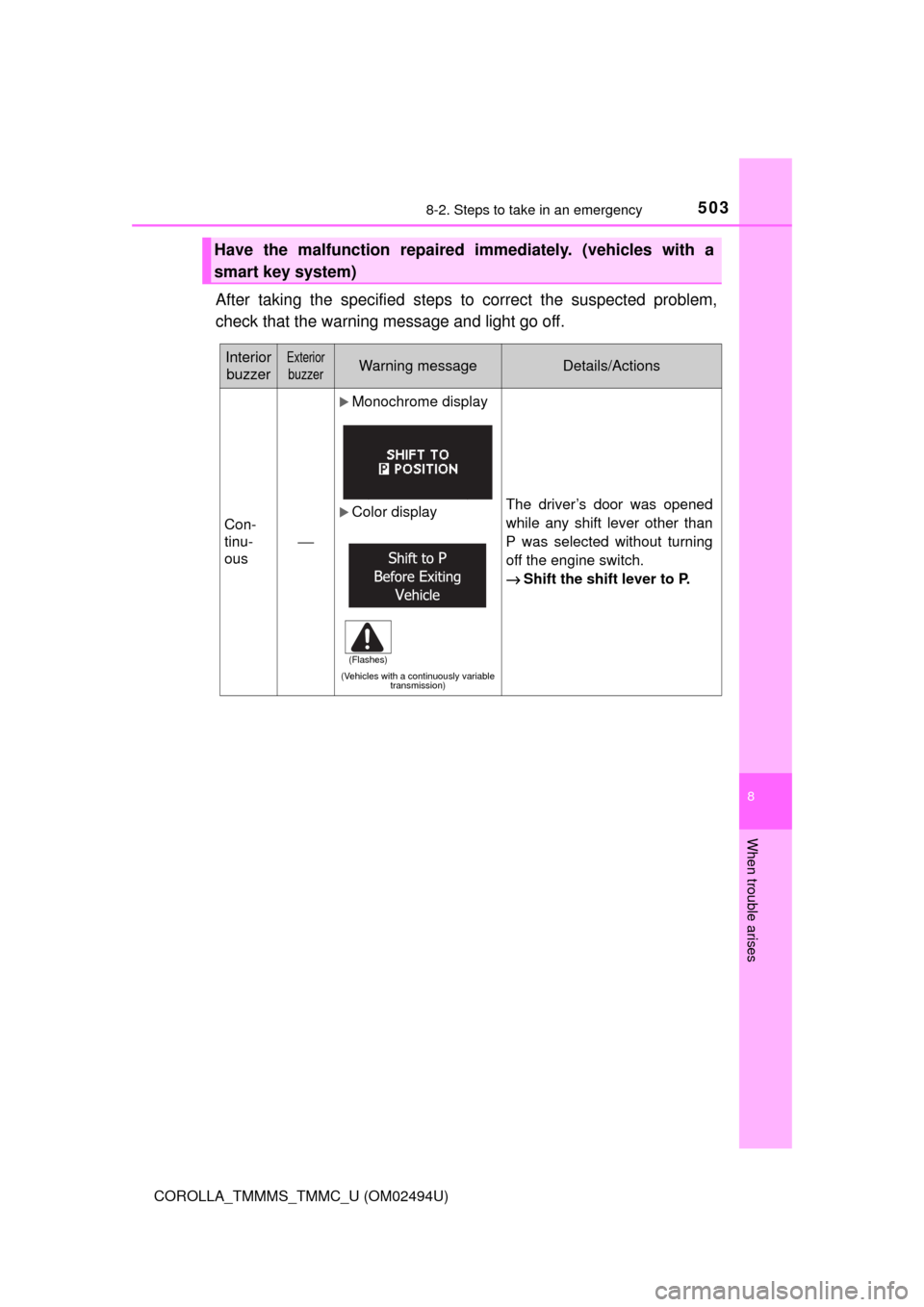

After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Have the malfunction repaired immediately. (vehicles with a
smart key system)
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
Con-
tinu-
ous⎯
Monochrome display
Color display
(Vehicles with a continuously variable
transmission)
The driver’s door was opened
while any shift lever other than
P was selected without turning
off the engine switch.
→Shift the shift lever to P.
(Flashes)

5048-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM02494U)

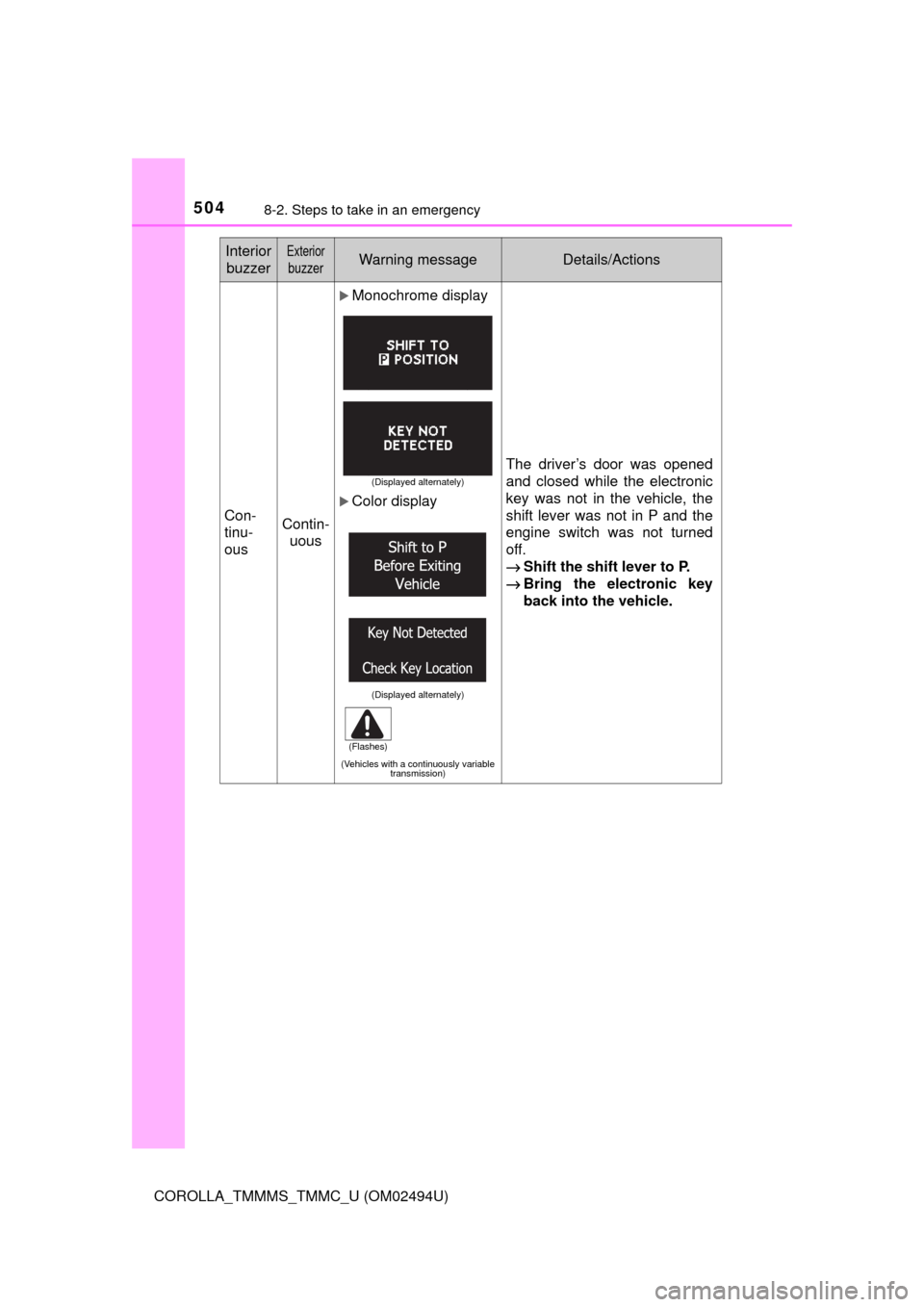

Con-
tinu-
ousContin-
uous
Monochrome display
Color display
(Vehicles with a continuously variable
transmission)
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was not in P and the
engine switch was not turned
off.
→Shift the shift lever to P.
→Bring the electronic key
back into the vehicle.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Displayed alternately)
(Displayed alternately)
(Flashes)

5058-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM02494U)

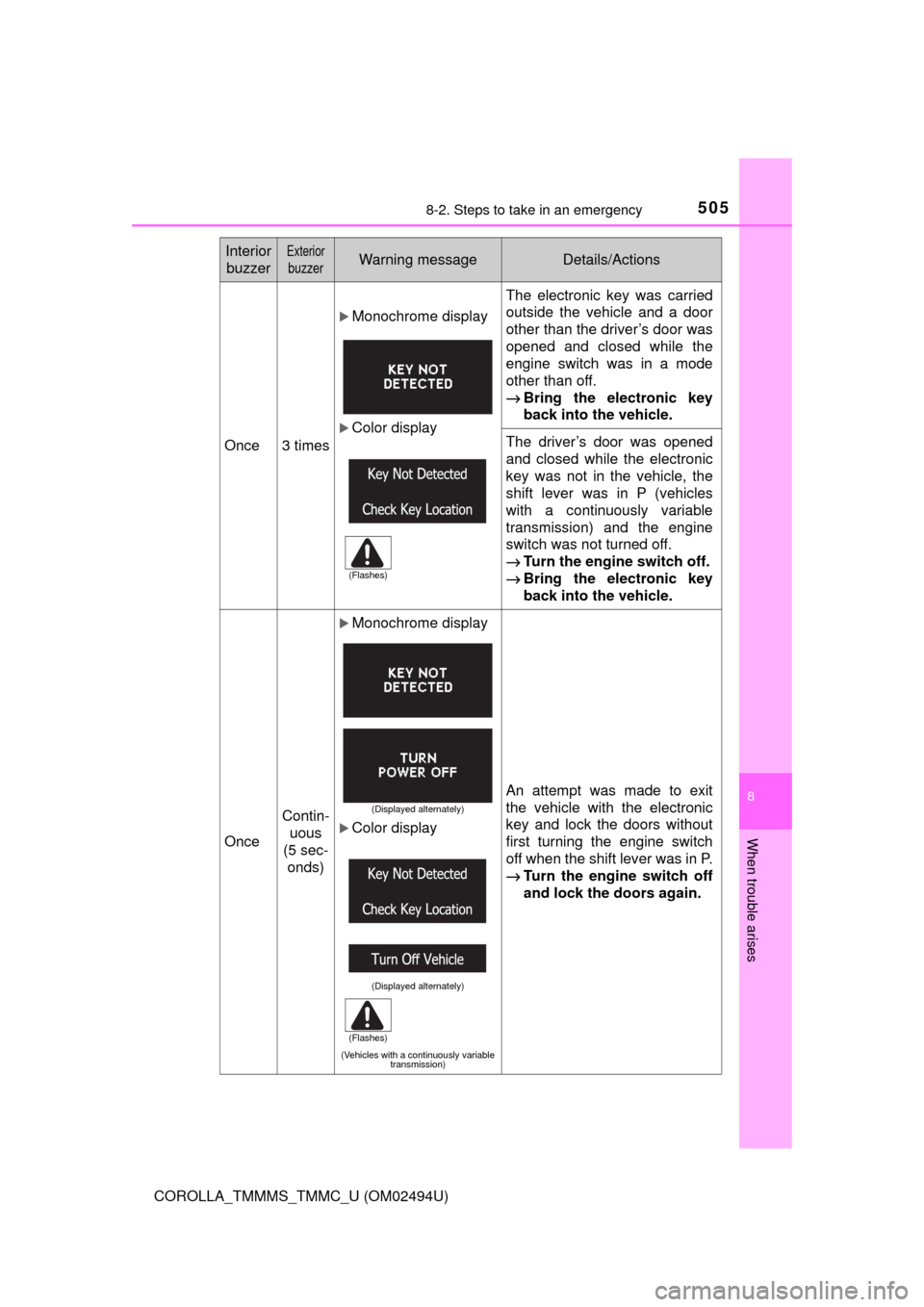

Once3 times
Monochrome display
Color display
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
engine switch was in a mode
other than off.
→Bring the electronic key
back into the vehicle.
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was in P (vehicles
with a continuously variable
transmission) and the engine
switch was not turned off.
→Turn the engine switch off.
→Bring the electronic key
back into the vehicle.
Once
Contin-
uous
(5 sec-
onds)
Monochrome display
Color display
(Vehicles with a continuously variable
transmission)
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the engine switch
off when the shift lever was in P.
→Turn the engine switch off
and lock the doors again.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Displayed alternately)
(Displayed alternately)
(Flashes)

5068-2. Steps to take in an emergency

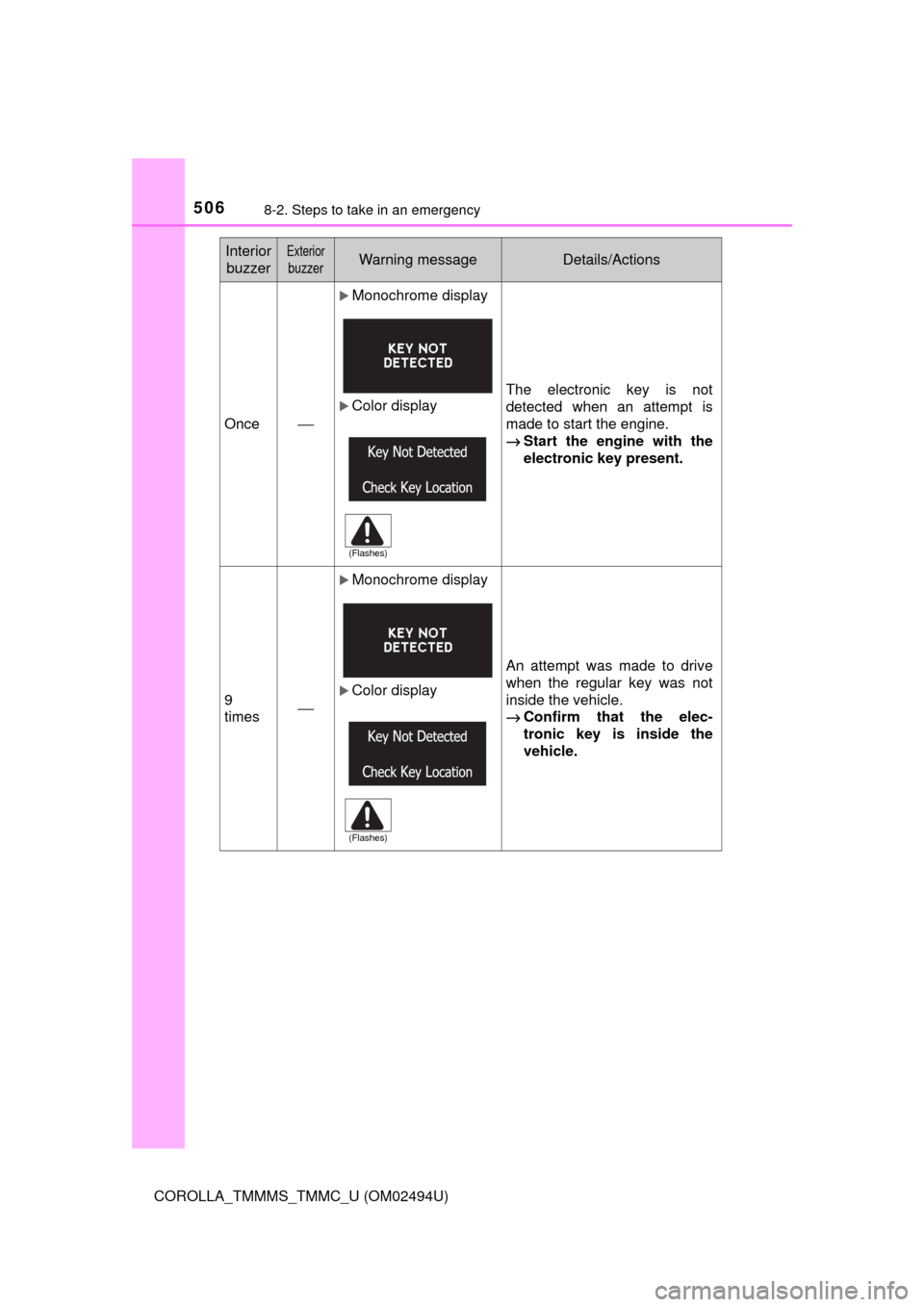

COROLLA_TMMMS_TMMC_U (OM02494U)Once⎯
Monochrome display
Color displayThe electronic key is not
detected when an attempt is
made to start the engine.
→Start the engine with the
electronic key present.
9
times⎯
Monochrome display
Color display
An attempt was made to drive
when the regular key was not
inside the vehicle.
→Confirm that the elec-
tronic key is inside the
vehicle.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

5078-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM02494U)
⎯
Contin-
uous
(5 sec-
onds)
Monochrome display
Color display

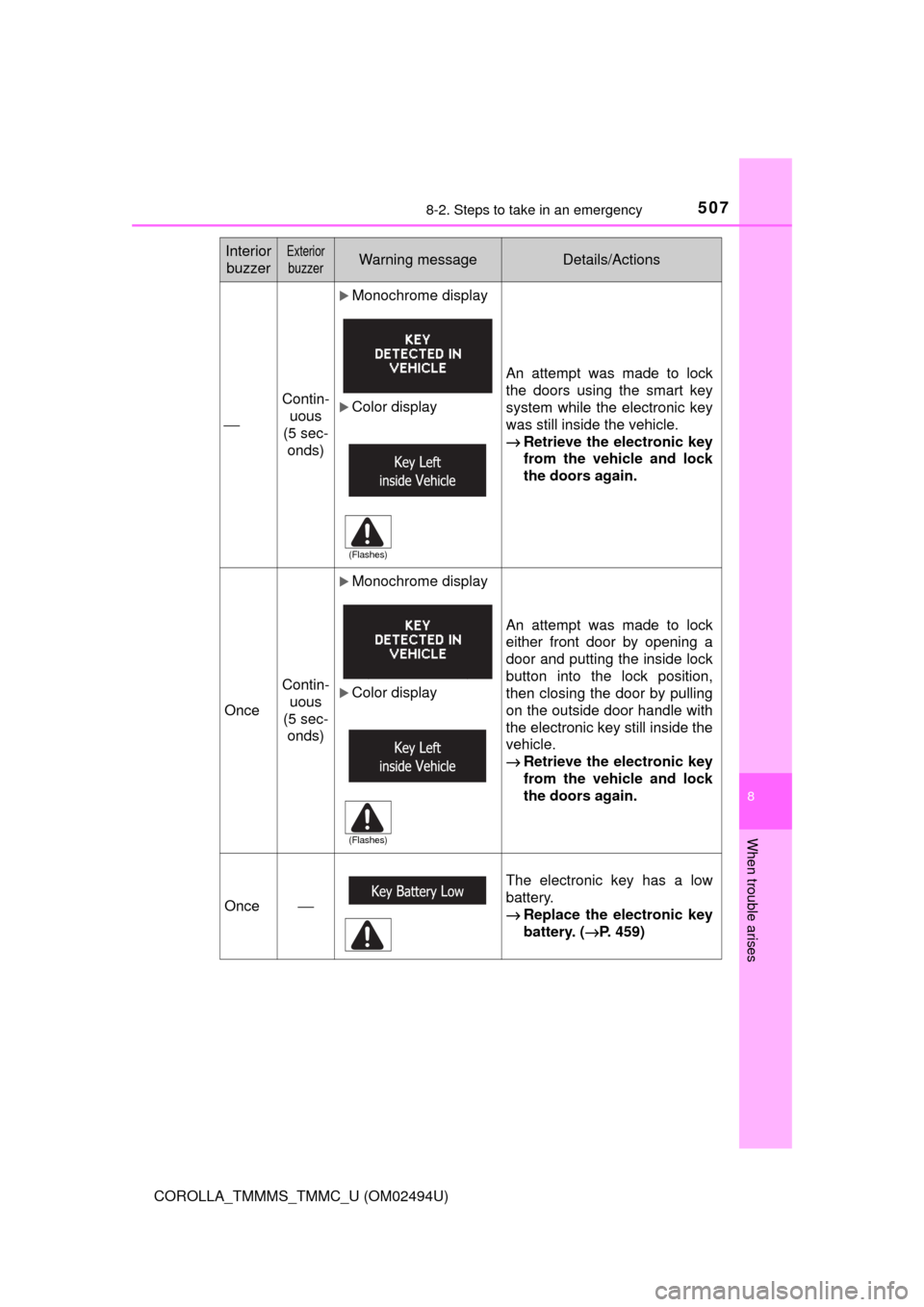

An attempt was made to lock
the doors using the smart key
system while the electronic key
was still inside the vehicle.
→Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
Contin-
uous
(5 sec-
onds)
Monochrome display
Color display
An attempt was made to lock
either front door by opening a
door and putting the inside lock
button into the lock position,
then closing the door by pulling
on the outside door handle with
the electronic key still inside the
vehicle.
→Retrieve the electronic key
from the vehicle and lock
the doors again.
Once⎯
The electronic key has a low
battery.
→Replace the electronic key
battery. (→P. 459)
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

5088-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM02494U)

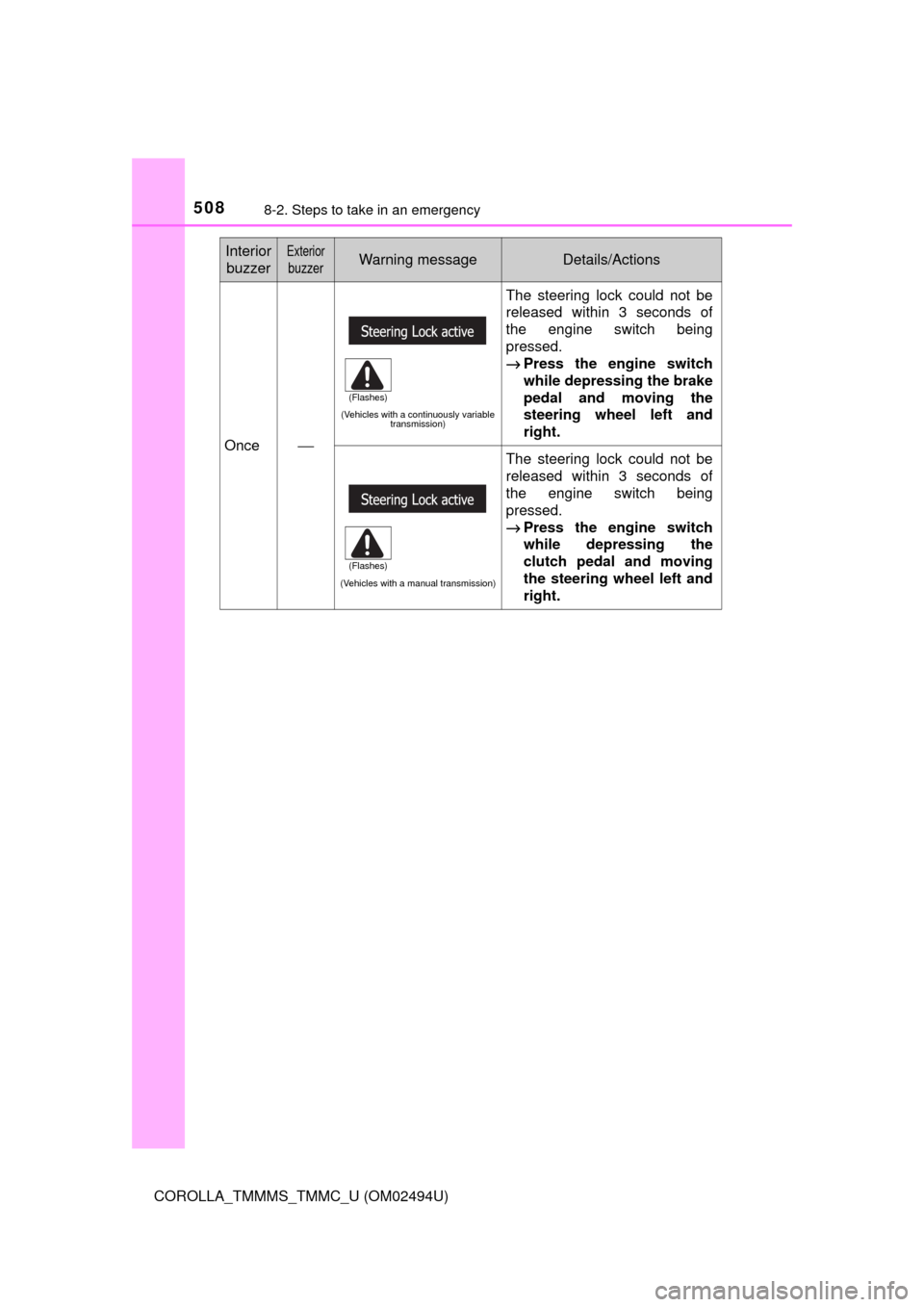

Once⎯
(Vehicles with a continuously variable
transmission)
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
→Press the engine switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
(Vehicles with a manual transmission)
The steering lock could not be
released within 3 seconds of
the engine switch being
pressed.
→Press the engine switch
while depressing the
clutch pedal and moving
the steering wheel left and
right.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

5098-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM02494U)

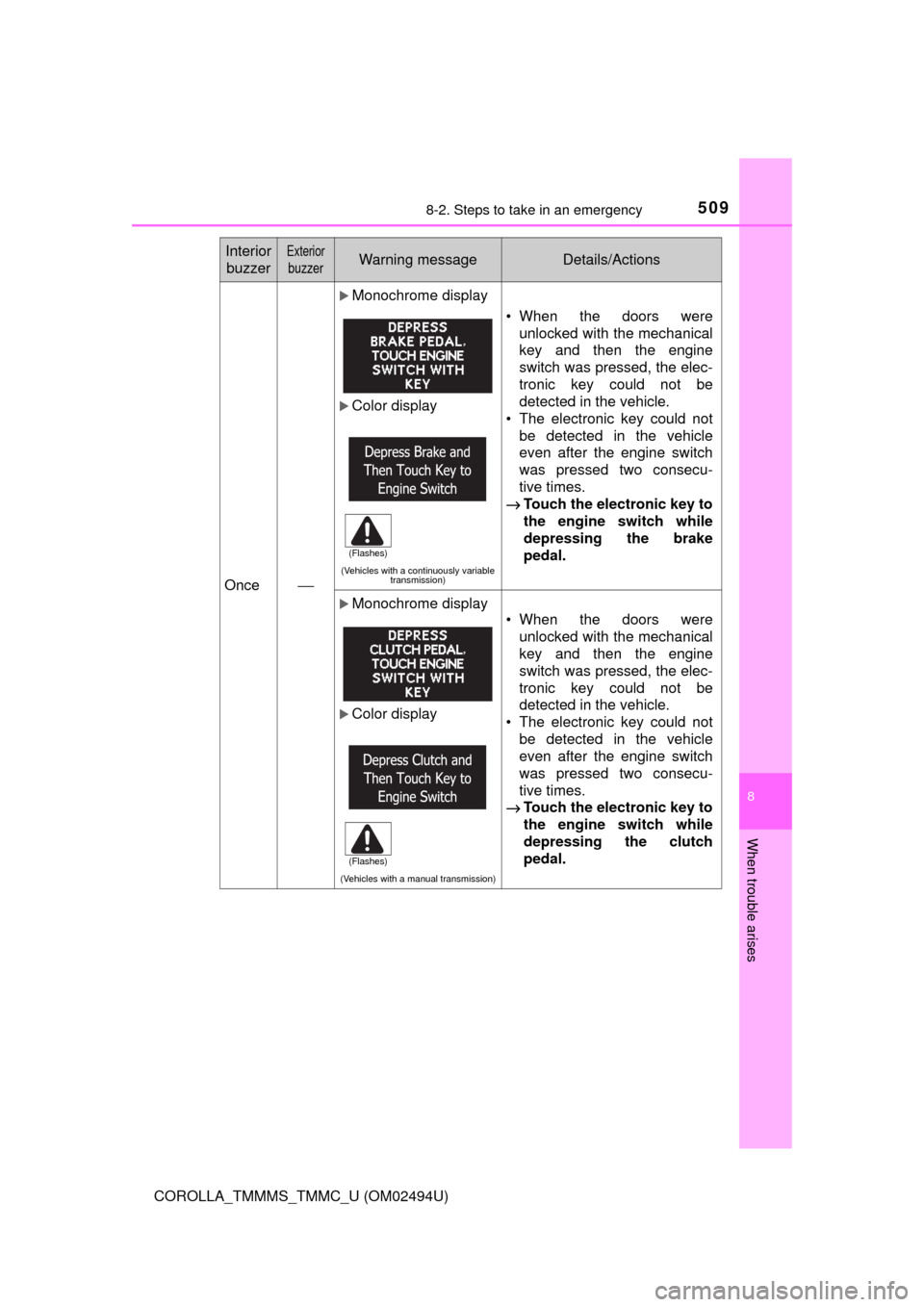

Once⎯
Monochrome display
Color display
(Vehicles with a continuously variable
transmission)
• When the doors were
unlocked with the mechanical
key and then the engine
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
→Touch the electronic key to
the engine switch while
depressing the brake
pedal.
Monochrome display
Color display
(Vehicles with a manual transmission)
• When the doors were
unlocked with the mechanical
key and then the engine
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
→Touch the electronic key to
the engine switch while
depressing the clutch
pedal.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)

5108-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM02494U)

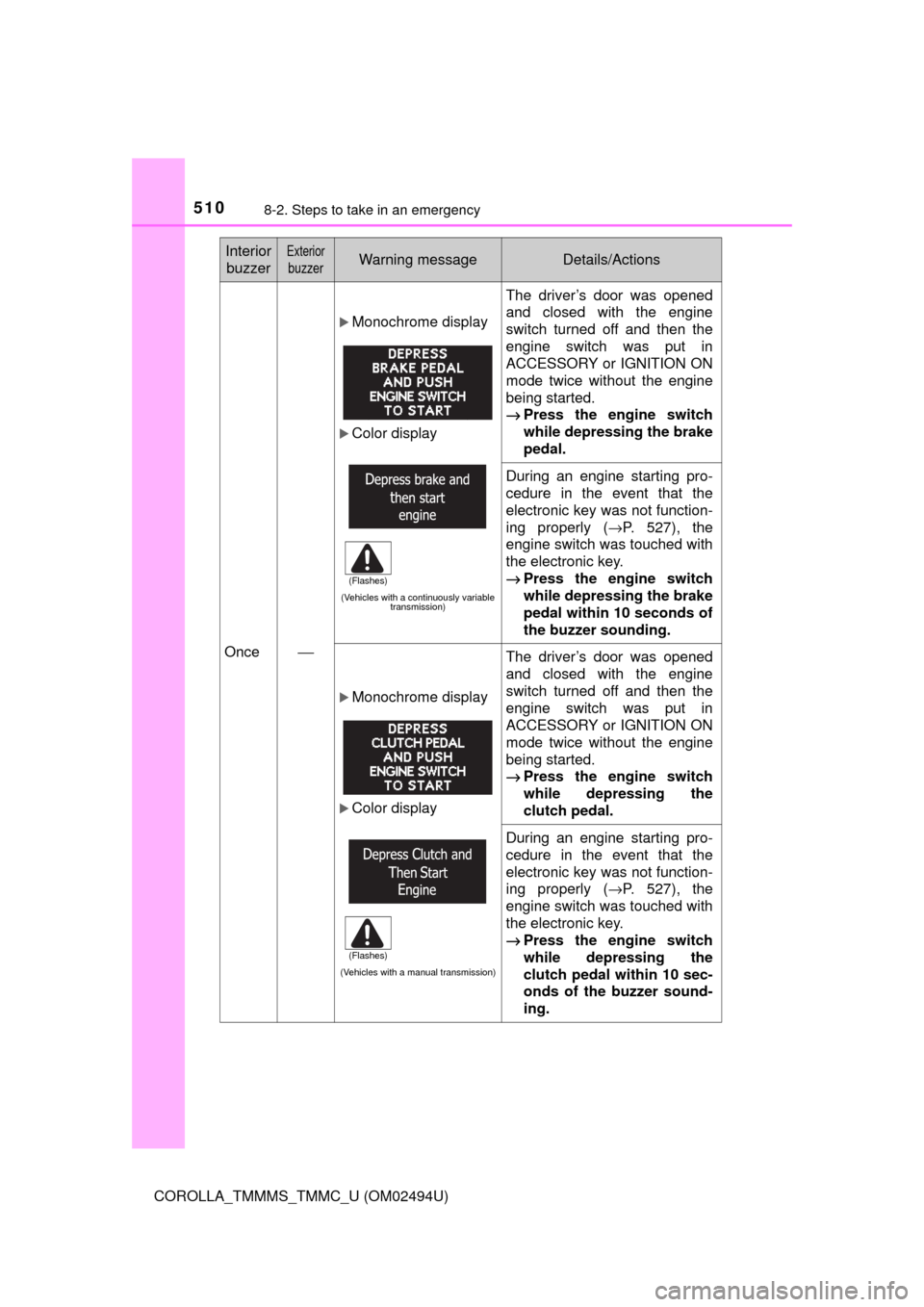

Once⎯
Monochrome display
Color display
(Vehicles with a continuously variable
transmission)
The driver’s door was opened
and closed with the engine
switch turned off and then the
engine switch was put in
ACCESSORY or IGNITION ON
mode twice without the engine
being started.
→Press the engine switch
while depressing the brake
pedal.
During an engine starting pro-
cedure in the event that the
electronic key was not function-
ing properly (→P. 527), the
engine switch was touched with
the electronic key.
→Press the engine switch
while depressing the brake
pedal within 10 seconds of
the buzzer sounding.
Monochrome display
Color display
(Vehicles with a manual transmission)
The driver’s door was opened
and closed with the engine
switch turned off and then the
engine switch was put in
ACCESSORY or IGNITION ON
mode twice without the engine
being started.
→Press the engine switch
while depressing the
clutch pedal.
During an engine starting pro-
cedure in the event that the
electronic key was not function-
ing properly (→P. 527), the
engine switch was touched with
the electronic key.
→Press the engine switch
while depressing the
clutch pedal within 10 sec-
onds of the buzzer sound-
ing.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
