display TOYOTA COROLLA 2017 11.G Quick Reference Guide

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1,2 6-7
Light control-Instrument cluster 9
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 16
Audio 18
Auto lock/unlock1,2 11
Auxiliary storage 20
Clock 14
Continuously variable transmission 10
Cup holders-Adjust size 20
Multi-Information Display (MID)1 15
Lights1 & turn signals 13
Manual transmission 10
Moon roof 15
Parking brake 11
Power outlet 14
Rear view monitor system 20
Seat adjustments-Front 12
Seat heaters 17
Seats-Folding rear 12
Seats-Head restraints 12
Sport drive mode 11
Steering wheel switches &
telephone controls (Bluetooth®) 19
Tilt & telescopic steering wheel 11
TRAC/VSC OFF switch 21
USB/AUX Port 14
Windows-Power 15
Windshield wipers & washers 13
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 32
Dynamic Radar
Cruise Control (DRCC) 29-31
Lane Departure Alert with Steering
Assist function (LDA w/SA) 26-28
Pre-Collision System with Pedestrian
Detection function (PCS w/PD) 23-25
Quick overview-
Toyota Safety Sense™ P (TSS-P) 22
Sensors 22
BLUETOOTH® DEVICE PAIRING SECTION 38-47
Doors-Child safety locks 33
Floor mat installation 37
Seat belts 33
Seat belts-Shoulder belt anchor 33
Spare tire & tools 35
Star Safety SystemTM 36-37
Tire Pressure Monitoring
(warning) System (TPMS) 34
Trunk-Internal release 34
106535_2017_Corolla_QRG_D7_1_R1.indd 19/29/16 8:41 AM

2
OVERVIEW
Instrument panel
1 If equipped.2 For vehicles with Entune™ Premium Audio or Entune™ Audio Plus, refer to
“Navigation And Multimedia System Owner’s Manual.”
Steering wheel controls
with monochrome MID(L, LE, LE Eco, XLE grades)
Audio control switches2Telephone switches2Voice command switch2
Dynamic Radar Cruise Control (DRCC)switch
Meters/Multi-Information Display (MID)
Outside rear view mirror switches
Instrument cluster light control dial1
Tilt and telescopicsteering control lever
Dynamic RadarCruise Control (DRCC)Vehicle-to-vehicle distance switch
“DISP” switch1
Lane Departure Alert with Steering Assist (LDA w/SA) switch
Headlights, turn signals andAutomatic High Beam (AHB) controls
106535_2017_Corolla_QRG_D7_1_R1.indd 29/29/16 8:50 AM

4
OVERVIEW
Instrument cluster
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2-2, 2017 Owner’s
Manual.
Anti-lock Brake System warning
Automatic High Beam (AHB)indicator
Arrow direction indicatesfuel tank door position
Brake system warning1
“AIRBAG ON/OFF” indicator1
Service indicators and reminders
Monochrome display
Color display
Tachometer
Tachometer
Fuel gauge
Fuel gauge
Display change buttonEngine coolant temperature gauge
Engine coolant temperature gauge
Multi-Information Display
Multi-Information Display
Outside temperature displayOdometer/Trip meterShift position/gear position display
Speedometer
Speedometer
106535_2017_Corolla_QRG_D7_1_R1.indd 49/29/16 8:54 AM

15
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Moon roof (if equipped)
Multi-Information Display (MID)
OpenTiltCloseClose
Recommended open position to minimize wind noise.
Push once to open partway; again to open completely.
Monochrome or color display**
* Except vehicles with manual transmission. ** Location of features are different for color MID.
Windows-Power
Up
Down
Driver side
Window lock switch
Automatic operation (driver’s window only)
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains operable.
SLIDING OPERATIONTILTING OPERATION
ECO Driving Indicator Zone Display*
Driving monitor
Warning messages
Outside temperature display
Shift position and gear position indicator*
Trip informationindicator*
106535_2017_Corolla_QRG_D7_1_R1.indd 159/29/16 10:27 AM

18
FEATURES & OPERATIONS
ENTUNE™ AUDIO
ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP
ENTUNE™ PREMIUM (JBL®) AUDIO WITH INTEGRATED NAVIGATION AND APP SUITE
Bluetooth® hands-free system
AUDIO ButtonAccess to audio functions
HOME SCREEN - the home screen offers a two panel and a three panel layout. Information and layout will vary depending on selected set up.
SETUP ButtonPress this button to customize the function settings
APPS Button Access to connected navigation app
CAR Button Fuel consumption screen
HOME Button Access to Home screen
Push to turnON/OFF
Turn to tune radio stations manually or select tracks or files
Seek station/CD track select
Eject CD
Push to pause or resume playing
Touch screen display
1 Refer to the “Navigation System Owner’s Manual” and “2017 Entune™ Audio Quick Reference Guide.”
NOTE: Concentrating on the road should always be your first priority while driving. Do not use the Entune system if it will distract you.
Audio
Map card insert1
Access to navigation system1
106535_2017_Corolla_QRG_D7_1_R1.indd 189/29/16 10:28 AM

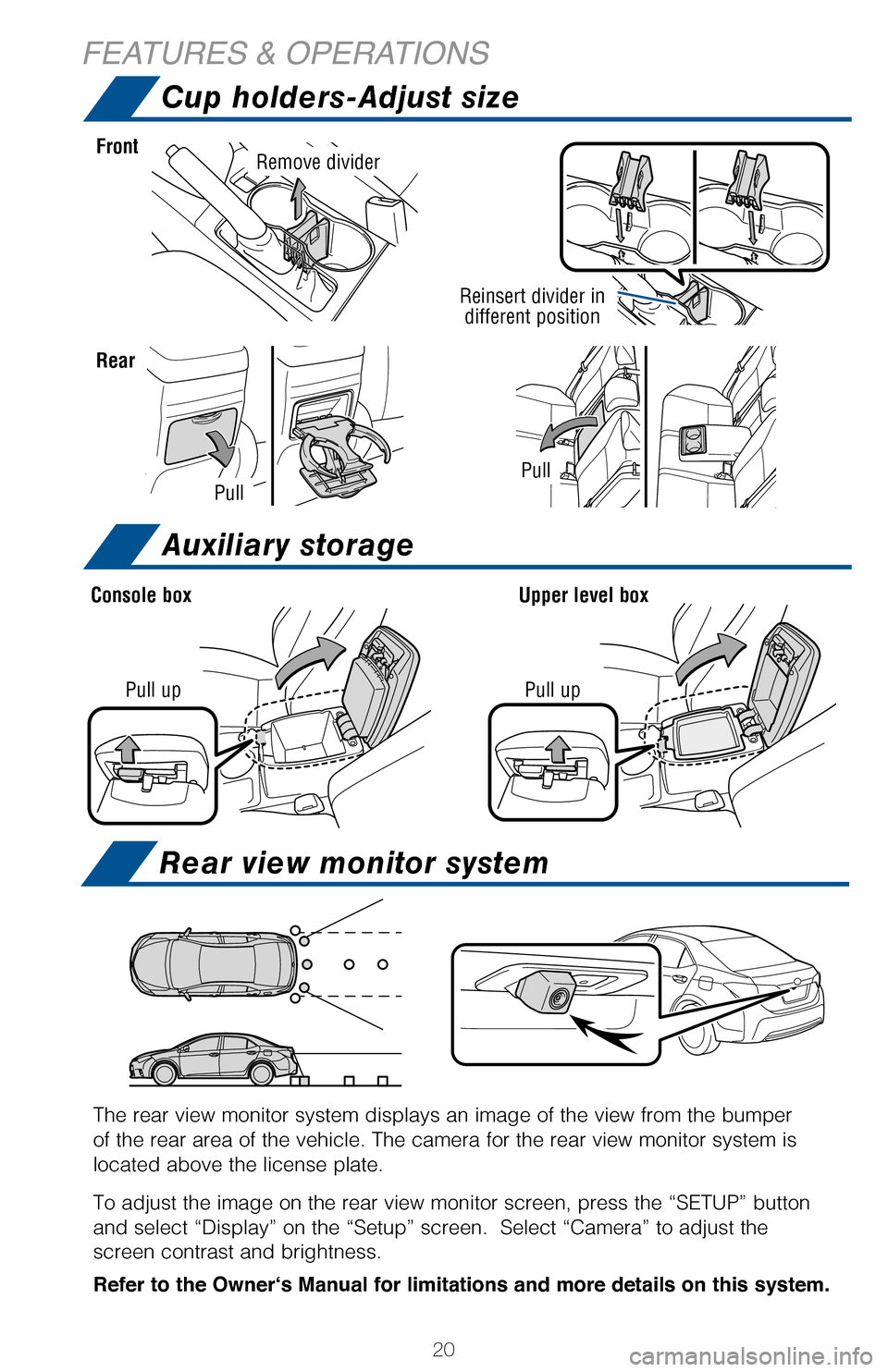

20
FEATURES & OPERATIONS
The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the
screen contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this system.
Cup holders-Adjust size
Auxiliary storage
Rear view monitor system
Reinsert divider in different position
Pull
Pull
Remove dividerFront
Rear
Console boxUpper level box
Pull upPull up
106535_2017_Corolla_QRG_D7_1_R1.indd 209/29/16 10:30 AM

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
The Pre-Collision System uses a radar sensor and camera sensor to help detect vehicles and pedestrians in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance that this system can provide, do not overly rely on this system. This system will not prevent collisions or lessen collision damage or injury in every situation. Do not use PCS instead of normal braking operations under any circumstances. Do not attempt to test the operation of the pre-collision system yourself, as the system may not operate or engage, possibly leading to an accident. In some situations, such as when driving in inclement weather such as heavy rain, fog, snow or a sandstorm or while driving on a curve and for a few seconds after driving on a curve, a vehicle may not be detected by the radar and camera sensors, preventing the system from operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations in which the system may not operate properly.
Refer to a Toyota Owner’s Manual for additional information on PCS w/PD operation,
settings adjustments, limitations, and precautions before attempting to use it.
Pre-Collision Warning When the system determines that the possibility of a frontal collision is high, a buzzer will sound and a warning message will be displayed on the Multi-Information Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist If the driver notices the hazard and brakes, the system may provide additional braking force using Brake Assist. This system may prime the brakes and may apply greater braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision Braking If the driver does not brake in a set time and the system determines that the possibility of a frontal collision with a preceding vehicle is extremely high, the system may automatically apply the brakes, reducing speed in order to help the driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection function (PCS w/PD)
106535_2017_Corolla_QRG_D7_1_R1.indd 239/29/16 10:52 AM

24
CHANGING THE PCS ALERT TIMING
FarMiddle(default)Near
TOYOTA SAFETY SENSE™
(1) Press “” switches and select from the MID.
(2) Press “or ” switches and select the setting function from the MID
and then press “”. The setting screen is displayed.
(3) Select “Sensitivity” and then press “.” Each time “” is pressed, the
response to the PCS alert timing changes as shown above. You can press “” to
go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On. The system can be disabled/enabled and the alert timing of the system can be changed. (Alert timing only, brake operation remains the same).
(1) Press the “DISP” switch to find , then press and hold to select.
(2) Press the “DISP” switch to find , then press and hold to select. The setting
screen is displayed.
(3) Press and hold the “DISP” switch to select . The response to the PCS alert
timing changes timing changes as shown above.
Using the steering wheel controls & color MID
Using the steering wheel controls & monochrome MID
Monocular camera sensor
Millimeter wave radar
As part of the Pre-Collision System, this function is also designed to first provide an alert and then automatic braking if needed.
In certain conditions, the PCS system included with the TSS-P package may also help to detect a pedestrian in front of your vehicle. With Toyota Safety Sense™ P, PCS uses an in-vehicle camera and front-grill mounted millimeter-wave radar to help detect a pedestrian in front of your vehicle in certain conditions. The in-vehicle camera of PCS detects a potential pedestrian based on size, profile, and motion of the detected pedestrian. However, a pedestrian may not be detected depending on the conditions, including the surrounding brightness and the motion, posture, size, and angle of the potential detected pedestrian, preventing the system from operating or engaging. Refer to a Toyota Owner’s Manual for additional information.
PEDESTRIAN DETECTION FUNCTION
106535_2017_Corolla_QRG_D7_1_R1.indd 249/29/16 10:53 AM

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
(1) Press “” switches and select from the MID.
(2) Press “or ” switches and select the setting function from the MID
and then press “”. The setting screen is displayed.
(3) Select and then press “.” The Pre-Collision System will be disabled.
You can press “” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On. The system can be disabled/enabled and the alert timing of the system can be changed. (Alert timing only, brake operation remains the same).
(1) Press the “DISP” switch to find , then press and hold to select.
(2) Press the “DISP” switch to find , then press and hold to select. The setting
screen is displayed.
(3) Press and hold the “DISP” switch to select . The Pre-Collision System will
be disabled.
Using the steering wheel controls & color MID
Using the steering wheel controls & monochrome MID
DISABLING THE PRE-COLLISION SYSTEM (PCS)
106535_2017_Corolla_QRG_D7_2_R2.indd 259/29/16 11:02 PM

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
(2)(1)
The LDA function displays when the Multi-Information Display (MID) is
switched to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible lane
markers on the road are detected. A side flashes orange to alert the driver when the
vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers on the
road are not detected or the function is temporarily cancelled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable.
DISABLING THE STEERING ASSIST FUNCTION
LDA FUNCTIONS
LDA function display
Lane
Lane Departure Alert (LDA) indicator (flashes amber when operating)
Lane Departure Alert (LDA) indicator flashes amber when operating
(1) Press “” switches to find and select .
(2) Press “or ” switches to find the setting function and then press
“”. The LDA Steering Assist system will be disabled.
(3) You can press “” to go back to the menu.
Note: Operation of the LDA system and setting adjustments continues in the
same condition regardless of Ignition cycle until changed by the driver or the
system is reset.
(1) Press the “DISP” switch to find , then press and hold to select.
(2) Press the “DISP” switch to find , then press and hold to select. The setting
screen is displayed.
(3) Press and hold the “DISP” switch to select “ON” or “OFF.” The LDA Steering
Assist system will be disabled.
Using the steering wheel controls & color MID
Using the steering wheel controls & monochrome MID
106535_2017_Corolla_QRG_D7_1_R1.indd 279/29/16 10:55 AM
