5318-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (01999-02509)
●The engine coolant temperature gauge ( →P. 77, 86) enters the red
zone or a loss of power is experienced.
● Steam comes out from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled
down sufficient ly, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact your
Toyota dealer.
If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

5328-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (01999-02509)

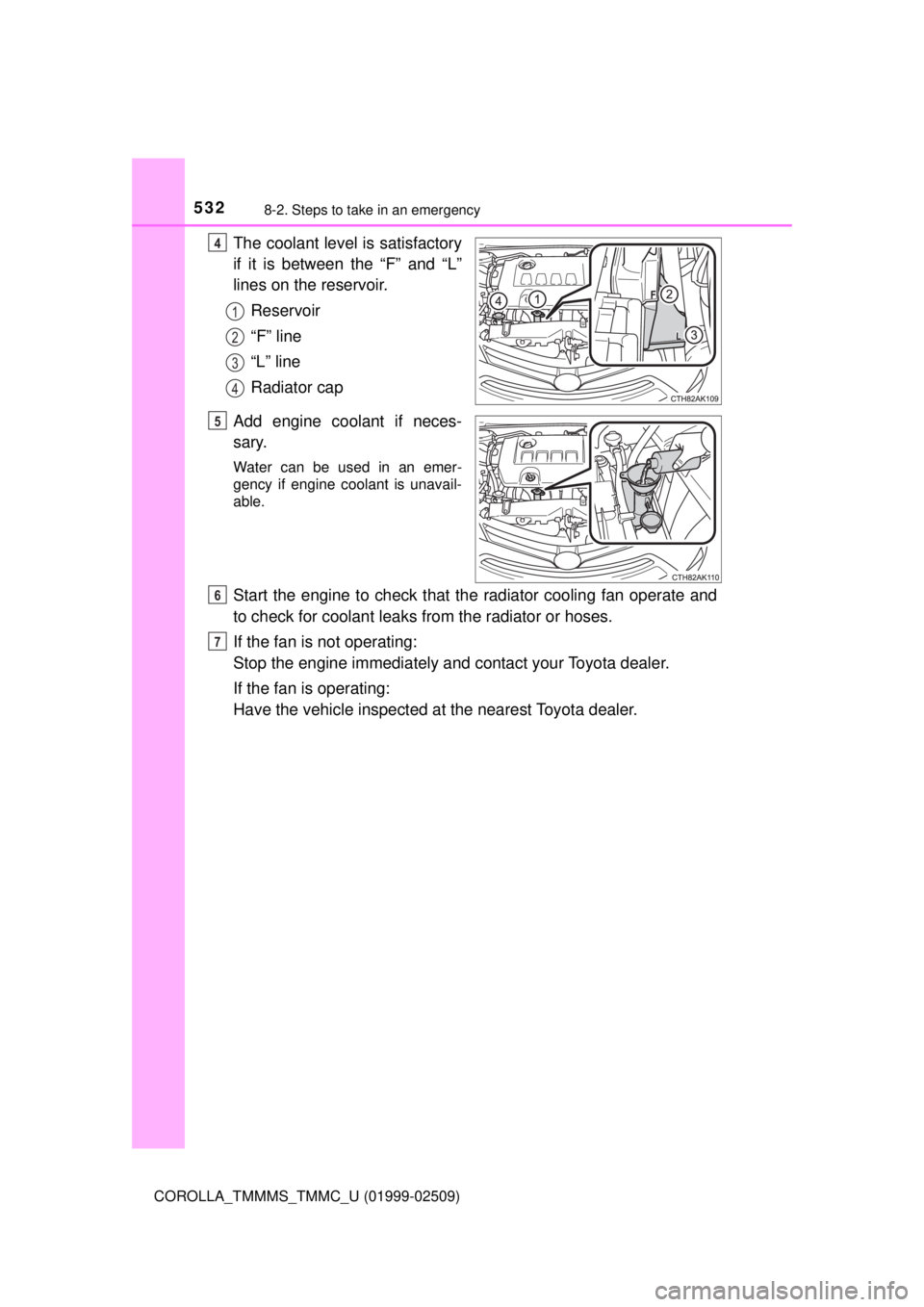

The coolant level is satisfactory
if it is between the “F” and “L”
lines on the reservoir.Reservoir
“F” line
“L” line
Radiator cap
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is unavail-
able.
Start the engine to check that the radiator cooling fan operate and
to check for coolant leaks fr om the radiator or hoses.
If the fan is not operating:
Stop the engine immediately and contact your Toyota dealer.
If the fan is operating:
Have the vehicle in spected at the nearest Toyota dealer.
4
1
2
3
4
5
6
7

5338-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (01999-02509)
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additives.
●Do not loosen the radiator cap and the
coolant reservoir cap while the engine
and radiator are hot.
High temperature steam or coolant
could spray out.

5348-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (01999-02509)
Stop the engine. Set the parking brake and shift the shift lever to P
(continuously variable transmission) or N (manual transmission).
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (cont inuously variable transmission) or
1 or R (manual transmission) and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the veh icle (vehicles with a TRAC system)

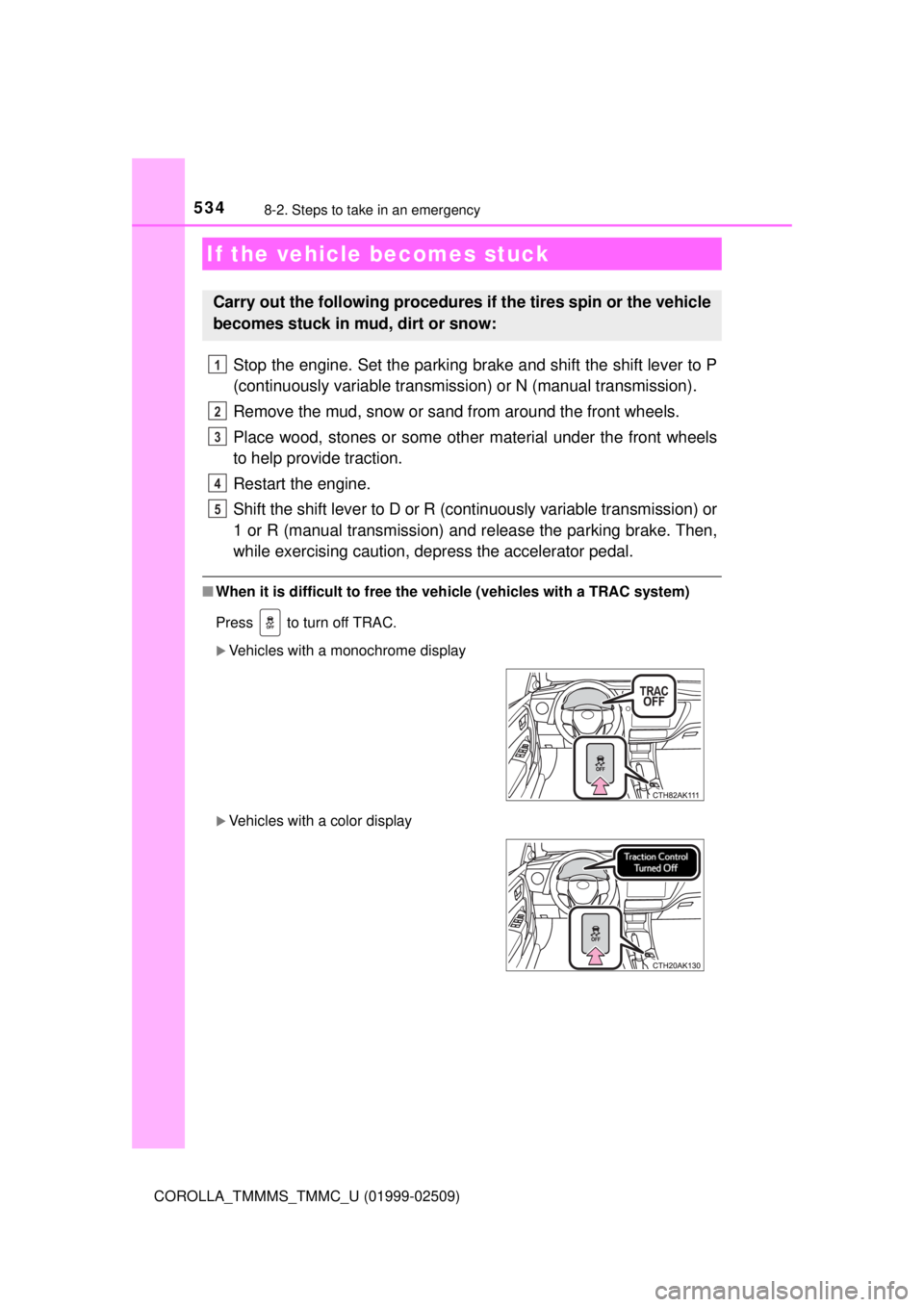

Press to turn off TRAC.
Vehicles with a monochrome display
Vehicles with a color display
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
1
2
3
4
5

5358-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (01999-02509)
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transm ission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

5368-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (01999-02509)

537
9Vehicle specifications
COROLLA_TMMMS_TMMC_U (01999-02509)9-1. Specifications
Maintenance data (fuel, oil level, etc.) .......... 538
Fuel information ................ 548
Tire information ................. 551
9-2. Customization Customizable features ...... 564
9-3. Items to initialize Items to initialize ............... 573

538
COROLLA_TMMMS_TMMC_U (01999-02509)
9-1. Specifications
*1: Unladen vehicles
*2: 195/65R15 tires
*3: P205/55R16 and P215/45R17 tires
■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
Maintenance data (f uel, oil level, etc.)
Dimensions and weights
Overall length 183.1 in. (4650 mm)
Overall width 69.9 in. (1776 mm)
Overall height*157.3 in. (1455 mm)
Wheelbase106.3 in. (2700 mm)
Tread
Front60.3 in. (1531 mm)*2
59.8 in. (1519 mm)*3
Rear60.4 in. (1534 mm)*2
59.9 in. (1522 mm)*3
Vehicle capacity weight
(occupants + luggage) 865 lb. (390 kg)
Vehicle identification

5399-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (01999-02509)

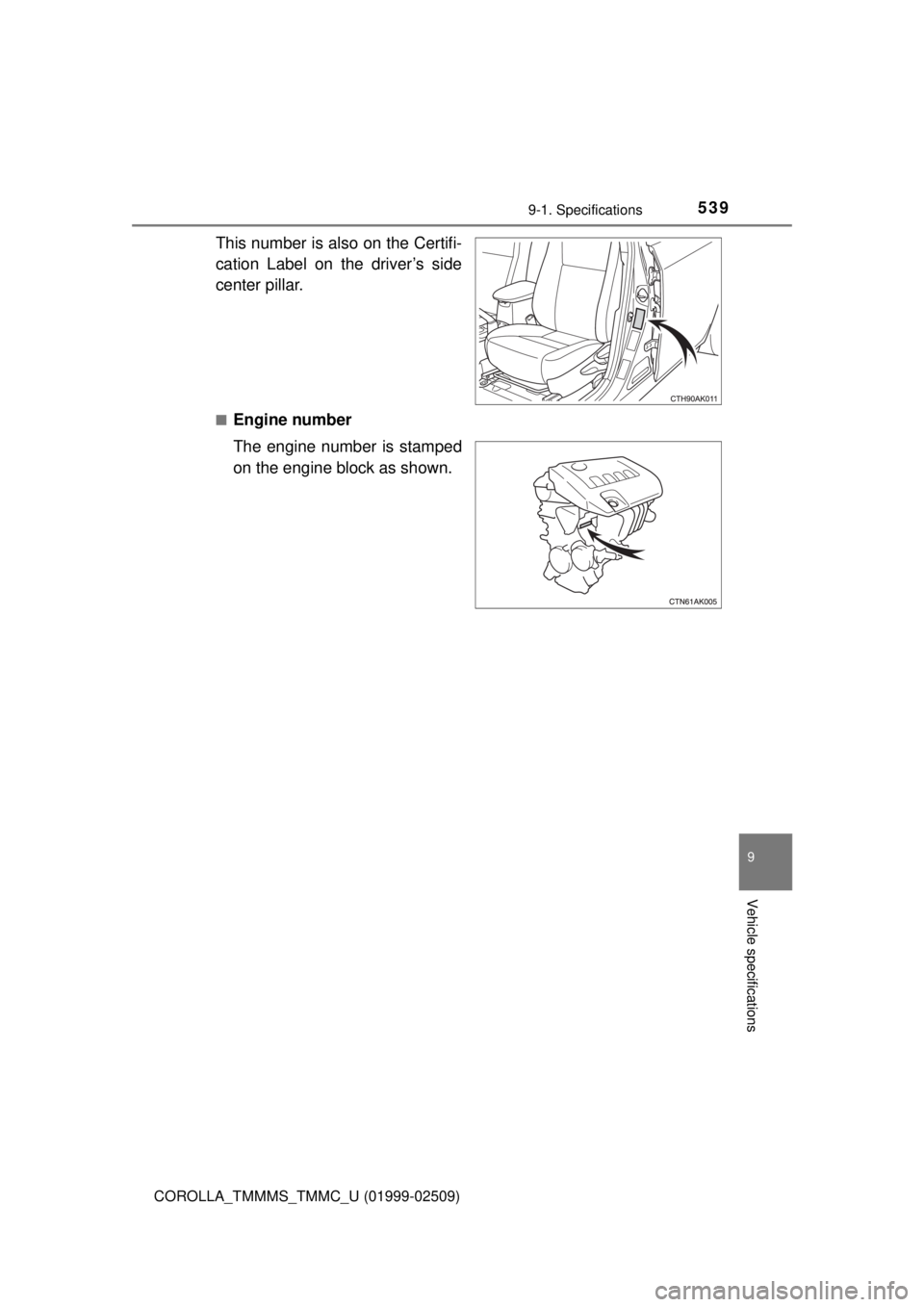

This number is also on the Certifi-
cation Label on the driver’s side
center pillar.
■Engine number
The engine number is stamped
on the engine block as shown.

5409-1. Specifications
COROLLA_TMMMS_TMMC_U (01999-02509)
*: Drive belt tension measured with Borroughs drive belt tension gauge No.BT-33-73F (used belt), lbf
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine
Model 1.8 L 4-cylinder (2ZR-FE and 2ZR-FAE) engines
Type4 cylinder in line, 4 cycle, gasoline
Bore and stroke 3.17 × 3.48 in. (80.5 × 88.3 mm)
Displacement 109.7 cu. in. (1798 cm3)
Drive belt tension
2ZR-FE*
143 ± 22 lbf (650 ± 100 N, 65 ± 10 kgf)
2ZR-FAE
Automatic adjustment
Valve clearance Automatic adjustment
Fuel
Fuel type Unleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)13.2 gal. (50 L, 10.9 Imp. gal.)
Lubrication system
Oil capacity
(Drain and refill
⎯
reference
*)
With filter
Without filter 4.4 qt. (4.2 L, 3.7 Imp. qt.)
4.1 qt. (3.9 L, 3.4 Imp. qt.)
