TOYOTA COROLLA 2018 Owners Manual (in English)

5619-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (01999-02509)

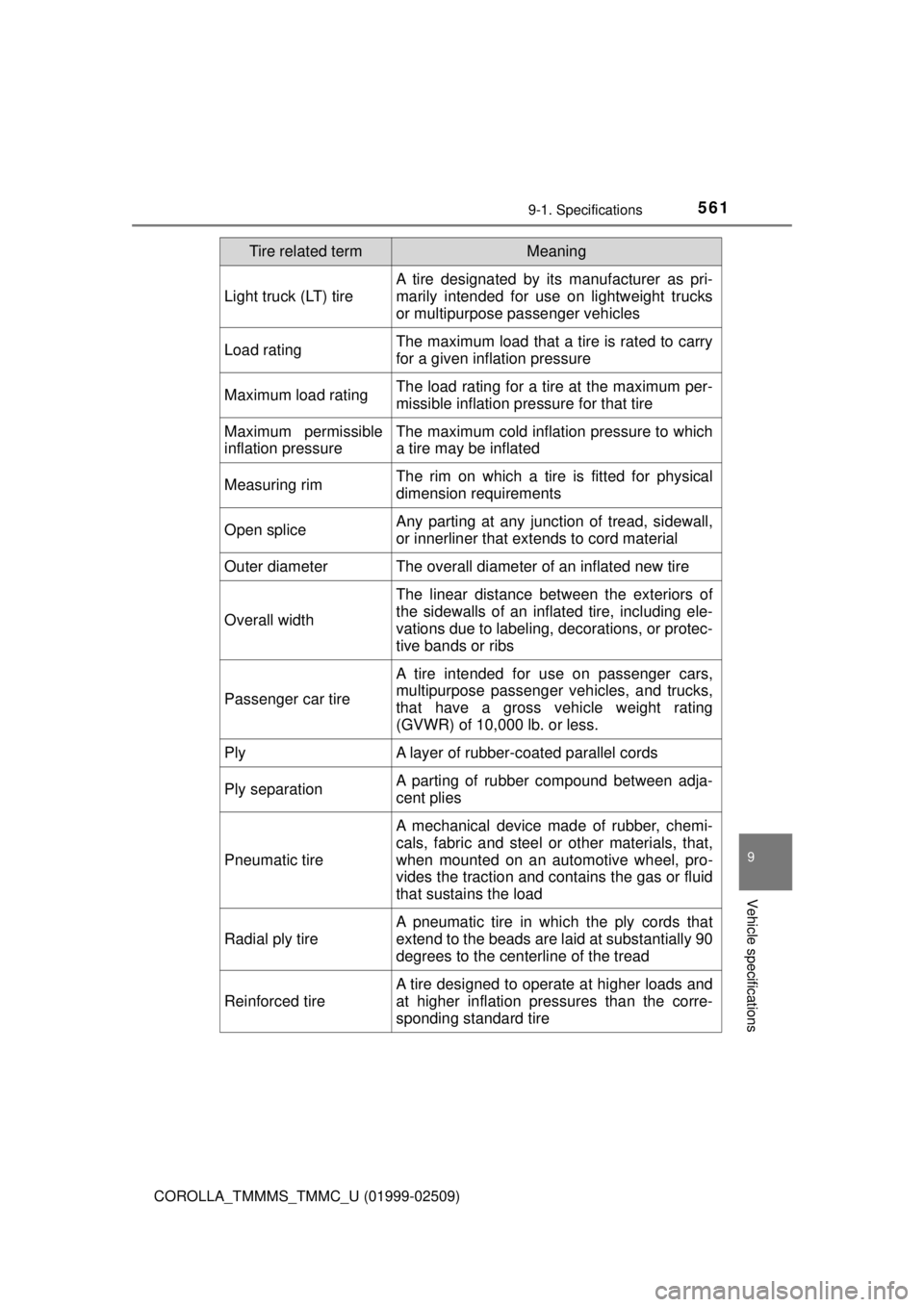

Light truck (LT) tire
A tire designated by its manufacturer as pri-
marily intended for use on lightweight trucks
or multipurpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which
a tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open spliceAny parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire
A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adja-
cent plies
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and cont ains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Tire related termMeaning

5629-1. Specifications
COROLLA_TMMMS_TMMC_U (01999-02509)
*: Table 1 ⎯ Occupant loading and distribution for vehicle normal load for
various designated seating capacities

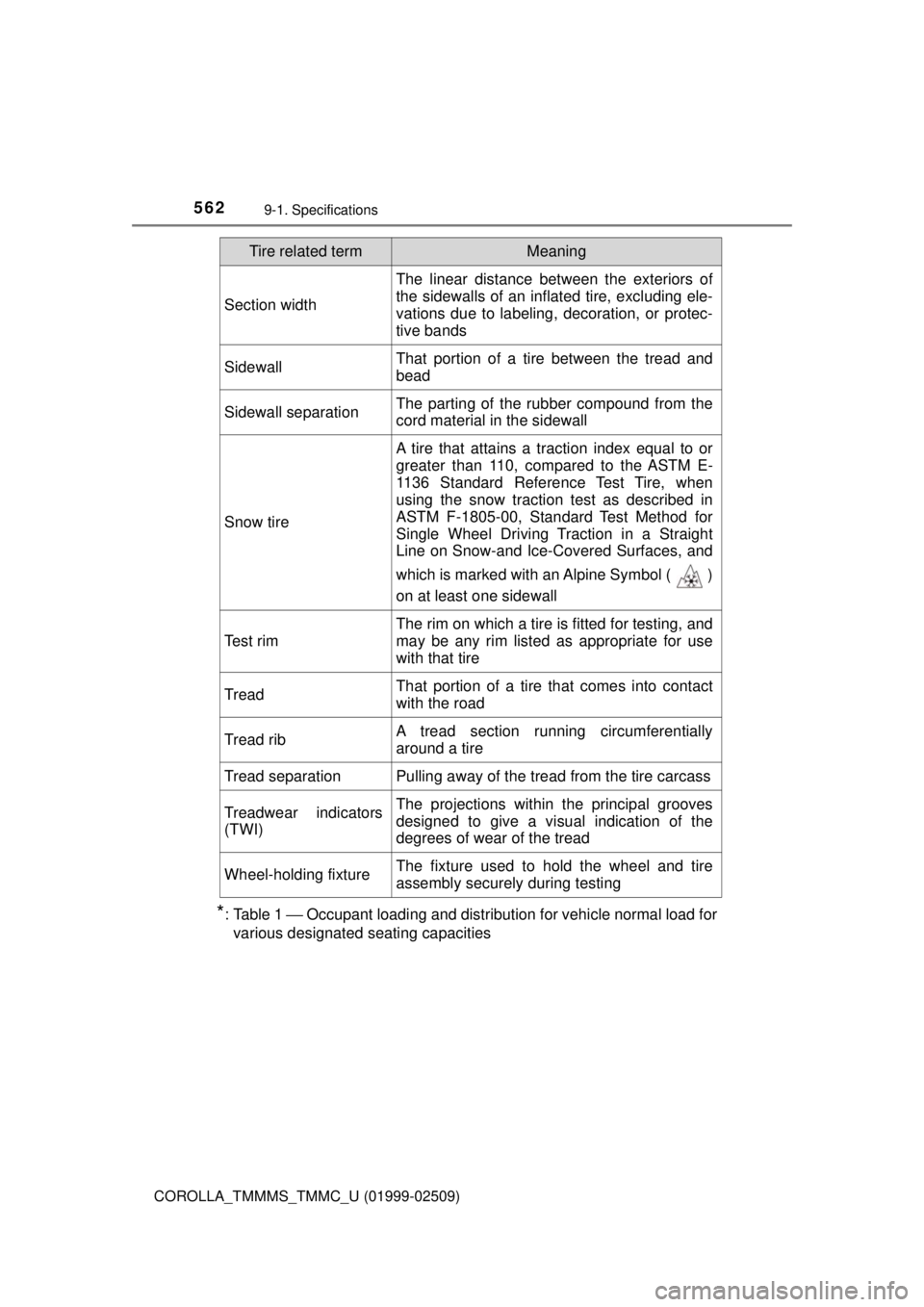

Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
SidewallThat portion of a tire between the tread and
bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning

5639-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (01999-02509)

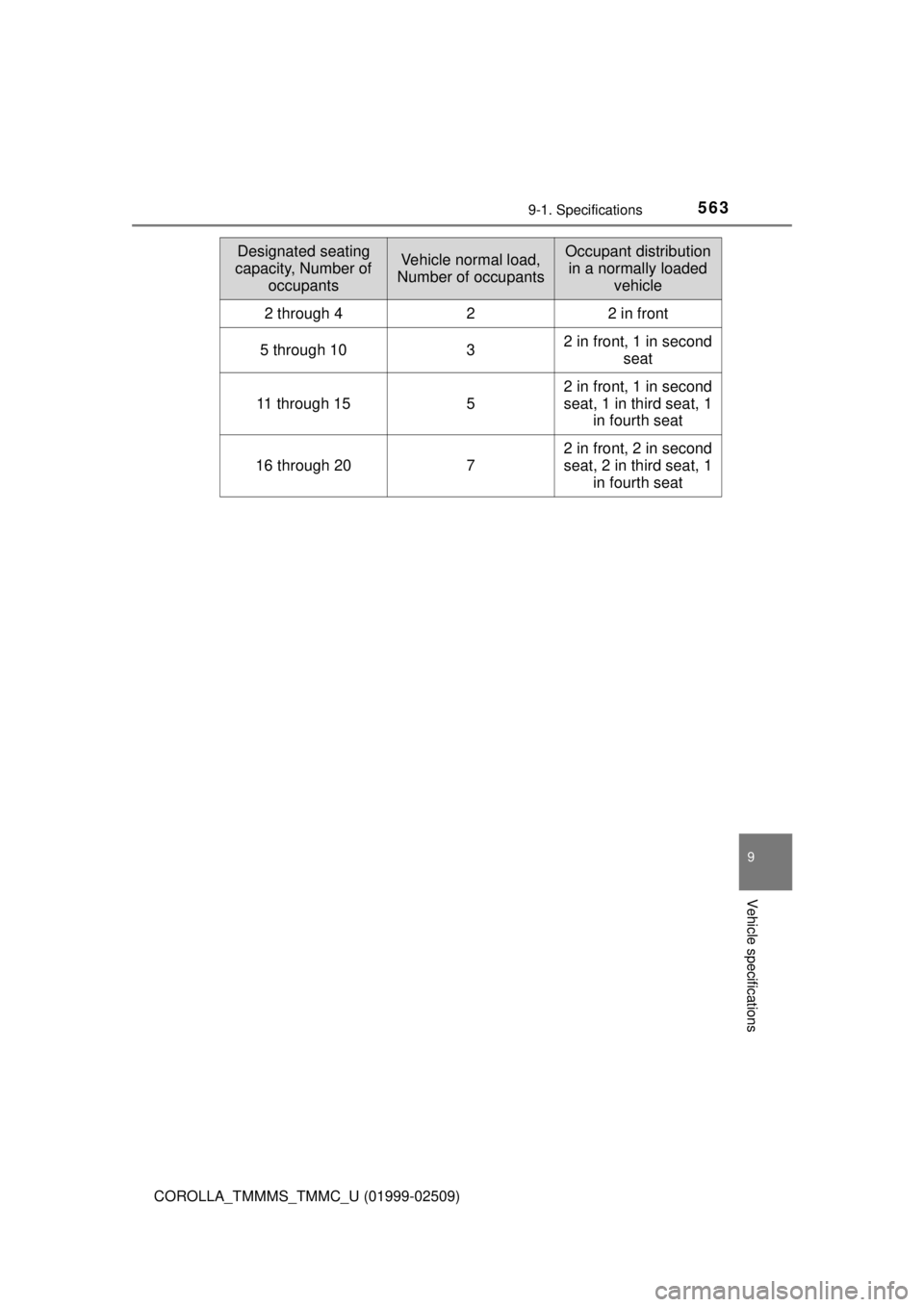

Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second
seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat

564
COROLLA_TMMMS_TMMC_U (01999-02509)
9-2. Customization
■Changing by using Entune AudioPress the “SETUP” button.
Select “Vehicle” on the “Setup” screen.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
■Changing by using Entune Audi o Plus or Entune Premium
Audio
Press the “APPS” button.
Select “Setup” on the “Apps” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
■Changing by using multi-information display
→ P. 8 3 , 9 3
■Changing by using the door lock switch
→P. 1 1 4
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized e quipment and may be performed
by your Toyota dealer.
Customizing vehicle features
1
2
1
2

5659-2. Customization
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (01999-02509)
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further details.
Settings that can be chan ged using the audio system
Settings that can be changed using the multi-information display
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, — = Not available
■
Gauges, meters and mult i-information display (→P. 77, 86, 99)
Vehicles with a monochrome display
Vehicles with a color display
Customizable features
1
2
3
Function*1Default settingCustomized set-
ting
Language*2EnglishFrenchOO—
Eco Driving Indicator
Light
*3On
(Self-lighting)Off—O—
123
Function*1Default settingCustomized set- ting
Language*2EnglishFrenchOO—
Units*2miles (MPG US)km (km/L)OO—km (L/100 km)
Maintenance system ini-
tialization
*4OffOn—O—
Eco Driving Indicator
Light
*3On
(Self-lighting)Off—O—
Drive information 1
Current fuel con- sumption
*5
—O—
Average fuel con-sumption (after reset)
—O—
Drive information 2
Distance (driving range)
*5
—O—
Average vehicle speed (after reset)
—O—
Pop-up display*6OnOff—O—
123

5669-2. Customization
COROLLA_TMMMS_TMMC_U (01999-02509)
*1: For details about each function: →P. 83, 93
*2: The default setting varies according to country.
*3: If equipped
*4: U.S.A. only
*5: 4 of the following items: current fuel consumption, average fuel consump\
-
tion (after reset), average fuel consum ption (after start), average fuel con-
sumption (after refuel), average vehicle speed (after reset), average
vehicle speed (after start), distance (d riving range), distance (after start),
elapsed time (after reset), elapsed time (after start), blank.
*6: Intersection guidance, incoming calls
■
LDA (Lane Departure Alert with steering control) (→P. 226)
■PCS (Pre-Collision System) (→ P. 214)
Accent colorLight blue
Blue
OO—Orange
Yellow
Function*1Default settingCustomized set-
ting123
FunctionDefault settingCustomized set-
ting
Steering AssistOnOff—O—
Alert sensitivityStandardHigh—O—
Vehicle sway warningOnOff—O—
Vehicle sway warning
sensitivityStandardLow—O—High
123
FunctionDefault settingCustomized set-ting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Alert timing
(Middle)
(Far)—O—
(Near)
123

5679-2. Customization
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (01999-02509)■

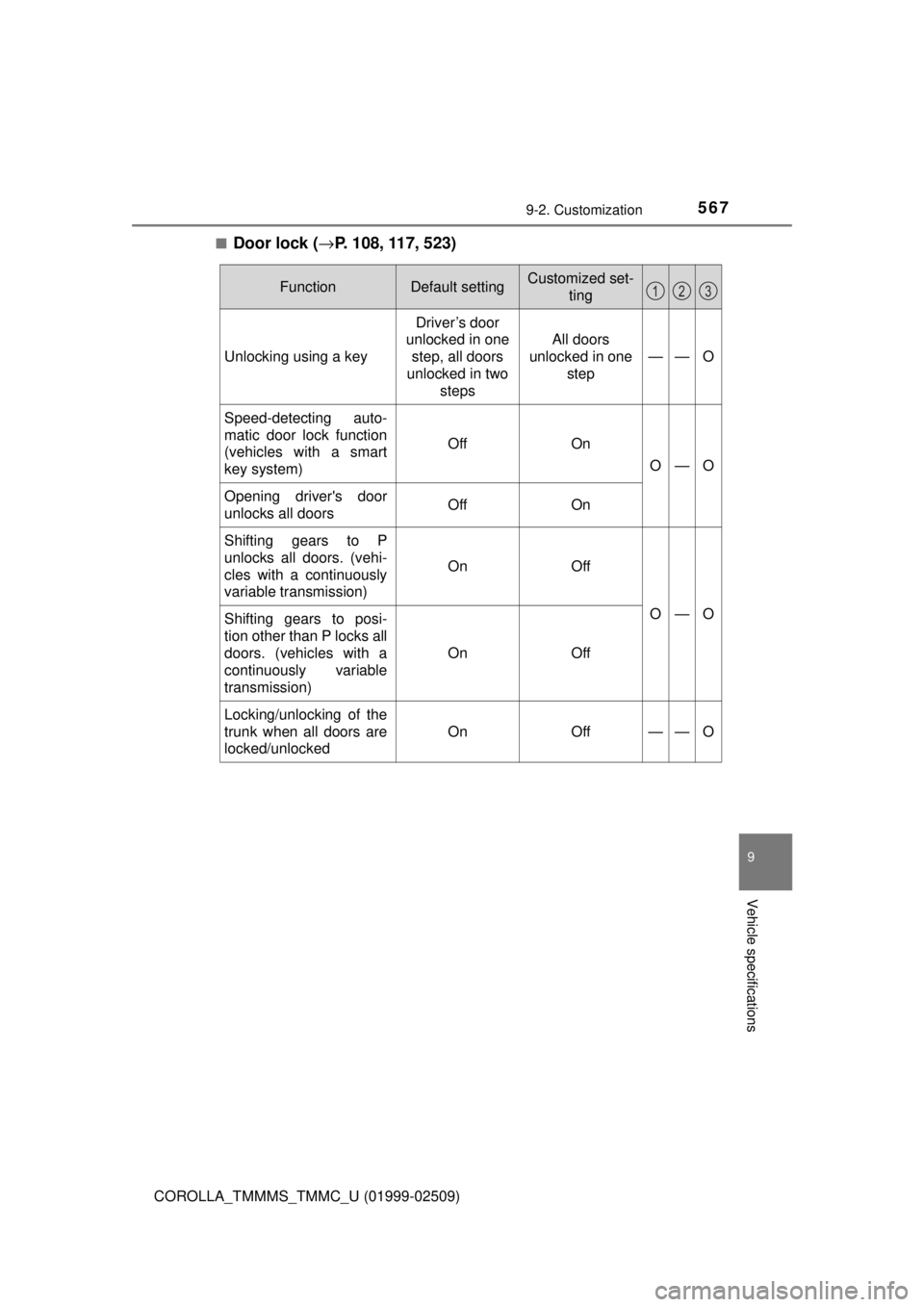

Door lock (
→P. 108, 117, 523)
FunctionDefault settingCustomized set-
ting
Unlocking using a key
Driver’s door
unlocked in one step, all doors
unlocked in two steps
All doors
unlocked in one
step
——O
Speed-detecting auto-
matic door lock function
(vehicles with a smart
key system)
OffOn
O—O
Opening driver's door
unlocks all doorsOffOn
Shifting gears to P
unlocks all doors. (vehi-
cles with a continuously
variable transmission)
OnOff
O—OShifting gears to posi-
tion other than P locks all
doors. (vehicles with a
continuously variable
transmission)
OnOff
Locking/unlocking of the
trunk when all doors are
locked/unlocked
OnOff——O
123

5689-2. Customization
COROLLA_TMMMS_TMMC_U (01999-02509)■

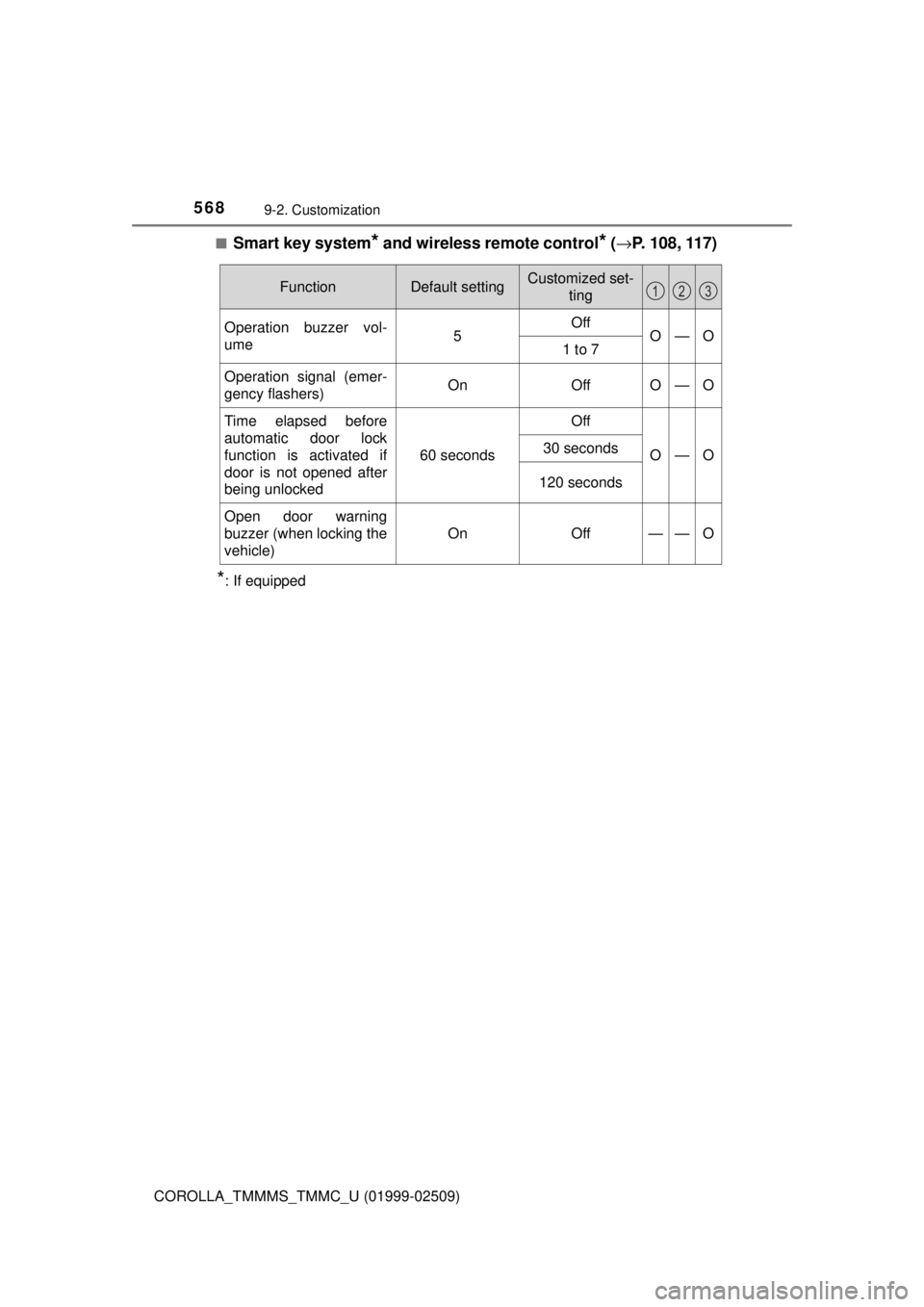

Smart key system* and wireless remote control* (
→ P. 108, 117)
*: If equipped
FunctionDefault settingCustomized set-
ting
Operation buzzer vol-
ume5OffO—O1 to 7
Operation signal (emer-
gency flashers)OnOffO—O
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Open door warning
buzzer (when locking the
vehicle)
OnOff——O
123

5699-2. Customization
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (01999-02509)■

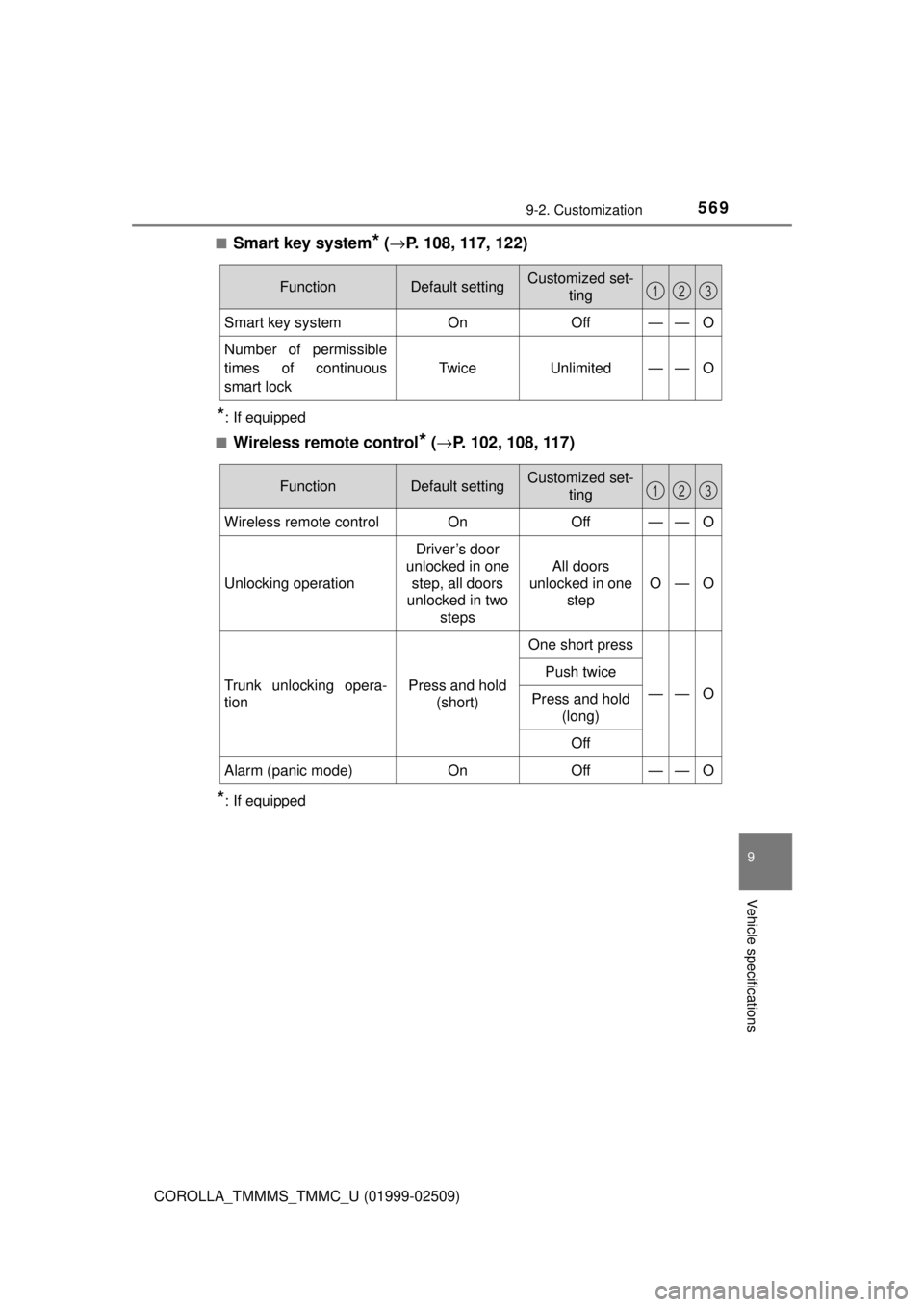

Smart key system* (
→ P. 108, 117, 122)
*: If equipped
■
Wireless remote control* ( → P. 102, 108, 117)
*: If equipped
FunctionDefault settingCustomized set-
ting
Smart key systemOnOff——O
Number of permissible
times of continuous
smart lock Twice Unlimited — — O
123
FunctionDefault settingCustomized set-
ting
Wireless remote controlOnOff——O
Unlocking operation
Driver’s door
unlocked in one
step, all doors
unlocked in two steps
All doors
unlocked in one step
O—O
Trunk unlocking opera-
tionPress and hold (short)
One short press
——O
Push twice
Press and hold (long)
Off
Alarm (panic mode)OnOff——O
123

5709-2. Customization
COROLLA_TMMMS_TMMC_U (01999-02509)■
Turn signal lever (
→P. 191)
*1: After flashing the turn signal lights when turning left or right while this func-
tion is off and the turn signal lever is moved to the first position in the direc-
tion of the flashing light, the turn signal lights can be selected to be flashing
or off.
*2: The turn signal lights will be off if the turn signal lever is moved to the firstposition in the direction of flashing light.
■
Automatic light control system ( →P. 193)
FunctionDefault settingCustomized set-
ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is
moved to the first posi-
tion during a lane
change
*1
3
5
——O7
Off*2
123
FunctionDefault settingCustomized set-ting
Light sensor sensitivityLevel 3Level 1 to 5O—O
Sensitivity of the ambient
light sensor used for
dimming the indicator on
the air conditioning con-
trol buttons. Standard -2 to 2
——O
Sensitivity of the ambient
light sensor used for
brightening the indicator
on the air conditioning
control buttons.Standard -2 to 2
——O
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
O—O60 seconds
90 seconds
123
