engine oil capacity TOYOTA COROLLA 2019 Owners Manual (in English)

15Pictorial index
COROLLA_TMMMS_TMMC_UWindshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 263
To prevent freezing (windshield wiper de-icer)
* . . . . . . . . . . . P. 376
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 540
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 263
Checking/rotation/tire pressure warning system
*. . . . . . . . P. 440
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 509
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 540
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 531
Headlights/daytime running lights
*. . . . . . . . . . . . . . . . . . . P. 193
Front turn signal/parking lights . . . . . . . . . . . . . . . . . . . . . . P. 193
Daytime running lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Turn signal lights
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Stop/tail lights/rear side marker lights . . . . . . . . . . . . . . . . P. 193
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . P. 181, 184, 189
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 461, Watts: P. 547)
*: If equipped
8
9
10
11
12
13
14
15

5409-1. Specifications
COROLLA_TMMMS_TMMC_U
*: Drive belt tension measured with Borroughs drive belt tension gauge No.BT-33-73F (used belt), lbf
*: The engine oil capacity is a reference quantity to be used whe n changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine
Model 1.8 L 4-cylinder (2ZR-FE and 2ZR-FAE) engines
Type4 cylinder in line, 4 cycle, gasoline
Bore and stroke 3.17  3.48 in. (80.5  88.3 mm)
Displacement 109.7 cu. in. (1798 cm3)
Drive belt tension
2ZR-FE*
143 ± 22 lbf (650 ± 100 N, 65 ± 10 kgf)
2ZR-FAE
Automatic adjustment
Valve clearance Automatic adjustment
Fuel
Fuel type Unleaded gasoline only
Octane rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)13.2 gal. (50 L, 10.9 Imp. gal.)
Lubrication system
Oil capacity
(Drain and refill

reference
*)
With filter
Without filter 4.4 qt. (4.2 L, 3.7 Imp. qt.)
4.1 qt. (3.9 L, 3.4 Imp. qt.)

5439-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U
Electrical system
Battery
Open voltage at
68F (20 C):
12.3 V or More
If the voltage is lower than the standard value,
charge the battery.
(Voltage checked 20 minutes after the engine
and all the lights turned off)
Charging rates5 A max.
Manual transaxle
Gear oil capacity
(Reference)2.5 qt. (2.4 L, 2.1 Imp. qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent
NOTICE
■ Manual transmission gear oil type
● Please be aware that depending on the particular characteristics of the
gear oil used or the operating conditions, idle sound, shift fe eling and/or
fuel efficiency may be different or affected and, in the worst case, damage
to the vehicle' s transmission. Toyota recommends to use “TOYOT A Genu-
ine Manual Transmission Gear Oil LV GL-4 75W” to achieve optima l per-
formance.
● Your Toyota vehicle is filled with “TOYOTA Genuine Manual Trans mission
Gear Oil LV GL-4 75W” at the factory. Use Toyota approved “TOYO TA
Genuine Manual Transmission Gear O il LV GL-4 75W” or an equivalent oil
of matching quality that satisfies the above specifications. Pl ease contact
your Toyota dealer for further details.

5589-1. Specifications
COROLLA_TMMMS_TMMC_U

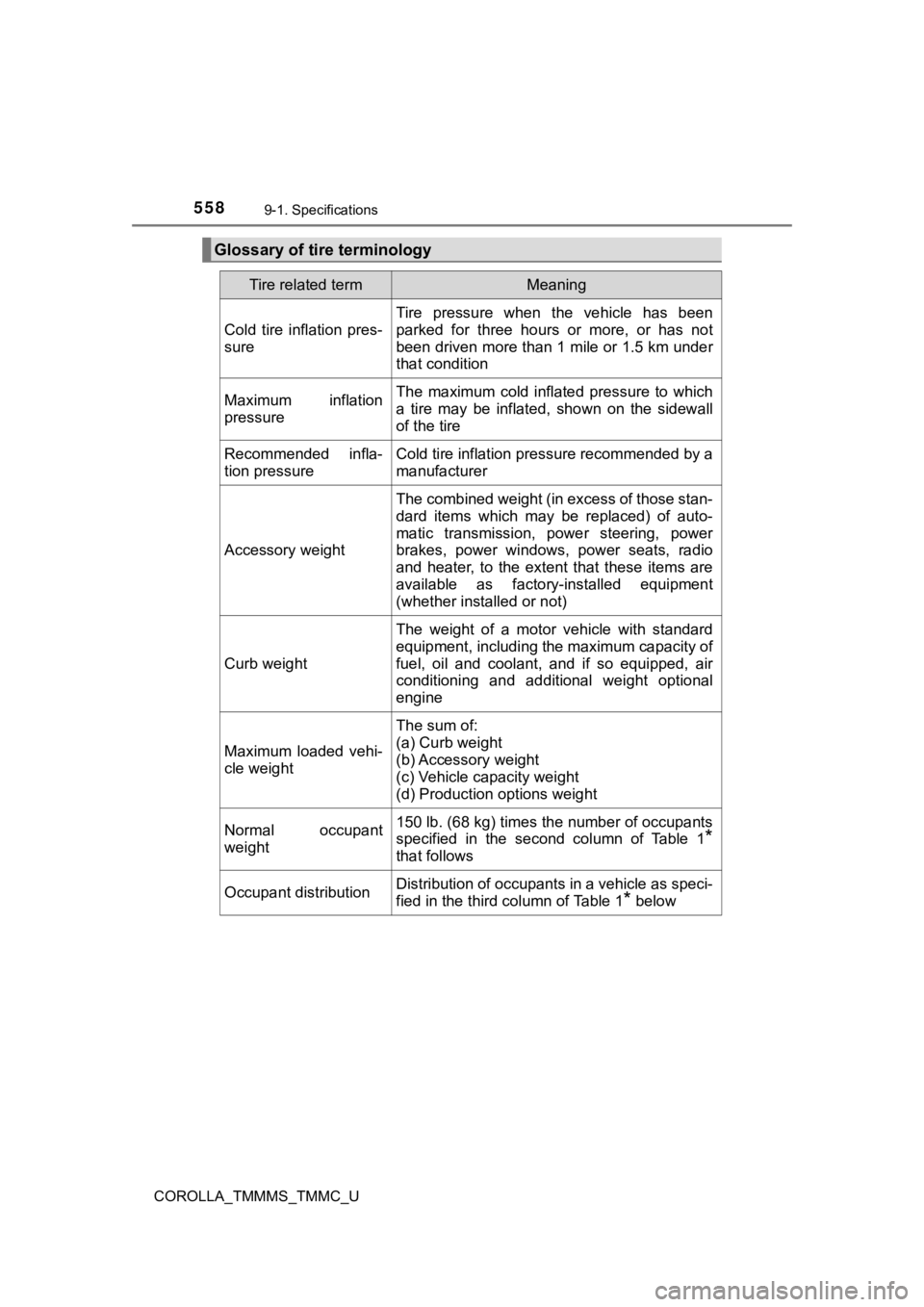

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below

598Alphabetical index
COROLLA_TMMMS_TMMC_U
Emergency flashers ................ 470
Engine....................................... 540ACCESSORY mode ............. 176
Compartment ........................ 429
Engine switch................ 171, 174
Hood ..................................... 425
How to start the engine......................... 171, 174
Identification number ............ 539
If the engine will not start ...... 521
Ignition switch (engine switch) ........... 171, 174
Overheating .......................... 531
Engine coolant ......................... 433
Capacity ................................ 542
Checking ............................... 433
Preparing and checking before winter....................... 263
Engine coolant temperature gauge.................................. 77, 86
Engine immobilizer system ...... 67
Engine oil ................................. 430 Capacity ................................ 540
Checking ............................... 430
Preparing and checking
before winter....................... 263
Engine switch .................. 171, 174
Entune Audio ........................... 273
Audio input ............................ 272
AUX port/USB port ..................................... 272
Bluetooth
® audio................... 320
CD player .............................. 290
iPod....................................... 296
MP3/WMA disc ..................... 290
Optimal use........................... 287
Portable music player ........... 272
Radio .................................... 288
Steering wheel audio
switch ................................. 338
USB memory ........................ 301
Entune Audio Plus
*
Entune Premium Audio*
EPS (Electric Power Steering) ..... 257
Function ................................ 257
Warning light......................... 481
Flat tire Vehicles with a spare tire...... 509
Floor mats .................................. 24
Fluid Brake .................................... 545
Continuously variable
transmission ....................... 544
Washer ................................. 439
Front interior light ................... 385
Front passenger occupant classification system .............. 47
Front seats ............................... 130 Adjustment............................ 130
Cleaning ............................... 411
Correct driving posture ........... 26
Head restraints ..................... 134
Seat heaters ......................... 383
Front turn signal lights ........... 191 Replacing light bulbs ............ 464
Turn signal lever ................... 191
Wattage ................................ 547
Fuel ........................................... 204 Capacity................................ 540
Fuel gauge........................ 77, 86
Fuel pump shut off system ... 479
Information............................ 548
Refueling .............................. 204
Type.............................. 540, 548
Warning light......................... 481
Fuel filler door ......................... 204
Refueling .............................. 204
Fuel pump shut off system..... 479
Fuses ........................................ 458
F

608
COROLLA_TMMMS_TMMC_U
GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 425 P. 117 P. 204
Hood lock release leverFuel filler
door openerTire inflation pressure
P. 425 P. 204P. 546
Fuel tank capacity
(Reference)13.2 gal. (50 L, 10.9 Imp. gal.)
Fuel type
P. 540, 548
Cold tire inflation
pressure P. 5 4 6
Engine oil capacity
(Drain and refill —
reference) P. 540
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 540
