COROLLA
2019
QUICK REFERENCE GUIDE
Page 2 of 56
COROLLA 2019

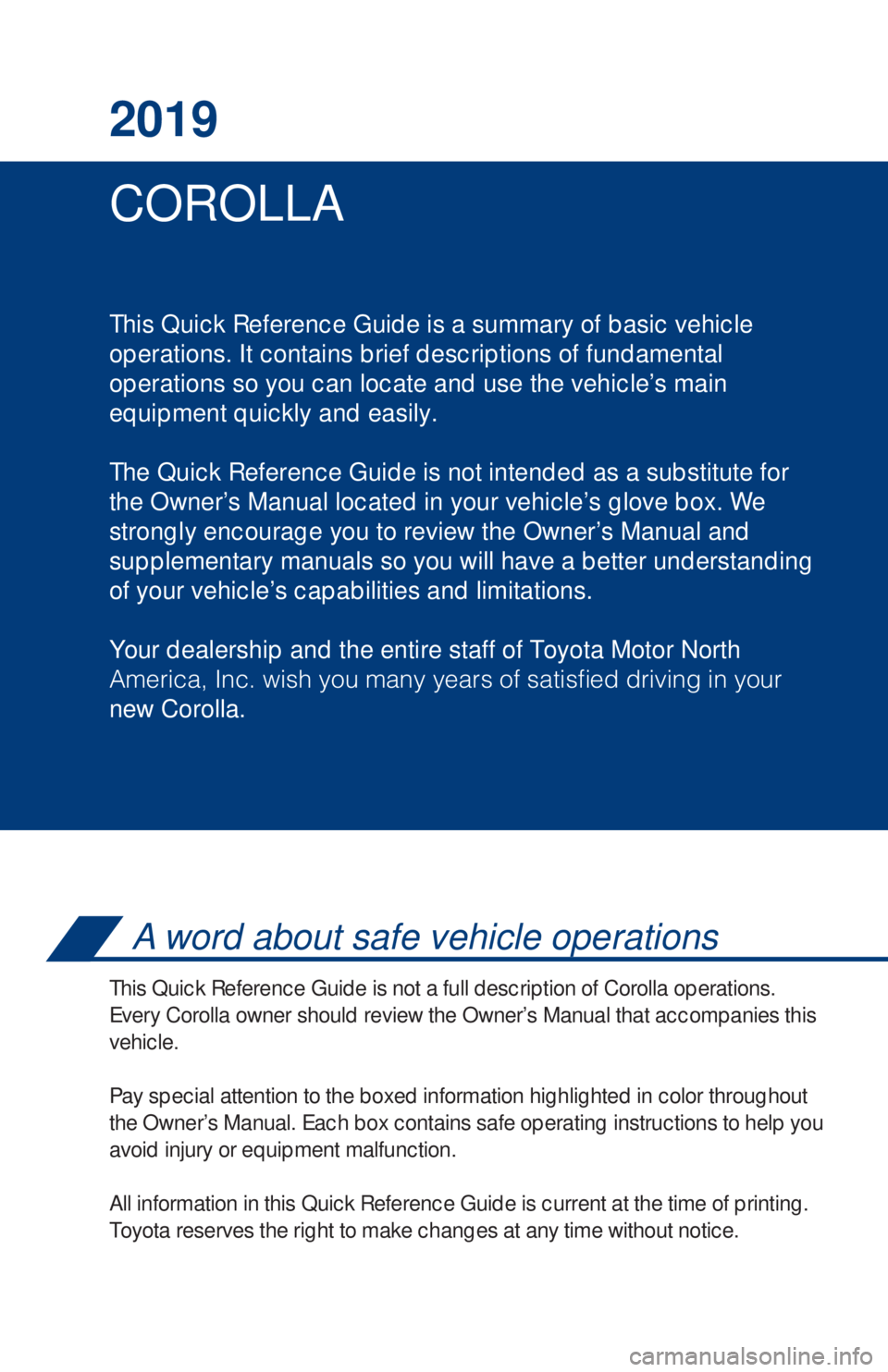

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
<0022004e00460053004a00440042000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a005700
4a004f00480003004a004f0003005a0050005600530003>
new Corolla.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Corolla operations.
Every Corolla owner should review the Owner’s Manual that accompanies this
vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
Page 3 of 56
1
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.

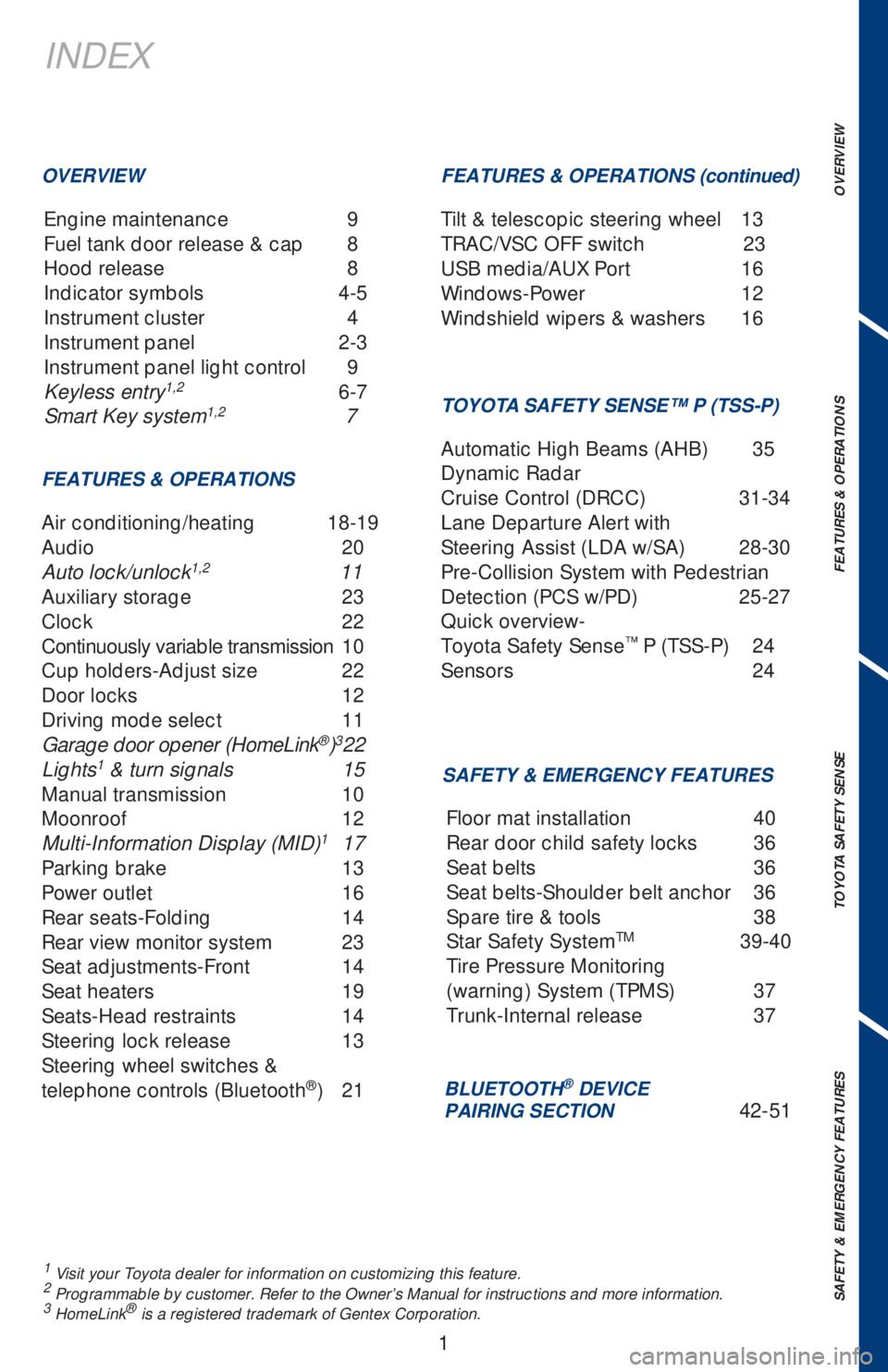

INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 9
Keyless entry
1,2 6-7
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 18-19
Audio 20
Auto lock/unlock
1,2 11
Auxiliary storage 23
Clock 22
Continuously variable transmission 10
Cup holders-Adjust size 22
Door locks 12
Driving mode select 11
Garage door opener (HomeLink
®)3 22
Lights1 & turn signals 15
Manual transmission 10
Moonroof 12
Multi-Information Display (MID)
1 17
Parking brake 13
Power outlet 16
Rear seats-Folding 14
Rear view monitor system 23
Seat adjustments-Front 14
Seat heaters 19
Seats-Head restraints 14
Steering lock release 13
Steering wheel switches &
telephone controls (Bluetooth
®) 21
SAFETY & EMERGENCY FEATURES FEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 35
Dynamic Radar
Cruise Control (DRCC) 31-34
Lane Departure Alert with
Steering Assist (LDA w/SA) 28-30
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 24
Sensors 24
BLUETOOTH® DEVICE
PAIRING SECTION 42-51 Floor mat installation 40
Rear door child safety locks 36
Seat belts 36
Seat belts-Shoulder belt anchor 36
Spare tire & tools 38
Star Safety System
TM 39-40
Tire Pressure Monitoring
(warning) System (TPMS) 37
Trunk-Internal release 37 Tilt & telescopic steering wheel 13
TRAC/VSC OFF switch 23
USB media/AUX Port 16
Windows-Power 12
Windshield wipers & washers 16
Page 4 of 56
2
OVERVIEW

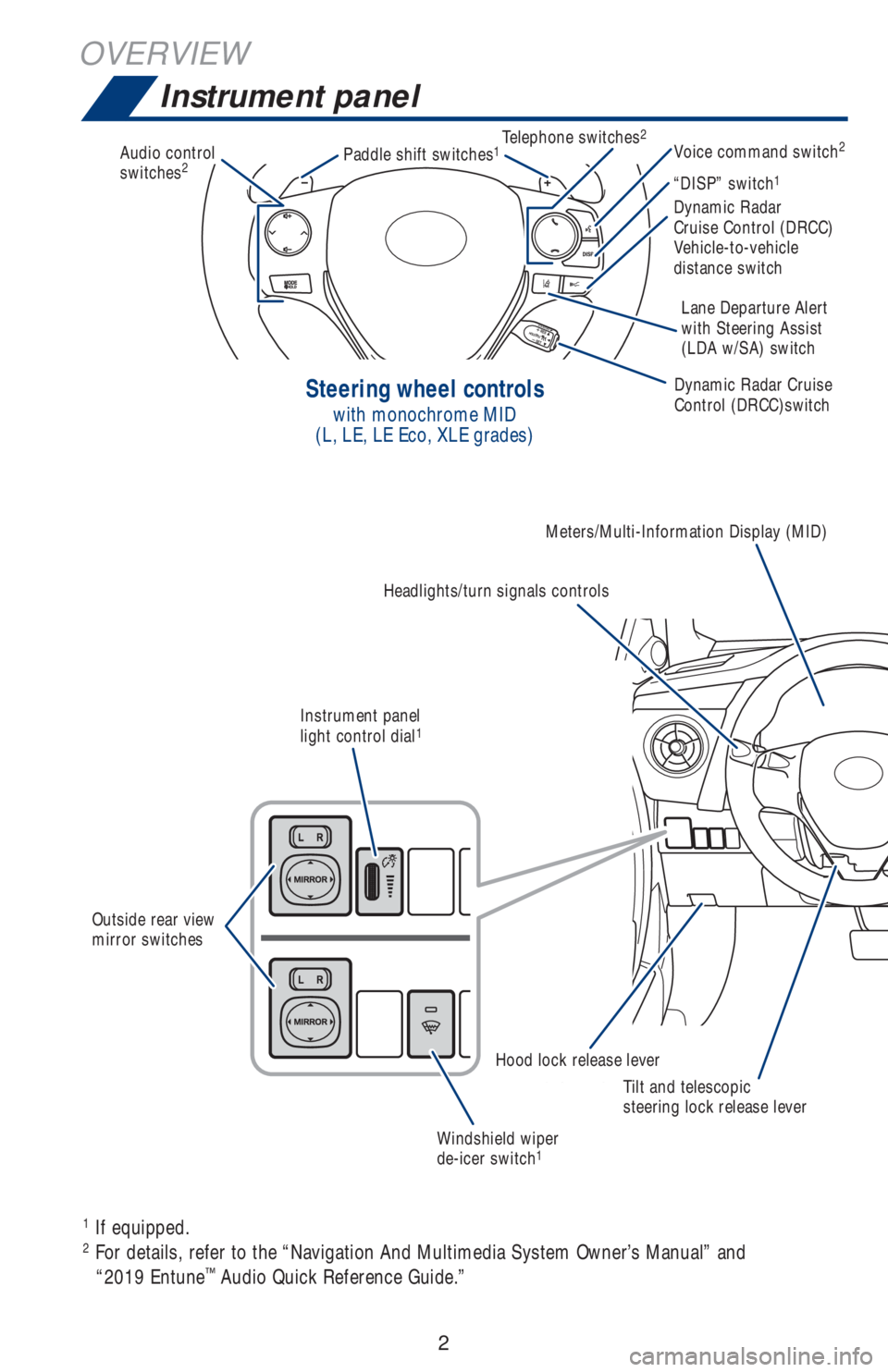

Instrument panel
1
If equipped.
2 For details, refer to the “Navigation And Multimedia System Owner’s Manual” and
“2019 Entune™ Audio Quick Reference Guide.”
Steering wheel controls
with monochrome MID
(L, LE, LE Eco, XLE grades)
Audio control
switches2
Telephone switches2Voice command switch2
Dynamic Radar Cruise
Control (DRCC)switch
Meters/Multi-Information Display (MID)
Outside rear view
mirror switches
Windshield wiper
de-icer switch
1
Instrument panel
light control dial1
Tilt and telescopic
steering lock release lever Hood lock release leverDynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle
distance switch “DISP” switch
1
Lane Departure Alert
with Steering Assist
(LDA w/SA) switch
Headlights/turn signals controls
Paddle shift switches1
Page 5 of 56
3
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

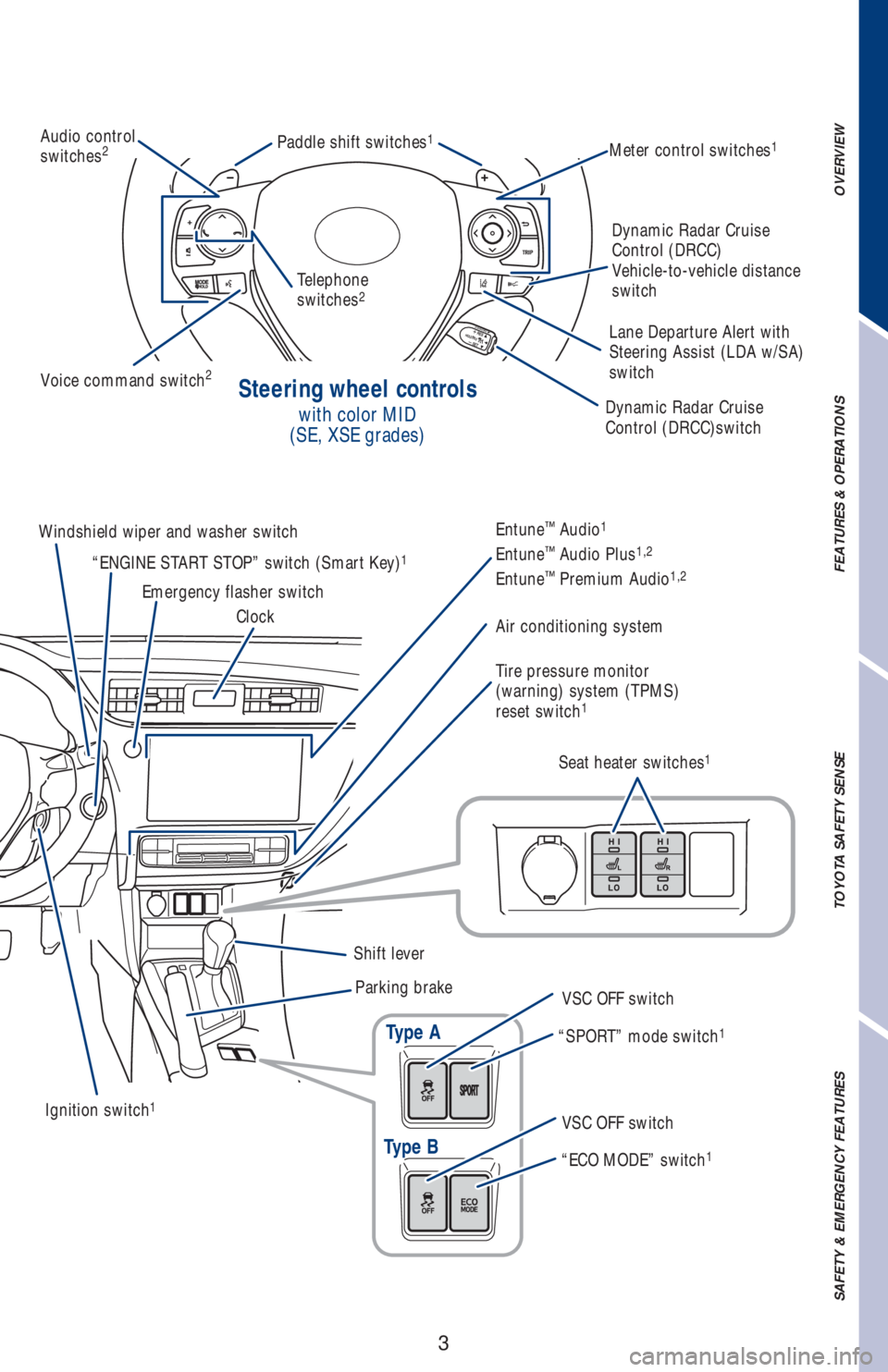

Steering wheel controls
with color MID
(SE, XSE grades)
Type A
Type B
Audio control
switches2Meter control switches1Paddle shift switches1
Voice command switch2
Dynamic Radar Cruise
Control (DRCC)switch
Ignition switch
1
Windshield wiper and washer switch
Emergency flasher switch
ClockEntune™ Audio1
Entune™ Audio Plus1,2
Entune™ Premium Audio1,2
Air conditioning system
Tire pressure monitor
(warning) system (TPMS)
reset switch
1
Seat heater switches1
Shift lever
Parking brake
VSC OFF switch
VSC OFF switch “SPORT” mode switch
1
“ECO MODE” switch1
“ENGINE START STOP” switch (Smart Key)1
Telephone
switches2
Dynamic Radar Cruise
Control (DRCC)
Vehicle-to-vehicle distance
switch
Lane Departure Alert with
Steering Assist (LDA w/SA)
switch
Page 6 of 56
4
OVERVIEW

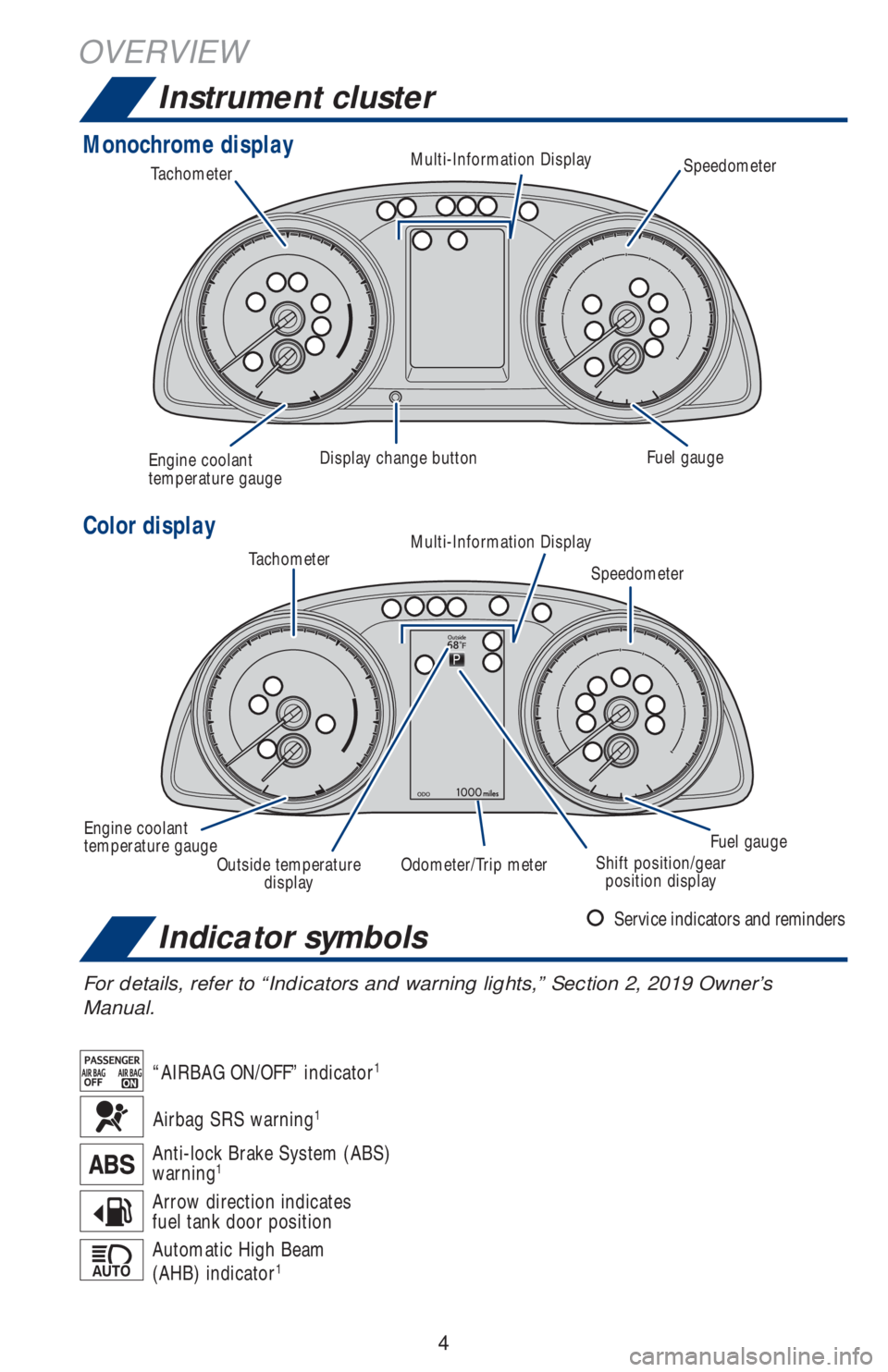

Instrument cluster
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2, 2019 Owner’s
Manual.
Automatic High Beam
(AHB) indicator1
Arrow direction indicates
fuel tank door position
Anti-lock Brake System (ABS)
warning1
“AIRBAG ON/OFF” indicator1
Service indicators and reminders
Airbag SRS warning1
Monochrome display
Color display
Tachometer
TachometerFuel gauge
Fuel gauge Display change button
Engine coolant
temperature gauge
Engine coolant
temperature gaugeMulti-Information Display
Multi-Information Display
Outside temperature
displayOdometer/Trip meterShift position/gear
position displaySpeedometer
Speedometer
Page 7 of 56
5
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

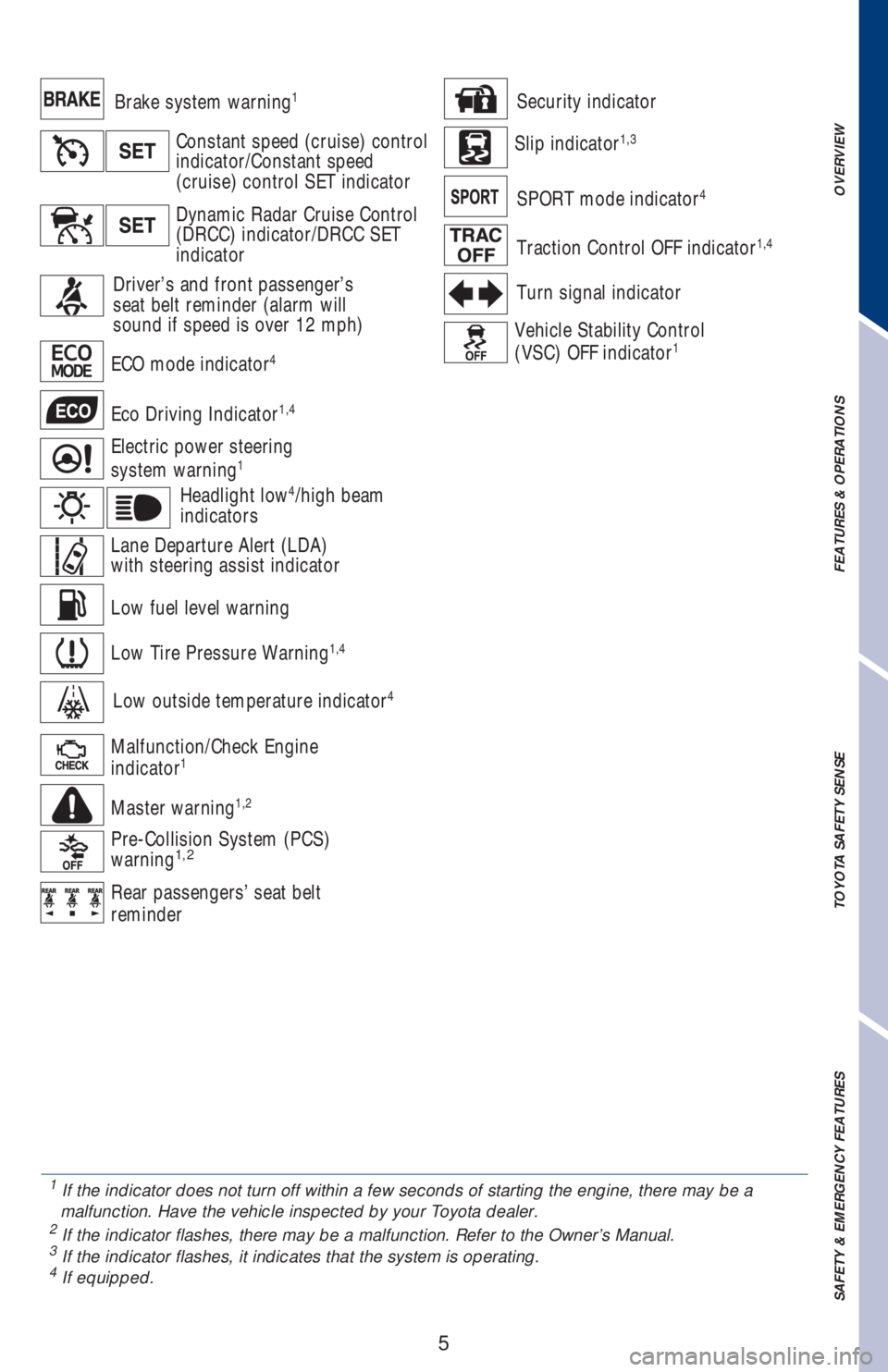

Low fuel level warning
Constant speed (cruise) control
indicator/Constant speed
(cruise) control SET indicator
Low Tire Pressure Warning1,4
Electric power steering
system warning1
ECO mode indicator4
Eco Driving Indicator1,4
Brake system warning1
Headlight low4/high beam
indicators
Lane Departure Alert (LDA)
with steering assist indicator
Low outside temperature indicator4
Dynamic Radar Cruise Control
(DRCC) indicator/DRCC SET
indicator
Driver’s and front passenger’s
seat belt reminder (alarm will
sound if speed is over 12 mph)
Master warning1,2
Turn signal indicator
Vehicle Stability Control
(VSC) OFF indicator1
Traction Control OFF indicator1,4
Malfunction/Check Engine
indicator1
SPORT mode indicator4
Pre-Collision System (PCS)
warning1,2
Slip indicator1,3
Security indicator
Rear passengers’ seat belt
reminder
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Page 8 of 56
6
OVERVIEW

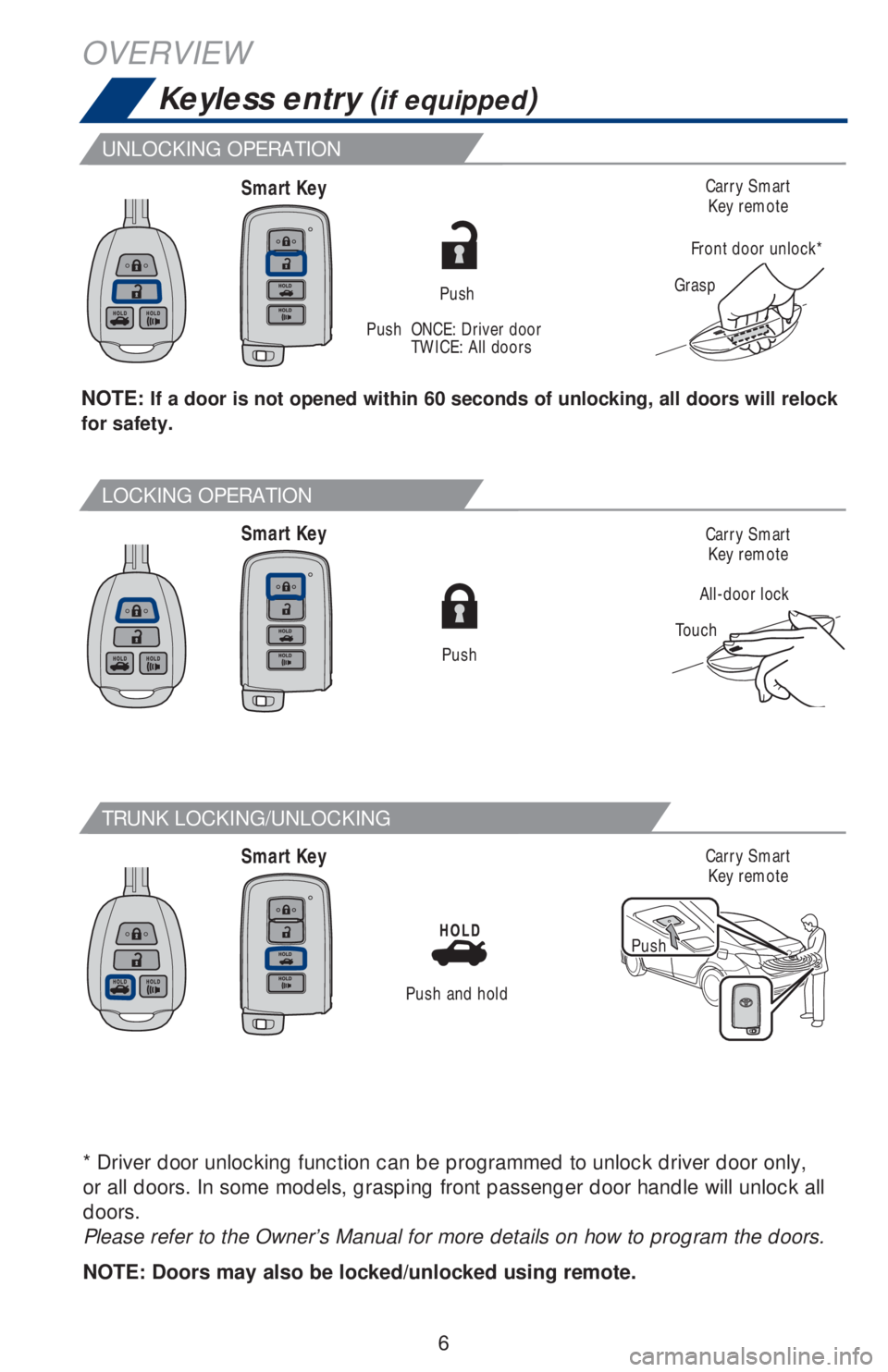

Keyless entry (if equipped)
Smart Key
Smart Key
Smart Key
Push
All-door lock
TouchCarry Smart
Key remote
Carry Smart
Key remote
Carry Smart
Key remote
Grasp
Front door unlock*
Push
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Push and hold
LOCKING OPERATION
TRUNK LOCKING/UNLOCKING
UNLOCKING OPERATION
Push ONCE: Driver door
TWICE: All doors
Push
* Driver door unlocking function can be programmed to unlock driver door only,
or all doors. In some models, grasping front passenger door handle will unlock all
doors.
Please refer to the Owner’s Manual for more details on how to program the doors.
NOTE: Doors may also be locked/unlocked using remote.
Page 9 of 56
7
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

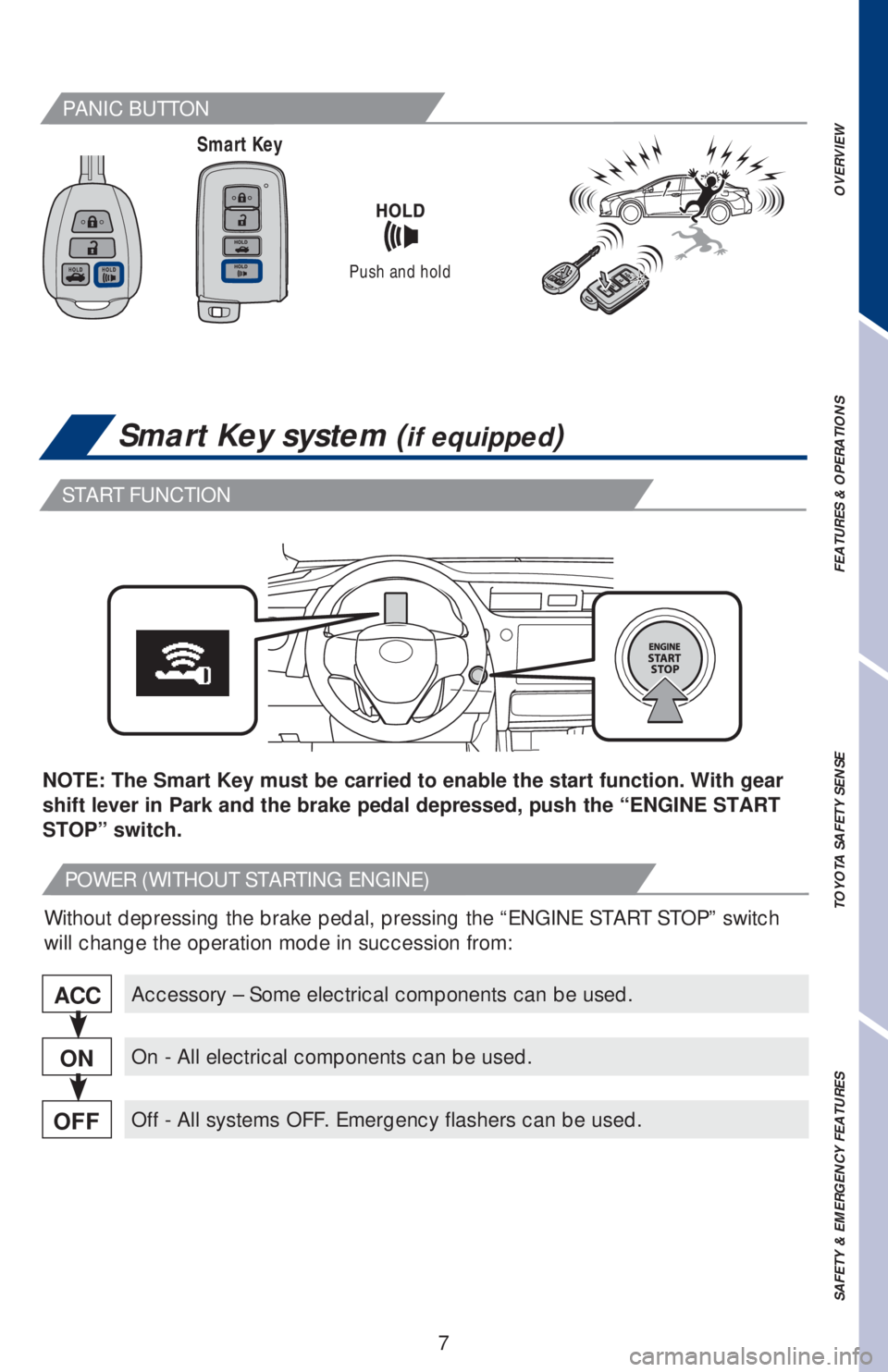

Smart Key system (if equipped)
Smart Key
Push and hold
PANIC BUTTON
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Accessory – Some electrical components can be used.
On - All electrical components can be used.
Off - All systems OFF. Emergency flashers can be used.
ACC
ON
OFF
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “ENGINE START
STOP” switch.
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Page 10 of 56
8
OVERVIEW
Pull up latch and
raise hood
Pull
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check Engine “
”
indicator may illuminate.
Pull
Turn to close
StoreTurn to open
Insert rod to hold
hood open

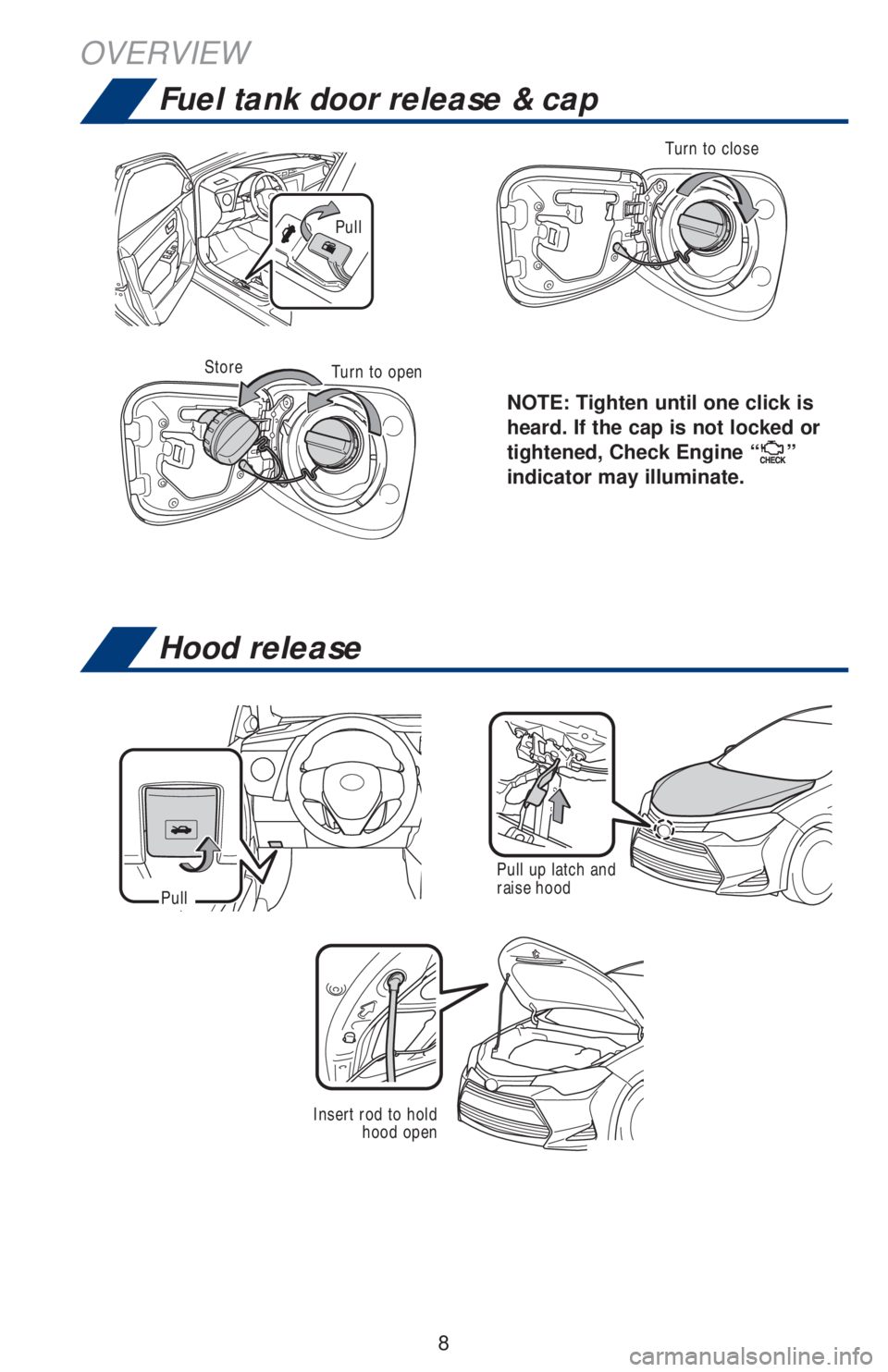

Fuel tank door release & cap
Hood release
