9
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”

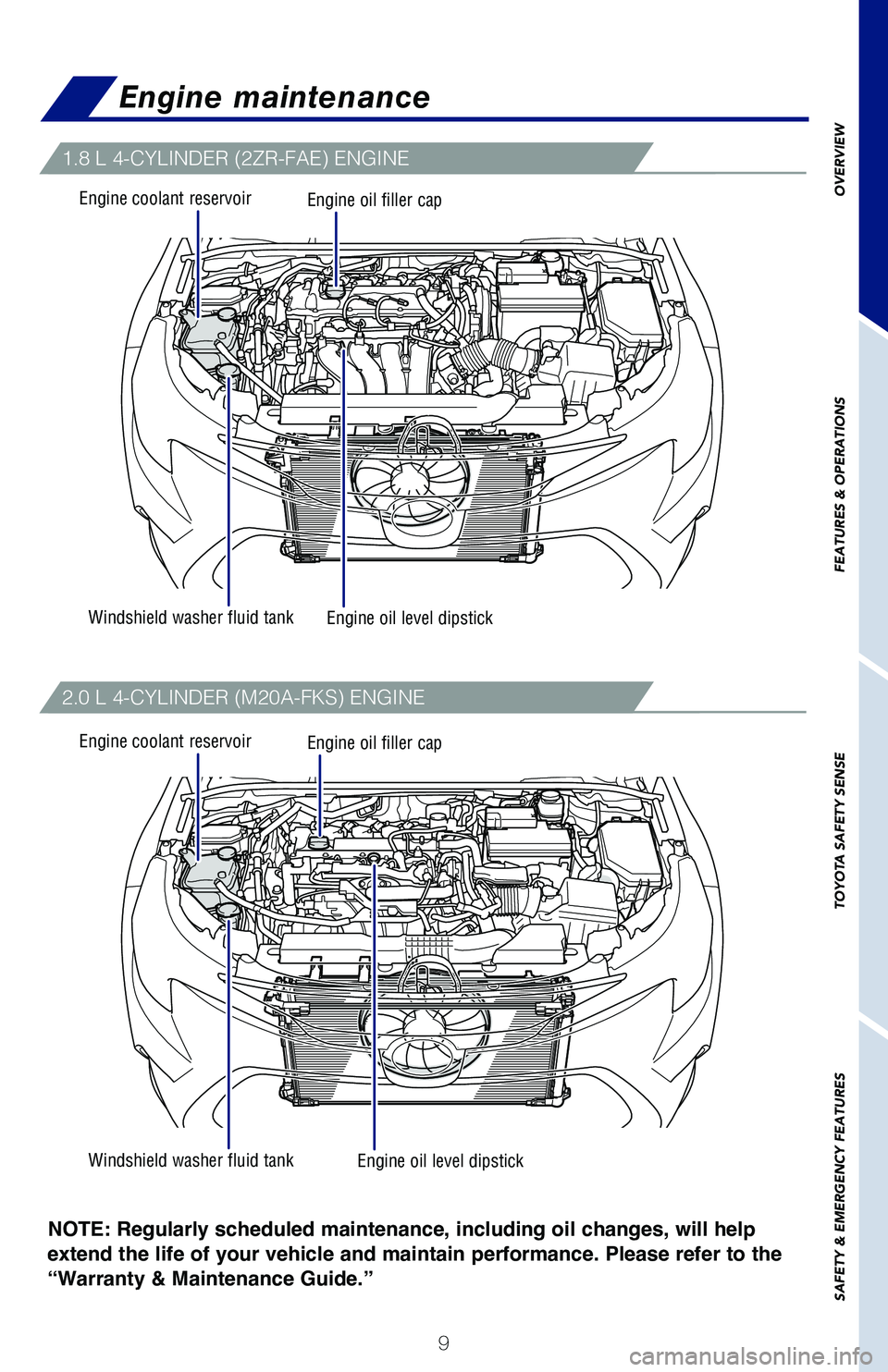

Engine maintenance
1.8 L 4-CYLINDER (2ZR-FAE) ENGINE
2.0 L 4-CYLINDER (M20A-FKS) ENGINE
Windshield washer fluid tank
Engine coolant reservoirEngine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoirEngine oil filler capEngine oil level dipstick
117388_A_MY20_Corolla_QRG_V5_ML_1219_Text_R1.indd 91/2/19 4:26 PM
Page 12 of 56
10
Manual transmission (if equipped)

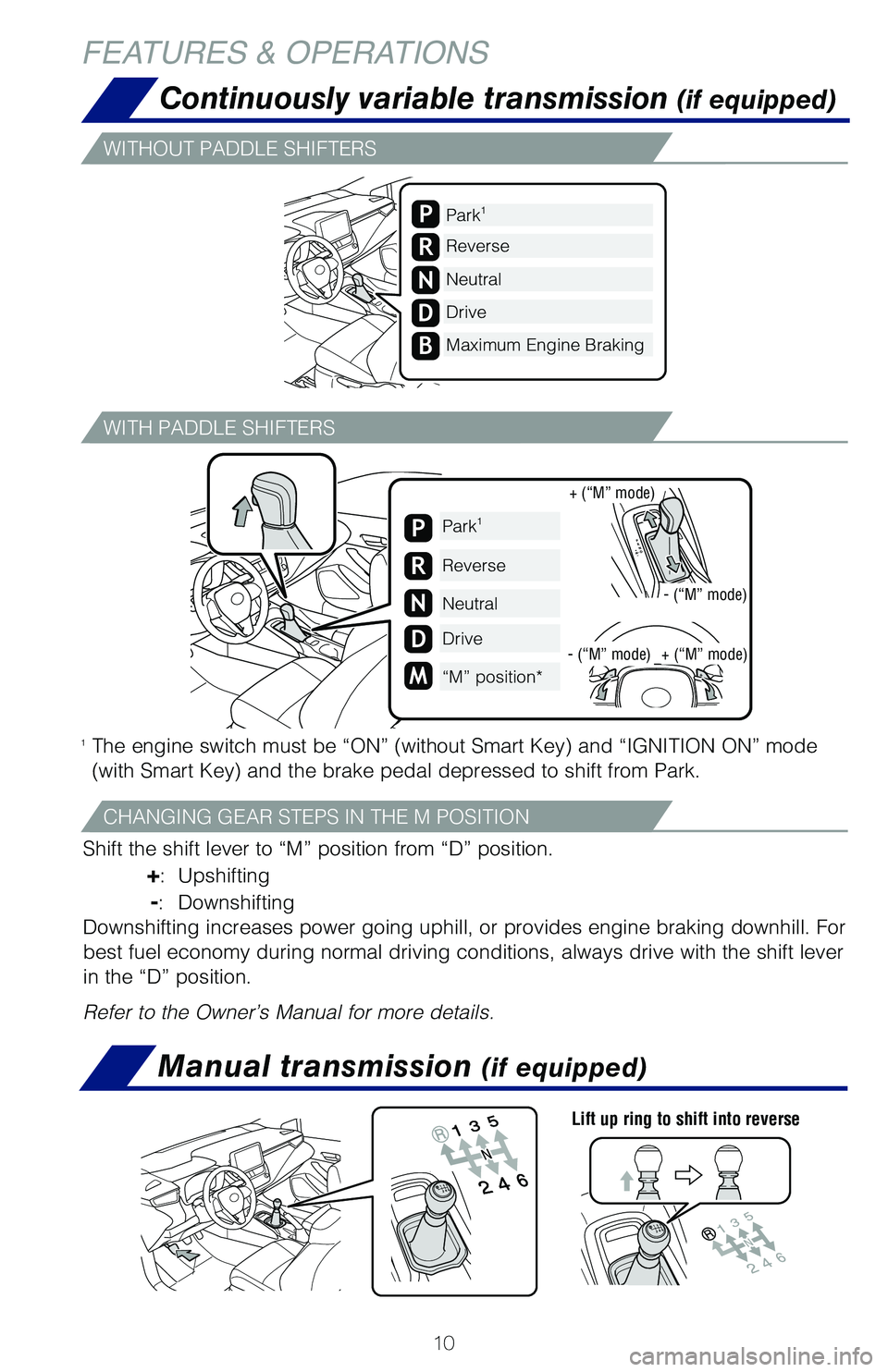

Continuously variable transmission (if equipped)
Lift up ring to shift into reverse
Park1
Reverse
Neutral
Drive
Maximum Engine BrakingB
P
R
N
D
5 I F F O H J O F T X J U D I N V T U C F i 0 / w X J U I P V U 4 N B S U , F Z
B O E i * ( / * 5 * 0 / 0 / w N P E F X J U I 4 N B S U , F Z
B O E U I F C S B L F Q F E B M E F Q S F T T F E U P T I J G U G S P N 1 B S L
4 I J G U U I F T I J G U M F W F S U P i . w Q P T J U J P O G S P N i % w Q P T J U J P O
+: Upshifting
-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Refer to the Owner’s Manual for more details.
Drive
Park1
Reverse
Neutral
“M” position*
P
R
N
D
M
FEATURES & OPERATIONS
WITHOUT PADDLE SHIFTERS
WITH PADDLE SHIFTERS
CHANGING GEAR STEPS IN THE M POSITION
+ (“M” mode)
- (“M” mode)
- (“M” mode)
+ (“M” mode)
117388_A_MY20_Corolla_QRG_V5_ML_1219_Text_R1.indd 101/2/19 4:26 PM
Page 13 of 56
11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph.
Driver’s door linked door unlocking function
-Doors unlock when the engine switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Driving mode select
iMT (WITH A MANUAL TRANSMISSION)
SPORT MODE (IF EQUIPPED)
Refer to the Owner’s Manual for more information.
Normal mode
Sport mode
117388_A_MY20_Corolla_QRG_V5_ML_1219_Text_R1.indd 111/2/19 4:26 PM
Page 14 of 56
12
LockUnlock

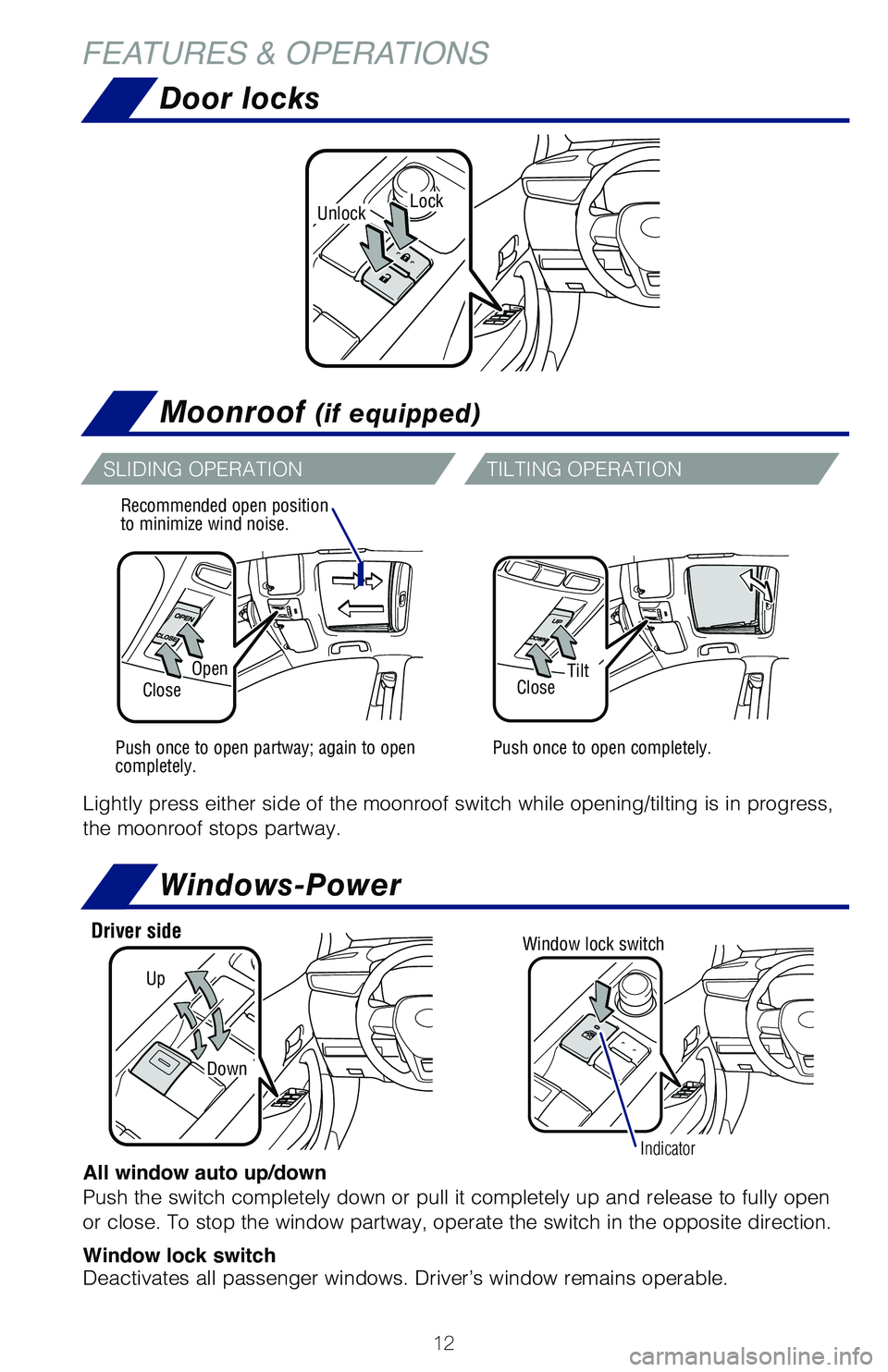

Door locks
Moonroof (if equipped)
OpenTiltCloseClose
Recommended open position
to minimize wind noise.
Push once to open partway; again to open
completely.Push once to open completely.
Windows-Power
Up
Down
Driver sideWindow lock switch
All window auto up/down
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
SLIDING OPERATIONTILTING OPERATION
Lightly press either side of the moonroof switch while opening/tilting is in progress,
the moonroof stops partway.
Indicator
FEATURES & OPERATIONS
117388_A_MY20_Corolla_QRG_V5_ML_1219_Text_R1.indd 121/2/19 4:26 PM
Page 15 of 56
13
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Tilt & telescopic steering wheel
NOTE: Do not attempt to adjust while the vehicle is in motion. Lock release lever
Angle
Length
Hold wheel, push lever down, set angle and length, and return lever.
Parking brake (if equipped)
(2) PushSetRelease (1) Pull slightly
(3) Lower
Pull
When starting the engine, the engine
switch may seem stuck in OFF. To
free it, turn the key while turning the
steering wheel slightly left and right.
When the steering lock cannot be
released, “Push Engine Switch while
Turning Steering Wheel in Either
Direction” will be displayed on the multi-
information display.
Press the engine switch shortly and
firmly while turning the steering wheel
left and right.

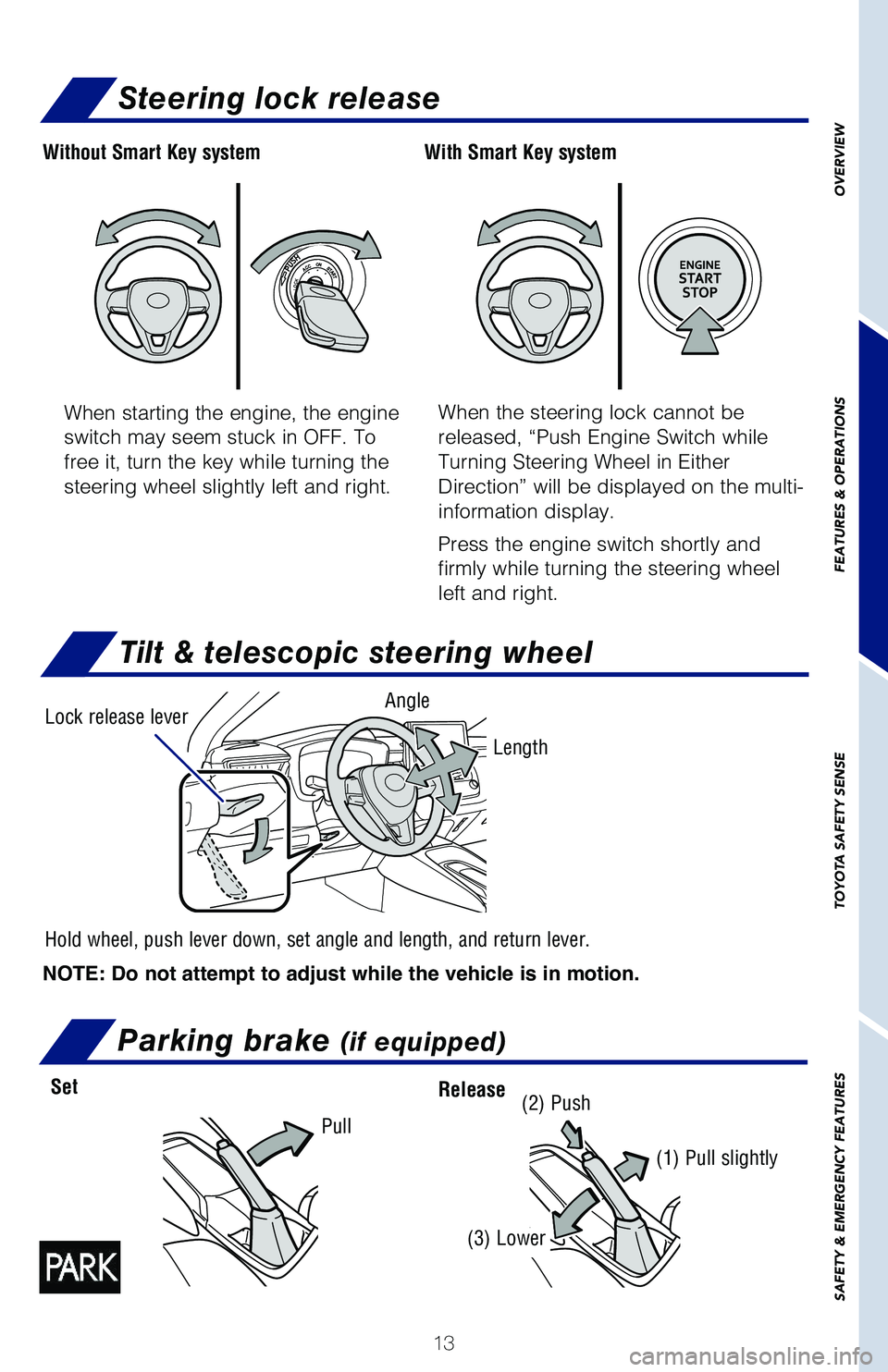

Steering lock release
With Smart Key system
Without Smart Key system
117388_A_MY20_Corolla_QRG_V5_ML_1219_Text_R1.indd 131/2/19 4:26 PM
Page 16 of 56
14
FEATURES & OPERATIONS

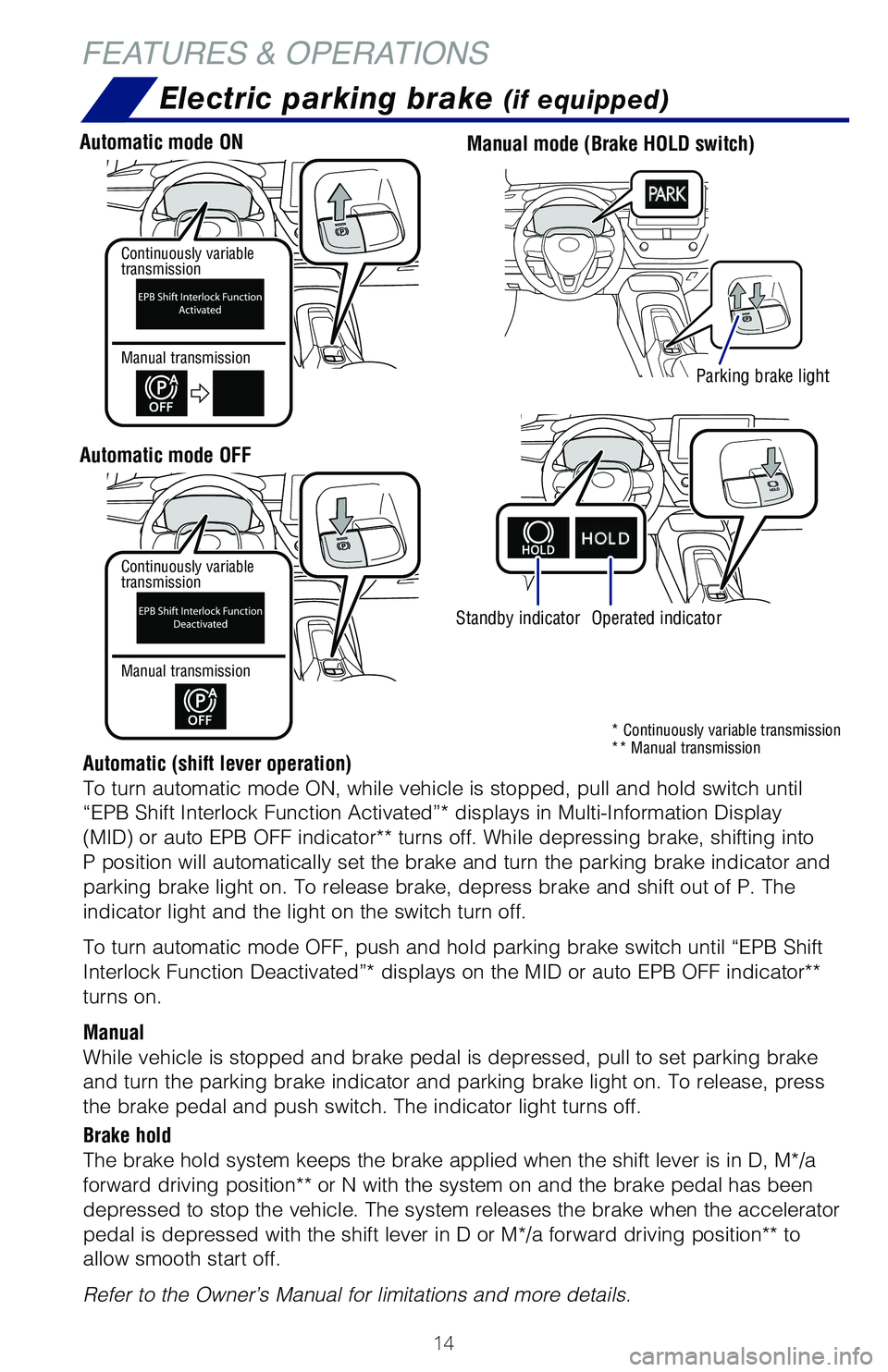

Electric parking brake (if equipped)
Driver side
Driver side
Automatic mode ON
Automatic mode OFF
Manual mode (Brake HOLD switch)
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switch until
“EPB Shift Interlock Function Activated”* displays in Multi-Information Display
(MID) or auto EPB OFF indicator** turns off. While depressing brake, shifting into
P position will automatically set the brake and turn the parking brake indicator and
parking brake light on. To release brake, depress brake and shift out of P. The
indicator light and the light on the switch turn off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated”* displays on the MID or auto EPB OFF indicator**
turns on.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake light on. To release, press
the brake pedal and push switch. The indicator light turns off.
Brake hold
The brake hold system keeps the brake applied when the shift lever is in D, M*/a
forward driving position** or N with the system on and the brake pedal has been
depressed to stop the vehicle. The system releases the brake when the accelerator
pedal is depressed with the shift lever in D or M*/a forward driving position** to
allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Standby indicatorOperated indicator
Parking brake light
Continuously variable
transmission
Continuously variable
transmission
Manual transmission
Manual transmission
* Continuously variable transmission
** Manual transmission
117388_A_MY20_Corolla_QRG_V5_ML_1219_Text_R1.indd 141/2/19 4:26 PM
Page 17 of 56
15
Driving support system status display areaDriving support system status display area
Content display areaContent display area
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Push “” or “” and “” on steering wheel to change and select information in
the following:

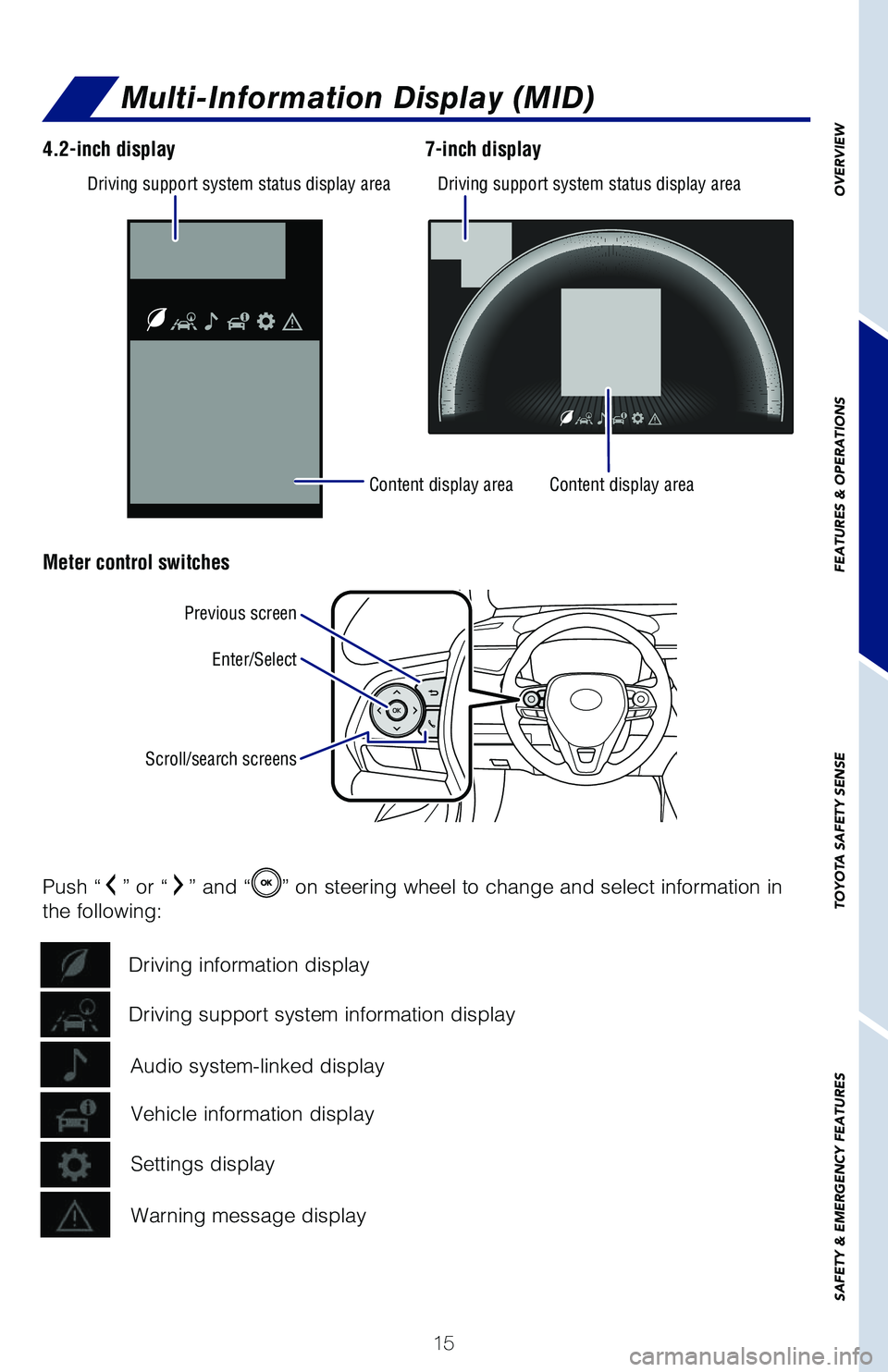

Multi-Information Display (MID)
4.2-inch display
Meter control switches 7-inch display
Previous screen
Enter/Select
Scroll/search screens
Driving support system information display Driving information display
Vehicle information display
Audio system-linked display
Settings display
Warning message display
117388_A_MY20_Corolla_QRG_V5_ML_1219_Text_R1.indd 151/2/19 4:27 PM
Page 18 of 56
16

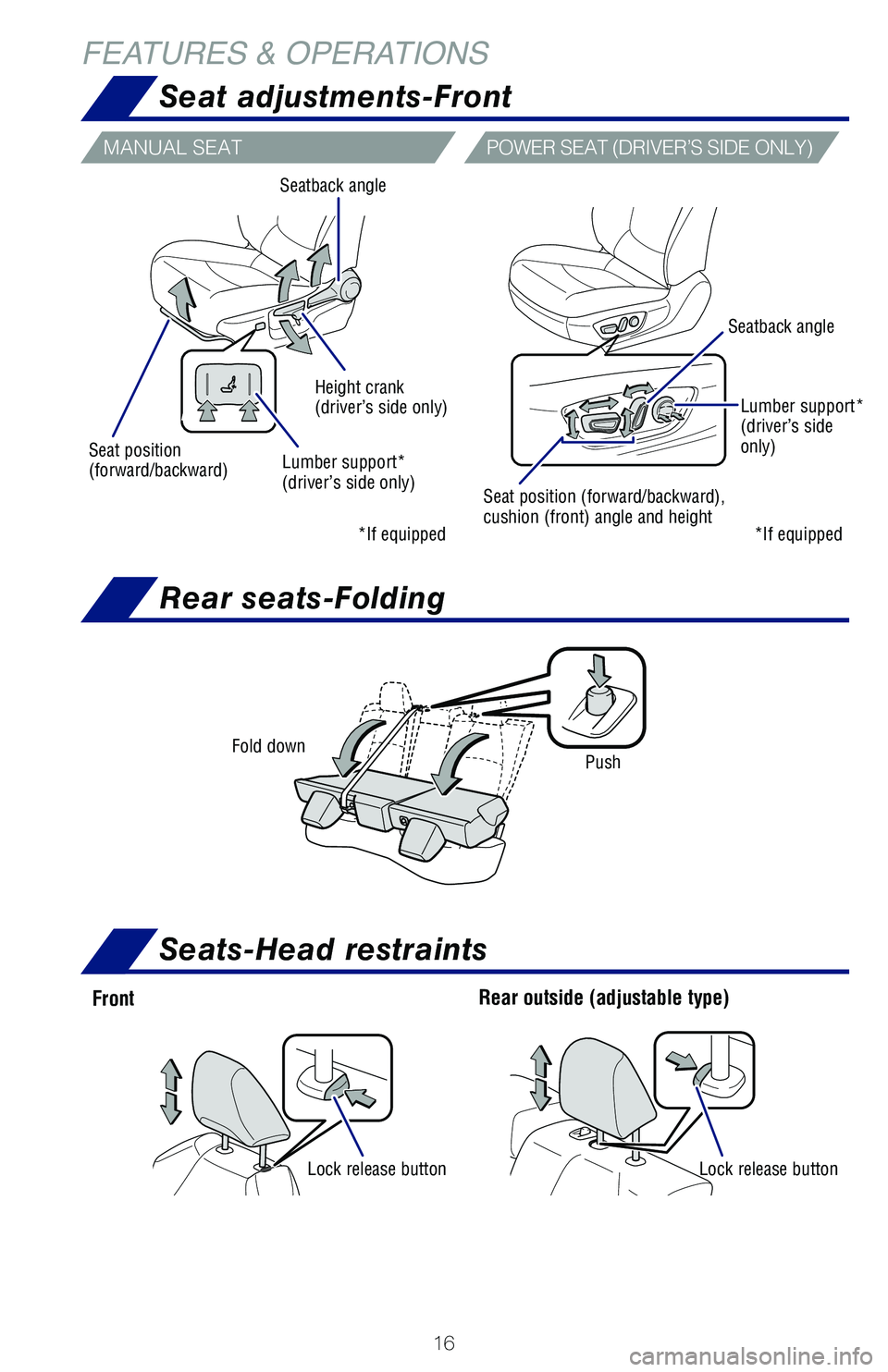

FEATURES & OPERATIONSSeat adjustments-Front
Front Rear outside (adjustable type)
Lock release button
Lock release button
Fold down
Push
MANUAL SEATPOWER SEAT (DRIVER’S SIDE ONLY)
Rear seats-Folding
Seats-Head restraints
Lumber support*
(driver’s side
only)
Lumber support*
(driver’s side only)
Seat position
(forward/backward) Height crank
(driver’s side only)
Seatback angle
Seat position (forward/backward),
cushion (front) angle and height Seatback angle
*If equipped
*If equipped
117388_A_MY20_Corolla_QRG_V5_ML_1219_Text_R1.indd 161/2/19 4:27 PM
Page 19 of 56
17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
-Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night.
-Automatic light cut off system Automatically turns lights off after 30 second delay, or lock switch on remote is pushed after all doors are locked.
-Automatic High Beam (AHB) system Automatically switches between high and low beams as appropriate for enhanced vision at night.
Refer to Toyota Safety Sense™ (TSS) in this guide or the Owner’s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for details.

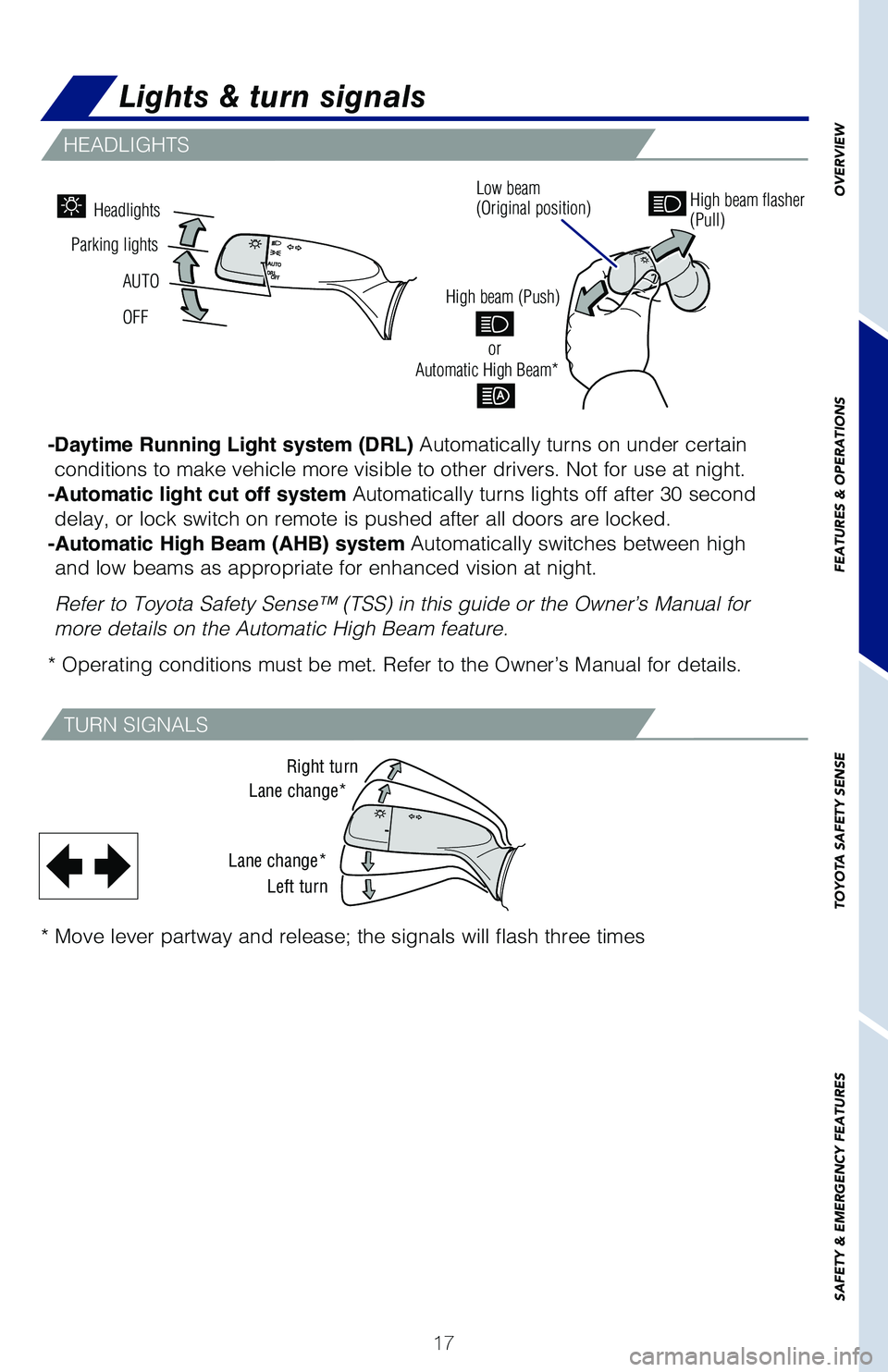

Headlights
AUTO
OFF
Parking lightsLow beam
(Original position)
or
High beam (Push)High beam flasher
(Pull)
Automatic High Beam*
Lights & turn signals
HEADLIGHTS
TURN SIGNALS
Right turn
Lane change*
Lane change* Left turn
* Move lever partway and release; the signals will flash three times
Lumber support*
(driver’s side
only)
117388_A_MY20_Corolla_QRG_V5_ML_1219_Text_R1.indd 171/2/19 4:27 PM
Page 20 of 56
18

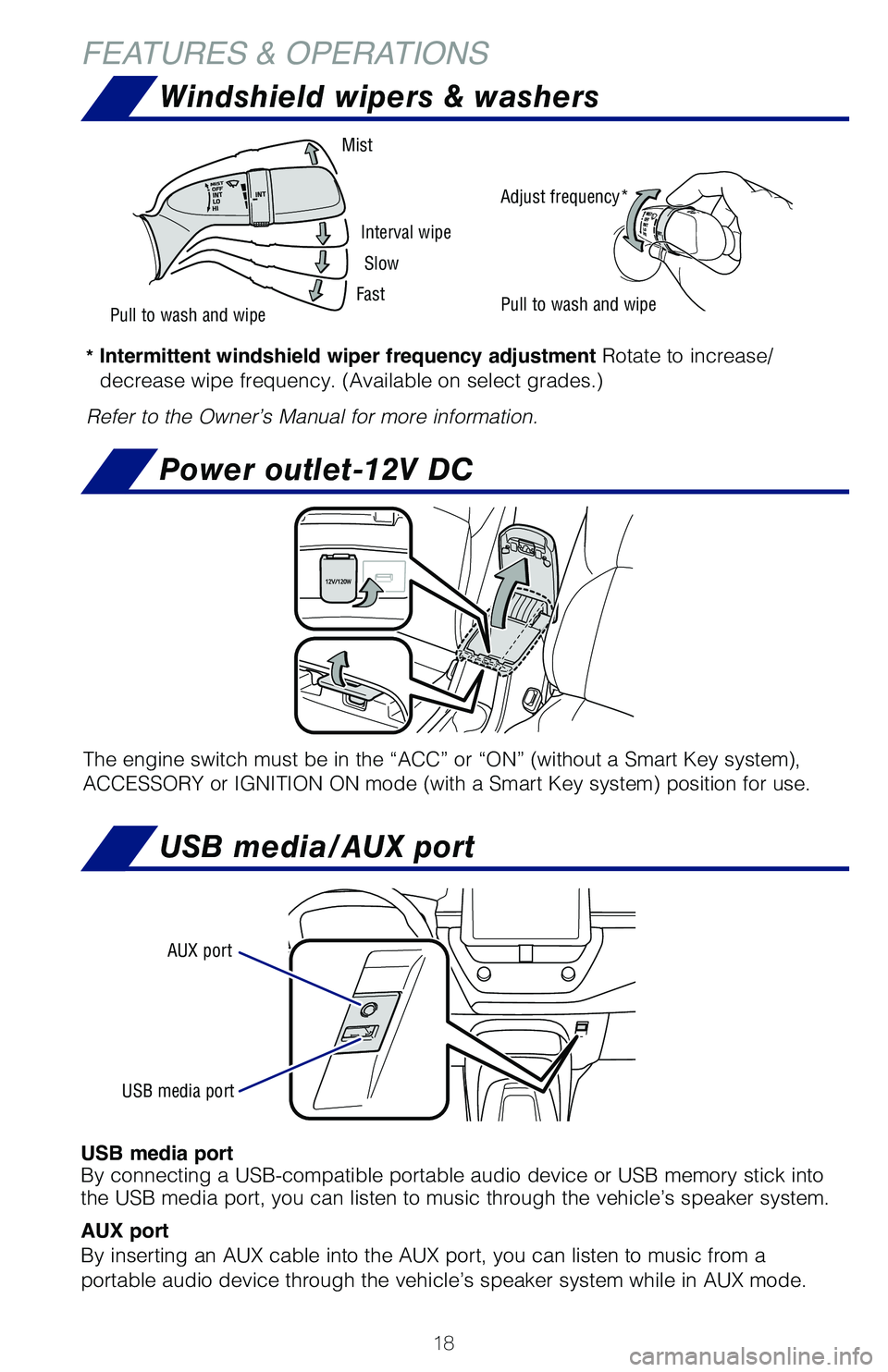

FEATURES & OPERATIONS
