Page 461 of 612

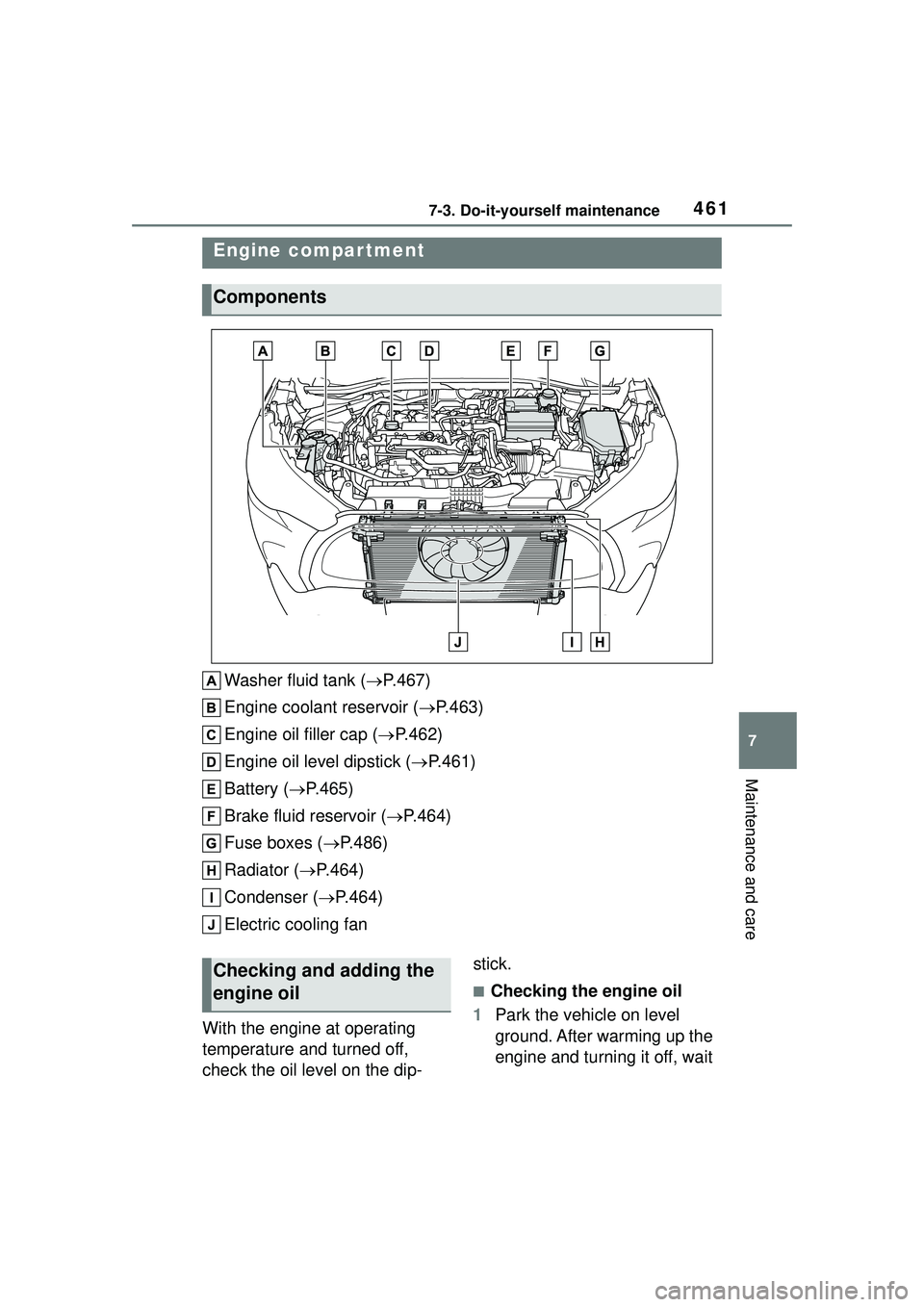

4617-3. Do-it-yourself maintenance
7
Maintenance and care
Washer fluid tank (P.467)
Engine coolant reservoir ( P.463)
Engine oil filler cap ( P.462)
Engine oil level dipstick ( P.461)
Battery ( P.465)
Brake fluid reservoir ( P.464)
Fuse boxes ( P.486)
Radiator ( P.464)
Condenser ( P.464)
Electric cooling fan
With the engine at operating
temperature and turned off,
check the oil level on the dip- stick.
■Checking the engine oil
1 Park the vehicle on level
ground. After warming up the
engine and turning it off, wait
Engine compar tment
Components
Checking and adding the
engine oil
Page 486 of 612

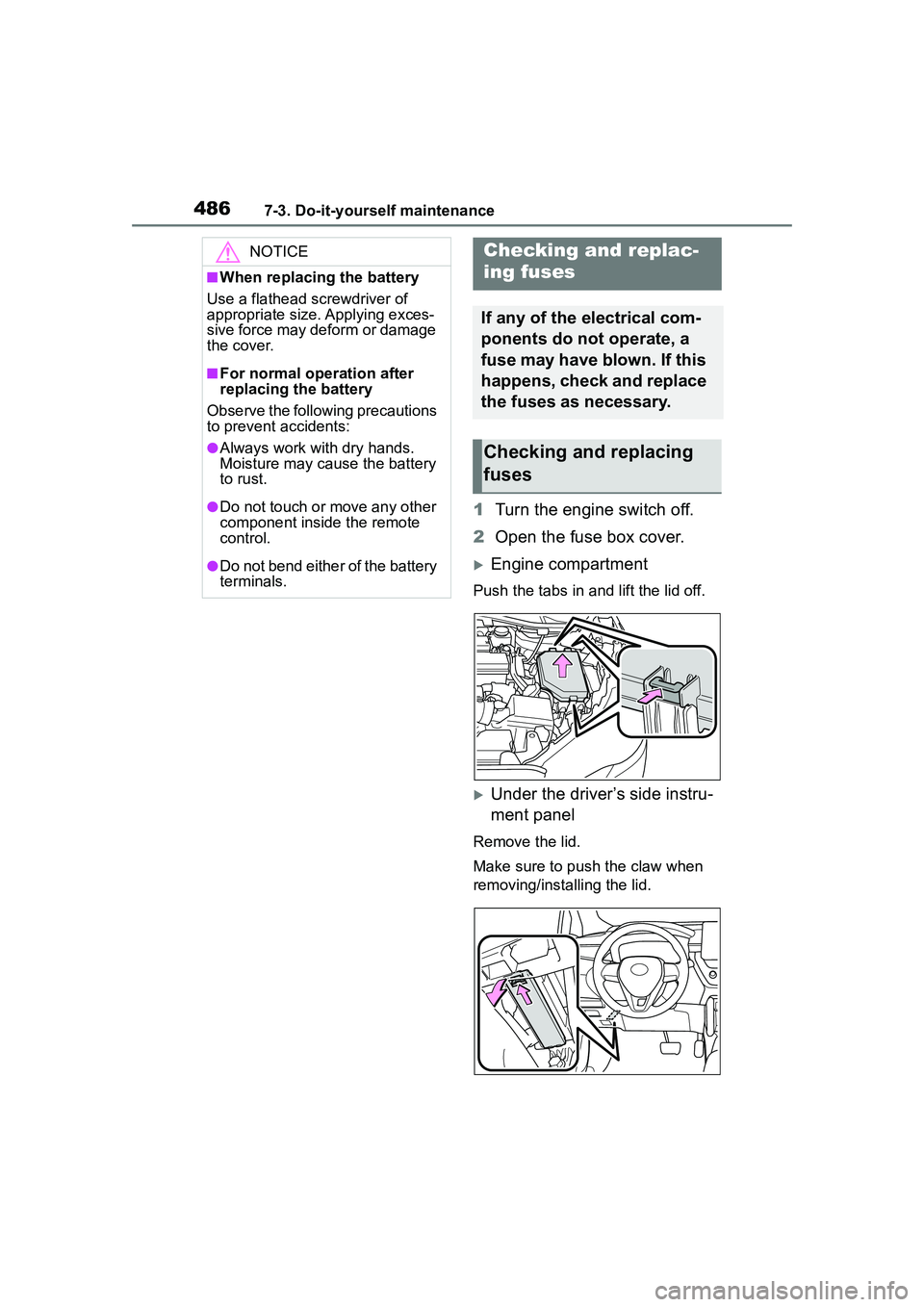

4867-3. Do-it-yourself maintenance
1Turn the engine switch off.
2 Open the fuse box cover.
Engine compartment
Push the tabs in and lift the lid off.
Under the driver’s side instru-
ment panel
Remove the lid.
Make sure to push the claw when
removing/installing the lid.
NOTICE
■When replacing the battery
Use a flathead screwdriver of
appropriate size. Applying exces-
sive force may deform or damage
the cover.
■For normal operation after
replacing the battery
Observe the following precautions
to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery
to rust.
●Do not touch or move any other
component inside the remote
control.
●Do not bend either of the battery
terminals.
Checking a nd replac-
ing fuses
If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.
Checking and replacing
fuses
Page 487 of 612

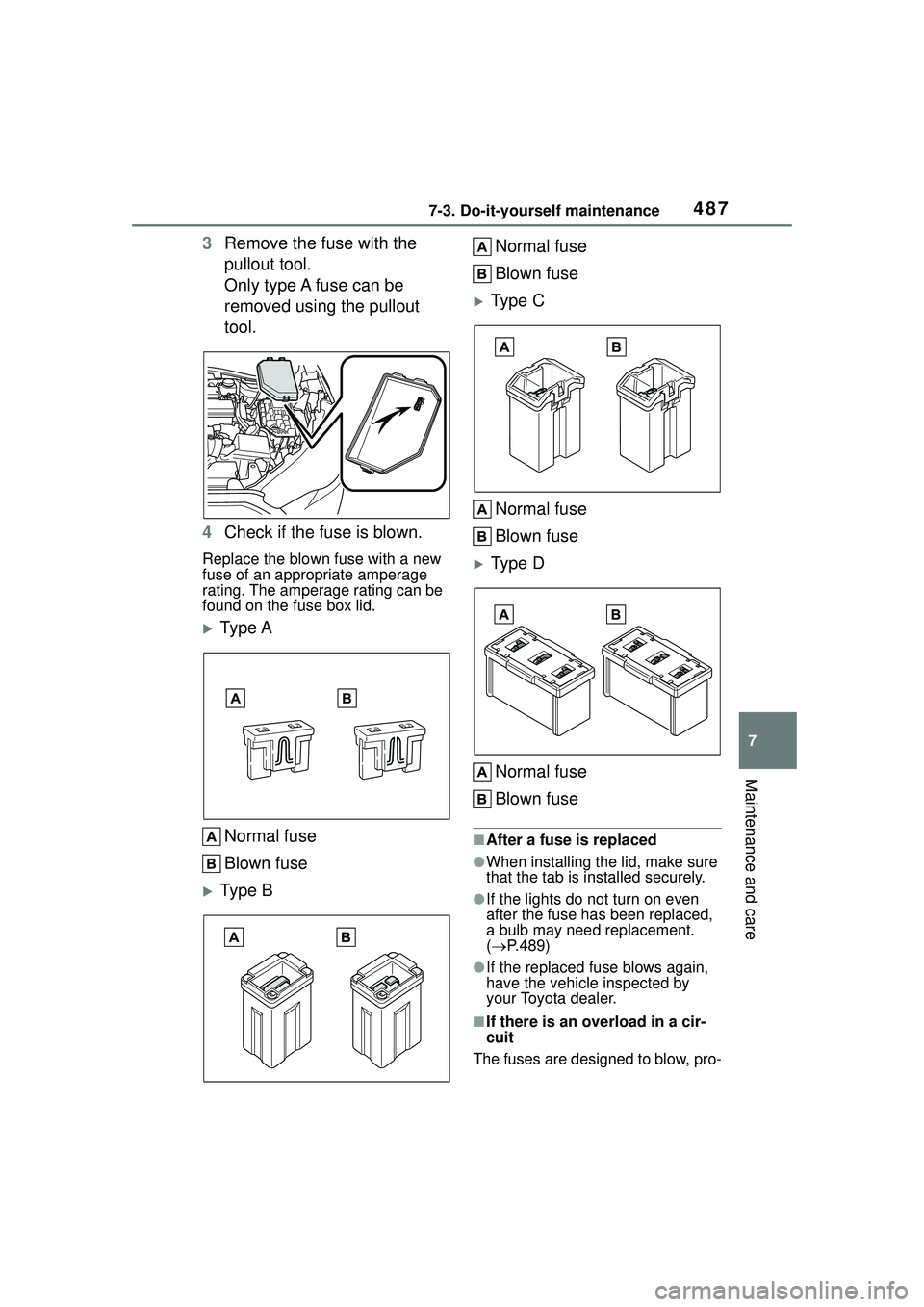

4877-3. Do-it-yourself maintenance
7
Maintenance and care
3Remove the fuse with the
pullout tool.
Only type A fuse can be
removed using the pullout
tool.
4 Check if the fuse is blown.
Replace the blown fuse with a new
fuse of an appropriate amperage
rating. The amperage rating can be
found on the fuse box lid.
Ty p e A
Normal fuse
Blown fuse
Ty p e B Normal fuse
Blown fuse
Type C
Normal fuse
Blown fuse
Type DNormal fuse
Blown fuse
■After a fuse is replaced
●When installing the lid, make sure
that the tab is in stalled securely.
●If the lights do not turn on even
after the fuse has been replaced,
a bulb may need replacement.
( P.489)
●If the replaced fuse blows again,
have the vehicle inspected by
your Toyota dealer.
■If there is an overload in a cir-
cuit
The fuses are designed to blow, pro-
Page 488 of 612

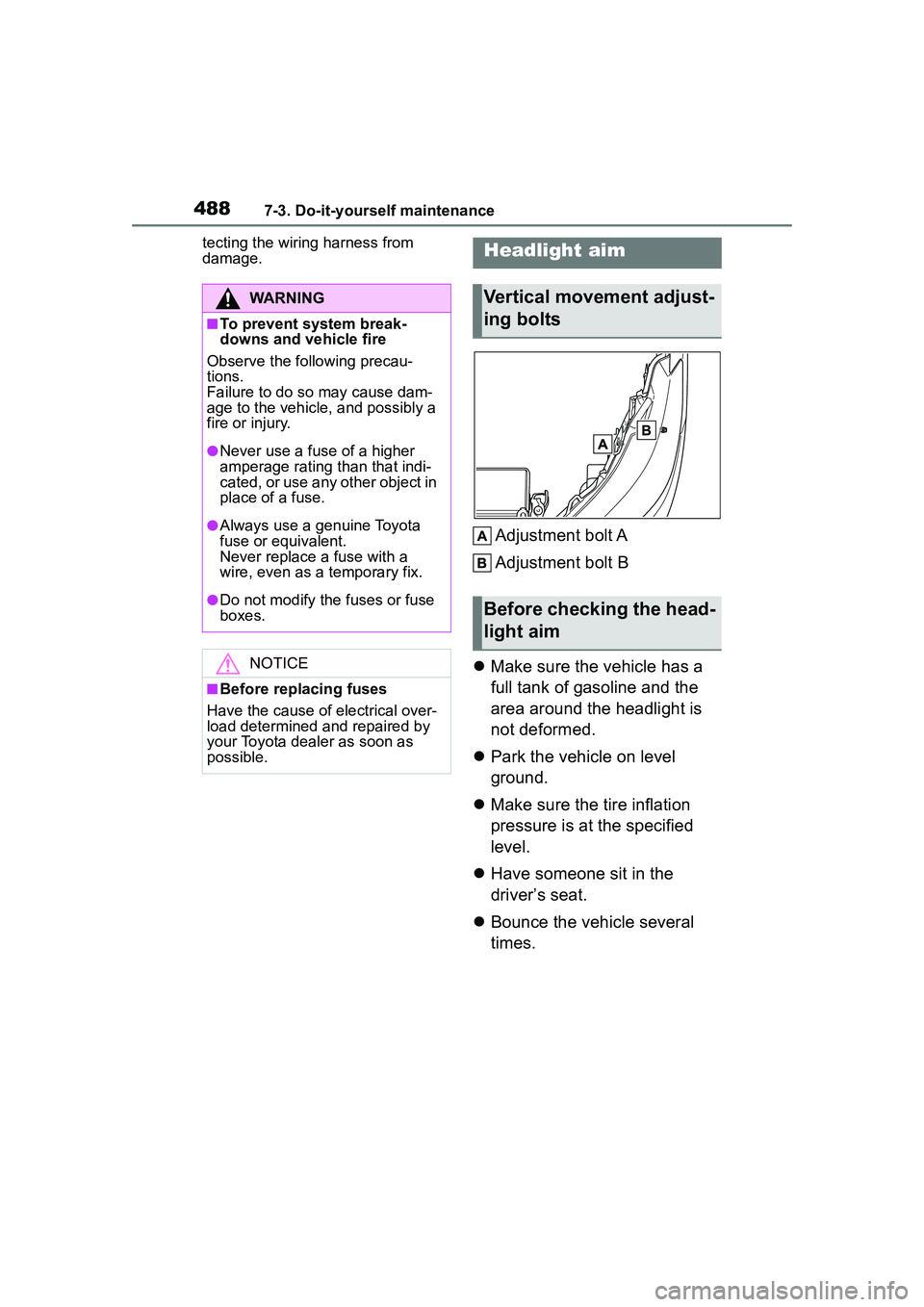

4887-3. Do-it-yourself maintenance
tecting the wiring harness from
damage.
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a
full tank of gasoline and the
area around the headlight is
not deformed.
Park the vehicle on level
ground.
Make sure the tire inflation
pressure is at the specified
level.
Have someone sit in the
driver’s seat.
Bounce the vehicle several
times.
WARNING
■To prevent system break-
downs and vehicle fire
Observe the following precau-
tions.
Failure to do so may cause dam-
age to the vehicle, and possibly a
fire or injury.
●Never use a fuse of a higher
amperage rating than that indi-
cated, or use any other object in
place of a fuse.
●Always use a genuine Toyota
fuse or equivalent.
Never replace a fuse with a
wire, even as a temporary fix.
●Do not modify the fuses or fuse
boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical over-
load determined and repaired by
your Toyota dealer as soon as
possible.
Headlight aim
Vertical movement adjust-
ing bolts
Before checking the head-
light aim
Page 592 of 612

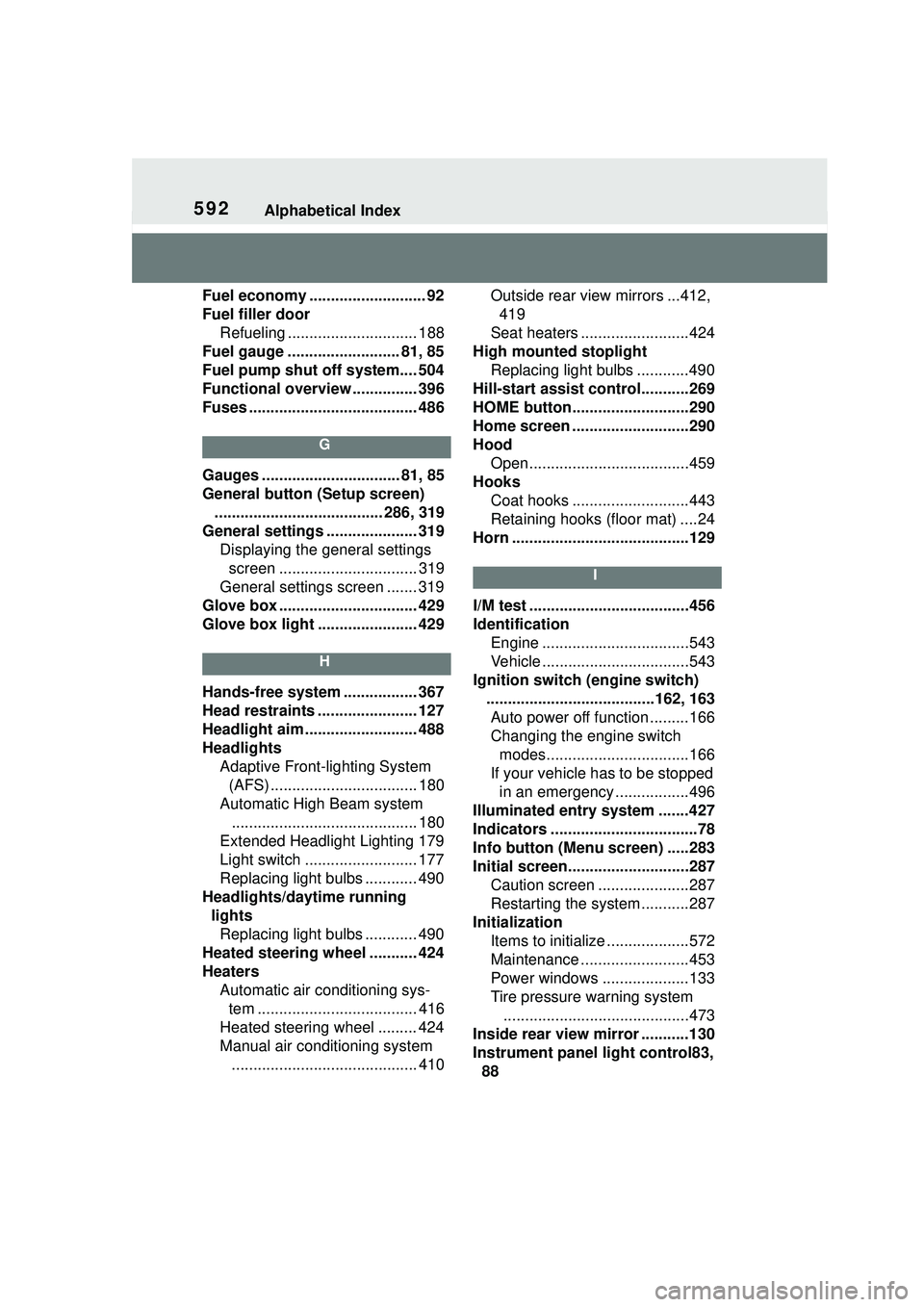

592Alphabetical Index
Fuel economy ........................... 92
Fuel filler door Refueling .............................. 188
Fuel gauge .......................... 81, 85
Fuel pump shut off system.... 504
Functional overview ............... 396
Fuses ....................................... 486
G
Gauges ................................ 81, 85
General button (Setup screen) ....................................... 286, 319
General settings ..................... 319 Displaying the general settings screen ................................ 319
General settings screen ....... 319
Glove box ................................ 429
Glove box light ....................... 429
H
Hands-free system ................. 367
Head restraints ....................... 127
Headlight aim .......................... 488
Headlights Adaptive Front-lighting System (AFS) .................................. 180
Automatic High Beam system ........................................... 180
Extended Headlight Lighting 179
Light switch .......................... 177
Replacing light bulbs ............ 490
Headlights/daytime running lightsReplacing light bulbs ............ 490
Heated steering wheel ........... 424
Heaters Automatic air conditioning sys-tem ..................................... 416
Heated steering wheel ......... 424
Manual air conditioning system ........................................... 410 Outside rear view mirrors ...412,
419
Seat heaters .........................424
High mounted stoplight Replacing light bulbs ............490
Hill-start assist control...........269
HOME button...........................290
Home screen ...........................290
Hood Open.....................................459
Hooks Coat hooks ...........................443
Retaining hooks (floor mat) ....24
Horn .........................................129
I
I/M test .....................................456
Identification Engine ..................................543
Vehicle ..................................543
Ignition switch (engine switch) .......................................162, 163Auto power off function .........166
Changing the engine switch modes.................................166
If your vehicle has to be stopped in an emergency .................496
Illuminated entry system .......427
Indicators ..................................78
Info button (Menu screen) .....283
Initial screen............................287 Caution screen .....................287
Restarting the system ...........287
Initialization Items to initialize ...................572
Maintenance .........................453
Power windows ....................133
Tire pressure warning system...........................................473
Inside rear view mirror ...........130
Instrument panel light control83,
