1063-4. Setup
COROLLA_H/B_Navi_U
Select to set specific routes
(such as frequently used
routes) on which you wish to
receive traffic information.
(P.106)
Select to set the avoid traffic
function auto/manual.
( P.108)
Select to set the usage of
traffic information for the esti-
mated arrival time on/off.
Select to set the display of an
arrow of free flowing traffic
on/off.
Select to set to on/off
whether to consider the pre-
dictive traffic information
( P.77) with estimated
arrival time and detoured
route search.
Select to set traffic incident
voice warning on/off.
Select to reset all setup
items.
Specific routes (such as fre-
quently used routes) on which
you wish to receive traffic infor-
mation can be registered as “My Traffic Routes”. A route is set by
defining a start point and end
point, and can be adjusted by
setting up to 2 preferred roads.
1
Display the traffic settings
screen. ( P.105)
2 Select “My Traffic Routes”.
3 Select the desired item.
Select to register personal
traffic routes. ( P.106)
Select to edit personal traffic
routes. ( P.107)
Select to delete personal traf-
fic routes. ( P.107)
1 Select “New”.
2 Select “Name”.
3 Enter the name and select
“OK”.
4 Select “Start”.
5 Select the desired item to
search for the location.
( P.79)
6 Select “End”.
My traffic routesA
B
C
D
E
F
G
5HJLVWHULQJSHUVRQDOWUDIILF
URXWHV
A
B
C

1224-2. Radio operation
COROLLA_H/B_Navi_U
4-2.Radio operation
*: If equipped
The radio operation screen can
be reached by the following
methods:
P. 1 1 7
Select to display the audio
source selection screen.
Select to display the preset
stations screen. ( P.123)
Select to display the cache
radio operation screen.
( P.123)
Select to display a list of
receivable stations. ( P.124)
Select to display the radio
options screen. ( P.124)
Select to display the sound
setting screen. ( P. 1 1 8 )
Select to tune to preset sta-
tions/channels. ( P.123)
Displays items on the chan- nels registered to smart
favorites (
P.124, 144)
Displays the artist info and
song title or album
Select to change the dis-
played information.
Displays messages when
available
Displays cover art, station
logo, etc.
Displays information about
the song/track currently
being played
Select to display HD) multi-
cast channels available.
( P.126)
Press to seek for stations in
the relevant program
type/channel category.
Press and hold for continu-
ous seek.
Turn to step up/down fre-
quencies/channels.
Turn to move up/down the
station. Also, the knob can be
used to enter selections on
the list screens by pressing it.
AM/FM/SiriusXM
(SXM)* radio
Overview
Control screen
A
B
C
D
E
F
G
H
&RQWUROSDQHO
I
J
K
L
A
B

1234-2. Radio operation
COROLLA_H/B_Navi_U
4
Audio/visual system
●The radio automatically changes
to stereo reception when a stereo
broadcast is received.
●The radio automatically blends to
an HD Radio signal in AM or FM
where available.
Radio mode has a mix preset
function, which can store up to
36 stations (6 stations per page
x 6 pages) from any of the AM,
FM or SXM bands.
1 Tune in the desired station.
2 Select and hold “(Add New)”.
 When “(Add New)” is
selected, a confirmation mes-
sage appears. Select “Yes”
and select “OK”.
 To change the preset station
to a different one, select and
hold the preset station.
●The number of preset radio sta-
tions displayed on the screen can
be changed. ( P.143)
AM/FM* and SXM radio program
can be cached and played back
in a time-shifted manner.
*: Entune Premium Audio only
■Automatic playback of the
cache
If the radio broadcast is inter-
rupted by another audio output,
such as an incoming phone call,
the system will automatically
cache the interrupted portion
and perform time-shift playback
when the interruption ends. This
function is available when “Auto
Pause” is set to on. ( P.124)
■Playing back the cache
manually
The broadcast cached in the
program cache can be played
back manually.
1 Select “SXM Replay”
*1 or
“Radio Replay”
*2.
*1: Entune Audio Plus only
*2: Entune Premium Audio only
2 Select the desired cache
radio operation button.
Returns to the live radio
broadcast
Displays the replay offset
from the current time
Skips backward 2 minutes
(AM/FM)
Presetting a station
Caching a radio program
A
B
C

1244-2. Radio operation
COROLLA_H/B_Navi_U
Select to select current/previ-
ous track (SXM)
Fast rewinds continuously
Pauses the playback (To
restart, select )
Fast forwards continuously
Skips forward 2 minutes
(AM/FM)
Select to change the track
(SXM)
●The system can store up to 20
minutes of AM/FM and less than
60 minutes of SXM. Cached data
will be erased when the radio
mode or station is changed or
when the audio/visual system is
turned off.
●AM/FM: If noise or silence occurs
during the caching process, cache
writing will continue, with the noise
or silence recorded as is. In this
case, the cached broadcast will
contain the noise or silence when
played back.
■Smart favorites
Up to 20 channels can be regis-
tered as presets in the cache.
Caches the latest less than 30
minutes for each channel. For
channel registration, refer to
( P.143)
1 Select channels registered to
smart favorites.
2 Select “SXM Replay”
*1 or
“Radio Replay”
*2.
*1: Entune Audio Plus only
*2: Entune Premium Audio only
●Caches the latest less than 30 minutes for each channel.
●The radio plays the track from
start when that track has not previ-
ously been heard by the user and
the station is registered as smart
favorite.
●When “SXM Tune Start” is turned
on (
P.124), the current song is
played from the beginning when
you select the channel.
●Displays icons on the channels
registered to smart favorites.
(  P.122)
1 Select “Station List”.
2 Select “AM”, “FM” or “SXM”.
 Select the desired program
genre when the genre selec-
tion screen is displayed.
3 Select the desired station.
■Refreshing the station list
1 Select “Refresh”.
“Cancel Refresh”: Select to can-
cel the refresh.
“Source”: Select to change to
another audio source while
refreshing.
●The audio/visual s ystem sound is
muted during refresh operation.
●In some situations, it may take
some time to update the station
list.
1 Select “Options”.
D
E
F
G
Selecting a station from
the list
Radio options

1274-2. Radio operation
COROLLA_H/B_Navi_U
4
Audio/visual system
wait until the digital signal returns. If
out of the coverage area, seek a
new station.
 Audio mute delay when
selecting an HD2/HD3 multi-
cast channel preset.
Cause: The digital multicast content
is not available until HD Radio™
broadcast can be decoded and
make the audio available. This
takes up to 7 seconds.
Action: This is normal behavior,
wait for the audio to become avail-
able.
Text information does not
match the present song
audio.
Cause: Data service issue by the
radio broadcaster.
Action: Broadcaster should be noti-
fied. Complete the form:
hdradio.com/sta tions/feedback
.
No text information shown for
the present selected fre-
quency.
Cause: Data service issue by the
radio broadcaster.
Action: Broadcaster should be noti-
fied. Complete the form:
hdradio.com/sta tions/feedback
.
All SiriusXM services, including
satellite radio and data services,
plus streaming services, require
a subscription, sold separately
or as a package by Sirius XM
Radio Inc. (U.S.A.) or Sirius XM
Canada Inc. (Canada), after any
trial subscription which may be
included with your vehicle pur-
chase or lease. To subscribe
after your trial subscription, call
1-877-447-0011 (U.S.A.) or
1-877-438-9677 (Canada).
■Important information
about your subscription
Your SiriusXM services will
automatically stop at the end of
your trial unless you decide to
subscribe. If you decide to con-
tinue service, the paid subscrip-
tion plan you choose will
automatically renew and you will
be charged the rate in effect at
that time and according to your
chosen payment method. Fees
and taxes apply. You may can-
cel at any time by calling
1-866-635-2349. See SiriusXM
Customer Agreement for com-
plete terms at
www.siriusxm.com
(U.S.A.) or
www.siriusxm.ca
(Canada). All
fees and programming subject
to change. Traffic information
not available in all markets.
How to subscribe to Siri-
usXM Satellite Radio

1424-4. Audio/visual remote controls
COROLLA_H/B_Navi_U
*1: If equipped
*2: When Apple CarPlay is estab-lished, this function will be
unavailable.
●In the APPS mode, some opera-
tion may be done on the screen
depend on t he selected APPS.
SXM*1
Press: Preset chan-
nel up/down
Press and hold (0.8
sec. or more): Seek
for stations in the rele-
vant program
type/channel category
Press and hold (1.5
sec. or more): Fast
channel up/down
USB*2,
iPod/
iPhone,
Bluetooth
®
audio
*2
Press: Track/file
up/down
Press and hold (0.8
sec. or more): Fast
forward/rewind
ModeOperation/function

1444-5. Setup
COROLLA_H/B_Navi_U
Edit smart favorites.
(P.144)
Select to change the number
of preset radio stations dis-
played on the screen.
( P.144)
1 Select “Manage Smart
Favorites”.
2 Select the desired channel to
be set.
●Displays the registered preset
channels.
●Up to 20 channels can be regis-
tered.
1Select “Number of Radio Pre-
sets”.
2 Select the button with the
desired number to be dis-
played.
Manage smart favorites
Setting the number of radio
presets
A
B

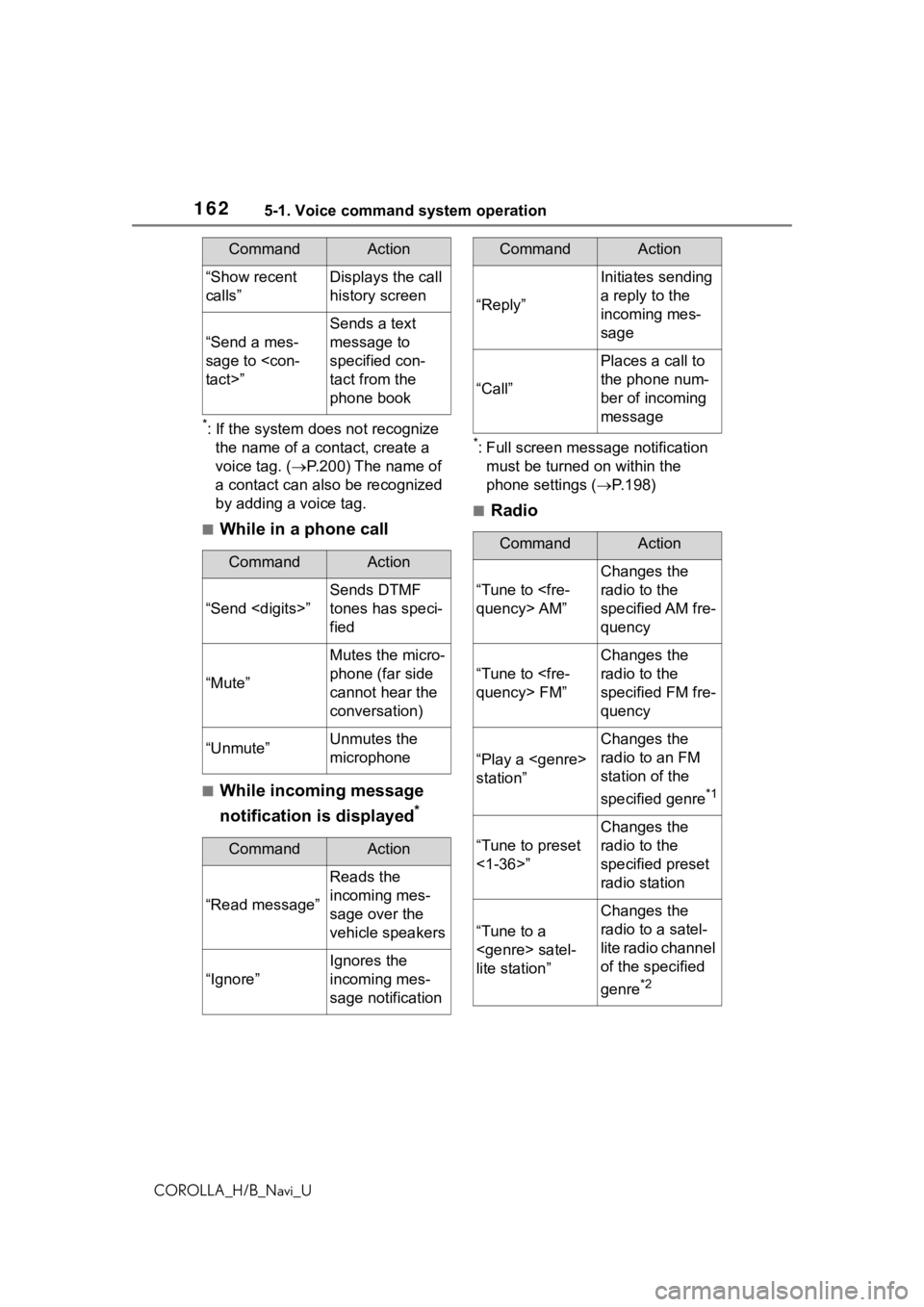

1625-1. Voice command system operation
COROLLA_H/B_Navi_U
*: If the system does not recognize the name of a contact, create a
voice tag. ( P.200) The name of
a contact can also be recognized
by adding a voice tag.
■While in a phone call
■While incoming message
notification is displayed
*
*: Full screen message notification must be turned on within the
phone settings ( P.198)
■Radio
“Show recent
calls”Displays the call
history screen
“Send a mes-
sage to tact>”
Sends a text
message to
specified con-
tact from the
phone book
CommandAction
“Send ”
Sends DTMF
tones has speci-
fied
“Mute”
Mutes the micro-
phone (far side
cannot hear the
conversation)
“Unmute”Unmutes the
microphone
CommandAction
“Read message”
Reads the
incoming mes-
sage over the
vehicle speakers
“Ignore”
Ignores the
incoming mes-
sage notification
CommandAction
“Reply”
Initiates sending
a reply to the
incoming mes-
sage
“Call”
Places a call to
the phone num-
ber of incoming
message
CommandAction
“Tune to quency> AM”
Changes the
radio to the
specified AM fre-
quency
“Tune to quency> FM”
Changes the
radio to the
specified FM fre-
quency
“Play a
station”
Changes the
radio to an FM
station of the
specified genre
*1
“Tune to preset
<1-36>”
Changes the
radio to the
specified preset
radio station
“Tune to a
satel-
lite station”
Changes the
radio to a satel-
lite radio channel
of the specified
genre
*2
CommandAction

1978-1. Phone operation (Hands-free system for cellular phones)
COROLLA_H/B_Navi_U
8
Phone
2 Select “OK” when editing is
completed.
●To reset the edited quick reply
messages, select “Default”.
●Quick message 1 ( “I am driving
and will arrive in approximately
[##] minutes.”)
*:
This message cannot be edited
and will automatica lly fill in [##]
with the navigation calculated esti-
mated time of arrival on the con-
firm message screen.
If there are waypoints set, [##] to
the next waypoint will be shown.
If there is no route currently set in
the navigation system, quick mes-
sage 1 cannot be selected.
*: Entune Premium Audio only
Calls can be made to an
e-mail/SMS/MMS message
sender’s phone number.
This operation can be per-
formed while driving.
■Calling from
e-mail/SMS/MMS message
display
1 Display the message screen.
( P.194)
2 Select the desired message.
3 Select , or press the
switch on the steering wheel.
 If there are 2 or more phone
numbers, select the desired
number.
4 Check that the dialing screen
is displayed.
■Calling from a number
within a message
Calls can be made to a number
identified in a message’s text
area.
This operation cannot be per-
formed while driving.
1 Display the message screen.
( P.194)
2 Select the desired message.
3 Select the text area.
 Identified phone numbers
contained in the message are
displayed in blue text.
4 Select the desired number.
5 Check that the dialing screen
is displayed.
●A series of numbers may be rec-
ognized as a phone number. Addi-
tionally, some phone numbers
may not be recognized, such as
those for other countries.
■Calling from the incoming
message screen
For detail, refer to “Receiving a
message”. ( P.194)
Calling the message
sender

1998-2. Setup
COROLLA_H/B_Navi_U
8
Phone
Select to set the desired
incoming e-mail tone.
Select to set the desired
incoming SMS/MMS tone.
Select “-” or “+” to adjust the
incoming SMS/MMS tone
volume.
Select “-” or “+” to adjust the
incoming e-mail tone volume.
Select “-” or “+” to adjust the
message readout volume.
Select to reset all setup
items.
●Depending on the type of
Bluetooth® phone, certain func-
tions may not be available.
1 Display the phone settings
screen. ( P.198)
2 Select “Notifications”.
3 Select the desired item to be
set. Select to change the incom-
ing call display.
“Full Screen”: W
hen a call is
received, the incoming call screen
is displayed and can be operated
on the screen.
“Drop-down”: A message is dis-
played at the top of the screen.
Select to set the SMS/MMS
notification pop-up on/off.
Select to change the incom-
ing SMS/MMS display.
“Full Screen”: When an
SMS/MMS message is
received, the incoming
SMS/MMS display screen is
displayed and can be oper-
ated on the screen.
“Drop-down”: When an
SMS/MMS message is
received, a message is dis-
played at the top of the
screen.
Select to set the e-mail notifi-
Notifications settings
screen
D
E
F
G
H
I
A
B
C
D
