QUICK REFERENCE GUIDE
COROLL A
HATCHBACK
18-MKG-11873_QRG_Cover_COROLLA_HATCHBACK_1_1F_lm.indd 1595/17/18 11:39 PM
Page 2 of 56
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3

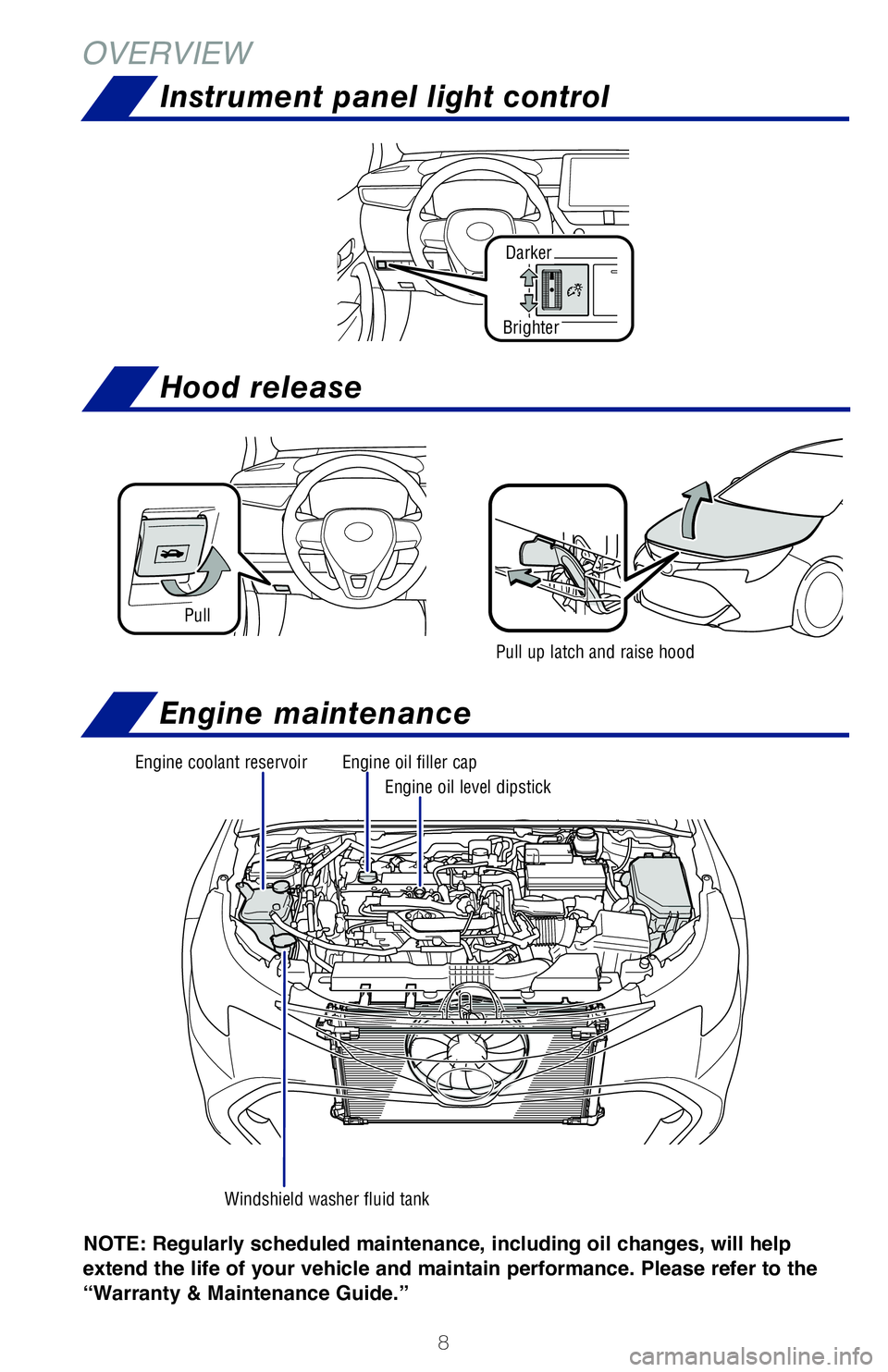

Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 21
Audio 18
Auto lock/unlock
1,2 9
Blind Spot Monitor 23
Bottle holders 14
Continuously variable transmission 9
Cup holders 15
Door locks 14
Driving mode select 22
Electric parking brake 10
Lights
1 & turn signals 13
Manual transmission 9
Multi-Information Display (MID) 11
Power outlet 19
Rear view monitor system 23
Seat adjustments-Front 16
Seat heaters 20
Seats-Folding rear 16
Seats-Head restraints 16
Steering lock release 15
Steering wheel switches &
telephone controls (Bluetooth
®) 17
Tilt & telescopic steering wheel 15
Vehicle Stability Control (VSC)/
TRAC OFF switch 22
COROLLA HATCHBACK 2019

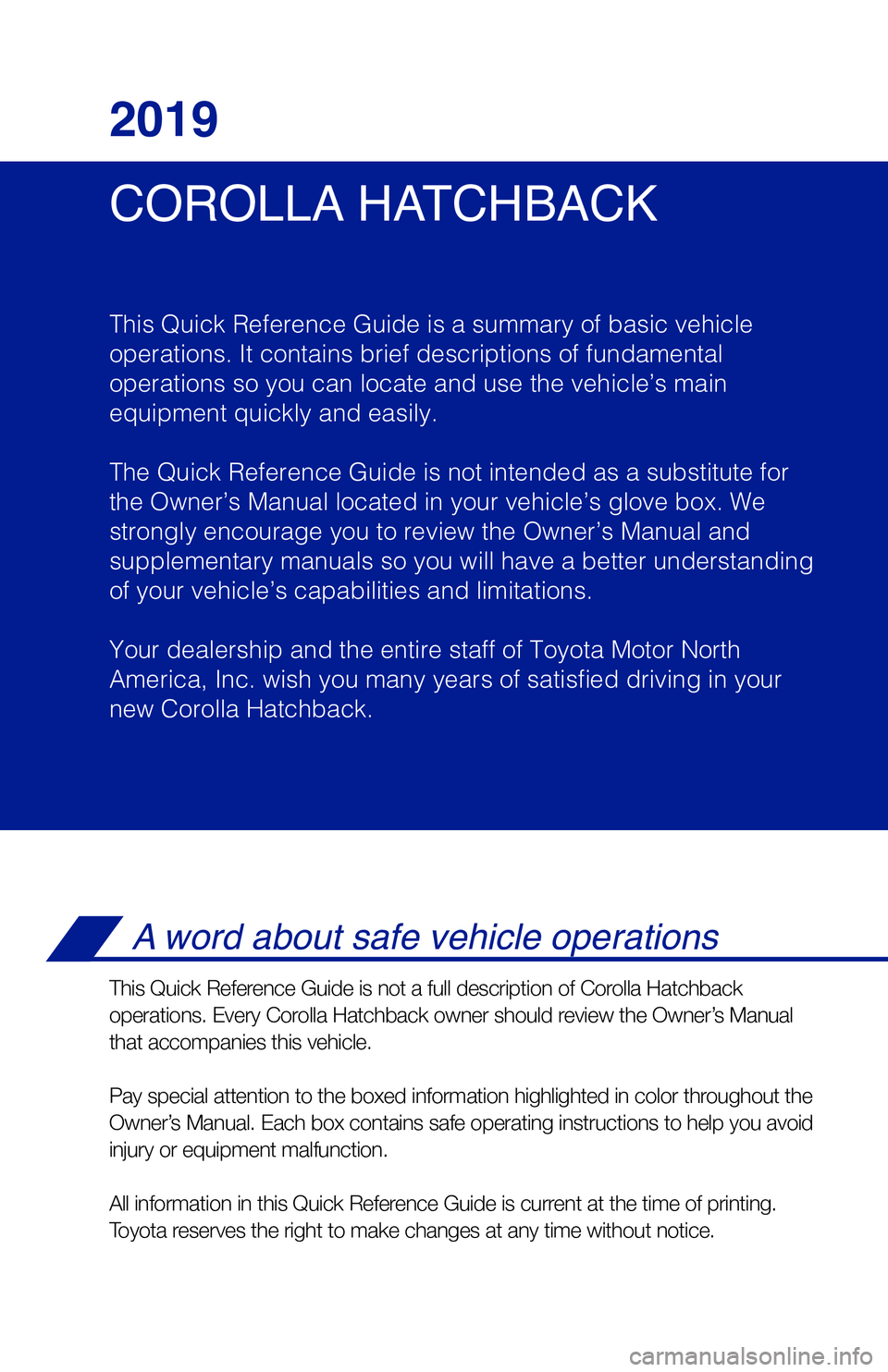

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Corolla Hatchback.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Corolla Hatchback
operations. Every Corolla Hatchback owner should review the Owner’s Manual
that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout the
Owner’s Manual. Each box contains safe operating instructions to help you avoi\
d
injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
2019_Corolla_HB_QRG_V5_0516.indd 15/17/18 11:23 PM
Page 3 of 56
1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ (TSS)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating
21
Audio 18
Auto lock/unlock
1,2 9
Blind Spot Monitor 23
Bottle holders 14
Continuously variable transmission 9
Cup holders 15
Door locks 14
Driving mode select 22
Electric parking brake 10
Lights
1 & turn signals 13
Manual transmission 9
Multi-Information Display (MID) 11
Power outlet 19
Rear view monitor system 23
Seat adjustments-Front 16
Seat heaters 20
Seats-Folding rear 16
Seats-Head restraints 16
Steering lock release 15
Steering wheel switches &
telephone controls (Bluetooth
®) 17
Tilt & telescopic steering wheel 15
Vehicle Stability Control (VSC)/
TRAC OFF switch 22USB charge-port
18
USB medai/AUX port 20
Windows-Power 14
Windshield wipers & washers 12
Wireless charger 19
Floor mat installation 47
Rear door child safety locks 41
Safety Connect 43
Seat belts 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 44
Star Safety System
™ 46-47
Tire Pressure Monitoring
(warning) System (TPMS) 42
Tire repair kit & tools 45
Automatic High Beams (AHB) 39
Dynamic Radar Cruise Control (DRCC)
or Full-Speed Range DRCC
36-38
Lane Departure Alert with
Steering Assist (LDA w/SA) 28-31
Lane Tracing Assist (LTA) 31-35
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Road Sign Assist (RSA) 40
Quick overview-
Toyota Safety Sense
™ (TSS) 24
Sensors 25
PAIRING BLUETOOTH® PHONE FOR
THE FIRST TIME 48-50
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
2019_Corolla_HB_QRG_V5_0516.indd 15/17/18 11:26 PM
Page 4 of 56
2

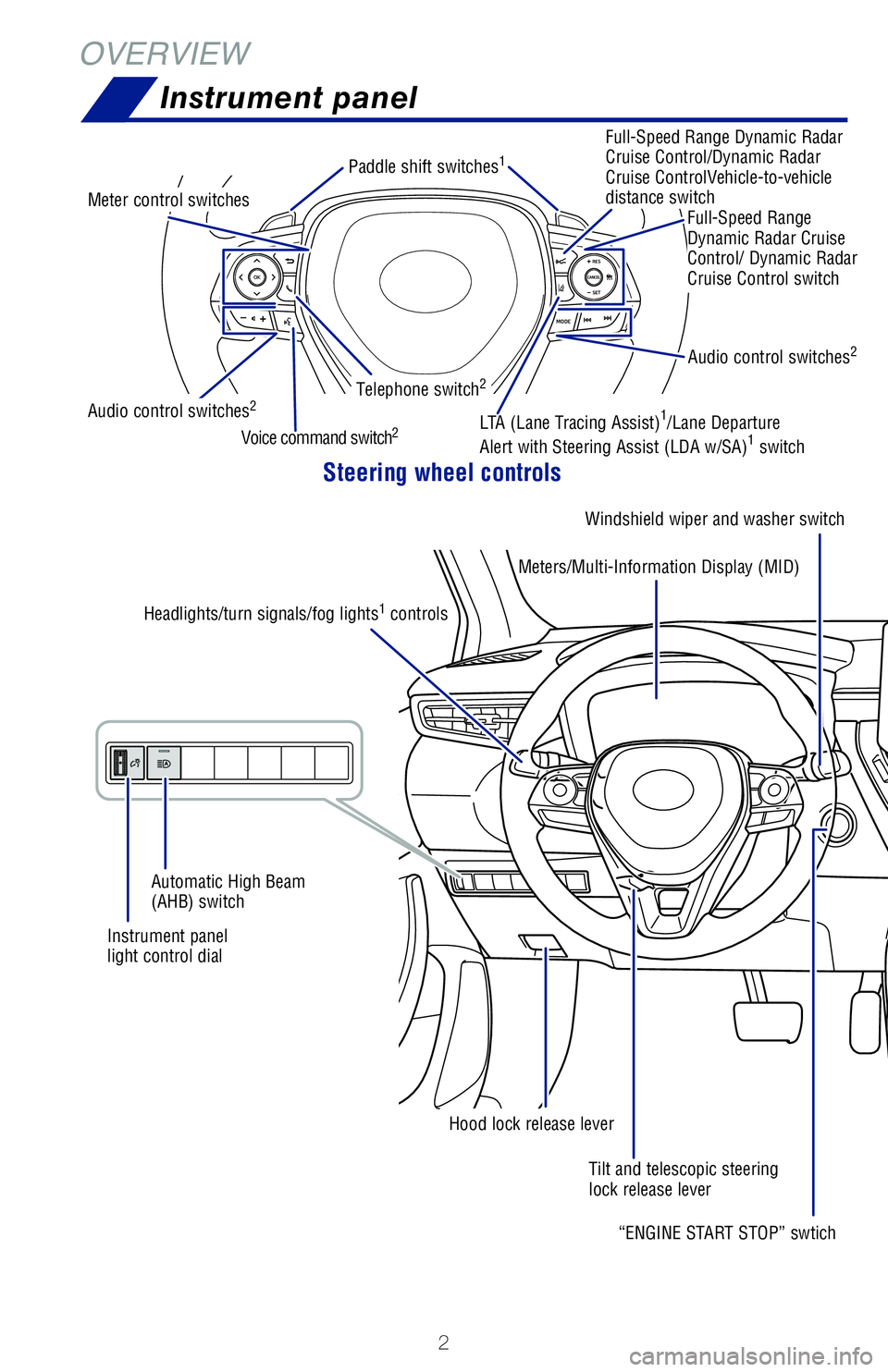

OVERVIEWInstrument panel
Steering wheel controls
Windshield wiper and washer switch
Tilt and telescopic steering
lock release lever
Audio control switches2
Audio control switches2
Meter control switches
Instrument panel
light control dial
“ENGINE START STOP” swtich
Hood lock release lever
Meters/Multi-Information Display (MID)
Automatic High Beam
(AHB) switch Paddle shift switches
1
Telephone switch2
Voice command switch2
Full-Speed Range Dynamic Radar
Cruise Control/Dynamic Radar
Cruise ControlVehicle-to-vehicle
distance switch
LTA (Lane Tracing Assist)
1/Lane Departure
Alert with Steering Assist (LDA w/SA)1 switch
Full-Speed Range
Dynamic Radar Cruise
Control/ Dynamic Radar
Cruise Control switch
Parking brake switch
1 If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit www.toyota.com/
entune for additional audio/multimedia resources.
Headlights/turn signals/fog lights1 controls
2019_Corolla_HB_QRG_V5_0516.indd 25/17/18 11:12 PM
Page 5 of 56
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Windshield wiper and washer switch
Emergency flasher switch
VSC OFF switch
“SPORT” mode switch
1
VSC OFF switch
Brake hold switch “iMT” (Intelligent Manual
Transmission) switch
1
With a continuously
variable transmission
With a manual transmission
Audio control switches2
“ENGINE START STOP” swtich
Meters/Multi-Information Display (MID)
Full-Speed Range Dynamic Radar
Cruise Control/Dynamic Radar
Cruise ControlVehicle-to-vehicle
distance switch
LTA (Lane Tracing Assist)
1/Lane Departure
Alert with Steering Assist (LDA w/SA)1 switch
Full-Speed Range
Dynamic Radar Cruise
Control/ Dynamic Radar
Cruise Control switch
Parking brake switch
1 If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit www.toyota.com/
entune for additional audio/multimedia resources.

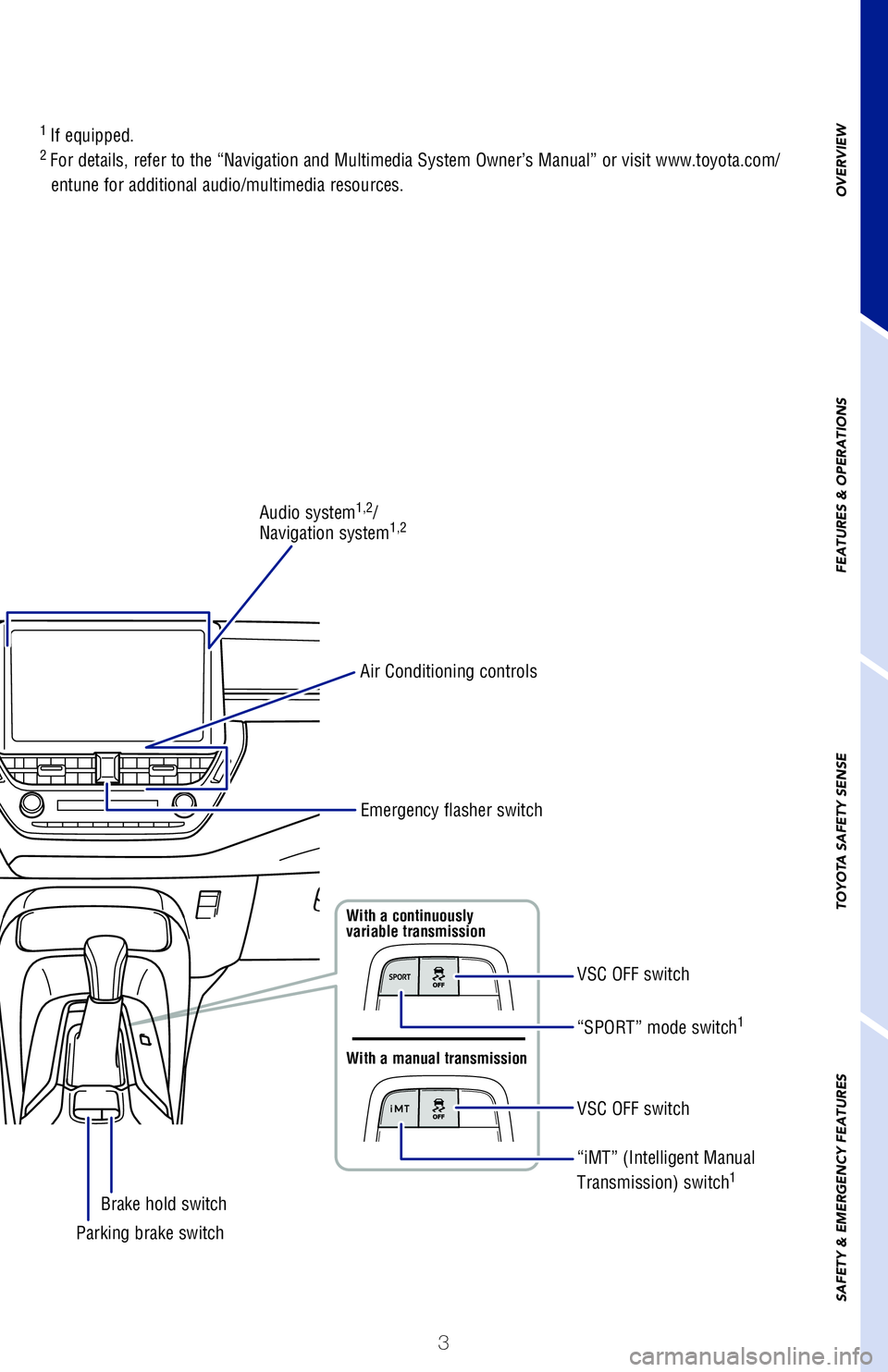

Audio system1,2/
Navigation system1,2
Air Conditioning controls
2019_Corolla_HB_QRG_V5_0516.indd 35/17/18 11:12 PM
Page 6 of 56
4

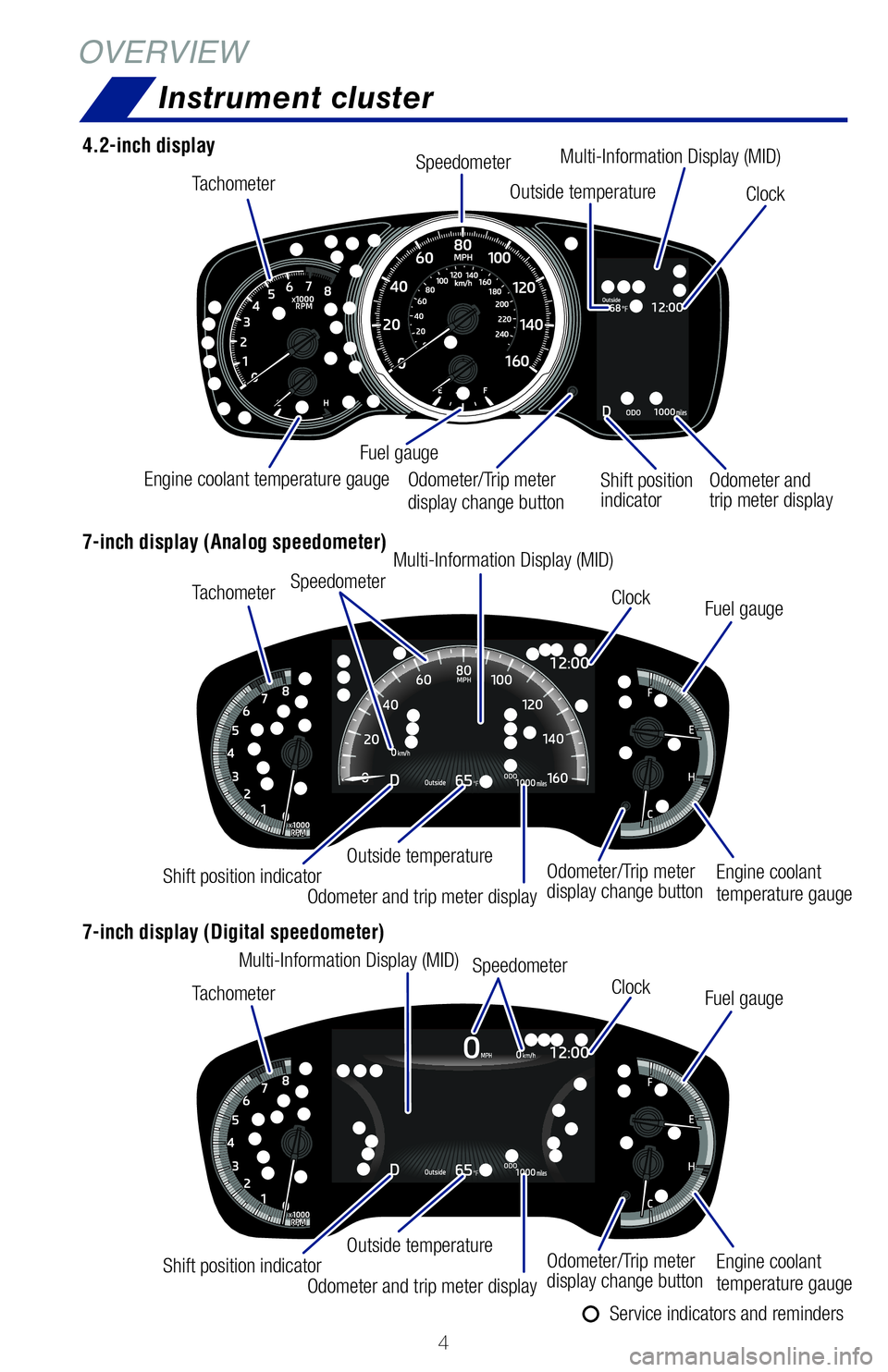

OVERVIEWInstrument cluster
For details, refer to “Indicators and warning lights,” Section 2, \
2019 Owner’s Manual.
Tachometer
Tachometer
Tachometer Speedometer
Speedometer Speedometer Outside temperature
Outside temperature
Outside temperature
Engine coolant temperature gauge
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button
Odometer and trip meter display
Odometer and trip meter display Shift position
indicator
Shift position indicator
Shift position indicator Fuel gauge
Fuel gauge
Fuel gaugeClock
Clock
Clock
Multi-Information Display (MID)
Multi-Information Display (MID)
Multi-Information Display (MID) Odometer and
trip meter display
Engine coolant
temperature gauge
Engine coolant
temperature gauge
4.2-inch display
7-inch display (Analog speedometer)
7-inch display (Digital speedometer)
1 If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.Service indicators and reminders
2019_Corolla_HB_QRG_V5_0516.indd 45/17/18 11:12 PM
Page 7 of 56
5
Security indicator
Smart Key system indicator
SPORT mode indicator4
Turn signal indicator
Vehicle Stability Control (VSC) OFF
indicator1
Rear passengers’ seat belt reminder
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
For details, refer to “Indicators and warning lights,” Section 2, \
2019 Owner’s Manual.
Airbag SRS warning1
iMT indicator4
Low fuel level warning
Low engine oil pressure warning
Low outside temperature indicator
Low Tire Pressure Warning1
Malfunction/Check Engine indicator1
Parking brake indicator2
Pre-Collision System (PCS) warning1,2
Slip indicator1,3
Malfunction/Check Engine indicator1
Lane Tracing Assist (LTA)4/
Lane Departure Alert (LDA)4 indicator
High coolant temperature warning
Auto EPB OFF indicator1,4
Automatic High Beam (AHB) indicator1
Blind Spot Monitor (BSM) indicator4
BSM outside rear view mirror indicators1,4
Brake hold operated indicator1,2
Brake hold standby indicator1
Brake system warning1
Brake system warning (yellow indicator)1
Chaging system warning1
ECO driving indicator light1,4
Chaging system warning1
Driver’s and front passenger’s seat belt
reminder (alarm will sound if speed is over
12 mph)
Electric power steering system warning1
Front fog light indicator4
Fuel tank door position
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC) indicator/
DRCC SET indicator
Headlight low/high beam
indicators
Brake Overrride System/Drive-Start
Control warning
Odometer and trip meter display
Engine coolant
temperature gauge
Engine coolant
temperature gauge
1 If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Anti-lock Brake System (ABS) warning1
“AIR BAG ON/OFF” indicator1

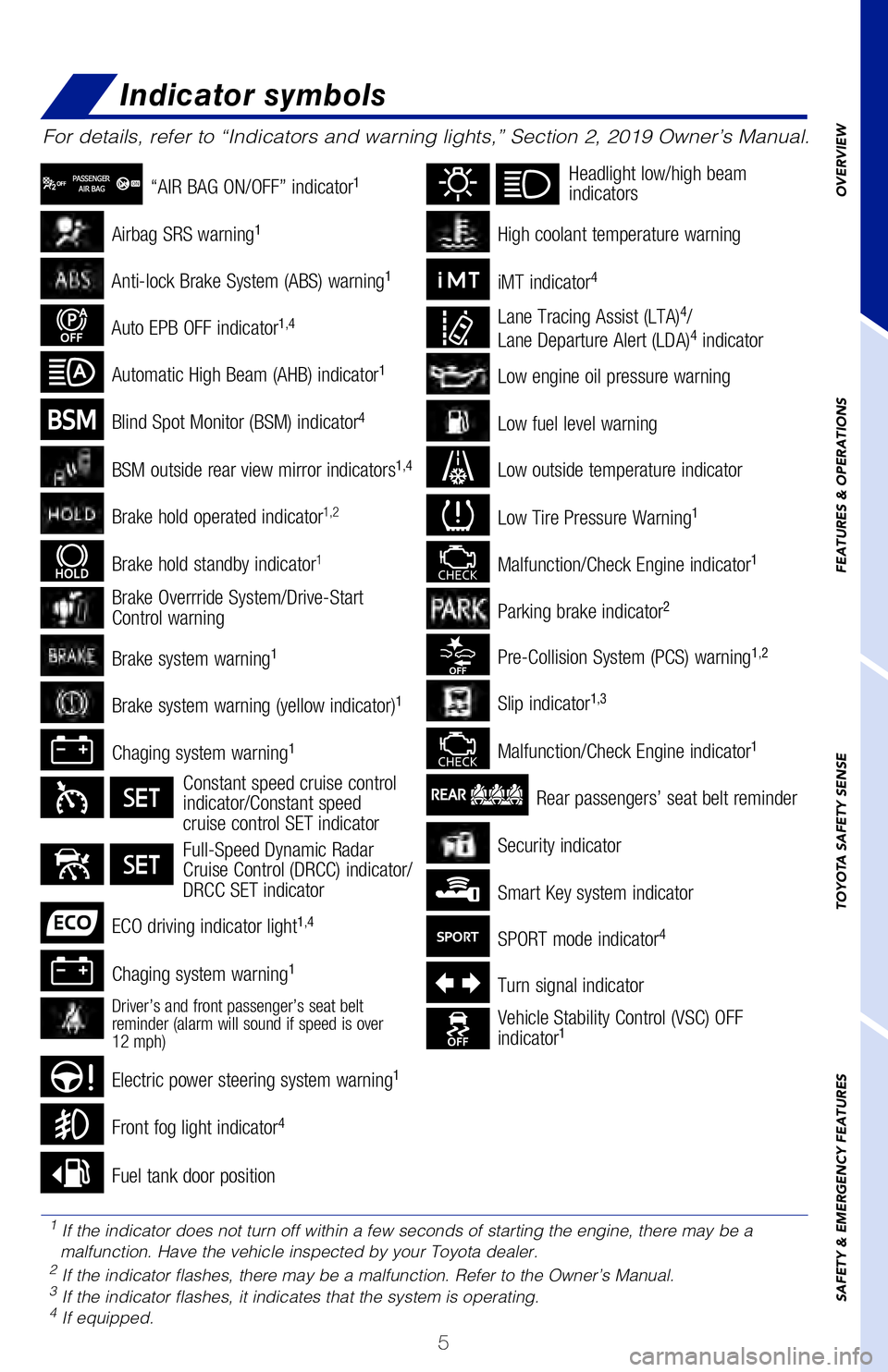

Indicator symbols
Service indicators and reminders
2019_Corolla_HB_QRG_V5_0516.indd 55/17/18 11:12 PM
Page 8 of 56
6

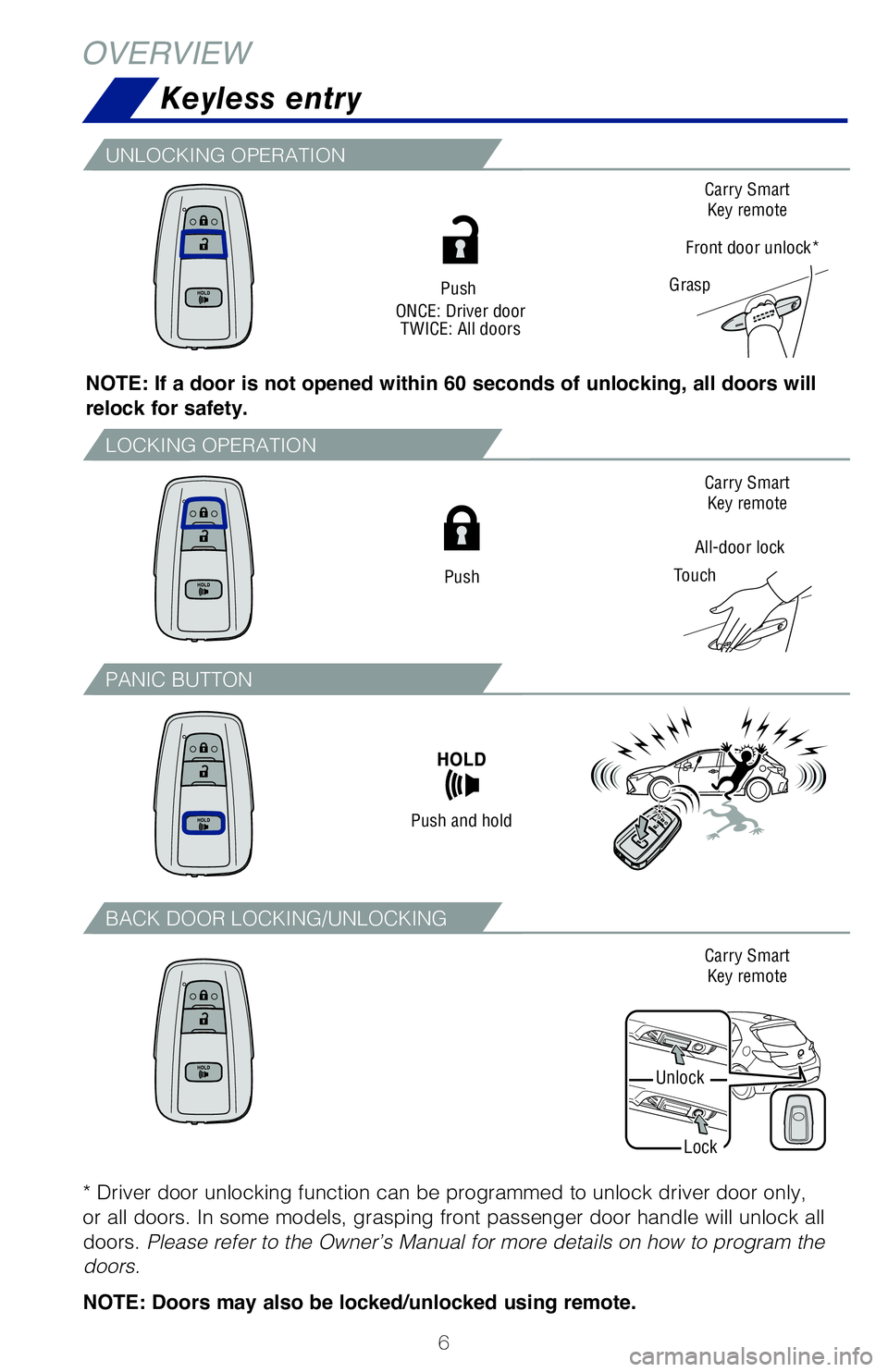

Keyless entry
Push
ONCE: Driver door TWICE: All doors
Push
Push and hold
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
All-door lock
Touch Carry Smart
Key remote
Carry Smart Key remote
Carry Smart Key remote
Grasp
Front door unlock*
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door \
only,
or all doors. In some models, grasping front passenger door handle will un\
lock all
doors. Please refer to the Owner’s Manual for more details on how to program the
doors.
NOTE: Doors may also be locked/unlocked using remote.
Unlock
Lock

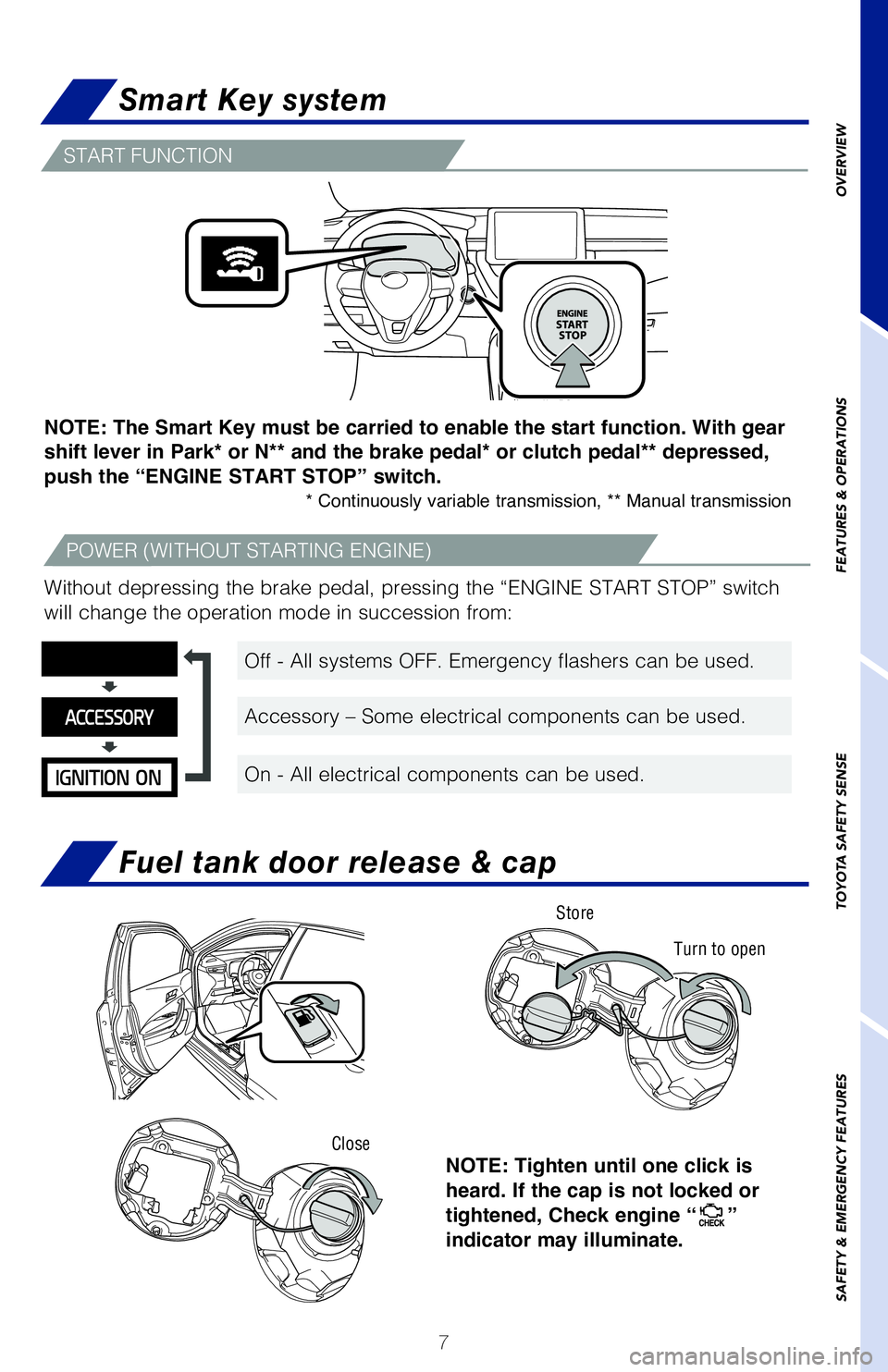

NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park* or N** and the brake pedal* or clutch pedal** depressed,
push the “ENGINE START STOP” switch.
Without depressing the brake pedal, pressing the “ENGINE START STOP” swit\
ch
will change the operation mode in succession from:
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
2019_Corolla_HB_QRG_V5_0516.indd 65/17/18 11:12 PM
Page 9 of 56
7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Front door unlock*
* Driver door unlocking function can be programmed to unlock driver door\
only,
or all doors. In some models, grasping front passenger door handle will \
unlock all
doors. Please refer to the Owner’s Manual for more details on how to program\
the
doors.
NOTE: Doors may also be locked/unlocked using remote.
Smart Key system
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park* or N** and the brake pedal* or clutch pedal** depressed,
push the “ENGINE START STOP” switch.
Without depressing the brake pedal, pressing the “ENGINE START STOP”\
switch
will change the operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Fuel tank door release & cap
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check engine “
”
indicator may illuminate.
Turn to open
Store
Close
* Continuously variable transmission, ** Manual transmission
2019_Corolla_HB_QRG_V5_0516.indd 75/17/18 11:12 PM
Page 10 of 56
8
OVERVIEW
Darker
Brighter
Instrument panel light control
NOTE: Regularly scheduled maintenance, including
oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Pull up latch and raise hood
Pull
Hood release
Engine maintenance
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
FEATURES & OPERATIONS
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 k\
m/h).
Driver’s door linked door unlocking function
-Doors unlock when the engine switch is set to OFF and driver’s door i\
s opened.
Refer to the Owner’s Manual for more details.
* The “ENGINE START STOP”switch must be “IGNITION ON” and th\
e brake pedal depressed to shift from Park.
Push shift lever to the left from “D” position, to “M” posit\
ion.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever in
the “D” position.
“M” 10-SPEED SPORT SEQUENTIAL SHIFTMATIC MODE
2019_Corolla_HB_QRG_V5_0516.indd 85/17/18 11:12 PM
