Quick guide• Giving guidance for the route quickly
Basic function
• Information to be read before operation
• Setting initial settings before operation
• Connecting the Bluetooth
® device
Navigation
system• Operating the map screen
• Searching the map
• Activating the route guidance
Audio/visual
system• Listening to the radio
• Enjoying music and video
Voice command
system• Operating the voice command system
Information• Operating the weather information screen
Peripheral
monitoring
system
• Checking the situation around the vehicle
Phone• Operating the phone
(Hands-free system for cellular phones)
Toyota Entune• Operating the Toyota Entune
Index• Search alphabetically

2
COROLLA_H/B_Navi_UTABLE OF CONTENTS
Introduction ......................................
5
Reading this manual ........................ 7
1-1. Basic function Buttons overview ................... 12
Menu screen ......................... 14
Status icon ............................ 16
“Setup” screen ...................... 18
Information screen ................ 19
1-2. Navigation operation Operating the map screen..... 21
Guiding the route .................. 22
Registering home .................. 23
2-1. Basic information before oper- ation
Initial screen .......................... 26
Touch screen ......................... 27
Home screen ......................... 29
Entering letters and num- bers/list screen operation .... 30
Screen adjustment ................ 33
Linking multi-information display and the system.................... 35

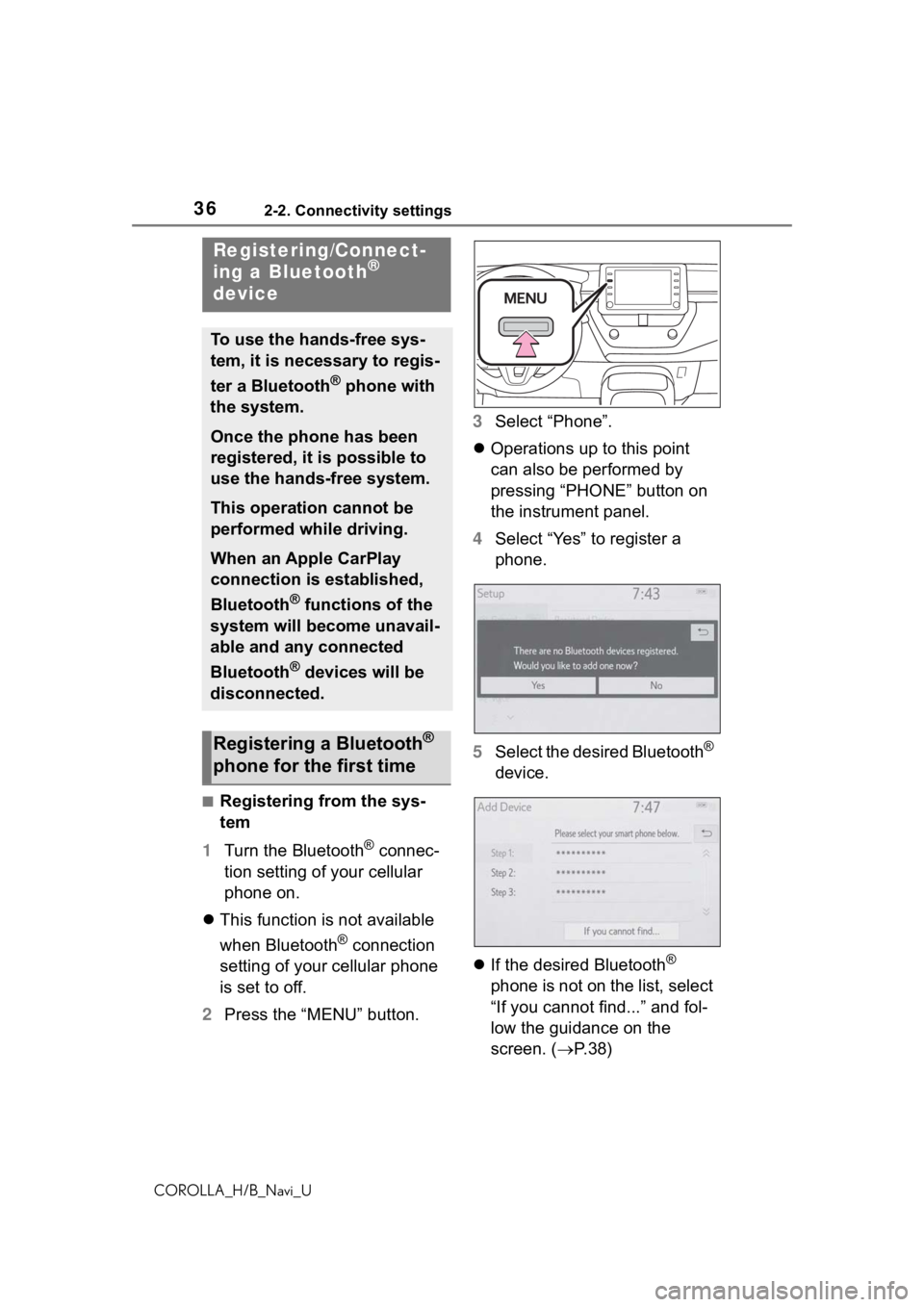

2-2. Connectivity settings Registering/Connecting a Bluetooth
® device ............... 36
Setting Bluetooth® details ..... 40
Wi-Fi® Hotspot ...................... 47
Apple CarPlay™.................... 52
2-3. Other settings General settings .................... 56
Voice settings ........................ 60
Vehicle settings ..................... 613-1. Basic operation
Navigation ............................. 68
Map screen operation ........... 70
Map screen information ........ 72
Traffic information ................. 76
3-2. Destination search Destination search operation............................................ 79
Starting route guidance ......... 86
3-3. Route guidance Route guidance screen ......... 90
Typical voice guidance prompts ............................................ 94
Editing route .......................... 94
3-4. Setup Navigation settings................ 97
Detailed navigation settings ......................................... 102
Traffic settings .................... 105
Use of information accumulated by navigation system ....... 110
3-5. Tips for the navigation system GPS (Global Positioning Sys-tem) .................................. 111
Map database version and cov- ered area ......................... 113
4-1. Basic operation Quick reference.................. 116
Some basics ...................... 117
4-2. Radio operation AM/FM/SiriusXM (SXM) radio......................................... 122
Internet radio ...................... 130
1Quick guide
2Basic function
3Navigation system
4Audio/visual system

3TABLE OF CONTENTS
COROLLA_H/B_Navi_U
1
2
3
4
5
6
7
8
9
4-3. Media operation USB memory ...................... 131
iPod/iPhone ........................ 133
Bluetooth
® audio ................ 136
AUX .................................... 139
4-4. Audio/visual remote controls Steering switches .............. 141
4-5. Setup Audio settings .................... 143
4-6. Tips for operating the audio/visual system
Operating information......... 145
5-1. Voice command system oper- ation
Voice command system ..... 156
Natural language understanding ......................................... 159
Command list ..................... 160
5-2. Mobile Assistant operation Mobile Assistant ................. 165
6-1. Information display Receiving weather information......................................... 168
Data services settings ........ 170
7-1. Rear view monitor system Rear view monitor system .. 172
Rear view monitor system pre- cautions............................ 174
Things you should know..... 1798-1. Phone operation (Hands-free
system for cellular phones)
Quick reference.................. 182
Some basics ...................... 183
Placing a call using the
Bluetooth
® hands-free system
......................................... 187
Receiving a call using the
Bluetooth
® hands-free system
......................................... 190
Talking on the Bluetooth
®
hands-free system ........... 191
Bluetooth
® phone message
function ............................ 194
8-2. Setup Phone settings ................... 198
8-3. What to do if... Troubleshooting ................. 208
9-1. Toyota Entune overview Functional overview ........... 214
Type A: Function achieved by using a smart phone or DCM......................................... 216
Type B: Function achieved by using DCM and the system......................................... 220
Type C: Function achieved by using DCM ....................... 222
Type D: Function achieved by using DCM and a smart phone......................................... 224
5Voice command system
6Information
7Peripheral monitoring
system
8Phone
9Toyota Entune

121-1. Basic function
COROLLA_H/B_Navi_U
1-1.Basic function
By touching the screen with your finger, you can control the
selected functions. ( P.27, 28)
Press to seek up or down for a radio station or to access a
desired track/file. ( P.122, 131, 133, 136)
Press to access the Bluetooth
® hands-free system. ( P.182)
When an Apple CarPlay connection is established, press to dis-
play the Phone app screen.
*1, 2
Press to display the Toyota Entune App Suite Connect screen.*2, 3
(  P.226)
Turn to change the radio station or skip to the next or previou s
track/file. ( P.122, 131, 133, 136)
Press to turn the audio/visual system on and off, and turn it t o
adjust the volume. Press and hold to restart the system. ( P.26,
117)
Entune Premium Audio: Press to display the map screen and
repeat a voice guidance. ( P. 6 8 )
Entune Audio Plus: If a turn-by-turn navigation application has
Buttons over view
Operations of each part
A
B
C
D
E
F
G

161-1. Basic function
COROLLA_H/B_Navi_U
Weather alert display*1,3
( P.168)
• Select to display important
weather information for the current
location or along the route.
Indicate during data commu-
nication performed via Data
Communication Module
(DCM)
*2
The reception level of Data
Communication Module
(DCM) display
*2 ( P. 1 6 )
The reception level of the
connected phone display
( P. 1 6 )
Remaining battery charge
display ( P. 1 7 )
Bluetooth
® phone connection condition display (
P. 1 7 )
Wi-Fi
® connection condition
display
*2, 3 (  P. 4 7 )
*1: Entune Premium Audio only
*2: Vehicles with DCM
*3: This function is not made avail-
able in some countries or areas.
●The number of status icons that
can be displayed differs depend-
ing on the displayed screen.
The level of reception does not
always correspond with the level
displayed on the cellular phone.
The level of reception may not
be displayed depending on the
phone you have.
When the cellular phone is out
of the service area or in a place
inaccessible by radio waves,
/ is displayed.
“Rm” is displayed when receiv-
ing in a roaming area. While
roaming, display “Rm” top-left
on the icon.
The receiving area may not be
displayed depending on the type
of Bluetooth
® phone you have.
While connected with cellular
phone
Status icon
Status icons are displayed
at the top of the screen.
Status icon explanation
A
B
C
D
E
F
5HFHSWLRQOHYHOGLVSOD\
LevelIndicators
Poor
Excellent
G

171-1. Basic function
COROLLA_H/B_Navi_U
1
Quick guide
While using Data Communi-
cation Module (DCM)
While using Wi-Fi® Hotspot
●When Wi-Fi® Hotspot is off, no
item is displayed.
The amount displayed does not
always correspond with the
amount displayed on the
Bluetooth
® device.
The amount of battery charge
left may not be displayed
depending on the type of the
Bluetooth
® device connected.
This system does not have a
charging function. An antenna for the Bluetooth
®
connection is built into the
instrument panel.
The condition of the Bluetooth
®
connection may deteriorate and
the system may not function
when a Bluetooth
® phone is
used in the following conditions
and/or places:
The cellular phone is obstructed
by certain objects (such as
when it is behind the seat or in
the glove box or console box).
The cellular phone is touching or
is covered with metal materials.
Leave the Bluetooth
® phone in a
place where the condition of the
Bluetooth
® connection is good.
LevelIndicators
Poor
Excellent
LevelIndicators
No connection
Connected
Remaining battery charge
display
Remaining chargeIndicators
Empty
Full
Bluetooth® connection
condition display
IndicatorsConditions
(Blue)
Indicates that the con-
dition of the
Bluetooth
® connection
is good.
(Gray)
While in this condition,
sound quality during
phone calls may dete-
riorate.
Indicates that the cel-
lular phone is not con-
nected via Bluetooth
®.

181-1. Basic function
COROLLA_H/B_Navi_U
Press the “MENU” button, then
select “Setup” to display the
“Setup” screen. The items
shown on the “Setup” screen
can be set.
Entune Audio PlusSelect to change the selected
language, operation sound
settings, etc. ( P. 5 6 )
Select to set Bluetooth
®
device and Bluetooth
® sys-
tem settings. ( P. 4 0 )
Select to set audio settings.
( P.143)
Select to set the phone
sound, contacts, message
settings, etc. ( P.198)
Select to set the voice set- tings. (
P.60)
Select to set vehicle informa-
tion. ( P.61)
Select to set Wi-Fi
® connec-
tion settings.
*1, 2 (  P. 4 8 )
Select to set Toyota Entune
App Suite Connect settings.
*2
( P.232)
*1: Vehicles with DCM
*2: This function is not made avail-
able in some countries or areas.
Entune Premium Audio
Select to change the selected
language, operation sound
settings, etc. ( P.56)
“Setup” screen
“Setup” screen
A
B
C
D
E
F
G
H
A

191-1. Basic function
COROLLA_H/B_Navi_U
1
Quick guide
Select to set Bluetooth®
device and Bluetooth
® sys-
tem settings. ( P. 4 0 )
Select to set audio settings.
( P.143)
Select to set the phone
sound, contacts, message
settings, etc. ( P.198)
Select to set the voice set-
tings. ( P.60)
Select to set vehicle informa-
tion such as maintenance
information. ( P.61)
Select to set memory points
(home, favorites entries,
areas to avoid) ,or naviga-
tion details. ( P. 9 7 )
Select to set Wi-Fi
® connec-
tion settings.
*1, 2 (  P.48)
Select to set Toyota Entune
App Suite Connect settings.
*2
( P.232)
Select to set traffic informa-
tion settings.
*2 (  P.105)
Select to set data services
settings.
*2 (  P.170)
*1: Vehicles with DCM
*2: This function is not made avail-
able in some countries or areas.
*: Entune Audio Plus with DCM/Entune Premium Audio only
Useful information, such as the
fuel consumption, weather, etc.,
is available on the information
screen.
The information screen can be
reached by the following meth-
ods:
1 Press the “MENU” button.
2 Select “Info”.
3 Select the desired item.
Select to display the fuel con-
sumption screen.
*1
Select to display traffic infor-
mation.
*2,3 ( P.76)
Select to display weather
information.
*2,3 (  P.168)
Select to display the vehicle
alert history.
*3,4
*1: Refer to the “OWNER’S MAN- UAL”
*2: Entune Premium Audio only
*3: This function is not made avail-able in some countries or areas.
B
C
D
E
F
G
H
I
J
K
Infor mation screen
Information screen*
A
B
C
D

25
COROLLA_H/B_Navi_U
2
2
Basic function
Basic function
.2-1. Basic information before operation
Initial screen ................... 26
Touch screen.................. 27
Home screen.................. 29
Entering letters and num- bers/list screen operation
..................................... 30
Screen adjustment ......... 33
Linking multi-information display and the system..................................... 35
2-2. Connectivity settings Registering/Connecting a Bluetooth
® device ........ 36
Setting Bluetooth
® details
..................................... 40
Wi-Fi
® Hotspot ............... 47
Apple CarPlay ................ 52
2-3. Other settings General settings ............. 56
Voice settings ................. 60
Vehicle settings .............. 61

362-2. Connectivity settings
COROLLA_H/B_Navi_U
2-2.Connectivity settings
■Registering from the sys-
tem
1 Turn the Bluetooth
® connec-
tion setting of your cellular
phone on.
 This function is not available
when Bluetooth
® connection
setting of your cellular phone
is set to off.
2 Press the “MENU” button. 3
Select “Phone”.
 Operations up to this point
can also be performed by
pressing “PHONE” button on
the instrument panel.
4 Select “Yes” to register a
phone.
5 Select the desired Bluetooth
®
device.
 If the desired Bluetooth
®
phone is not on the list, select
“If you cannot find...” and fol-
low the guidance on the
screen. ( P. 3 8 )
Registering/Connect-
ing a Bluetooth®
device
To use the hands-free sys-
tem, it is necessary to regis-
ter a Bluetooth
® phone with
the system.
Once the phone has been
registered, it is possible to
use the hands-free system.
This operation cannot be
performed while driving.
When an Apple CarPlay
connection is established,
Bluetooth
® functions of the
system will become unavail-
able and any connected
Bluetooth
® devices will be
disconnected.
Registering a Bluetooth®
phone for the first time
