This manual explains the opera-
tion of the system. Please read
this manual carefully to ensure
proper use. Keep this manual in
your vehicle at all times.
The screens shown in this man-
ual may differ from the actual
screen of the system depending
on availability of functions,
Toyota Entune subscription sta-
tus, and map data available at
the time this manual was pro-
duced.
The screens in this manual will
also differ if the screen theme
settings have been changed.
(Theme setting: P. 5 6 )
In some situations when chang-
ing between screens, it may
take longer than normal for the
screen to change, the screen
may be blank momentarily or
noise may be displayed.
Please be aware that the con-
tent of this manual may be dif-
ferent from the system in some
cases, such as when the sys-
tem’s software is updated. The navigation system is one of
the most technologically
advanced vehicle accessories
ever developed. The system
receives satellite signals from
the Global Positioning System
(GPS) operated by the U.S.
Department of Defense. Using
these signals and other vehicle
sensors, the system indicates
your present position and
assists in locating a desired des-
tination.
The navigation system is
designed to select efficient
routes from your present start-
ing location to your destination.
The system is also designed to
direct you to a destination that is
unfamiliar to you in an efficient
manner. The system uses AISIN
AW maps. The calculated routes
may not be the shortest nor the
least traffic congested. Your own
personal local knowledge or
“short cut” may at times be
faster than the calculated
routes.
The navigation system’s data-
base includes Point of Interest
categories to allow you to easily
select destinat
ions such as
restaurants and hotels. If a des-
tination is not in the database,
you can enter the street address
close to it and the system will
guide you there.
Introduction
Navigation and multimedia
system owner’s manual
Navigation system (Entune
Premium Audio)

121-1. Basic function
COROLLA_H/B_Navi_U
1-1.Basic function
By touching the screen with your finger, you can control the
selected functions. ( P.27, 28)
Press to seek up or down for a radio station or to access a
desired track/file. ( P.122, 131, 133, 136)
Press to access the Bluetooth
® hands-free system. ( P.182)
When an Apple CarPlay connection is established, press to dis-
play the Phone app screen.
*1, 2
Press to display the Toyota Entune App Suite Connect screen.*2, 3
(  P.226)
Turn to change the radio station or skip to the next or previou s
track/file. ( P.122, 131, 133, 136)
Press to turn the audio/visual system on and off, and turn it t o
adjust the volume. Press and hold to restart the system. ( P.26,
117)
Entune Premium Audio: Press to display the map screen and
repeat a voice guidance. ( P. 6 8 )
Entune Audio Plus: If a turn-by-turn navigation application has
Buttons over view
Operations of each part
A
B
C
D
E
F
G

131-1. Basic function
COROLLA_H/B_Navi_U
1
Quick guide
been downloaded to a connected smart phone, the application
will be displayed and can be used.
*4
When an Apple CarPlay connection is established, press to dis-
play the Maps app screen.
*1, 2
Press to display the audio/visual system screen. ( P. 116, 117)
Press to display the “Menu” screen. ( P. 1 4 )
Press to display the home screen. ( P. 2 9 )
*1: For details about Apple CarPlay: P. 5 2
*2: This function is not made available in some countries or areas.
*3: The Toyota Entune App Suite Connect screen may not be displaye d
when an Apple CarPlay connection is established.
*4: For details about a turn-by-turn navigation application, refer to
http://www.toyot a.com/Entune/
in the United States,
http://www.toy ota.ca/entune
in Canada, and
http://www.toyotapr.com/entune
in Puerto Rico.
H
I
J

141-1. Basic function
COROLLA_H/B_Navi_U
Press the “MENU” button to display the “Menu” screen.
Entune Audio Plus
Displays the clock. Select to display the clock settings screen.
( P. 5 7 )
Select to display the audio control screen. ( P.116)
Select to display the hands-free operation screen. ( P.182)
When an Apple CarPlay connection is established, select to dis-
play the Phone app screen.
*1 (  P.52)
Select to display the application screen.
*1 (  P.226)
When an Apple CarPlay connection is established and this button
displays “Apple CarPlay”, select to display the home screen of
Apple CarPlay.
*1 (  P. 5 2 )
Vehicles without DCM: Select to d isplay the fuel consumption
screen.
*2
Vehicles with DCM: Select to display the information screen.
( P. 1 9 )
Select to display the “Setup” screen. ( P.18)
Select to adjust the contrast, brightness, etc. of the display.
( P. 3 3 )
*1: This function is not made available in some countries or areas .
*2: Refer to the “OWNER’S MANUAL”
Menu screen
Menu screen operation
A
B
C
D
E
F
G
H

151-1. Basic function
COROLLA_H/B_Navi_U
1
Quick guide
Entune Premium Audio Displays the clock. Select to display the clock settings screen.
( P. 5 7 )
Select to display the destination screen. ( P.79)
Select to display the audio control screen. ( P.116)
Select to display the hands-free operation screen. ( P.182)
When an Apple CarPlay connection is established, select to dis-
play the Phone app screen.
* (  P.52)
Select to display the application screen.
* (  P.226)
When an Apple CarPlay connection is established and this button
displays “Apple CarPlay”, select to display the home screen of
Apple CarPlay.
* (  P.52)
Select to display the information screen. ( P.19)
Select to display the “Setup” screen. ( P.18)
Select to adjust the contrast, brightness, etc. of the display.
( P. 3 3 )
*: This function is not made availa ble in some countries or areas.
A
B
C
D
E
F
G
H
I

161-1. Basic function
COROLLA_H/B_Navi_U
Weather alert display*1,3
( P.168)
• Select to display important
weather information for the current
location or along the route.
Indicate during data commu-
nication performed via Data
Communication Module
(DCM)
*2
The reception level of Data
Communication Module
(DCM) display
*2 ( P. 1 6 )
The reception level of the
connected phone display
( P. 1 6 )
Remaining battery charge
display ( P. 1 7 )
Bluetooth
® phone connection condition display (
P. 1 7 )
Wi-Fi
® connection condition
display
*2, 3 (  P. 4 7 )
*1: Entune Premium Audio only
*2: Vehicles with DCM
*3: This function is not made avail-
able in some countries or areas.
●The number of status icons that
can be displayed differs depend-
ing on the displayed screen.
The level of reception does not
always correspond with the level
displayed on the cellular phone.
The level of reception may not
be displayed depending on the
phone you have.
When the cellular phone is out
of the service area or in a place
inaccessible by radio waves,
/ is displayed.
“Rm” is displayed when receiv-
ing in a roaming area. While
roaming, display “Rm” top-left
on the icon.
The receiving area may not be
displayed depending on the type
of Bluetooth
® phone you have.
While connected with cellular
phone
Status icon
Status icons are displayed
at the top of the screen.
Status icon explanation
A
B
C
D
E
F
5HFHSWLRQOHYHOGLVSOD\
LevelIndicators
Poor
Excellent
G

171-1. Basic function
COROLLA_H/B_Navi_U
1
Quick guide
While using Data Communi-
cation Module (DCM)
While using Wi-Fi® Hotspot
●When Wi-Fi® Hotspot is off, no
item is displayed.
The amount displayed does not
always correspond with the
amount displayed on the
Bluetooth
® device.
The amount of battery charge
left may not be displayed
depending on the type of the
Bluetooth
® device connected.
This system does not have a
charging function. An antenna for the Bluetooth
®
connection is built into the
instrument panel.
The condition of the Bluetooth
®
connection may deteriorate and
the system may not function
when a Bluetooth
® phone is
used in the following conditions
and/or places:
The cellular phone is obstructed
by certain objects (such as
when it is behind the seat or in
the glove box or console box).
The cellular phone is touching or
is covered with metal materials.
Leave the Bluetooth
® phone in a
place where the condition of the
Bluetooth
® connection is good.
LevelIndicators
Poor
Excellent
LevelIndicators
No connection
Connected
Remaining battery charge
display
Remaining chargeIndicators
Empty
Full
Bluetooth® connection
condition display
IndicatorsConditions
(Blue)
Indicates that the con-
dition of the
Bluetooth
® connection
is good.
(Gray)
While in this condition,
sound quality during
phone calls may dete-
riorate.
Indicates that the cel-
lular phone is not con-
nected via Bluetooth
®.

181-1. Basic function
COROLLA_H/B_Navi_U

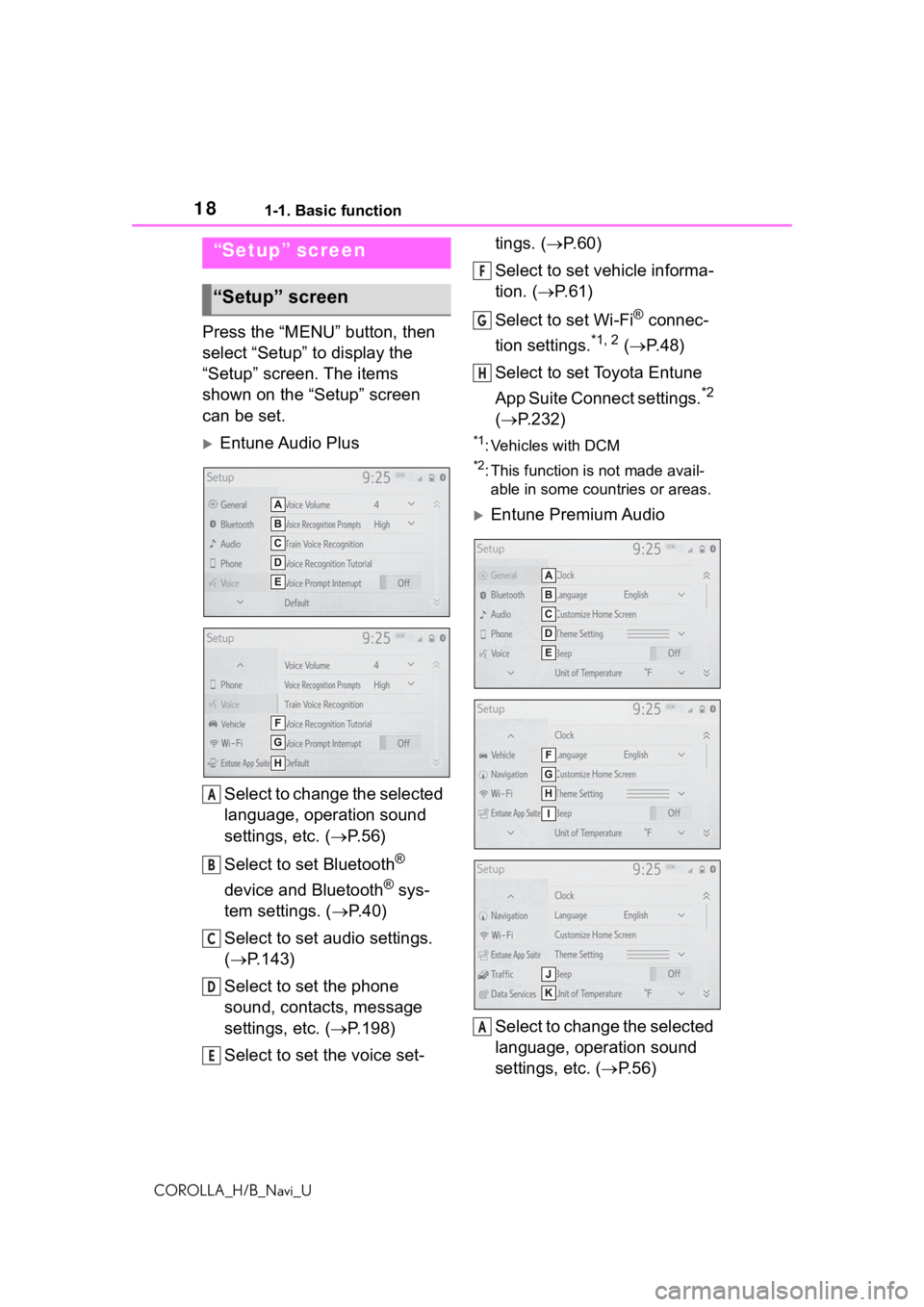

Press the “MENU” button, then
select “Setup” to display the
“Setup” screen. The items
shown on the “Setup” screen
can be set.
Entune Audio PlusSelect to change the selected
language, operation sound
settings, etc. ( P. 5 6 )
Select to set Bluetooth
®
device and Bluetooth
® sys-
tem settings. ( P. 4 0 )
Select to set audio settings.
( P.143)
Select to set the phone
sound, contacts, message
settings, etc. ( P.198)
Select to set the voice set- tings. (
P.60)
Select to set vehicle informa-
tion. ( P.61)
Select to set Wi-Fi
® connec-
tion settings.
*1, 2 (  P. 4 8 )
Select to set Toyota Entune
App Suite Connect settings.
*2
( P.232)
*1: Vehicles with DCM
*2: This function is not made avail-
able in some countries or areas.
Entune Premium Audio
Select to change the selected
language, operation sound
settings, etc. ( P.56)
“Setup” screen
“Setup” screen
A
B
C
D
E
F
G
H
A
