Reading this manual
Explains symbols used in
this manual
Symbols in this manual
SymbolsMeanings
WARNING:
Explains something
that, if not obeyed,
could cause death or
serious injury to peo-
ple.
NOTICE:
Explains something
that, if not obeyed,
could cause damage
to or a malfunction in
the vehicle or its
equipment.
Indicates operating or
working procedures.
Follow the steps in
numerical order.
Symbols in illustrations
SymbolsMeanings
Indicates the action
(pushing, turning, etc.)
used to operate
switches and other
devices.
SymbolsMeanings
Indicates the compo-
nent or position being
explained.

1143-4. Setup
COROLLA_HB_Navi_(U)
The name, location and/or area
size of a registered area can be
edited.
1Select the desired area.
2 Select the desired item to be
edited.
Select to edit the name of the
area to avoid.
Select to edit area location.
Select to edit area size.
Select to set the area to
avoid function on/off.
Select to set display of the
area to avoid name on/off.
Select to delete the area to
avoid.
3 Select “OK”. 1
Press the “MENU” button.
2 Select “Setup”.
3 Select “Navigation”.
4 Select “Detailed Navi. Set-
tings”.
5 Select the desired items to
be set.
Editing areas to avoid
A
B
C
D
E
F
Detailed navigation
settings
Settings are available for
pop-up information, favor-
ite POI categories, low fuel
warning, etc.
Displaying the detailed
navigation settings
screen

1153-4. Setup
COROLLA_HB_Navi_(U)
3
Navigation system
 “Low Fuel Warning Pop-up”
Select to set display of low fuel
warning on/off. ( P.116)
 “Unverified Roads Guidance
Warning”
Select to set unverified roads guid-
ance warning on/off.
“Guidance on Unverified
Roads”
Select to set IPD road (roads that
are not completely digitized in our
database) guidance on/off.
“Guidance with Street Names”
Select to set the voice guidance for
the next street name on/off.
“Favorite POI Categories”
Select to set favorite POI catego-
ries that are used for POI selection
to display on the map screen.
(  P. 1 1 6 )
 “Calibration”
Select to adjust the current position
mark manually or to adjust miscal-
culation of the di stance caused by
tire replacement. ( P.117)
 “Adaptive Route”
Select to enable/d isable adaptive
routes. When enabled, the naviga-
tion system will provide frequently
used routes.
 “Reset Adaptive Route”
Select to erase adaptive route data.
“Automatic Destination List
Info”
Select to set automatic destination
list information on/off. When set to
on, the estimated time of arrival to
the registered ho me and preset
destinations from the current posi-
tion will be displayed.
 “Intersection Zoom Map”
Select to set display of a guidance
screen on/off.
“Automatic Zoom”
Select to set automatic zoom func-
tion on/off. When it is enabled, as
the vehicle approaches a guidance
point, the map will change to a
detailed map automatically.
 “Automatic Freeway Exit List”
Select to set disp lay of a freeway
information screen on/off. ( P.101)
 “State Border Guidance”
Select to set cross-border guidance
on/off.
“Map Color Customization”
Select to set the map display color.
“Map Animation”
Select to set map animation on/off.
“Weather Incident Warnings”
Select to set weather incident warn-
ings on/off. ( P.179)
 “Dynamic Route”*
Select to enable/disable routes
sourced from the Cloud. ( P. 9 9 )
 “Restore the default settings”
Select to reset all setup items.
*: This function is not available in
some countries or areas.
Detailed navigation set-
tings screen

1163-4. Setup
COROLLA_HB_Navi_(U)
When the fuel level is low, a
warning message will pop up on
the screen.
1Display the detailed naviga-
tion settings screen.
( P.114)
2 Select “Low Fuel Warning
Pop-up”.
3 Select “On” or “Off”.
A nearby gas station can be
selected as a destination when
the fuel level is low.
1 Select “Yes” when the low
fuel warning appears.
2 Select the desired nearby
gas station.
3 Select “Enter” to set as a
destination.
“Info”: Select to display gas station
information. ( P. 8 2 )
Up to 6 POI icons, which are
used for selecting POIs on the
map screen, can be selected as
favorites.
1 Display the detailed naviga-
tion settings screen.
( P. 1 1 4 )
2 Select “Favorite POI Catego-
ries”.
3 Select the desired category
to be changed.
“Default”: Select to set the default
categories.
4 Select the desired POI cate-
gory.
“List All Categories”: Select to dis-
play all POI categories.
5Select the desired POI icon.
6 Select “OK”.
Low fuel warning
Searching gas station in low
fuel warning
Favorite POI categories
(Select POI icons)

1183-4. Setup
COROLLA_HB_Navi_(U)
*: This function is not available in some countries or areas.
1 Press the “MENU” button.
2 Select “Setup”.
3 Select “Traffic”.
4 Select the desired items to
be set. Select to set specific routes
(such as frequently used
routes) on which you wish to
receive traffic information.
(
P. 1 1 9 )
Select to set the avoid traffic
function auto/manual.
( P.121)
Select to set the usage of
traffic information for the esti-
mated arrival time on/off.
Select to set the display of an
arrow of free flowing traffic
on/off.
Select to set to on/off
whether to consider the pre-
dictive traffic information
( P.84) with estimated
arrival time and detoured
route search.
Select to set traffic incident

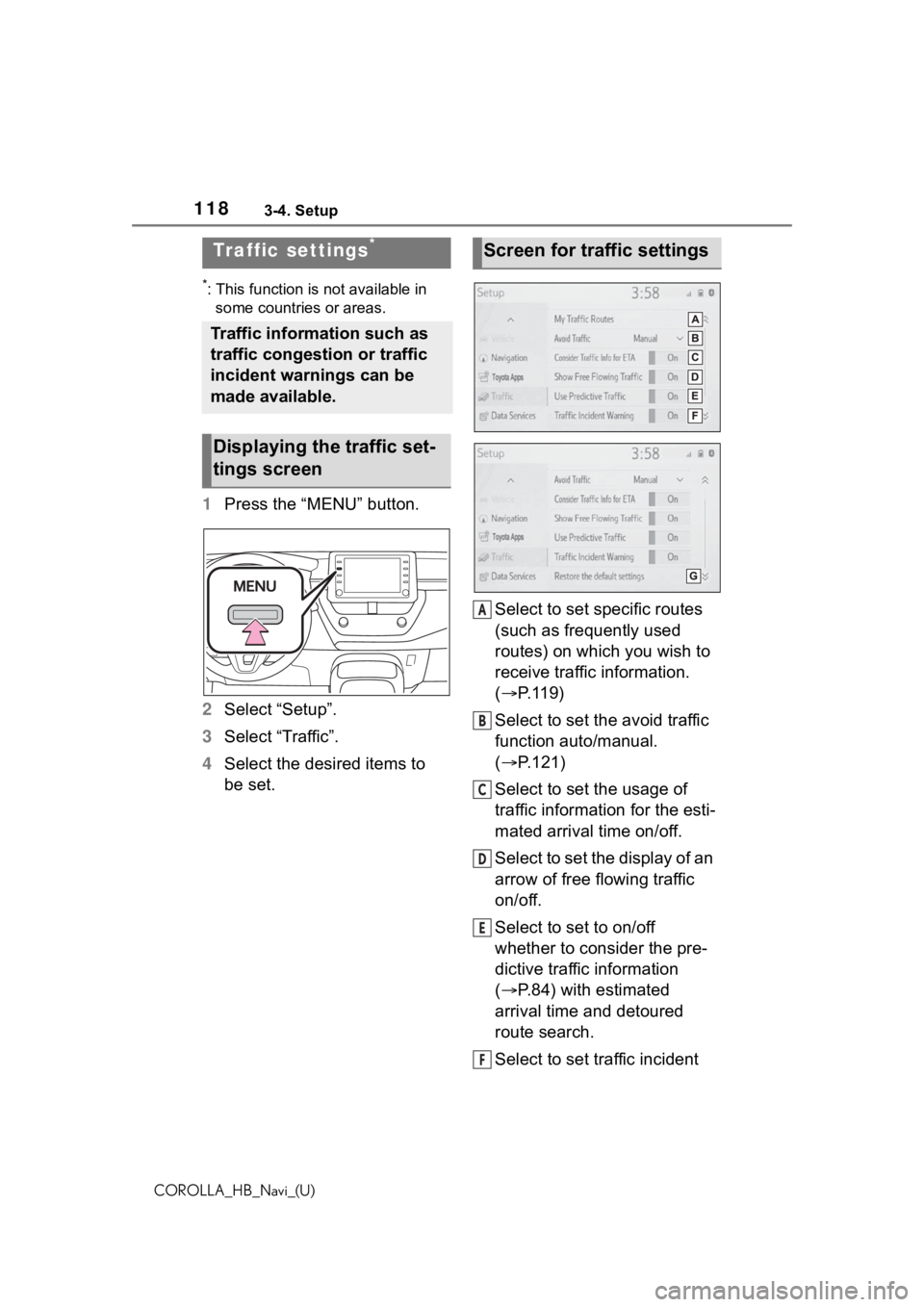

Traffic settings*
Traffic information such as
traffic congestion or traffic
incident warnings can be
made available.
Displaying the traffic set-
tings screen
Screen for traffic settings
A
B
C
D
E
F

1193-4. Setup
COROLLA_HB_Navi_(U)
3
Navigation system
voice warning on/off.
Select to reset all setup
items.
Specific routes (such as fre-
quently used routes) on which
you wish to receive traffic infor-
mation can be registered as “My
Traffic Routes”. A route is set by
defining a start point and end
point, and can be adjusted by
setting up to 2 preferred roads.
1 Display the traffic settings
screen. ( P.118)
2 Select “My Traffic Routes”.
3 Select the desired item.
Select to register personal
traffic routes. ( P.119)
Select to edit personal traffic
routes. ( P.120)
Select to delete personal traf-
fic routes. ( P.120) 1
Select “New”.
2 Select “Name”.
3 Enter the name and select
“OK”.
4 Select “Start”.
5 Select the desired item to
search for the location.
( P.86)
6 Select “End”.
7 Select the desired item to
search for the location.
( P.86)
8 Select “OK”.
9 Confirm the route overview
displayed.
Select the desired route from
3 possible routes. ( P.97)
Select to modify the route.
The routes can be adjusted
by setting preferred roads.
( P.120)
10Select “OK”.
●Up to 5 routes can be registered.
My traffic routes
G
A
B
C
5HJLVWHULQJSHUVRQDOWUDIILF
URXWHV
A
B
