door lock TOYOTA COROLLA HATCHBACK 2021 Owners Manual (in English)

1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,26
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ 2.0 (TSS 2.0)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating
21
Audio 18
Auto lock/unlock
1,212
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 23
Bottle holders 14
Continuously variable transmission 9
Cup holders 15
Door locks 14
Driving mode select 22
Electric parking brake 10
Lights
1 & turn signals 13
Manual transmission 9
Multi-Information Display (MID) 11
Power outlet-12V DC 19
Qi Wireless charger 19
Rear seats-Folding 16
Rear view monitor system 23
Seat adjustments-Front 16
Seat heaters 20
Seats-Head restraints 16
Steering lock release 15
Steering wheel switches &
telephone controls (Bluetooth
®) 17
Tilt & telescopic steering wheel 15 Vehicle Stability Control (VSC)/
TRAC OFF switch
22
USB charge port 18
USB media port 20
Windows-Power 14
Windshield wipers & washers 12
Floor mat installation 47
Rear door child safety locks 41
Safety Connect
®43
Seat belts 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 44
Star Safety System
™46-47
Tire Pressure Monitoring
(warning) System (TPMS) 42
Tire repair kit & tools 45
Automatic High Beams (AHB) 39
Dynamic Radar Cruise Control (DRCC)
or Full-Speed Range DRCC
36-38
Lane Departure Alert with
Steering Assist (LDA w/SA) 28-31
Lane Tracing Assist (LTA) 32-35
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Quick overview-
Toyota Safety Sense
™ 2.0 (TSS 2.0) 24
Road Sign Assist (RSA) 40
Sensors 25
BLUETOOTH® DEVICE
PAIRING SECTION 48-50
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

5
Security indicator
Smart Key system indicator
SPORT mode indicator4
Turn signal indicator
Vehicle Stability Control (VSC) OFF
indicator1
Rear passengers’ seat belt reminder
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
For details, refer to “Warning lights and indicators,” Section 2-1, 2\
021 Owner’s
Manual.
Airbag SRS warning1
iMT indicator (orange/green)1,4
Low fuel level warning
Low engine oil pressure warning
Low outside temperature indicator
Low tire pressure warning1
Malfunction/Check engine indicator1
Parking brake indicator2
Pre-Collision System (PCS) warning1,2
Lane Tracing Assist (LTA)4/
Lane Departure Alert (LDA) indicator
(white/green/orange
3)
High coolant temperature warning
Auto EPB OFF indicator1,4
Automatic High Beam (AHB) indicator
Blind Spot Monitor (BSM) indicator4
BSM outside rear view mirror indicators1,4
Brake hold operated indicator1,2
Brake hold standby indicator1
Brake system warning1
Brake system warning (yellow)1
Charging system warning1
ECO driving indicator light1,4
Driver’s and front passenger’s seat belt
reminder (alarm will sound when the engine
switch is in the “IGNITION ON” mode)
Electric power steering system warning
(red/yellow)1
Front fog light indicator4
Fuel tank door position
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC) indicator/
DRCC SET indicator
Headlight low/high beam
indicators
Brake Override System/Drive-Start
Control warning
1 If the indicator does not turn off within a few seconds of starting the en\
gine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owne\
r’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Anti-lock Brake System (ABS) warning1
“AIR BAG ON/OFF” indicator1
Slip indicator1,3
RCTA OFF indicator1,2,4
Indicator symbols

6
Keyless entry
Push
ONCE: Driver door TWICE: All doors
Push
Push and hold
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
All-door lock
Touch Carry Smart
Key remote
Carry Smart Key remote
Carry Smart Key remote
Grasp
Driver’s door unlock*
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door \
only,
or all doors. In some models, grasping front passenger door handle will un\
lock all
doors.
Please refer to the Owner’s Manual for more details on how to program the d\
oors.
NOTE: Doors may also be locked/unlocked using remote.
Unlock
Lock

7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Smart Key system
NOTE: The Smart Key must be carried to enable the start function. With
the gear shift lever in Park* or N** and the brake pedal* or clutch pedal**
depressed, push the “ENGINE START STOP” switch.
Without depressing the brake pedal* or clutch pedal**, pressing the “ENGINE
START STOP” switch will change the operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Fuel tank door release & cap
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check engine “
”
indicator may illuminate.
Turn to open
Store
Close
* Available only on vehicles with continuously variable transmissions
** Available only on vehicles with manual transmissions

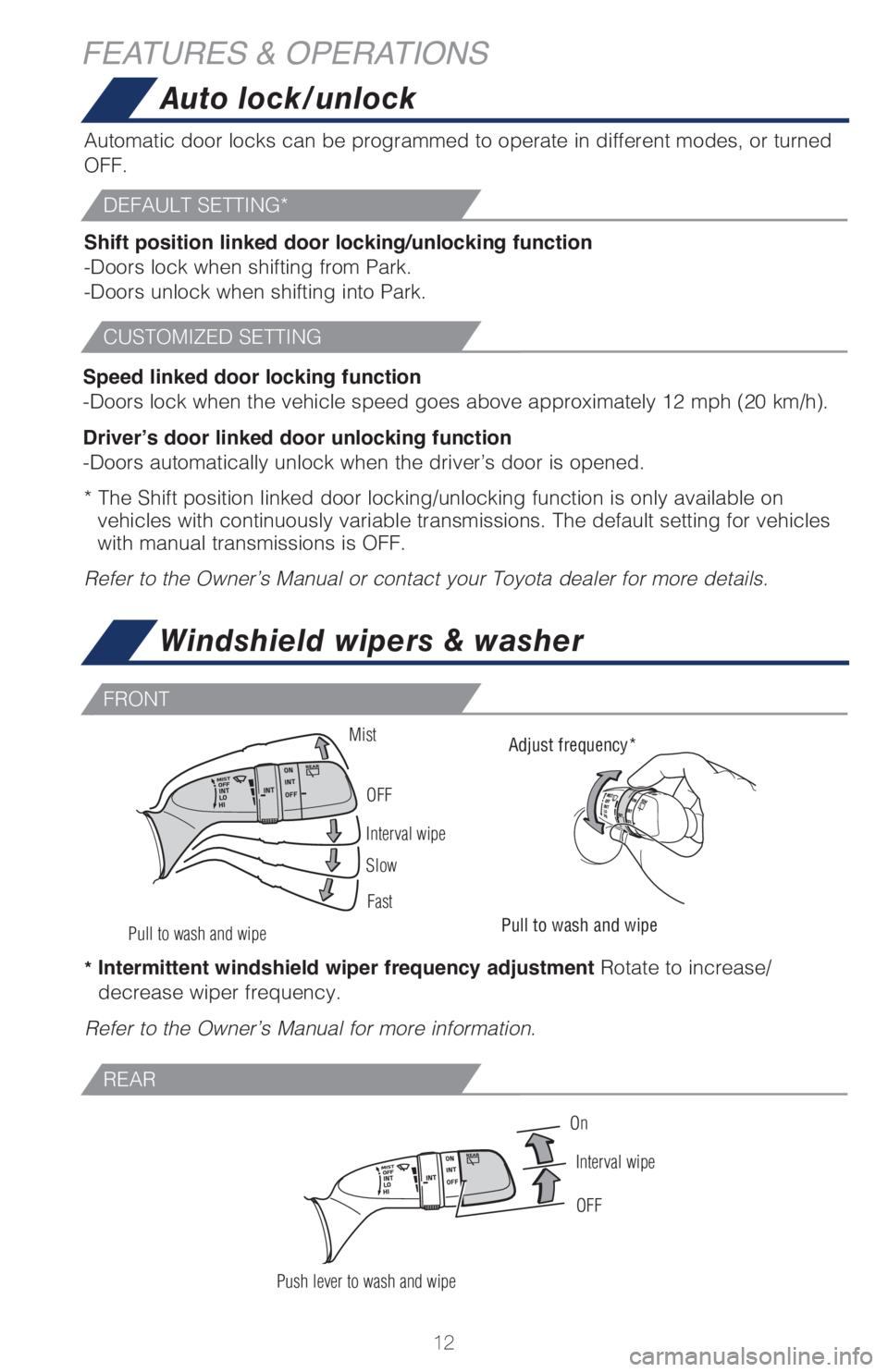

12
FEATURES & OPERATIONS
REAR
FRONT
DEFAULT SETTING*
CUSTOMIZED SETTING
Windshield wipers & washer
Interval wipe
Slow
Fast
Pull to wash and wipe
Push lever to wash and wipeMist
OFF
On
Interval wipe
Adjust frequency*
Pull to wash and wipe
* Intermittent windshield wiper frequency adjustment Rotate to increase/ decrease wiper frequency.
Refer to the Owner’s Manual for more information.
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 km/h).
Driver’s door linked door unlocking function
-Doors automatically unlock when the driver’s door is opened.
OFF
* The Shift position linked door locking/unlocking function is only avail\
able on vehicles with continuously variable transmissions. The default setting for vehic\
les
with manual transmissions is OFF.
Refer to the Owner’s Manual or contact your Toyota dealer for more details\
.

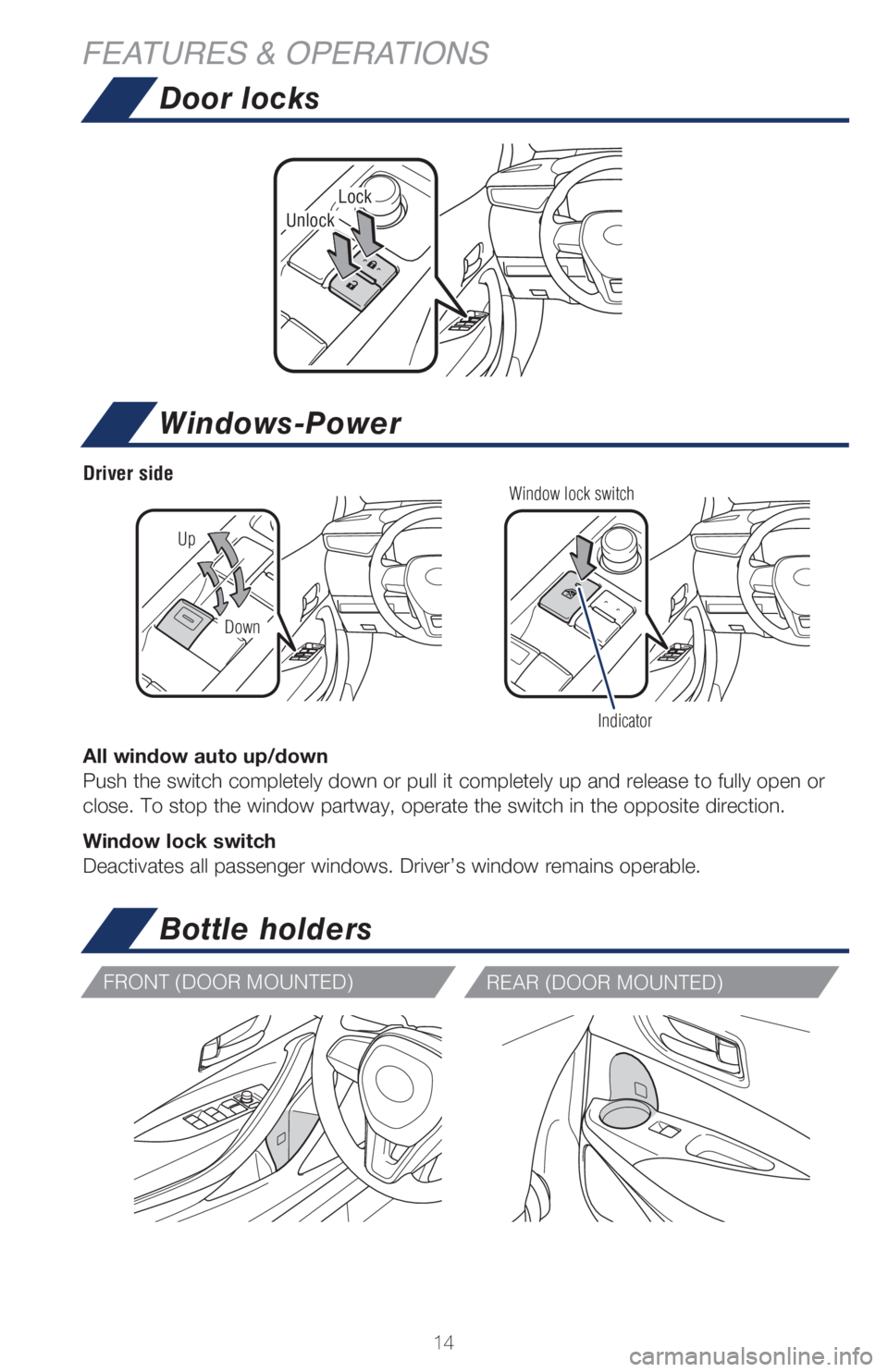

14
Windows-Power
All window auto up/down
Push the switch completely down or pull it completely up and release to full\
y open or
close. To stop the window partway, operate the switch in the opposite directio\
n.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
Up
Down
Indicator
Driver sideWindow lock switch
FRONT (DOOR MOUNTED) REAR (DOOR MOUNTED)
FEATURES & OPERATIONS
Unlock
Lock
Door locks
Bottle holders

41
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Moving the lever downward will allow the door to be opened only from the outsi\
de.
Unlock
Lock
Push up, or squeeze lock
release to lower
Rear door child safety locks
Seat belts-Shoulder belt anchor
Seat belts
NOTE: If a passenger’s seat belt is fully extended, then retracted even sl\
ightly,
the Automatic locking retractor (ALR) will prevent it from being re-exten\
ded
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child rest\
raint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
To o high
SAFETY & EMERGENCY FEATURES
