QUICK
REFERENCE
GUIDE
2021
Page 2 of 56
COROLLA HATCHBACK
2021
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Corolla Hatchback.
A word about safe vehicle operations
This Quick Reference Guide is not a
full description of Corolla Hatchback
operations. Every Corolla Hatchback owner should review the Owner’s Manual
that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout the
Owner’s Manual. Each box contains safe operating instructions to help you avoid\
injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
Page 3 of 56
1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,26
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ 2.0 (TSS 2.0)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating
21
Audio 18
Auto lock/unlock
1,212
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 23
Bottle holders 14
Continuously variable transmission 9
Cup holders 15
Door locks 14
Driving mode select 22
Electric parking brake 10
Lights
1 & turn signals 13
Manual transmission 9
Multi-Information Display (MID) 11
Power outlet-12V DC 19
Qi Wireless charger 19
Rear seats-Folding 16
Rear view monitor system 23
Seat adjustments-Front 16
Seat heaters 20
Seats-Head restraints 16
Steering lock release 15
Steering wheel switches &
telephone controls (Bluetooth
®) 17
Tilt & telescopic steering wheel 15 Vehicle Stability Control (VSC)/
TRAC OFF switch
22
USB charge port 18
USB media port 20
Windows-Power 14
Windshield wipers & washers 12
Floor mat installation 47
Rear door child safety locks 41
Safety Connect
®43
Seat belts 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 44
Star Safety System
™46-47
Tire Pressure Monitoring
(warning) System (TPMS) 42
Tire repair kit & tools 45
Automatic High Beams (AHB) 39
Dynamic Radar Cruise Control (DRCC)
or Full-Speed Range DRCC
36-38
Lane Departure Alert with
Steering Assist (LDA w/SA) 28-31
Lane Tracing Assist (LTA) 32-35
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Quick overview-
Toyota Safety Sense
™ 2.0 (TSS 2.0) 24
Road Sign Assist (RSA) 40
Sensors 25
BLUETOOTH® DEVICE
PAIRING SECTION 48-50
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Page 4 of 56
2

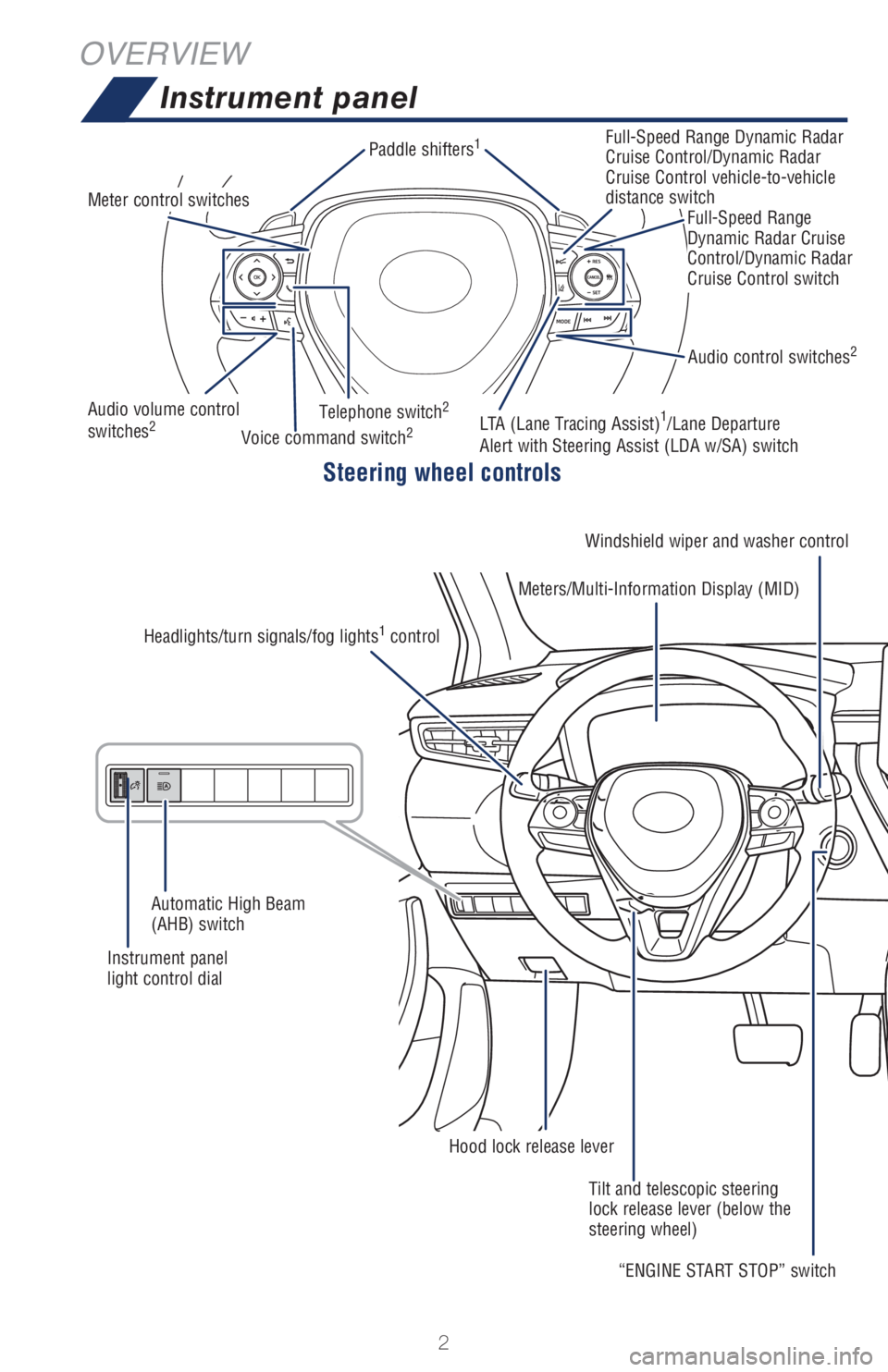

OVERVIEWInstrument panel
Steering wheel controls
Windshield wiper and washer control
Tilt and telescopic steering
lock release lever (below the
steering wheel)
Audio volume control
switches2
Audio control switches2
Meter control switches
Instrument panel
light control dial
“ENGINE START STOP” switch
Hood lock release lever
Meters/Multi-Information Display (MID)
Automatic High Beam
(AHB) switch Paddle shifters
1
Telephone switch2
Voice command switch2
Full-Speed Range Dynamic Radar
Cruise Control/Dynamic Radar
Cruise Control vehicle-to-vehicle
distance switch
LTA (Lane Tracing Assist)
1/Lane Departure
Alert with Steering Assist (LDA w/SA) switch
Full-Speed Range
Dynamic Radar Cruise
Control/Dynamic Radar
Cruise Control switch
Headlights/turn signals/fog lights1 control
Page 5 of 56

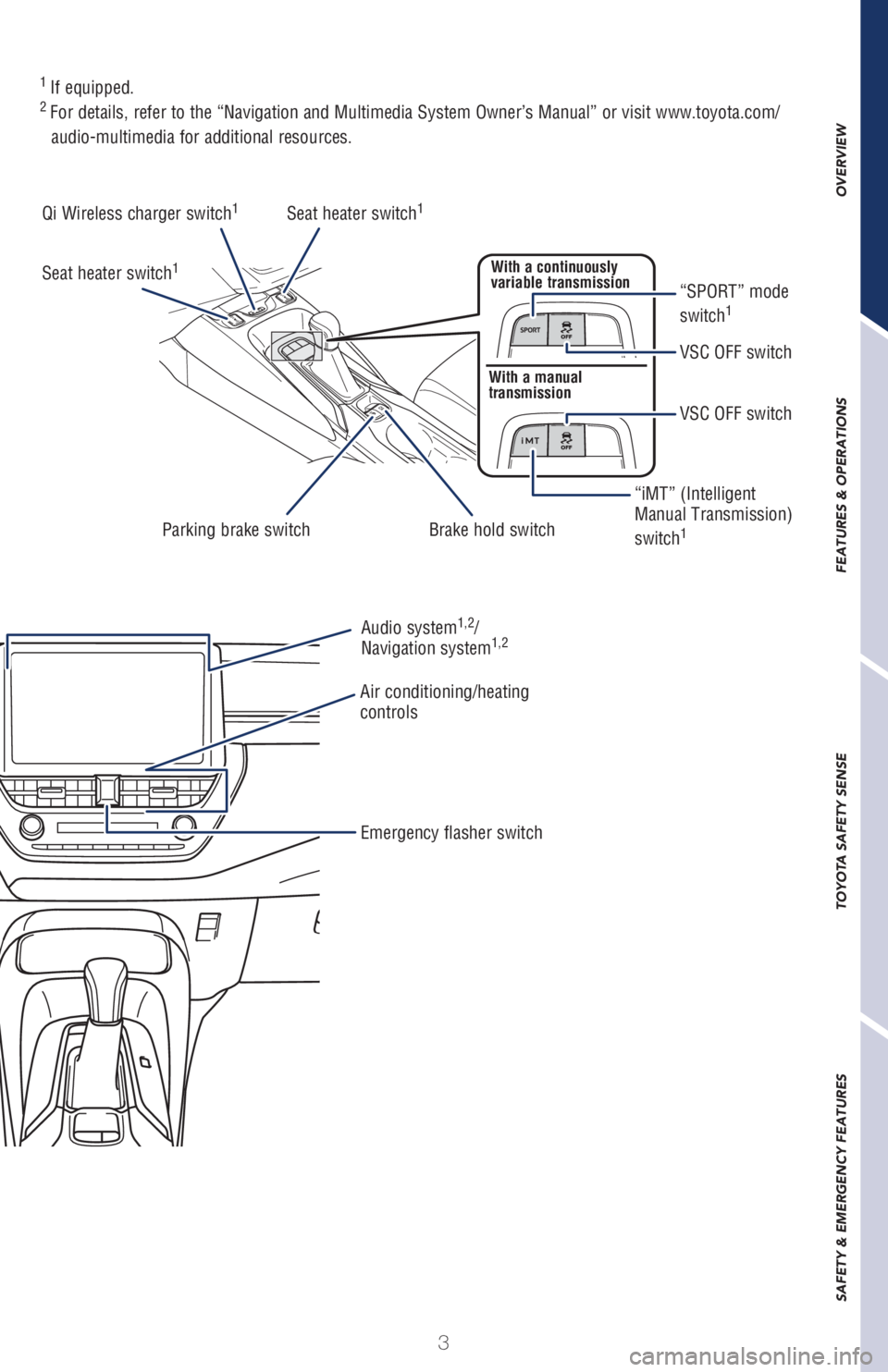

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Emergency flasher switch
Seat heater switch1
Parking brake switch Brake hold switchVSC OFF switch
VSC OFF switch “SPORT” mode
switch
1
“iMT” (Intelligent
Manual Transmission)
switch
1
Qi Wireless charger switch1Seat heater switch1
With a continuously
variable transmission
With a manual
transmission
1 If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’s M\
anual” or visit www.toyota.com/
audio-multimedia for additional resources.
Audio system1,2/
Navigation system1,2
Air conditioning/heating
controls
Page 6 of 56
4

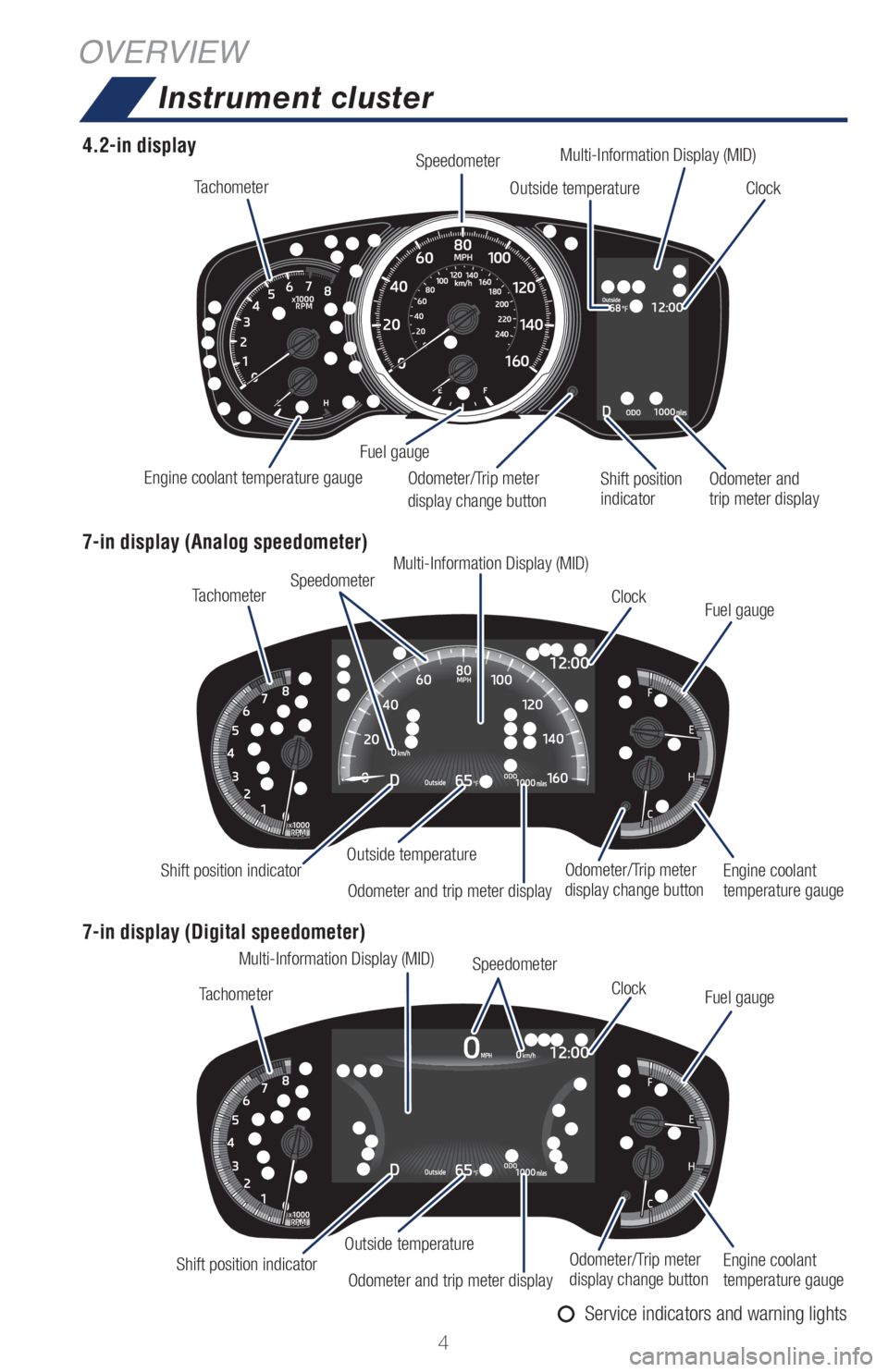

OVERVIEWInstrument cluster
Tachometer
Tachometer Tachometer Speedometer
Speedometer Speedometer Outside temperature
Outside temperature
Outside temperature
Engine coolant temperature gauge
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button
Odometer and trip meter display
Odometer and trip meter display Shift position
indicator
Shift position indicator
Shift position indicator Fuel gauge
Fuel gauge
Fuel gaugeClock
Clock
Clock
Multi-Information Display (MID)
Multi-Information Display (MID)
Multi-Information Display (MID) Odometer and
trip meter display
Engine coolant
temperature gauge
Engine coolant
temperature gauge
4.2-in display
7-in display (Analog speedometer)
7-in display (Digital speedometer)
Service indicators and warning lights
Page 7 of 56
5
Security indicator
Smart Key system indicator
SPORT mode indicator4
Turn signal indicator
Vehicle Stability Control (VSC) OFF
indicator1
Rear passengers’ seat belt reminder
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
For details, refer to “Warning lights and indicators,” Section 2-1, 2\
021 Owner’s
Manual.
Airbag SRS warning1
iMT indicator (orange/green)1,4
Low fuel level warning
Low engine oil pressure warning
Low outside temperature indicator
Low tire pressure warning1
Malfunction/Check engine indicator1
Parking brake indicator2
Pre-Collision System (PCS) warning1,2
Lane Tracing Assist (LTA)4/
Lane Departure Alert (LDA) indicator
(white/green/orange
3)
High coolant temperature warning
Auto EPB OFF indicator1,4
Automatic High Beam (AHB) indicator
Blind Spot Monitor (BSM) indicator4
BSM outside rear view mirror indicators1,4
Brake hold operated indicator1,2
Brake hold standby indicator1
Brake system warning1
Brake system warning (yellow)1
Charging system warning1
ECO driving indicator light1,4
Driver’s and front passenger’s seat belt
reminder (alarm will sound when the engine
switch is in the “IGNITION ON” mode)
Electric power steering system warning
(red/yellow)1
Front fog light indicator4
Fuel tank door position
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC) indicator/
DRCC SET indicator
Headlight low/high beam
indicators
Brake Override System/Drive-Start
Control warning
1 If the indicator does not turn off within a few seconds of starting the en\
gine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owne\
r’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Anti-lock Brake System (ABS) warning1
“AIR BAG ON/OFF” indicator1
Slip indicator1,3
RCTA OFF indicator1,2,4
Indicator symbols
Page 8 of 56
6

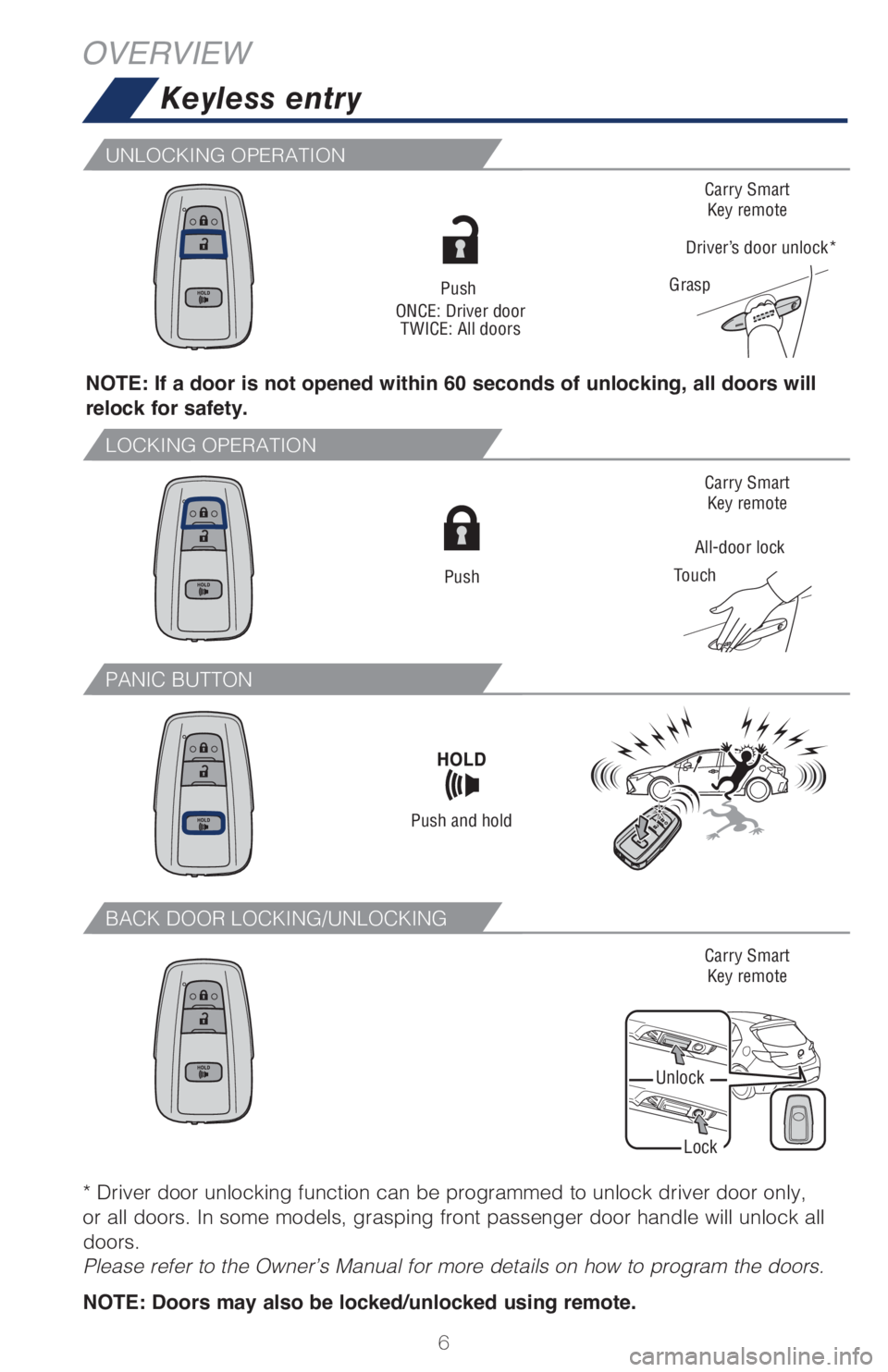

Keyless entry
Push
ONCE: Driver door TWICE: All doors
Push
Push and hold
OVERVIEW
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
All-door lock
Touch Carry Smart
Key remote
Carry Smart Key remote
Carry Smart Key remote
Grasp
Driver’s door unlock*
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
* Driver door unlocking function can be programmed to unlock driver door \
only,
or all doors. In some models, grasping front passenger door handle will un\
lock all
doors.
Please refer to the Owner’s Manual for more details on how to program the d\
oors.
NOTE: Doors may also be locked/unlocked using remote.
Unlock
Lock
Page 9 of 56
7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Smart Key system
NOTE: The Smart Key must be carried to enable the start function. With
the gear shift lever in Park* or N** and the brake pedal* or clutch pedal**
depressed, push the “ENGINE START STOP” switch.
Without depressing the brake pedal* or clutch pedal**, pressing the “ENGINE
START STOP” switch will change the operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Fuel tank door release & cap
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check engine “
”
indicator may illuminate.
Turn to open
Store
Close
* Available only on vehicles with continuously variable transmissions
** Available only on vehicles with manual transmissions
Page 10 of 56

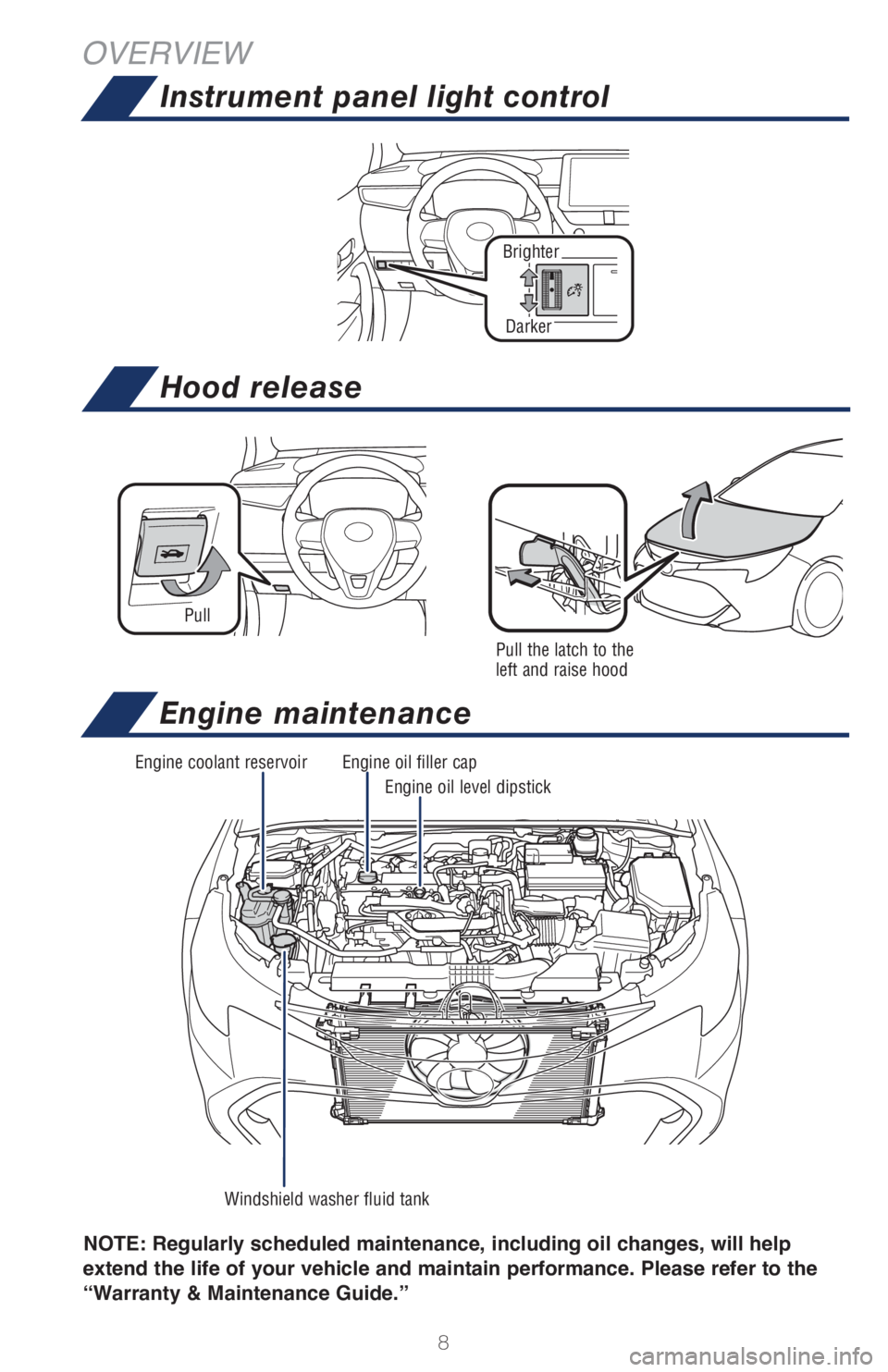

8
Brighter
OVERVIEW
Darker
Instrument panel light control
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Pull the latch to the
left and raise hood
Pull
Hood release
Engine maintenance
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
