traction control TOYOTA COROLLA HATCHBACK 2021 Owners Manual (in English)

46

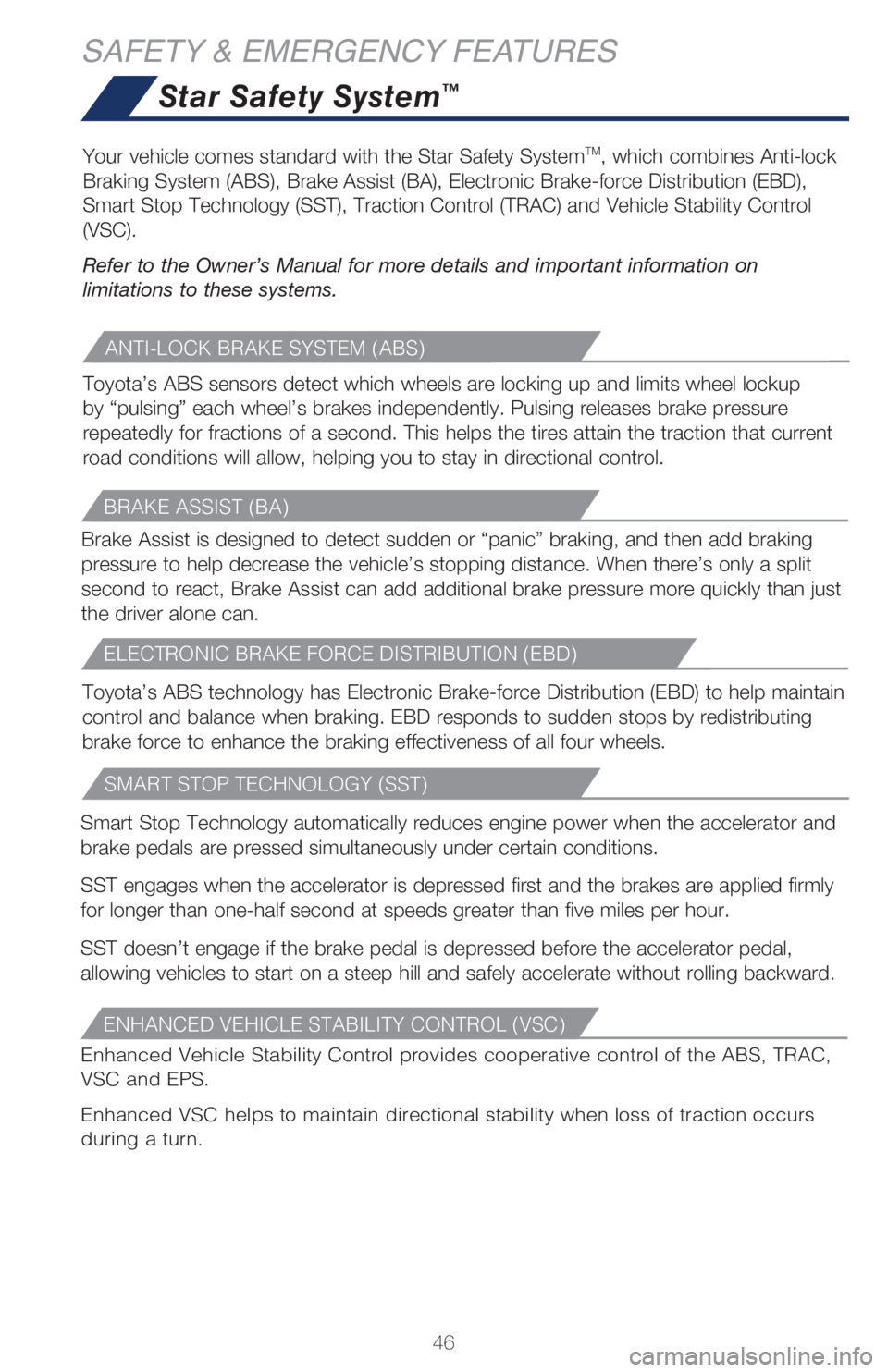

SAFETY & EMERGENCY FEATURESStar Safety System
™
Your vehicle comes standard with the Star Safety SystemTM, which combines Anti-lock
Braking System (ABS), Brake Assist (BA), Electronic Brake-force Distributio\
n (EBD),
Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Stabilit\
y Control
(VSC).
Refer to the Owner’s Manual for more details and important information on
limitations to these systems.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases \
brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction tha\
t current
road conditions will allow, helping you to stay in directional control.
ANTI-LOCK BRAKE SYSTEM (ABS)
Brake Assist is designed to detect sudden or “panic” braking, and then \
add braking
pressure to help decrease the vehicle’s stopping distance. When there’s on\
ly a split
second to react, Brake Assist can add additional brake pressure more quickly t\
han just
the driver alone can.
BRAKE ASSIST (BA)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help \
maintain
control and balance when braking. EBD responds to sudden stops by redistributin\
g
brake force to enhance the braking effectiveness of all four wheels.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
ENHANCED VEHICLE STABILITY CONTROL (VSC)
Enhanced Vehicle Stability Control provides cooperative control of the ABS, TRAC\
,
VSC and EPS.
Enhanced VSC helps to maintain directional stability when loss of traction occur\
s
during a turn.
Smart Stop Technology automatically reduces engine power when the accelerator\
and
brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are appl\
ied firmly
for longer than one-half second at speeds greater than five miles per hour.\

SST doesn’t engage if the brake pedal is depressed before the accelerato\
r pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling\
backward.
SMART STOP TECHNOLOGY (SST)

47
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

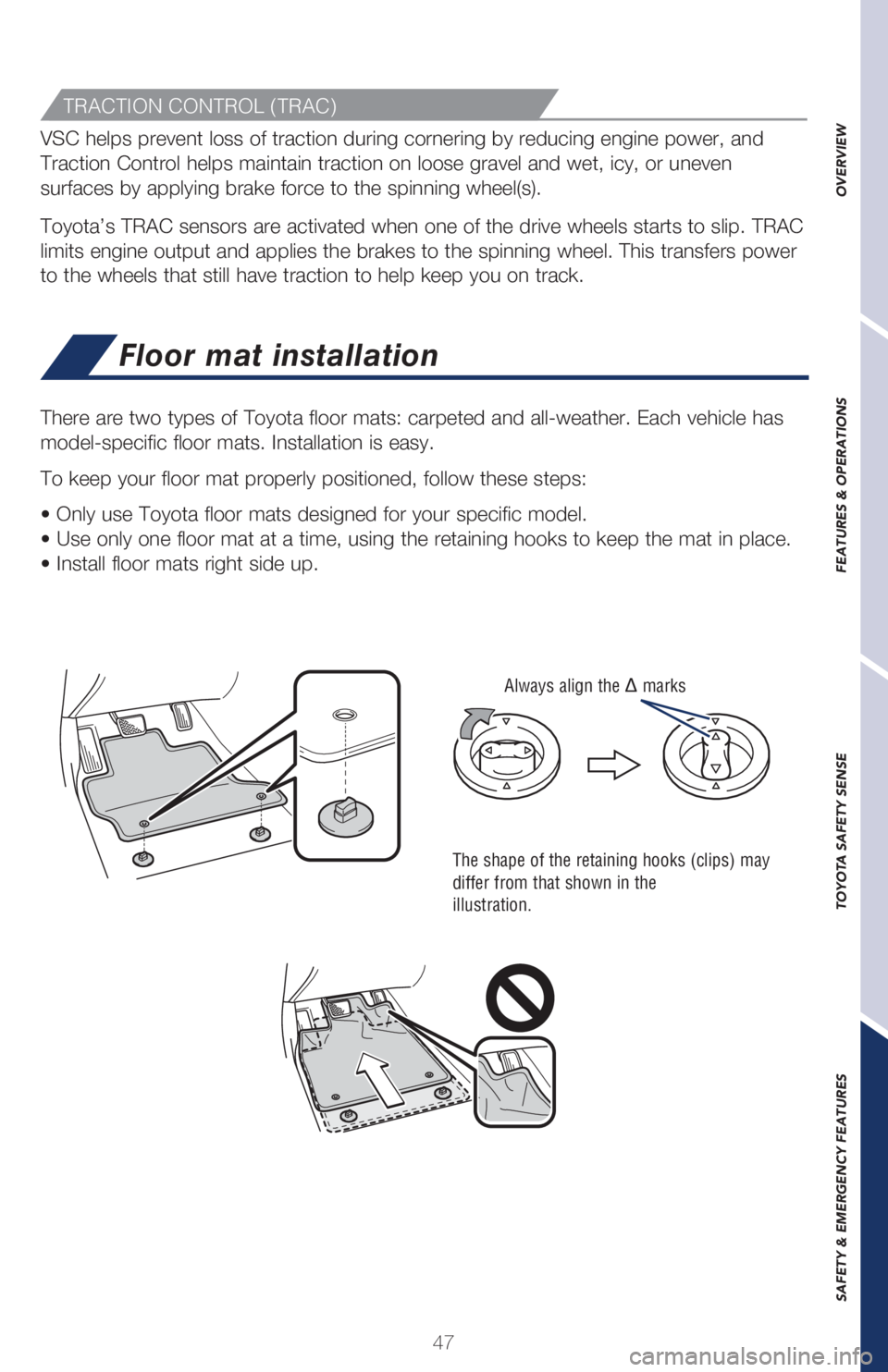

Floor mat installation
There are two types of Toyota floor mats: carpeted and all-weather. Each vehi\
cle has
model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the\
mat in place.
• Install floor mats right side up.
The shape of the retaining hooks (clips) may
differ from that shown in the
illustration.
Always align the marks
VSC helps prevent loss of traction during cornering by reducing engine powe\
r, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven\

surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.\
TRAC
limits engine output and applies the brakes to the spinning wheel. This transf\
ers power
to the wheels that still have traction to help keep you on track.
TRACTION CONTROL (TRAC)
