49Maintenance Log
MAINTENANCE LOG
MAINTENANCE
90,000 miles or 108 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following: _Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and
brake pads/discs
4
_Drive belts
_ Drive shaft boots
_ Engine coolant
5
_Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:
6
Replace manual transmission oil
Tighten nuts and bolts on chassis and body
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Inspect thickness measurement and disc runout.5 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fuel tank cap gasket
_ Radiator and condenser
_ Steering gear
_ Steering linkage and boots
_ Transmission for signs of leakage
145650_WMG COROLLA_HATCHBACK_GUTS.indd 493/18/20 3:19 PM

50Maintenance Log
MAINTENANCE LOG
MAINTENANCE
95,000 miles or 114 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
100,000 miles or 120 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine coolant4
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Tighten nuts and bolts on chassis
and body
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
145650_WMG COROLLA_HATCHBACK_GUTS.indd 503/18/20 3:19 PM

51Maintenance Log
MAINTENANCE LOG
MAINTENANCE
105,000 miles or 126 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_Ball joints and dust covers _ Engine coolant5
_
Brake lines and hoses _ Exhaust pipes and mountings
_ Cabin air filter _ Radiator and condenser
_ Drive belts _ Steering gear
_ Drive shaft boots
_ Steering linkage and boots
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced airflow from the air conditioner and heater or if the windows fog easily when
you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. Refer to “Engine
Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.
5 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
145650_WMG COROLLA_HATCHBACK_GUTS.indd 513/18/20 3:19 PM

52Maintenance Log
MAINTENANCE LOG
MAINTENANCE
110,000 miles or 132 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
8
Tighten nuts and bolts on chassis
and body
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
115,000 miles or 138 months
Add Toyota EFI Tank Additive or
equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
8
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
145650_WMG COROLLA_HATCHBACK_GUTS.indd 523/18/20 3:19 PM

53Maintenance Log
MAINTENANCE LOG
MAINTENANCE
120,000 miles or 144 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Replace spark plugs4
Rotate tires
Inspect the following: _Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and
brake pads/discs
5
_Drive belts
_ Drive shaft boots
_ Engine coolant
6
_Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:
8
Replace transmission fluid or oil
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace continuously variable transmission (CV T ) fluid
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2 Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3 Perform these service items only if you drive primarily under the conditions indicated. 4 Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty. 5 Inspect thickness measurement and disc runout.6 Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7 Replace the vacuum pump vane and the vacuum pump vane caps with new ones and never reuse the vacuum pump vane
and the vacuum pump vane caps.
8 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fuel tank cap gasket
_ Radiator and condenser
_ Steering gear
_ Steering linkage and boots
_ Transmission for signs of leakage
_ Vacuum pump for brake booster
7
145650_WMG COROLLA_HATCHBACK_GUTS.indd 533/18/20 3:19 PM

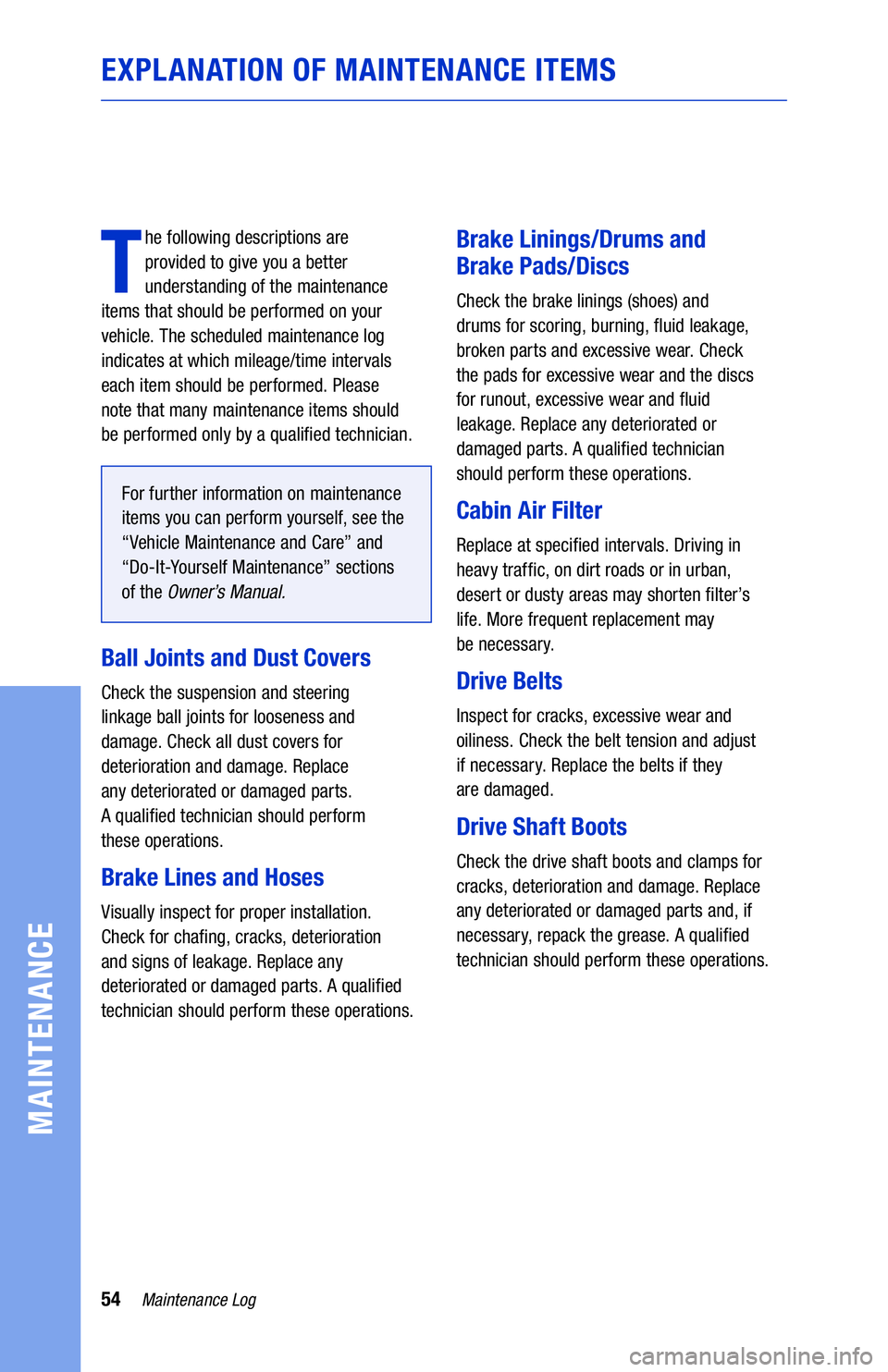

54Maintenance Log
MAINTENANCE
T
he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualied technician.
For further information on maintenance
items you can perform yourself, see the
“Vehicle Maintenance and Care” and
“Do-It-Yourself Maintenance” sections
of the Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering
linkage ball joints for looseness and
damage. Check all dust covers for
deterioration and damage. Replace
any deteriorated or damaged parts.
A qualied technician should perform
these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chang, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualied
technician should perform these operations.
Brake Linings/Drums and
Brake Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, uid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and uid
leakage. Replace any deteriorated or
damaged parts. A qualied technician
should perform these operations.
Cabin Air Filter
Replace at specied intervals. Driving in
heavy trafc, on dirt roads or in urban,
desert or dusty areas may shorten lter’s
life. More frequent replacement may
be necessary.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they
are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for
cracks, deterioration and damage. Replace
any deteriorated or damaged parts and, if
necessary, repack the grease. A qualied
technician should perform these operations.
EXPLANATION OF MAINTENANCE ITEMS
145650_WMG COROLLA_HATCHBACK_GUTS.indd 543/18/20 3:19 PM

55Maintenance Log
MAINTENANCE
Driver’s Floor Mat
•
Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
•
Always properly secure the driver’s
floor mat using the retaining hooks.
•
Never install another floor mat on top
of the existing driver’s floor mat.
•
Never install the driver’s floor mat
upside down.
Engine Air Filter
Inspect or replace at specied intervals.
When performing inspections, check for
damage, excessive wear and oiliness, and
replace if necessary.
Engine Coolant
Drain the cooling system and rell with
an ethylene-glycol type coolant. Inspect
the radiator, condenser and/or intercooler
for leaves, dirt and insects, and clean if
necessary. Inspect hoses and connections
for corrosion and leaks. Tighten connections
and replace parts when necessary. A qualied
technician should perform these operations.
(For further details, refer to Radiator, Condenser
and Hoses in the Vehicle Maintenance and
Care section of the Owner’s Manual ).
Your Toyota is equipped with Genuine
Toyota Super Long-Life Coolant. The
replacement intervals for engine coolant
recommended in this booklet are based
on replacement with Genuine Toyota
Super Long-Life Coolant or similar
high-quality non-silicate, non-amine,
non-borate ethylene-glycol coolant with
long-life hybrid organic acid technology
(i.e., a combination of low phosphates
and organic acids). If another type of
ethylene-glycol coolant is used,
replacement intervals may be different.
EXPLANATION OF MAINTENANCE ITEMS
145650_WMG COROLLA_HATCHBACK_GUTS.indd 553/18/20 3:19 PM

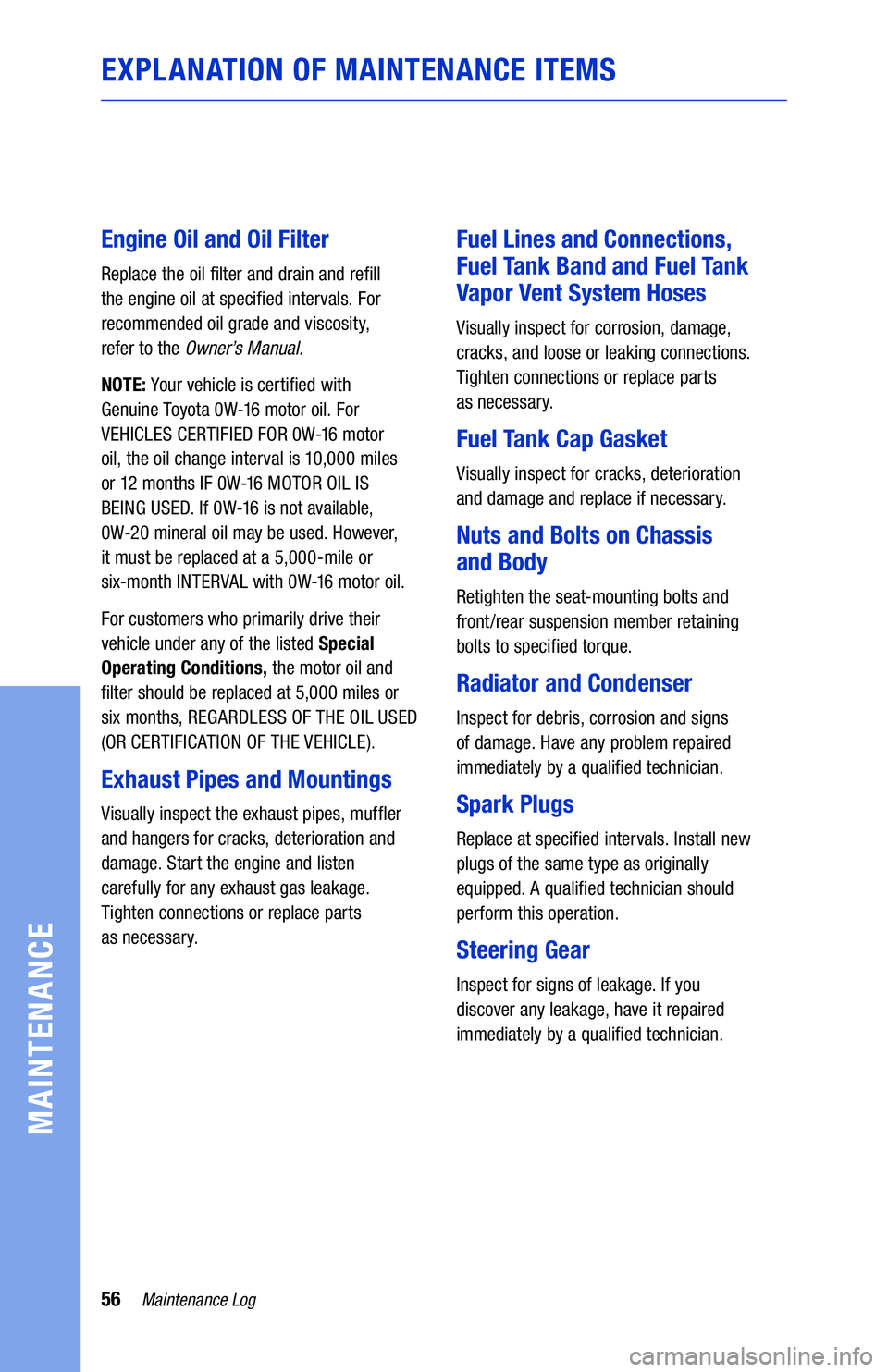

56Maintenance Log
MAINTENANCE
EXPLANATION OF MAINTENANCE ITEMS
Engine Oil and Oil Filter
Replace the oil lter and drain and rell
the engine oil at specied intervals. For
recommended oil grade and viscosity,
refer to the Owner’ s Manual.
NOTE: Your vehicle is certied with
Genuine Toyota 0W-16 motor oil. For
VEHICLES CERTIFIED FOR 0W-16 motor
oil, the oil change interval is 10,000 miles
or 12 months IF 0W-16 MOTOR OIL IS
BEING USED. If 0W-16 is not available,
0W-20 mineral oil may be used. However,
it must be replaced at a 5,000-mile or
six-month INTERVAL with 0W-16 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
lter should be replaced at 5,000 miles or
six months, REGARDLESS OF THE OIL USED
(OR CERTIFICATION OF THE VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, mufer
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts
as necessary.
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts
as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis
and Body
Retighten the seat-mounting bolts and
front /rear suspension member retaining
bolts to specied torque.
Radiator and Condenser
Inspect for debris, corrosion and signs
of damage. Have any problem repaired
immediately by a qualied technician.
Spark Plugs
Replace at specied intervals. Install new
plugs of the same type as originally
equipped. A qualied technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualied technician.
145650_WMG COROLLA_HATCHBACK_GUTS.indd 563/18/20 3:19 PM

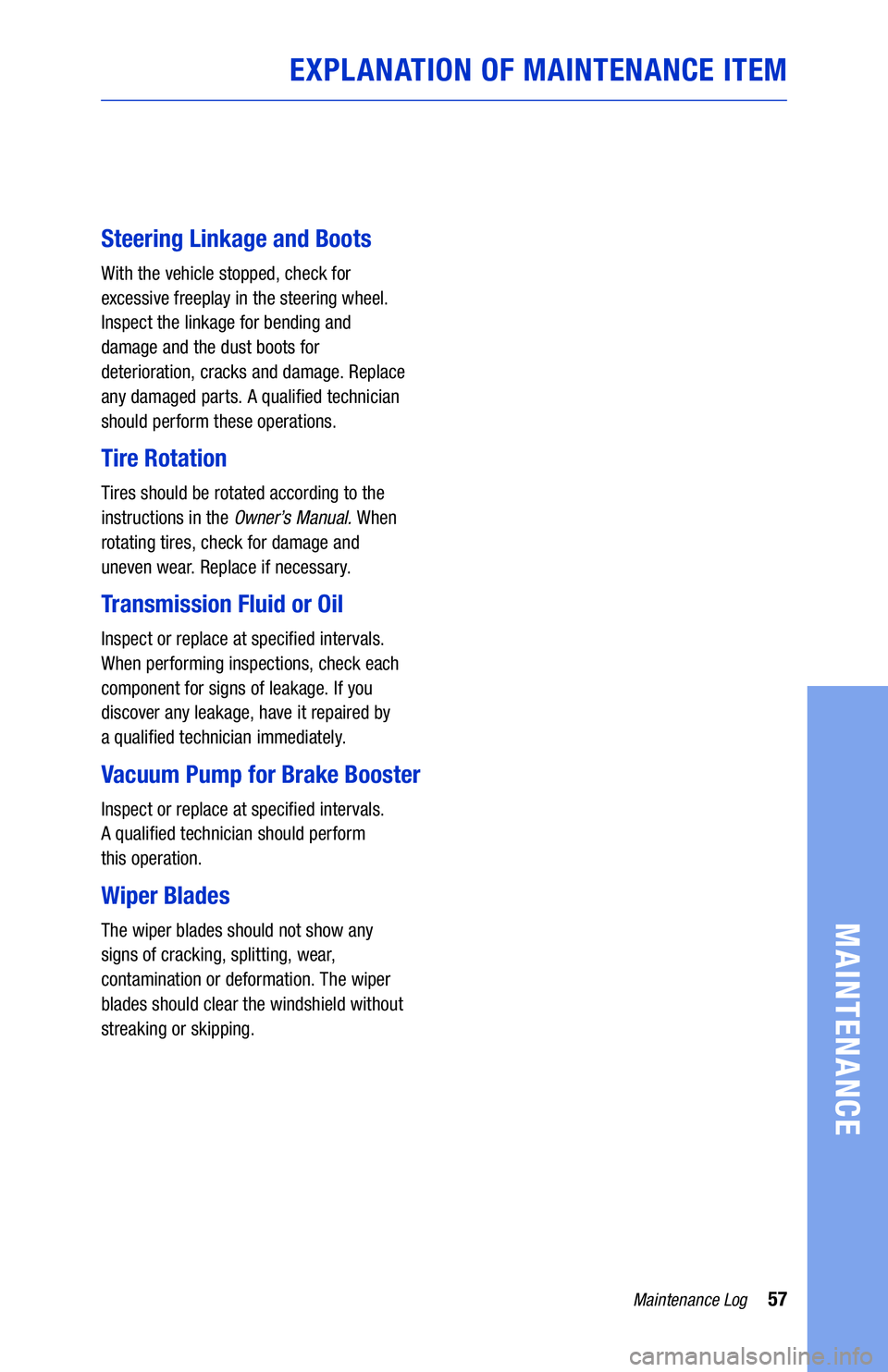

57Maintenance Log
MAINTENANCE
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualied technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Transmission Fluid or Oil
Inspect or replace at specied intervals.
When performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by
a qualied technician immediately.
Vacuum Pump for Brake Booster
Inspect or replace at specied intervals.
A qualied technician should perform
this operation.
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The wiper
blades should clear the windshield without
streaking or skipping.
EXPLANATION OF MAINTENANCE ITEM
145650_WMG COROLLA_HATCHBACK_GUTS.indd 573/18/20 3:19 PM

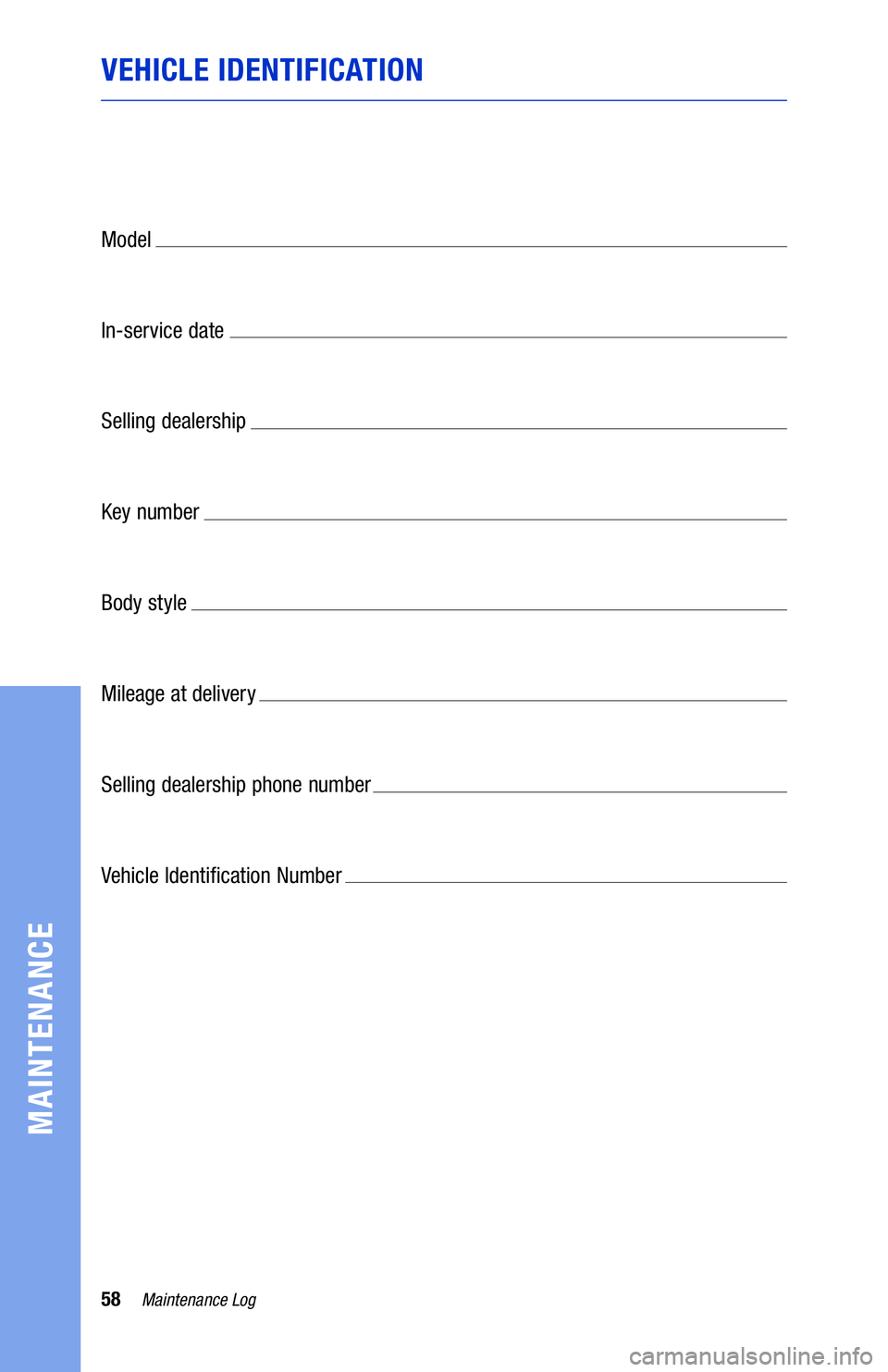

58Maintenance Log
MAINTENANCE
Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identication Number


VEHICLE IDENTIFICATION
145650_WMG COROLLA_HATCHBACK_GUTS.indd 583/18/20 3:19 PM
