engine TOYOTA COROLLA HATCHBACK 2022 Owners Manual (in English)

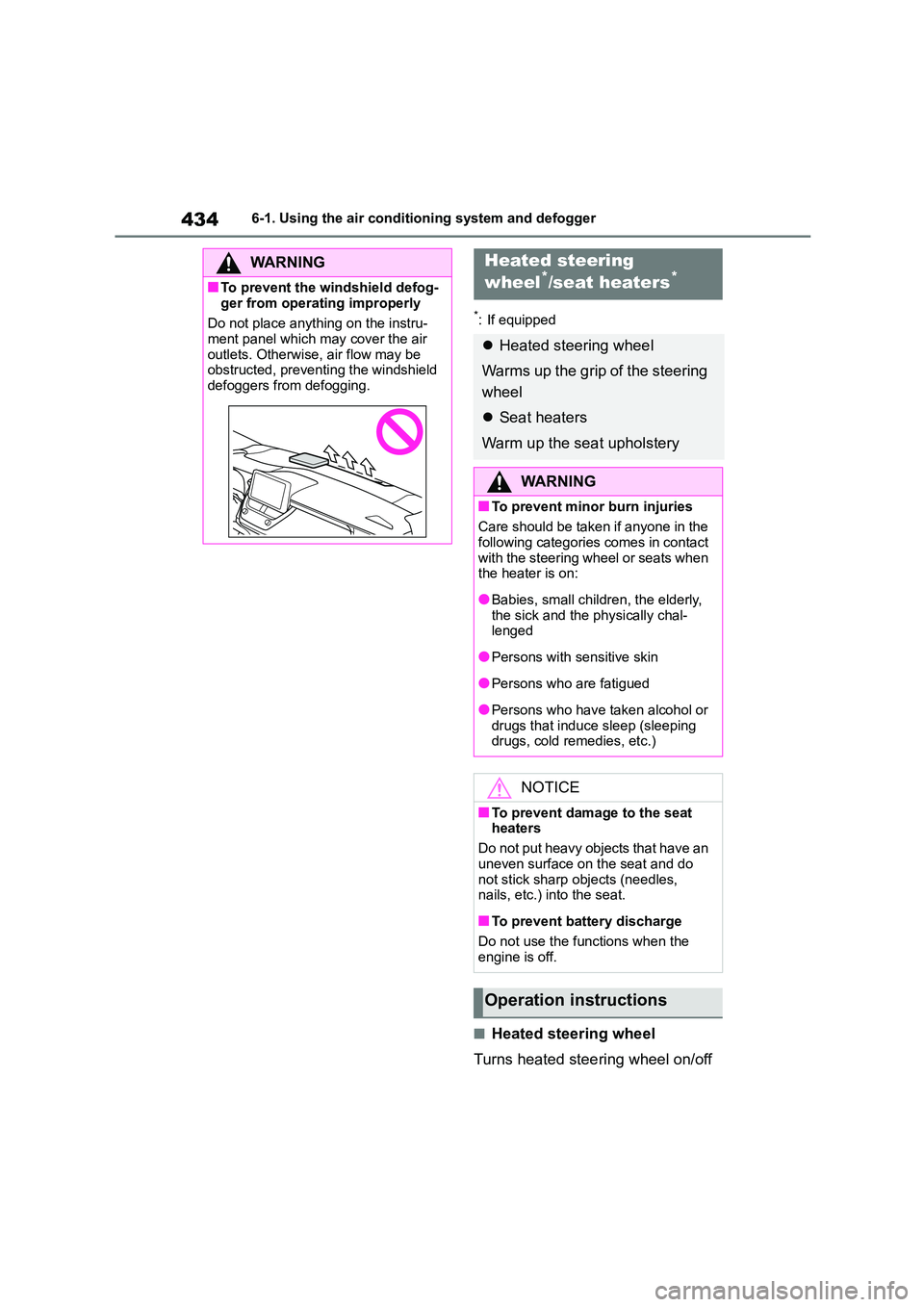

4346-1. Using the air conditioning system and defogger
*: If equipped
■Heated steering wheel
Turns heated steering wheel on/off
WA R N I N G
■To prevent the windshield defog-
ger from operating improperly
Do not place anything on the instru- ment panel which may cover the air
outlets. Otherwise, air flow may be
obstructed, preventing the windshield defoggers from defogging.
Heated steering
wheel*/seat heaters*
 Heated steering wheel
Warms up the grip of the steering
wheel
 Seat heaters
Warm up the seat upholstery
WA R N I N G
■To prevent minor burn injuries
Care should be taken if anyone in the
following categories comes in contact
with the steering wheel or seats when the heater is on:
●Babies, small children, the elderly, the sick and the physically chal-
lenged
●Persons with sensitive skin
●Persons who are fatigued
●Persons who have taken alcohol or
drugs that induce sleep (sleeping drugs, cold remedies, etc.)
NOTICE
■To prevent damage to the seat
heaters
Do not put heavy objects that have an
uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■To prevent battery discharge
Do not use the functions when the
engine is off.
Operation instructions

435
6
6-1. Using the air conditioning system and defogger
Interior features

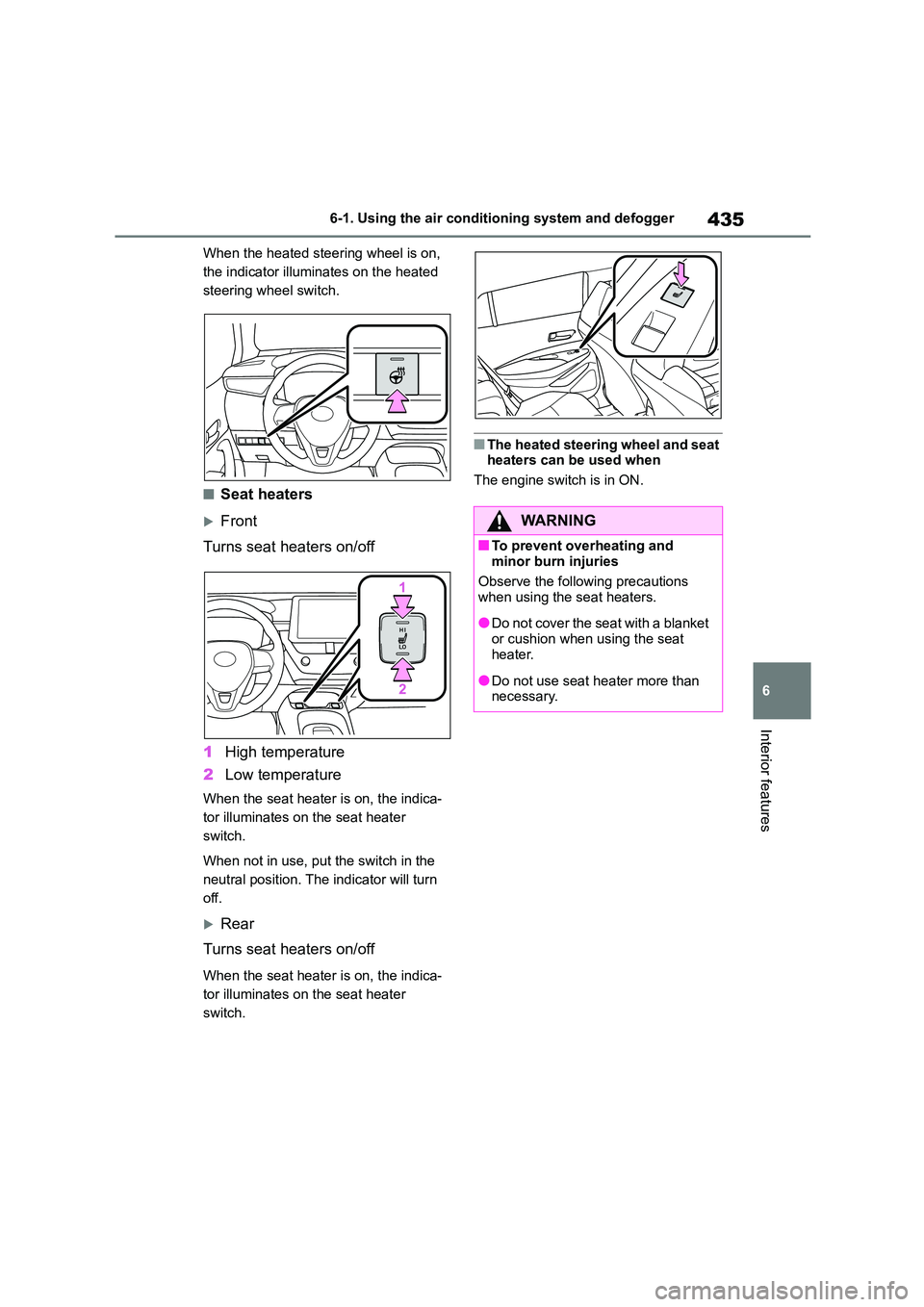

When the heated steering wheel is on,
the indicator illuminates on the heated
steering wheel switch.
■Seat heaters
Front
Turns seat heaters on/off
1 High temperature
2 Low temperature
When the seat heater is on, the indica-
tor illuminates on the seat heater
switch.
When not in use, put the switch in the
neutral position. The indicator will turn
off.
Rear
Turns seat heaters on/off
When the seat heater is on, the indica-
tor illuminates on the seat heater
switch.
■The heated steering wheel and seat heaters can be used when
The engine switch is in ON.
WA R N I N G
■To prevent overheating and
minor burn injuries
Observe the following precautions
when using the seat heaters.
●Do not cover the seat with a blanket
or cushion when using the seat
heater.
●Do not use seat heater more than
necessary.

437
6
6-2. Using the interior lights
Interior features
1 Turns the door position on/off
When a door is opened while the door
position is on, the lights turn on.
2 Turns the lights on/off
■Rear (if equipped)
1 Turns the door position on
The rear interior light turns on/off
together the front interior lights.
When a door is opened while the front
and rear interior light door position is
on, the lights turn on.
2 Turns the light on
■Front
Turns the lights on/off
■Rear (wagon) (if equipped)
Turns the lights on/off
■Illuminated entry system
The lights automatically turn on/off
according to the engine switch mode
(position), the presence of the electronic key (vehicles with a smart entry & start
system), whether the doors are
locked/unlocked, and whether the doors are opened/closed.
■To prevent the battery from being
discharged
If the interior lights remain on when the engine switch is turned off, the lights will
go off automatically after 20 minutes.
■The interior lights may turn on
automatically when
If any of the SRS airbags deploy (inflate)
or in the event of a strong rear impact,
the interior lights will turn on automati- cally.
The interior lights will turn off automati-
cally after approximately 20 minutes. The interior lights can be turned off man-
ually. However, in order to help prevent
further collisions, it is recommended that they be left on until safety can be
ensured.
(The interior lights may not turn on auto-
matically depending on the force of the impact and conditions of the collision.)
■Customization
Some functions can be customized.
( P.577)
Operating the personal
lights

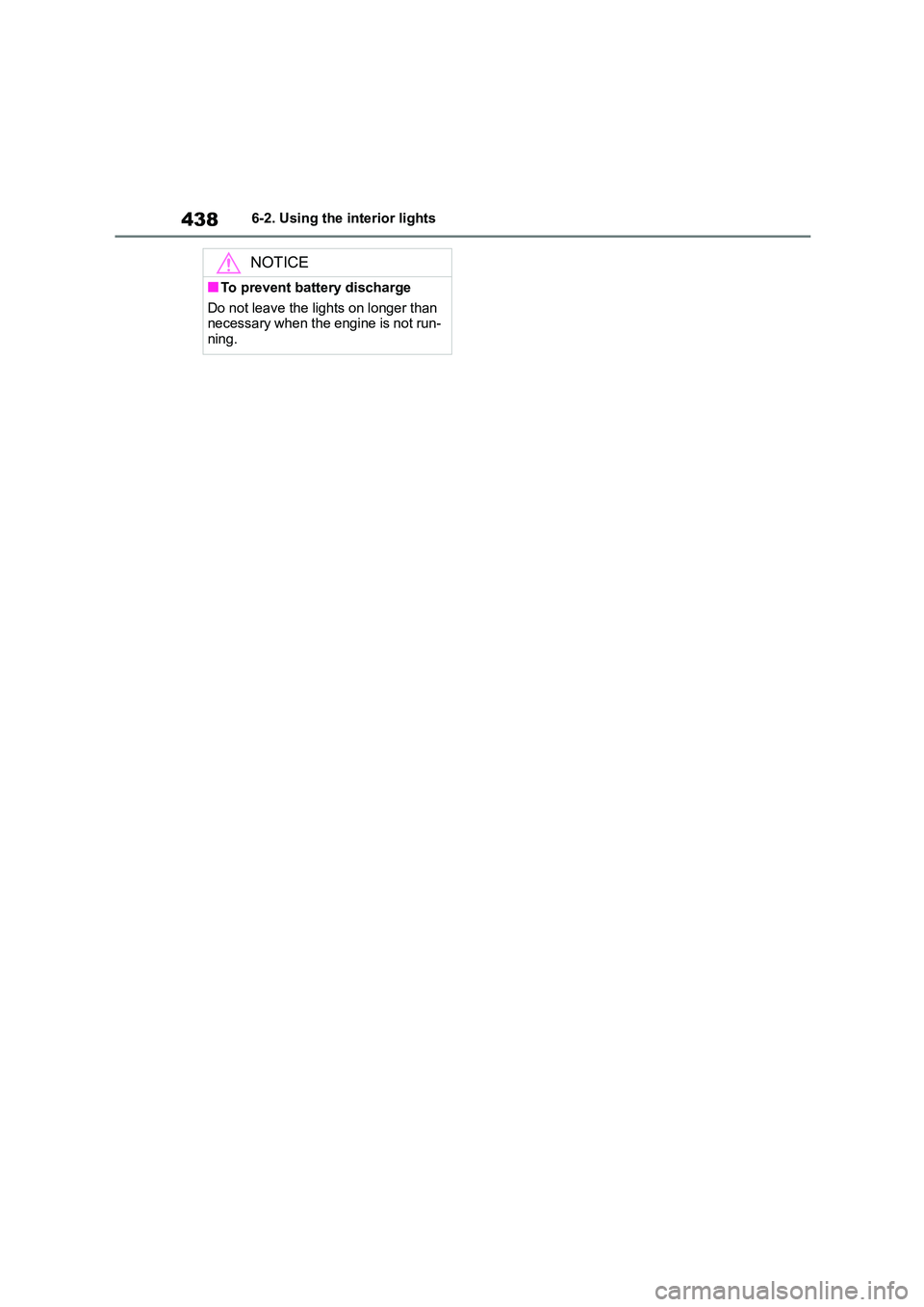

4386-2. Using the interior lights
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than
necessary when the engine is not run- ning.

451
6
6-4. Other interior features
Interior features
6-4.Other interior features
The USB charging port are used to
supply 2.1 A of electricity at 5 V to
external devices.
The USB charging port are for
charging only. They are not
designed for data transfer or other
purposes.
Depending on the external device,
it may not charge properly. Refer to
the manual included with the device
before using a USB charging port.
■Using the USB charging port
Open the console box lid.
■The USB charging port can be used
when
The engine switch is in ACC or ON.
■Situations in which the USB charg- ing port may not operate correctly
●If a device which consumes more than
2.1 A at 5 V is connected
●If a device designed to communicate
with a personal computer, such as a USB memory device, is connected
●If the connected external device is turned off (depending on device)
●If the temperature inside the vehicle is
high, such as afte r the vehicle has been parked in the sun
■About connected external device
Depending on the connected external
device, charging may occasionally be suspended and then start again. This is
not a malfunction.
The power outlet can be used for
12 V accessories that run on less
than 10 A.
Front
Open the console box lid and open
Other interior features
USB charging port (if
equipped)
NOTICE
■To prevent damage to the USB
charging port
●Do not insert foreign objects into
the port.
●Do not spill water or other liquids
into the port.
●Do not apply excessive force to or
impact the USB charging port.
●Do not disassemble or modify the
USB charging port.
■To prevent damage to external
devices
●Do not leave external devices in the vehicle. The temperature inside the
vehicle may become high, resulting
in damage to an external device.
●Do not push down on or apply
unnecessary force to an external device or the cable of an external
device while it is connected.
■To prevent battery discharge
Do not use the USB charging port for
a long period of time with the engine stopped.
Power outlet

4526-4. Other interior features

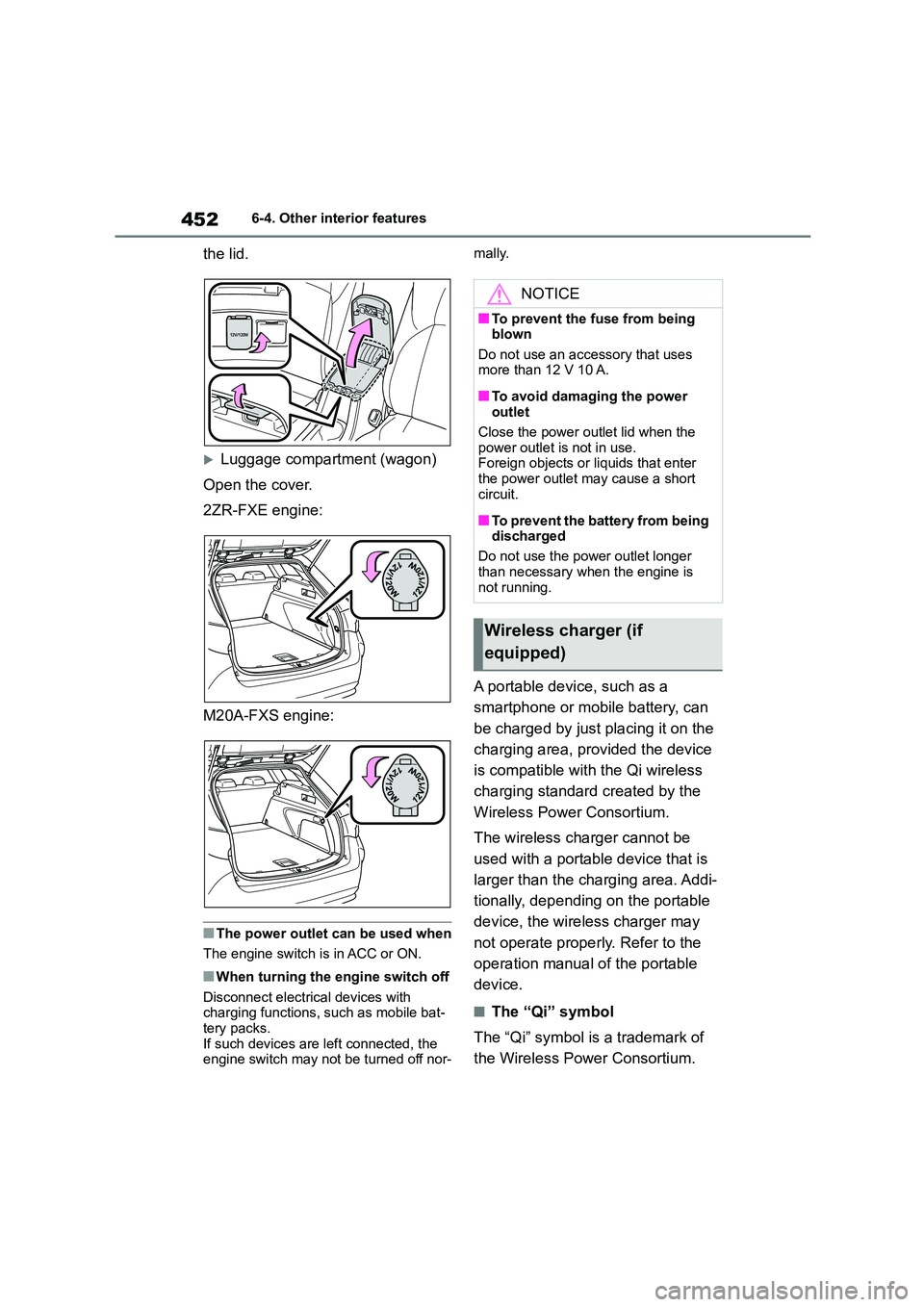

the lid.
Luggage compartment (wagon)
Open the cover.
2ZR-FXE engine:
M20A-FXS engine:
■The power outlet can be used when
The engine switch is in ACC or ON.
■When turning the engine switch off
Disconnect electrical devices with
charging functions, such as mobile bat- tery packs.
If such devices are left connected, the
engine switch may not be turned off nor-
mally.
A portable device, such as a
smartphone or mobile battery, can
be charged by just placing it on the
charging area, provided the device
is compatible with the Qi wireless
charging standard created by the
Wireless Power Consortium.
The wireless charger cannot be
used with a portable device that is
larger than the charging area. Addi-
tionally, depending on the portable
device, the wireless charger may
not operate properly. Refer to the
operation manual of the portable
device.
■The “Qi” symbol
The “Qi” symbol is a trademark of
the Wireless Power Consortium.
NOTICE
■To prevent the fu se from being blown
Do not use an accessory that uses
more than 12 V 10 A.
■To avoid damaging the power
outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter
the power outlet may cause a short circuit.
■To prevent the battery from being discharged
Do not use the power outlet longer
than necessary when the engine is not running.
Wireless charger (if
equipped)

453
6
6-4. Other interior features
Interior features
■Name for all parts
Power supply switch
Operation indicator light
Charge area
■Using the wireless charger
1 Press the power supply switch
of the wireless charger.
Pressing the switch again turns the
wireless charger off. When turned on, the operation indicator
light (green) comes on.
When the engine switch is turned off, the on/off state of the wireless charger
will be memorized.
2 Place a portable device on the
charging area with its charging
surface facing down.
While charging, the operation indicator
light (orange) will be illuminated. If charging does not begin, move the
portable device as close to the center of
the charging area as possible. When charging is complete, the opera-
tion indicator light (green) will illumi-
nate.
■Recharging function
 If a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the wire-
less charger will restart charging.
 If the portable device is moved
within the charging area, charg-
ing will stop temporarily then
restart.

4546-4. Other interior features

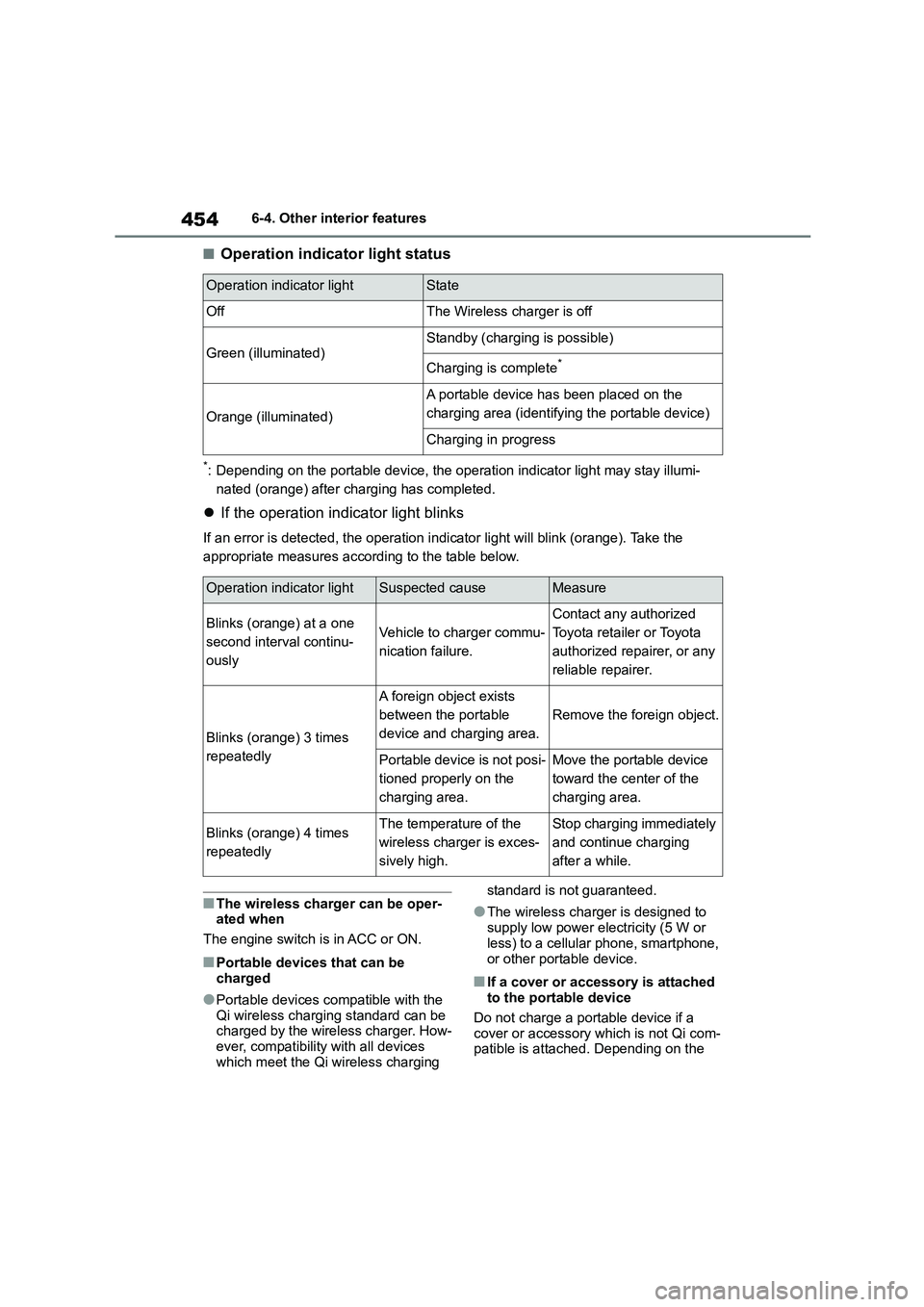

■Operation indicator light status
*: Depending on the portable device, the operation indicator light may stay illumi-
nated (orange) after charging has completed.
 If the operation indicator light blinks
If an error is detected, the operation indicator light will blink (orange). Take the
appropriate measures according to the table below.
■The wireless charger can be oper-
ated when
The engine switch is in ACC or ON.
■Portable devices that can be
charged
●Portable devices compatible with the
Qi wireless charging standard can be
charged by the wireless charger. How- ever, compatibility with all devices
which meet the Qi wireless charging
standard is not guaranteed.
●The wireless charger is designed to
supply low power electricity (5 W or
less) to a cellular phone, smartphone,
or other portable device.
■If a cover or accessory is attached to the portable device
Do not charge a portable device if a
cover or accessory which is not Qi com- patible is attached. Depending on the
Operation indicator lightState
OffThe Wireless charger is off
Green (illuminated)Standby (charging is possible)
Charging is complete*
Orange (illuminated)
A portable device has been placed on the
charging area (identifying the portable device)
Charging in progress
Operation indicator lightSuspected causeMeasure
Blinks (orange) at a one
second interval continu-
ously
Vehicle to charger commu-
nication failure.
Contact any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer.
Blinks (orange) 3 times
repeatedly
A foreign object exists
between the portable
device and charging area.
Remove the foreign object.
Portable device is not posi-
tioned properly on the
charging area.
Move the portable device
toward the center of the
charging area.
Blinks (orange) 4 times
repeatedly
The temperature of the
wireless charger is exces-
sively high.
Stop charging immediately
and continue charging
after a while.

4566-4. Other interior features
1To set the visor in the forward
position, flip it down.
2 To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The vanity light turns on. (if equipped)
NOTICE
●When there is a foreign object
between the charging area and
portable device
●When a portable device becomes
hot while charging
●When a portable device is placed
on the wireless area with its charg-
ing surface facing up
●When a portable device is not cen-
tered on the charging area
●When the vehicle is near a TV
tower, electric power plant, gas sta- tion, radio station, large display, air-
port or other facility that generates
strong radio waves or electrical noise
●When the portable device is in con-tact with, or is covered by any of the
following metallic objects:
• Cards to which aluminum foil is attached
• Cigarette boxes that have alumi- num foil inside
• Metallic wallets or bags
• Coins
• Metal hand warmers
• Media such as CDs and DVDs
●When wireless keys (that emit radio
waves) other than those of your vehicle are being used nearby.
If in situations other than above the
wireless charger does not operate
properly or the operation indicator
light is blinking, the wireless charger
may be malfunctioning. Contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■To prevent failure or damage to data
●Do not bring magnetic cards, such
as a credit card, or magnetic recording media, close to the wire-
less charger while charging. Other-
wise, data may be erased due to the influence of magnetism.
Additionally, do not bring precision
instruments such as wrist watches, close to the wireless charger, as
such objects may malfunction.
●Do not leave portable devices in the
cabin. The temperature inside the
cabin may become high when parked in the sun, and cause dam-
age to the device.
■To prevent battery discharge
Do not use the wireless charger for a
long period of time with the engine stopped.
Sun visors
Vanity mirrors

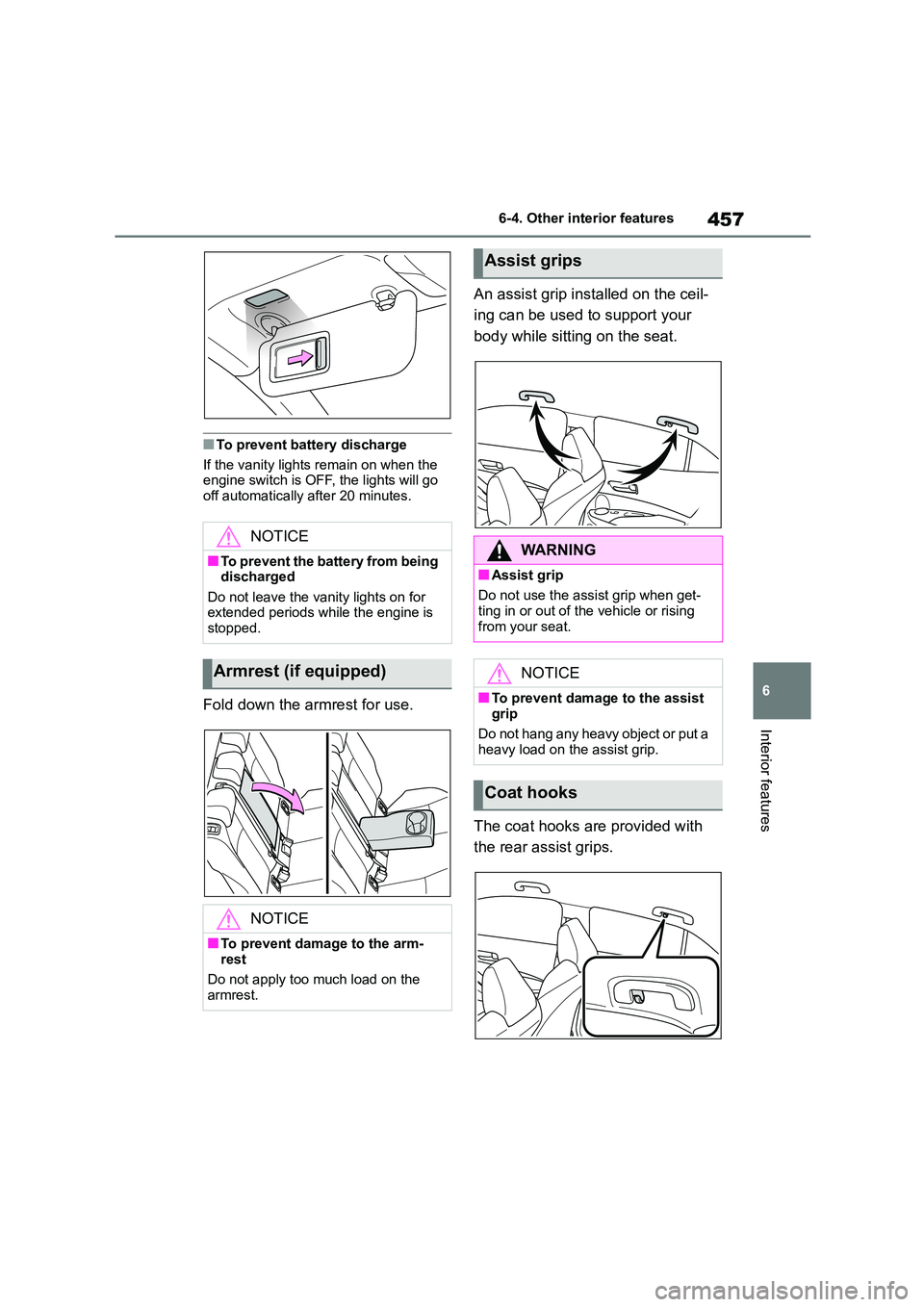

457
6
6-4. Other interior features
Interior features
■To prevent battery discharge
If the vanity lights remain on when the
engine switch is OFF, the lights will go
off automatically after 20 minutes.
Fold down the armrest for use.
An assist grip inst alled on the ceil-
ing can be used to support your
body while sitting on the seat.
The coat hooks are provided with
the rear assist grips.
NOTICE
■To prevent the battery from being discharged
Do not leave the vanity lights on for
extended periods while the engine is stopped.
Armrest (if equipped)
NOTICE
■To prevent damage to the arm-
rest
Do not apply too much load on the armrest.
Assist grips
WA R N I N G
■Assist grip
Do not use the assist grip when get-
ting in or out of the vehicle or rising
from your seat.
NOTICE
■To prevent damage to the assist
grip
Do not hang any heavy object or put a
heavy load on the assist grip.
Coat hooks
